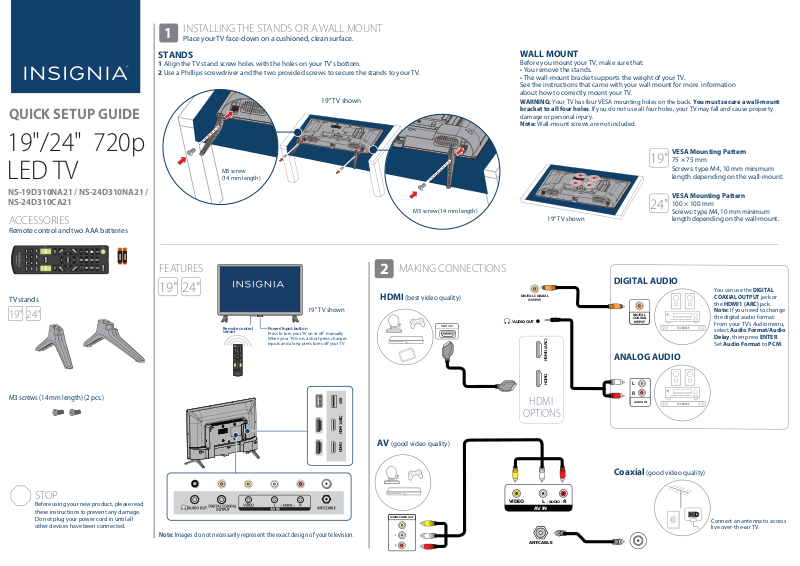

INSIGNIA NS-19D310NA21, NS-24D310NA21, NS-24D310CA21 QUICK SETUP GUIDE

INSTALLING THE STANDS OR A WALL MOUNT

Place your TV face-down on a cushioned, clean surface.

QUICK SETUP GUIDE

19"/24" 720p LED TV

NS-19D310NA21 / NS-24D310NA21 / NS-24D310CA21

ACCESSORIES

STANDS

1 Align the TV stand screw holes with the holes on your TV's bottom. 2 Use a Phillips screwdriver and the two provided screws to secure the stands to your TV.

19" TV shown

M3 screw (14 mm length)

WALL MOUNT

Before you mount your TV, make sure that:

• You remove the stands.

• The wall-mount bracket supports the weight of your TV. See the instructions that came with your wall mount for more information about how to correctly mount your TV.

WARNING: Your TV has four VESA mounting holes on the back. You must secure a wall-mount

bracket to all four holes. If you do not use all four holes, your TV may fall and cause property

damage or personal injury.

Note: Wall-mount screws are not included.

VESA Mounting Pattern

19"

24"

19" TV shown

75 × 75 mm Screws: type M4, 10 mm minimum length depending on the wall-mount.

VESA Mounting Pattern

100 × 100 mm Screws: type M4, 10 mm minimum length depending on the wall-mount.

Remote control and two AAA batteries

A C

T G

C C

AAA

TV stands

19"

24"

AAA

FEATURES

19"

24"

Remote control sensor

19" TV shown

Power/Input button

Press to turn your TV on or o manually. When your TV is on, a short press changes inputs and a long press turns o your TV.

MAKING CONNECTIONS

HDMI (best video quality)

DIGITAL COAXIAL

OUTPUT

AUDIO OUT

HDMI1 (ARC)

DIGITAL AUDIO

DIGITAL

COAXIAL

INTPUT

SOUNDBAR

ANALOG AUDIO

You can use the DIGITAL COAXIAL OUTPUT

jack or the HDMI1 (ARC) jack. Note: If you need to change the digital audio format: From your TV's Audio menu, select Audio Format/Audio Delay, then press ENTER. Set Audio Format to PCM.

M3 screws (14 mm length) (2 pcs.)

STOP

Before using your new product, please read these instructions to prevent any damage. Do not plug your power cord in until all other devices have been connected.

HDMI 1(ARC)

AV (good video quality)

HDMI 2 USB

Note: Images do not necessarily represent the exact design of your television.

AUDIO/VIDEO OUT

HDMI

PTION

VIDEO L

AV IN

ANT/CABLE

HDMI2

- AUDIO -

AUDIO IN

SOUNDBAR

Coaxial (good video quality)

Connect an antenna to access live over-the-air TV.

GAME

ASPECT

ACC

Input Source

TV HDMI1 HDMI2

USB(Photos)

TURNING ON YOUR TV

1 Plug the power cord into a power outlet.

USING YOUR REMOTE CONTROL

Power

Turns your TV on or o.

Numbers

Enter channel numbers

or the parental controls

password.

Enters a digital

sub-channel number

(for example 4.1).

INPUT

Opens the INPUT SOURCE list.

Recall

Returns to the previous channel.

FAVORITE

Opens the Favorite Channel

List.

ONEYEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

NEED ADDITIONAL HELP?

Check out our Support Community at http://community.insigniaproducts.com/ for helpful information from other Insignia TV owners.

2 Remove the remote control cover and

install the batteries.

AAA

3 Press on your remote .

4 Follow the on-screen instructions.

Easy Setup • Choose your Menu Language

Opens the TV menu.

ENTER

Conrms selections

or changes.

EXIT

Closes the TV menu.

ACC

Opens the Accessibility

menu.

Volume

Changes the volume.

ASPECT

Changes how the picture

is displayed on the screen.

SLEEP

Sets the sleep timer.

Media controls

INlink: Control HDMI-CEC

devices

USB: Control the photo

connected to

your TV.

slideshow.

Arrows

Navigate in on-screen menus.

INFO*

Opens a TV status banner.

Turns closed captioning on or o.

MUTE

Mutes the sound.

Channel

Changes the TV channels.

GAME

Adjusts the picture for the ultimate gaming


Selects the video mode.

AUDIO

Selects the audio mode.

experience.

WE’RE HERE FOR YOU

www.insigniaproducts.com For customer service, call: 1-877-467-4289 (U.S./Canada)

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, TruSurround and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED

U.S. and Canada:

INSIGNIA is a trademark of Best Buy and its aliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richeld, MN 55423 U.S.A.

English

Français

Español

FIND YOUR USER GUIDE ONLINE

1 Go to www.insigniaproducts.com. 2 Use the search bar to nd NS-19D310NA21,

NS-24D310NA21, or NS-24D310CA21.

3 Select Support & Downloads. 4 Next to User Guide, select the language you want.
