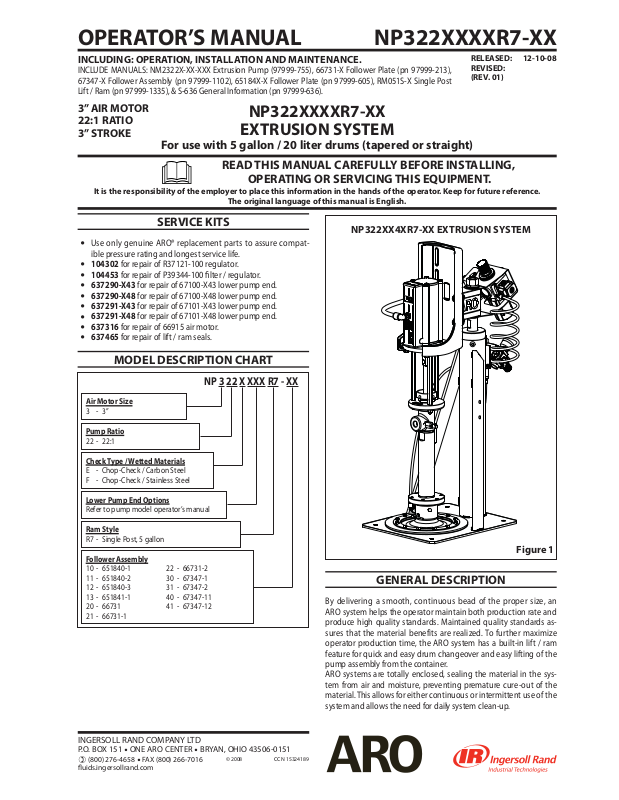

OPERATOR’S MANUAL NP322XXXXR7-XX
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE.
INCLUDE MANUALS: NM2322X-XX-XXX Extrusion Pump (97999-755), 66731-X Follower Plate (pn 97999-213),
67347-X Follower Assembly (pn 97999-1102), 65184X-X Follower Plate (pn 97999-605), RM051S-X Single Post
Lift / Ram (pn 97999-1335), & S-636 General Information (pn 97999-636).
RELEASED: 12-10-08
REVISED:
(REV. 01)
3” AIR MOTOR
22:1 RATIO
3” STROKE
NP322XXXXR7-XX
EXTRUSION SYSTEM
For use with 5 gallon / 20 liter drums (tapered or straight)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO® replacement parts to assure compat-
y
ible pressure rating and longest service life.
104302 for repair of R37121-100 regulator.
y
104453 for repair of P39344-100 lter / regulator.
y
637290-X43 for repair of 67100-X43 lower pump end.
y
637290-X48 for repair of 67100-X48 lower pump end.
y
637291-X43 for repair of 67101-X43 lower pump end.
y
637291-X48 for repair of 67101-X48 lower pump end.
y
637316 for repair of 66915 air motor.
y
637465 for repair of lift / ram seals.
y
The original language of this manual is English.

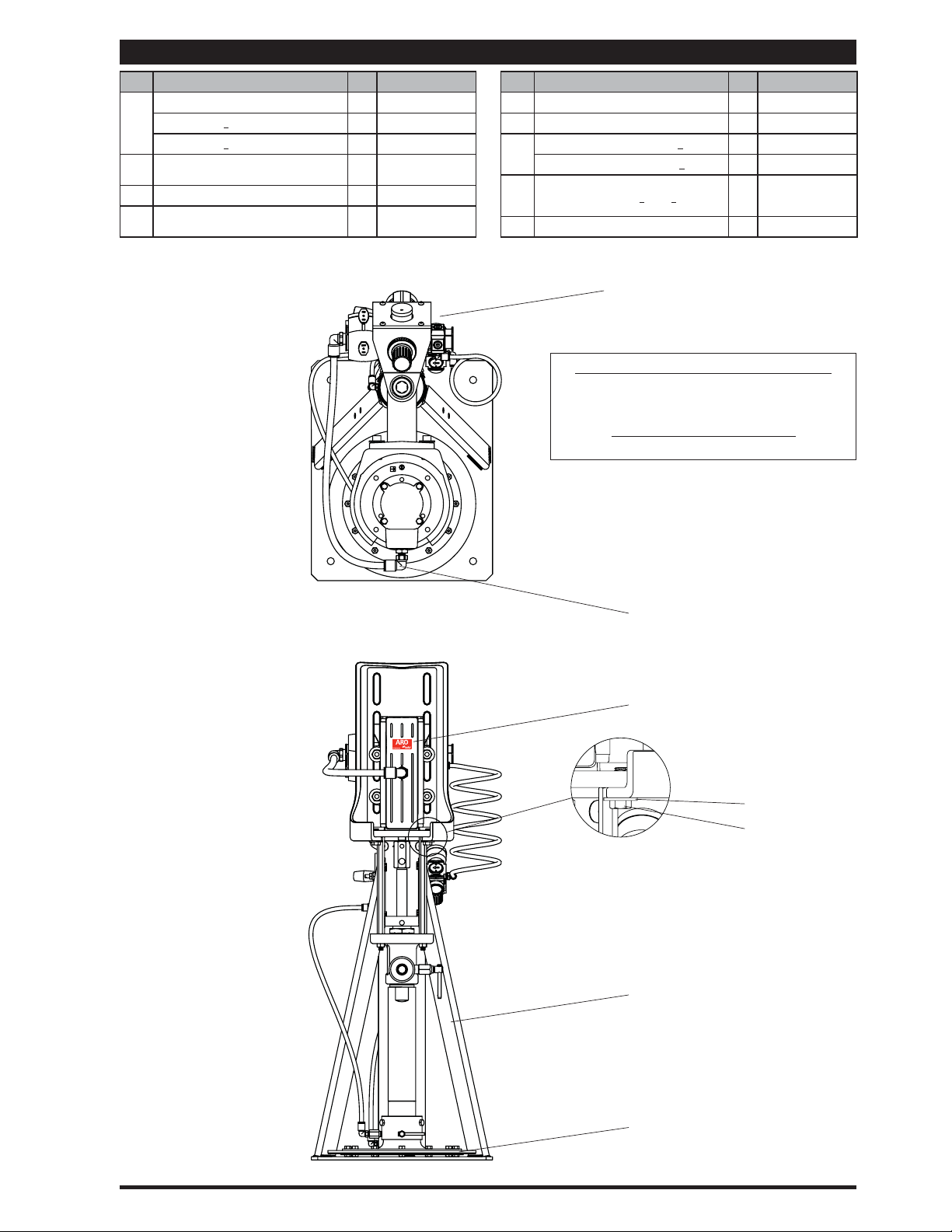

NP322XX4XR7-XX EXTRUSION SYSTEM
MODEL DESCRIPTION CHART
NP 3 22 X XXX R7 - XX
Air Motor Size
3 - 3”
Pump Ratio
22 - 22:1
Check Type / Wetted Materials
E - Chop-Check / Carbon Steel
F - Chop-Check / Stainless Steel
Lower Pump End Options
Refer to pump model operator’s manual
Ram Style
R7 - Single Post, 5 gallon

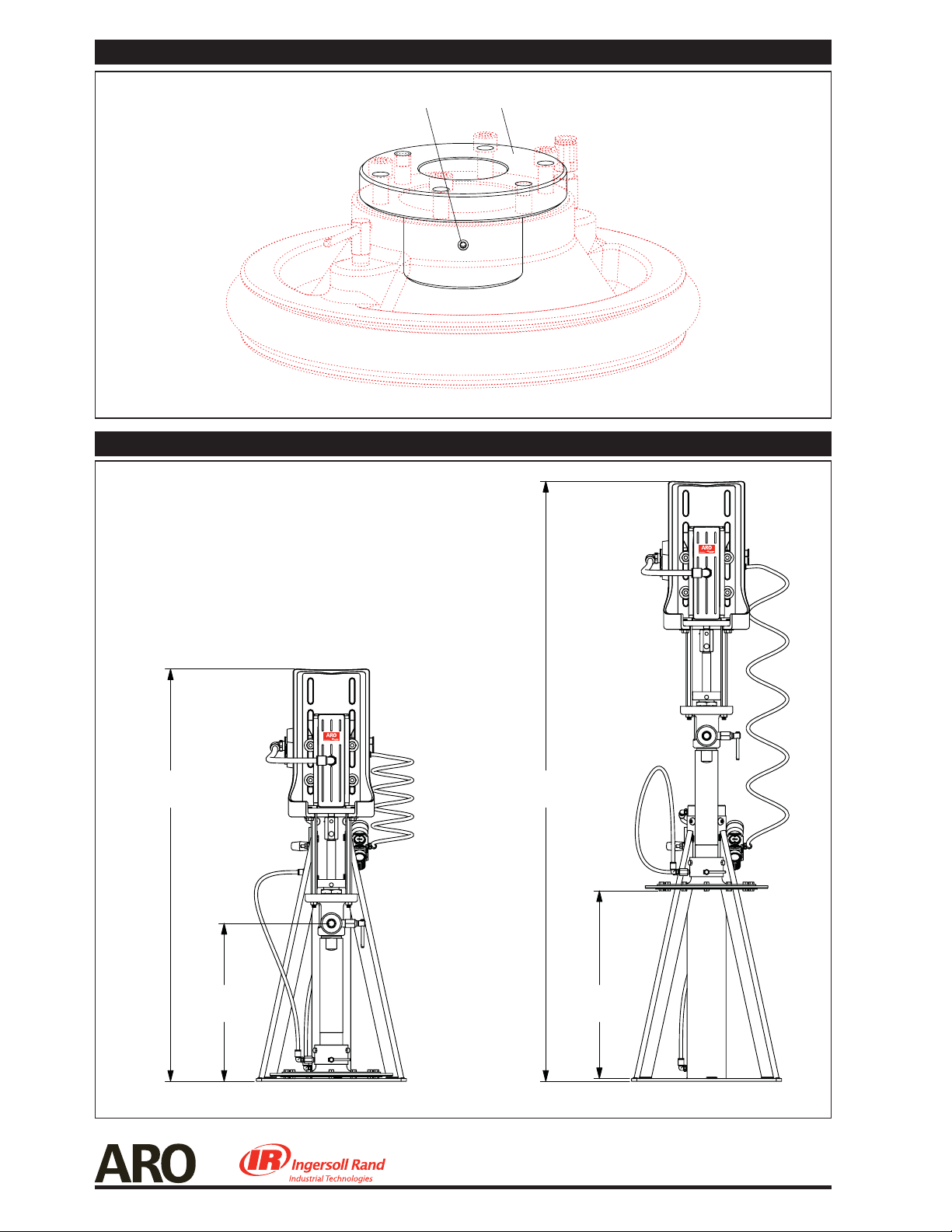

Follower Assembly
10 - 651840-1
11 - 651840-2
12 - 651840-3
13 - 651841-1
20 - 66731
21 - 66731-1
22 - 66731-2
30 - 67347-1
31 - 67347-2
40 - 67347-11
41 - 67347-12
Figure 1
GENERAL DESCRIPTION
By delivering a smooth, continuous bead of the proper size, an
ARO system helps the operator maintain both production rate and
produce high quality standards. Maintained quality standards assures that the material benefits are realized. To further maximize
operator production time, the ARO system has a built-in lift / ram
feature for quick and easy drum changeover and easy lifting of the
pump assembly from the container.
ARO systems are totally enclosed, sealing the material in the system from air and moisture, preventing premature cure-out of the
material. This allows for either continuous or intermittent use of the
system and allows the need for daily system clean-up.
INGERSOLL RAND COMPANY LTD
P.O. BOX 151 y ONE ARO CENTER y BRYAN, OHIO 43506-0151
(800) 276-4658 y FAX (800) 266-7016
uids.ingersollrand.com
© 2008 CCN 15324189
INSTALLATION
OFF
ON
The NP322XXXXR7-XX Extrusion System comes completely assembled. Remove the unit from the crate and place on a level surface.
Install the material hose and dispensing device as required.
When the following instructions are observed, heavy paste materi-
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS / INITIAL SET-UP PROCEDURE
WARNING
Stand clear when raising or lowering the lift.
LIFT / RAM, PUMP AND FOLLOWER PLATE AIR CONTROLS
als can be pumped directly from their original drum without air
inclusion or excessive waste. The follower plate creates an air tight
seal as well as clean-wiping action in its progressive downward
movement into the drum.
Read the warnings on page 2 of RM051S-X Single Post Lift /
Ram Operator’s Manual.
Pump air lter / regulator
Air Inlet
(1/2 - 14 NPT)
Pump air supply valve
Pump pressure gauge
97102 Label
Lift / Ram pressure gauge
Lift / Ram control lever
Follower plate air supply valve
Lift / Ram pressure regulator
OFF
ON
Figure 2
TO RAISE THE LIFT, (THE FIRST TIME):
Take note of the pump / drum clearance above. Be certain the
1.
lift / ram is clear of any objects above. Also, refer to “Operating
and Safety Precautions” found on page 2 of RM051S-X Single
Post Lift / Ram Operator’s Manual.
Connect the air supply (125 p.s.i. / 8.6 bar max.) to the air inlet.
2.
Adjust the air pressure on the lift / ram pressure regulator (turn
the knob clockwise) to 20 p.s.i. (1.4 bar).
Shift the control valve lever to the “up” position.
3.
Raise the lift / ram high enough to clear the height of the drum.
4.
Stop the lift upward travel by moving the control valve lever to
the “neutral” (center) position.
Once the lift / ram assembly and pump are in the “up” position,
5.
place and center an opened drum of material on the lift / ram
base.
Lubricate the lower follower wiper plate seal with grease. NOTE:
6.
Make certain the grease is compatible with the material being
dispensed. This ensures a smooth t into the drum, as well as
prevents curing type compounds from bonding to the seal.
Check the vent plug on the follower plate to be sure it easily
7.
threads in and out. It is recommended to lubricate the threads
of the plug to help prevent possible set-up of the compound at
lowed to escape from this vent.
NOTE: The lift / ram may hesitate momentarily before starting
downward. The air pressure inside the post air chamber must decrease before it will begin to descend.
Shift the control valve lever to the “down” position and proceed
1.
to lower the pump.
Replace the vent plug once the material begins to ooze from
2.
the vent opening.
The unit is now ready for operation. Open the pump air supply
3.
valve. Adjust the air pressure on the pump lter / regulator (turn
the pump regulator knob clockwise) until the pump begins to
cycle.
Trigger the gun to prime the pump with material.
4.
TO RAISE LIFT, (NORMAL OPERATION):
Close the pump air supply valve.
1.
Shift the control valve lever to the “up” position.
2.
Raise the lift / ram high enough to clear the height of the drum.
3.
Stop the lift upward travel by moving the control valve lever to
the “neutral” (center) position.
this point (see RM051S-X Operator’s Manual).
TO CHANGE THE DRUM:
TO LOWER LIFT:
WARNING
PINCH HAZARD. Follower can descend quickly,
causing injury. Keep hands clear when aligning with container. Read the warnings on page 2 of RM051S-X Single Post
Lift / Ram Operator’s Manual.
NOTE: Be certain the follower plate vent plug has been removed
NOTE: The control valve lever must be in the “neutral” position and
the pump air supply valve should be closed.
To avoid damage, DO NOT OVER PRESSURIZE THE DRUM.
1.
Open the follower plate air supply valve to allow air under the
2.
follower plate.
Shift the control valve lever to the “up” position.
3.
Place and center a new drum into position. Remove the cover.
4.
so that the air trapped between the follower and the material is al-
ARO® is a registered trademark of Ingersoll-Rand Company
Page 2 of 4 NP322XXXXR7-XX (en)
