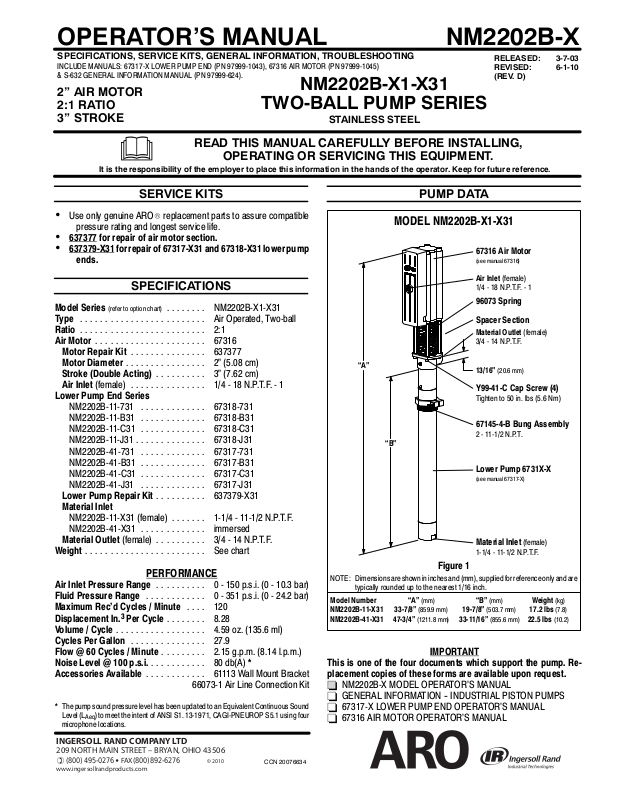

OPERATOR’S MANUAL NM2202B-X

SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING

INCLUDE MANUALS: 67317-X LOWER PUMP END (PN 97999-1043), 67316 AIR MOTOR (PN 97999-1045)
& S-632 GENERAL INFORMATION MANUAL (PN 97999-624).

2” AIR MOTOR
2:1 RATIO
3” STROKE

TWO-BALL PUMP SERIES

NM2202B-X1-X31

STAINLESS STEEL

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

RELEASED: 3-7-03
REVISED: 6-1-10
(REV. D)

SERVICE KITS

• Use only genuine AROR replacement parts to assure compatible

pressure rating and longest service life.

• 637377 for repair of air motor section.

• 637379-X31 for repair of 67317-X31 and 67318-X31 lower pump

ends.

SPECIFICATIONS

Model Series (refer to option chart) NM2202B-X1-X31........

Type Air Operated, Two-ball.........................

Ratio 2:1.........................

Air Motor 67316......................

Motor Repair Kit 637377...............

Motor Diameter 2” (5.08 cm)................

Stroke (Double Acting) 3” (7.62 cm)..........

Air Inlet (female) 1/4 - 18 N.P.T.F. - 1...............

Lower Pump End Series

NM2202B-11-731 67318-731.............

NM2202B-11-B31 67318-B31.............

NM2202B-11-C31 67318-C31.............

NM2202B-11-J31 67318-J31..............

NM2202B-41-731 67317-731.............

NM2202B-41-B31 67317-B31.............

NM2202B-41-C31 67317-C31.............

NM2202B-41-J31 67317-J31.............

Lower Pump Repair Kit 637379-X31..........

Material Inlet

NM2202B-11-X31 (female) 1-1/4 - 11-1/2 N.P.T.F........

NM2202B-41-X31 immersed.............

Material Outlet (female) 3/4 - 14 N.P.T.F...........

Weight See chart........................

PERFORMANCE

Air Inlet Pressure Range 0 - 150 p.s.i. (0 - 10.3 bar)..........

Fluid Pressure Range 0 - 351 p.s.i. (0 - 24.2 bar)............

Maximum Rec’d Cycles / Minute 120....

Displacement In.

Volume / Cycle 4.59 oz. (135.6 ml)..................

Cycles Per Gallon 27.9...............

Flow @ 60 Cycles / Minute 2.15 g.p.m. (8.14 l.p.m.).........

Noise Level @ 100 p.s.i. 80 db(A) *...........

Accessories Available 61113 Wall Mount Bracket............

* The pump sound pressure level has been updated to an Equivalent Continuous Sound

Level (L

Aeq

microphone locations.

INGERSOLL RAND COMPANY LTD

209 NORTH MAIN STREET – BRYAN, OHIO 43506

[phone] FAX[phone]

www.ingersollrandproducts.com

3

Per Cycle 8.28........

66073-1 Air Line Connection Kit

) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four

© 2010

CCN 20076634

PUMP DATA

MODEL NM2202B-X1-X31

67316 Air Motor

(see manual 67316)

Air Inlet (female)
1/4 - 18 N.P.T.F. - 1

96073 Spring

Spacer Section

Material Outlet (female)

3/4 - 14 N.P.T.F.

“A”

“B”

Figure 1

NOTE: Dimensionsare shown in inchesand (mm), supplied for referenceonly and are

typically rounded up to the nearest 1/16 inch.

Model Number “A” (mm) “B” (mm) Weight (kg)
NM2202B-11-X31 33-7/8” (859.9 mm) 19-7/8” (503.7 mm) 17.2 lbs (7.8)
NM2202B-41-X31 47-3/4” (1211.8 mm) 33-11/16” (855.6 mm) 22.5 lbs (10.2)

IMPORTANT
This is one of the four documents which support the pump. Re­placement copies of these forms are available upon request.

= NM2202B-X MODEL OPERATOR’S MANUAL

- GENERAL INFORMATION -- INDUSTRIAL PISTON PUMPS

- 67317-X LOWER PUMP END OPERATOR’S MANUAL

- 67316 AIR MOTOR OPERATOR’S MANUAL

13/16” (20.6 mm)

Y99-41-C Cap Screw (4)

Tighten to 50 in. lbs (5.6 Nm)

67145-4-B Bung Assembly

2-11-1/2N.P.T.

Lower Pump 6731X-X

(see manual 67317-X)

Material Inlet (female)

1-1/4 - 11-1/2 N.P.T.F.

PUMP OPTION DESCRIPTION CHART

NM2202B - X 1 - X 3 1

CONTAINER SUITABILITY

PACKING MATERIAL

SPRING ARRANGEMENT

PLUNGER TYPE

CONTAINER SUITABILITY PACKING MATERIAL

1 - Universal (Stub) 7 - PTFE (upper and lower)
4 - 55 Gallon B - UHMW-PE (upper) / PTFE (lower)

C - UHMW-PE (upper and lower)
J - Polyurethane (upper) / UHMW-PE (lower)

SPRING ARRANGEMENT PLUNGER TYPE

3 - No Spring 1 - Standard (300 series Stainless steel)

GENERAL DESCRIPTION

Model NM2202B-X Series two-ball, double acting pumps are intended
to be used primarily for oil transfer and delivery systems. It is best to use
this pump with low -- medium viscosity fluids. It uses Stainless steel and
other materials which make it compatible with most petroleum based lu­brication products. The two-ball design provides better priming of the
lower foot valve. Double acting pumps will delivermaterial onboth the up
and down stroke.
NOTE: If this pump was purchased separately (not part of a system),
consult your sales representative for compatible dispensing accesso­ries which will best match the application. All accessories must be able
to withstand the maximum pressure developed by the pump.

WARNING

mumoperating pressureof 351p.s.i. (24.2bar) at150 p.s.i. (10.3
bar) inlet air pressure.

INLET PRESSURE TO PUMP MOTOR

Pump ratio is an expression of the relationship between the pump motor area and the
lower pump end area. EXAMPLE: When 150 p.s.i. (10.3 bar) inlet pressure is supplied
to the motor of a 4:1 ratio pump it will develop a maximum of 600 p.s.i. (41.4 bar) fluid
pressure (at no flow) - as the fluid control is opened, the flow rate will increase as the
motor cycle rate increases to keep up with the demand.

WARNING

safety precautions and important information.

NOTICE: Thermal expansion can occur when the fluid in the materi­al lines is exposed to elevated temperatures. Example: Material
lines located in a non-insulated roof area can warm due to sunlight.
Install a pressure relief valve in the pumping system.

Replacement warning label (pn 94520) is available upon request.

HAZARDOUS PRESSURE. Do not exceed maxi-

PUMP RATIO X MAXIMUM PUMP

= FLUID PRESSURE

Refer to general information sheet for additional

PUMP CONNECTION - UPPER / LOWER

NOTE: All threads are right hand.

1. Lay the pump assembly on a workbench.

2. Remove four (Y99-41-C) cap screws and pull the air motor from the
lower pump end until the motor piston rod is in the “down” position
and the lower pump end rod is in the “up” position.

3. Remove the (Y15-31-C) cotter pin and (96064) pin, releasing the air
motor from the lower pump end.

PUMP CONNECTOR DETAIL

Pump Motor Piston Rod

Cotter Pin Y15-31-C

Pin 96064

Lower Pump Rod

TROUBLE SHOOTING

Pump problems can occur in either the Air Motor Section or the Lower
Pump End Section. Use these basic guidelines to help determine which
section is affected. Be sure to eliminate any possible non-pump prob­lems before suspecting pump malfunction.

Pump will not cycle.

• No pressure to the motor. See motor manual.

• Damaged motor. Service motor

No material at the outlet (pump continually cycles).

• Check the material supply, disconnect or shut off the air supply and

replenish the material, reconnect.

Material on one stroke only (fast downstroke).

• The lower check may not be seating in the foot valve (see lower

pump disassembly). Remove the check from the foot valve, clean
and inspect the valve seat area. If check or foot valve are damaged,
replace.

Material on one stroke only (fast upstroke).

• The middle packings may be worn (see lower pump disassembly).

Replace the seals as necessary.

Figure 2

REASSEMBLY

1. Assemble motor piston rod to the lower pump end rod, aligning thru
holes.

2. Assemble (96064) pin through hole, securing rods.

3. Assemble (Y15-31-C) cotter pin through hole in pin.

4. Align tie rods with holes in pump outlet body.

5. Assemble four (Y99-41-C) cap screws, securing air motor. NOTE:
Tighten cap screws to 50 in. lbs (5.65 Nm).

PN 97999-1029

NM2202B-XPage2of2
