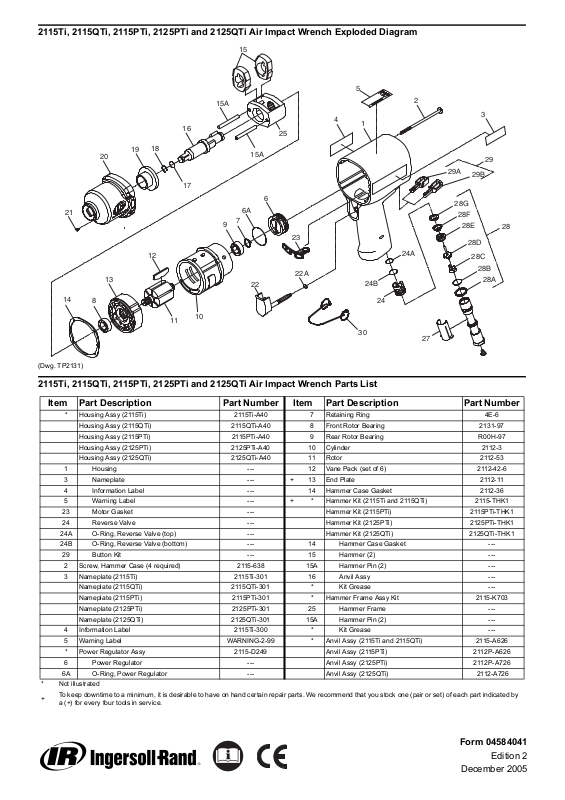

2115Ti, 2115QTi, 2115PTi, 2125PTi and 2125QTi Air Impact Wrench Exploded Diagram
15
5
15A
4
16
18
19
20
25
15A
1
2
3
29
29A
29B
17
21
14
(Dwg. TP2131)
6
6A
7
9
23
12
13
22
22A
8
10
11
24A
24B
24
30
28G
28F
28E
28D
28C
28B
28A
27
2115Ti, 2115QTi, 2115PTi, 2125PTi and 2125QTi Air Impact Wrench Parts List
Item Part Description Part Number Item Part Description Part Number
* Housing Assy (2115Ti) 2115Ti-A40 7 Retaining Ring 4E-6
Housing Assy (2115QTi) 2115QTi-A40 8 Front Rotor Bearing 2131-97
Housing Assy (2115PTi) 2115PTi-A40 9 Rear Rotor B earing R00H-97
Housing Assy (2125PTi) 21 25PTi-A40 10 Cylinder 2112-3
Housing Assy (2125QTi) 2125QTi-A40 11 Rotor 2112-53
1 Housing --- 12 Vane Pack (set of 6) 2112-42-6
3 Nameplate --- + 13 End Plate 2112-11
4 Information Label --- 14 Hammer Case G asket 2112-36
5 Warning Label --- + * Hammer Kit (2115Ti and 2115QTi) 2115-THK1
23 Motor Gasket --- Hammer Kit (2115PTi) 2115PTi-THK1
24 Reverse Valve --- Hammer Kit (2125PTi) 2125PTi-THK1
24A O-Ring, Reverse Valve (top) --- Hammer Kit (2125QTi) 2125QTi-THK1
24B O-Ring, Reverse Valve (bottom) --- 14 Hammer Case Gasket ---
29 Button Kit --- 15 Hammer (2) ---
2 Screw, Hammer Case (4 required) 2115-638 15A Hammer Pin (2) ---
3 Namepl ate (2115Ti) 2115Ti-301 16 Anvil Assy ---
Nameplate (2115QTi) 2115QTi-301 * Kit Grease ---
Nameplate (2115PTi) 2115PTi-301 * Hammer Frame Assy Kit 2115-K703
Nameplate (2125PTi) 2125PTi-301 25 Hammer Frame ---
Nameplate (2125QTi) 2125Q Ti-301 15A Hammer Pin (2) ---
4 Informati on Label 2115Ti-300 * Kit Grea se ---
5 Warning Label WARNING-2-99 * A nvil Assy (2115Ti and 2115QTi) 2115-A626
* Power Regulator Assy 2115-D249 Anvil Assy (2115PTi) 2112P-A626
6 Power Regulator --- Anvil Assy ( 2125PTi) 2112P-A726
6A O-Ring, Power Regulator --- Anvil Assy (2125QTi) 2112-A726
* Not illustrated
To keep downtime to a minimum, it is desirable to have on hand certain repair parts. We recommend that you stock one (pair or se t) of each part indicated by
+
a (+) for every four tools in service.
28
Form 04584041
Edition 2
December 2005
Item Part Description Part Number Item Part Description Part Number
16 Anv il --- 28C Spring ---
17 Socket Retainer Spring or O-Ring --- 28D Valve ---
18 Retaining Ring or Retaining Pin --- 28E Seat ---
+ * Socket Retainer Kit (2115Ti and 2115QTi) 2115-K425 28F Support ---
Socket Retainer Kit (2115PTi) 2115PTi-K425 28G Retainer ---
Socket Retainer Kit (2125PTi) 2125PTi-K425 29 Button Kit 2112-K75
Socket Retainer Kit (2125QTi) 2125QTi-K425 29A Forward Button ---
17 Socket Retainer O-Ring or Spring --- 29B Reve rse Button ---
18 Retaining Ring or Retaining Pin --- * Tune-Up Kit 2115-TK1
+ 19 Bushing, Hammer Case 2112-641 6A O-Ring, Power Regulator ---
* Hammer Case Assy 2115Ti-D727 7 Retaining Ring ---
19 Bushing, Hammer Case --- 8 Front Rotor Bearing ---
20 Hammer Case --- 9 Rear Rotor Bearing ---
21 Grease Fitting --- 12 Vane Pack (set of 6) ---
21 Grease Fitting D0F9-879 14 Hammer Case Gasket ---
+ * Trigger Assy 2115-D93 22A O-Ring-Trigger ---
22 Trigger --- 23 Gasket ---
22A O-Ring, Trigger --- 24A O-Ring, Reverse Valve (top) ---
+ 23 Motor Gasket 2112-283 24B O-Ring, Reverse Valve (bottom) ---
* Reverse Valve Assy 2131-A329 28 Inlet Parts Kit ---
24 Reverse Valve --- 30 Inlet Clip Removal Tool 2131-322
24A O-Ring, Reverse Valve (top) --- * “Pump-n-Grease” (Grease & Gun Kit) 500C
24B O-Ring, Reverse Valve (bottom) --- + * A ir Care Kit (grease gun, grease, oil) 115-LBK1
25 Hammer Frame --- * Grease (replacement tube f or -LBK1) 115-4T
* 26 Inlet Bushing Assy (incl. 27, 28) 2135-D565 * Air Tool Oil (4 oz. Bottle) 10Z4
27 Inlet Clip 2131-57 * Grease (1 lb can) 105-1LB
28 Inlet Parts Kit --- * Grease (8 lb c an) 105-8LB
28A Washer 2131-K303 * Kit Grease 105-6GR
28B O-Ring, Seal ---
* Not illustrated
To keep downtime to a minimum, it is desirable to have on hand certain repair parts. We recommend that you stock one (pair or se t) of each part indicated by
+
a (+) for every four tools in service.
Parts and Maintenance
When the life of the tool has expired, it is recomme nded that the tool be disassembled, degreased and parts be separated by material so that they can be recycled.
Tool repair and maintenance should only be carried out by an authorized Service Cen ter.
Refer all communications to the nearest Ingersoll-Rand Office or Distributor.
Related Documentation
For additional information refer to:
Air Impact Wrench Product Safety Information Manual 045809 16,
Air Impact Wrench Product Information Manual 04584702.
