Ingersoll-Rand 1702 User Manual

Air Impact Wrench

1702 Series

Parts Information

16579013

Edition 4

March 2011

Save These Instructions

2 16579013_ed4

1702SB1 Air Impact Wrench - Exploded View

42

38

41

39

47

45

44

43

49

53

55

54

59

60

61

63

62

57

58

56

36

36

32

37

23

27

29

26

28

30

24

25

31

15

16

21

20

3

2

9

9

7

4

6B

14

10

13

6

5

1

22

18

17

6A

8

12

11

19

6A

34

52

50

ASSEMBLED

HAMMER CASE

ASSEMBLE

D

HAMMER CASE

51

48

46

(Dwg. TPA978-2)

1702SB1 Air Impact Wrench - Parts List

Item Part Description Part Number Item Part Description Part Number

1 Motor Housing Assembly 1702SB-A40 39 Hammer Case Bushing 401-641

2 Throttle Valve R000B2-302 * Warning Label WARNING-2-99

† ‡ 3 Throttle Valve Face 401-159 * .005” Oversize Hammer Case Bushing 401-641-5

‡ 4 Throttle Valve Spring 5081T-151 † ‡ 41 Hammer Case Gasket 2902-36

5 Throttle Lever 201-273 42 Hammer Case Cap Screw (3) 1702-638

6 Throttle Lever Pin 502B-120 43 3/8” Square Drive Anvil Assembly

‡ 6A Silencer (4) 1702SB-311

6B Inlet Assembly Spacer R00-35A ‡ 44 Socket Retainer Plunger 5020-716

Air Inlet Assembly 1702B-A166 ‡ 45 Retaining Plunger Spring 401-718

7 Swivel Inlet Body 1702B-165 46 3/8” Square Drive Anvil Assembly

8 Swivel Inlet Assembly 1702B-B166 (with ring-type retainer)

† ‡ 9 Swivel Inlet Seal (2) R18LF-21 47 Socket Retaining Ring 1702-425

10 Power Regulator Assembly 1702B-A249 48 Retainer Support Ring 1702-426

† ‡ 11 Power Regulator Seal R00B1-159 Quick-Change Anvil Assembly (1/4” hex) 1702-A926-4

12 Regulator Retainer 201-250 49 Quick-Change Anvil 1702-926-4

‡ 13 Detent Spring 201-251 50 Thrust Ring Lock 5C1-853

‡ 14 Detent Ball R000B-263 51 Thrust Ring I0A902A2-932-4

15 Reverse Valve Assembly 1702B-A329 52 Retaining Sleeve Spring 2U-931-4

† ‡ 16 Reverse Valve Seal R0BR1C-283 53 Retaining Ball (5/32” diameter steel) 2U-696

17 Reverse Valve Stop 401-665 54 Retaining Sleeve 2U-930-4

† ‡ 18 Bushing Seal CE110-210 55 Retaining Sleeve Stop 2U-933-4

19 Grease Fitting 130SR-188

20 Nameplate 1702SB-301 56 Quick-Change Anvil 1702-926-7

21 Nameplate Screw (3) BN403-302 57 Anvil Body I0A902A5-925

22 Rotor 401-53 58 Body Lock Pin I0A902A5-936

‡ 23 Front Rotor Bearing R00H-97 59 Thrust Ring Lock 4U-933-7

† ‡ 24 Rear Rotor Bearing 401-22 60 Thrust Ring 4U-932-7

‡ 25 Rear Rotor Bearing Retainer MF-18 61 Retaining Sleeve Spring 4U-931-7

26 Cylinder 401-3 62 Retaining Ball (7/32” diameter steel) 2U-722

27 Cylinder Dowel HH92-74 63 Retaining Sleeve I0A902A5-930

† ‡ 28 Vane Packet (set of 6 Vanes) 401-42A-6 * Tune-up Kit (includes illustrated parts 3,

30 Rear End Plate 201-12 25, 28, 31, 41, 44 and 45)

† ‡ 31 End Plate Gasket 401-739 * Vertical Hanger 1901-365

† 32 Hammer 1702-724A * Horizontal Hanger 1901-366

34 Hammer Frame Assembly 1702-A703A * Socket Adapter (3/8” to 1/2”) 2U-215

† 36 Hammer Pin (2) 1702-704 * Quick-Change Chuck

37 Hammer Frame Washer 1702-706 for 1/4” hex shank accessories 2U-A925-4

38 Hammer Case Assembly 1702-A727 for 7/16” hex shank accessories 502-A925-7

* Not Illustrated.
‡ Indicates Tune-up Kit Part.
† To keep downtime to a minimum, it is desirable to have on hand certain repair parts. We recommend that you stock one (pair or set) of each
part indicated by (†) for four tools in service.

(with pin-type retainer)

Quick-Change Anvil Assembly (7/16” hex)

1702-P726

1702-A626

1702-A926-7

1702SB-TK229 Front End Plate 201-11 4, 6A[4], 9[2], 11, 13, 14, 16, 18, 23, 24,

16579013_ed4 3

4 16579013_ed4

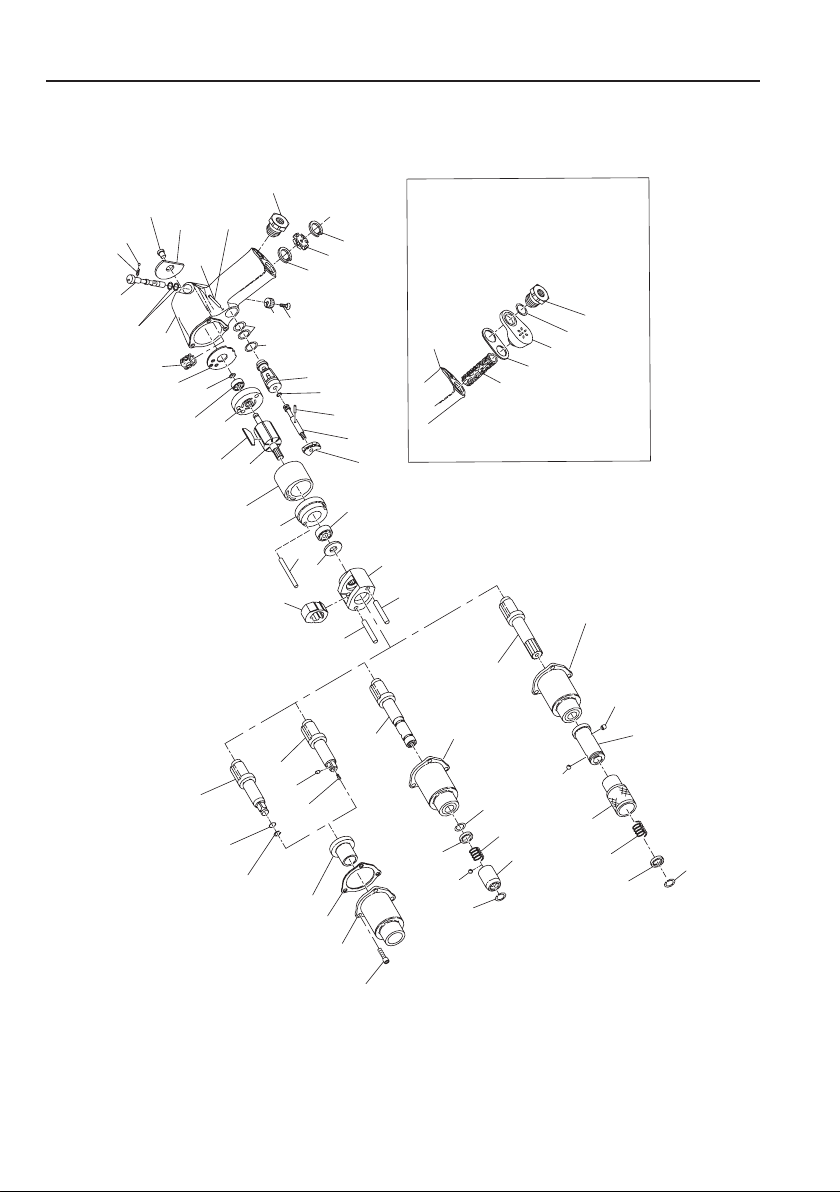

1702P1 and 1702P4 Air Impact Wrench - Exploded View

NO

TE

:
PR

ES

S

THIS PI

N

IN

T

O

A

ND OU

T OF

TH

E

OPPOSITE

SIDE

OF THE

HOUSING.

44

40

43

41

50

49

48

47

46

45

57

56

54

62

63

65

61

59

60

58

39

37

34

13

11

212-K23 EXH

A

UST MUFFL

ER KI

T

(A

V

AILABLE

A

T

EXTRA

C

OST

)

24

1

23

22

21

20

14

12

15

16

3B

3B

3A

17

8

2

18

19

10

6

7

4

5

1

3

25

26

27

28

30

29

31

9

39

36

35

32

33

52

64

55

53

51

ASSEMBL

E

D

ASSEMBL

E

D

HA

M

MER

CASE

HA

M

MER

CASE

(Dwg. TPA979-3)

1702P1 and 1702P4 Air Impact Wrench - Parts List

Item Part Description Part Number Item Part Description Part Number

1 Motor Housing Assembly 1702P-A40 39 Hammer Pin (2) 1702-704
2 Inlet Bushing 402-565 40 Hammer Case Assembly 1702-A727

3 Exhaust Silencer 202-311 41 Hammer Case Bushing 401-641

3A Exhaust Deector 1702P-123 * Warning Label WARNING-2-99

3B Deector Retaining Ring (2) 2908-304 * .005” Oversize Hammer Case Bushing 401-641-5

4 Reverse Valve 1702P-329 43 Hammer Case Gasket 2902-36

5 Reverse Valve O-ring (2) CE110-210 44 Hammer Case Cap Screw (3) 1702-638

6 Detent Ball R000B-263 45 3/8” Square Drive Anvil Assembly (with
7 Detent Ball Spring 202-664 Pin-Type Retainer)

8 Reverse Valve Knob 1702P-666 46 Socket Retaining Plunger 5020-716

9 Knob Screw WWA100-77 47 Retaining Plunger Spring 401-718

10 Grease Fitting 130SR-188 48 3/8” Square Drive Anvil Assembly (with

Throttle Valve Assembly 202-A302 Ring-Type Retainer)

11 Throttle Valve 202-302 49 Socket Retaining Ring 1702-425
12 Throttle Valve Face R000BR1C-283 50 Retainer Suppor t Ring 1702-426
13 Trigger 5RA-93 Quick-Change Anvil Assembly (1/4” hex) 1702-A926-4
14 Throttle Valve Retaining Pin AF120-322 51 Quick-Change Anvil 1702-926-4
15 Throttle Valve Bushing 202-503 52 Thrust Ring Lock 5C1-853
16 Bushing O-ring, Large 410-283 53 Thrust Ring I0A902A2-932-4
17 Bushing O-ring, Small (2) 202-290 54 Retaining Sleeve Spring 2U-931-4
18 Bushing Retaining Pin R100B-120 55 Retaining Ball (5/32” diameter steel) 2U-696
19 Nameplate 1702P-301 56 Retaining Sleeve 2U-930-4

Exhaust Muer Kit 212-K23 57 Retaining Sleeve Stop 2U-933-4
20 Inlet Bushing Assembly 202-A565 Quick-Change Anvil Assembly (7/16” hex) 1702-A926-7
21 Bushing O-ring 202-103 58 Quick-Change Anvil 1702-926-7
22 Exhaust Deector 202-23 59 Anvil Body I0A902A5-925
23 Deector Gasket 202-223 60 Body Lock Pin I0A902A5-936
24 Exhaust Silencer 728-310 61 Thrust Ring Lock 4U-933-7
25 End Plate Gasket 202-739 62 Thrust Ring 4U-932-7
26 Rear Rotor Bearing Retainer MF-18 63 Retaining Sleeve Spring 4U-931-7
27 Rear Rotor Bearing 401-22 64 Retaining Ball (7/32” diameter steel) 2U-722
28 Rear End Plate 201-12 65 Retaining Sleeve I0A902A5-930
29 Rotor 401-53 * Tune-up Kit (includes illustrated parts

31 Cylinder 401-3 26, 27, 30, 34, 43, 46 and 47)
32 Cylinder Dowel HH92-74 * Vertical Hanger 1901-365
33 Front End Plate 201-11 * Horizontal Hanger 1901-366
34 Front Rotor Bearing R00H-97 * Socket Adapter (3/8” to 1/2”) 2U-215
35 Hammer Frame Washer 1702-706 * Quick-Change Chuck
36 Hammer 1702-724A for 1/4” hex shank accessories 2U-A925-4
37 Hammer Frame Assembly 1702-A703A for 7/16” hex shank accessories 502-A925-7

* Not Illustrated.

1702-P726

1702-A626

1702P-TK230 Vane Packet (set of 6 Vanes) 401-42A-6 5[2], 6, 7, 12, 16, 17[2], 21, 23, 24, 25,

Parts and Maintenance

When the life of the tool has expired, it is recommended that the tool be disassembled, degreased and parts be separated by material so
that they can be recycled.

Tool repair and maintenance should only be carried out by an authorized Service Center.

Refer all communications to the nearest Ingersoll Rand Oce or Distributor.

Related Documentation

For additional information refer to:
Air Impact Wrench Product Safety Information Manual 04580916.
Air Impact Wrench Product Information Manual 03531548.
Manuals can be downloaded from www.ingersollrandproducts.com.
