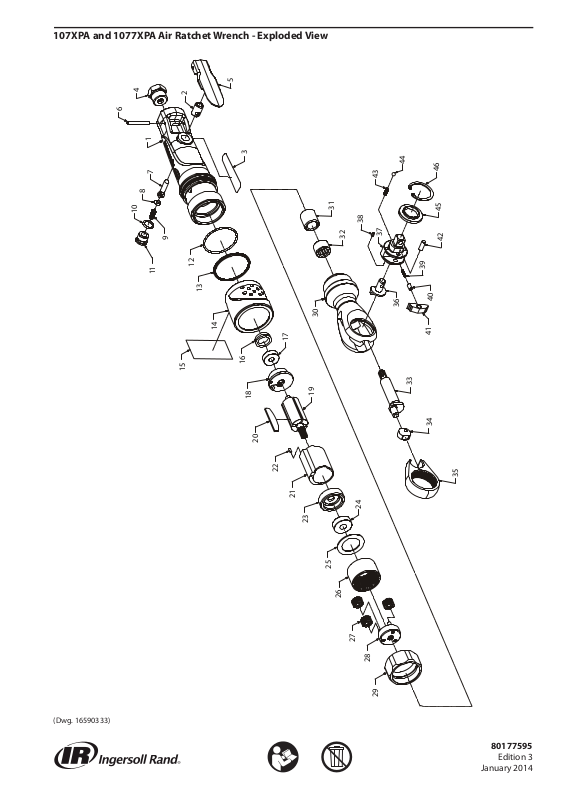

107XPA and 1077XPA Air Ratchet Wrench - Exploded View
29
28
27
26
25
24
23
21
22
20
18
16
15
13
12
9
11
10
8
7
6
4
2
5
3
31
32
38
43
44
46
45
42
39
40
41
33
34
35
37
36
1
14
19
17
30
(Dwg. 16590333)
80177595
Edition 3
January 2014
107XPA and 1077XPA Air Ratchet Wrench - Parts List
Item Part Description Part Number
Housing Assembly
for 107XPA 107XPA-A40
for 1077XPA 1077XPA-A40
1 Housing ---
2 Valve Bushing ---
3 Nameplate
for 107XPA 107XPA-301
for 1077XPA 1077XPA-301
4 Inlet Bushing Assembly 170-565
Trigger Lever Kit 107XPA-LK
5 Trigger Lever ---
6 Trigger Lever Pin ---
Throttle Kit 170-TK
7 Throttle Valve ---
8 Throttle Valve O-Ring ---
9 Throttle Valve Spring ---
10 Valve Plug O-Ring ---
11 Valve Plug ---
12 Housing O-Ring 107XPA-367
13 Ring 107XPA-338
Exhaust Diuser Assembly 107XPA-A123
14 Exhaust Diuser ---
15 Warning Label WARNING-27-99
Motor Assembly 170-MK
16 End Cap 170-207
17 Rear Rotor Bearing 170-97
18 Rear End Plate 170-12
19 Rotor 170-53
20 Vane Pack (set of 4) 170-42-4
Cylinder Assembly 170-A3
21 Cylinder ---
22 Motor Alignment Pin ---
23 Front End Plate 170-11
24 Front Rotor Bearing 308A-22
25 Spacer 170-123
Gearing Kit 170-GK
26 Internal Gear 170-625
27 Planet Gear (3 per gearing kit) 170-9
28 Spindle Assembly 170-A8
Item Part Description Part Number
29 Coupling Nut 170-27
Ratchet Housing Assembly 107XPA-A322
30 Ratchet Housing ---
31 Crankshaft Bushing ---
32 Crankshaft Needle Bearing ---
33 Crankshaft 107XPA-35
34 Drive Bushing 170-36
35 Yoke 109XPA-37
Ratchet Head Kit
for 107XPA 107XPA-TRK1
for 1077XPA 1077XPA-TRK1
36 Reverse Button 107XPA-38
37 Anvil Assembly
for 107XPA 107XPA-A44
for 1077XPA 1077XPA-A44
38 Reverse Button Stop Pin ---
Pawl Kit 107XPA-K43
39 Lock Spring ---
40 Lock Pin ---
41 Pawl ---
42 Pawl Retaining Pin ---
Spring Kit 107XPA-SK
43 Friction Spring (2 per kit) ---
44 Friction Ball (2 per kit) ---
45 Thrust Washer ---
46 Retaining Ring ---
Tune-Up Kit (Includes items 7 through
12, 16, 17, 20 and 24)
Oil - Ingersoll Rand No. 10 (4 oz. bottle) 10Z4
Grease ---
IR # 67 (1 lb can) - for Gearing 67-1 LB
IR # 67 (8 lb can) - for Gearing 67 8 LB
IR # 70 (1 lb can) - for Ratchet Head 70 1 LB
IR # 70 (8 lb can) - for Ratchet Head 70 8 LB
Spline Wrench (for removal of item 26) 170-SW
107XPA-TK1
Parts and Maintenance
When the life of the tool has expired, it is recommended that the tool be disassembled, degreased and parts be separated by material so that
they can be recycled.
Tool repair and maintenance should only be carried out by an authorized Service Center.
Refer all communications to the nearest Ingersoll Rand Oce or Distributor.
Related Documentation
For additional information refer to:
Air Ratchet Wrench Safety Information Manual Form 04580361.
Air Ratchet Wrench Product Information Manual 80177587.
Manuals can be downloaded from ingersollrandproducts.com.
ingersollrandproducts.com
© 2014 Ingersoll Rand
80177595
Edition 3
January 2014
