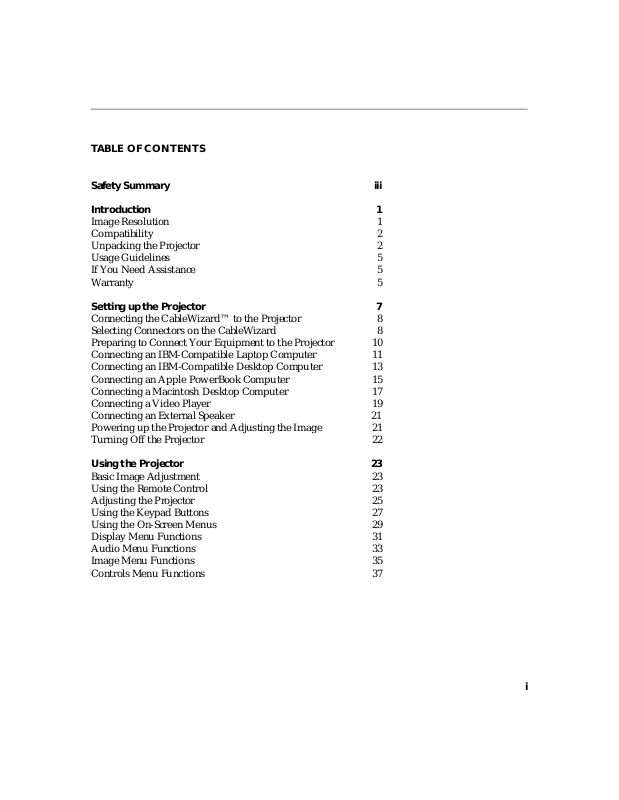

TABLE OF CONTENTS

Safety Summary iii

Introduction 1

Image Resolution 1
Compatibility 2
Unpacking the Projector 2
Usage Guidelines 5
If You Need Assistance 5
Warranty 5

Setting up the Projector 7

Connecting the CableWizard™ to the Projector 8
Selecting Connectors on the CableWizard 8
Preparing to Connect Your Equipment to the Projector 10
Connecting an IBM-Compatible Laptop Computer 11
Connecting an IBM-Compatible Desktop Computer 13
Connecting an Apple PowerBook Computer 15
Connecting a Macintosh Desktop Computer 17
Connecting a Video Player 19
Connecting an External Speaker 21
Powering up the Projector and Adjusting the Image 21
Turning Off the Projector 22

Using the Projector 23

Basic Image Adjustment 23
Using the Remote Control 23
Adjusting the Projector 25
Using the Keypad Buttons 27
Using the On-Screen Menus 29
Display Menu Functions 31
Audio Menu Functions 33
Image Menu Functions 35
Controls Menu Functions 37

i

Tab le of Co ntents

Maintenance & Troubleshooting 39

Cleaning the Lens 39
Cleaning the Fan Intake Filter 39
Replacing the Projection Lamp 41
Replacing the Batteries in the Remote Control 43
Using the Kensington Lock 43
Troubleshooting 44
Solutions to Common Problems 45

Appendix 49

Specifications 49
Accessories 51
Portable and Laptop Activation Chart 53
Using Video Mirroring with a PowerBook Computer 57
Projected Image Size 58

Index 61

ii

SAFETY SUMMARY

Please read these instructions carefully before using your projec­tor. Failure to comply with them could result in fire, electrical
shock, personal injury or damage to equipment.

These graphics are used throughout this manual to draw your
attention to important information about the projectors.

NOTE: Additional useful details or tips.

CAUTION: Steps to take to avoid damage to your equipment.

WARNING: Steps to take to avoid personal injury.

These graphics are used on the projector’s labels.

Attention

- Refer to this User’s Guide for important

safety information.

CAUTION- Hot Surfaces

- Avoid touching hot surfaces.

Do not touch until the projector has cooled.

Do Not Look Into The Lens!

Be extremely careful not to look into the projection lens when the
projector is turned on. The bright light may harm your eyes. Be
especially careful to keep children from looking into the lens.

Power So urce

Use only a three-wire grounding type power source. The power
source should not exceed 250 volts rms between the supply con­ductors or between either conductor and the ground.

Power Cord

Use only the power cord that was shipped with the projector.
Although other power cords might be similar in appearance, they
have not been safety-tested with the projector. Do not use a
power cord if it has become damaged or frayed. Contact your In
Focus dealer or call In Focus if you need to replace your power
cord.

iii

Safety Summary

Grounding

The projector is grounded through the grounding conductor on
the power cord. To avoid electric shock, plug the power cord into
a properly wired receptacle. Do not defeat the purpose of the
grounding-type plug.

Lamp

To avoid overheating and unacceptable image quality, replace the
projection lamp with a lamp of the specified type. Refer to
page 49 for lamp specifications and to page 41 for instructions on
replacing the lamp.

Lamp Compartment

To avoid burns, do not open the lamp module door until the pro­jector is turned off and the lamp has cooled for at least 30 min­utes. Follow the instructions in this manual for lamp replacement
carefully.

Hot Surfaces

Allow the projector to cool at least 30 minutes before replacing a
lamp. When you open the lamp housing, be very careful not to
touch the hot surfaces inside.

NO TE: If you open the projector

case, you will void the warranty.

iv

Ventilation and Overheating

Openings in the projector case provide ventilation to protect it
from overhe ating. Keep loose papers and other ob jects well away
from the grills. Do not place the projector on top of or close to a
computer or other heat-producing equipment.

Liquid Spills

Do not set drinks on top of the projector. Spilled liquids can flow
inside and cause damage.

Do Not Disassemble

All projector service must be performed by an authorized In
Focus service center. The only user-serviceable part in the projec­tor is the projection lamp, which you can replace by opening the
lamp cover on the bottom of the projector (see page 41). Do not
open any other part of the projector. If your projector needs
repair, call In Focus Technical Support as described on page 5.
Before you call Technical Support, you may want to refer to
“Troubleshooting” on page 44 to see if you can resolve the prob­lem yourself.

INTRODUCTION

The In Focus

®

LP™ 725 and 735 lightweight multimedia projec­tors combine powerful and sophisticated features with easy-to­use, intuitive controls. Built-in multimedia features include
audio, a palette of 16.7 million colors and active matrix liquid
crystal display (LCD) technology. The 700 series projectors are
ideal for high-performance business, training and imaging appli­cations that demand exceptional color quality. The 725 has SVGA
800x600 graphics, the 735 has XGA 1024x768 graphics. The user
interfaces of the two products are identical; information in this
User’s Guide applies to both products.

Image Resolution

LP 725

The SVGA resolution of the 725’s projected image is 800x600.
Screen resolutions between 800x600 and 1024x768 are co m­pressed to 800x600. The 725 cannot compress screen resolutions
above 1024x768. If your computer’s screen resolution is higher
than 1024x768, reset it to a lower resolution before you connect
the 725

LP 735

.

The XGA resolution of the 735’s projected image is 1024x768.
Screen resolutions between 1024x768 and 1280x1024 are com­pressed to 1024x768. The 735 cannot compress screen resolutions
above 1280x1024. If your computer’s screen resolution is higher
than 1280x1024, reset it to a lower resolution before you connect
the 735

.

NO TE: The 725 automatically
expands 640x480 images to
800x600. You can display these
images at 640x480 by turning off
the Auto Resize feature. See “Auto
Resize” on page 35 for more infor­mation.

NOTE: The 735 automatically
expands 640x480 and 800x600
images to 1024x768. You can dis­play these images at their original
resolutions by turning off the Auto
Resize feature. See “Auto Resize”
on page 35 for more information.

1

Introduction

Compatibility

The projector is compatible with a wide variety of computers and
video devices, including:

•

IBM-compatible computers, including laptops, up to 1024x768

NOTE: Selected workstations are

also supported. Contact your In

Focus dealer for details.

resolution (LP 725) or 1280x1024 resolution (LP 735) at 75 Hz.

•

Apple Macintosh and PowerBook computers up to 1024x768
resolution (LP 725) or 1280x1024 resolution (LP 735).

•

Most standard VCRs, camcorders and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your In Focus dealer immedi­ately if anything is missing.

If you are experienced in setting up presentation systems, use the

LP 725/735 Quick Start

box. For complete details on connecting and operating the projec­tor , r efer to this User’s Guide. User’s Guides are also available for
download from our website at www.infocus.com.

card that was included in the shipping

NOTE: The contents of your

shipping box may vary depending

on the configuration you’ve

ordered.

2

2

3

1

6

8

7

9

1. LP 725 or 735 projector 6. CableWizard

2. LP 725/735 User’s Guide 7. CableWizard computer cable

3. power cord 8. CableWizard mouse cable

4. remote and batteries 9. CableWizard audio cable

5. RCA audio/video (A/V) cable
Not shown: Quick Start card, online user guide CD-ROM, lens cap

5

4

FIGURE 1

Shipping box contents

3

Introduction

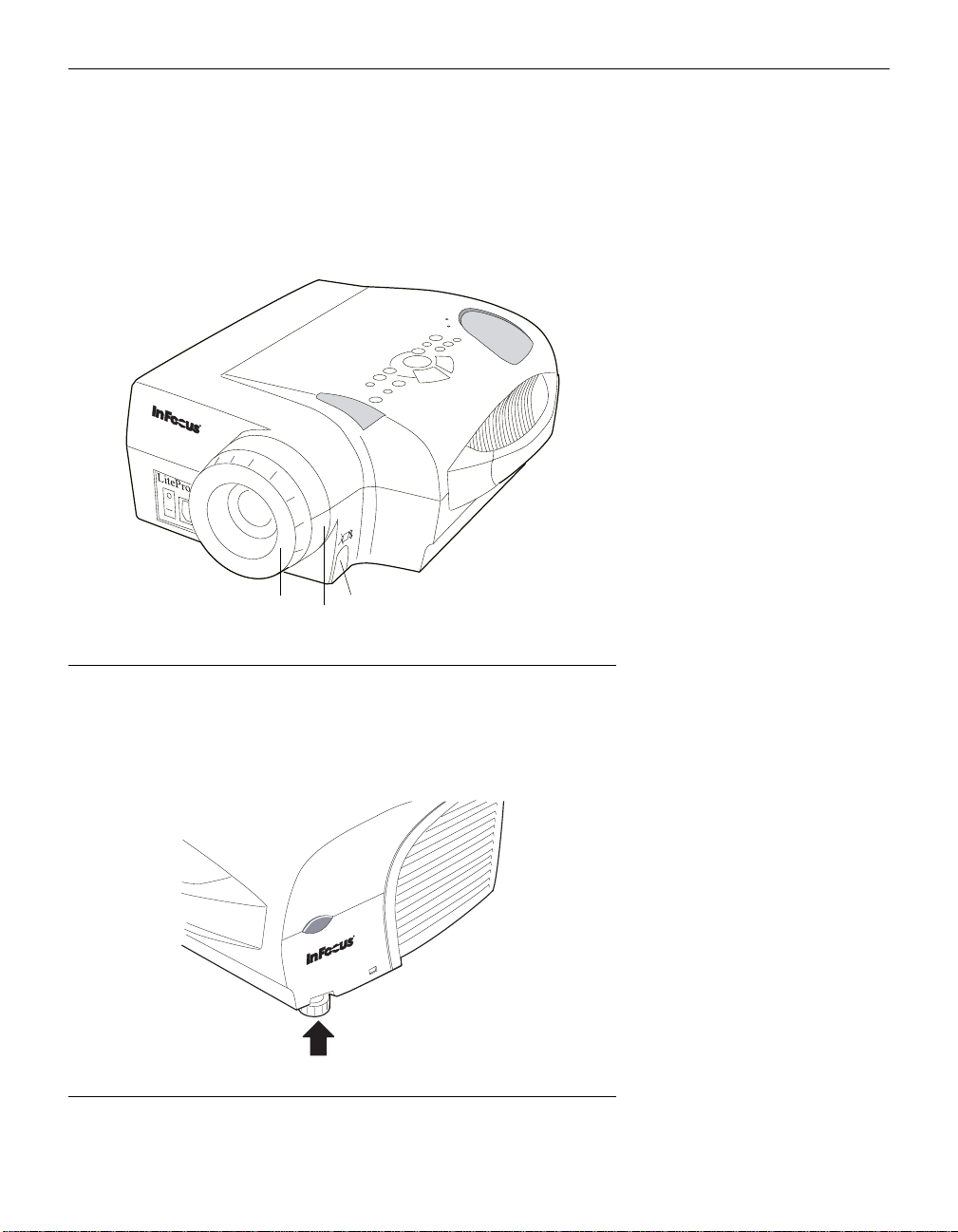

F

IGURE 2

Side view of projector

speaker

connector panel

elevator button

power
switch

F

IGURE 3

power
cord
connector

focus ring

zoom ring

remote control
receiver

Front view of projector

4

Usage Guidel ines

•

Do not look directly into the projection lens when the projector
is turned on. The bright light may harm your eyes.

•

Do not block the grills on the projector. Do not place the projec­tor on cloth table coverings, as they may get sucked up to the
vents. Restricting the air flow can cause it to overheat and turn
off.

•

Handle the projector as you would any product with glass
components. Be especially careful not to drop it.

•

Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.

•

This projector is not intended fo r use in a mainf ram e co mputer
room as defined in the Sta ndar d for th e Pr otection of Electr o nic
Computer/Data Processing Equipment, ANSI/NFPA 75.

•

Transport the projector in a vendor-appro ved h ard or soft case.
Part numbers for these cases are listed on page 52. Call your In
Focus dealer to order.

If You Need Assistance

The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 44.

NOTE: If the projector overheats
and turns off, you must wait about
30 seconds before you attempt to
turn it back on.

If this manual doesn’t answer your question, call your In Focus
dealer. You can also call In Focus Customer Service directly at

1-800-799-9911

. Customer Service is free between 5 a.m. and
5 p.m. PST, Monday through Friday. Service is available in North
America after hours and on weekends for a fee at

1-888-592-6800

In Europe, call In Focus in The Netherlands at

(31) 23-5540310

e-mail at

. In Singapore, call

[e-mail]

Our World Wide Web address is

(65) 740-6435

http://www.infocus.com.

. Or, send us an

Warranty

This product is backed by a limited one-year warranty. The
details of the warranty are printed at the back of this manual.
Longer term warranties can be purchased from your In Focus
dealer. Refer to page 52 for part numbers.

.

5

SETTING UP THE PROJECTOR

Place the projector on a flat surface.

1

•

The projector must be within 10 feet (3 m) of your power
source and within 10 feet of your computer.

•

If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 38 to reverse the image.

•

If you are installing the projector on the ceiling, refer to the

LP 700 Series Ceiling Mount Installation Guide

that comes
with the Ceiling Mount Kit for more information. To turn
the image upside down, see “Ceiling” on page 38. The Ceil­ing Mount Kit is sold separately; see page 52.

Position the projector the desired distance from the screen.

2

•

The distance from the lens of the projector to the screen
determines the size of the projected image. Figure 4 shows
three projected image sizes using the lens at minimum
focusing distance. For more information about image size,
see “Projected Image Size” on page 58.

NO TE: An optional extension
cable, sold separately, lets you
increase the distance between the
projector and your computer to
70 feet (21 m). See “Optional
Accessories” on page 52.

Make sure the projector and your computer are turned off.

3

2

5

f

t

.

5

f

t

2

.

5

.

f

t

.

3.3 ft.

6.5 ft.

32.5 ft.

Projected image size (minimum focusing distance)

FIGURE 4

7

Setting up the Projector

Connecting the CableWizard™II to the Projector

The CableWizard II (referred to as “CableWizard” in this manual

CAUTION: Turn o ff the

computer, monitor and projector

whenever you connect or

disconnect cables.

for brevity) simplifies the connection process by providing a cen­tral hub for all the connections between the projector and your
computer. The connectors on the CableWizard are labeled with
icons.

Connect the end of the CableWizard cable to the

connector on the projector’s connector panel (Figure 5).

NOTE: The projectors are

optimized for use with

CableWizard II. If you have

CableWizards from other models

of In Focus projectors, we do not

recommend using them. Image

quality is reduced by using a

CableWizard other than

CableWizard II. The label on the

bottom reads CableWizard or

CableWizard II.

F

IGURE 5

Connecting the CableWizard to the projector

Selecting Connectors on the CableWizard

Turn the selector on the top of the CableWizard to reveal the
correct connectors for your computer.

NOTE: You must disconnect all

cables before turning the selector

on the CableWizard.

8

IGURE 6

F

Selecting connectors on the CableWizard

•

If you’re connecting an

, turn the selector until the window displays “PC.”

puter

IBM-compatible desktop or laptop com-

computer

audio

•

If you’re connecting a

computer

, turn the selector until the window displays “Mac™.”

monitor

mouse

serial

F

IGURE 7

Selecting the IBM-compatible connectors on the CableWizard

Macintosh desktop o r an Apple PowerBoo k

monitor

mouse

computer

NO TE: The serial connector is
provided for use with a command
center for a fixed installation.

audio

FIGURE 8

Selecting the Macintosh connectors on the CableWizard

9

Setting up the Projector

Preparing to Connect Your Equipment to the Projector

Now you’re ready to connect your equipment. Computers are

NO TE: Before you continue,

make sure the projector and your
equipment are turned off. If you’re
connecting a computer, make sure

the distance between it and the

projector is 10 feet or less and

you’ve selected the appropriate

connectors on the CableWizard.

connected to the CableWizard. Video players and other equip­ment, such as external speakers, are connected directly to the pro­jector.

Steps for connecting the different types of equipment are given
on the pages listed below.

Equipment you want to connect Page

IBM-compatible laptop computer page 11
IBM-compatible desktop computer page 13
Apple PowerBook page 15
Macintosh desktop computer page 17
Video player page 19
External speaker page 21

NOTE: In some older computers,

the monitor connector does not

have a hole for Pin 9. If you have

trouble connecting the
CableWizard computer cable to
your computer, contact In Focus

Technical Support.

10

external
speaker

F

IGURE 9

Connector panel

s-video

composite
video

L/R audio in

wired remote
(optional
accessory)

CableWizard

Connecting an IBM-Compatible Laptop Computer

Plug the end of the CableWizard computer cable into the

1

video connector on your computer.
Plug the end of the CableWizard computer cable into the

2

connector on the CableWizard.

computer cable

FIGURE 10

Connecting the CableWizard computer cable to an IBM-compatible laptop computer

Do you want to play your computer’s audio on the projector?

Plug either end of the CableWizard audio cable into the audio

1

connector on your computer.

Plug the other end of the audio cable into the connector

2

on the CableWizard.

NO TE: Many laptop computers
do not automatically turn on their
external video port when a sec­ondary display device such as a
projector is connected. Refer to
your computer manual for the
command that activates the exter­nal video port. Activation com­mands for some laptop computers
are listed in the Appendix of this
manual on page 53.

NO TE: If you don’t w ant audio or
mouse control, you can use the
CableWizard Lite with your IBM­compatible computer. CableWiz­ard Lite is ordered separately. See
“Optional Accessories” on
page 52.

11

Setting up the Projector

Do you want to control the comput er’s mouse from the projector’s
remote or keypad?

Locate the mouse cable and unplug it from your computer.

1

Plug the end of the CableWizard mouse cable into the

2

NOTE: Most laptop computers

do not allow you to use the

computer’s pointing device and the

projector’s remote at the same

time.

mouse connector on your computer.

Plug the end of the CableWizard mouse cable into the

3

connector on the CableWizard.

mouse cable

computer cable

12

audio cable

FIGURE 11

Connecting the CableWizard audio and mouse cables to an IBM-compatible laptop
computer

Now you’re ready to power up the projector and your laptop.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.

Connecting an IBM-Compatible Desktop Computer

Locate the cable that connects your monitor to your computer.

1

Unplug it from the computer.

Plug the end of the CableWizard computer cable into the

2

monitor connector on your computer.

Plug the end of the computer cable into the connector

3

on the CableWizard.

computer cable

FIGURE 12

Connecting the CableWizard computer cable to an IBM-compatible desktop computer

Do you want to display the image on your computer’s monitor as
well as on the projection screen?

Plug your monitor’s cable into the connector on the

1

CableWizard.

Do you want to play your computer’s audio on the projector?

Unplug the audio cable, if present, from your computer.

1

Plug either end of the CableWizard audio cable into the audio

2

connector on your computer.

Plug the other end of the audio cable into the connector

3

on the CableWizard.

13

Setting up the Projector

Do you want to control your computer’s mouse from the projector’s
remote or keypad?

Unplug the mouse cable from your computer.

1

Plug the end of the CableWizard mouse cable into the

2

NO TE: You cannot use your

computer’s mouse and the

projector’s remote at the same

time.

mouse connector on your computer.

Plug the end of the CableWizard mouse cable into the

3

connector on the CableWizard.

monitor cable

computer cable

audio cable

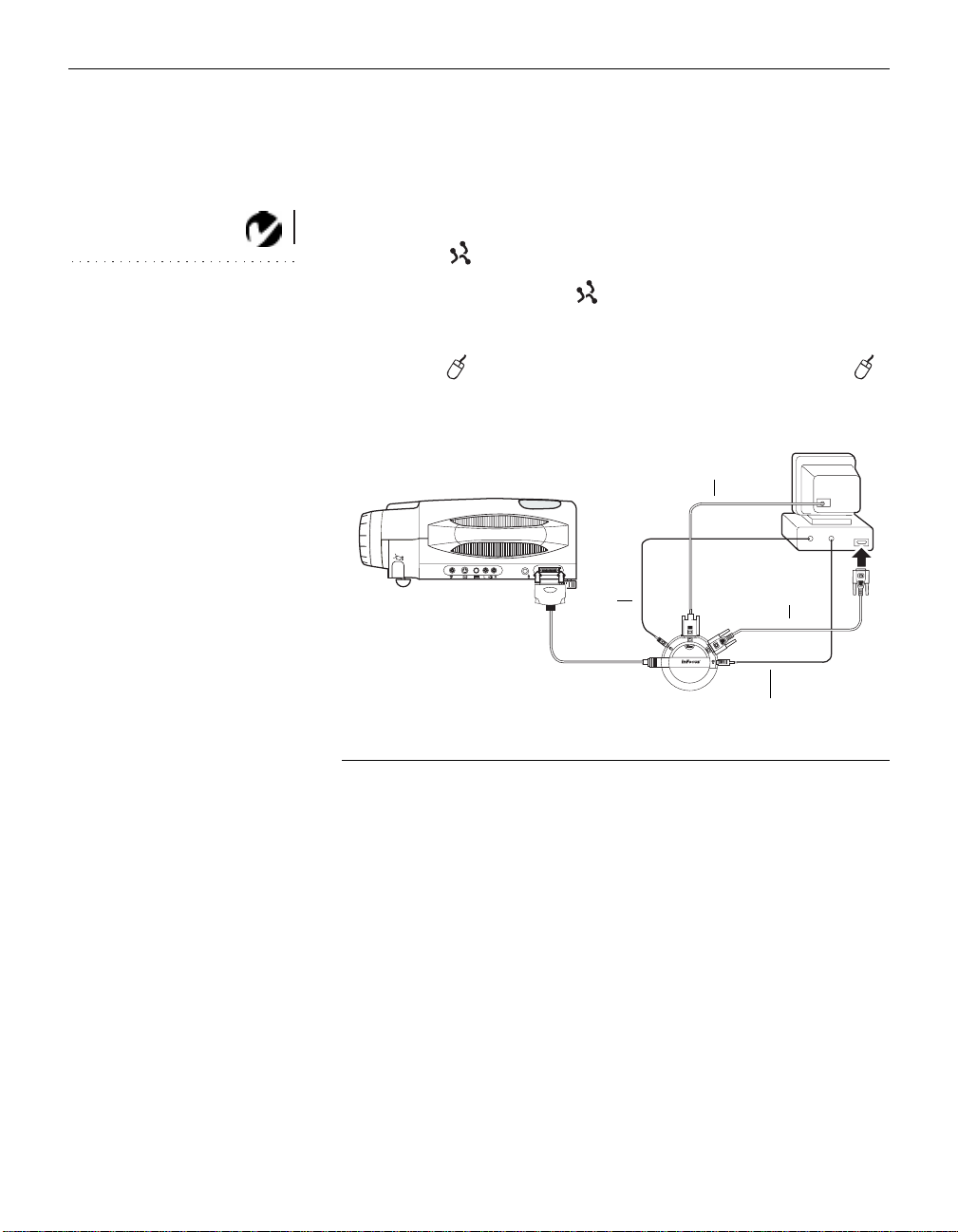

FIGURE 13

Connecting the CableWizard monitor, audio and mouse cables to an IBM-compatible
desktop computer

mouse cable

Now you’re ready to power up the projector and your computer.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.

14

Connecting an Apple PowerBook Computer

Plug the end of the CableWizard computer cable into the

1

video connector on your PowerBook.
Plug the end of the CableWizard computer cable into the

2

connector on the CableWizard.

If you want the projector display to be the same as the Power-

3

Book’s screen display, turn on video mirroring. (See “Using
V ideo Mirr oring with a PowerBook Com puter” on page 57 for
additional information.)

PowerBook

computer cable

video-out cable

NO TE: Some PowerBooks require
the Apple-supplied video-out cable
for external video. Connect it
between the PowerBook and the
CableWizard computer cable as
shown in Figure 14.

FIGURE 14

Connecting the CableWizard computer cable to an Apple PowerBook

Do you want to play your computer’s audio on the projector?

Plug either end of the CableWizard audio cable into the audio

1

connector on your PowerBook.
Plug the other end of the audio cable into the connector

2

on the CableWizard.

15

Setting up the Projector

Do you want to control the comput er’s mouse from the projector’s
remote or keypad?

Locate the mouse cable and unplug it from your PowerBook.

1

Plug the end of the CableWizard mouse cable into the

2

NOTE: Most laptop computers

do not allow you to use the

computer’s pointing device and the

projector’s remote at the same

time.

(ADB) connector on your PowerBook.

Plug the end of the CableWizard mouse cable into the

3

connector on the CableWizard.

mouse cable

computer cable

audio cable

PowerBook
video-out cable

16

FIGURE 15

Connecting the CableWizard audio and mouse cables to a PowerBook

Now you’re ready to power up the projector and your Power­Book. Skip to “Powering up the Projector and Adjusting the
Image” on page 21.

Connecting a Macintosh Desktop Computer

Locate the cable that connects the monitor to your computer.

1

Unplug it from the computer.

Plug the end of the CableWizard computer cable into the

2

monitor connector on your computer.

Plug the end of the CableWizard computer cable into the

3

connector on the CableWizard.

computer cable

FIGURE 16

Connecting the CableWizard computer cable to a Macintosh desktop computer

Do you want to display the image on your computer’s monitor as
well as on the projection screen?

Plug the monitor’s cable into the connector on the

1

CableWizard.

Do you want to play your computer’s audio on the projector?

Unplug the audio cable, if present, from your computer.

1

Plug either end of the CableWizard audio cable into the audio

2

connector on your Macintosh.
Plug the other end of the audio cable into the connector

3

on the CableWizard.

17
