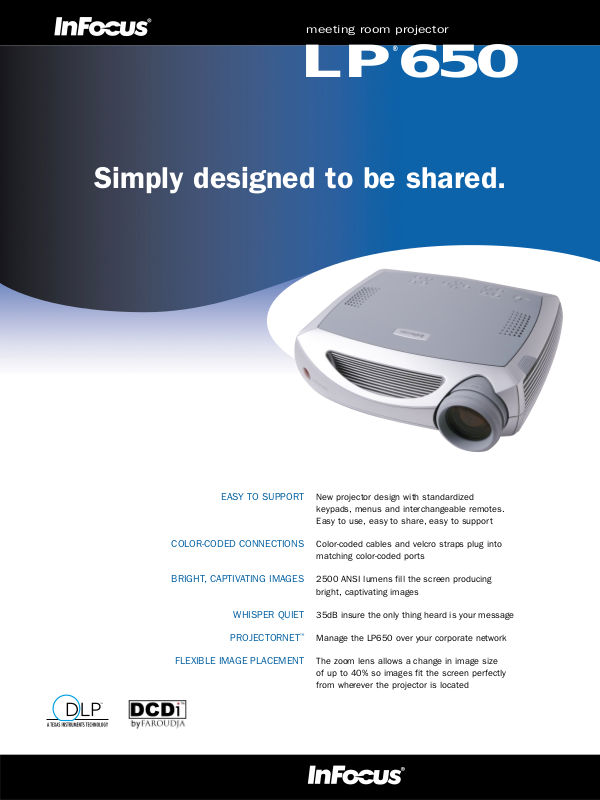

meeting room projector
®
LP
650
Simply designed to be shared.
EASY TO SUPPORT New projector design with standardized
keypads, menus and interchangeable remotes.
Easy to use, easy to share, easy to support
COLOR-CODED CONNECTIONS Color-coded cables and velcro straps plug into
matching color-coded ports
BRIGHT, CAPTIVATING IMAGES
WHISPER QUIET 35dB insure the only thing heard is your message
PROJECTORNET
FLEXIBLE IMAGE PLACEMENT The zoom lens allows a change in image size
2500 ANSI lumens fill the screen producing
bright, captivating images
™
Manage the LP650 over your corporate network
of up to 40% so images fit the screen perfectly
from wherever the projector is located
®
LP
650
WHERE SOPHISTICATED
DESIGN MEETS SIMPLE
CONTROL
The LP650 was designed around
a new way of thinking and its like
nothing you’ve ever seen before
in projector design. An intuitive
standardized keypad with every-
thing users need, right on top of
the projector. No need for direc-
tions, manuals, or IT support
calls. With color-coded connec-
tions and cables users can
connect the projector in seconds.
The keypad is grouped by
function and simple to use—
whether users want power, source
selection or fine-tuning. And for
further ease of operation, users
can rely on intuitive, icon-based
menus—they simply scroll and
select. Standardized, interchange-
able remotes mean seamless
projector control across all
InFocus projectors. What’s more,
a built-in handle makes it easy for
anyone to carr y the projector or
switch rooms at a moment’s
notice. With the LP650, choosing
to standardize on InFocus, the
worldwide leader in digital projec-
tion, couldn’t be an easier choice.
FULLY EQUIPPED AND
LOADED WITH OPTIONS
The InFocus LP650 has it all.
Connect up to five sources simul-
taneously—2 computer, 3 video
for seamless switching and simple
content integration. With the
optical zoom lens on the LP650
—flexibility in image size and
projector placement have never
been easier. Images can be
enlarged up to 40% in size with
the 1.4:1 optical zoom lens—and
with the digital pan/zoom users
can highlight an area of the
screen at the touch of a button.
The LP650 ships standard with
™
the Conductor
one of three new optional
remotes to make projector
control seamless. The LP650
also ships with a new molded
case that organizes the projector
and accessories like a toolbox,
putting an end to missing parts
Plus remote,
Digital/Analog Computer
mouse and flash with audio
VESA Computer
Power
and cables. Using the color-coded
slots for cables and parts—the
user can quickly pack everything
into the case. Anyone using the
projector will know at a glance if
something is missing.
with audio
INTEGRATING INTO
YOUR WORLD
With InFocus ProjectorNet
software, you can command
and control the LP650 over your
existing networks. Designed as a
snap-in to the Microsoft
ment Console, InFocus Projec-
torNet provides unique control
features allowing for centralized
™
®
Manage-
Composite Video
S-Video
Audio In
Monitor Out
RS-232
Audio Out
Component Video
management. Troubleshoot and
control projector functions such
as power-off to save lamp life—all
from a single PC. Reducing total
cost of ownership and reducing
support time spent managing
multiple projectors has never
been easier. InFocus ProjectorNet
means instant access to all
networked projectors from your
server or dedicated help desk.
ProjectorNet
Security
Leveling foot
for perfect image
placement
Presenter™
remote
simply designed to be shared
DELIVERING THE FUTURE
Users count on you to bring them the latest technology. Only InFocus
delivers projectors that are compatible with tomorrow. The LP650
uses the newest DLP™technology from Texas Instruments—a .7"
DMD with Double Data Rate (DDR) chip that delivers twice the
contrast ratio of other projectors in its class, yielding sharp, color ful
images. The LP650 includes cutting-edge technology that allows for
future upgrades to InFocus wireless connectivity.
SOPHISTICATED CONTROL AND COMMUNICATION
Exclusive ProjectorManager™control software allows projector
control via the PC. Adjust control source, color, tint, brightness
and keystone quickly and easily from the computer. Users can now
enhance presentation effects or even customize logos and startup
screens. And should users need IT support, ProjectorManager
sends a snapshot of the projector information. ProjectorManager
even provides the ability to freeze the projected image for changes
without distracting others looking at the screen. With an InFocus
Conductor™
Plus remote
>
>
>
projector, users are always in control.
SOMETHING FOR EVERYONE
The new InFocus LP650 will change the way your
organization shares information. Users will be
self-sufficient, taking advantage
of easy projector setup and configuration.
Everyone will benefit from the simple, standard-
ized interface. And collaboration with the LP650
will quickly become a vital part of every ef fective
meeting. Outfitting your conference rooms with
the right projection solution has never been
easier.
meeting room projector
®
Ships Standard With Projector:
• Exclusive InFocus Organizer molded
carry case
• Conductor™Plus full-featured remote
with laser pointer
LEADERSHIP BUILT ON QUALITY
InFocus Corporation is the worldwide leader in
digital projection. That's why the most
demanding businesses insist on InFocus
for unquestionable reliability engineered
into the most streamlined machine.
SERVICE YOU CAN COUNT ON
For outstanding service and suppor t that’s
there when you need it, InFocus Corporation’s
service programs offer you peace of mind —
it’s customer care you can count on. For more
information on ser vice program details for your
region, please visit
www.infocus.com/service/service_offerings
Exclusive InFocus Organizer molded car ry case
• Color coded cable straps
• M1-D/A analog computer cable with
USB
• 3.5mm computer audio cable
• RCA audio/video cable
• Power cord
• User manual, quick star t card and CD
Optional Accessories
CA-ATA-013 ATA Shipping Case
CASE-801 Deluxe Travel Case
SP-DVI-CARD Digital/Analog Interface Card
SP-DVI-D Digital Computer Cable
HW-PRESENTER Presenter
HW-INTEGRATOR Integrator™systems remote with
HW-RF-POCKTPNT Mind Path™RF remote
SP-CEIL-005 Ceiling Mount Kit
SP-LTMT-PLT False Ceiling Plate
SP-LTMT-EXTP Mounting Extension Arm
SP-LOCK PC Guardian Projector Cable Lock
A650 50" Portable Projection Screen
HW-DLXSCRN 60" Deluxe Insta-Theatre Screen
HW-WALLSCR84 84" Pull-Down Screen
SP-LAMP-006 Replacement Lamp
laser
™
remote with laser
PROJECTION DISTANCE/IMAGE SIZES*
1.5m
3.0m
4.6m
6.1m
9.1m
10.0m
Min. Diag. Image Size
Throw Ratio: 0.48
2.4’
4.8’
7.2’
9.6’
14.4’
15.7’
Distance to Screen
5.0’
10.0’
15.0’
20.0’
30.0’
32.8’
* Metric conversions are approximate.
Call InFocus or your dealer today to arrange a demonstration.
Max. Diag. Image Size
0.7m
1.5m
2.2m
2.9m
4.4m
4.8m
Throw Ratio: 0.67
1.0m
3.4’
2.0m
6.7’
10.1’
13.4’
20.1’
22.0’
3.1m
4.1m
6.1m
6.7m
Min. Horiz. Image Size
Throw Ratio: 2.63
0.6m
1.9’
1.1m
3.8’
1.7m
5.7’
2.3m
7.6’
3.5m
11.4’
3.8m
12.5’
Max. Horiz. Image Size
Throw Ratio: 1.88
2.7’
5.3’
8.0’
10.6’
15.9’
17.4’
LP
650
TECHNICAL SPECIFICATIONS
Native Resolution • XGA 1024 x 768
Display Technology • DLP™ by Texas Instruments 0.7" XGA DMD DDR
Input Sources • Computer 1 (M1-D/A with 3.5mm audio), Computer
Output Sources • Stereo audio (RCA), monitor out (VESA)
Computer Compatibility • SXGA, XGA, SVGA, VGA, Macintosh®, 1080i/720p HDTV
Video Compatibility • Full NTSC, PAL, SECAM, EDTV (480p, 576p),
Brightness Standard Mode • 2500 ANSI lumens
Brightness Uniformity • +30/-40
Contrast Ratio • 800:1
Number of Colors • 16.7 million colors
H-Synch Range • 50 – 117 kHz
V-Synch Range • 50 – 85 Hz
Dot Clock: • 135 MHz
Vertical Image Offset • Fixed. +115% image offset
Digital Keystone Correction • +/-20 degrees
Projection Lens • Manual zoom and focus lens
Zoom Ratio • 1.4:1
Throw Ratio • 0.48 – 0.67:1 (Diagonal Image/Distance)
Minimum Projection
Distance • 5' (1.5 m)
Maximum Projection
Distance • 32.8’ (10.0m)
Aspect Ratio • 4:3
Image size (diagonal) • 2.4' to greater than 22' (0.7m to greater than 6.7m)
Projection Methods • Front, rear and ceiling
Audio • 2 x 2-Watt stereo audio
Projector Control • Menu, Keypad, ProjectorManager, RS-232, NIC (RJ45)
Mouse Control • USB
Lamp • 250-Watt UHP/2000 hours
Dimensions (standard) • 4.3" (H) x 13.8" (W) x 12.8" (L)
Weight (standard) • 9.35 lbs/4.24 kg
Power Consumption • 350 Watts
Power Supply • 100V –240V at 50 –60 Hz
0.8m
1.6m
2.4m
3.2m
4.8m
5.3m
Operating Temperature • 10˚to 35˚C at sea level (0 to 10,000'); 50˚to 95˚F
Menu Languages • English, Spanish, French, German, Japanese, Korean,
Audible Noise • 35dB
Approvals • UL, CSA, TUV, C Tick, NOM, MIC, GOST, IRAM, CCC,
Lamp Warranty • 90 days or 500 hours, whichever comes first
Warranty • 2 years par ts and labor
www.infocus.com
InFocus Corporate Headquarters:
In the Americas:
27700B SW Parkway Avenue • Wilsonville, Oregon 97070-9215, USA
Phone: 503-685-8888 • 1-800-294-6400 • Fax: 503-685-8887
In Europe: Olympia 1 • NL-1213 NS Hilversum, The Netherlands
Phone: (31) 35 6474000 • Fax: (31) 35 6423999
Freephone: 008000 4636287 (008000 INFOCUS)
In Asia: 238A Thomson Road • #18-01/04 Novena Square
Singapore 307684 • Telephone: (65) 6334-9005 • Fax: (65) 6333-4525
InFocus and LP are registered trademarks of InFocus Corporation. All other trademarks are used with permission or
are for identification purposes only and are the property of their respective companies. ©2002 InFocus Corporation.
All rights reserved. 7.02 805-0651-04. LP650_DS_E.qxd
2 (VESA with 3.5mm audio), Video 1 (S-Video), Video 2
(RCA), Video 3 (Component RCA), Stereo audio (RCA),
RS-232, NIC (RJ45)
HDTV (720p, 1080i)
• 1.88 – 2.63:1 (Horizontal Image/Distance)
110mm (H) x 351mm (W) x 325mm (L)
Portuguese, Italian, Nor wegian, Russian, Simplified
Chinese, Traditional Chinese
S-JQA, FCC A, EN55022, ICES-003
