LP
600
USER’S GUIDE
Declaration of Conformity
Manufacturer: InFocus Corporation, 27700B SW Parkway Avenue, Wilsonville,
Oregon 97070 USA
European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands
We declare under our sole responsibility that this projector conforms to the following
directives and norms:
EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 2000
May, 2004
Trademarks
Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered
trademarks of Adobe Systems Incorporated. InFocus, LiteShow, LitePort, and LP are
trademarks or registered trademarks of InFocus Corporation.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, CUL, TUV, GOST
Other specific Country Approvals may apply, please see product certification label.
This user’s guide applies to models LP600 and GEN205.
InFocus reserves the right to alter product offerings and specifications at any time.
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.
2
Table of Contents
Introduction 5
Connecting a computer 7
Required computer connections 7
Displaying a computer image 9
First-time projector use with Windows 98 10
Adjusting the image 12
Connecting a video device 13
Displaying a video image 14
Shutting down the projector 16
Troubleshooting your setup 16
Using the keypad buttons 25
Using the remote control 26
Using the LitePort player 27
Using the audio 28
Optimizing computer images 29
Presentation features 29
Optimizing video images 29
Customizing the projector 29
If you are experienced in setting up presentation systems, use the included
Quick Set Up card. For complete details on connecting and operating the
projector, refer to this User’s Guide. Electronic versions of this User’s Guide
in multiple languages are available on the included CD. The most current
versions can be found on our website.
The website also has technical specifications (an interactive image size calculator, laptop activation commands, connector pin outs, a glossary, the
product data sheet), a web store to buy accessories, and a page for online
registration. See the inside of the back cover for a list of all relevant web
addresses.
Using the menus 30
Picture menu 31
Settings menu 34
Maintenance 39
Cleaning the lens 39
Using the security lock 39
Replacing the projection lamp 40
Cleaning the lamp filter screens 42
Appendix 43
Accessories 43
Red LED behavior and projector errors 44
Projected image size 44
3
Important Operating Considerations for Safety
• Place the projector in a horizontal position no greater than 15 degrees
off axis.
• Locate the projector in a well-ventilated area without any obstructions
to intake or exhaust vents. Do not place the projector on a tablecloth or
other soft covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any heating or cooling
vents.
• Use only InFocus-approved ceiling mounts.
• Use only the power cord provided. A surge-protected power strip is
recommended.
• Refer to this manual for proper startup and shutdown procedures.
• In the unlikely event of the lamp rupturing, discard any edible items
placed in the surrounding area and thoroughly clean the area along all
sides of the projector. Wash hands after cleaning the area and handling
the ruptured lamp. This product has a lamp which contains a very
small amount of mercury. Dispose of it as required by local, state or federal ordinances and regulations. For more information see
www.eiae.org
.
Follow these instructions to help ensure image quality and lamp life over
the life of the projector. Failure to follow these instructions may affect the
warranty. For complete details of the warranty, see the Warranty section at
the end of this user's guide.
Do not place objects or people in the 2 foot (.6m) area along the side of the projector.
For ceiling mount applications, this area should be 5 feet (1.5m).
2 ft (.6m)
5 ft (1.5m)
4
Introduction
Your new digital projector provides computer and video inputs and has
XGA 1024x768 resolution. The projector is easy to connect, easy to use, and
easy to maintain. An Interactive Display on the top of the projector gives
you constant feedback on the status of the projector.
Online Registration
Register your projector on our website to receive product updates,
announcements, and registration incentives. See the inside of the back cover
for the web address.
Included items
carry case
Projector components and features
remote
control
receiver (IR)
elevator foot release
focus
keypad
speaker
zoom
projector
lens cap
lens cap tether*
computer
cable
*The lens cap tether ships in the Documentation Pack. Attach it to the lens cap and
the projector if desired.
remote
video cable
documentation
audio cable
adapter
audio cable
power
cable
5
Interactive display
connectors
leveling
foot
IR receiver
heat vent
IR receiver
Connector Panel
The projector provides computer and video connectors:
• one M1-D/A (HD, DVI, and computer)
• one VESA (HD, HD component, and computer)
• one S-video
• one composite RCA video
• one audio in/one audio out
It also has an RS-232 serial connector for serial control. The Command Line
Interface (CLI) specifications and commands are on our website.
TM
The projector also has a LitePort
JPEG (Joint Photographic Experts Group, .jpg, .jpe, or .jpeg) images. This
allows you to display any JPEG image automatically, without a computer
connected. Use your own JPEGs from your digital camera, or convert your
files, such as Microsoft
PowerPointTM, WordTM, or ExcelTM files, into
JPEGs using LitePort Utility software (included on the CD), which allows
you to easily generate the highest quality JPEG images possible. Then transfer the JPEG images from your computer to the projector using a USB mass
storage device and your images are ready to be displayed. (Please refer to
the Service and Support section of our website for advanced specifications
on the USB device and JPEG files.) You can use the remote control to select
which JPEGs to view (page 27) or you can set up the LitePort player using
the LitePort onscreen menu to select display preferences and automatically
display and advance your JPEGs (page 36).
USB connector (Type A) and player for
Connector panel
M1-D/A
computer
VESA in/
monitor out
USB JPEG
s-video
composite
video
RS-232 serial control
power
connector
lock
audio
external
speaker
(audio out)
Wireless Projection
You can use the projector’s M1 connector along with the InFocus
LiteShow
Contact an authorized InFocus dealer or visit the website listed on the back
inside cover of this User’s Guide for more information.
wireless adapter and software for cable-free digital projection.
6
Connecting a computer
Required computer connections
Connect the black end of the computer cable to the Computer 1 connector
on the projector. Connect the blue end to the video port on your computer. If
you are using a desktop computer, you first need to disconnect the monitor
cable from the computer’s video port.
Some Macintosh computers do not have a standard VESA-out video port.
If the supplied computer cable will not connect to your computer, purchase
the appropriate adapter from your Apple reseller.
Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.
The Power LED on the projector’s keypad turns solid green.
NOTE: Always use the power cable that shipped with the projector.
connect computer cable
connect power cable
Optional computer connections
To advance slides in a PowerPoint™ presentation using the remote, plug the
USB connector on the computer cable into the USB mouse connector on
your computer. USB drivers must be installed to use the USB feature. For
more information, see page 11.
To have sound with your presentation, connect the audio cable to your computer and to the Audio In connector on the projector.
connect computer cable
connect audio cable
7
If you are using a desktop computer and want to see the image on your
computer screen as well as on the projection screen, plug the monitor cable
to the black Computer 2 connector on the projector. This connector can be
used as monitor out or VESA in. The default is VESA in, so you must
change this option in the menu to use monitor out. See page 34 to switch
between the two functions.
If you prefer connecting your projector to your computer with an optional
VESA cable, connect one end of the cable to the VESA port on your computer, and connect the other end of the cable to the blue Computer 2 connector on the projector.
This connector can be used as monitor out or VESA in. The default is VESA
in.
You can control the projector from an LCD control panel or computer by
connecting an RS-232 cable to the projector’s Serial Control connector. Specific RS-232 commands can be found in the Service and Support section of
our website.
You can play JPEGs using the LitePort USB connector and LitePort player.
You need a USB mass storage device to use this connector. See page 27 for
details.
connect monitor cable
connect VESA cable
connect RS-232 cable
connect USB mass storage device
8
Displaying a computer image
Remove the lens cap.
remove lens cap
Press the Power button on the top of the projector or the remote.
The LED flashes green and the fans start to run. When the lamp comes on,
the startup screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness. The Interactive Display on
the projector indicates the startup status.
? No startup screen? Get help on page 17.
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t,
press the Source button on the projector’s keypad.
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on their external video port when a
projector is connected. Usually a key combination like FN + F8 or CRT/LCD
key turns the external display on and off. Locate a function key labeled
CRT/LCD or a function key with a monitor symbol. Press FN and the
labeled function key simultaneously. Refer to your laptop’s documenta-
tion to learn your laptop’s key combination.
? No computer image? Try pressing the Auto Image
button on the keypad. Get help on page 17.
press Power button
turn on computer
activate laptop’s external port
9
First-time projector use with Windows 98
If you are running Windows 2000, Windows ME, or Window XP, skip these
steps and go to “Adjusting the image” on page 12.
The first time you connect a computer running Windows 98 to the projector,
the computer recognizes the projector as “new hardware” and the Add
New Hardware Wizard appears. Follow these instructions to use the Wizard to load the correct driver (which was installed with your Windows
operating system).
a Click Next to begin searching for the driver.
b Make sure “Search for the best driver” is selected, then click Next.
c Uncheck any checked boxes, then click Next. Windows automatically
locates the driver. If this driver has been removed, reload the driver using
your Windows operating system CD.
a
b
c
d When Windows finds the driver, you are ready to install it. Click Next.
d
10
Skip this page if you did not connect the USB portion of the M1 computer cable
For Windows 98:
• If you connected the USB cable, the Add New Hardware Wizard
appears again. Drivers must be installed to use the USB functionality.
• The Wizard launches two times.
The first time it detects a USB Human Interface Device (for the keyboard).
The second time it detects a USB Human Interface Device (for the
mouse).
For Windows 2000, Windows ME, and Windows XP:
• The USB drivers are automatically installed.
11
Adjusting the image
l
Adjust the height of the projector, if necessary, by pressing the release button to extend the elevator foot.
Rotate the leveling foot (located at the bottom back right corner), if necessary.
Position the projector the desired distance from the screen, so that the lens is
perpendicular to the screen.
See page 44 for a table listing screen sizes and distances.
adjust height
elevator
foot
adjust distance
re
ease button
rotate
leveling
foot
Adjust the zoom or focus rings by rotating them until the desired image size
and focus are produced.
The projector has an Auto Keystone option that is turned on by default. But
if the image is not square, adjust the vertical digital keystone by using the
buttons on the keypad. Press the upper Keysto ne button to reduce the
upper part of the image, and press the lower Keysto ne button to reduce the
lower part.
You can also adjust the keystone via the menus, or turn off Auto Keystone.
See page 31.
Adjust the Contrast or Brightness in the Picture menu.
See page 30 for help with the menus.
adjust zoom and focus
zoom
focus
adjust keystone
adjust Contrast or Brightness
contrast
brightness
12
Connecting a video device
Standard video connections
Plug the video cable into the video-out connector on the video device. Plug
the other yellow connector into the yellow Video 2 connector on the projector.
Plug the white connector of the audio adapter into the left audio out connector on the video device and plug the red connector into the right audio
out connector on the video device.
Plug the audio cable into the other end of the audio cable adapter and into
the audio in connector on the projector.
connect video and audio cables
Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.
NOTE: Always use the power cable that shipped with the projector.
Optional video connections
If the video device uses a round, four-prong S-video connector, plug an
S-video cable (sold separately) into the S-video connector on the video
device and into the S-Video 1 connector on the projector. Use the audio connectors as described directly above.
To connect a progressive scan EDTV or HD source, use the Component to
M1 adapter (sold separately).
connect power cable
connect S-video and audio cables
13
Displaying a video image
Remove the lens cap.
remove lens cap
Press the Powe r button on the top of the projector or the remote.
The LED flashes green and the fans start to run. When the lamp comes on,
the startup screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness. The Interactive Display on
the projector indicates the startup status.
? No startup screen? Get help on page 16.
Plug in and turn on the video device.
The video device’s image should appear on the projection screen. If it
doesn’t, press the Source button on the keypad.
Adjust the height of the projector by pressing the release button to extend
the elevator foot. Rotate the leveling foot, if necessary.
Position the projector the desired distance from the screen, so that the lens is
perpendicular to the screen. See page 44 for a table listing screen sizes and
distances to the screen.
press Power button
turn on video device
adjust height
elevator
foot
adjust distance
release button
rotate
leveling
foot
14
Adjust the zoom or focus rings by rotating them until the desired image size
and focus are produced.
adjust zoom and focus
If the image is not square, adjust the vertical keystone using the buttons on
the keypad.
Press the upper Keyst o ne button to reduce the upper part of the image, and
press the lower Keys tone button to reduce the lower part.
You can also adjust the keystone via the menus, or set the projector to automatically adjust the keystone. See page 31.
Adjust the volume on the keypad or remote.
Adjust the Contrast, Brightness, Color, or Tint in the Picture menu.
See page 30 for help with the menus.
focus
zoom
adjust keystone
adjust volume
adjust Picture menu
15
Shutting down the projector
Troubleshooting your setup
The projector automatically blanks the screen after no active source is
detected for 30 minutes. This blank screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or
keypad button is pressed. The Interactive Display on the projector indicates
the shutdown status.

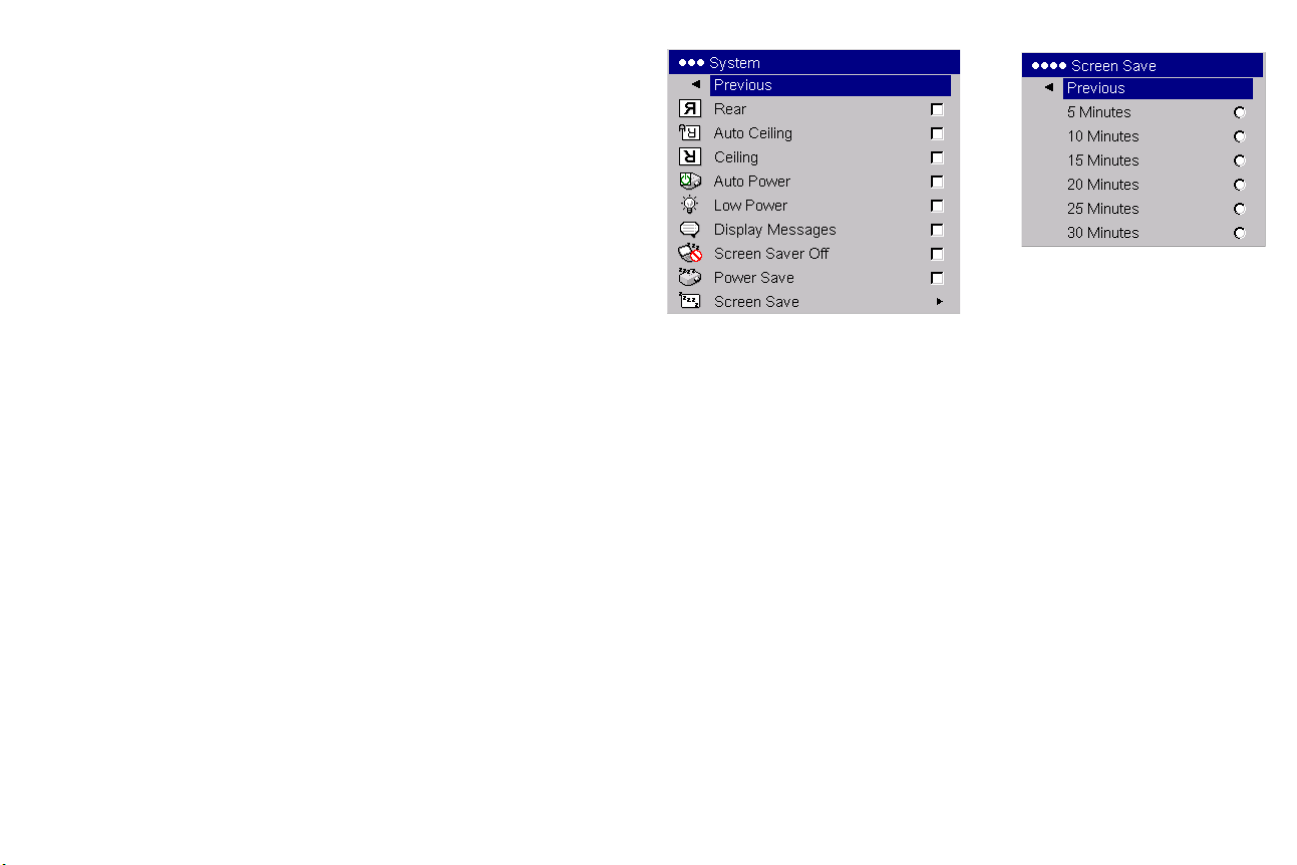

Screen Save
You can make the blank screen appear after five minutes by turning on
Screen Save in the Settings>System menu. See page 35. There are six time
options for the Screen Save feature. They range from five minutes to 30 minutes with five minute intervals.
Power S ave
The projector also has a Power Save feature that automatically turns the
lamp off after no signal is detected for 20 minutes. After 10 additional minutes with no signal, the projector powers down. If an active signal is
received before the projector powers down, the image is displayed. You
must press the Power button to display an image after 30 minutes have
passed. When Power Save is enabled, Screen Save is disabled. See page 35.
Turning off the projector
To turn off the projector, press the Powe r button and verify that you want to
turn the projector off by pressing the Power button again within 3 seconds.
You can cancel the shutdown by not pressing the Power button a second
time. The lamp turns off and the LED blinks green for 1 minute while the
fans continue to run to cool the lamp. When the lamp has cooled, the LED
lights green and the fans stop. Unplug the power cable to completely power
off the projector.
If your image appears correctly on the screen, skip to the next section
(page 26). If it does not, troubleshoot the setup. The Interactive Display and
LED on top of the projector indicate the state of the projector and can help
you troubleshoot.
Table 1: LED behavior and meaning
LED color/behavior Meaning
solid green The projector is plugged in, or the projec-
blinking green The power button has been pressed and
blinking red
see page 44 for more information
solid red An unidentifiable error: please contact
tor has been powered on and the software has initialized. The projector has
been turned off and the fans have stopped.
the software is initializing, or the projector is powering down and the fans are
running to cool the lamp.
A fan or lamp failure has occurred. Make
sure the vents aren’t blocked (see
page 23). Turn off the projector and wait
one minute, then turn the projector on
again. If the Replace Lamp message
appears, replace the lamp and reset the
lamp timer. Contact Technical Support if
the problem persists
Technical Support.
.
The following tables show common problems. In some cases, more than one
possible solution is provided. Try the solutions in the order they are presented. When the problem is solved, you can skip the additional solutions.
16

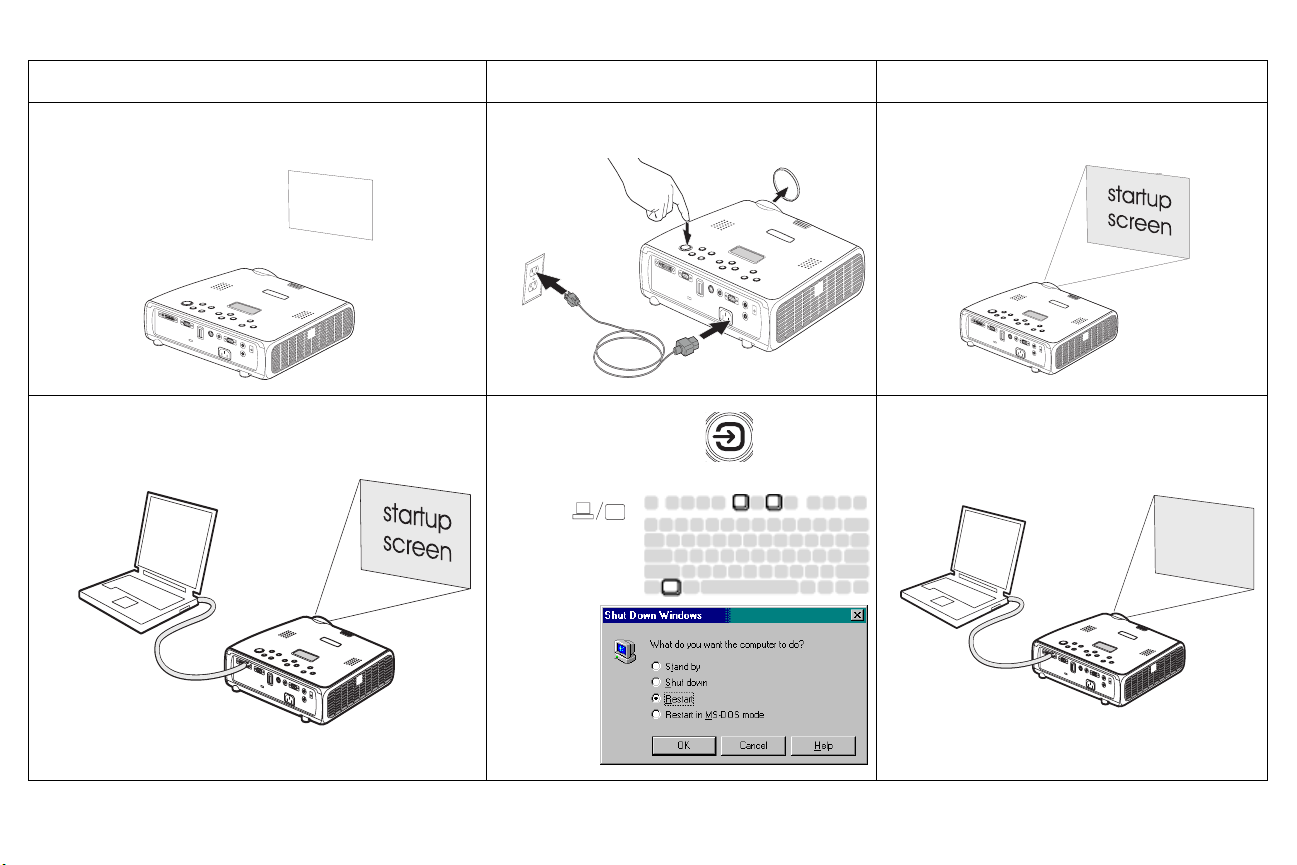

Source Troubleshooting
Problem Solution Result
No startup screen
Only startup screen appears
A
Plug power cable in, press Power button.
Remove lens cap.
Press the Source button
Activate laptop’s external port
or restart
laptop
Correct image
Computer image projected
A
A
17
No computer image, just the words “Signal out of
range”
Adjust computer refresh rate in Control
Panel>Display>Settings>Advanced>
Adapter (location varies by operating
system)
Computer image projected
A
For PC: Image fuzzy or cropped
A
A
A
Signal out of
range
You may also need to set a different
resolution on your computer, as shown
in the following problem, “Image fuzzy
or cropped”
Set your computer’s display resolution to
the native resolution of the projector
(Start>Settings>Control
Panel>Display>Settings tab, select
1024x768)
For a laptop,
disable laptop
monitor
or turn-on dualdisplay mode
A
Image clear and not cropped
A
A
18
For Macintosh: Image fuzzy or cropped
A
A
A
Set your computer’s display resolution to
the native resolution of the projector
(Apple menu>System
Preferences>Displays, choose 1024x768)
Image clear and not cropped
A
Only my laptop’s background appears, not the
Desktop icons
A
A
Disable “Extend my Windows Desktop” in
Control Panel>Display>Settings>Display 2
(location varies by operating system)
Uncheck this
option, then
click Apply
19
Background and Desktop projected
A
A
The video embedded in my PowerPoint
presentation does not play on the screen
Turn off the internal LCD display on your
laptop
Embedded video plays correctly
A
B
Remote control not advancing PowerPoint slides
A
X
Connect USB cable (page 7) then load USB
drivers, if needed (page 10).
A
B
Remote advances slides
See page 26 for information on the remote
20
Projector troubleshooting
Problem Solution Result
Image not square Adjust keystone on keypad or Picture menu
Image not sharp
Adjust the focus lens or Sharpness in the
Picture>Advanced menu
ABAB
Image does not fit 16:9 screen
Change aspect ratio to 16:9 in
Picture>Aspect ratio menu
Square image
Correct image
AB
Correct image
21
Image upside down
Turn off Auto Ceiling or Ceiling in
Settings>System menu
Correct image
A
Image reversed left to right
B
A
Projected colors don’t match source
COLOR
Turn off Rear in Settings>System menu
Adjust color, tint, color temperature,
brightness, contrast in the menus
AB
Correct image
AB
Correct image
COLOR
22
Image not centered on screen
Move projector, adjust zoom, adjust height
zoom
Adjust horizontal or vertical position in
Picture>Advanced menu
Correct image
Lamp won’t turn on, LED blinking red (page 16)
blinks
red
Make sure vents aren’t blocked; allow
projector to cool for one minute
23
Unplug projector; wait one minute; plug in
projector and turn it on: lamp lights
Lamp won’t turn on, LED blinking red (page 16)
blinks
red
Lamp must be replaced (page 40)
Still having problems?
If you need assistance, visit the Service and Support section of our website
or call us. See the inside of the back cover for a list of all relevant web
addresses.
This product is backed by a limited warranty. An extended warranty plan
may be purchased from your dealer. When sending the projector in for
repair, we recommend shipping the unit in its original packing material, or
having a professional packaging company pack the unit. Please insure your
shipment for its full value.
Lamp turns on
24
Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of their functions:
power–turns the projector on (page 9) and off (page 16).
menu–opens the on-screen menus (page 30).
select–confirms choices made in the menus (page 30).
up/down arrows–navigates to and adjusts settings in the menus (page 30).
auto image–resets the projector to the source.
presets–cycles through the available preset settings (page 32).
keystone–vertical keystone adjusts the squareness of the image (page 12).
You can also adjust the keystone via the menus. See page 31.
volume–adjusts sound (page 28).
source–changes the active source.
menu navigation buttons
25
Using the remote control
The remote uses two (2) provided AA batteries. They are easily installed by
sliding the cover off the remote’s back, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover.
To operate, point the remote at the projection screen or at the projector (not
at the computer). The range of optimum operation is about 30 feet (9.14m).
Previous and Next buttons allow you to navigate through your PowerPoint
presentation while in Slide Show mode. Connect the USB connector on the
computer cable to your computer to use these buttons. When you do this for
the first time, the Add New Hardware wizard may appear. See page 10 for
details on loading the correct USB drivers.
Press the remote’s Menu button to open the projector’s menu system. Use
the arrow buttons to navigate, and the Select button to select features and
adjust values in the menus. See page 30 for more info on the menus.
The remote also has a Power button to turn the projector on and off (see
page 16 for shutdown info), Vol u me and Mute buttons to control the sound,
and a Source button to switch between sources.
previous button
navigation
buttons
next button
Two presentation-specific features are also provided. Use the Blank button
to display a blank screen instead of the current slide (you can choose which
color is displayed, see page 37); use the Effect button to invoke a user-definable action, such as freeze or aspect ratio (see page 38 to learn to program
this button).
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are
not dead. The LED at the top of the remote lights when any button is
pressed when the battery power is adequate.
• Make sure you’re pointing the remote at the projector, not the computer, and are within the remote range of 30 feet (9.14m).
• If you are trying to advance PowerPoint slides, make sure the USB portion of the M1 computer cable is connected and the correct drivers are
installed.
26
Using the LitePort player
LitePort allows you to display any JPEG image automatically, without a
computer connected. Use your own JPEGs from your digital camera, or convert your files, such as PowerPoint or Word files, into JPEGs using LitePort
Utility software (included on the CD). LitePort Utility allows you to easily
generate the highest quality JPEG images possible. (LitePort player is optimized to display images at 960x720 resolution, so for best results, create
JPEGs at this resolution). Then transfer the JPEG images from your computer to the projector using a USB mass storage device and your images are
ready to be displayed. You can use the remote control to select which JPEGs
to view or you can set up the LitePort player using the LitePort onscreen
menu to select display preferences and automatically display and advance
your JPEGs. See page 36.
When active, the player can be in one of three modes:
• Folder View mode, which shows a thumbnail image representing each
folder that contains a valid JPEG. The thumbnail for that folder is the
first JPEG alphabetically in that folder. Folders are sorted alphabetically
based on the name of the actual directory with no regard to the file system path to the folder.
• File View mode, which shows a thumbnail of the valid JPEGs in that
folder.
• Full Screen mode, which shows the first JPEG in the selected folder.
The remote and keypad buttons interact with the player differently in each
mode. When you insert a USB device in the LitePort connector, the player
enters Full Screen mode if Auto Play is checked (the default setting) and the
AutoPlay folder contains a JPEG or it enters Folder View if Auto Play is not
checked. The AutoPlay folder is automatically created by LitePort Utility
software. See its online help for details.
In Folder View mode, pressing the Next button (or the Down arrow) places
the white selection box around the next folder, pressing the Previous button
(or the Up arrow) places the selection box around the previous folder, pressing Select selects the current folder and enters File View mode. Nine folder
thumbnails can be displayed on the screen at a time. If your USB drive contains more than 9 folders, you can navigate to them by navigating to the last
thumbnail on the screen and pressing Next or Down arrow. You are looped
back to Folder 1 when you reach the end of the folder list.
Table 2: Folder View navigation
Folder 1 2 3
456
78
In File View mode, pressing Next (or Down) places the selection box around
the next JPEG file, pressing Previous (or Up) places the selection box around
the previous JPEG, pressing Select selects the current JPEG and enters Full
Screen mode, or, if the “return to folders” arrow is highlighted, returns to
Folder View mode. Eight file thumbnails can be displayed on the screen at a
time. If your folder contains more than 8 files, you can navigate to them by
navigating to the last thumbnail on the screen and pressing Next. You are
looped back to File 1 when you reach the end of the file list.
Folder 9 (press Next to
access Folder 10)
Table 3: File View navigation
Return to
Folders arrow
File 1 2
345
67
In Full Screen mode, pressing Next (or Down) advances to the next JPEG
file, pressing Previous (or Up) goes to the previous JPEG file, pressing Select
returns to File View mode. To rotate the JPEG 90 degrees clockwise, select
LitePort Rotate in the Effect menu (see page 38) then press the Effect button.
Press Select to return to File View mode.
File 8 (press Next
to access File 9)
27
Using the audio
To play sound from the projector, connect your source to the Audio In connector on the projector.
To adjust the volume, use the buttons on the keypad or remote.
To adjust the balance or turn off the projector’s chime, use the Audio menu
(see page 34).
To mute the sound, press the Mute button on the remote.
Troubleshooting audio
If there is no sound, check the following:
• Make sure the audio cable is connected.
• Make sure mute isn’t active.
• Make sure the volume is turned up enough. Press the Volu me button
on the keypad or remote.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
Connecting external speakers
The projector can be attached to external speakers that have their own
power source by plugging a speaker cable into the projector’s Audio Out
connector.
connect audio cable
adjust volume
external speakers
28
speaker
cable
Optimizing computer images
Optimizing video images
After your computer is connected properly and the computer’s image is on
the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 30.
• Adjust the Keystone, Contrast, or Brightness in the Picture menu.
• Change the Aspect Ratio. See page 31 for details.
• Adjust the Color Space, Temperature or Control in the Advanced
menu.
• Adjust the Phase, Tracking, or Horizontal or Vertical position in the
Advanced menu.
• Once you have optimized the image for a particular source, you can
save the settings using Presets. This allows you to quickly recall these
settings later. See page 32.
Presentation features
Several features are provided to make giving presentations easier. The following is an overview, details are found in the menu section on page 30.
•The remote’s Effect button allows you to assign various features to the
key. The default effect is About. You can select from Blank, Mute,
Aspect Ratio, Source, Auto Image, Freeze, About, and LitePort Rotate.
See page 38 for details.
• The Freeze effect allows you to freeze the displayed image. This is useful if you want to make changes on your computer without your audience seeing them.
•The Blank button on the remote allows you to display a blank screen
instead of the active source. See page 37.
• The Startup Logo menu option lets you change the default startup
screen to a black, white, or blue screen. See page 37.
• Two menu options, Power Save and Screen Save, are provided to automatically shut down the projector after several minutes of inactivity or
display a blank screen. This helps preserve lamp life. See page 35.
After the video device is connected properly and the image is on the screen,
you can optimize the image using the onscreen menus. For general information on using the menus, see page 30.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture
menu. See page 31.
• Change the Aspect ratio. Aspect ratio is the ratio of the image width to
image height. TV screens are usually 1.33:1, also known as 4:3. HDTV
and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
input source. See page 31.
• Select a Sharpness, Color Temperature, or Video Standard setting. See
page 33.
• Adjust the Color Control or White Peaking settings. See page 33.
Customizing the projector
You can customize the projector for your specific setup and needs. See
page 34 to page 39 for details on these features.
• For rear projection, turn Rear mode on in the Settings>System menu.
• For ceiling mounted projection, turn Ceiling mode on in the Set-
tings>System menu.
• Turn on Automatic Keystone adjustments.
• Specify which source the projector checks first for active video during
power-up.
• Specify the function of the Effect Key on the remote.
• Turn the projector’s display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and startup logos.
• Specify the menu language.
• Project wirelessly with LiteShow wireless adapter. See page 6.
• Control your projector using RS-232 commands. See page 8.
29
Using the menus
To open the menus, press the Menu button on the keypad or remote. (The
menus automatically close after 60 seconds if no buttons are pressed.) The
Main menu appears. Use the arrow buttons to move up and down to highlight the desired submenu, then press the Select button.
To change a menu setting, highlight it, press Select, then use the up and
down arrow buttons to adjust the value, select an option using radio buttons, or turn the feature on or off using check boxes. Press Select to confirm
your changes. Use the arrows to navigate to another setting. When your
adjustments are complete, navigate to Exit, then press Select to go to the
previous menu; press the Menu button at any time to close the menus.
Dots appear before the menu name. The number of dots indicate the menu’s
level, ranging from one (the Main menu) to four (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not
changed often.
• The About menu provides a read-only display of information about the
projector and source.
Certain menu items may be grayed out until a particular source is connected. For example, Sharpness is only available for video sources and will
be hidden when a computer source is active. Other menu items may be
grayed out when they are not available. For example, Brightness is grayed
out until an image is active.
Main menu
menu
Menu
button
Keypad navigation
buttons
Dots
Settings
menu
30
About menu
Picture menu
To adjust the following six settings, highlight the setting, press Select, use
the up and down arrows to adjust the values, then press select to confirm
the changes.
Key stone: adjusts the image vertically and makes a squarer image. You can
also adjust keystone from the keypad. If you want the projector to automatically adjust the keystone, check the Auto Keystone check box. If you then
manually adjust the keystone, Auto Keystone is turned off. When the projector is in Ceiling Mount mode, Auto Keystone is turned off. You can do a
“one-time” automatic keystone adjustment by pressing both Keystone buttons on the keypad at the same time.
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture and changes the amount of black and white in the
image.
Brightness: changes the intensity of the image.
Color: (video and component sources only) adjusts a video image from
black and white to fully saturated color.
Tint: (NTSC video sources only) adjusts the red-green color balance in the
image.
increasing keystone
Aspect Ratio
decreasing keystone
Aspect Ratio: Aspect ratio is the ratio of the image width to image height.
TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are
1.78:1, or 16:9. The default is 4:3, which displays the input resized up or
down to fill the display area.
The aspect ratio selection is saved for each source.
31
Presets: The provided Presets optimize the projector for displaying com-
puter presentations, photographs, and film images. You can use the preset
as a starting point, then further customize the settings for each source. To
restore the factory default settings, choose Factory Reset in the Set-
tings>Service menu.
There are also three user-definable presets. To set a preset for the current
source, adjust the image, then choose Save User 1, 2, or 3. You can recall
these settings in the future by selecting the appropriate user presets.
Presets
32
Advanced settings
Sharpness: (video sources only) changes the clarity of the edges of a video
image. Select a sharpness setting.
Color Space: This option applies to computer sources. It allows you to
select a color space that has been specifically tuned for the video input.
When Auto is selected, the projector automatically determines the standard.
To choose a different setting, turn off Auto, then choose RGB for computer
sources, choose either REC709 or REC601 for component sources.
Color Temperature: changes the intensity of the colors. Select a listed
value.
Color Control: allows you to individually modify each color. Highlight the
color, press Select, then use the arrows to adjust the value.
Video Standard: (video sources only) When it is set to Auto, the projector
attempts to pick the video standard automatically based on the input signal
it receives. (The video standard options may vary depending on your region
of the world.) If the projector is unable to detect the correct standard, the
colors may not look right or the image may appear “torn.” If this happens,
manually select a video standard by selecting NTSC, PAL, or SECAM from
the Video Standard menu.
Overscan: (video sources only) removes noise around the video image.
Sync Threshold Adjust: (enhanced and high definition sources only) If a
hardware device, such as a DVD player, is not syncing properly with the
projector, select this option to help it sync.
The following 4 options are for computer and component sources only.
Phase: adjusts the horizontal phase of a computer source.
Tr a c k i ng : adjusts the vertical scan of a computer source.
Horizontal/Vertical Position: adjusts the position of a computer source.
White Peaking: (video sources only) adjusts the white level processed in
the image. It increases the brightness of whites that are near 100%.
33
Advanced
Color Space
Video Standard
Color Temperature
Sharpness
Color Control
Settings menu
Audio: allows adjustments to the volume and balance, and turns the projec-
tor’s startup Chime on and off.
Sources: allows you to assign a particular input to a specific source key
when using the optional Integrator remote. Also allows selection of a
default Power-up Source and enables or disables Autosource.
Sources>Power-up Source: this determines which source the projector
checks first for active video during power-up.
Sources>Autosource: When Autosource is not checked, the projector
defaults to the source selected in Power-up Source. If no source is found, a
blank screen displays. When Autosource is checked, Power-up Source
determines which source the projector defaults to at startup. If no signal is
present, the projector checks the sources in order until a source is found or
until power down.
Sources>Monitor Out Enable: Selects the Computer 2/monitor out connector to be a monitor loop through of the incoming Computer 1 signal
when checked. When it is unchecked, this connector acts as a VESA input.
System>Rear: reverses the image so you can project from behind a translucent screen.
Auto Ceiling: automatically senses when the projector is inverted and turns
the image upside down. This is On by default. When in Ceiling mode, Auto
Keystone is turned off.
Ceiling: turns the image upside down for ceiling-mounted projection.
Auto Power: When Auto Power is checked, the projector automatically
goes into the startup state after the projector is powered on. This allows control of ceiling mounted projectors with a wall power switch.
Low Power: Turn this on to lower the light output of the lamp. This also
lowers the fan speed, making the projector quieter.
Display Messages: displays status messages (such as “Searching” or
“Mute”) in the lower-left corner of the screen.
Audio
Settings
Sources
Power-up
Source
System
34
Screen Saver Off: prevents your computer from going into Screen Save
mode.
Power S ave: automatically turns the lamp off after no signals are detected
for 20 minutes. After 10 additional minutes with no signal, the projector
powers down. If an active signal is received before the projector powers
down, the image will be displayed.
Screen Save: automatically blanks the screen with a black color after no signals are detected for a preset number of minutes. The image returns when
an active source is detected or a remote or keypad button is pressed. Screen
Save is disabled when Power Save is enabled.
Screen Save
System
35
LitePort
This menu allows you to control the embedded LitePort player in your projector to display JPEGs stored on your USB mass storage device. You can
also control the LitePort player with the remote or keypad. See page 27.
Auto Play: When this box is checked (the default), the projector automatically makes the LitePort player the active source and displays, in Full Screen
mode, the first JPEG in the LitePort\AutoPlay folder on the USB drive. If no
AutoPlay folder exists or the AutoPlay folder is empty, then no images will
be displayed and Folder View mode is entered. When this box is unchecked,
you must manually choose the LitePort source using the remote’s computer
button or the source button on the keypad. This will display Folder View
mode. See page 27 for details on selecting images to display using the
remote or keypad.
Play All: When this box is checked, the projector plays all the JPEGs in all
the folders on the USB drive, starting with the current folder and continuing
in alphanumeric folder order. If it is unchecked, only the JPEGs in the
selected folder are displayed, and these JPEGs play on a continuous loop.
Fit to Screen: This causes the image to fill the entire screen. If the image has
a different aspect ratio than the screen, the image will fit in width or height,
depending upon which is larger. Any empty space will be filled with black.
Auto Advance: This option lets you automatically advance images and
determine how long each image is displayed before advancing to the next
image. Click the check box to turn it on, then highlight Seconds and use the
Up/Down arrows on the keypad or remote to increase or decrease the display time. When playing images with this option, you can go back to the
previous slide by pressing the Up arrow or ahead to the next slide quicker
by pressing the Down arrow. Press the Select button to stop Auto Advance
and return to File View mode.
Slide Transition: This allows you to customize your presentation with slide
transitions. Select among None (no transition), Random, Wipe Down, Wipe
Up, Wipe Right, Wipe Left, Split Horizontal In, Split Horizontal Out, Split
Vertical In, Split Vertical Out, Horizontal Blinds, Vertical Blinds, Box In, and
Box Out. For a demonstration of these transitions, go to the Slide
Show>Slide Transition menu in PowerPoint.
LitePort
Auto Advance
Slide Transition
36
Startup Logo: allows you to display a blank Black, White, or Blue screen
instead of the default screen at startup and when no source is detected.
Blank Screen: determines what color is displayed when you press the
Blank button on the remote.
Startup Logo
Blank Screen
37
Effect Key: allows you to assign a different function to the Effect button on
the remote to quickly and easily use the effect. Only one effect can be
enabled at a time. Highlight an effect and press Select to choose a different
one. The default effect is About.
Blank: shows an empty screen.
Mute: turns off all sound.
Aspect Ratio: sets the ratio of the image width to image height.
Source: cycles through the available sources.
Auto Image: causes computer sources to be reacquired.
Freeze: pauses the projected image.
About: displays the About menu.
LitePort Rotate: rotates an image clockwise that is displayed with
LitePort.
Language: allows you to select a language for the onscreen display of
menus and messages.
Effect Key
Service: to use these features, highlight them and press Select.
Factory Reset: restores all settings (except Lamp Hours) to their default
after displaying a confirmation dialog box.
Lamp Reset: resets the lamp hours counter in the About menu to zero. Do
this only after changing the lamp. It displays a confirmation dialog box.
Service Code: only used by authorized service personnel.
Language
Service
38
Maintenance
Cleaning the lens
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Avoid using an excessive amount of cleaner, and don’t apply the
cleaner directly to the lens. Abrasive cleaners, solvents or other harsh
chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you
don’t intend to use the projector immediately, replace the lens cap.
Using the security lock
The projector has a security lock for use with a cable lock system. See
“Accessories” on page 43 for ordering information. Refer to the information
that came with the lock for instructions on how to use it.
clean the lens
with a soft dry cloth
and non-abrasive
cleaner
security lock
39
Replacing the projection lamp
The lamp hour timer in the About menu counts the number of hours the
lamp has been in use. Fifty hours before the specified end of the lamp’s life,
the message “Replace lamp” briefly appears on the screen at each startup
and in the Interactive Display. After 50 additional hours, the lamp will no
longer light. You can order new lamp modules from your dealer. See
“Accessories” on page 43 for information.
1 Turn off the projector and unplug the power cable.
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Turn the projector upside down and remove the lamp door by placing a
flat-blade screwdriver into the space between the lamp door and the
projector and gently prying the door off.
4 Loosen the captive screw on the lamp module.
WARNINGS:
• To avoid burns, allow the projector to cool for at least 60 minutes before
you replace the lamp.
• Unplug the power cord before replacing the lamp.
• Do not drop the lamp module. The glass may shatter and cause injury.
• Do not touch the glass lamp screen. Fingerprints can obscure projection
sharpness.
About menu
turn off and unplug
the projector
wait 60 minutes
pry the lamp door off
loosen the screw on lamp module
40
• Be extremely careful when removing the lamp housing. In the unlikely
event that the lamp ruptures, small glass fragments may be generated.
The lamp module is designed to contain most of these fragments, but
use caution when removing it. Before replacing a ruptured lamp, clean
the lamp compartment and dispose of cleaning materials. Wash hands
after lamp replacement. This product has a lamp which contains a very
small amount of mercury. Dispose of it as required by local, state or federal ordinances and regulations. For more information see
www.eiae.org.
5 Detach the lamp connector from the projector by gently pulling the con-
nector until it is disconnected from the projector.
6 Carefully remove the lamp module by grasping and lifting the metal
bail wire. Dispose of the lamp in an environmentally proper manner.
7 Install the new lamp module, making sure that it is properly seated. Be
careful not to touch the interior components of the projector.
8 Snap the bail wire back into its flat position against the lamp module.
9 Re-attach the lamp connector to the projector. Make sure the connector is
fully inserted.
10 Tighten the screw on the lamp module.
11 Replace the lamp door.
12 Plug in the power cable then press the Power button to turn the projec-
tor back on, then reset the lamp hour timer.
disconnect lamp connector
remove module using bail wire
Resetting the lamp timer
If the lamp timer has reached the maximum number of hours for the projector lamp, the LED on the projector’s keypad will show a lamp error (see
“LED behavior and meaning” on page 16). To reset the lamp timer, press the
decrease volume button on the keypad and the increase volume button
simultaneously for 10 seconds. You can also navigate to the Settings>Ser-
vice menu and select Lamp Reset to reset the lamp timer.
reset lamp time in Service menu
41
Cleaning the lamp filter screens
In dirty or dusty environments, the dust filter screens on the lamp module
and lamp door and in the lamp compartment can become clogged, causing
high temperatures inside the lamp module. These high temperatures can
impact lamp performance and operating life. Routine maintenance to
remove dust and dirt from the screens lowers the lamp operating temperature and prolongs lamp life. To maximize lamp life you will need to clean
the screens every 250 hours. Lamp screen maintenance may need to occur
more often than 250 hours depending on your installation/use environment.
1 Remove the lamp module. Refer to page 40 for instructions.
2 Examine the dust filter screens on each side of the lamp module. If nec-
essary, use compressed or canned air to clean the screens. Then use a
cotton swab dipped in isopropyl alcohol to lightly wipe each screen.
After you've wiped each screen, blow away any remaining contaminants.
3 Before you replace the lamp, repeat the cleaning process on the screen in
the lamp compartment in the projector.
4 Examine the dust filter screen on the lamp door. If necessary, use com-
pressed or canned air to clean the screen.
5 Replace the lamp module and lamp door.
screen
screen
screen
42
screen
Appendix
Accessories
Standard Accessories
(ship with the projector)
Carry Case 110-0819-xx
Computer Cable 6 ft (1.8 m) SP-DVI-A
Video Cable 6 ft (1.8 m) 210-0176-xx
Audio Cable 6 ft (1.8 m) 210-0118-xx
Audio Cable Adapter 210-0177-xx
Power Cable* 516-0052-xx
Navigator Remote 590-0728-xx
Projection Lamp Module (included
in projector)
Lens Cap 340-1347-xx
Lens Cap Tether 321-0192-xx
Quick Setup card 009-0911-xx
User’s Guide with CD 010-0546-xx
Safety Card 009-0659-xx
Color-coded Cable Ties, 3 set SP-CABLETIES
SCART Adapter* 301130
*country-dependent
Part Number
SP-LAMP-019
Optional Accessories Part Number
Shipping Case (ATA approved) CA-ATA-020
Projector Mount SP-CEIL-011
False Ceiling Plate for Projector Mount SP-LTMT-PLT
Extension Arm for Projector Mount
26” - 47”
Organizer Carry Case CA-C230
DVI-D Cable 6 ft (1.8 m) SP-DVI-D
M1 to Component Adaptor SP-M1-ADPT
LiteShow Wireless Connection LP-LITESHOW
Audio/Video Cable, 30 ft (9m) SP-AV30
Projector Cable Lock System SP-LOCK-B
50” Diagonal Screen (portable) A650
60” Diagonal Screen (portable) HW-DLXSCRN
84” Diagonal Wall/Ceiling Mounted Screen HW-WALLSCR84
Replacement Lamp Module SP-LAMP-019
RF Presenter Remote Control HW-PRESENTER-RF
IR Presenter Remote Control HW-PRESENTER
IR Conductor + Remote Control HW-CONDUCTOR+
SP-LTMT-EXTP
NOTE: Use only approved accessories.
43
Red LED behavior and projector errors
If the projector is not functioning properly and the red LED is blinking, consult Ta b l e 4 to determine a possible cause. There are two second pauses
between the blinking cycles. Visit our website for more details on the red
LED error codes. See the inside back cover for contact information.
Table 4:
Red LED Behavior Explanation
One (1) blink The lamp won't strike after five (5)
attempts. Check the lamp and lamp door
installations for loose connections.
Two (2) blinks The lamp counter hours have exceeded
lamp life hours. Replace the lamp and
reset the lamp hours counter.
Projected image size
Table 5:
Image sizes
Distance
to screen
(feet/m)
5/1.5 2.75/0.83 3.4/1.02 2.2/0.66 2.73/0.82
10/3 5.5/1.65 6.8/2.04 4.41/1.32 5.46/1.64
15/4.6 8.25/2.53 10.2/3.13 6.61/2.03 8.2/2.51
20/6.1 11/3.36 13.6/4.15 8.81/2.69 10.93/3.33
30/9.1 16.5/5.01 20.4/6.19 13.22/4.01 16.39/4.97
32.8/10 18.0/5.5 22.3/6.8 14.45/4.41 17.92/5.46
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
Minimum
Horizontal
(feet/m)
Maximum
Horizontal
(feet/m)
Three (3) blinks The projector has shut down the lamp.
Replace the lamp. Contact Technical Support for repair if replacing the lamp does
not solve the problem.
Four (4) blinks The fan has failed. Contact Technical Sup-
port for repair.
Five (5) blinks The projector is overheating. Check for a
blocked air vent. Contact Technical Support for repair if clearing the air vents
does not solve the problem.
NOTE: Visit our website for an interactive image size calculator.
44
INDEX
Numerics
1024x768 resolution 5
A
About menu 30, 38
Advanced setting 33
advancing PowerPoint slides 7
advancing PowerPoint slides with LitePort 27
Aspect Ratio 31, 38
audio 28
audio adapter 13
Audio In connector 7, 13
audio volume 15
audio, troubleshooting 28
Auto Advance 36
Auto Ceiling 34
Auto Image 38
Auto Play 36
Auto Power 34
Autosource 34
B
Blank screen 37, 38
blinking green 16
blinking red 16
Brightness 12
C
cables
optional 43
standard 43
Ceiling 34
cleaning the lamp filter screens 42
cleaning the lens 39
Color 15, 31
Color Control 33
Color Space 33
Color Temperature 33
colors are incorrect 22
Computer 2 connector 8
computer connections
optional 7
required 7
computer image
optimize 29
troubleshooting 17
connecting
computer 7
external speakers 28
USB device 8
video device 13
connector panel 6
contacting InFocus 24
Contrast 12, 15, 31
customer service contact information 24
45
D
Display Messages 34
displaying
computer image 9
JPEG image 27
video image 14
displaying JPEG images with LitePort player 27
Drivers 10
USB 11
Windows 98 11
E
Effect Key 38
elevator foot 12
F
Factory Reset 38
first time use
driver installation 10
Fit to Screen 36
focus 12, 15
Freeze 38
fuzzy image 18
I
display computer 9
display JPEG 27
display video 14
image does not fit screen 21
image not centered 23
image not sharp 21
image not square 21
image reversed 22
image size matrix 44
image upside down 22
Interactive Display 5
K
keypad buttons 25
keystone 12, 31
L
lamp
cleaning filter screens 42
lamp replacement 40
Lamp Reset 38
lamp screens, cleaning 42
lamp won’t turn on 23, 24
Language 38
laptop
connecting 7
external video port 9
LED
blinking green 16
blinking red 23
solid green 16
solid red 24
LED behavior 16
lens cap tether 5
46
lens, cleaning 39
leveling foot 12
LitePort
connector 6, 8
menu 36
player 6, 8, 27, 36
player modes 27
Rotate effect key 38
rotating images 38
LitePort Utility software 6
LiteShow 6
lock, security 39
Low Power 34
M
Macintosh troubleshooting 19
Main menu 30
menu system 30
Monitor connector 8
Monitor Out Enable 34
Mute 38
P
Picture menu 31
Play All 36
Position 33
power cable 7, 13
Power Save 16, 35
PowerPoint, advancing slides 7
Power-up Source 34
presentation features 29
projected image sizes 44
projector
adjusting the height 12, 14
connector panel 6
customizing 29
LitePort player 8, 27
optional accessories 43
positioning 12
shutdown 16
standard accessories 43
troubleshooting problems 16
USB connector 8
N
no computer image 18
no startup screen 17
O
online registration 5
only startup screen appears 17
onscreen menus 30
optional accessories 43
Overscan 33
R
Rear 34
registering your projector 5
remote control 26
advancing slides 26
Effect key 26
not working 20
Previous/Next buttons 26
replacing the lamp 40
Reset 38
resetting the lamp timer 41
resolution 5
RS-232 6, 8
47
S
safety considerations 4
Screen Save 16, 35
Screen Saver 35
screens, cleaning 42
security lock 39
serial connection 8
Service 38
Settings menu 34
Sharpness 33
shutting down the projector 16
Slide Transition 36
solid green 16
solid red 16
Source troubleshooting 17
Sources 34
speakers, connecting 28
standard accessories 43
Startup Logo 37
S-video connector 13
Sync Threshold Adjust 33
U
USB drivers 11
USB mass storage device 8
USB, connecting 7
using the keypad buttons 25
V
VESA connector 8
video connections
optional 13
standard 13
Video connector 13
video images, optimizing 29
Video Standard 33
W
White Peaking 33
Windows 2000 11
Windows 98 10
Windows ME, XP 11
wireless projection 6
T
Tint 15, 31
Tracking 33
Troubleshooting 16, 17
Turning off the projector 16
X
XGA 5
Z
zoom 12, 15
48
Limited Warranty
Subject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation (“InFocus”) warrants that the Projector, Lamps and Accessories
(hereinafter collectively or individually referred to as “Product” as appropriate) purchased from InFocus, an InFocus distributor, or an InFocus
reseller will conform to InFocus’ specifications and be free from defects in
material or workmanship for the respective Limited Warranty period provided below. InFocus does not warrant that the Product will meet the specific requirements of the end-user customer.
If the Product while subject to this Limited Warranty, is defective in material
or workmanship during the warranty period, then InFocus, at its option,
will REPAIR or REPLACE the Product.
All exchanged parts and Products replaced under this Limited Warranty
will become property of InFocus. InFocus' sole obligation is to supply (or
pay for) all labor necessary to repair the Product found to be defective
within the Limited Warranty period and to repair or replace defective parts
with new parts or, at the option of InFocus, serviceable used parts that are
equivalent or superior to new parts performance. Limited Warranty periods
are as follows:
• Projector Product Limited Warranty Period (Excluding Lamps)
Two (2) years from date of purchase.
• Lamp Product Limited Warranty Periods
Product purchase, the original installed lamp shall have a 90-day or 500
hours usage Limited Warranty Period, whichever comes first.
Replacement Lamps purchased at the time of Projector Product purchase will have a 90-day or 500 hours usage Limited Warranty Period
from the date of installation, whichever comes first.
Replacement lamps purchased after the time of Projector Product purchase shall have a 90-day or 500 hours usage Limited Warranty Period
from the date of replacement lamp purchase, whichever comes first.
• Accessory Product Limited Warranty Period
of purchase.
: From the date of Projector
: one (1) year from date
:
WARRANTY LIMITATION AND EXCLUSION
THIS WARRANTY SETS FORTH INFOCUS’ MAXIMUM LIABILITY FOR
ITS PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER.
InFocus shall have no further obligation under the foregoing Limited Warranty if the Product has been damaged due to abuse, misuse, neglect, smoke
exposure (cigarette or otherwise), accident, unusual physical or electrical
stress, unauthorized modifications (including use of an unauthorized
mount), tampering, alterations, or service other than by InFocus or its
authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product was intended.
This Limited Warranty excludes Product cleaning, repair, or replacement of
plastics due to cosmetic damage and damage as a result of normal wear.
Product repair outside of the terms of the Limited Warranty will be on a
time and materials basis. Prolonged Product “demonstration” causes
unusual Product wear and is not considered normal use under the terms of
this Limited Warranty.
The Accessory Product Limited Warranty covers the accessory item only
and excludes normal wear. The Lamp Product Limited Warranty excludes
expected lamp degradation.
Remanufactured Products and Software Products are exempt from the foregoing Limited Warranty. Please refer to the appropriate Remanufactured
Product Limited Warranty or Software Product Limited Warranty for applicable Warranty information.
DISCLAIMER OF UNSTATED WARRANTIES
THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR
PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES THAT
EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND
THE FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED
OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS.
SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS
MAY NOT APPLY TO YOU.
49
Limited Warranty Period
The Limited Warranty periods hereof commence on the date of purchase by
the end-user customer. These Limited Warranty provisions shall apply only
to the end-user purchaser (first person or entity that purchased a new Product for personal or business use and not for the purpose of distribution or
resale). SOME JURISDICTIONS MAY GRANT YOU CONSUMER RIGHTS
WITH MINIMUM WARRANTY DURATION THAT DIFFER FROM THE
DURATIONS PROVIDED HEREIN, AND INFOCUS WILL HONOR ALL
SUCH CONSUMER RIGHTS.
To Be Eligible For Limited Warranty Coverage
Any person exercising a claim under this Limited Warranty must establish
to the satisfaction of InFocus both the date of purchase and that the Product
was purchased new. The sales receipt or invoice, showing the date of purchase of the Product is the proof of the date of purchase.
To Obtain Warranty Service
During the Limited Warranty period, to exercise this Limited Warranty, the
purchaser must first contact 1) InFocus, 2) a service facility authorized by
InFocus or 3) the place of original purchase. InFocus Customer Service –
1-503-685-8888 or visit www.infocus.com/service
For Warranty service, the purchaser will be advised to return or deliver the
defective Product freight and all fees prepaid, to an InFocus Service Center
or to a service facility authorized by InFocus. When returning Product to
InFocus, a Service Request Number (SR #) is required and must be clearly
displayed on the outside of the shipping carton or a similar package affording an equal degree of protection. InFocus or the service facility authorized
by InFocus will return the repaired/replaced Product freight prepaid to the
purchaser.
Products returned for Warranty service must be accompanied by a written
letter that: (i) explains the problem; (ii) provides proof of date of purchase;
(iii) provides the dealer’s name; and (iv) provides the model and serial
number of the Product. Upon request of InFocus Corporation or an authorized repair center for InFocus, proof of legal import must accompany the
warranty repair Product, otherwise the Product must be returned to the
place of original purchase, to the manufacturer (Purchaser must bear all tax,
duty and freight), or the Purchaser must bear charges for the warranty
repair.
No repair or replacement of Product or part thereof shall extend the Limited
Warranty period as to the entire Product. Warranty on the repair part and
workmanship shall only be effective for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the
Product Limited Warranty whichever is greater.
LIMITATION OF LIABILITY
IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY
WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN
NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF
THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER AND
UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE
STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING
INFOCUS’ LIABILITY.
Limitation on Bringing Action
of the agreement to purchase the Product may be brought by purchaser
more than one year after the cause of action has accrued.
Governing Law
ment to purchase the Product is governed by Oregon law.
Mandatory Arbitration
agreement to purchase the Product is subject to mandatory arbitration.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, DEPENDING ON JURISDICTION.
- Any action, regardless of form, arising out of the agree-
– Any action, regardless of form, arising out of the
- No action, regardless of form, arising out
50
®
LP
600
USER’S GUIDE
InFocus Corporation
27700B SW Parkway Avenue
Wilsonville, Oregon 97070-9215
1-800-294-6400 •503-685-8888
Fax: 503-685-8887
http://www.infocus.com
In Europe:
InFocus International BV
Strawinskylaan 585
1077 XX Amsterdam
The Netherlands
Phone: +31 20 579 2000
Fax: +31 20 579 2999
In Asia:
238A Thomson Road
#18-01/04 Novena Square
Singapore 307684
Telephone: (65) 6334-9005
Fax: (65) 6333-4525
Loading...
