Infocus LP425Z, LP435Z User Manual

Copyright © 2000 by InFocus

Wilsonville, Oregon. All rights reserved.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communi­cations. Operation of this equipment in a residential area is likely to cause harm­ful interference in which case the user will be required to correct the interference
at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.

Safety Certifications

UL, CUL, TÜV, NOM

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interfer­ence, in which case the user may be required to take adequate measures. The typ­ical use is in a conference room, meeting room or auditorium.

Declaration of Conformity

Manufacturer: InFocus
27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA
European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands

We declare under our sole responsibility that the LP425z Projector conform to the
following directives and norms:

Directive 89/336/EEC, Amended by 93/68/EEC
EMI: EN 55022 (1992) Class A
EMC: EN 50082-1 (1992)

IEC 801-2, IEC 801-3, IEC 801-4
Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 1992 + A1 + A2 + A3: 1995

February, 1999

Australian Certification C-tick mark

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of
Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of
International Business Machines, Inc. Microsoft, PowerPoint, and Windows are
trademarks or registered trademarks of Microsoft Corporation. Digital Light Pro­cessing is a trademark or registered trademark of Texas Instruments. InFocus and
LP are trademarks or registered trademarks of InFocus.

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1
Compatibility 1
Unpacking the Projector 1
Usage Guidelines 4
If You Need Assistance 4
Warranty 4

Setting up the Projector 5

Preparing to Connect Your Equipment to the Projector 6
Connecting a Computer 7
Connecting a Video Player 8
Powering up the Projector and Adjusting the Image 10
Turning Off the Projector 11

Using the Projector 13

Basic Image Adjustment 13
Adjusting the Projector 14

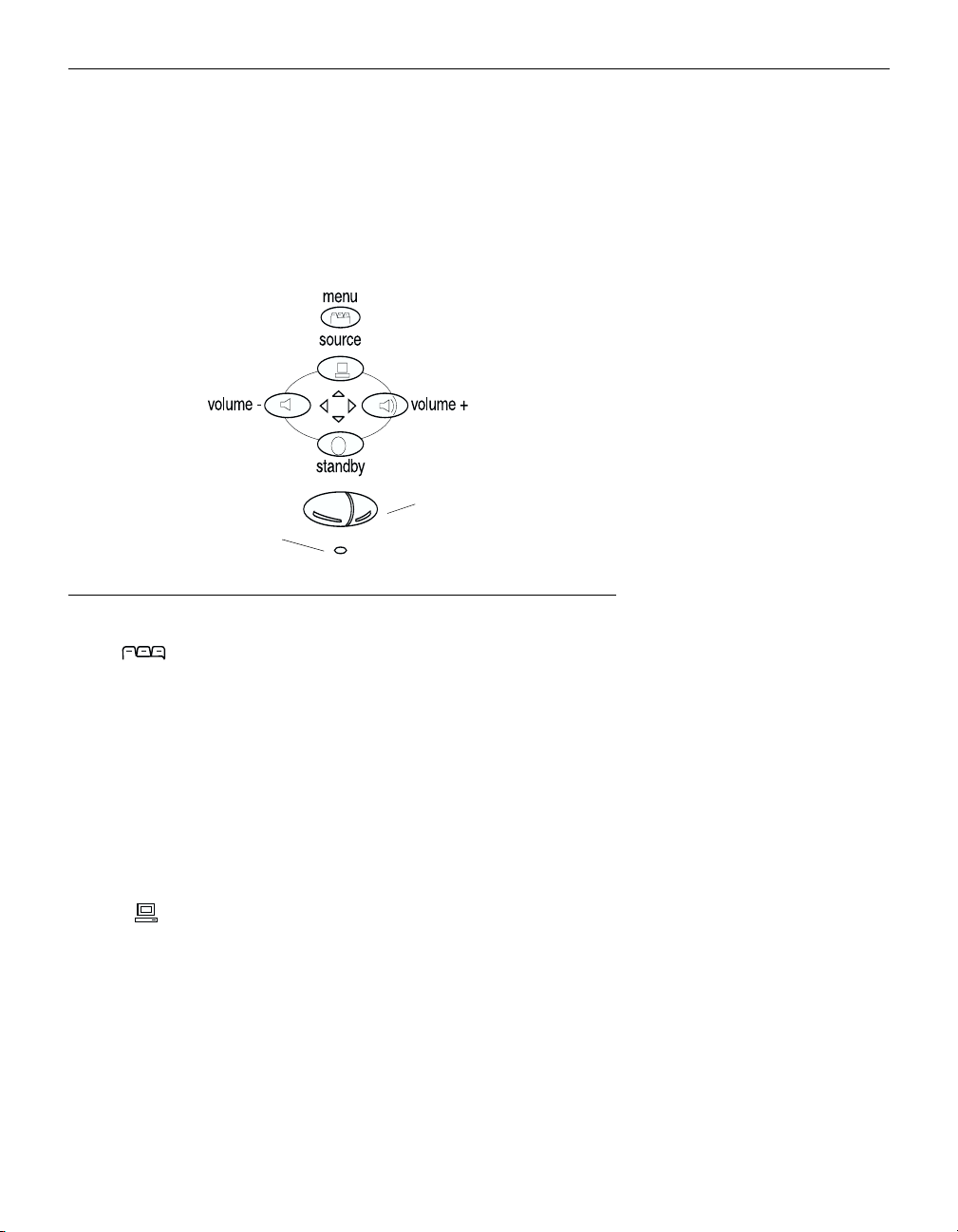

Using the Keypad Buttons 15
Using the On-Screen Menus 17

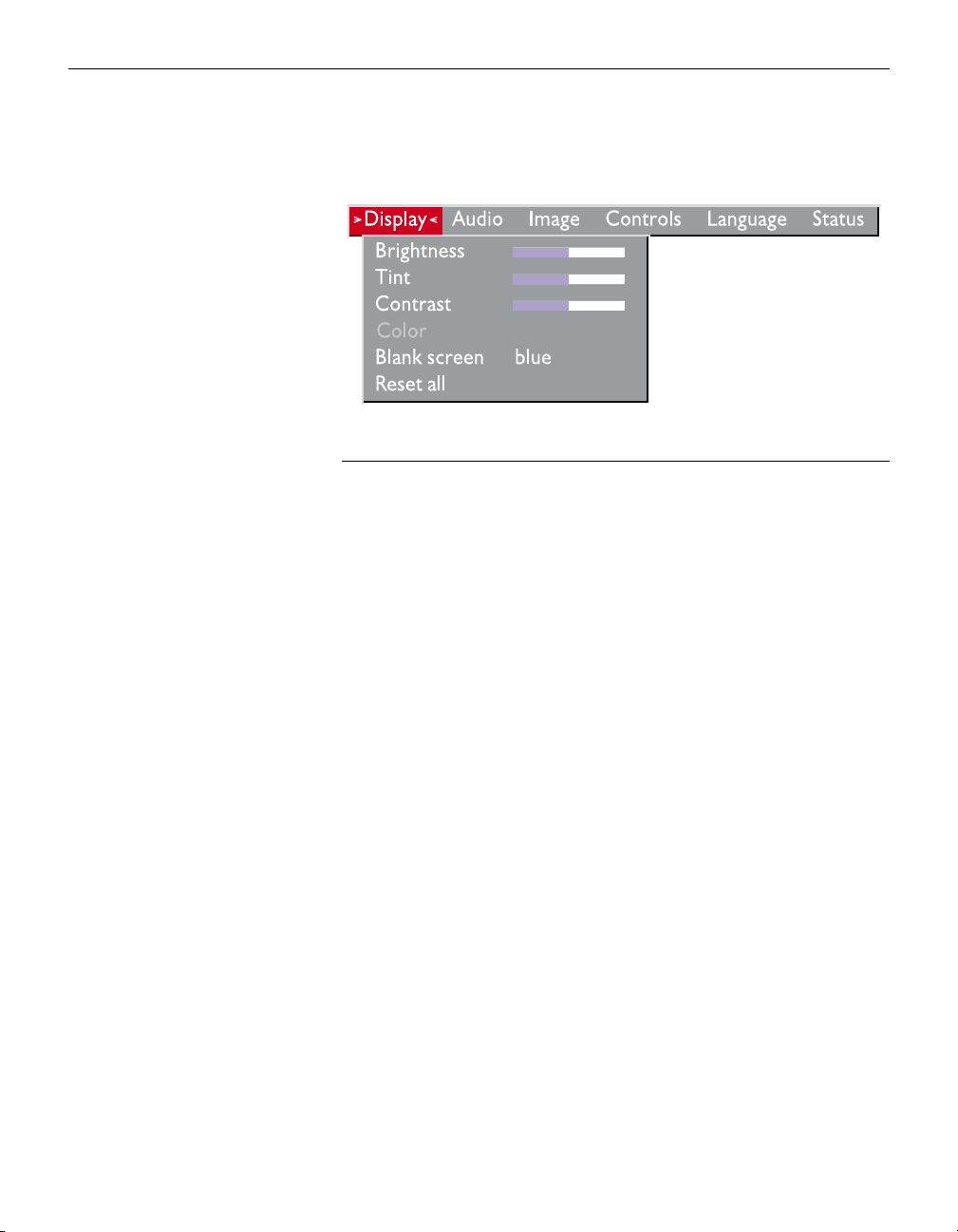

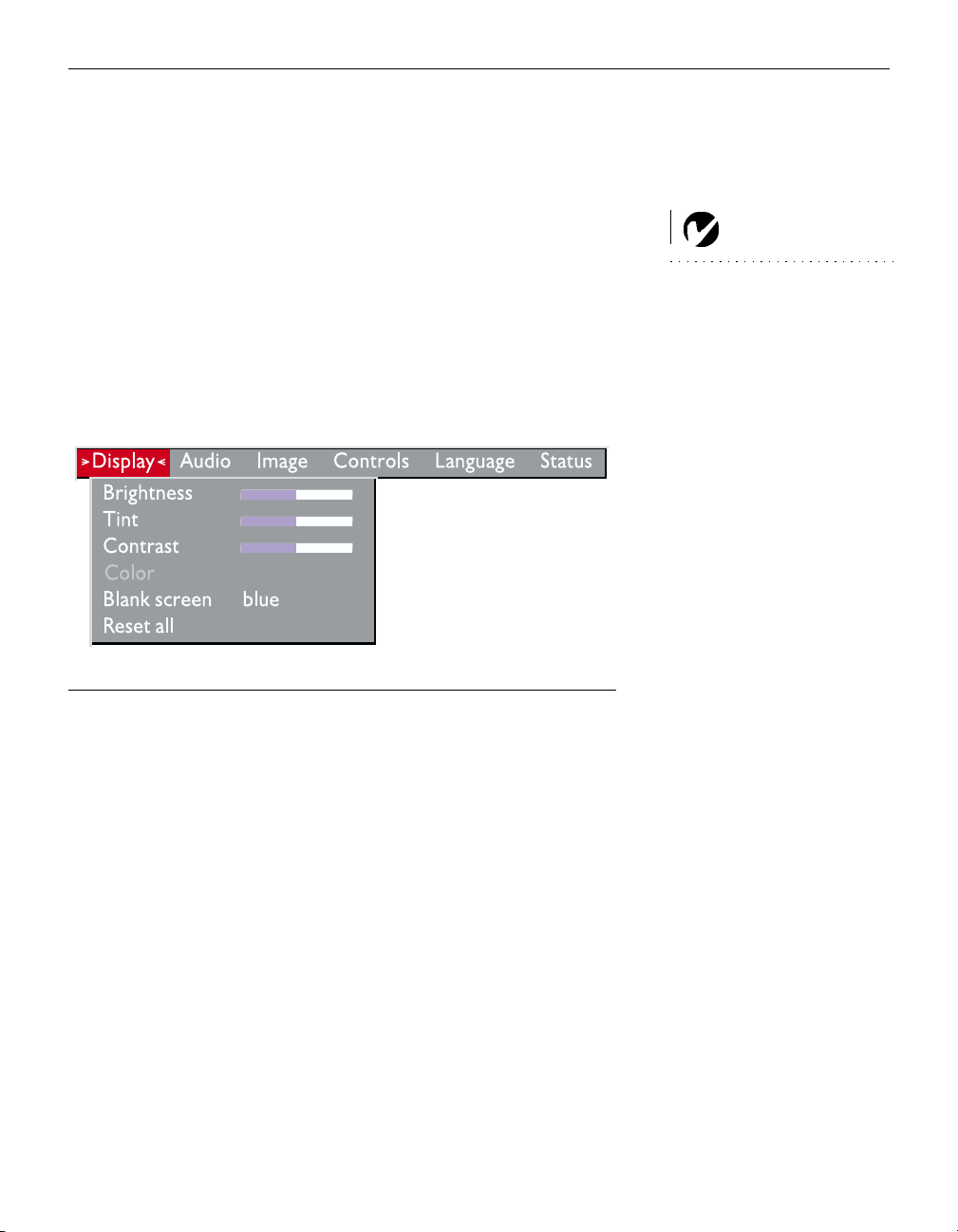

Display Menu 18

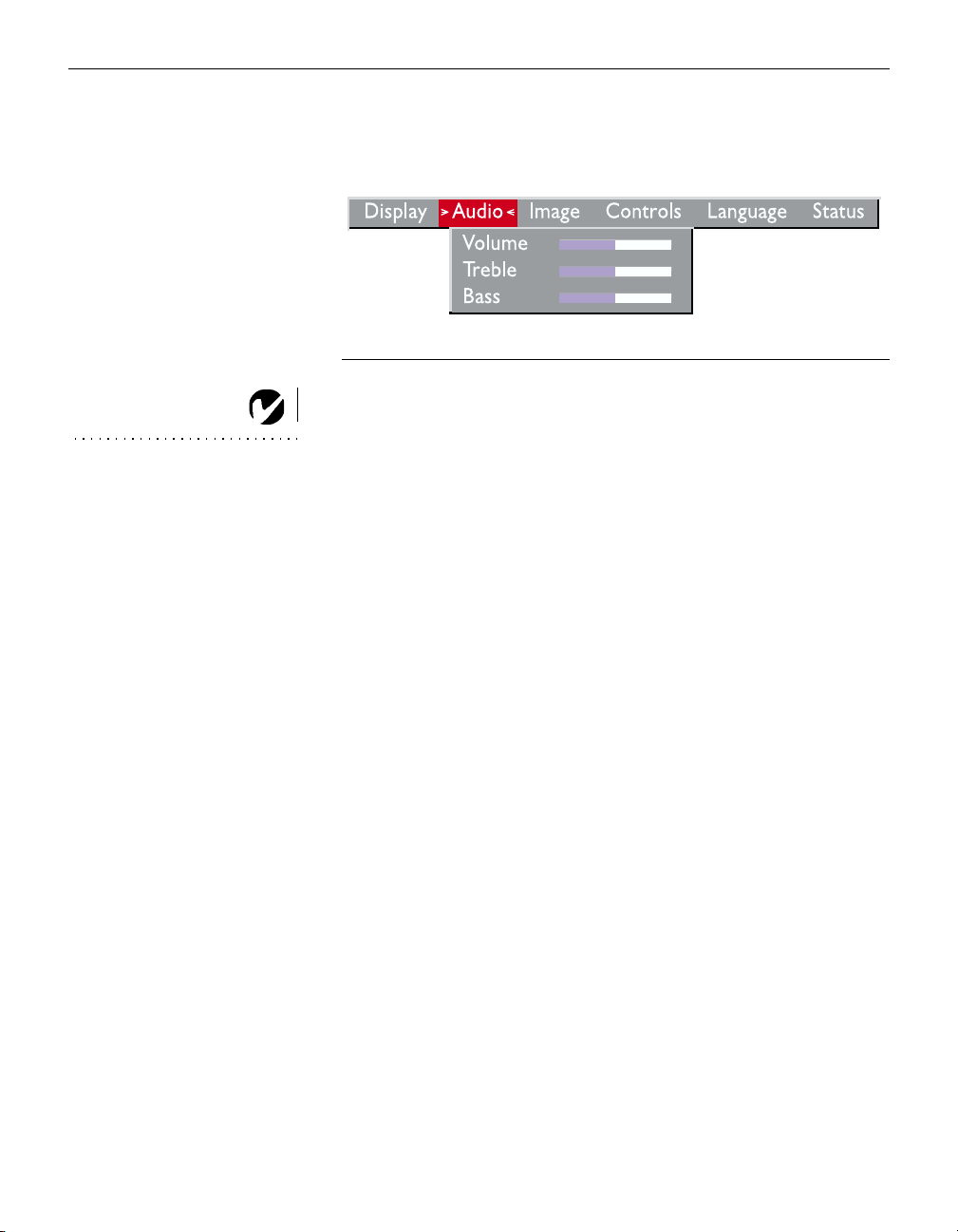

Audio Menu 20
Image Menu 21

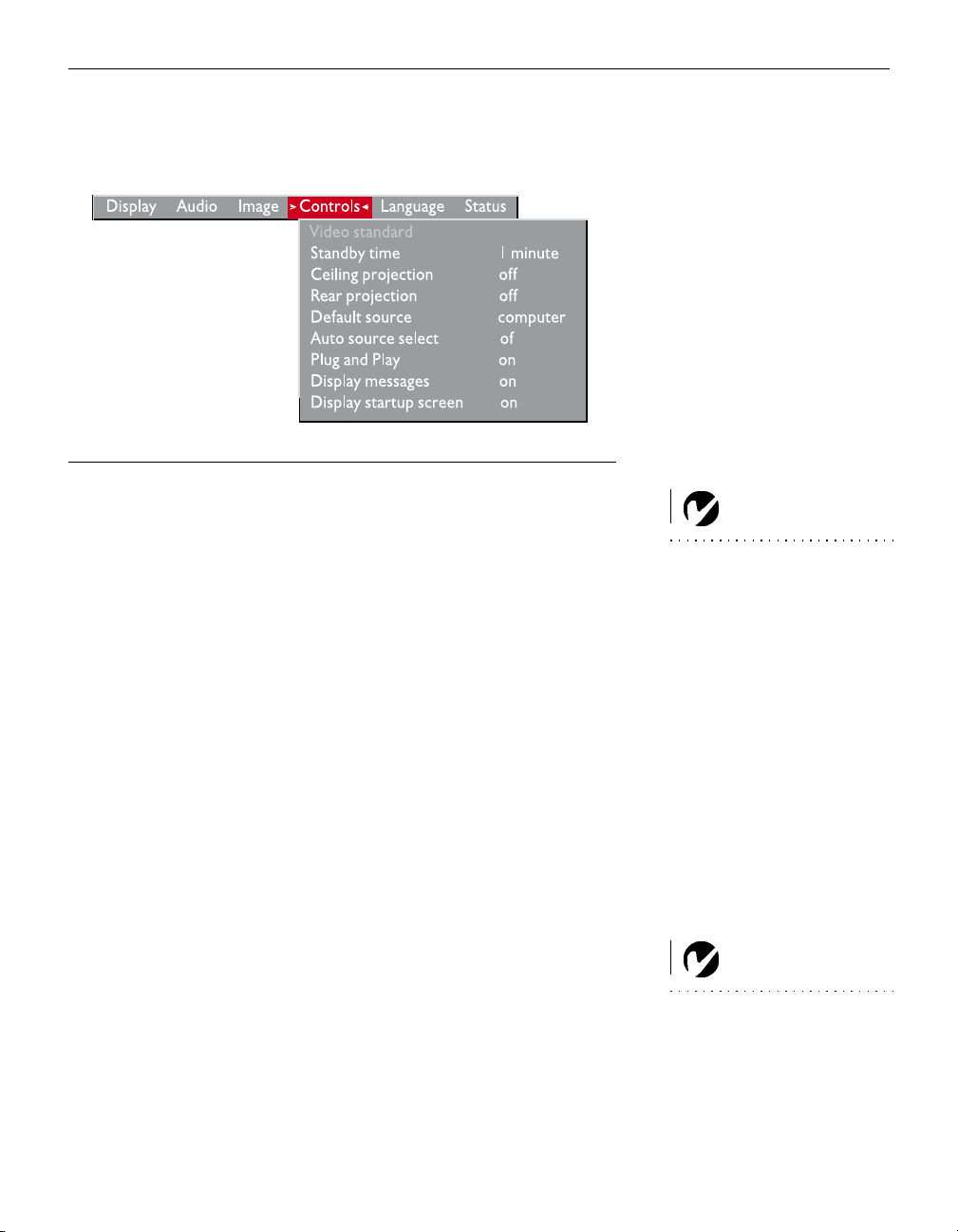

Controls Menu 23

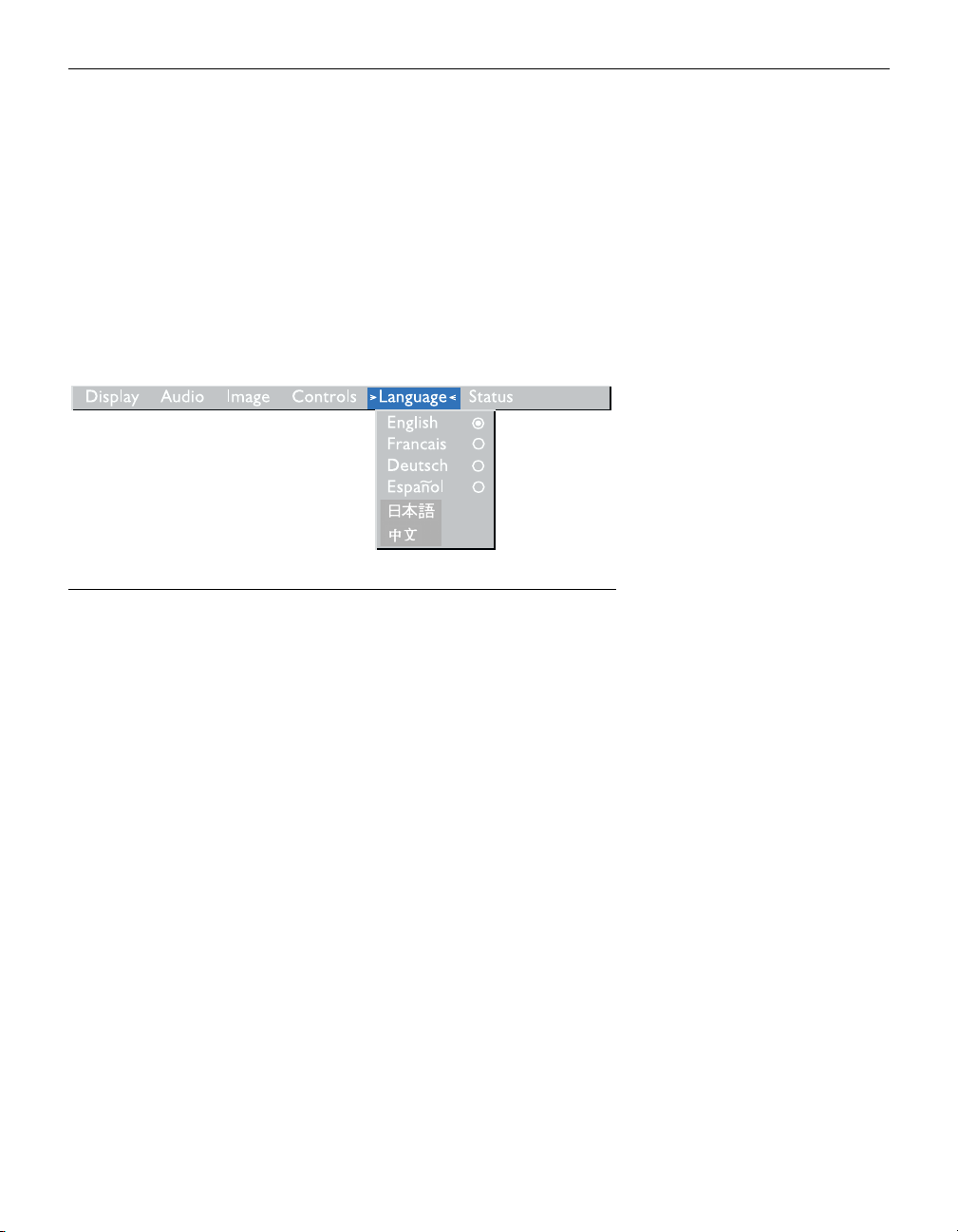

Language Menu

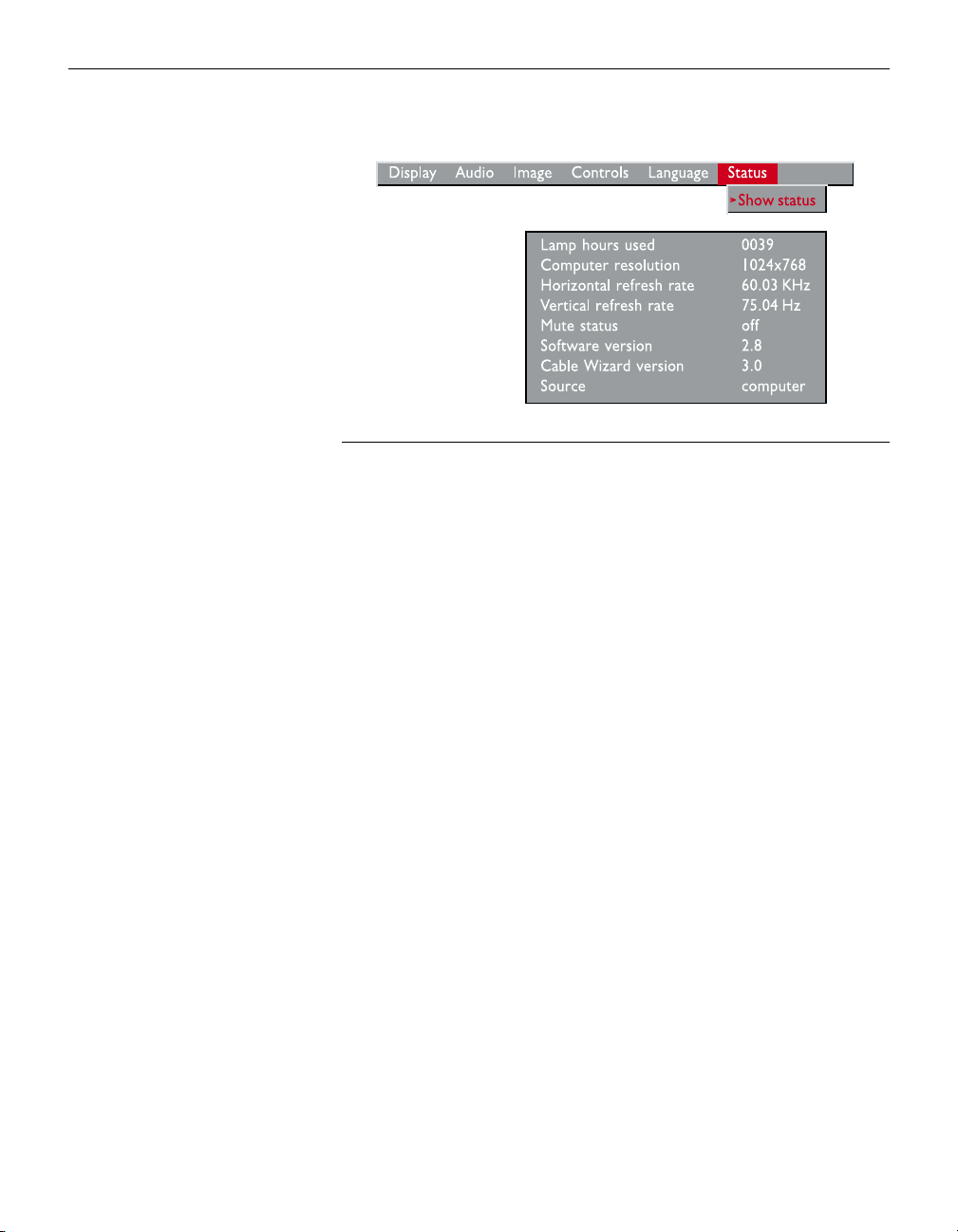

Status Menu 25

25

Maintenance & Troubleshooting 27

Cleaning the Lens 27

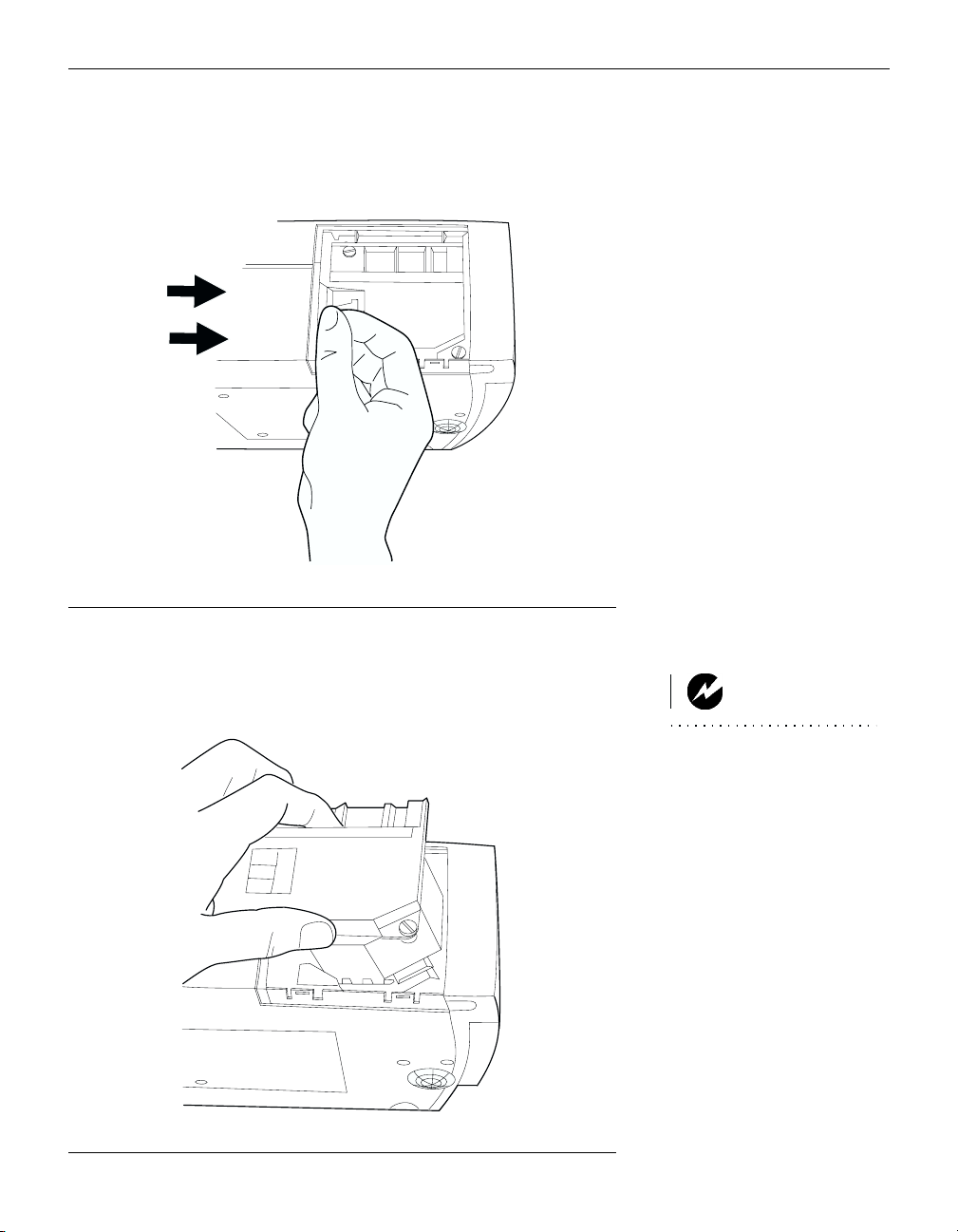

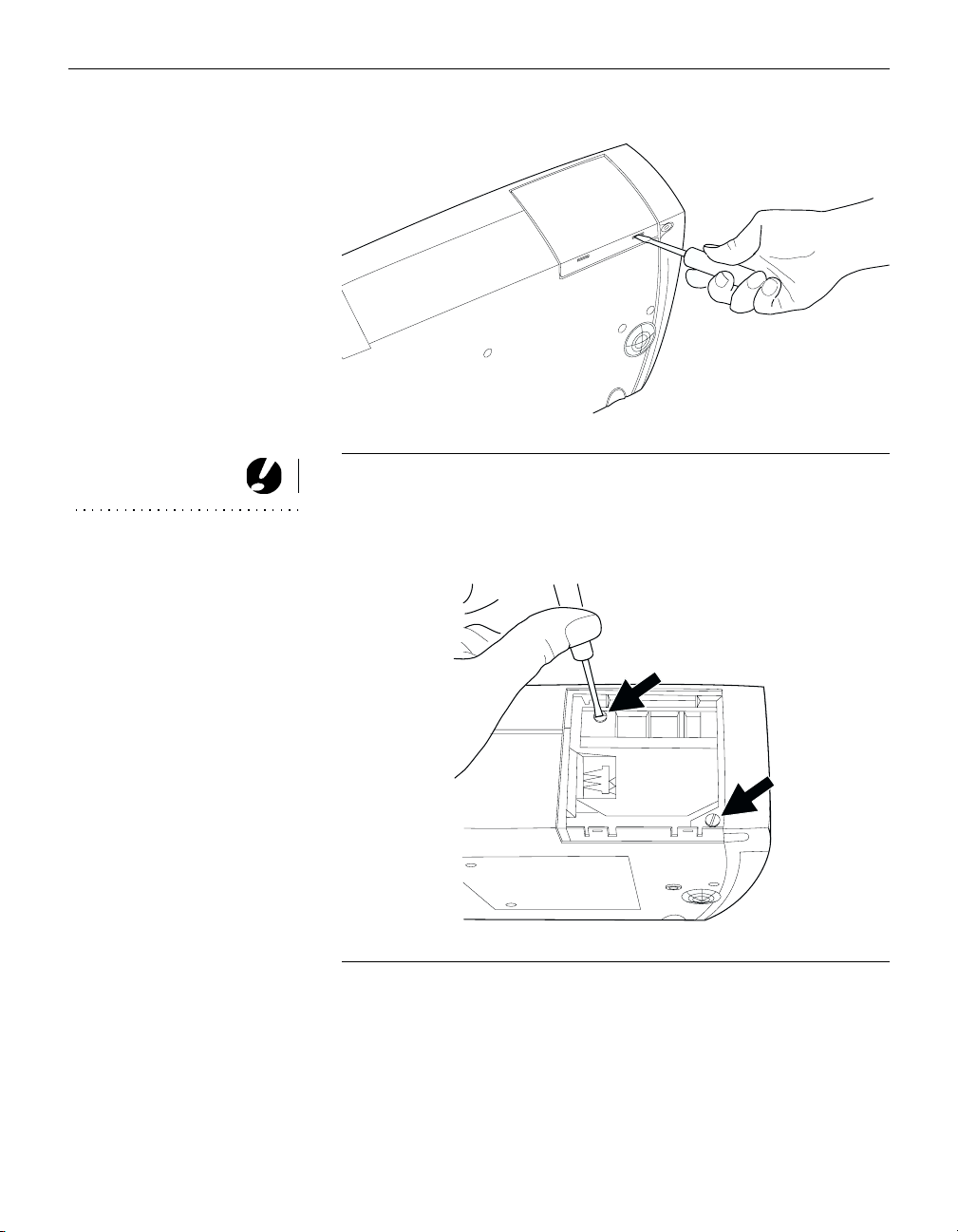

Replacing the Projection Lamp 27
Using the Security Lock 30
Troubleshooting 31

i

Ta b l e o f C o n t e n t s

Appendix 35

Specifications 35
Accessories 37
Portable and Laptop Activation Chart 39
Using Video Mirroring with a PowerBook Computer 44
Projected Image Size 45

Index 47

ii

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE
using your new projector. Failure to comply with safety instruc­tions may result in fire, electrical shock, or personal injury and
may damage or impair protection provided by equipment. Please
save all safety instructions.

Safety Definitions:

•

Warning:

Statements identify conditions or practices that

could result in permanent personal injury.

•

Caution:

Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention:

For information about usage of a feature, please

refer to the User’s Guide.

Hot surface. Do not touch.

Warn ing:

An arrow pointing to the lamp door on the projector.

Safety Terms:

•

Warning:

Don’t look directly into the lens when the projector is

turned on.

•

Warning:

Don’t block ventilation openings.

•

Warning:

To replace the lamp, turn the power off and

unplug the power cord. To avoid burns, wait 30 minutes
before opening the lamp door. Follow all instructions provided
in this User’s Guide.

•

Warning:

Please use the power cord provided. Connect

the power cord to a receptacle with a protective safety
(earth) ground terminal.

•

Warning:

Refer all service to qualified service personnel. Ser­vicing your own projector will void the warranty. See the fol­lowing page for the customer service contact information.

iii

Safety Instructions

•

Caution:

Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•

Caution:

Don’t place the projector on a hot surface or in direct

sunlight.

•

Caution:

Do not drop the projector. Transport the projector in

an InFocus-approved case; see page 38 for a list of cases.

•

Caution:

For ceiling mount installations, please use the ceiling
mount recommended in this User’s Guide on page 38 and fol­low all instructions provided with it.

Customer Service

If you need assistance, call InFocus Customer Service directly at

1-800-799-9911

. Support is free between 6 a.m. and 6 p.m. PST,
Monday through Friday. Support is available in North America
after hours and weekends for a fee at

1-888-592-6800

.

Or, send us an e-mail at [e-mail]

In Europe, call InFocus in The Netherlands at

(31) 35-6474010

between 8 a.m. and 6 p.m. Central European Time.

In Asia, call

(65) 332-0659

between 9:30 a.m. and 5:30 p.m.

iv

INTRODUCTION

®

The InFocus

LP™425z lightweight multimedia projector is spe­cifically designed for the mobile presenter. It generates crisp,
clear SVGA 800x600 images using Digital Light Processing™
(DLP) technology. The projector is easy to connect, easy to use,
and easy to maintain. The soft carry case makes it easy to trans­port the 7.4 pound projector.

Image Resolution

The SVGA resolution of the 425z’s projected image is 800x600.
Screen resolutions between 800x600 and 1024x768 are com­pressed to 800x600. The 425z cannot compress screen resolutions
above 1024x768. If your computer’s screen resolution is higher
than 1024x768, reset it to a lower resolution before you connect
the projector.

Compatibility

The projector is compatible with a wide variety of computers and
video devices, including:

•

IBM-compatible computers, including laptops, up to 1024x768
resolution at 75 Hz

NOTE: The 425z automatically

expands 640x480 images to

800x600. You can display these

images at 640x480 by turning off

the Auto Resize feature. See

“Resize” on page 21.

•

Apple Macintosh and PowerBook computers up to 1024x768
resolution at 75 Hz.

•

Most standard VCRs, DVD players, HDTV sources, camcord­ers and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to
make sure all are included.

diately if anything is missing

Contact your InFocus dealer imme-

.

If you are experienced in setting up presentation systems, use the

Quick Start

card that was included in the shipping box. For com­plete details on connecting and operating the projector, refer to
this User’s Guide. User’s Guides are also available for download
from our website at www.infocus.com.

NOTE: The projector is compati-

ble with 1080i HDTV format.

1

Introduction

A registration card is included in the box. Register to receive
product updates, announcements, and special offers from
InFocus. Or, register online at www.infocus.com/service/register
and you will be automatically entered to win free merchandise.

NOTE: The contents of your

shipping box may vary depending

on the projector configuration

you’ve ordered.

NOTE: Various optional

accessories, including remote

controls, cases, and cables, are

available. See “Optional

Accessories” on page 37 for

details.

2

1

5

6

F

IGURE 1

Shipping box contents

1. LP425z projector and lens
cap

2. Soft carry case 6. RCA audio/video (A/V) cable

LP425z User’s Guide

3.
start card, and Online User
Guide CD

4. Power cord

, quick

4

5. CableWizard Lite computer
cable

7. Audio cable

3

7

2

focus ring

elevator button

power
cord
connector

keyp ad

connector panel

speaker

power switch

FIGURE 2

Side view of projector

focus ring

zoom ring

F

IGURE

Front view of projector

3

3

Introduction

Usage Guidelines

•

Do not look directly into the projection lens when the projector
is turned on. The bright light may harm your eyes.

•

Do not block the grills on the projector. Restricting the air flow
can cause it to overheat and turn off. If this happens, you must
wait a minute before attempting to turn it back on.

•

Handle the projector as you would any product with glass
components. Be especially careful not to drop it.

•

Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.

•

This projector is not intended for use in mainframe computer
rooms as defined in the Standard for the Protection of Elec­tronic Computer/Data Processing Equipment, ANSI/NFPA 75.

•

Transport the projector in a vendor-approved hard or soft case.
Part numbers for these cases are listed on page 37.

If You Need Assistance

The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 31. Or, check the
Service and Support section of our website at

http://www.infocus.com/service.

If those sources don’t answer your question, call your InFocus
dealer. You can also call InFocus Customer Service directly at

1-800-799-9911

. Call between 6 a.m. and 6 p.m. PST, Monday
through Friday. Service is available in North America after hours
and on weekends for a fee at

1-888-592-6800

.

In Europe, call InFocus in The Netherlands at

(31) 35-6474010

Time. In Asia, call

Or, send us an e-mail at
Wide Web address is

between 8 a.m. and 6 p.m. Central European

(65) 332-0659

[e-mail].

http://www.infocus.com

between 9:30 a.m. and 5:30 p.m.

Our World

.

Warranty

This product is backed by a limited two-year warranty. The
details of the warranty are printed at the back of this manual. A
longer term warranty can be purchased from your InFocus

4

dealer. Refer to page 38 for the part number.

SETTING UP THE PROJECTOR

Place the projector on a flat surface.

1

•

The projector must be within 10 feet (3 m) of your power
source and within 8 feet (2.4 m) of your computer.

•

If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 24 to reverse the image.

•

If you are installing the projector on the ceiling, refer to the

Ceiling Mount Installation Guide

that comes with the Ceiling
Mount Kit for more information. To turn the image upside
down, see “Ceiling Projection” on page 23. The Ceiling
Mount Kit is sold separately; see page 38.

Position the projector the desired distance from the screen.

2

•

The distance from the lens of the projector to the screen and
the zoom setting determine the size of the projected image.
Figure 4 shows three projected image sizes. For information
about image sizes at minimum and maximum zoom set­tings, see “Projected Image Size” on page 45.

Make sure the projector and your computer are turned off.

3

1

2

.

6

f

t

.

7

.

6

3

f

.

t

0

.

f

t

.

5 ft

12 ft.

.

20 ft.

Projected image size at minimum focusing distance

FIGURE 4

5

Setting up the Projector

Preparing to Connect Your Equipment to the Projector

CAUTION: Tur n o f f t h e

computer, monitor and projector

whenever you connect or

disconnect cables.

NOTE: In some older computers,

the monitor connector does not

have a hole for Pin 9. If you have

trouble connecting the

CableWizard Lite cable to your

computer, contact InFocus

Te c h n i c a l S u p p o r t.

Now you’re ready to connect your equipment.

Steps for connecting the different types of equipment are given
on the pages listed below.

Equipment you want to connect Page

Computer page 7

Video player page 8

s-video

F

IGURE 5

Connector panel

composite
video

L/R audio in
(for video source)

CableWizard

computer
audio in

NOTE: If you want to control your

computer’s mouse from the

projector, purchase the optional

remote control and receiver or the

remote and CableWizard.

6

Connecting a Computer

Plug the end of the CableWizard Lite cable into the video

1

connector on your laptop.

Plug the end of the CableWizard Lite cable into the

2

connector on the projector’s connector panel

audio cable

CableWizard Lite cable

FIGURE 6

Connecting the CableWizard Lite to a computer

Do you want to play your computer’s audio on the projector?

Plug either end of the audio cable into the audio connector on

1

your computer.

Plug the other end of the audio cable into the connector

2

on the projector.

Now you’re ready to power up the projector and your computer.
Skip to “Powering up the Projector and Adjusting the Image” on
page 10.

NOTE: Many laptop computers

do not automatically turn on their

external video port when a sec-

ondary display device such as a

projector is connected. Refer to

your computer manual for the

command that activates the exter-

nal video port. Activation com-

mands for some laptop computers

are listed in the Appendix.

NOTE: If you are connecting an

older Macintosh computer that

does not have a 15-pin connector,

you must use a Mac adaptor

between the computer and the

CableWizard Lite. See “Optional

Accessories” on page 37.

NOTE: If you are connecting a

desktop computer and want to

view your presentation on your

monitor, purchase the optional

CableWizard.

7

Setting up the Projector

Connecting a Video Player

If your video player uses a round, one-prong composite video

1

connector, you’ll need only the A/V cable that shipped with
the projector.

•

If your video player uses a round, four-prong S-video con-

NOTE: HDTV sources are

connected to the projector using

the CableWizard Lite cable. See

the previous page for details.

nector, you’ll need an S-video cable in addition to the A/V
cable. The S-video cable is sold separately. (See “Optional
Accessories” on page 37.)

Plug the A/V cable’s yellow connector into the “video-out”

2

port on your video player (Figure 7). This port may be labeled
“To Monitor.”

•

If you’re using an S-video cable, connect it to the “s-video
out” connector on the video player (Figure 8).

Plug the other yellow connector into the composite connector

3

on the back of the projector.

•

If you’re using S-video, plug the other end of the cable into
the “s-video” connector on the projector (Figure 8).

audio/video cable

F

7

IGURE

Connecting the projector to a video player using the standard A/V cable (with composite
video connector)

8

S-video cable

A/V cable

FIGURE 8

Connecting the projector to a video player using an S-video cable and the audio con-

nectors on the standard A/V cable

Plug the A/V cable’s white connector into the left “audio out”

4

port on your video player. Plug the cable’s red connector into
the right “audio out” port on the video player (Figure 7 and
Figure 8).

•

If you’re using an S-video cable, the yellow connectors on
the A/V cable remain unused (Figure 8).

Plug the A/V cable’s other white and red connectors to the

5

left and right “audio in” ports on the projector.

The projector is compatible with these major broadcast video
standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, and SECAM.
It automatically adjusts to optimize its performance for the
incoming video. The input signals for SECAM, PAL-M, and
PAL-N video are similar to other video signals and cannot be
automatically detected, therefore they must be chosen manually.
See “Video Standard” on page 23 for details.

CAUTION: Your video player

may also have a “Video Out” port

for a coaxial cable connection.

DO NOT use this to connect to the

projector.

9

Setting up the Projector

Powering up the Projector and Adjusting the Image

Remove the lens cap.

1

NOTE: Always use the power cord

that shipped with the projector.

Plug the power cord into the side of the projector, then plug it

2

into your electrical outlet. A surge-protected power strip is
recommended.

Turn on the projector by pressing the “I” side of the power

3

switch (see Figure 2 on page 3).

•

The InFocus startup screen displays and the Power LED on
top of the projector lights up (Figure 11 on page 15).

If you connected a video player, turn it on.

4

•

The video image should display on the projection screen. If
a computer source is active, press the
keypad (page 15) to display your video image. You can
select a default source to determine which source the pro­jector examines first during power-up for active video; see
“Default Source” on page 24.

button on the

source

NOTE: With some computers,

the order in which you power up

the equipment is very important.

Most computers should be turned

on last, after all other peripherals

have been turned on. Refer to your

computer’s documentation to

determine the correct order.

•

Use the

Turn on your computer.

5

•

The computer image should display on the projection

volume

screen. (If a video source is active, press the

buttons to adjust the volume.

source

on the keypad (page 15) to display your computer’s image.)

•

If necessary, make adjustments to the image from the pro­jector’s on-screen menus. To open the menus, press the

button on the keypad, then select the Display or

menu

Image sub-menu. For more information about the menus,
see page 17.

button

10

Turning Off the Projector

If you want to turn off the projector for a short period of time,
press the

standby

button on the keypad. This blanks the screen for
fifteen minutes, but keeps the projector running. (You can change
the amount of time the projector stays in standby mode; see
“Standby Time” on page 23 for details.) After 15 minutes, the
lamp goes out (the projector keeps running). To exit standby
mode, press the

standby

button again. (It may take several sec­onds for the projection lamp to reach full power and project the
image again.)

To completely power off the projector, press the “O” side of the
power switch on the side of the projector. If you want to turn the
projector back on immediately, you must allow about a minute
for the lamp to cool. The lamp won’t light if it’s too hot.

CAUTION: When you discon-

nect the projector after you have

switched it off, always remove the

power cord from the electrical out-

let first, then remove it from the

projector.

11

USING THE PROJECTOR

This section describes how to use and make adjustments to the
projector. It also provides a reference to the keypad buttons and
the options available from the on-screen menus.

Basic Image Adjustment

Make sure you have powered up your equipment in the right

1

order (page 10).

If the image doesn’t display completely, zoom the image

2

(page 14), adjust the height of the projector (page 14) or center
the image by adjusting its horizontal or vertical position
(page 22). Be sure the projector is at a 90 degree angle to the
screen.

If the image is out of focus, rotate the focus lens (page 14).

3

If the image appears to shimmer or if it has blurry vertical

4

bars after you have adjusted the focus, turn Auto Image
(page 21) off and then back on to reset the automatic sync and
tracking. If that doesn’t clear up the image, turn Auto Image
off and adjust the sync (page 21) and/or the tracking
(page 22) manually.

If the colors don’t look right, adjust the brightness (page 18).

5

13

Using the Projector

Adjusting the Projector

To focus the image, rotate the focus ring (Figure 9) until the image
is clear. To zoom the image, rotate the zoom ring. This adjusts the
image size without affecting focus.

focus ring

zoom ring

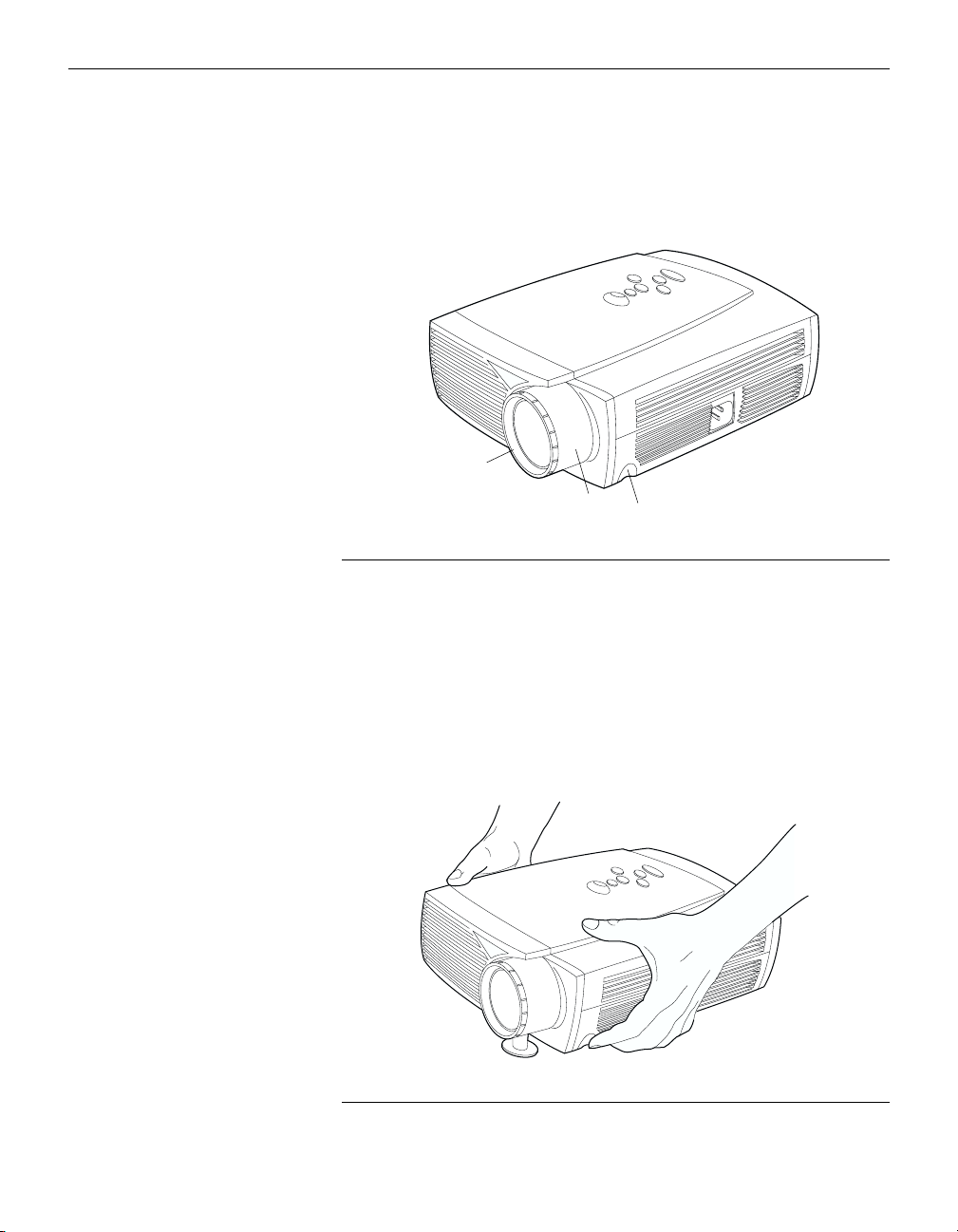

FIGURE 9

Focus ring, zoom ring, and elevator button

elevator button

The projector is equipped with a self-locking, quick-release eleva­tor foot and button (Figure 9).

To raise the projector:

Press and hold the elevator button (Figure 10).

1

Raise the projector to the height you want, then release the

2

button to lock the elevator foot into position.

14

FIGURE 10

Adjusting the height of the projector

Using the Keypad Buttons

The keypad is lit orange when the projector is on and lit green
while the menus are displayed. While the menus are displayed,
the volume, source, and standby buttons act as navigation but­tons. See “Using the On-Screen Menus” on page 17 for details.

left/right mouse buttons

power LED

FIGURE 11

Keypad

Menu

Press
green). Press

to open the on-screen menus (the keypad lights

menu

again to close the menus. When you close the

menu

menus, the projector saves any changes you made. For more
information about the on-screen menus, see page 17.

Mouse buttons

Use the left and right mouse buttons to make selections and
adjustments in the menus. See “Using the On-Screen Menus” on
page 17 for details.

Source

When you have more than one source (computer and video) con­nected to the projector, select between them by pressing the
source button on the keypad.

15

Using the Projector

Standby

When you press

standby

, the display and audio turn off and a
blank screen is displayed for 15 minutes. You can change the
amount of time the projector stays in standby mode; see
“Standby Time” on page 23 for details.

•

If you press

standby

again within 15 minutes, the projector

returns to normal operations immediately.

•

If you press

standby

again after 15 minutes, there is about a

30 second delay before the lamp turns back on.

•

If you don’t press

standby

minutes.

Vol um e

•

To increase the volume, press

•

To decrease the volume, press

Volume adjustments are saved for each source you have con­nected.

again, the lamp turns off after 15

16

Using the On-Screen Menus

The projector

has six drop-down menus that allow you to make
image adjustments and change a variety of settings. Most of these
adjustments aren’t available directly from the keypad.

To open the on-screen menus, press the

button on the

menu

keypad. This changes the volume, source, and standby buttons
on the keypad to menu navigation buttons (and illuminates the
keypad green). Press the corresponding buttons to move the
cursor up, down, left, or right. To select a menu, move the cursor
left and right to highlight the menu you want. The drop-down
menu appears.

FIGURE 12

Drop-down menu

To change a menu setting, use the up and down arrow keys on
the keypad to move the cursor up and down to the item you want
to change (the selected item is highlighted red), then use the left
and right mouse buttons (not the left and right arrow buttons) to
adjust a setting. Some submenus, such as Brightness, consist of a
slider bar you use to increase or decrease a value; some sub­menus, such as Standby Time, consist of options you scroll
through to select the desired one. All changes are saved when
you close the menus.

NOTE: Some menu items may be

grayed out at certain times. This

indicates the item is not applicable

to your setup (for example, video

standards do not apply to com-

puter sources) or the item is not

enabled until another selection is

made (for example, Manual Track-

ing is not available until Auto

Image is turned off).

To access another menu, use the left and right arrow buttons to
move left or right to another menu.

17

Using the Projector

Display Menu

FIGURE 13

Display menu

Brightness

Adjusting the brightness changes the intensity of the image.

•

Press the left mouse button to darken the image.

•

Press the right mouse button to lighten the image.

Tint

The tint adjusts the red-green color balance in the projected
image. Changing the Tint setting has no effect on PAL or SECAM
video sources.

•

Press the left mouse button to increase the amount of green in
the image.

•

Press the right mouse button to increase the amount of red in
the image.

Contrast

The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.

•

Press the left mouse button to decrease the contrast.

•

Press the right mouse button to increase the contrast, making
the blacks appear blacker and the whites appear whiter.

18

Color

The color setting adjusts a video image from black and white to
fully saturated color.

•

Press the left mouse button to decrease the amount of color in
the image.

•

Press the right mouse button to increase the amount of color in
the image.

Blank Screen

Blank Screen determines what color is displayed when there is no
active source and when the projector is in standby. Click either
mouse button to toggle between blue and black.

Reset All

Click either mouse button to reset all the options (except Lan­guage, Video Standard, Ceiling and Rear Projection, and Standby
Time) in all the menus to their original settings. This also returns
Freeze and Mute to their default (off) settings.

19

Using the Projector

Audio Menu

FIGURE 14

Audio menu

Vo lu me

•

Press the left mouse button to decrease the volume.

NOTE: Changing the volume

from the menu is the same as

changing it using the keypad.

•

Press the right mouse button to increase the volume.

Volume adjustments you make are saved for each source.

Tr e b l e

The treble setting controls the high frequencies of your audio
source.

20

•

Press the left mouse button to decrease the treble.

•

Press the right mouse button to increase the treble.

Treble adjustments are saved for each source you have connected.

Bass

The bass setting controls the low frequencies of your audio
source.

•

Press the left mouse button to decrease the bass.

•

Press the right mouse button to increase the bass.

Bass adjustments are saved for each source you have connected.

Image Menu

Display Audio Image Controls Language Status

>

>

Auto image on
Resize on

Manual sync
Manual tracking
Horizontal position
Vertical position

FIGURE 15

Image menu

Auto Image

The projector automatically adjusts tracking, signal synchroniza­tion and vertical and horizontal position for most computers
(Auto Image does not apply to video sources). If you want to
adjust these features manually, you must turn off

Auto Image

first
by highlighting Auto Image in the Image menu and clicking
either mouse button to select “off”.

Resize

automatically resizes the image by scaling it up or down. It

Resize

only affects computer images that are not the projector’s native
resolution.

When
the screen. If you turn

is on, the projector makes the best fit of the image to

Resize

off (by highlighting it in the Image

Resize

menu and clicking either mouse button to select “off”), the image
may be either cropped or too small for the screen.

Manual Sync

The projector adjusts signal synchronization automatically for
most computers. But if the projected computer image looks fuzzy
or streaked, try turning

Auto Image

off then back on again. If the
image still looks bad, try adjusting the signal synchronization
manually:

NOTE: Some screen savers inter-

fere with the operation of Auto

Image. If you’re experiencing prob-

lems, try turning your screen saver

off, then turning Auto Image off

and back on.

NOTE: When you connect an

HDTV source, the projector auto-

matically displays the image in

16x9 format.

Tur n A ut o I ma ge of f.

1

Highlight Manual sync, then press either mouse button

2

repeatedly until the image is sharp and free of streaks.

21

Using the Projector

Manual Tracking

The projector adjusts tracking automatically to match the video
signal from your computer. However, if the display shows evenly
spaced, fuzzy, vertical lines or if the projected image is too wide
or too narrow for the screen, try turning
on again. If the image is still bad, try adjusting the tracking man­ually:

Tur n A ut o I ma ge of f.

1

NOTE: The Manual Sync ,

Manual Tracking, Horiz.

Position and Ve r t. P o s i t i o n

options are available only for

computer sources. The projector

sets these options automatically

for a video source.

Highlight Manual tracking, the press either mouse button

2

repeatedly until the fuzzy vertical bars are gone.

Positioning adjustments are saved when you power off the pro­jector.

Horizontal position

Follow these steps to manually adjust the horizontal position:

Tur n A ut o I ma ge of f.

1

Highlight Horizontal position, then press the left mouse but-

2

ton to move the image right or press the right mouse button to
move the image left.

Auto Image

off then back

22

Positioning adjustments are saved when you power off the pro­jector.

Ver t i c al po si ti on

Follow these steps to manually adjust the vertical position.

Tur n A ut o I ma ge of f.

1

Highlight Vertical position, then press the left mouse button to

2

move the image down or press the right mouse button to
move the image up.

Positioning adjustments are saved when you power off the pro­jector.

Controls Menu

FIGURE 16

Controls menu

Video Standard

When Video standard is set to Auto, the projector attempts to
pick the video standard (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N,
or SECAM) automatically based on the input signal it receives.
(The video standard options may vary depending on your region
of the world.) The input signals for SECAM, PAL-M, and PAL-N
video cannot be automatically detected, therefore they must be
chosen manually. If the projector is unable to detect the correct
standard, the colors might not look right or the image might
appear “torn.” If this happens, manually select a standard by
clicking either mouse button and cycling through the standards.

NOTE: If you already know the

video standard used in your geo-

graphical area, it’s often best to

manually select it.

Standby Time

This option lets you select how long the lamp stays on and the
blank screen is displayed when the projector enters standby
mode before the projector turns off. Select among 1, 5, 10, and 15
minutes and 1 and 2 hours by clicking either mouse button and
cycling through the options.

Ceiling Projection

When you turn

Ceiling Projection

on, the projector turns the
image upside down for ceiling-mounted projection. Highlight
Ceiling Projection, then click either mouse button to turn this fea­ture on and off.

NOTE: To order the LP425 Ceil-

ing Mount, refer to “Optional

Accessories” on page 37.

23

Using the Projector

Rear Projection

When you turn

Rear Projection

image so you can project from behind a translucent screen. High­light Rear Projection, then click either mouse button to turn this
feature on and off.

Default Source

Default Source toggles between Computer and Video. This deter­mines which source the projector checks first for active video
during power-up. Highlight Default Source and click either
mouse button to toggle between the options.

Auto Source Select

This setting toggles between On and Off. When this feature is Off,
the projector defaults to the source selected in Default Source. To
display another source, you must manually select one by press­ing the

button on the keypad. When this feature is On, the

source

projector automatically finds the active source, checking the
default source first. Highlight Auto Source Select and click either
mouse button to turn this feature on and off.

on, the projector reverses the

24

Plug and Play

This setting toggles between On and Off. When it is On, most
new computers will automatically recognize the projector, then
set the monitor resolution and refresh rate accordingly. You need
to set the Plug and Play setting to Off for the projector to display
properly on some older computers. The Plug and Play setting
does not affect video images.
If the projector’s display constantly changes between the com­puter image and the message, “Perfecting the image”, you may
need to set Plug and Play to Off.

Display Messages

This setting toggles between On and Off. When this feature is On,
status messages such as “No signal detected” or “Standby
Active” appear in the lower-right corner of the screen. Click
either mouse button to turn this feature off and not see status
messages.

Display Startup Screen

This setting toggles between On and Off. When this feature is On,
the InFocus startup screen appears when the projector starts up
and remains until an active source is detected. The startup screen
contains information on contacting InFocus. Click either mouse
button to turn this feature off and display a plain black or blue
screen instead of the startup screen.

Language Menu

FIGURE 17

Language menu

You can display the on-screen menus in English, French, German,
Spanish, Japanese, and Chinese.

•

Move the cursor to the language you want, then click either
mouse button. The menus redraw immediately.

Status Menu

This is a read-only window for informational purposes. To dis­play the status window, select Show status from the menu, then
click either mouse button. To remove the window, click either
mouse button.

25

Using the Projector

FIGURE 18

Status menu

Lamp hours used

Indicates how many hours the current lamp has been in use. The
counter starts at zero hours and counts each hour the lamp is in
use. Change the bulb when the brightness is no longer accept­able. See “Replacing the Projection Lamp” on page 27 for details.

26

Computer resolution

Shows your computer’s resolution setting. To change this, go to
your computer’s Control Panel and adjust the resolution in the
Display tab. See your computer’s user ’s guide for details.

Horizontal refresh rate

The time period that one horizontal line is displayed.

Ver t i c al re f re s h r a t e

The time period that one video frame is displayed.

Mute status

Indicates if the audio is muted.

Software version

Indicates the projector’s software version. This information is
useful when contacting Technical Support.

CableWizard version

Indicates the CableWizard’s software version. This information is
useful when contacting Technical Support.

Source

Indicates the active source, Computer or Video.

MAINTENANCE & TROUBLESHOOTING

This section describes how to:

•

clean the lens

•

replace the projection lamp

•

use the security lock feature

•

troubleshoot the projector

Cleaning the Lens

Follow these steps to clean the projection lens:

Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

1

•

Avoid using an excessive amount of cleaner.

•

Abrasive cleaners, solvents or other harsh chemicals might
scratch the lens.

Lightly wipe the cleaning cloth over the lens.

2

If you don’t intend to use the projector immediately, replace

3

the lens cap.

Replacing the Projection Lamp

The lamp hour counter in the Status menu counts the number of
hours the lamp has been in use. The projectors use a metal halide
bulb. These types of bulbs deteriorate over time. Replace the
lamp when the brightness is no longer acceptable. You can order
new lamp modules from your InFocus dealer. See “Accessories”
on page 37 for information.

Follow these steps to replace the projection lamp:

Turn off the projector and unplug the power cord.

1

Wait 30 minutes to allow it to cool thoroughly.

2

Place the projector on its side, then insert a small screwdriver

3

or other flat object into the tabs on the lamp module door (Fig­ure 19).

Pull the lamp door up and remove it.

4

WARNING: To avoid burns,

allow the projector to cool for at

least 30 minutes before you open

the lamp module door. Never

extract the lamp module while the

lamp is operating.

27

Maintenance & Troubleshooting

IGURE 19

F

Removing the lamp door

Loosen the two non-removable screws on the outside of the

5

CAUTION: Never operate the

projector with the lamp door open

or removed. This disrupts the air

flow and causes the projector to

overheat.

module.

28

F

20

IGURE

Loosening the screws on the lamp module

Slide the lamp connector to the right to disconnect it from the

6

projector (Figure 21).

FIGURE 21

Sliding the lamp connector

Remove the module (Figure 22) and dispose of it in an envi-

7

ronmentally proper manner.

F

IGURE 22

Removing the lamp module

WARNING: Do not drop the

lamp module or touch the glass

bulb! The glass may shatter and

cause injury.

29

Maintenance & Troubleshooting

Align the new lamp module in the correct direction.

8

Gently push the module in as far as it goes.

9

Tighten the screws on the outside of the module.

10

Slide the lamp connector to the left to re-attach it.

11

Insert the tabs at the top of the lamp door into the projector

12

and press the lamp door into place.

Plug in the power cord and turn the projector back on.

13

To reset the lamp hour counter in the Status window, press

14

and hold the left mouse button, then press the menu button
(while still holding down the mouse button) for 5 seconds.
Verify that the counter was reset by pressing the menu button
and viewing the counter in the Status window.

Using the Security Lock

The projector has a security connector for use with a PC Guardian
Cable Lock System (Figure 23). Refer to the information that
came with the lock for instructions on how to use it to secure the
projector.

30

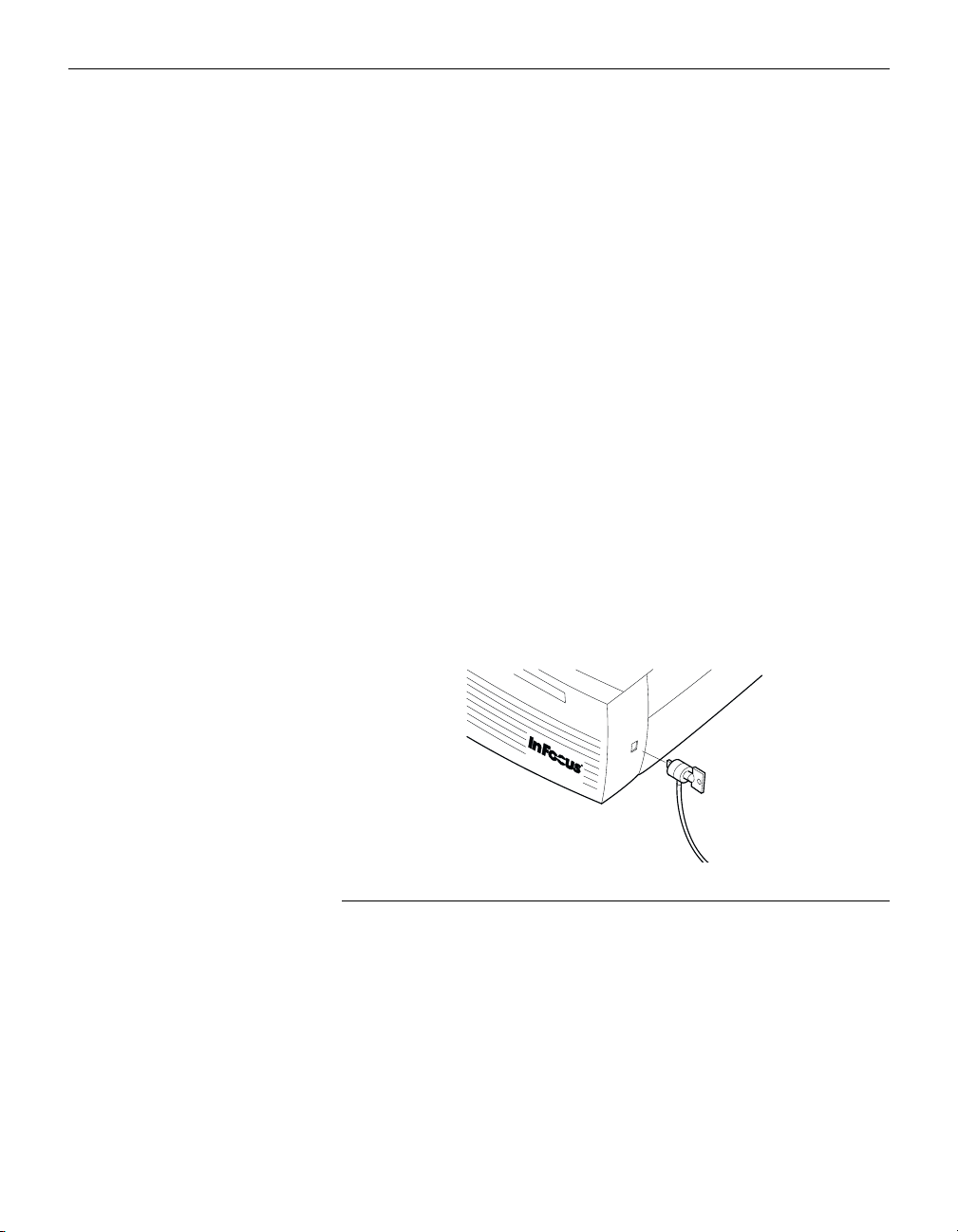

F

23

IGURE

Installing the security lock

Troubleshooting

Problem: Nothing on projection screen

•

Make sure that the power cord is properly connected to a fully

functional AC electrical outlet. Make sure that the power cord
is also properly connected to the projector.

•

If the projector is plugged into a power strip, make sure the

power strip is turned on.

•

Make sure you have removed the lens cap on the projection

lens at the front of the projector.

•

Make sure the projector is switched on.

•

Check the projector’s lamp to ensure that it is securely con-

nected in the lamp module. See “Replacing the Projection
Lamp” on page 27.

•

Make sure that the cables do not have any bent pins.

Problem: Color or text not being projected

•

You might need to adjust the brightness up or down until the

text is visible. Refer to “Brightness” on page 18 for more infor­mation.

Problem: The screen resolution is not right

•

Make sure the computer ’s video card is set for a resolution of

no greater than 1024x768.

Problem: Image isn’t centered on the screen

•

Reposition the image. Refer to “Horizontal position” on

page 22 and “Vertical position” on page 22.

•

Be sure the projector is at a 90 degree angle to the screen.

Problem: Only the start-up screen displays

•

Verify that the cables are connected correctly. See page 7

through page 8 for connection procedures.

•

Verify that the proper input source is connected. See “Source”

on page 15.

31

Maintenance & Troubleshooting

•

You might need to turn everything off and power up the

equipment again in the proper order. Refer to your com­puter’s documentation to determine the correct order.

•

Make sure your laptop’s external video port is turned on. See

the “Portable and Laptop Activation Chart” on page 39 or
your computer’s manual for details.

•

Make sure your computer’s video board is installed and con-

figured correctly.

If you’re using Windows 3.x:

In the Windows Program Manager, double-click the Win-

1

dows Setup icon in the Main program group.

Verify that the Display setting is 1024x768 or less.

2

If you’re using Windows 95:

Open “My Computer” icon, the Control Panel folder and

1

then the Display icon.

Click the Settings tab.

2

Verify that the Desktop area is set to 1024x768 or less.

3

Also check the following:

•

Does your computer have a compatible video board? The pro-

jector isn’t CGA or EGA compatible.

•

Is your computer’s video port activated? This is especially

true for laptop computers. See “Portable and Laptop Activa­tion Chart” on page 39.

Problem: Image is too wide or narrow for screen

•

You might need to manually adjust the tracking to reduce or

enlarge the projected image. Refer to “Manual Tracking” on
page 22.

•

Adjust the resolution of your video card if it’s greater than

1024x768.

32

Problem: Image is out of focus

•

Turn the projection lens to focus the image.

•

Make sure the projection screen is at least 5 feet (1.5 m) from

the projector.

•

Check the projection lens to see if it needs cleaning.

Problem: Image and menus are reversed left to right

•

Rear projection mode is probably turned on. Turn Rear Projec-

tion off in the Controls menu. The image should immediately
return to forward projection. See “Rear Projection” on
page 24.

Problem: the projector displays vertical lines, “bleeding” or
spots

•

Adjust the brightness. See “Brightness” on page 18.

•

Check the projection lens to see if it needs cleaning.

Problem: no sound

•

Adjust volume.

•

Verify audio/input connections.

•

Adjust audio source.

Problem: Image is “noisy” or streaked

Try these steps in this order.

Deactivate the screen saver on your computer.

1

2

Tu rn

Auto Image

off and then back on again. See “Auto

Image” on page 21.

Adjust the synchronization and tracking manually to find an

3

optimal setting. See “Manual Sync” on page 21 and “Manual
Tracking” on page 22.

•

The problem could be with your computer’s video card. If

possible, connect a different computer.

33

Maintenance & Troubleshooting

Problem: Projected colors don’t match the computer or video
player’s colors

•

Just as there are differences in the displays of different moni-

tors, there are often differences between the computer image
and the projected image. Adjust the brightness, tint and/or
contrast from the Display menu. See “Brightness” on page 18,
“Tint” on page 18 and “Contrast” on page 18.

Problem: Lamp seems to be getting dimmer

•

The lamp begins to lose brightness when it has been in use for

a long time. Replace the lamp as described in “Replacing the
Projection Lamp” on page 27.

Problem: Lamp shuts off

•

A minor power surge may cause the lamp to shut off. Turn the

projector off, wait at least a minute, then turn it back on.

The most current troubleshooting information can be found in
the Service and Support section of our website at

http://www.infocus.com/service.

34

Before calling your dealer or InFocus Technical Support for assis­tance, please have the following information available:

•

the projector’s serial number (located on the bottom label)

•

the resolution of your computer.

Call InFocus Technical Support at

1-800-799-9911

between 6 a.m.
and 6 p.m. PST, Monday through Friday. Service is available in
North America after hours and on weekends for a fee at

1-888-592-6800

In Europe, call InFocus in The Netherlands at

.

(31) 35-6474010

between 8 a.m. and 6 p.m. Central European Time.

In Asia, call

(65) 332-0659

Or, send us an e-mail at

between 9:30 a.m. and 5:30 p.m.

[e-mail]

APPENDIX

Specifications

The projector must be operated and stored within the tempera­ture and humidity ranges specified.

Te m p e r a t u r e

Operating

Non-operating

Humidity

Operating and non-oper. 5% to 95% relative humidity, non-condensing

Dimensions

3.9 x 9 x 12.5 inches (9.9 x 22.9 x 31.8 cm)

We ig h t

7.4 lbs (3.4 kg) unpacked

Altitude

Operating 0 to 10,000 feet (3,048 meters)
Non-operating 0 to 40,000 feet (12,192 meters)

50 to 104

-4 to 158

°

F (10 to 40° C)

°

F (-20 to 70° C)

Optics

Focus Range 5.0 - 16 feet (1.5-5 m)

Lamp

Type 270-watt metal halide

Input Power Requirements

100-120VAC 6A;50/60Hz
200-240VAC 3A; 50Hz

35

Appendix

Video Audio Input

Input Impedance 5K ohm DC coupled
Maximum Input Voltage (L

+ RIN)

IN

< 4.5 V for THD ≤ 0.3%

PEAK

LIN or RIN < 2.0 Vrms for THD ≤ 0.3%

Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter

Connector Type RCA jack

Computer Audio Input

Input Impedance 10K ohm nominal, AC coupled

Maximum Input Voltage (L

+ RIN)

IN

L

or RIN < 2.0 Vrms for THD ≤ 0.3%

IN

< 4.5 V for THD ≤ 0.3%

PEAK

Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter

Connector Type 3.5 mm (1/8 inch) stereo phone jack

36

Accessories

Standard Accessories
(ship with the projector) Part Number

Quick Start

LP425z User’s Guide

Soft Case 110-0190-xx

Shipping Box 110-0186-xx

Audio cable 210-0118-xx

CableWizard Lite SP-CW2LITE

Projection Lamp Module SP-LAMP-LP4z

Lens Cap 340-0573-xx

Audio/Video Cable 210-0053-xx

Online User’s Guide CD-ROM 010-0116-xx

card 009-0486-xx

010-0231-xx

Power Cords (one ships with projector, type depends on country)

North American Power Cord 210-0023-xx

Australian Power Cord 210-0027-xx

UK Power Cord 210-0028-xx

European Power Cord 210-0029-xx

Danish Power Cord 210-0030-xx

Swiss Power Cord 210-0031-xx

Optional Accessories

Personal Plus Accessory Pack, includes: SP-PP-LP4PLUS

Deluxe Soft Case (CA-C132)

CableWizard 3 (SP-CW3)

Executive Plus Remote (HW-EXPLUS)

Personal Pack Bundle, includes: SP-PP-REMREC

2-Button Executive Remote (HW-EXREM)

IR Remote Receiver (HW-EXRCVR)

Personal Pack Bundle, includes: SP-PP-CW3RMP

CableWizard 3 (SP-CW3)

4-Button Executive Plus Remote (HW-EXPLUS)

NOTE: Use only InFocus-

approved accessories. Other prod-

ucts have not been tested with the

projector.

NOTE: You can purchase these

items by contacting your dealer or

InFocus Catalog Sales at

1-800-660-0024.

37

Appendix

Deluxe Soft Case CA-C132

ATA Travel Case CA-C134z

Executive Leather Case CA-C133

LP400 Series Deluxe Travel Case CA-C141

Macintosh Adaptor SP-MACADPT

CableWizard Extension Cable, non-plenum rated,

SP-CW2EXT

60.7 ft (18.5 m)

CableWizard Extension Cable, plenum-rated, 60.7 ft

SP-CW2EXTP

(18.5m)

CableWizard 2 SP-CW2

CableWizard 2 Installation Extension Cable,

SP-CW2IEXT

70.5 ft (21.5 m) (CableWizard 2 only)

GyroMouse RF Remote (US, Mexico, Canada, UK

HW-RF-GPRO

only)

Remote Point RF Remote with LaserPointer (US,

HW-RF-REMLSR

Mexico, Canada only)

2-Button Executive Remote HW-EXREM

4-Button Executive Plus Remote HW-EXPLUS

IR Remote Receiver HW-EXRCVR

Full-Feature Laser Pro Remote Control HW-LASERPRO

Remote Cable, 50 ft (15 m) SP-WIREM

LP400 Series Ceiling Mount-LiteMount 425 SP-CEIL-LM425

LiteMount False Ceiling Plate SP-LTMT-PLT

LiteMount Pipe Tubing Extension SP-LTMT-EXT

CableWizard Wall Plate SP-CWWALL

PC Guardian Projector Cable Lock SP-LOCK

Tripod Mount SP-TRIP-LP4

Portable Projector Stand SP-STND

40” Portable Projection Screen HW-PORTSCR40

50” Portable Projection Screen HW-PORTSCR50

60” Portable Projection Screen HW-DLXSCRN

S-Video Cable 515-0027-xx

rd

Year Advantage Service Plan

3

EW-LP4xx-12

(1 year extension)

38

Portable and Laptop Activation Chart

Many laptop computers do not automatically turn on their exter­nal video port when a secondary display device such as a projec­tor is connected. Activation commands for some laptop
computers are listed in the following table. (If your computer is
not listed or the given command does not work, refer to the com­puter’s documentation for the appropriate command.) On some
laptops, the activation function key is labeled with an icon, for

example or the text CRT/LCD.

NOTE: Visit our website at

www.infocus.com for the most cur-

rent activation chart. It is located

in the Technical Library in the Ser-

vice and Support section.

Key command to

Computer

Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup)

AST* ** FN-D or Ctrl-D FN-D or Ctrl-D

AMS FN-F2 FN-F2

AMT setup screen setup screen

AT &T F N- F 3

Advanced Logic
Research

Altima Shift-Ctrl-Alt-C Shift-Ctrl-Alt-L

Ambra** FN-F12 FN-F12

Amrel* ** setup menu setup menu

Apple see Mac Portable and Mac PowerBook

Aspen automatic automatic

activate port

Ctrl-FN-D Ctrl-FN-D

FN-F5 FN-F5

type from A:/IVGA/CRT type from A:/IVGA/CRT

FN-F12 FN-F12

FN-F6

Ctrl-Alt-V Ctrl-Alt-V

setup VGA/
Conf.Simulscan

FN-F5 FN-F5

F2/Choose Option/F5 F2/Choose Option/F5

Shift-Ctrl-D Shift-Ctrl-D

Key command to
de-activate port

FN-F3
FN-F6

setup VGA/
Conf.Simulscan

NOTE: Often, pressing the key

commands once activates the

external video port, pressing it

again activates both the external

and internal ports, and pressing it

a third time activates the internal

port. Refer to your computer’s doc-

umentation for details on your spe-

cific model.

39

Appendix

Key command to

Computer

Austin Ctrl-Alt-comma Ctrl-Alt-comma

Award FN-F6 FN-F6

BCC* automatic reboot computer

Bondwell LCD or CRT options after

Chaplet** setup screen setup screen

Chembook FN-F6 FN-F6

Commax Ctrl-Alt-#6 Ctrl-Alt-#5

Compaq* ** Ctrl-Alt-< Ctrl-Alt->

Compuadd* ** automatic automatic

Data General Ctrl-Alt-Command Ctrl-Alt-Command

Data General
Wal k a bout

Datavue Ctrl-Shift-M Ctrl-Shift-M

DEC** FN-F5 FN-F5

Dell** Ctrl-Alt-< Ctrl-Alt->

Digital* automatic reboot

Dolch dip switch to CRT dip switch to LCD

Epson dip switch to CRT dip switch to LCD

activate port

bootup

FN-F6 FN-F6

FN-F4 FN-F4

FN-F4 FN-F4

automatic automatic

mode/? (for setup option) mode/? (for setup option)

Alt-F for screen setup
option

2 CRT/X at DOS prompt reboot

FN-F4 FN-F4

Ctrl-Alt-F10 Ctrl-Alt-F10

FN-F8 (CRT/LCD) FN-F8

FN-D FN-D

FN-F12 FN-F12

FN-F2 FN-F2

Key command to
de-activate port

reboot for LCD or CRT
options to appear

Alt-F for screen setup
option

40

Key command to

Computer

Everex* setup screen option setup screen option

For-A Ctrl-Alt-Shift-C Ctrl-Shift-Alt-L

Fujitsu FN-F10

Gateway FN-F3

Grid* ** FN-F2, choose auto or

Hitachi FN-F7 FN-F7

Honeywell FN-F10 FN-F10

Hyundai setup screen option setup screen option

IBM 970* automatic warm reboot

IBM ThinkPad** reboot, enter setup menu FN-F2

Infotel FN-F12 FN-F12

Kaypro boot up, monitor plugged inunplug monitor

activate port

FN-F1/FN-F1 again simul­taneous

simultaneous

Ctrl-Alt-Tab Ctrl-Alt-Tab

FN-F7, select choice from
setup menu

FN-F1, select choice

FN-F5, select choice

PS/2 SC select choice
(CRT, LCD, etc.)

Key command to
de-activate port

FN-F3
FN-F1

FN-F2

Kris Tech FN-F8 FN-F8

Leading Edge FN-T FN-T

Mac Portable
100

Mac PowerBook

140, 145, 150,
170

160, 165, 180,
520, 540, 5300

210, 230, 250,
270, 280, 2300

no video port: not compatible

no video port: requires a 3rd-party interface

Control Panel folder, Pow­erBook Display folder;
Activate Video Mirroring

requires Apple Docking Station or Mini Dock

warm reboot

41

Appendix

Key command to

Computer

Magitronic FN-F4 FN-F4

Mastersport FN-F2 FN-F1

Micro Express* automatic warm reboot

Micron FN-F2 FN-F2

Microslate* automatic warm reboot

Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On

NCR setup screen option setup screen option

NEC* ** setup screen option setup screen option

Olivetti* automatic automatic

Packard Bell* ** FN-F0 FN-F0

Panasonic FN-F2 FN-F2

Prostar Ctrl-Alt-S at bootup Ctrl-Alt-S at bootup

Samsung* setup screen option setup screen option

Sanyo setup screen option setup screen option

Sharp dip switch to CRT dip switch to LCD

Sun SPARC­Dataview

Tandy** Ctrl-Alt-Insert Ctrl-Alt-Insert

Tangent FN-F5 FN-F5

Texas Instru­ments*

Top-Link* ** setup screen option setup screen option

Toshiba* ** Ctrl-Alt-End Ctrl-Alt-Home

activate port

CRT at the DOS prompt LCD at the DOS prompt

FN-F3 FN-F3

FN-O/* FN-O/*

Ctrl-Alt-< Ctrl-Alt->

Ctrl-Shift-M Ctrl-Shift-M

setup screen option setup screen option

setup screen option setup screen option

FN-F6 FN-F6

FN-End FN-Home

FN-F5 FN-F5

setup screen option setup screen option

Key command to
de-activate port

42

Key command to

Computer

Twinhead* FN-F7 FN-F7

WinBook Ctrl-Alt-F10 Ctrl-Alt-F10

Wyse software driven software driven

Zenith** FN-F10 FN-F10

Zeos** Ctrl-Shift-D

* These manufacturers have models that automatically send video

to the external CRT port when some type of display device is
attached.

** These manufacturers offer more than one key command depend-

ing on the computer model.

activate port

FN-F5 FN-F5

Automatic Automatic

FN-F2 FN-F2

FN-F1 FN-F1

FN-F1

Key command to
de-activate port

Ctrl-Shift-D
FN-F1

43

Appendix

Using Video Mirroring with a PowerBook Computer

When you turn video mirroring (called SimulScan in newer Pow­erBooks-see below) on, the projector displays the same informa­tion that appears on your PowerBook’s built-in screen. When
video mirroring is off, the projector acts like a separate display.

To turn on video mirroring for the first time:

Open the Monitors control panel; click on Monitor 2.

1

Set the number of colors you want.

2

Open the Control Strip; click on the monitor icon.

3

Select “Turn Video Mirroring On.”

4

Now you can turn video mirroring on and off from the Control
Strip without having to open the Monitors control panel again.

When using video mirroring and high color graphics such as
slide shows, the projected image occasionally might turn black
and white. If this happens, perform the following steps:

Turn off video mirroring.

1

Open the Monitors control panel.

2

Move the white menu bar to Monitor 2 to set the projector as

3

the primary monitor.

Restart the PowerBook.

4

Using SimulScan

Some newer PowerBooks display images on an external monitor
or projector differently than previous ones. When using
SimulScan, the projector displays the same information that
appears on your PowerBook

To select SimulScan:

Open the Control Panel, then double-click Monitors and

1

Sound.

In the Resolution list, choose the SimulScan mode, then click

2

OK.

If this changes your display settings, a dialog box appears.

3

Click OK to confirm the change.

44

Projected Image Size

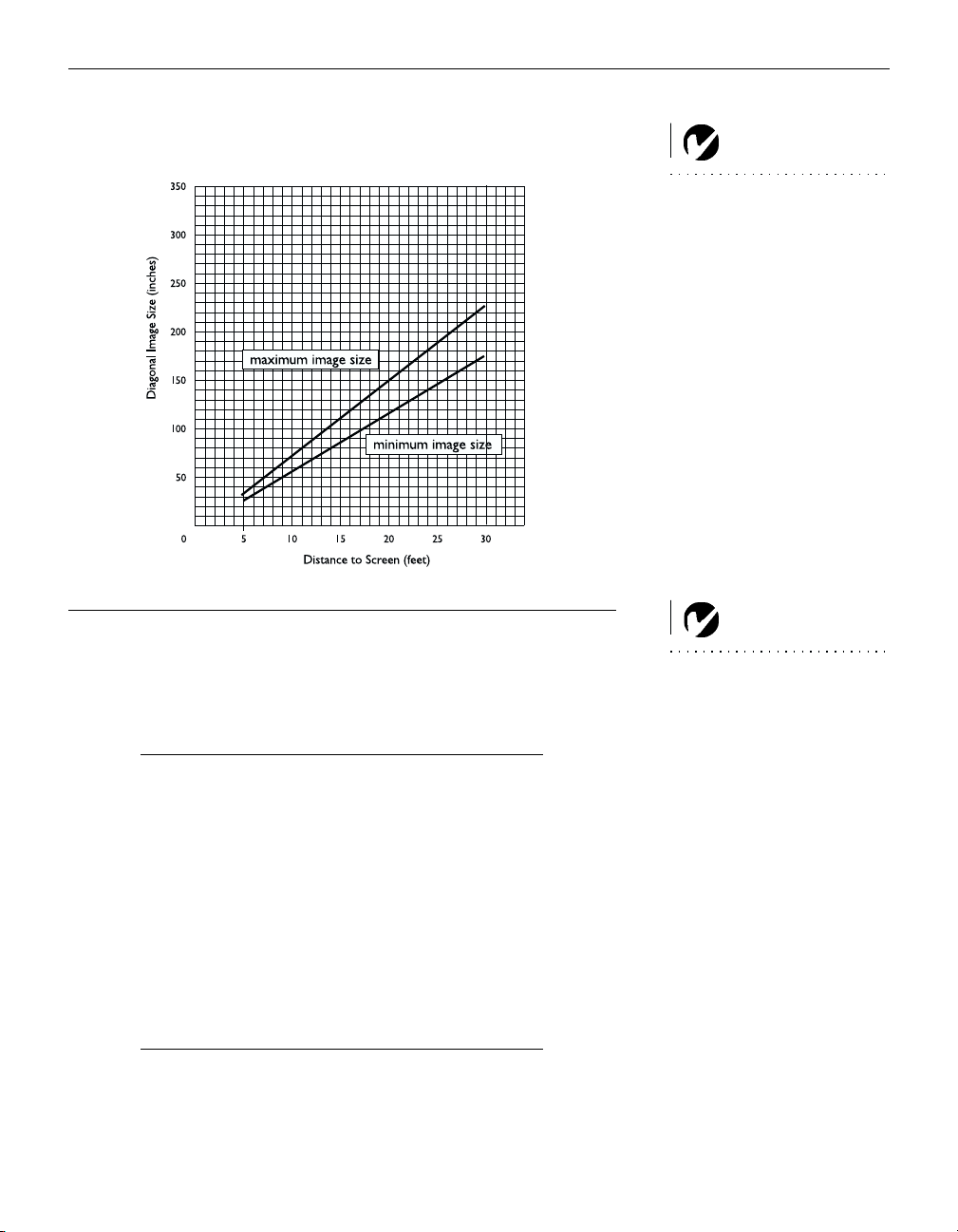

F

IGURE 24

Projected image size

NOTE: Use these charts and

tables to help you determine pro-

jected image sizes.

Ta b le 1:

Image Size, Width and Height -maximum image size

Distance to

Screen (feet)

4.9 3.0 2.4 1.8

85.04.03.0
12 7.6 6.1 4.6
16 10.1 8.1 6.1

20 12.6 10.1 7.6
30 18.9 15.1 11.3

Image Size, Width and Height-minimum image size

Distance to

Screen (feet)

4.9 2.4 1.9 1.4

83.93.12.3
12 5.8 4.6 3.5
16 7.7 6.2 4.6

20 9.6 7.7 5.8
30 14.5 11.6 8.7

Diagonal

(feet)

Ta b le 2:

Diagonal

(feet)

Width

(feet)

Width

(feet)

Height

(feet)

Height

(feet)

NOTE: Visit our website at

www.infocus.com for an interactive

image size calculator. It is located

in the Technical Library in the Ser-

vice and Support section.

45

INDEX

A

accessories, ordering 37
activation commands for laptop com-

puters 39

adjusting

bass 20
brightness 18
color 19
contrast 18
tint 18
treble 20

volume 16, 20
adjusting the height of the projector 14
altitude limits 35
assistance. See Technical Support
Audio menu 20
Audio menu options

Bass 20

Treble 20

Volume 20
Auto Source Select 24

B

bass, adjusting 20
Blank Screen 19
brightness, adjusting 18
buttons on keypad

Menu 15

Source 15

Standby 16

Volume 16

C

cables

A/V 8, 37
CableWizard extension 38
CableWizard Lite 6
composite video 8
extension 38
ordering 37
power 37

S-video 8, 38
CableWizard Lite 6
cases, ordering 37
ceiling-mounted projection 23, 38
cleaning the projection lens 27
color, adjusting 19
colors

don’t match monitor colors 34

not displayed 31
compatibility

IBM-compatible 1

Macintosh 1
composite video cable

connecting 8

ordering (A/V cable) 37
computers, compatible 1
connecting

computers 7

power cord 10

video player 8–9
connector panel

audio out 6
contrast, adjusting 18
Controls menu 23
Controls menu options

Auto Source Select 24

Ceiling 23

Default Source 24

Display Messages 24

Display Startup Screen 25

Plug and Play 24

Rear Projection 24

Standby Time 23

Video Standard 23

47

Index

D

Default Source 24
Display menu 18
Display menu options

Blank Screen 19
Brightness 18
Color 19
Contrast 18
Reset All 19

Tint 18
Display Messages 24
Display Startup Screen 25
displaying

startup screen 25

status messages 24
displaying on-screen menus 15

E

extension cable 38

F

fuzzy lines 22

H

HDTV 1, 21

I

IBM-compatible computers

compatibility 1
connecting 7


adjusting 10, 13
centering 22
colors don’t match computer’s 34
focusing 14
fuzzy lines 22
has lines or spots 33
not centered 31
not displayed 31
out of focus 33
quality 31–34
resolution 1
reversed 23, 24, 33
size 5, 45
streaked 33
too wide or too narrow 32

zooming 14
Image menu 21
Image menu options

Auto Image 21

Horiz. Position 22

Manual Sync 21

Manual Tracking 22

Resize 21

Vert. Position 22

48

L

lamp

ordering 37
replacing 27

turns off unexpectedly 34
lamp hour counter 26
Language menu 25
language, selecting for menus 25
laptop computers

activation sequence to allow

secondary display 39

connecting 7
lens

cap 37

cleaning 27
LP425z

cases 37, 38

ceiling mounted 23

project from behind the screen

23, 24
setting up 5
specifications 35
turning off 11
turning on 10

M

Macintosh computers

compatibility 1

Menu button 17
menus. See on-screen menus
monitor, projected colors don’t match

34

O

on-screen menus

Audio menu 20
changing language of 25
Controls menu 23
Display menu 18
displaying 17
Image menu 21
Language menu 25
making changes to menu

functions 17

Status menu 25

P

PAL video 18, 23
Plug and Play 24
power cord

connecting 10

ordering 37
power switch 10, 11
power up sequence 10, 32
project from behind the screen 23, 24

R

rear projection 24
replacing projection lamp module 27
re-positioning the image on the screen

22
resetting adjustments 19
resolution 1

N

NTSC video 23

49

Index

S

safety guidelines iii
SECAM video 18, 23
security lock 30, 38
SimulScan, using with PowerBooks 44
Source button 15
specifications 35
Standby button 16
Standby Time 23
startup screen 25
Status menu 25
S-video

connecting 8
ordering cable 38

T

Technical Support

in Asia 4
in Europe 4
in USA 4
information to have on hand

before you call 34
temperature limits 35
test pattern 31
text not visible 31
tint, adjusting 18
treble, adjusting 20
troubleshooting 31
turning off the projector 11
turning on the projector 10

V

vertical lines displayed 22, 33
video 18
video mirroring on a PowerBook 44
video standards 23
Volume buttons 16
volume, adjusting 16, 20

W

warranty 38

Z

zooming the image 14

50

LIMITED WARRANTY

InFocus systems, Inc. (“InFocus”) warrants that each 425z (“the Product”) sold hereunder will conform to and function in

accordance with the written specifications of InFocus. Said limited warranty shall apply only to the first person or entity

that purchases the Product for personal or business use and not for the purpose of distribution or resale. Said warranty

shall continue for a period of two (2) years from the date of such purchase. The standard limited warranty excludes the

lamps in projectors after 90 days and the accessories after one year. InFocus does not warrant that the Product will meet the

specific requirements of the first person or entity that purchases the Product for personal or business use. InFocus’ liability

for the breach of the foregoing limited warranty is limited to the repair or replacement of the Product or refund of the pur-

chase price of the Product, at InFocus’ sole option. Replacement Product may be re-furbished in “like-new” condition, at

InFocus’ sole discretion. To exercise the Purchaser’s rights under the foregoing warranty, the Product must be returned at

the Purchaser’s sole cost and expense, to InFocus or to any authorized InFocus service center provided, and the Product

must be accompanied by a written letter explaining the problem and which includes (i) proof of date of purchase; (ii) the

dealer ’s name; and (iii) the model and serial number of the Product. When sending your unit in for repair, please ship your

unit in its original packing material or an InFocus approved ATA Shipping Case, or have a professional packaging com-

pany pack the unit. Please insure your shipment for its full value. A return authorization number, issued by the InFocus

customer service department, must also be clearly displayed on the outside of the shipping carton containing the Product.

Note: Remanufactured Products are exempt from the foregoing Limited Warranty. Please refer to the Remanufactured
Product Warranty for applicable warranty information.

WARRANTY LIMITATION AND EXCLUSION

InFocus shall have no further obligation under the foregoing limited warranty if the Product has been damaged due to

abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized modifications, tampering, alterations,

or service other than by InFocus or its authorized agents, causes other than from ordinary use or failure to properly use the

Product in the application for which said Product is intended.

DISCLAIMER OF UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PURCHASE. ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES

THAT EXTEND BEYOND THE FACE HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED,

ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS. SOME STATES DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO

YOU.

LIMITATION OF LIABILITY

IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY
WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE
PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR
LOST SAVINGS. THE PRICE STATED FOR THE PRODUCT IS A CONSIDERATION IN LIMITING INFOCUS’ LIABILITY.
NO ACTION, REGARDLESS OF FORM, ARISING OUT OF THE AGREEMENT TO PURCHASE THE PRODUCT MAY BE
BROUGHT BY PURCHASER MORE THAN ONE YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPE­CIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Part Number 010-0231-00
