TABLE OF CONTENTS
Safety Summary iii
Introduction 1
Image Resolution 1
Compatibility 1
Unpacking the Projector 2
Usage Guidelines 3
If You Need Assistance 3
Warranty 3
Setting up the Projector 5
Connecting an IBM-Compatible Computer 7
Connecting a Macintosh Computer 8
Connecting a Video Player 9
Powering up the Projector and Adjusting the Image 11
Turning Off the Projector 12
Using the Projector 13
Basic Image Adjustment 13
Adjusting the Projector 13
Using the Keypad Buttons 16
Using the Disk Mouse 19
Using the On-Screen Menus 19
Display Menu Functions 21
Audio Menu Functions 23
Image Menu Functions 24
Controls Menu Functions 26
Maintenance & Troubleshooting 29
Cleaning the Lens 29
Removing and Replacing a Lens 29
Using the Optiona l Zoom Lens 30
Replacing the Projection Lamp 31
Replacing the Fuse 33
Using the Kensington Lock 35
Troubleshooting 36
Solutions to Common Problems 37
i
Tab le of Co ntents
Appendix 41
Specifications 41
Accessories 43
Portable and Laptop Activation Chart 45
Using Video Mirroring with a PowerBook Computer 49

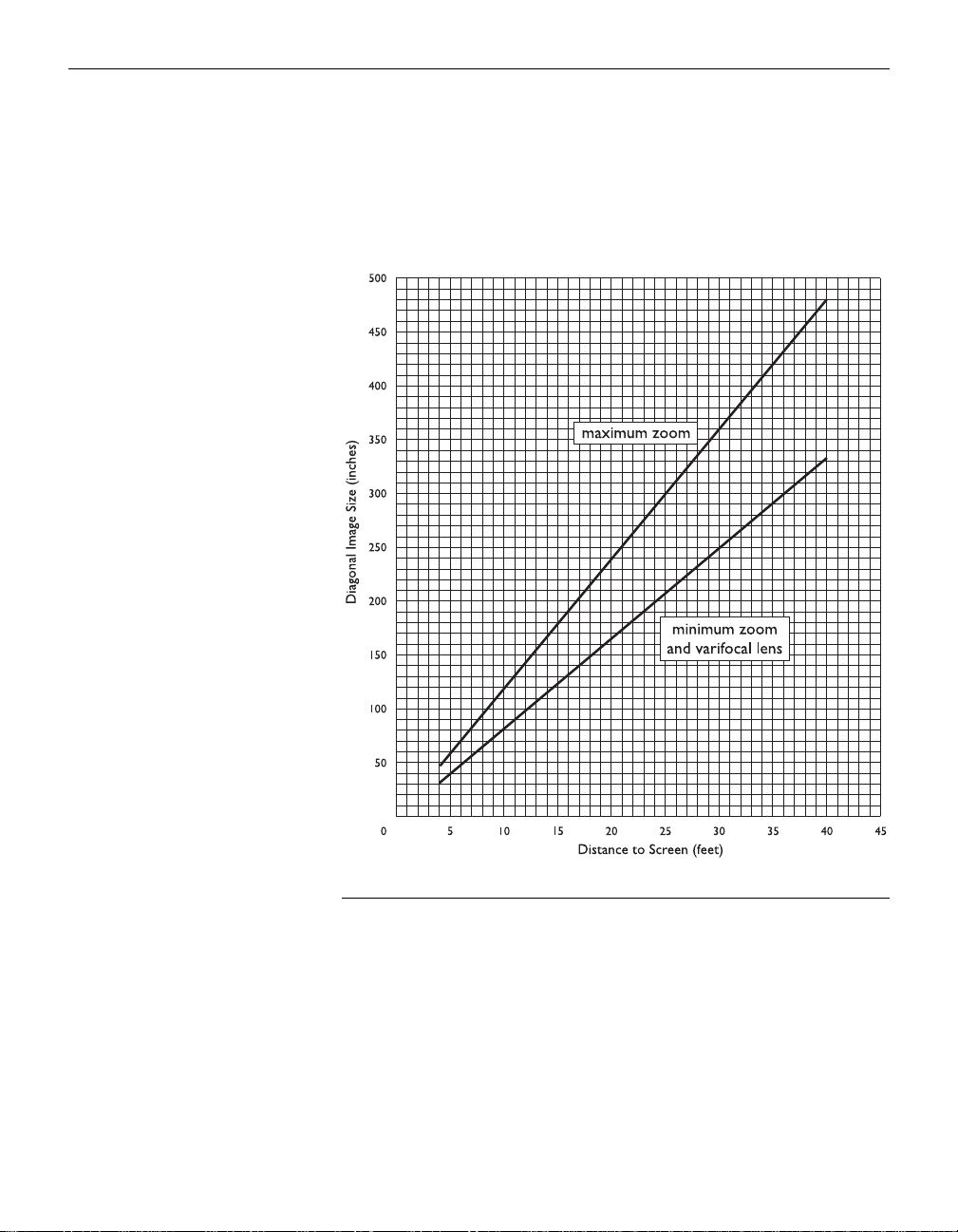

Projected Image Size 50
Index 53
ii
SAFETY SUMMARY
Please read these instructions carefully before using your projector. Failure to comply with them could result in fire, electrical
shock, personal injury or damage to equipment.
These graphics are used throughout this manual to draw your
attention to important information about the projectors.
NOTE: Additional useful details or tips.
CAUTION: Steps to take to avoid damage to your equipment.
WARNING: Steps to take to avoid personal injury.
These graphics are used on the projector’s labels.
Attention
- Refer to this User’s Guide for important
safety information.
Hot Surfaces
- Avoid touching hot surfaces. Do not
touch until the projector has cooled.
Do Not Look Into The Lens!
Be extremely careful not to look into the projection lens when the
projector is turned on. The bright light may harm your eyes. Be
especially careful to keep children from looking into the lens.
Power So urce
Use only a three-wire grounding type power source. The power
source should not exceed 250 volts rms between the supply conductors or between either conductor and the ground.
iii
Safety Summary
Power Cord
Use only the power cord that was shipped with the projector.
Although other power cords might be similar in appearance, they
have not been safety-tested with the projector. Do not use a
power cord if it has become damaged or frayed. Contact your In
Focus dealer or call In Focus if you need to replace your power
cord.
Grounding
The projector is grounded through the grounding conductor on
the power cord. To avoid electric shock, plug the power cord into
a properly wired receptacle. Do not defeat the purpose of the
grounding-type plug.
Fuse
For continued protection against the risk of fire, use only the
specified fuse. It must be a time delay, high breaking capacity
5x20mm fuse with the following amperages: for 6.3amp use
T6.3AH, for 8amp use T8AH. Refer to page 42 for more information about fuse specifications a nd to pa ge 33 for instructions on
replacing the fuse.
Lamp
To avoid overheating and unacceptable image quality, replace the
projection lamp with a lamp of the specified type. Refer to
page 41 for lamp specifications and to page 31 for instructions on
replacing the lamp.
Lamp Compartment
To avoid burns, do not open the lamp module door until the projector is turned off and the lamp has cooled. Follow the instructions in this manual for lamp replacement carefully.
Hot Surfaces
Allow the projector to cool at least 45 minutes before replacing a
lamp. When you open the lamp housing, be very careful not to
touch the hot surfaces inside.
iv
Ventilation and Overheating
Openings in the projector case provide ventilation to protect it
from overheating. Keep loo se papers and oth er objects well away
from the bottom, top and side grills. Do not place the projector on
top of or close to a computer or other heat-producing equipment.
Liquid Spills
Do not set drinks on top of the projector. Spilled liquids can flow
inside and cause damage.
Do Not Disassemble
All service must be performed by an authorized In Focus service
center. The only user-serviceable parts in the projector are the
projection lamp, which you can replace by opening the lamp
cover on the bottom of the projector (see page 31) and the fuse.
Do not open any other part of the projector. If your projector
needs repair, call In Focus Technical Support as described on
page 3. Before you call Technical Support, you may want to refer
to “Troubleshooting” on page 36 to see if you can resolve the
problem yourself.
Don’t Set the Projector on its Lens
T o protect the lens when you ar e transporting the pr ojector, adjust
the lens so it is fully retracted (turn it clockwise) before you pack
it.
NO TE: If you open the projector
case, you will void the warranty.
Place the projector in its carrying case with the lens facing
upwards. You may damage the projector if you set it on its lens.
v
INTRODUCTION
The In Focus
®
LP 225™ multimedia projector combines powerful
and sophisticated features with easy-to-use, intuitive controls.
Built-in multimedia features include a palette of 16.7 million colors and active matrix liquid crystal display (LCD) technology.
The 225 is ideal for high-performance business, training and
imaging applications that demand exceptional color quality.
Image Resolution
The SVGA resolution of the 225’s projected image is 800x600. It
displays computer images just as they appear on your computer’s monitor. Screen resolutions between 800x600 and
1024x768 are compressed to 800x600. The 225 cannot compress
screen resolutions above 1024x768. If your computer’s screen resolution is higher than 1024x768, reset it to a lower resolution
before you connect the projector
.
Compatibility
The projector is compatible with a wide variety of computers and
video devices, including:
•
IBM-compatible computers, including laptops, up to 1024x768
resolution at 75Hz.
NOTE: The 225 automatically
expands 640x480 images to
800x600. You can display these
images at 640x480 by turning off
the Auto Resize feature. See “Auto
Resize” on page 24 for more information.
•
IBM PS/2 in VGA and MCGA modes.
•
Apple Macintosh and PowerBook computers up to1024x768
resolution.
•
Various VCRs, camcorders and laser disc players.
1
Introduction
Unpacking the Projector
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your In Focus dealer immediately if anything is missing.
If you are experienced in setting up presentation systems, use the
LP 225 Quick Start
complete details on connecting and operating the projector, refer
to this User’s Guide.
NO TE: The contents of your
shipping box may vary depending
on the configuration you’ve
ordered.
card that was included in the shipping box. For
1
2
3
7
6
8
F
IGURE 1
Shipping box contents
1. LP 225 projector 5. Lens cover
2. LP 225 User’s Guide 6. RCA audio/video (A/V) cable
3. power cord 7. CableWizard Lite computer
cable
4. Macintos h ad a pter 8. Audio cabl e
4
5
2
Usage Guidel ines
•
Do not look directly into the projection lens when the projector
is turned on. The bright light may harm your eyes.
•
The top and bottom of the projector can be very hot to the
touch after use. Use extreme care or let it cool before lifting it.
•
Do not block the grills at the front or top of the projector.
Restricting the air flow can cause it to overheat and turn off.
•
Handle the projector as you would any product with glass
components. Be especially careful not to drop it.
•
This projector is not intended for use in mainframe computer
rooms as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
•
Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.
•
Transport the projector in a vendor-appro ved h ard or soft case.
Part numbers for these cases are listed on page 44. Call your In
Focus dealer to order.
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 36.
NO TE: If the projector overheats
and turns off, you must wait about
45 seconds before you attempt to
turn it back on.
If this manual doesn’t answer your question, call your In Focus
dealer. You can also call In Focus Customer Service directly at
1-800-799-9911
. Call between 5 a.m. and 5 p.m. PST, Monday
through Friday. In Europe, call In Focus in The Netherlands at
(31) 23-5440310
e-mail at
. In Singapore, call
techsupport@infocus.com
Our World Wide Web address is
(65) 740-6435
.
http://www.infocus.com
. Or, send us an
.
Warranty
These products are backed by a limited one-year warranty. The
details of the warranty are printed at the back of this manual.
Longer term warranties can be purchased from your In Focus
dealer. Refer to page 44 for part numbers.
3
SETTING UP THE PROJECTOR
Place the projector on a flat surface.
1
•
The projector must be within 10 feet of your power source
and within 6 feet of your computer .
•
If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 27 to reverse the image.
•
If you are installing the projector on the ceiling, refer to the
LitePro 200 Series Ceiling Mount Installation Guide
information. To turn the image upside down, see “Ceiling”
on page 27. The Ceiling Mount Kit is sold separately; see
page 44.
Position the projector the desired distance from the screen.
2
•
The distance from the lens of the projector to the screen
determines the size of the projected image. Figure 2 shows
three projected image sizes using the varifocal lens or the
zoom lens at minimum focusing distance. For more information about image size, see “Projected Image Size” on
page 50.
for more
Make sure the projector and your computer are turned off.
3
1
7
.
5
f
t
.
7
f
t
.
2
.
8
f
t
.
4 ft.
10 ft.
25 ft.
Projected image size (varifocal lens, zoom lens at minimum focusing distance)
FIGURE 2
5
Setting up the Projector
NO TE: Before you continue,
make sure the projector and your
equipment are turned off. If you’re
connecting a computer, make sure
the distance between it and the
projector is 6 feet or less.
F
IGURE 3
Connector panel
s-video
composite
video
L/R audio in
(for video source)
CableWizard
Lite
computer
audio in
6
Connecting an IBM-Compatible Computer
Plug the end of the CableW izard Lite computer cable into
1
the video connector on your computer.
Plug the end of the CableWizard Lite computer cable
2
into the connector on the projector.
audio cable
audio cable
CableWizard Lite cable
CableWizard Lite cable
FIGURE 4
Connecting the computer cable to an IBM-compatible computer
Do you want to play your computer’s audio on the projector?
Plug either end of the audio cable into the audio connector on
1
your computer.
Plug the other end of the audio cable into the connector
2
on the projector.
NO TE: Many laptop computers
do not automatically turn on their
external video port when a secondary display device such as a
projector is connected. Refer to
your computer manual for the
command that activates the external video port. Activation commands for some laptop computers
are listed in the Appendix of this
manual on page 45.
NO TE: If you are connecting a
desktop computer and want to
view your presentation on your
monitor, purchase the optional
CableWizard.
NO TE: If you w ant mouse control,
purchase the optional CableWizard and remote.
7
Setting up the Projector
Connecting a Macintosh Computer
Plug the end of the CableW izar d Lite computer cable into
1
NOTE: Some PowerBooks require
the Apple-supplied video-out cable
or monitor adapter for external
video. Connect it between the
PowerBook and the CableWizard
Lite computer cable/Mac adaptor
as shown in Figure 5.
the In Focus-supplied Mac adaptor.
Plug the CableWizard Lite/Mac adaptor into the video con-
2
nector on your computer (or the Apple video-out cable or
monitor adapter, if needed).
Plug the end of the CableWizard Lite computer cable
3
into the connector on the projector.
If you want the projector display to be the same as the Power-
4
Book’s screen display, turn on video mirroring (called
SimulScan in newer PowerBooks). See “Using Video Mirroring with a PowerBook Computer” on page 49 for additional
information.
NOTE: If you are connecting a
desktop computer and want to
view your presentation on your
monitor, purchase the optional
CableWizard.
audio cable
NO TE: If you w ant mouse control,
purchase the optional
CableWizard and remote.
8
CableWizard Lite cable
Mac adaptor
FIGURE 5
Connecting the CableWizard Lite computer cable to a Macintosh
Do you want to play your computer’s audio on the projector?
Plug either end of the audio cable into the audio connector on
1
PowerBook
video-out cable
or monitor
adaptor
your computer.
Plug the other end of the audio cable into the connector
2
on the projector.
Connecting a Video Player
If your video player uses a round, one-pr on g composite video
1
connector, you’ll need only the A/V cable that shipped with
the projector.
•
If your video player uses a round, four-prong S-video connector, you’ll need an S-video cable in addition to the A/V
cable. The S-video cable is sold separately.
Plug the A/V cable’s yellow connector into the “video-out”
2
port on your video player (Figure 6). This port may be labeled
“To Monitor.”
•
If you’re using an S-video cable, connect it to the “s-video
out” connector on the video player (Figure 7).
Plug the other yellow connector int o the composite connector
3
on the back of the projector.
•
If you’re using S-video, plug the other end of the cable into
the “s-video” connector on the projector (Figure 7).
audio/video cable
FIGURE 6
Connecting the projector to a video player using the standard A/V cable (with composite
video connector)
9
Setting up the Projector
S-video cable
A/V cable
F
IGURE 7
Connecting the projector to a video player using an S-video cable and the audio connectors on the standard A/V cable
Plug the A/V cable’s white connector into the left “audio out”
4
port on your video player. Plug the cable’s red connector into
the right “audio out” port on the video player (Figure 6 and
Figure 7).
CAUTION: Your video player
may also have a “Video Out” port
for a coaxial cable connection.
DO NOT use this to connect to the
projector.
10
•
If you’re using an S-video cable, the yellow connectors on
the A/V cable remain unused (Figure 7).
Plug the A/V cable’s other white and red connectors to the
5
left and right “audio in” ports on the projector.
The projector is compatible with the three major broadcast video
standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, and SECAM.
It automatically adjusts to optimize its performance for the
incoming video. The input signals for SECAM, PAL-M, and
PAL-N video cannot be automatically detected, therefore they
must be chosen manually; see “Video Standard” on page 26.
Po wering up the Projector and Adjusting the Image
Remove the lens cap.
1
Plug the power cord into the projector (Figure 8), then plug it
2
into your electrical outlet. A surge-protected power strip is
recommended if power surges are common in your area.
Connecting the power cord to the projector
Turn on the projector.
3
If you connected a video player, turn it on.
4
•
Press the
from your video player. Press
button on the keypad to display the image
video
computer
to return to your
computer’s image.
•
Use the
•
If you don’t want to hear the sound from your video player ,
volume
press the
If you connected your monitor, turn it on.
5
Turn on your computer.
6
•
The computer image should display on the projection
buttons to adjust the volume.
button.
mute
screen.
NO TE: Alw ays use the po w er cor d
that shipped with the
projector.
FIGURE 8
NO TE: With some computers,
the order in which you power up
the equipment is very import ant.
Most computers should be turned
on last, after all other peripherals
have been turned on. Refer to your
computer’s documentation to
determine the correct order.
•
If necessary, use the
brightness
buttons on the keypad to
adjust the brightness. You can make further adjustments to
the image from the projector’s on-screen menus. To open
the menus, press the
button on the keypad. Then
menu
select the Display menu or the Image menu. For more information about the menus, see page 19.
•
If you don’t want to hear the sound from your computer or
video player, press the
mute
button.
11
Setting up the Projector
Turning Off the Projector
If you want to turn off the projector for a short period of time,
press the
standby
button on the keypad. This blanks the screen for
fifteen minutes, but keeps the projector running. After 15 minutes, the lamp goes out (the projector keeps running). To exit
standby mode, press the
standby
button again. (It takes several
seconds for the projection lamp to reach full power and project
the image again.)
To completely power off the projector, press the “O” side of the
NO TE: When you disconnect the
projector after you have switched
it off, always remove the power
cord from the electrical outlet first,
then remove it from the projector.
power switch. If you want to turn the projector back on immediately, you must allow about 45 seconds for the lamp to cool. The
lamp won’t light if it’s too hot.
12
USING THE PROJECTOR
This section describes how to use and make adjustments to the
projector. It also provides a reference to thekeypad buttons and
the options available from the on-screen menus.
Basic Image Adjustment
Make sure you have powered up your equipment in the right
1
order (page 11).
If the image doesn’t display completely, adjust the height of
2
the projector (page 14) or center the image by adjusting its
horizontal or vertical position (page 25).
If the image is out of focus, rotate the lens to focus it (page 13).
3
If the image appears to shimmer or if it has blurry vertical
4
bars after you have adjusted the focus, turn
Auto Image
(page 24) off and then back on to reset the automatic sync and
tracking. If that doesn’t clear up the image, adjust the sync
(page 24) and/or the tracking (page 25) manually.
If the colors don’t look right, adjust the brightness (page 16).
5
Adjusting the Projecto r
To focus the image, rotate the projection lens until the image is
clear. Rotate the lens clockwise for a longer focusing distance;
counterclockwise for a shorter focusing distance.
If the projected image seems wider at the bottom or at the top,
rotate the keystone adjustment dial on the back of the projector
until the image is correct (Fig ure 9).
13
Using the Projector
F
IGURE 9
Keystone adjustment knob
The projector is equipped with an elevator foot on the underside
of the projector and a leveling knob.
14
leveling knob
FIGURE 10
Leveling knob
To raise the projector:
Raise the front of the projector off the table by lifting up on the
1
handle (Figure 11).
Pull out the elevator foot (Figure 11).
2
If necessary, use the leveling knob (Figure 10) to adjust the
3
angle of the projected image.
FIGURE 11
Adjusting the height of the projector
To lower the projector:
Hold the projector’s handle.
1
Pull the foot away from the projector, then push it back to its
2
collapsed position.
If necessary, use the leveling knob (Figure 10) to readjust the
3
angle of the projected image.
CAUTION: Always hold the projector’s handle when you adjust the
height.
15
Using the Projector
Using the Keypad Buttons
This section provides an alphabetical refer ence to the keypad buttons.
FIGURE 12
Keypad
Brightness
Adjusting the brightness lightens or darkens the image.
•
To darken the image, press
16
•
To lighten the image, press
The
brightness
buttons are auto-repeating; they repeat their func-
tion as long as you hold down the button.
Computer
When you have more than one source (computer or video) connected to the projector, select between them by pressing the button for the source you want.
Press
Freeze
The
freeze
computer
to display the computer image.
button halts, or “freezes” the projected image. Use this
button to freeze a frame of video (the video continues to run but
the projected image is frozen). You can also freeze an image from
a computer source on the screen, allowing you to perform other
operations on the computer without the audience seeing them.
Press
again when you want the image to return to normal.
freeze
Help
Press
LiteShow
The
to display the online help informa tion.
help
liteshow
button is used to display a LiteShow presentation
from disk. Call your In Focus dealer for more information.
Menu
Press
to open the on-screen menus. Press
menu
menu
again to
close the menus. When you close the menus, the projector saves
any changes you made. For more information about the onscreen menus, see page 19.
Mute
Pressing the
ume to its previous setting, press
button.
ume
Scribble
The
scribble
button silences the speaker. To return the vol-
mute
again or press either
mute
button activates on-screen annotation.
vol-
NO TE: The speak er on the top of
the projector is not functional.
Press the
1
Press the right disk mouse button (Figure 14) to display the
2
scribble
button. The cursor changes to a pencil.
color selector . Use the disk mouse to position th e cursor on the
desired color, then press the left mouse button. Press the right
button again to close the color selector.
Move the pencil to where you want to start the annotation.
3
Press the left mouse button. The cursor changes to an upright
4
pencil.
Use the disk mouse to draw your annotation. Press the left
5
mouse button to complete the annotati on.
To exit Scribble, press the
6
scribble
button. The annotation is
automatically deleted (it cannot be saved).
17
Using the Projector
Standby
When you press
standby
, the display and audio turn off and a
blank screen is displayed for 15 minutes.
•
If you press
standby
again within 15 minutes, the projector
returns to normal operations immediately.
•
If you press
standby
again after 15 minutes, there is about a
30 second delay before the lamp turns back on.
•
If you don’t press
standby
minutes.
Video
When you have more than one source (computer or video) connected to the projector, select between them by pressing the button for the source you want.
again, the lamp turns off after 15
Press
Volume
•
To increase the volume, press
•
To decrease the volume, press
The
volume
to display the image from your video player.
video
buttons are auto-repeating; they continue to adjust
the volume as long as you hold them down. Volume adjustments
are saved for each source you have connected.
18
Using the Disk Mouse
Press anywhere on the edge of the disk mouse to move the cursor
on the screen. For example, if you press the top edge of the disk,
the cursor moves up the screen; if you press the bottom edge, the
cursor moves down (Figure 13). You can move the cursor at any
angle by pressing the corresponding edge of the disk.
press here to move the cursor up
press here to move the cursor down
FIGURE 13
Using the disk mouse
Using the On-Screen Menus
The projector
has four on-screen menus that allow you to make
image adjustments and change a variety of settings.
To open the on-screen menus, press the
pad. Press
again when you want to close the menus.
menu
button on the key-
menu
To select a menu, use the disk mouse to move the cursor to the
tab for the menu you want, then click either mouse button.
disk mouse
left mouse right mouse
button
button
Disk mouse and mouse buttons
FIGURE 14
19
Using the Projector
To change a menu setting, move the cursor to the setting you
want to change, then use one of the two mouse buttons below the
disk to make changes.
The status bar at the top of the menu display indicates the source
that is currently active. For example, if you have both a computer
and a video player connected, “Source: Computer” or “Source:
Video” displays depending on whether you’ve pressed the
puter
or the
button on the keypad. It also contains a lamp
video
hour counter that starts at zero hours and counts each hour the
lamp is in use. Change the bulb when the brightness is no longer
acceptable.
com-
FIGURE 15
On-screen menu status bar
20
Display Menu Functions
FIGURE 16
Display menu
Brightness
Adjusting the brightness changes the intensity of the image.
•
Press the left mouse button to darken the image.
•
Press the right mouse button to lighten the image.
Contrast
The contrast controls the degree of differ ence between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
NO TE: Changing the brightness
using the menu is the same as
changing it using the keypad.
•
Press the left mouse button to decrease the contrast.
•
Press the right mouse button to increase the contrast, making
the blacks appear blacker and the whites appear whiter.
Tint
The
setting adjusts the red-green color balance in the pro-
Tint
jected image of NTSC video sources.
21
Using the Projector
•
Press the left mouse button to increase the amount of green in
the image.
•
Press the right mouse button to increase the amount of red in
the image.
Color
The
setting adjusts a video image from black and white to
Color
fully saturated color.
•
Press the left mouse button to decrease the amount of color in
the image.
•
Press the right mouse button to increase the amount of color in
the image.
Blank Screen
Blank Screen determines what color (blue or black) is displayed
when there is no active source. Click the button to toggle between
the two options.
Reset All
Click either mouse button to reset all the options (except Language,Video Standard, Ceiling, and Rear Project) in all the menus
to their original settings. This also returns Freeze and Mute to
their default (off) settings.
22
Menu Position
This lets you move the menu to various locations on the screen,
allowing you to view different parts of the image while making
adjustments. The default position is the center of the screen. Click
Menu Position to move the menu to the upper-left corner; click it
again to move it to upper-right, then lower right, then lower left,
then center again.
Audio Menu Functions
Volume
•
Press the left mouse button to decrease the volume.
•
Press the right mouse button to increase the volume.
Volume adjustments you make are saved for each source.
Trebl e
The
setting controls the higher frequencies of your audio
Treble
source.
FIGURE 17
Audio menu
•
Press the left mouse button to decrease the treble.
•
Press the right mouse button to increase the treble.
Bass
The
setting controls the lower frequencies of your audio
Bass
source.
•
Press the left mouse button to decrease the bass.
•
Press the right mouse button to increase the bass.
23
Using the Projector
Image Menu F unctions
FIGURE 18
Image menu
Auto Image
The projector automatically adjusts tracking, signal synchronization and vertical and horizontal position for most computers. If
NOTE: Some screen savers
interfere with the operation of
Auto Image. If you’re experiencing
problems, try turning your screen
saver off, then turning Auto Image
off and back on.
you want to adjust these features manually, you must turn off
Auto Image
Auto Resize
The
Auto Resize
Auto Resize
first by clicking it.
setting is available only for computer sources.
automatically resizes the image by scaling it up or
down.
When
Auto Resize
is on, the projector makes the best fit of the
image to the screen. If you turn
image may be either cropped or too small for the screen.
Auto Resize
off (by cl icki ng it ), the
24
Manual Sync
The projector adjusts signal synchronization automatically for
most computers. But if the projected computer image looks fuzzy
or streaked, try turning
Auto Image
off then back on again. If the
image still looks bad, try ad justing the signal synchronization
manually as described below.
Click the
1
Auto Image
button to turn Auto Image off.
Press the left or right mouse buttons repeatedly until the
2
image is sharp and free of streaks.
Manual Tracking
The tracking function adjusts the projector to match the video
signal from your computer. The projector usually adjusts the
tracking automatically when you connect your computer. However, if the display shows evenly spaced, fuzzy, vertical lines or if
the projected image is too wide or too narrow for the screen, try
turning
Auto Image
off then back on again. If the image is still
bad, try adjusting the tracking manually as described below.
Click the
1
Press the left or right mouse buttons repeatedly until the
2
Auto Image
button to turn Auto Image off.
fuzzy vertical bars are gone.
Horiz. Position
Follow these steps to manually adjust the horizontal position.
NOTE: The Manual Sync,
Manual Tracking, Horiz. Position and Vert. Position buttons
are available only for computer
sources. The projector sets these
options automatically for a video
source so they appear gray.
Click the
1
Press the left mouse button to move the image right; press the
2
Auto Image
button to turn Auto Image off.
right mouse button to move the imag e le ft.
Positioning adjustments are saved when you power off the projector.
Vert. Position
Follow these steps to manually adj ust the vertical position.
Click the
1
Press the left mouse button to move the image down; press
2
Auto Image
button to turn Auto Image off.
the right mouse button to move the image up.
Positioning adjustments are saved when you power off the projector.
25
Using the Projector
Controls Menu Functions
FIGURE 19
Controls menu
NOTE: If you already know the
standard used in your geographical
area, it’s often best to manually
select it.
26
Video Standard
When
is on, the projector attempts to pick the video stan-
Auto
dard automatically based on the input signal it receives. (The
video standard options may vary depending on your region of
the world.) The input signals for SECAM, PAL-M, and PAL-N
video cannot be automatically detected, therefore they must be
chosen manually. If the projector is unable to detect the standard,
the colors might not look right or the image might appear “torn.”
If this happens, manually select a standard by clicking the button
and cycling through the standards.
Language
You can display the on-screen menus in English, French, German,
and Spanish. The default is English.
•
Click the button for the language you want. The menus redraw
immediately.
Ceiling
•
Click either mouse button to turn the image upside down for
ceiling-mounted projection.
Rear Projection
When you select
Rear Proje c tion
, the projector r everses the image
so you can project from behind a translucent screen.
•
Click either mouse button to reverse the image.
Default Source
Default Source toggles between Computer and Video. This determines which source the projector checks first during power-up
for active video. Click the button to toggle between the options.
Auto Source Select
This setting toggles between On and Off. When this feature is Off,
the projector defaults to the source selected in Default Source. To
display another source, you must manually select one by pressing the
computer
or
button on the keypad. When this fea-
video
ture is On, the projector automatically finds the active source,
checking the default source first. Click the button to toggle
between the options.
NOTE: T o orde r the ceiling mount
kit, refer to “Optional Accessories”
on page 44.
27
MAINTENANCE & TROUBLESHOOTING
This section describes how to:
•
clean and replace a lens
•
install and use the zoom lens
•
replace the projection lamp
•
replace the fuse
•
use the Kensington lock feature
Cleaning the Lens
Follow these steps to clean the projection lens:
1 Apply a non-abrasive camera lens cleaner to a soft, dry clean-
ing cloth.
•
Avoid using an excessive amount of cleaner.
•
Abrasive cleaners, solvents or other harsh chemicals might
scratch the lens.
2 Lightly wipe the cleaning cloth over the lens.
3 If you don’t intend to use the projector immediately, replace
the lens cap.
Removing and Replacing a Lens
1 Turn the focus ring counterclockwise until it reaches a stop.
2 While holding the lens, squeeze the latch below the lens
(Figure 20) and turn the lens counterclockwise again.
3 Gently pull the lens out of the lens bracket.
29
Maintenance & Troubleshooting
focus ring zoom ring
20
F
IGURE
Removing the lens
To replace a lens:
1 Make sure the latch is pointing down.
2 Squeeze the latch and gently push the lens in until it stops,
then turn the lens clockwise until the catch is eng aged.
Using the Optional Zoom Lens
The zoom lens enlarges the projected image by 40% without
CAUTION: Be sure to fully
retract the zoom lens before you
put the lens cap on and pack the
projector in its case.
moving the projector. (For more information about image size,
see “Projected Image Size” on page 50.) Follow the previous
instructions to install the zoom lens.
Follow these steps when operating the zoom lens:
1 Turn the zoom ring (Figure 21) until the pr ojected image is th e
size you want, even if it is out of focus.
30
2 Turn the focus ring as needed to clear up the image.
F
21
IGURE
LP 200 Series zoom lens
Replacing the Projection Lamp
The lamp hour counter on the status bar at the top of the menus
counts the number of hours the lamp has been in use. The LP 225
uses a metal halide bulb. These types of bulbs deteriorate over
time. Replace the lamp when the brightness is no longer acceptable. You can order new lamp modules from your In Focus
dealer. See “Accessories” on page 43 for information.
Follow these steps to replace the projection lamp:
1 Turn off the projector and unplug the power cord.
2 Wait 45 minutes to allow it to cool thoroughly.
3 Using a small, flat-blade screwdriver, remove the screw on the
outside of the lamp door (Figure 22).
4 Pull the lamp cover up and remove it.
WARNING: To avoid burns,
allow the projector to cool for at
least 45 minutes before you open
the lamp module door. Never
extract the lamp module while the
lamp is operating.
F
IGURE
Removing the lamp module door
5 Loosen the non-removable screw on the outside of the mod-
ule.
6 Remove the module (Figure 23).
22
CAUTION: Never operate the
projector with the lamp cover open
or removed. This disrupts the air
flow and causes the projector to
overheat.
31
Maintenance & Troubleshooting
F
23
IGURE
Removing the lamp module
7 Align the module in the correct direction.
8 Gently push the module in as far as it goes (Figu re 24).
9 Tighten the screw on the outside of the module.
WARNING: Do not drop the
lamp module or touch the glass
bulb! The glass may shatter and
cause injury.
32
F
24
IGURE
Installing a new lamp module
10 Reposition the lamp cover.
11 Replace the screw and tighten it.
12 Turn the projector back on.
13 To reset the lamp hour counter in the Status bar, press and
hold both Brightness buttons for 5-10 seconds. Verify that the
counter was reset by pressing the menu button and viewing
the counter.
Replacing the Fuse
A power line surge or spike can blow the power supply fuse,
causing the projector to stop working. If this happens, you’ll need
to replace the fuse.
The projector ships with a 6.3 amp fuse. The correct replacement
fuse depends on the power line voltage in the country where you
are operating the projector.
•
If your line voltage is 115V to 240V, use a T6.3AH, 250V,
5x20mm fuse.
•
If your line voltage is 100V to 115V (as in Japan), use a T8AH,
250V, 5x20mm fuse. You can order the fuse from your In Focus
dealer; the part number is listed on page 44.
After you make sure that the condition that made the fuse blow
no longer exists, follow these steps to replace the fuse:
1 Turn off the projector by pressing the “O” side of the power
switch.
2 Unplug the power cord.
3 Remove the fuse holder, located just above the power cord
connector. Pull out the fuse holder with a small, flat-blade
screwdriver, key or coin (Figure 25).
CAUTION: Use only the specified power supply fuse. Using a different fuse may damage the
projector.
CAUTION: The 6.3A IEC 127
type fuse is required in Europe. In
countries with low main voltage,
you may need the 8.0A fuse to
avoid repeated (nuisance) blowing
of the 6.3A fuse. Both fuses provide protection from risk of fire. Do
not use the projector if repeated
blowing still occurs after switching
to the 8.0A fuse. Call In Focus
Technical Support for assistance.
F
25
IGURE
Removing the fuse holder
33
Maintenance & Troubleshooting
4Remove the blown fuse from the fuse holder (Figure 26).
F
26
IGURE
Removing the fuse from the fuse holder
5 Push the spare fuse into the holder until it is securely seated.
6 Place the fuse holder back in position (Figure 27).
7 Plug the power cord back in.
8 Press the “|” side of the power switch to turn the projector
CAUTION: A surge-protected
power strip is recom me nded if
power surges are common in your
area.
back on.
34
F
27
IGURE
Replacing the fuse holder
Using the Kensington Lock
The projector has a Kensington Security Standard connector for
use with a Kensington MicroSaver Security System (Figure 28).
Refer to the information that came with the Kensington System
for instructions on how to use it to secure the projector.
F
IGURE
Installing the Kensington lock
28
35
Maintenance & Troubleshooting
Troubleshooting
If you’re experiencing trouble with the projector, follow these
steps to make sure everything is properly connected before you
call Technical Support for assistance.
1 Check cable connections. Verify that all computer and power
cables are properly connected.
2 Verify that all power is switched on.
3 Verify that the projector has not been switched off with the
standby
button on the keypad.
4 If the projector still doesn’t display an image, restart the com-
puter.
5 If the problem still exists, unplug the projector from the com-
NO TE: Macintosh computers
require a specific power-up
sequence: the projector must be
turned on before you turn on the
computer.
puter and check the computer monitor’s display. The maximum resolution that the 225 can display is 1024x768 pixels,
preferably 800x600. The problem might be with the graphics
controller in your computer rather than with the projector.
When you reconnect the projector, remember to turn the computer and monitor off before you power up the projector.
Power the equipment back up in this order: projector, monitor,
computer.
36
6 If you’re using a laptop computer and its monitor is not dis-
playing your presentation, make sure you have re-activated
the computer’s monitor. Most laptop computers de-activate
their own monitor when a second display device, such as the
projector, is connected. Refer to page 45 for more information.
7 If the problem still exists, read through the problems and solu-
tions in this chapter.
If you call Technical Support for assistance:
•
Find out what kind of graphics controller card is installed in
your computer. This is the circuit board in the computer to
which the projector is connected.
Solutions to Common Problems
Problem: Nothing on projection screen
•
Make sure that the power cord is properly connected to a functional AC electrical outlet. Make sure that the power cord is
also properly connected to the projector.
•
If the projector is plugged into a power strip, make sure the
power strip is turned on.
•
Make sure you have remove d the lens cap on the projection
lens at the front of the projector.
•
Make sure the projector is switched on.
•
Check the projector’s lamp to ensure that it is securely connected in the lamp module. See “Replacing the Projection
Lamp” on page 31.
•
Check the fuse. If it has blown, replace it. See “Replacing the
Fuse” on page 33.
•
Make sure that the CableWizard Lite and the cables do not
have any bent pins. Check the power cord for bent pins also.
Problem: Color or VGA text not being projected
•
You might need to adjust the brightness up or down until the
text is visible. Refer to “Brightness” on page 16 for more information.
•
Verify that the appropriate input source is selected. See “Computer” on page 16 or “Video” on page 18.
Problem: The screen resolution is not right
•
Make sure the computer’s graphics card is set for a resolution
of no greater than 1024x768.
Problem: Image isn’t centered on the screen
•
Reposition the image. Refer to “Horiz. Position” on page 25
and “Vert. Position” on page 25.
37
Maintenance & Troubleshooting
Problem: Only the start-up screen displays
•
Verify that the cables are connected correctly. Check to see that
the computer cable is correctly connected to the monitor connector on the computer (this is the connector where your monitor cable usually goes.)
•
Verify that the proper input source is connected. See “Computer” on page 16 or “Video” on page 18.
•
You might need to turn everything off and power up the equipment again. Make sure you power up in this order: projector,
computer monitor, computer. It is especially important that
you follow this sequence for Macintosh computers.
•
Make sure your computer’s graphics board is installed and
configured correctly.
If you’re using Windows 3.x:
1
In the Windows Program Manager, double-click the Windows Setup icon in the Main program group.
2
Verify that the Display setting is 1024x768 or less.
If you’re using Windows 95:
1
Open “My Computer” icon, the Control Panel folder and
then the Display icon.
2
Click the Settings tab.
3
Verify that the Desktop area is set to 1024x768 or less.
Also check the following:
•
Does your computer have a compatible graphics board? The
projector isn’t CGA or EGA compatible.
•
Is your computer ’s g raphics board turned on? This is especially true for laptop computers. See “Portable and Laptop
Activation Chart” on page 45.
38
Problem: Image is too wide or narrow for screen
•
You might need to manually adjust the tracking to reduce or
enlarge the projected image. Refer to “Manual Tracking” on
page 25.
•
Adjust the resolution of your monitor if it’s greater than
1024x768. Only these resolutions at 75 Hz or less will display
on the projector.
•
Make sure that your computer has a compatib le graphics
board. The projector is not compatible with CGA, EGA, or
1280x1024 graphics modes.
Problem: Image is out of focus
•
Make sure the lens is locked in place.
•
Turn the projection lens to focus the image.
•
Make sure the projection screen is at least 4 feet (1.2m) from the
projector .
•
Check the projection lens to see if it needs cleaning.
Problem: Image and menus are reversed left to right
•
Rear projection mode is probably turned o n. Switch back to forward projection from the Controls menu. The image should
immediately return to forward projection. See “Rear Projection” on page 27.
Problem: Image and menus are upside down
•
Ceiling mode is probably turned on. Turn off the mode from
the Controls menu. The image should immediately return to
forward projection. See “Ceiling” on page 27.
Problem: the projector displays vertical lines, “bleeding” or spots
•
Adjust the brightness. See “Brightness” on page 16.
•
Check the projection lens to see if it needs cleaning.
39
Maintenance & Troubleshooting
Problem: Image is “noisy” or streaked
Try these steps in this order.
1 Deactivate the screen saver on your computer.
2 Turn
Auto Image
off and then back on again. See “Auto
Image” on page 24.
3 Adjust the synchronization and tracking manually to find an
optimal setting. See “Manua l Sync” on page 24 and “Manual
Tracking” on page 25.
•
The problem could be with your computer ’s graphics board. If
possible, connect another computer with a different graphics
board.
Problem: Projected colors don’t match the computer or video
player’s colors
•
Adjust the brightness, tint and/or contrast from the Display
menu. Just as there are differences in the displays of different
monitors, there are often differences between the computer
image and the projected image. See “Brightness” on page 16,
“Tint” on page 21 and “Contrast” on page 21.
Problem: Lamp seems to be getting dimmer
•
The lamp begins to lose brightness when it has been in use for a
long time. Replace the lamp as described in “Replacing the Projection Lamp” on page 31 .
Problem: Lamp shuts off
•
A minor power surge may cause the lamp to shut off. Turn the
projector off, wait at least 45 seconds, then turn it back on.
40
APPENDIX
Specifications
The LP 225 must be operated and stored within the temperature
and humidity ranges specified.
Tempe r atur e
Operating
Non-operating
Humidity
Operating and non-oper. 10% to 95% relat ive humidity, non-condensing
Dimensions
6.6 x 16.25 x 13.25 inches (16.8 x 41.3 x 33.7 cm)
Weight
16 lbs. (7.3 kg) unpacked
Altitude
Operating 0 to 10,000 feet (3048 meters)
Non-operating 20,000 feet (6096 meters)
10 C to 40° C
-20 to 60
° C
Optics
Focus Range 4 to 25 feet
Lamp
Type 270-watt metal halide
Input Power Requirements
100-240VAC, 7.0A-3.6A, 50 to 60 Hz.
41
Appendix
Video Module Input
Input Impedance 5K ohm DC coupled
Maximum Input Voltage (L
+ RIN)
IN
< 4.5 V for THD ≤ 0.3%LIN or
PEAK
RIN < 2.0 Vrms for THD ≤ 0.3%
Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type RCA jack
Audio Input
Input Impedance 10K ohm nominal, AC coupled
Maximum Input Voltage (LIN + RIN)
< 4.5 V for THD ≤ 0.3%
PEAK
LIN or RIN < 2.0 Vrms for THD ≤ 0.3%
Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type 3.5 mm (1/8 inch) stereo phone jack
Fuse
115 to 240V nominal line T6.3AH, 250V, 5x20mm
100 to 115V nominal line T8AH, 250V, 5x20mm
42
Accessories
Standard Accessories
(ship with the projector) Part Number
LP 225 Quick Start card 009-0344-xx
LP 225 User’s Guide 010-0153-xx
Shipping Box 110-0098- xx
CableWizard Lite Cable SP-CWLITE
Mac Adapter for CableWizard Lite 515-0045-xx
Audio Cable 6 ft (2m) 210-0118-xx
Varifocal Lens 505-0148-00
Projection Lamp Module SP-LAMP-LP2
Lens Cap 340-0220-xx
Audio/Video Cable 210-0053-xx
Fuse — 6.3 amp 749-0010-xx
Power Cords (one ships with projector, type depends on country)
North American Power Cord 210-0023-xx
Australian Power Cord 210-0027-xx
UK Power Cord 210-0028-xx
European Power Cord 210-0029-xx
Danish Power Cord 210-0030-xx
Swiss Power Cord 210-0031-xx
43
Appendix
Optional Accessories
LP 225 Enhanced Accessory Pack, includes: SP-AP-LP2
Soft Carry Case (CA-C077)
2-button Executive remote (HW-EXREM)
CableWizard 2 (SP-CW2)
Soft Carry Case CA-C077
Travel Case CA-C092
ATA Shipping Case CA-C119
CableWizard 2 SP-CW2
CableWizard Extension Cable, non-
SP-CW2EXT
plenum rated, 60.7 ft (18.5 m)
CableWizard Extension Cable, plenum-
SP-CW2EXTP
rated, 60.7 ft (18.5m)
2-button Executive remote HW-EXREM
Executive remote IR receiver HW-EXRCVR
Full-Feature Smart Remote Control HW-SM ART
LiteShow Pro Presentation Player HW-LSPRO
LiteShow Pro Soft Case CA-C131
32 MB Memory Upgrade HW-MEM-LSP
Zoom Lens HW-LP210-ZM
Kensington MicroSaver Security System SP-KENLOC
Fuse — 8.0 amp call for part no.
InstaTheater High Power Screen HW-HPSCRN
LitePro 200 Series Ceiling Mount-LiteMount2 SP-CEIL-LM2
LiteMount False Ceiling Plate SP-LTMT-PLT
LiteMount Pipe Tubing Extension SP-LTMT-EXT
CableWizard Wall Plate SP-CWWALL
Portable Projector Stand SP-STND
nd
Year Advantage Service Plan
2
AS-LP2xx-12
(1 year extension)
rd
3
Year Advantage Service Plan
AS-LP2xx-24
(2 year extension)
44
Portable and Laptop Activation Chart
Many laptop computers do not automatically turn on their external video port when a secondary display device such as a projector is connected. Activation commands for some laptop
computers are listed in the following table. (If your computer is
not listed or the given command does not work, refer to the computer’s documentation for the appropriate command.) On some
laptops, the activation function key is labeled with an icon, for
example or the text CRT/LCD.
K ey command to
Computer
Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup)
AST* ** FN-D or Ctrl-D FN-D or Ctrl-D
Advanced Logic
Research
Altima Shift-Ctrl-Alt-C Shift-Ctrl-Alt-L
Ambra** FN-F12 FN-F12
Amrel* ** setup menu setup menu
Apple see Mac Portable and Mac PowerBook
Aspen automatic automatic
BCC* automatic reboot computer
Bondwell LCD or CR T options after
Chaplet** setup screen setup screen
Commax Ctrl-Alt-#6 Ctrl-Alt-#5
activate port
Ctrl-FN-D Ctrl-FN-D
FN-F5 FN-F5
type from A:/IVGA/CRT type from A:/IVGA/CRT
FN-F12 FN-F12
Ctrl-Alt-V Ctrl-Alt-V
setup VGA/
Conf.Simulscan
FN-F5 FN-F5
F2/Choose Option/F5 F2/Choose Option/F5
Shift-Ctrl-D Shift-Ctrl-D
bootup
FN-F6 FN-F6
FN-F4 FN-F4
K ey command to
de-activate port
setup VGA/
Conf.Simulscan
reboot for LCD or CRT
options to appear
NO TE: Often, pressing the key
commands once activates the
external video port, pressing it
again activates both the external
and internal ports, and pressing it
a third time activates the internal
port. Refer to your computer’s documentation for details on your specific model.
45
Appendix
K ey command to
Computer
Compaq* ** Ctrl-Alt-< Ctrl-Alt->
Compuadd* ** automatic automatic
Data General Ctrl-Alt-Command Ctrl-Alt-Command
Data General
Walkabout
Datavue Ctrl-Shift-M Ctrl-Shift-M
Dell** Ctrl-Alt-< Ctrl-Alt->
Digital* automatic reboot
Dolch dip switch to CRT dip switch to LCD
Epson dip switch to CRT dip switch to LCD
Everex* setup screen option setup screen option
For-A Ctrl-Alt-Shift-C Ctrl-Shift-Alt-L
Gateway FN-F1/FN-F1 again simul-
Grid* ** FN-F2, choose auto or
Hyundai setup screen option setup screen option
IBM 970* automatic warm reboot
activate port
FN-F4 FN-F4
automatic automatic
mode/? (for setup option) mode/? (for setup option)
Alt-F for screen setup
option
2 CRT/X at DOS prompt reboot
Ctrl-Alt-F10 Ctrl-Alt-F10
FN-F8 (CRT/LCD) FN-F8
FN-D FN-D
FN-F12 FN-F12
FN-F2 FN-F2
taneous
simultaneous
Ctrl-Alt-Tab Ctrl-Alt-Tab
K ey command to
de-activate port
Alt-F for screen setup
option
FN-F1
FN-F2
46
K ey command to
Computer
IBM ThinkPad** reboot, enter setup menu FN-F2
Kaypro boot up, monitor plugged inunplug monitor
Kris Tech FN-F8 FN-F8
Mac Portable
100
Mac PowerBook
140, 145, 150,
170
160, 165, 180,
520, 540, 5300
210, 230, 250,
270, 280, 2300
Magitronic FN-F4 FN-F4
Mastersport FN-F2 FN-F1
Micro Express* automatic warm reboot
Microslate* automatic warm reboot
Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On
NCR setup screen option setup screen option
NEC* ** setup screen option setup screen option
Olivetti* automatic automatic
activate port
FN-F7, select choice from
setup menu
FN-F1, select choice
FN-F5, select choice
PS/2 SC select choice
(CRT, LCD, etc.)
no video port: not compatible
no video port: requires a 3rd-party interface
Contro l Pa ne l f old er, Pow erBook Display folder;
Activate Video Mirroring
requires Apple Docking Station or Mini Dock
CRT at the DOS prompt LCD at the DOS prompt
FN-F31 FN-F3
FN-O/* FN-O/*
FN- | | FN- | |
K ey command to
de-activate port
warm reboot
47
Appendix
K ey command to
Computer
Packard Bell** FN-F2 FN-F2
Panasonic FN-F2 FN-F2
Samsung* setup screen option setup screen option
Sanyo setup screen option setup screen option
Sharp dip switch to CRT dip switch to LCD
Sun SPARC-
Dataview
Tandy** Ctrl-Alt-Insert Ctrl-Alt-Insert
Texas Instruments*
Top-Link* ** setup screen option setup screen option
Toshiba* ** Ctrl-Alt-End Ctrl-Alt-Home
Twinhead* FN-F7 FN-F7
WinBook Ctrl-Alt-F10 Ctrl-Alt-F10
Wyse software driven software driven
Zenith** FN-F10 FN-F10
activate port
Ctrl-Alt-< Ctrl-Alt->
Ctrl-Shift-M Ctrl-Shift-M
setup screen option setup screen option
setup screen option setup screen option
FN-F6 FN-F6
FN-End FN-Home
FN-F5 FN-F5
setup screen option setup screen option
FN-F5 FN-F5
Automatic Automatic
FN-F2 FN-F2
FN-F1 FN-F1
K ey command to
de-activate port
48
* These manufacturers have models that automatically send video
to the external CRT port when some type of display device is
attached.
** These manufacturers offer more than one key command depend-
ing on the computer model.
Using Video Mirroring with a PowerBook Computer
When you turn video mirroring on (called SimulScan in newer
PowerBooks-see below), the projector displays the same information that appears on your PowerBook’s built-in screen. When
video mirroring is off, the projector acts like a separate display.
To turn on video mirroring for the first time:
Open the Monitors control panel; click on Monitor 2.
1
Set the number of colors you want.
2
Open the Control Strip; click on the monitor icon.
3
Select “Turn Video Mirroring On.”
4
Now you can turn video mirroring on and off from the Control
Strip without having to open the Monitors control panel again.
When using video mirroring and high color graphics such as
slide shows, the projected image occasionally might turn black
and white. If this happens, perform the following steps:
Turn off video mirroring.
1
Open the Monitors control panel.
2
Move the white menu bar to Monitor 2 to set the projector as
3
the primary monitor.
Restart the PowerBook.
4
Using SimulScan
Some newer PowerBooks display images on an external monitor
or projector differently than previous ones. When using
SimulScan, the projector displays the same information that
appears on your PowerBook
To select Sim ulScan:
Open the Control Panel, then double-click Monitors and
1
Sound.
In the Resolution list, choose the SimulScan mode, then click
2
OK.
If this changes your display settings, a dialog bo x appear s.
3
Click OK to confirm the change.
49
Appendix
Projected Image Size
Use the chart below and the tables on the next page to help you
determine projected image sizes for the varifocal and zoom
lenses.
50
FIGURE 29
Projected image size for LP 200 series zoom and varifocal lenses
Tabl e 1:
Image Size, Width and Height for Varifocal Lens
and Zoom Lens at Minimum Focusing Distance
Distance to
Screen (fee t)
4342720.4
10 84 67 50.4
15 126 101 75.6
20 168 134 100.8
25 210 168 126.
30 252 202 151.2
35 294 235 176.4
40 336 269 201.6
Image Size, Width and Height for Zoom Lens at
Distance to
Screen (fee t)
4483828.8
10 120 96 72
15 180 144 108
20 240 192 144
25 300 240 180
30 360 288 216
35 420 336 252
40 480 384 288
Diagonal
(inches)
Maximum Focusing* Distance
Diagonal
(inches)
Width
(inches)
Table 2:
Width
(inches)
Height
(inches)
Height
(inches)
* The focusing distance of the zoom lens is from 4 feet to infinity.
51
INDEX
A
accessories, ordering 43, 45
activation comm ands for laptop com-
puters 45
adjusting
bass 23
brightness 16
color 22
contrast 21
Menu Position 22
tint 21
treble 23
volume 18, 23
adjusting the height of the projector 14
altitude limits 41
annotating 17
assistance. See Technical Support
Audio menu 23
Audio menu options
Bass 23
Treble 23
Volume 23
Auto Source Select 27
B
bass, adjusting 23
Blank Screen 22
Brightness buttons 16
brightness, adjusting 16, 21
buttons on k e y p ad
Brightness 16
Computer 16
Freeze 16
Help 17
LiteShow 17
Menu 17
Mute 17
Scribble 17
Standby 18
Video 18
Volume 18
C
cables
A/V 9, 43
audio 7
CableWizard exten sion 44
composite video 9
extension 44
ordering 43, 45
power iv, 43
S-video 9
cases, ordering 44
ceiling-moun ted p roj e ction 27
cleaning the projection lens 29
color, adjusting 22
colors
don’t match monitor colors 40
not displayed 37
compatibility
IBM-compatible 1
Macintosh 1
composite video cable
connecting 9
ordering (A/V cable) 43
Computer button 16
computers, compatible 1
53
Index
connecting
IBM-compatible compu t er 7
Macintosh computers 8
power cord 11
video player 9–10
connector panel
video connectors 9
contrast, adjusting 21
Controls menu 26
Controls menu options
Auto Source Select 27
Ceiling 27
Default Source 27
Language 26
Rear Projection 27
cords. See cables
D
Default Source 27
Display menu 21
Display menu optio n s
Blank Screen 22
Brightness 21
Color 22
Contrast 21
Menu Position 22
Reset All 22
Tint 21
displaying
online help information 17
on-screen menus 17
E
extension cable 44
F
Freeze button 16
freezing the display 16
fuse
ordering 6.3 amp 43
ordering 8 amp 44
replacing 33
safety iv
specifications iv, 42
fuzzy lines 25
H
Help button 17
hot surfaces iv
I
IBM-compatible comp u ter s
compatibilit y 1
connecting 7
icons
on projector labels i ii
on the projector 6, 9
adjusting 11, 13
centering 13
colors don’t match comput er’s 40
focusing 13
fuzzy lines 13, 25
has lines or spots 39
not centered 37
not displayed 37
out of focus 39
quality iv, 37–40
resolution 1
reversed 39
size 5, 50
streaked 40
too dark or too light 16
too wide or too narrow 13, 38
54
Image menu 24
Image menu options
Auto Image 24
Auto Resize 24
Horiz. Position 25
Manual Sync 24
Manual Tracking 25
Vert. Position 25
K
Kensington lock 35, 44
L
labels on projector iii
lamp
ordering 43
overheating iv
replacing 31
safety iii–iv
turns off unexpectedly 40
lamp hour counter 20
language, selecting for menus 26
laptop computers
activation sequence to allow
secondary display 45
compatibilit y 7
connecting IBM-compatible 7
connecting PowerBook 8
lens
cap 43
cleaning 29
ordering 43
preparing for transportation v
removing 29
safety iii
zoom 30, 44, 50
leveling the pro jector 14
LP 225
ATA (hard) case 44
ceiling mounted 5, 27
hot surfaces iv
not working 36
project fr om beh in d the scr ee n 27
setting up 5
soft case 44
specifications 41
turning off 12
turning on 11
ventilation and overheating v
voiding the warranty v
M
Macintosh computers
adaptor 8
compatibilit y 1
connecting 8
Menu button 17, 19
Menu Position 22
menus. See on-screen menus
monitor, projected colors don’t match
40
Mute button 17
O
on-screen menus
Audio menu 23
changing language of 26
Controls menu 26
Display menu 21
displaying 19
Image menu 24
making changes to menu
functions 20
removing from the screen 20
55
Index
P
power cord
connecting 11
grounding iv
ordering 43
safety iv
power source, safety ii i
power strip 11
power switch 12
power up sequence 11, 38
PowerBook, conn e ct ing 8
project from behind the screen 27
R
rear projection 27
repair. See Technical Support
replacing
fuses 33
projection lamp module 31
re-positioning the image on the screen
25
resetting adjustments 22
resolution 1
S
safety guideline s iii–v
Scribble button 17
security feature 35
service. See Technical Support
SimulScan, using with PowerBooks 49
specifications 41
Standby button 18
S-video
connecting 9
T
Technical Support
in Europe 3
in Singapore 3
in USA 3
information to have on hand
before you call 36
things to try before you call 36
voiding the warra nty v
temperature limits 41
test pattern 37
text not visible 37
tint, adjusting 21, 22
treble, adjusting 23
turning off
projector 12
sound 17
turning on the projector 11
V
vertical lines displayed 25, 39
Video button 18
video mirroring on a PowerBook 8, 49
video standards 26
volume
adjusting 18, 23
muting 17
Volume buttons 18
W
warranty v, 44
Z
zoom lens 30, 44, 50
56
Loading...
