HCS-1
Home Cinema System
Simple setup guide
INFINITY Micro Component Home Cinema System
INFINITY Micro Component Home Cinema System HCS-1
PRODUCT SPECIFICAT I O N S
HCS-1 Satellite HCS-1 Active Subwoofer
Drivers 3' shielded woofer 8' true 4 layers wound voice coil
fi polydome tweeter
with acoustic lens
System I/B Build-in-the-baffle technology Bass reflex enclosure
Ist order minimalist filter
Crossover 5kHz continuously variable
Frequency 50 to 180Hz
Frequency
Response 180Hz - 20Hz 45Hz - 180Hz +/- 3dB
Sensitivity 88dB 50m V RMS (line level)
(1 watt @ 1 meter)
Nominal 10k ohms (low level)
Impedance compatible with 8 ohms 20k ohms (high level)
Power
Rating 10 - 65 watts RMS -
Power - 75 watts RMS
Output
Cabinet
Colour/Finish black black
Dimensions 4-3/4’ x “-1/2’ x “-3/4’ 14-7/8’ x 10-1/8’ x 13-7/8’
(H x W x D) 120 x 90 x 98mm 375 x 260 x 350
[plus 1-1/3’ (35mm) for feet
]
Infinity Systems continually strive to update and improve existing products, as well as create new ones. The
specifications and construction details in this and related publications are therefore subject to change without notice.
INFINITY Micro Component Home Cinema System HCS-1

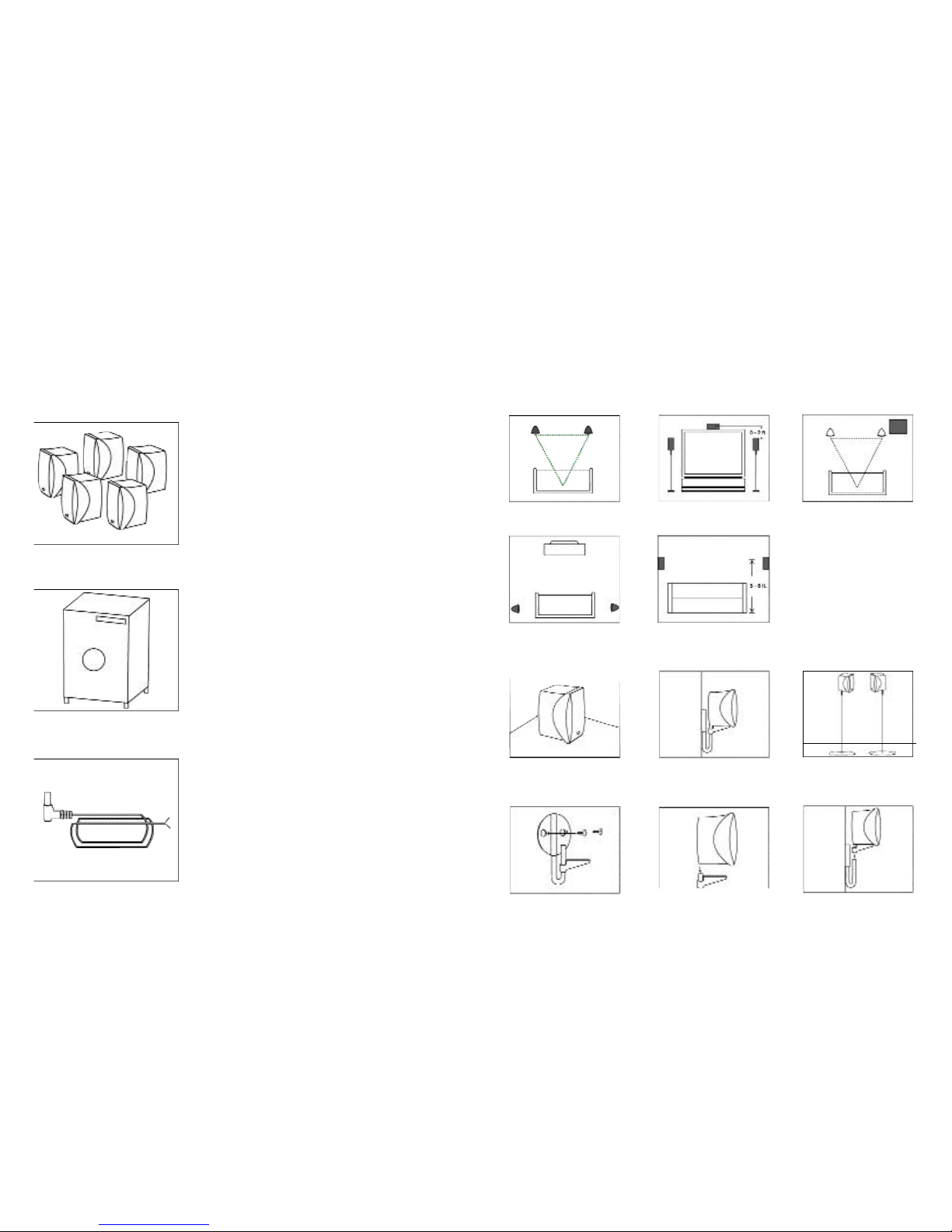

Five satellites for left, right, centre and
surrounds
Active Subwoofer
Three 5 meter cables, with integrated jack
connector
Two 10 meter cables, with integrated jack
connector
x 12 Self adhesive feet for satellite
INFINITY Micro Component Home Cinema System HCS-1
The ABC for easy use
A for placement / mounting options
Satellites
Subwoofer
Surround speakers
Mounting Options
Satellites and surrounds
Wall Mounting, with Brakets ( Optional Extra)
On shelves. On the wall. Wall brakets
included.
On optional stands. FS300.
Attach plate to wall. Slide speaker onto support. Place speaker and support
on wall plate.
INFINITY Micro Component Home Cinema System HCS-1
INFINITY Micro Component Home Cinema System HCS-1
C for speaker and amplifier connections
Mode Procedure LED Status
Off Receiver/amplifier off Off
On Receiver/amplifier on and playing program Green
material
Standby Simply turn off your receiver/amplifier. The
subwoofer will turn off after approximately
twenty minutes. The subwoofer will turn on
when your receiver/amplifier begins playing
again.
Operation
Volume
Subwoofer
Level
Subwoofer
Level
INFINITY Micro Component Home Cinema System HCS-1
subwoofer is plugged
into an active electrical
outlet.
l Powered subwoofer is
plugged in and is either
in the “On” or “Auto”
position.
If there is no sound
from the surround
speakers, check the
following:
l Check all wires and
connections between
receiver/amplifier and
speakers. Make sure all
wires are connected.
Make sure none of the
speaker wires are
frayed, cut or puntured.
l Review proper
operation of your
receiver/amplifier ant its
surround sound
features.
l Make sure the movie or
TV show you are
watching is recorded in
Dolby surround. If it is
not, check to see if your
receiver/amplifier has
other surround modes
you may use.
wires are connected.
Make sure none of the
speaker wires are
frayed, cut or puntured.
If the system plays at
low volumes but shuts
off as volume is
increased, check the
following:
l Check all wires and
connections between
receiver/amplifier and
speakers. Make sure all
wires are connected.
Make sure none of the
speaker wires are
frayed, cut or puntured.
l If more than one pair of
main speakers is being
used, check the
minimum impedance
requirements of your
receiver/amplifier.
If there is low bass
output, check the
following:
l Make sure the
connections to the left
and right “Speaker
Inputs” have the correct
polarity (+ and -).
l Make sure that the
INFINITY Micro Component Home Cinema System HCS-1
AUDIO INPUT ONLY
ALWAYS use INFINITY audio
connector cables for connection of
satellites to your AV-amplifier.
NEVER attempt to connect other
electrical devices, transformers, etc.
In doing so, damage will result.
