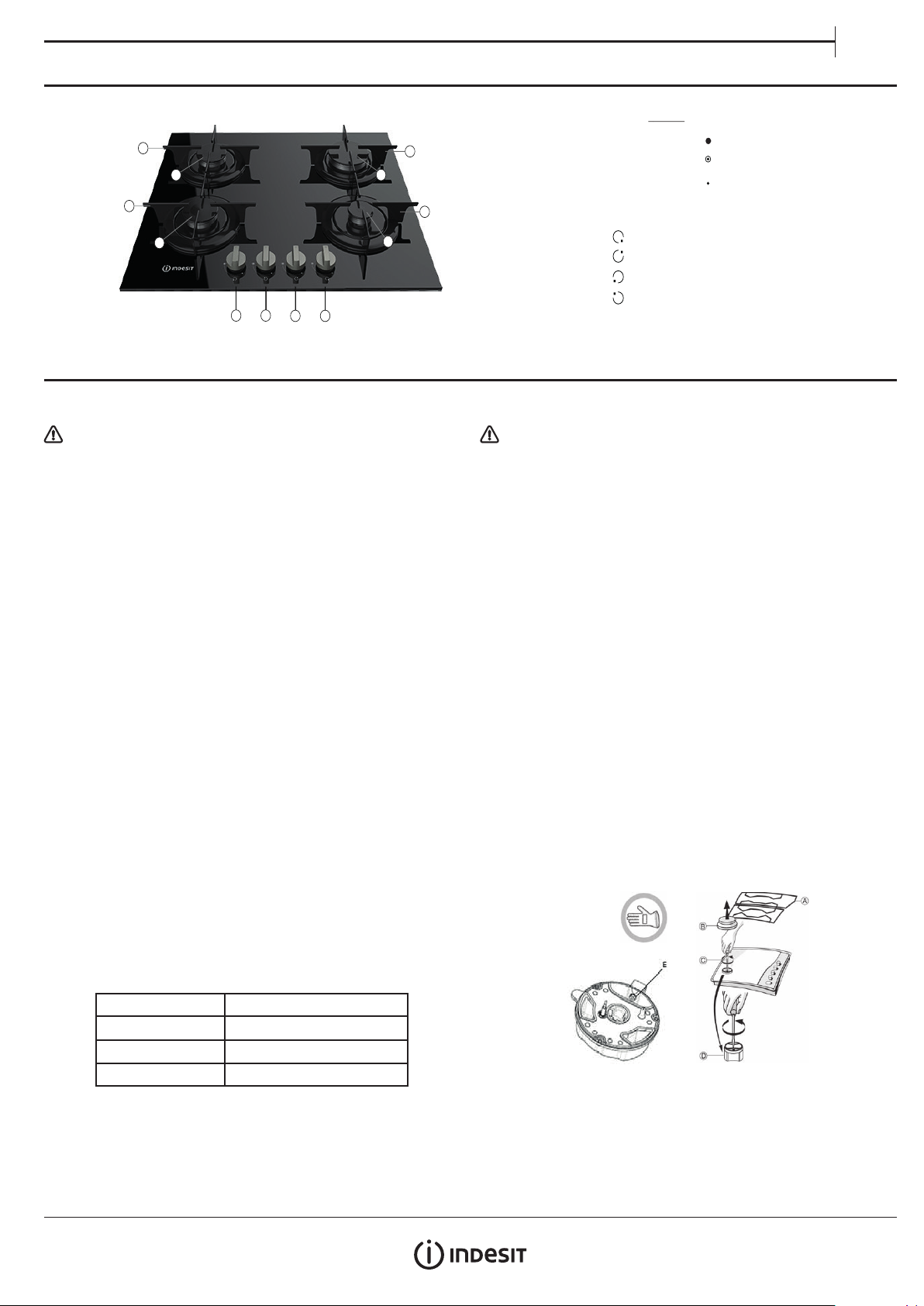

INDESIT PR 642 /I(BK) UK User Manual

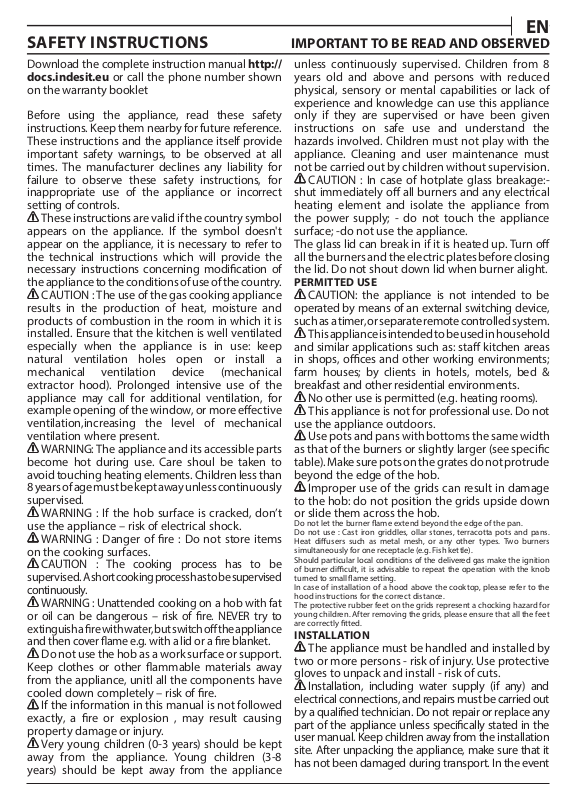

SAFETY INSTRUCTIONS
EN
IMPORTANT TO BE READ AND OBSERVED
Download the complete instruction manual http://
docs.indesit.eu or call the phone number shown
on the warranty booklet
Before using the appliance, read these safety
instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide
important safety warnings, to be observed at all
times. The manufacturer declines any liability for
failure to observe these safety instructions, for
inappropriate use of the appliance or incorrect
setting of controls.
These instructions are valid if the country symbol
appears on the appliance. If the symbol doesn't
appear on the appliance, it is necessary to refer to
the technical instructions which will provide the
necessary instructions concerning modication of
the appliance to the conditions of use of the country.
CAUTION : The use of the gas cooking appliance
results in the production of heat, moisture and
products of combustion in the room in which it is
installed. Ensure that the kitchen is well ventilated
especially when the appliance is in use: keep
natural ventilation holes open or install a
mechanical ventilation device (mechanical
extractor hood). Prolonged intensive use of the
appliance may call for additional ventilation, for
example opening of the window, or more eective
ventilation,increasing the level of mechanical
ventilation where present.
WARNING: The appliance and its accessible parts
become hot during use. Care shoul be taken to
avoid touching heating elements. Children less than
8 years of age must be kept away unless continuously
supervised.
WARNING : If the hob surface is cracked, don’t
use the appliance – risk of electrical shock.
WARNING : Danger of re : Do not store items
on the cooking surfaces.
CAUTION : The cooking process has to be
supervised.
A short cooking process has to be supervised
continuously.
WARNING : Unattended cooking on a hob with fat
or oil can be dangerous – risk of re. NEVER try to
extinguish a re with water, but switch o the appliance
and then cover ame e.g. with a lid or a re blanket.
Do not use the hob as a work surface or support.
Keep clothes or other ammable materials away
from the appliance, unitl all the components have
cooled down completely – risk of re.
If the information in this manual is not followed
exactly, a re or explosion , may result causing
property damage or injury.
Very young children (0-3 years) should be kept
away from the appliance. Young children (3-8
years) should be kept away from the appliance
unless continuously supervised. Children from 8
years old and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge can use this appliance
only if they are supervised or have been given
instructions on safe use and understand the
hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
CAUTION : In case of hotplate glass breakage:shut immediately o all burners and any electrical
heating element and isolate the appliance from
the power supply; - do not touch the appliance
surface; -do not use the appliance.
The glass lid can break in if it is heated up. Turn o
all the burners and the electric plates before closing
the lid. Do not shout down lid when burner alight.
PERMITTED USE
CAUTION: the appliance is not intended to be
operated by means of an external switching device,
such as a timer, or separate remote controlled system.
This appliance is intended to be used in household
and similar applications such as: sta kitchen areas
in shops, oces and other working environments;
farm houses; by clients in hotels, motels, bed &
breakfast and other residential environments.
No other use is permitted (e.g. heating rooms).
This appliance is not for professional use. Do not
use the appliance outdoors.
Use pots and pans with bottoms the same width
as that of the burners or slightly larger (see specic
table). Make sure pots on the grates do not protrude
beyond the edge of the hob.
Improper use of the grids can result in damage
to the hob: do not position the grids upside down
or slide them across the hob.
Do not let the burner ame extend beyond the edge of the pan.
Do not use : Cast iron griddles, ollar stones, terracotta pots and pans.
Heat diusers such as metal mesh, or any other types. Two burners
simultaneously for one receptacle (e.g. Fish kettle).
Should particular local conditions of the delivered gas make the ignition
of burner dicult, it is advisable to repeat the operation with the knob
turned to small ame setting.
In case of installation of a hood above the cooktop, please refer to the
hood instructions for the correct distance.
The protective rubber feet on the grids represent a chocking hazard for
young children. After removing the grids, please ensure that all the feet
are correctly tted.

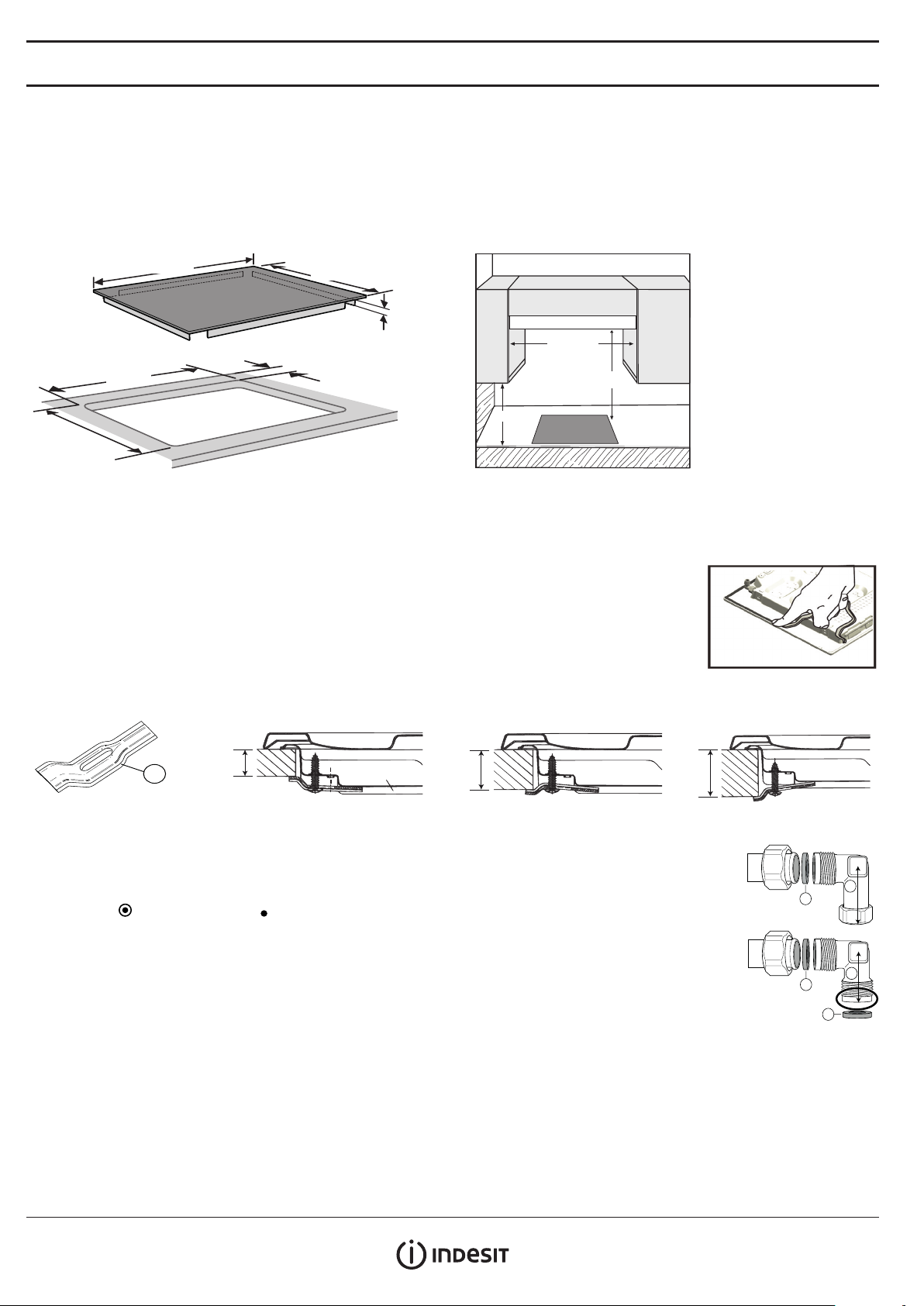

INSTALLATION
The appliance must be handled and installed by
two or more persons - risk of injury. Use protective
gloves to unpack and install - risk of cuts.
Installation, including water supply (if any) and
electrical connections, and repairs must be carried out
by a qualied technician. Do not repair or replace any
part of the appliance unless specically stated in the
user manual. Keep children away from the installation
site. After unpacking the appliance, make sure that it
has not been damaged during transport. In the event
of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic,
styrofoam parts etc.) must be stored out of reach of
children - risk of suocation. The appliance must be
disconnected from the power supply before any
installation operation - risk of electrical shock. During
installation, make sure the appliance does not damage
the power cable - risk of re or electrical shock. Only
activate the appliance when the installation has been
completed.
The electrical and gas connections must comply
with local regulation.
WARNING : Modication of the appliance and its
method of installation are essential in order to use
the appliance safely and correctly in all the additional
countries.
Use pressure regulators suitable for the gas
pressure indicated in the instruction.
The room must be equipped with an air extraction
system that expels any combustion fumes.
The room must also allow proper air circulation,
as air is needed for combustion to occur normally.
The ow of air must not be less than 2 m3/h per kW
of installed power.
The air circulation system may take air directly
from the outside by means of a pipe with an inner
cross section of at least 100 cm2; the opening must
not be vulnerable to any type of blockages.
The system can also provide the air needed for
combustion indirectly, i.e. from adjacent rooms tted
with air circulation tubes as described above. However,
these rooms must not be communal rooms, bedrooms
or rooms that may present a re hazard.
Liquid petroleum gas sinks to the oor as it is
heavier than air. Therefore, rooms containing LPG
cylinders must also be equipped with vents to
allow gas to escape in the event of a leak. As a result
LPG cylinders, whether partially or completely full,
must not be installed or stored in rooms or storage
areas that are below ground level (cellars, etc.). It is
advisable to keep only the cylinder being used in
the room, positioned so that it is not subject to
heat produced by external sources (ovens,
replaces, stoves, etc. ) which could raise the
temperature of the cylinder above 50°C.
Carry out all cabinet cutting works before tting
the appliance in the furniture and remove all wood
chips and sawdust.
If the appliance is Not installed above an oven, a
separator panel (not included) must be installed in
the compartment under the appliance.
Should you experience diculty in turning the burners knobs, please
contact After Sales Service for replacement of the burner tap if found to
be fault y.
The openings used for the ventilation and dispersion of heat must never
be covered.
GAS CONNECTION
WARNING : Prior to installation, ensure that the
local distribution conditions (nature of gas and gas
pressure) and the adjustment of the appliance are
compatible.
Check that the pressure of the gas supply is
consistent with the values indicated in Table 1
(“Burner and nozzle specications”).
WARNING : The adjustment condictions for this
appliance are stated on the lable (or data plate).
WARNING : This appliance is not connected to a
combustion products evacuation device. It shall be
installed and connected in accordance with current
installation regulations. Particulat attention shall be
given to the relevant requirements regarding
ventilation.
If the appliances is connected to liquid gas, the
regulation screw must be fastned as tightly as
possible.
IMPORTANT : When gas cylinder is adopted, the
gas cylinder or gas container must be properly
settled (vertical orientation).
WARNING : This operation must be perfomed by
a qualied technician
Use only exible or rigid metal hose for gas connection.
Connection with a rigid pipe (copper or steel)
Connection to the gas system must be carried out in
such a way as not to place any strain of any kind on
the appliance.There is an adjustable L-shaped pipe
tting on the appliance supply ramp and this is
tted with a seal in order to prevent leaks. The seal
must always be replaced after rotating the pipe
tting (the seal is provided with the appliance). The
gas supply pipe tting is a threaded 1/2 gas
cylindrical male attachment.
Connecting a exible jointless stainless steel pipe
to a threaded attachment The gas supply pipe tting
is a threaded 1/2 gas cylindrical male attachment.
These pipes must be installed so that they are never
longer than 2000 mm when fully extended. Once
connection has been carried out, make sure that the
exible metal pipe does not touch any moving parts
and is not compressed. Only use pipes and seals that
comply with current National regulations.
IMPORTANT : If a staineless steel hose is used, it
must be installed so as not touch any mobile part of
the furniture (e.g.drawer). It must pass thorugh an
area where there are no obstructions and where it is
possible to inspect it on all its length.
The appliance should be connected to the main
gas supply or to gas cylinder in compliance with the
current National regulations. Before carry out the
connection, make sure that the appliance is
compatible with the gas supply you wish to use. If
this is not the case, follow the instructions indicated
in the paragraph “Adapting to dierent types of gas”.
After connection to the gas supply, check for
leaks with soapy water. Light up the burners and
turn the knobs from max position 1* to minimum
position 2* to check ame stability.

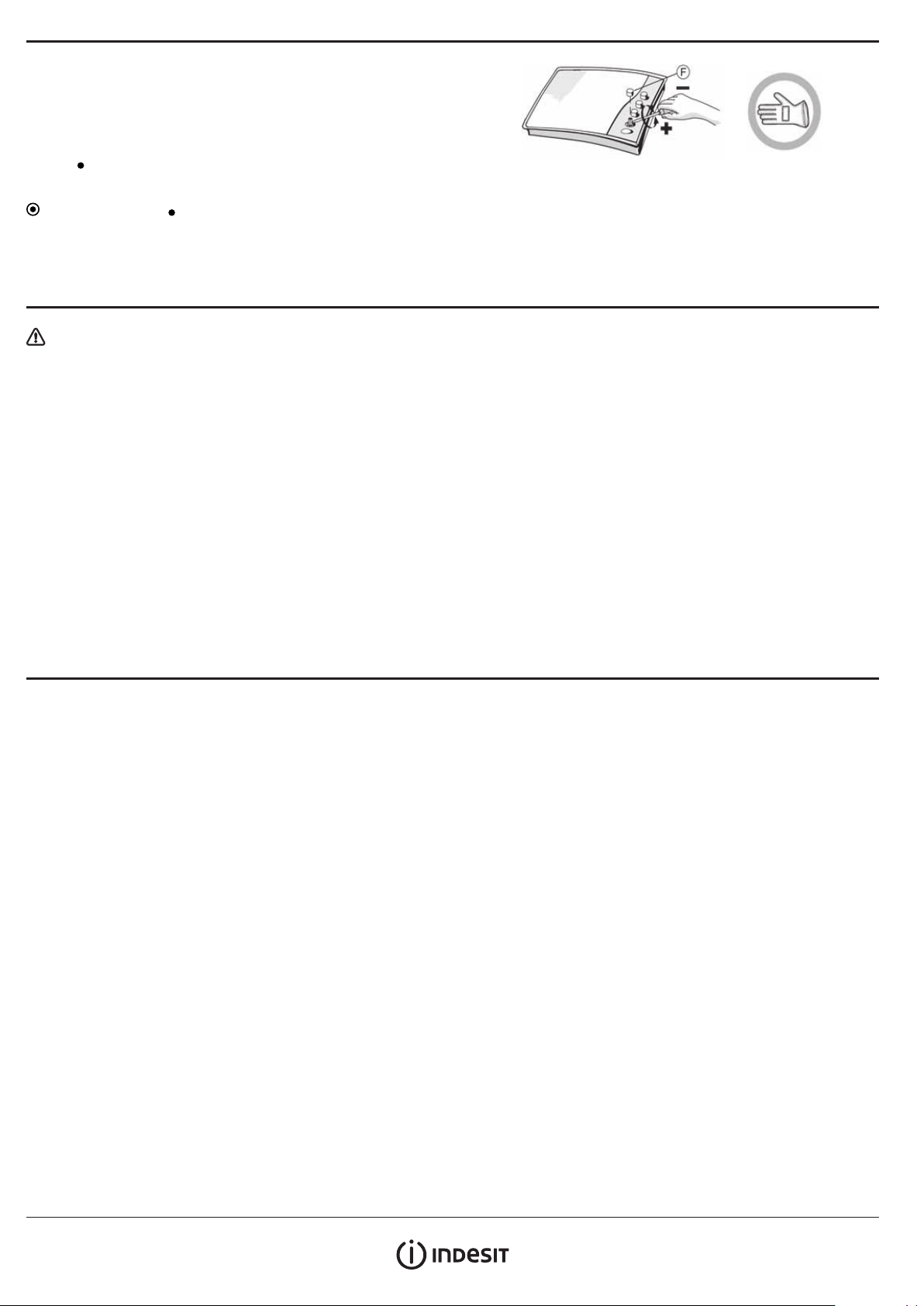

ADAPTING TO DIFFERENT TYPES OF GAS
In order to adapt the appliance to a type of gas
other than the type for which it was manufactured
(indicated on the rating label), follow the dedicated
steps provided after intallation drawings.
ELECTRICAL WARNINGS

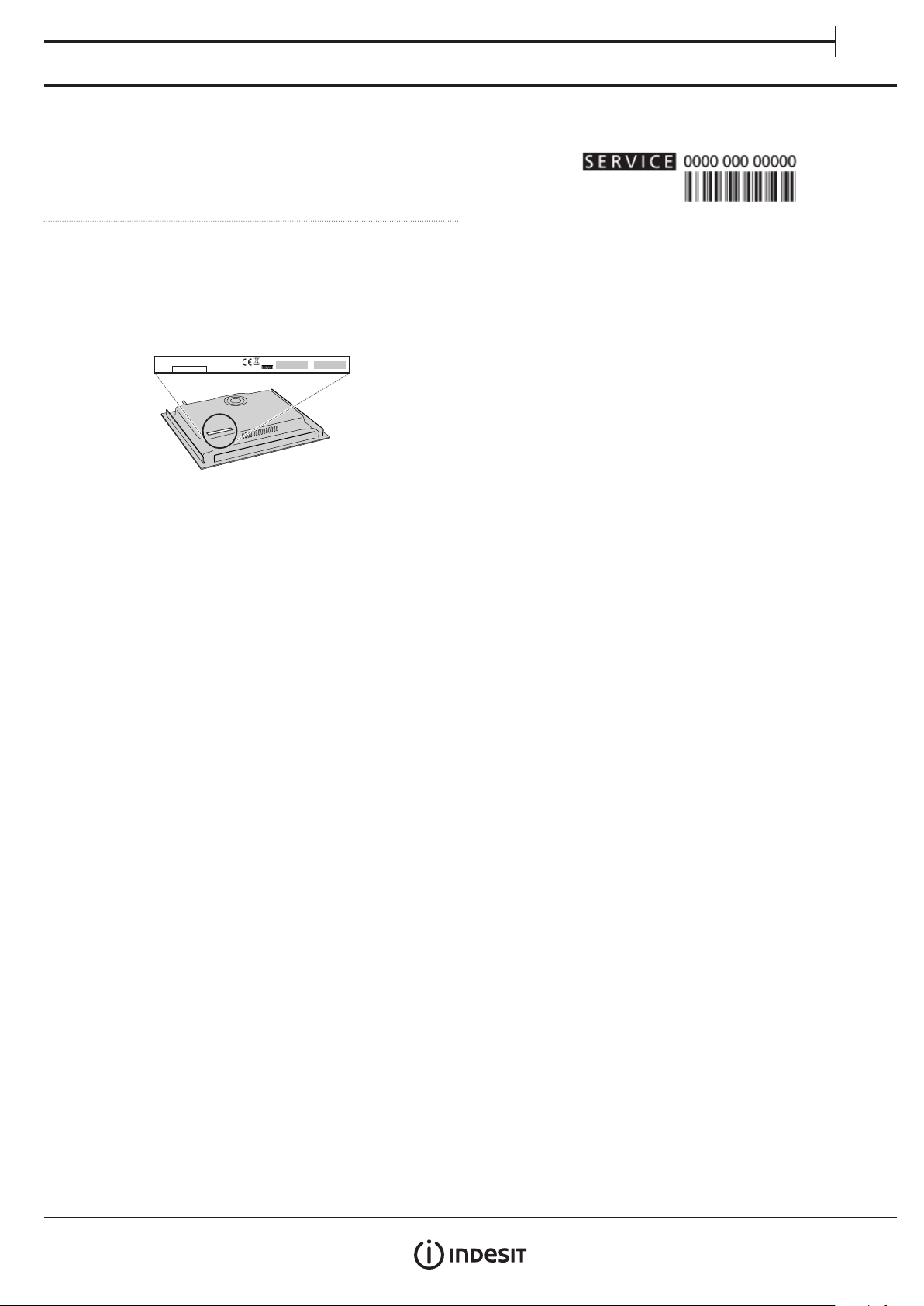

IMPORTANT: The data rilevant to the voltage an
power absortions are indicated on the rating plate.
The power cable must be long enough to connect
the appliance, once tted in its housing, to the main
power supply. Do not pull the power supply cable.
It must be possible to disconnect the appliance
from the power supply by unplugging it if plug is
accessible, or by a multi-pole switch installed upstream
of the socket in accordance with the wiring rules and
the appliance must be earthed in conformity with
national electrical safety standards.
Do not use extension leads, multiple sockets or
adapters. The electrical components must not be
accessible to the user after installation. Do not use the
appliance when you are wet or barefoot. Do not
operate this appliance if it has a damaged power
cable or plug, if it is not working properly, or if it has
been damaged or dropped.
If the supply cord is damaged, it must be replaced
with an identical one by the manufacturer, its service
agent or similarly qualied persons in order to avoid
a hazard - risk of electrical shock.
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance is switched
o and disconnected from the power supply before
performing any maintenance operation; never use
steam cleaning equipment - risk of electric shock.
Do not use abrasive or corrosive products,
chlorine-based cleaners or pan scourers.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle
symbol .
The various parts of the packaging must therefore be disposed of
responsibly and in full compliance with local authority regulations
governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials.
Dispose of it in accordance with local waste disposal regulations.
For further information on the treatment, recovery and recycling of
household electrical appliances, contact your local authority, the
collection service for household waste or the store where you purchased
the appliance. This appliance is marked in compliance with European
Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
negative consequences for the environment and human health.
The symbol on the product or on the accompanying documentation
indicates that it should not be treated as domestic waste but must be
taken to an appropriate collection center for the recycling of electrical
and electronic equipment.
ENERGY SAVING TIPS
Use pots and pans with bottom width equal to that of the cooking zone.
Only use at-bottomed pots and pans.
When possible, keep pot lids on during cooking.
Use a pressure cooker to save even more energy and time.
Place the pot in the middle of the cooking zone marked on the hob.
DECLARATION OF CONFORMITY
This appliance meets the Ecodesign requirements set out in European
Regulation n.66/2014, in conformity to the European standard EN 3 0-2-1.
INJECTORS TABLE CATEGORY II2H3+
Type of gas
used
NATURAL GAS
(Methane) G20
LIQUEFIED
PETROLEUM GAS
(Butane) G30
LIQUEFIED
PETROLEUM GAS
(Propane) G31
Type of gas used Model conguration
G20 20 mbar 1R - 2SR - 1AUX 7, 3 695 l/h 9,52
G30 28-30 mbar 1R - 2SR - 1AUX 7, 3 531 g/h 30,94
G31 37 mbar 1R - 2SR - 1AUX 7, 3 521 g /h 23,80
Type of burner Injector
marking
Rapid
Semi-rapid
Auxiliary
Rapid
Semi-rapid
Auxiliary
Rapid
Semi-rapid
Auxiliary
4 BURNERS
116 (Y )
96 (Z)
79 (6)
86
64
50
86
64
50
Rated thermal
ow rate
kW
3,00
1,65
1,0 0
3,00
1,65
1,0 0
3,00
1,65
1,0 0
Rated thermal
owrate (kW)
Rated
consumption
286 l/h
157 l/h
95 l/h
218 g/h
120 g/h
73 g/h
214 g /h
118 g/ h
71 g/h
Total rated
consumption
Reduced heat
capacity
kW
0,70
0,40
0,40
0,70
0,40
0,40
0,70
0,40
0,40
Gas pressure
mbar
min. rat. max.
17 20 25
20 28-30 35
25 37 45
Air required (m3) for
burning 1m3 of gas
ELECTRIC SUPPLY: 220-240 V ~ 50-60 Hz - 0,6W
Loading...
