Indesit LR8S1S Reference Manual

1

EN

A. Light bulb
B. Thermostat knob
C. Thermostat seeting indicator
D. Light button

CONTROL PANEL

Refrigerator compartment

1. Electronic control panel / light unit

2. Shelves

3. Rating plate with commercial name

4. Fruits and vegetables crisper

5. Door reversibility kit

6. Door trays

7. Egg tray

8. Bottle holder

9. Bottle balcony

10. Door seal
Freezer compartment

10. Door seals

11. Freezer drawers

12. Shelves

13. Bottom drawer: coolest zone best for

freezing fresh food

14. Ice tray

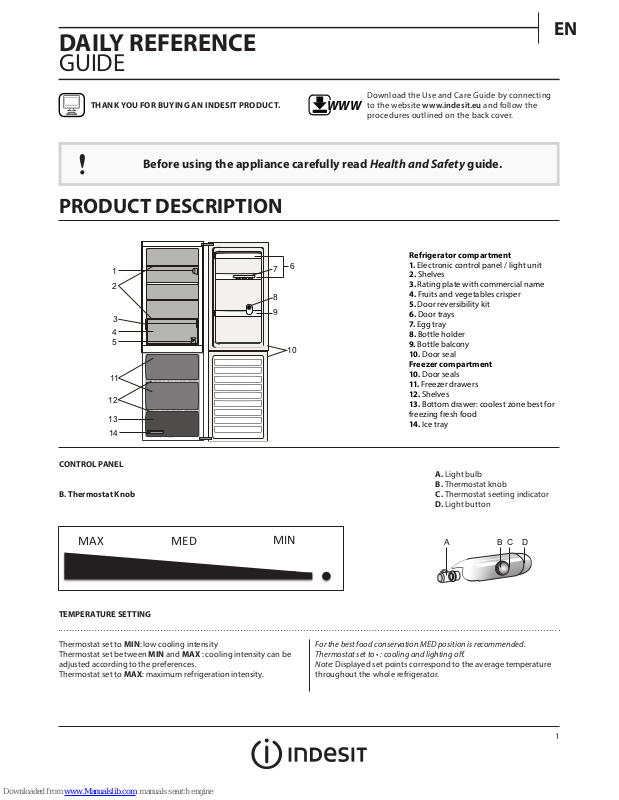

DAILY REFERENCE

GUIDE

PRODUCT DESCRIPTION

1

2

3

5

10

4

6

9

7

8

14

11

12

13

A

BC

D

B. Thermostat Knob

-

MAX

MED

MIN

TEMPERATURE SETTING

Thermostat set to MIN: low cooling intensity
Thermostat set between MIN and MAX : cooling intensity can be
adjusted according to the preferences.
Thermostat set to MAX: maximum refrigeration intensity.

For the best food conservation MED position is recommended.
Thermostat set to • : cooling and lighting o.
Note: Displayed set points correspond to the average temperature

throughout the whole refrigerator.

THANK YOU FOR BUYING AN INDESIT PRODUCT.

Download the Use and Care Guide by connecting
to the website www.indesit.eu and follow the
procedures outlined on the back cover.

WWW

Before using the appliance carefully read Health and Safety guide.

2

FIRST TIME USE

HOW TO START THE APPLIANCE

After plugging the appliance to the mains, turn the thermostat knob
to switch on the appliance: cooling and light will switch on; set the
knob on the desired power (see: “Control panel”, at page1).

ACCESSORIES

EGG TRAY BOTTLE HOLDER ICE TRAY

REFRIGERATOR LIGHT

To remove the light bulb turn anticlockwise as shown in
the picture:

Check the bulb. If necessary unscrew the broken bulb and
replace it with a LED bulb of the same type available only
at our After-sales Service Centers or authorized dealers.
The refrigerator compartment light switches on when the
refrigerator door is opened.

SOME OF THE FUNCTIONAL SOUNDS
YOU MIGHT HEAR

A hissing sound when switching on the
appliance for the rst time or after a long
pause.

A gurgling sound when refrigerant uid
enters into the pipes.

BRRR sound is from the compressor
running.

Buzzing sound when water valve or fan start
working.

A cracking sound when compressor starts. The CLICK is from the thermostat which

adjusts how often the compressor is
running.

After starting the appliance, wait at least 4-6 hours before placing
food into the fridge and into the freezer compartment.
