Cooker with gas oven
and gas grill
Instructions for installation and use
K 642 G/G
K 642 GS/G
K 647 GS/G
Page 2
Cooker with gas oven and gas grill
Instructions for installation and use
Page 3
Important safety warnings
T o maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• use only the MANUFACTURER Service
• use only ORIGINAL Spare P arts
1 This owner's manual is for a c lass 1 appliance (installed
independently) or class 2 - sub-class 1 appliances
(installed between two cabinets).
2 Before using the appliance, read the instructions in this
owner’ s manual carefull y since y ou should find all the
instruction you require to ensure safe installation, use
and maintenance.
Always keep this owner’s manual c lose to hand since
you may need to refer to it in the future.
3 When you have removed the packing, check that the
appliance is not damaged. If you have any doubts, do not
use the appliance, contact your nearest Ariston Service
Centre. Ne ver lea ve the packing components (plastic bags ,
foamed polystyrene, nails, etc.) within the reach of children
since they are a source of potential danger.
4 The appliance must be installed only by a qualified person in
compliance with the instructions provided. The manufacturer
declines all responsibility for improper installation which may
harm persons and animals and damage property .
5 The electrical safety of this appliance can only be guaranteed
if the cooker is correctly and efficiently earthed, in compliance
with current regulations on electrical safety. Always ensure
that the earthing is efficient; if you hav e any doubts call in a
qualified electrician to check the system. The man ufacturer
declines all responsibility for damage resulting from a system
which has not been earthed.
6 Before connecting the appliance to the mains, chec k that the
specifications indicated on the rating plate correspond to those
of the electrical mains system of your home.
7 The cooker must be connected to the mains electrical supply
via a earthed 13 or 15 amp. socket outlet, meeting the
electrical current requirements detailed under “electrical
Connection” in the installation section later in this book.
8 The openings and slots used for ventilation and dispersion
of heat on the rear and below the control panel must nev er
be covered.
9 This appliance must be used for the purpose for which it w as
expressly designed. Any other use (e.g. heating rooms) is
considered to be improper and consequently dangerous. The
manufacturer declines all responsibility f or damage resulting
from improper and irresponsible use.
10 A number of fundamental rules must be followed when using
electrical appliances. The following are of particular
importance:
• do not touch the appliance when your hands or feet are
wet
• do not use the appliance barefooted
• never allow the Mains Cable to be stretched, pulled or
damaged if the Cooker is moved f or cleaning etc. Do not
use the cooker if the Mains Cable is damaged, consult a
qualified electrician.
• do not allow the cooker to be used unsupervised by
children or persons unfamiliar with it.
11 Always s witch off the electrical supply to the cooker and allow
it to cool down before carrying out any cleaning operations
etc.
12 In the case of faults and/or faulty operation, switch off the
electricity supply to the cooker and do not tamper with it. For
repairs call only an authorised after-sales servicing centre
and request the use of original spare parts only. Failure to
comply with the above may compromise the safety of the
appliance.
13 Remember if you are discarding any domestic appliance
with which children etc. ma y pla y, make it saf e by removing
the Mains Cable from it, after first disconnecting the electricity
supply. Remove glass parts where possible, and consider
sharp edges etc. which may no w be exposed.
14 Oven gloves or similar protection should be used when
moving containers in or out of hot ovens and care should be
be taken to av oid contact with hot surfaces by e xposed skin
on wrists or arms.
15 One of the commonest types of accident involving cooking
appliances is burns to babies and young children. These
can occur by:
a) T ouching hot parts
b) Being splashed with hot liquids
c) By pulling projecting pan handles and tipping hot liquids
over themselv es
16 Please remember that a small child’s skin is f ar more sensitive
and therefore easily burnt. Y ou are , therefore, strongly advised
to keep babies and young children well clear of this appliance
during use and whilst it is cooling down after use.
17 Unstable or out of shape pans should not be used on the
hob in case they cause spillage of hot liquids by tipping ov er.
18 Pans must only be placed in the centre of the b urners. Placing
pans off centre may cause cooking irregularites.
19 Special care should be taken when using chip pans etc. in
order to avoid splashing or spillage of hot oil. They should not
be used unattended since overheated oil ma y boil over and
could also ignite.
20 Parts of this appliance, cooking surfaces, retain heat for
considerable periods after switching off. Care should,
therefore, be tak en when touching these areas before the y
have completely cooled do wn.
21 Remember to keep children away from the appliance
when you use the grill or oven, since these parts become
very hot.
22 Never use flammable liquids such as alcohol or gasoline,
etc. near the appliance when it is in use.
23 Wear oven gloves when placing coockw are in the oven or
removing it.
24 Never use the o ven as place to store flammable material.
25 When using small electric appliances near the hob, keep the
supply cord away from the hot parts.
26 Make sure the knobs are in the “•”/”O” position when the
appliance is not in use.
27 W arning: open the door with care since if you are not careful
you may hurt yourself in the hinge area.
28 Gas units need a regular air replacement for a correct
functioning. Make sure that the requirements requested
in the “Positioning” paragraph are all observed in the
owner’ s manual.
3
Page 4
Installation
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
The following instructions should be read by a qualified
technician to ensure that the appliance is installed,
regulated and technically serviced correctly in compliance
with current regulations.
Important: remember to unplug the appliance from
the mains before regulating the appliance or carrying
out any maintenance work.
Positioning
Important: this unit may be installed and used only in
permanently ventilated rooms according to the British
Standards Codes Of Practice: B.S. 6172/B.S. 5440, Par. 2
and B.S. 6891 Current Editions. The following requirements
must be observed:
a) The cook er should not be installed in a bed sitting room
with a volume of less than 20m3. If it is installed in a room
of volume less than 5m3 an air vent of effective area of
110cm2 is required, if it is installed in a room of volume
between 5m3 and 10m3 a supplementary airvent area of
50cm2 is required, if the volume exceeds 11m3 no airvent
is required. Howev er , if the room has a door or a window
which opens directly to the outside no air vent is required
even when the v olume is between 5m3 and 11m3.
b) During prolonged use of the appliance you may consider
it necessary to open a window to the outside to improve
ventilation.
c) If there are other fuel burning appliances in the same
room, B.S.5440 Part 2 Current Edition, should, be
consulted to determine the requisite air vent requirements.
Levelling your appliance (only on a f e w models)
Your cook er is supplied with feet for le velling the appliance.
If necessary , these feet can be screwed into the housings
in the corners of the cooker base.
Installation of the cooker
The cooker is prepared with protection degree against
excessive heating of type X, the appliance can therefore
be installed next to cabinets, provided the height does not
exceed that of the hob. If the cooker is placed touching
walls or sides of neighbouring cabinets, these must be
capable of withstanding a temperature rise of 50°C above
room temperature. For a correct installation of the cook er
the following precautions must be follo wed:
a) The cooker may be located in a kitchen, a kitonen/
diner or bed sitting room, but not in a bathroom or
shower room.
b) The fur niture units next to the cooker, that is higher
than the working boards, must be placed at least
110mm from the edge of the board. Curtains must not
be fitted immediately behind the cooker or within 110
mm. of the sides of the cooker.
c) The hoods must be installed according to the
requirements in the hood handbook.
d) Wall cabinets may be fitted in line with the sides of the
base units, providing that the lower edge of the wall
cabinet is a minimum of 420 mm. above the worktop.
The minimum distance combustible material kitchen
units can be fitted directly above the worktop is 700
mm (Fig. A).
e) The wall in contact with the back of the cooker must
be of flameproof material.
f) The cooker is fitted with a safety chain that must be
attached to a hook, secured to the wall behind the
appliance.
Note: some models can have their gas connection
inverted. It is important to make sure the safety chain
is always situated on the side which corresponds to
the hose holder (Fig. B).
Mounting the legs (only on a few models)
Press-fit legs are supplied which fit under the base of your
cooker .
Fig. A Fig. B
Gas connection
The cooker should be connected to the gas-supply by a
corgi registered installer. During installation of this product
it is essential to fit an approved gas tap to isolate the supply
from the appliance for the conv enience of any subsequent
removal or servicing. Connection of the appliance to the
gas mains or liquid gas must be carried out according to
the prescribed regulation in force, and only after it is
ascertained that it is adaptable to the type of gas to be
used. If not, follow the instructions indicated in the
paragraph headed “Adaptation to diff erent gas types”. On
some models the gas supply can be connected on the left
or on the right, as necessary; to change the connection,
reverse the position of the hose holder with that of the cap
and replace the gasket (supplied with the appliance). In
the case of connection to liquid gas, by tank, use pressure
regulators that conform to the regulation in force. The gas
4
Page 5
supply must be connected to the left of the appliance. Be
sure that the hose does not pass through the rear of the
cooker touching hot parts.
HOT PARTS
Important: make sure the supply pressure conforms with
the values shown in the table entitled “Caracteristics of the
burners and nozzles”. When the cooker is installed
between cabinets (recessed), the gas connection must
be effected by an approved flexible hose with bayonet
fitting (BS 669 Current Edition). The gas inlet for the
cookers is a threaded G 1/2 gas female fitting.
Connecting the gas supply
To make the connection, a flexible hose should be used
corresponding to the current gas regulations which are:
• the hose must ne ver be at any point in its lenght in contact
with the “hot” parts of the cooker;
• the hose must ne ver be longer than 1,5 metre;
• the hose must not be subject to any tension or torsional
stress and it must not have an y excessively narrow curves
or bottlenecks;
• the hose must be easy to inspect along its entire length
to check its condition;
• the hose must alwa ys be in good condition, never attempt
to repair.
Important: the installation must comply with gas safety
(installation and use) regulations 1984. In all cases for the
above, b y low , a qualified, corgi approv ed engineer must be
called for installation.
Electrial connection
Pow er supply v oltage and frequency: 230-240V a.c. 50 Hz.
Note: the supply cable must be positioned so that it never
reaches at any point a temperature 50°C higher than the
room temperature. The cable must be routed a way from the
rear vents. Should you require it, you ma y use a longer cable,
however, you must ensure that the cable supplied with the
appliance is replaced by one of the same specifications in
accordance with current standards and legislation.
Y our appliance is supplied with a 13 amp fused plug that can
be plugged into a 13 amp socket f or immediate use. Bef ore
using the appliance please read the instructions below.
WARNING - THIS APPLIANCE MUST BE EARTHED.
THE FOLLOWING OPERA TIONS SHOULD BE CARRIED
OUT BY A QU ALIFIED ELECTRICIAN.
Replacing the fuse:
When replacing a faulty fuse, a 13 amp ASTA approved fuse
to BS 1362 should always be used, and the fuse cover refitted. If the fuse cover is lost, the plug must not be used until
a replacement is obtained.
colour as indicated by the coloured marking or the colour
that is embossed in words on the base of the plug.
Replacements can be obtained directly from your nearest
Service Depot.
Removing the plug:
If your appliance has a non-rewireable moulded plug and
you should wish to remov e it to add a cable extension or to
re-route the mains cable through partitions, units etc., please
ensure that either:
• the plug is replaced by a fused 13 amp re-wireab le plug
bearing the BSI mark of approval.
or:
• the mains cable is wired directly into a 13 amp cable outlet,
controlled by a switch, (in compliance with BS 5733) which
is accessible without moving the appliance.
Please note: for appliances with a rating greater than 13
amp (eg: electric hob , double ovens and freestanding electric
cookers etc.) the mains cable must be wired into a cooker
output point with a rating of 45 amp. In this case the cable is
not supplied.
Disposing of the plug:
Ensure that before disposing of the plug itself, y ou make the
pins unusable so that it cannot be accidentally inserted into
a socket. Instructions for connecting cable to an alternative
plug:
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
If the colours of the wires in the mains lead do not correspond
with the coloured markings identifying the terminals in your
plug, proceed as follows:
Connect Green & Yellow wire to terminal marked “E” or
or coloured Green or Green & Yellow .
Connect Brown wire to terminal marked “L” or coloured Red.
Connect Blue wire to terminal marked “N” or coloured Black.
If a 13 amp plug (BS 1363) is used it must be fitted with a 13
amp fuse. A 15 amp plug must be protected by a 15 amp
fuse, either in the plug or adaptor or at the distribution board.
If you are in any doubt about the electrical supply to your
machine, consult a qualified electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in accordance with
the following code:
BLUE “NEUTRAL” (“N”)
BROWN “LIVE” (“L”)
GREEN AND YELLOW “EARTH” (“E”)
GREEN &
YELLOW
BROWN
BLUE
13 amp fuse
CROSS-BAR
CORD GRIP
Replacement fuse covers:
If a replacement fuse cover is fitted, it must be of the correct
5
Page 6
Disposing of the appliance
V
When disposing of the appliance please remove the plug by
cutting the mains cable as close as possible to the plug body
and dispose of it as described above.
Adapting the cooker to different types of gas
In order to adapt the cooker to a different type of gas with
respect to the gas for which it was produced (indicated on
the label attached to the lid), follow these steps:
a) replace the hose holder mounted on the appliance with
that supplied in the bag of “cooker accessories”.
Important: the hose holder f or liquid gas is marked 8, the
hose holder for methane gas is marked 13. Alwa ys fit the
sealing gasket.
b) Replacing the burner nozzles on the hob:
• remove the grids and slide the burners from their
housings;
• unscrew the nozzles using a 7 mm socket spanner,
and replace them with nozzles for the new type of gas
(see table 1 “Burner and nozzle characteristics”).
• replace all the components by repeating the steps in
reverse order.
suited to the new type of gas (see table 1).
B
A

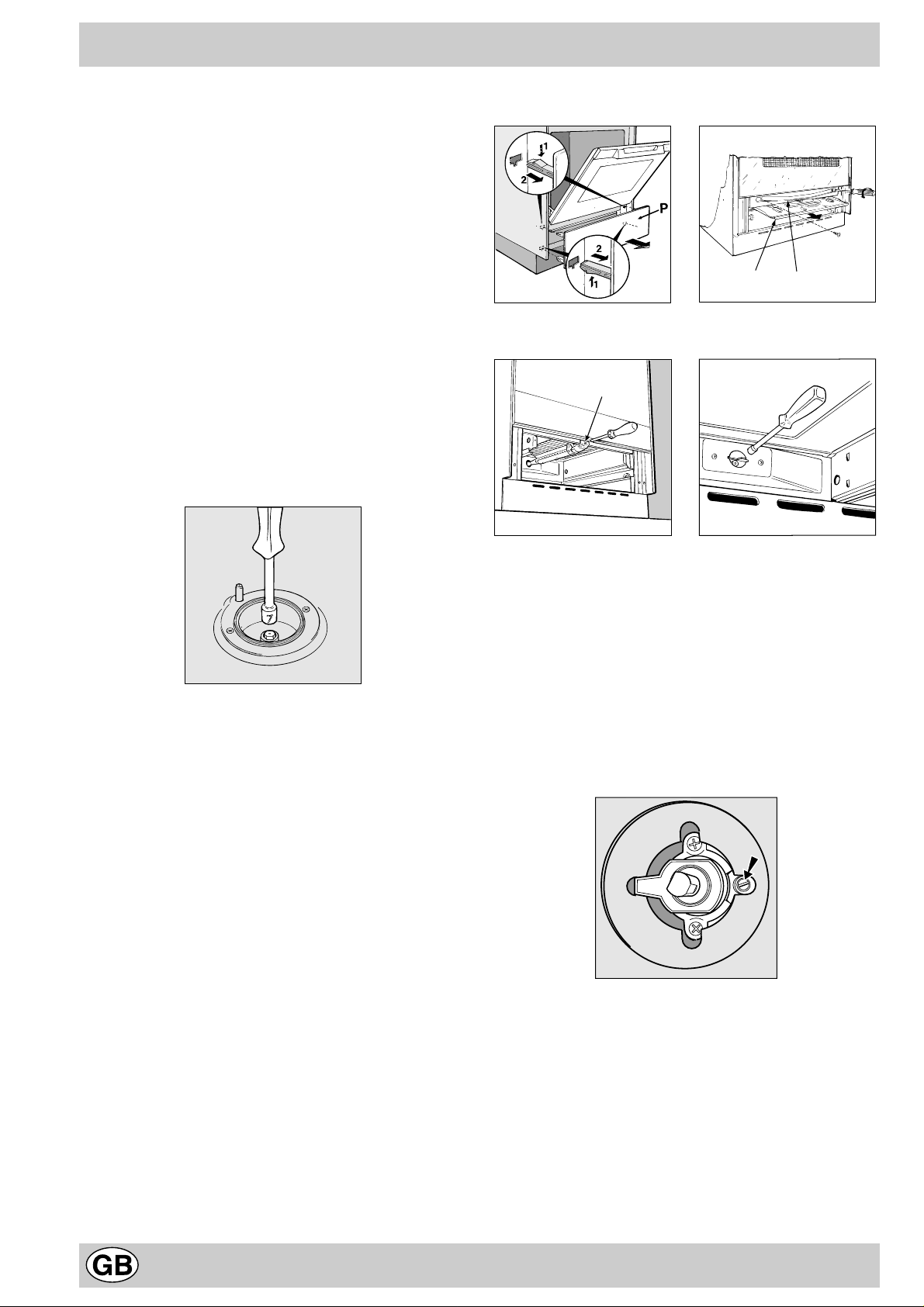

Fig. A Fig. B
c) Minimum regulation of the hob burners:
•
turn the tap to minimum;
• remov e the knob and adjust the regulation screw , which
is positioned in or next to the tap pin, until the flame is
small but steady.
N.B.: in the case of liquid gas, the regulation screw
must be screwed in to the bottom.
• check that the flame does not turn off when you turn
the tap quickly from high to low.
d) Regulating the primary air of the burners:
The primary air of the burners requires no regulation.
Adapting the gas oven to different types of gas
a) Replacing the oven burner nozzle:

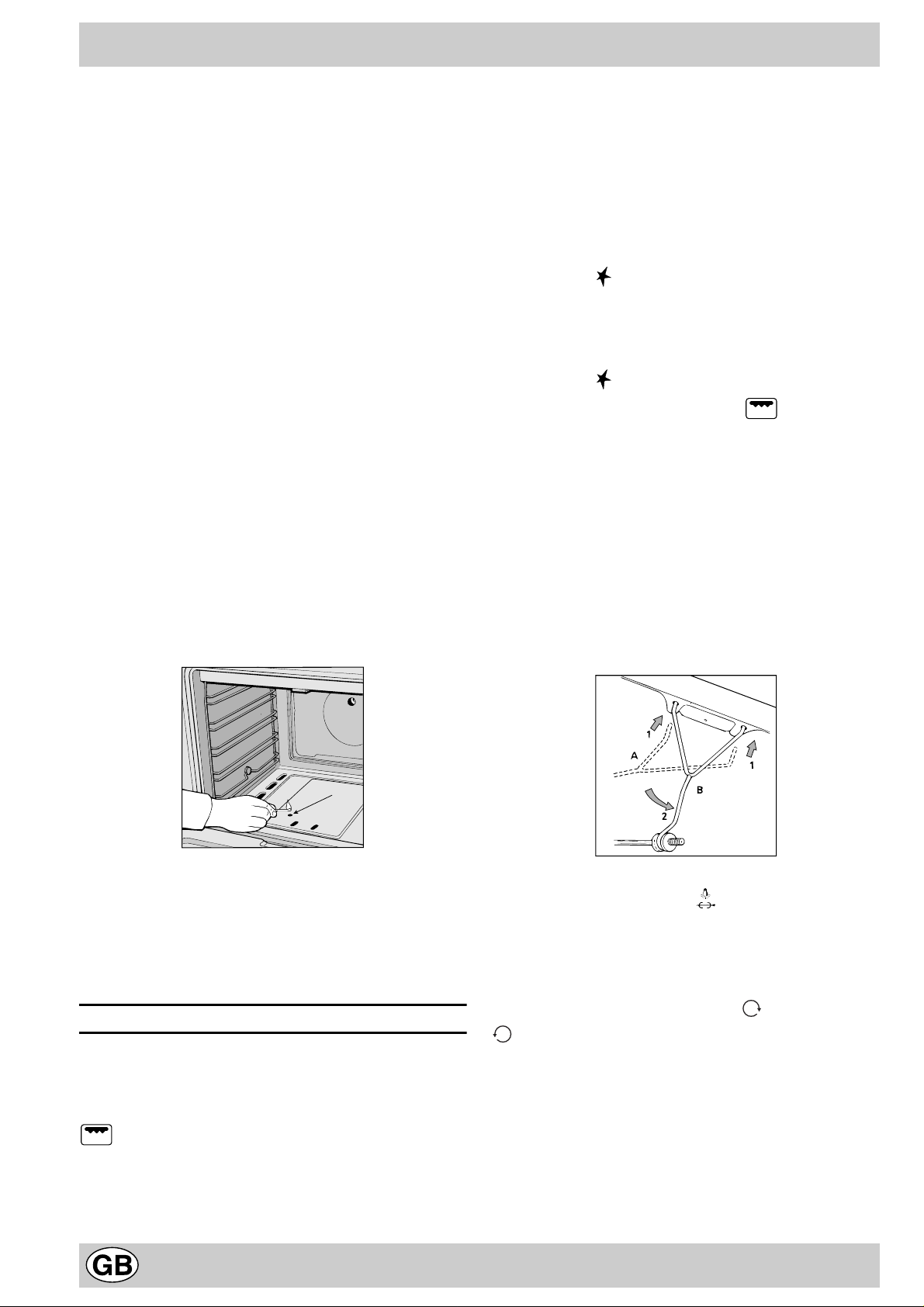

• remov e the w arming drawer;
• in the case of models without w arming drawer, remo ve
the panel “P” as indicated in Fig. A. Open the door,
release the two top inserts by pressing them
downwards, and then the two bottom inserts by
pressing them upwards.
• remov e the sliding protection “A”;
• remov e the two screws to dismount the protection “B”;
(see Fig. B);
• remove the screw and then the oven burner “V”(see
Fig. C). Remove the oven door to facilitate this
operation.
• unscrew the oven burner nozzle using the special
socket spanner for the nozzles (see Fig. D), or better
still a 7 mm socket spanner , and replace it with a nozzle
Fig. C Fig. D
b) Minimum regulation of the gas oven burner with
thermostat (see fig.):
• light the burner as described in the paragraph “the o ven
knob” of the instruction booklet.
• turn the knob to Max for about 10 minutes and then
turn the knob to the Min setting;
• remov e the knob;
• regulate the screw positioned outside the thermostat
pin until the flame is small but steady.
N.B.: in the case of liquid gas, the regulation screw
must be screwed in to the bottom.
• check that the b urner does not turn off when you turn
the knob from Max to Min and and when you open
and close the oven door quickly.
Adapting the gas grill to different types of gas
Replacing the nozzle of the grill burner:
• remove the screw and then slide out the grill burner
“V” (see Fig. E);
• unscrew the grill b urner nozzle using the special socket
spanner for the nozzles (see Fig. F) or better still a
7 mm socket spanner; replace the nozzle with a nozzle
for the new type of gas (see table 1).
6
Page 7
V
4
m
m
I
Fig. E Fig. F
Important: when mounting the grill burner check that there
is a space of at least 4 mm between the security
thermocouple (if installed) and the burner.
Important
On completion of the operation, replace the old rating
sticker with one indicating the new type of gas used. This
sticker is available from our Service Centres.
Note
Should the pressure of the gas used be different (or vary)
from the recommended pressure, it is necessary to fit a
suitable pressure regulator onto the inlet pipe in
compliance with current National Regulations relative to
“regulators for channelled gas”.

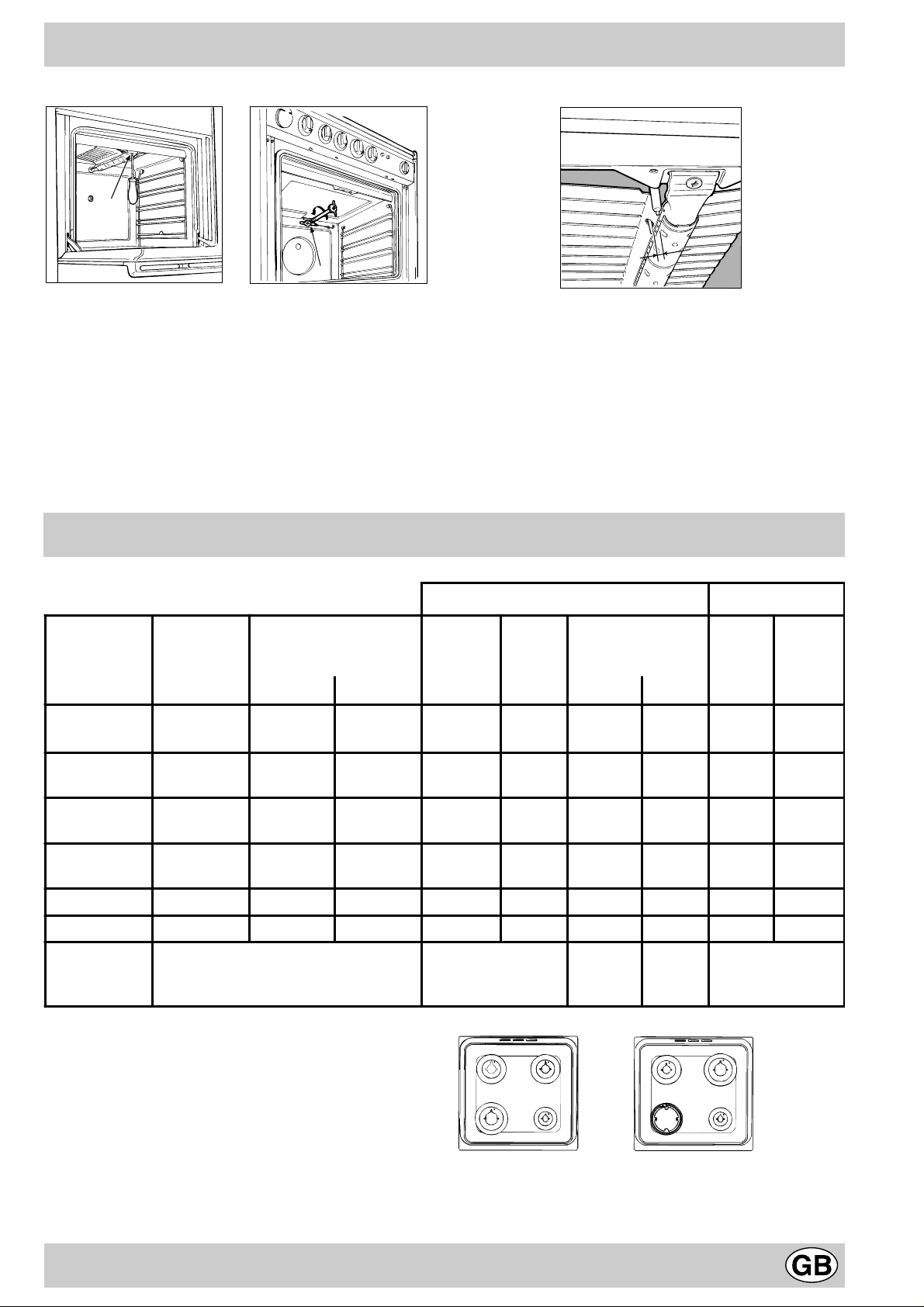

Burner and nozzle characteristics
Table 1 Liquid Gas Natural Gas
Burner Diameter
(mm)
Fast
(Large)(R)
100 3.00 0.7 41 86 218 214 116 286
Thermal Power
kW (p.c.s.*)
By-Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Nominal Reduced (mm) (mm) *** ** (mm)
Flow*
l/h
Semi Fast
(Medium)(S)
Auxiliary
(Small)(A)
Tr iple Crown
(TC)
75 1.90 0.4 30 70 138 136 106 181
55 1.00 0.4 30 50 73 71 79 95
130 3.25 1.5 63 91 236 232 133 309
Oven - 3.02 1.0 49 85 219 216 132 288
Grill - 2.50 - - 80 182 179 122 227
Supply
Pressures
Nominal (mbar)
Minimum (mbar)
Maximum ( mba r )
28-30
20
35
37
25
45
20
17
25
* At 15°C and 1013 mbar- dry gas
** Propane P.C.S. = 50,37 MJ/Kg
*** Butane P.C.S . = 49,47 MJ/Kg
Natural P.C.S. = 37,78 MJ/m
3
S
S
R
A
S
R
A
TC
K 642 G/G K 647 GS/G
K 642 GS/G
7
Page 8
Technical characteristics
Mains frequency and voltage of the electric section and characteristics of the gas section
Model Gas section Electric section
Class
K 642 G/G
K 642 GS/G
K 647 GS/G II2H3+
(1) The values in g/h refer to the capacities with l iqui d gas (Butane, Propane).
Inner dimensions of the oven:
Inner Volume of the Oven:
Innder dimensions of the plate plate warmer:
Voltage and Frequency of Power Suppl y:
II2H3+
Width: 40.7 cm
Depth: 40 cm
Height: 34 cm
55 lt
Width: 43 cm
Depth: 43 cm
Height: 8 cm
see data plate
Rated power
kW (1)
10,82 (787 g/h - G30)
(773 g/h - G31)
12,17 (885 g/h - G30)
(869 g/h - G31)
This appliance conforms with the following European
Economic Community directives:
- 73/23/EEC of 19/02/73 (Low V oltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 90/396/EEC of 29/06/90 (Gas) and subsequent
modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.
Voltage
230V~ 50/60Hz
230V~ 50/60Hz
Burners:
adaptable for use with all the types of gas indicated on
the data plate
8
Page 9

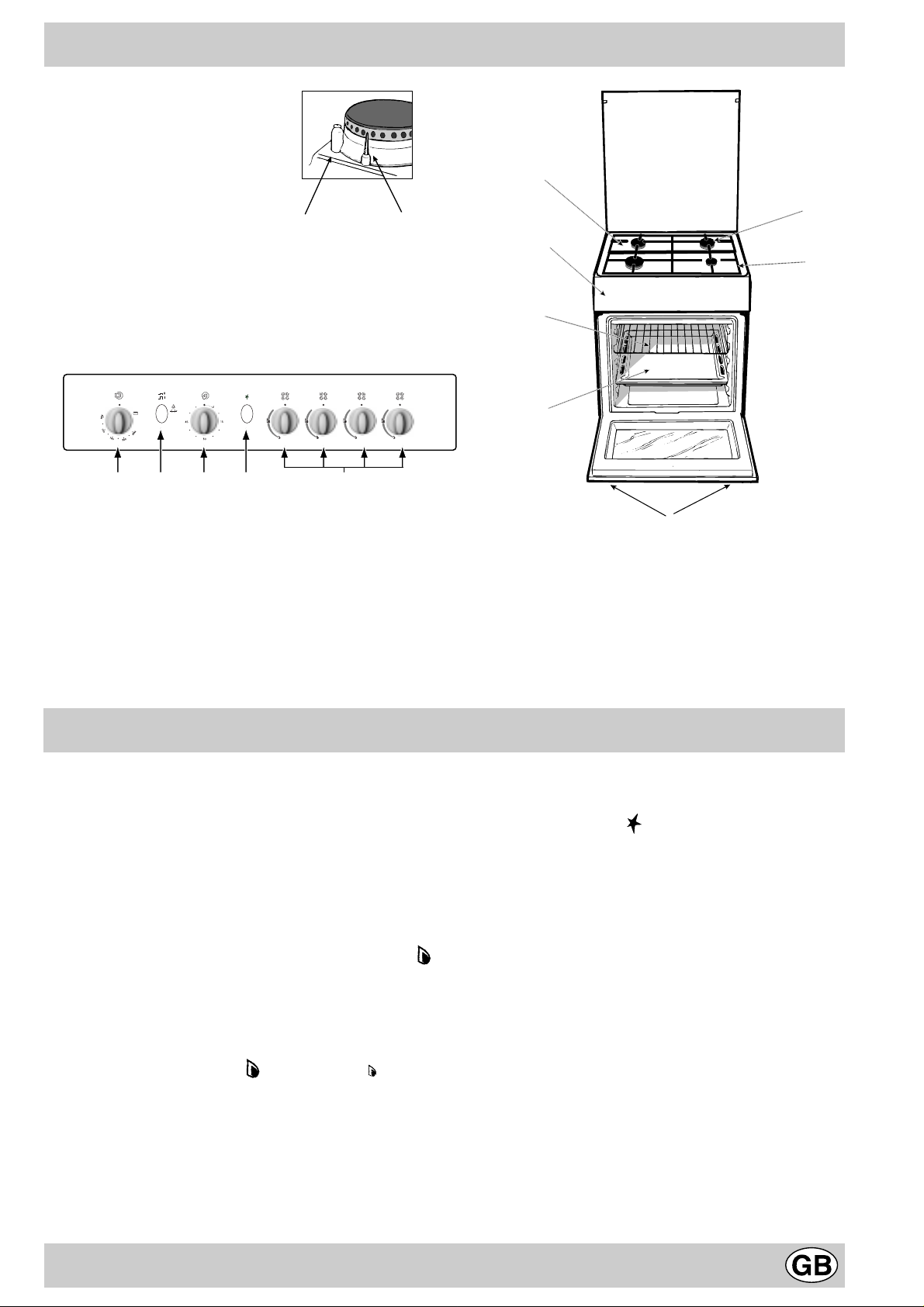

The cooker with gas oven
C
MOPL N
A
B
H
E
D
K
G
A Tray for Catching Overflows
B Gas Burner
C Instantaneous Electronic Lighting Device
D Top Gr ate
E Control Panel
F Adjustable Feet or Legs
G Dripping Pan or Baking Sheet
The different functions and uses of the oven
The various functions included in the cooker are selected
by operating the control devices located on the cooker
control panel.
Control Knobs for the Gas Burners on the Hob
The position of the gas burner controlled by each one of
the knobs is shown by a symbol of a solid ring:•. To light
one of the burners, hold a lighted match or lighter near
the burner. Press down and turn the corresponding knob
in the counter-clockwise direction to the maximum
setting. Each burner can be operated at its maximum,
minimum or intermediate power. Shown on the knob are
the different symbols for off • (the knob is on this setting
when the symbol lines up with the reference mark on the
control panel), for maximum and minimum .
To obtain these settings, turn the knob counter-clockwise
with respect to the off position. To turn off the burner, turn
the knob clockwise until it stops (corresponding again with
the • symbol).
Electronic Lighting of the Hob Burners
Some models are equipped with instant electronic lighting of the gas burners located on the hob, which can be
F
H Flame Failure Device for Cooktop Burners (only a
few models)
K Oven Rack
L Electronic Lighting for Hob Burners
M Oven Control Knob
N Control Knobs for Gas Burners on Hob
O Button for Oven and Rotisserie Light
P Timer Knob
identified by the presence of an igniter device (see detail
C). This de vice is activated b y lighting pressing on the “ L”
button, identified by the symbol. To turn on a burner,
simply press the “L” button and then press while, at the
same time, pressing in and turning the control knob for
the burner in the anticlockwise direction until the burner
lights. To light the burner immediately, it is recom-
mended that the button be pressed first and then the
knob turned.
Caution: If the burner accidentally goes out, turn off
the burner using the knob and wait at least one minute
before relighting.
Models with Flame Failure Device
These models are identified by the presence of a flame
detection device (see detail H).
Important: Since the top burners are equipped with a
safety device, after lighting the burner keep the knob
pressed in for about 6 seconds to allow the gas to pass
until the safety thermocouple is heated.
Gas Cut Off
This cooker has a safety cut out feature which switches
off the burners when you close the cover. This device is
provided as a safety f eature in case the cover is lowered
9
Page 10
with the burners on. Alw ays turn off the gas and allow the
burners to cool before closing the cov er. Failure to follow
these instructions may cause the glass cover to shatter.
Keep the cover open when using the oven.
the relative paragraph). In this wa y the infrared ray comes
on for browning the food or cooking roast, chops,
sausages, roast-beef, etc.; for grill cooking, place a drippan under the grill to catch the grease.
Attention: bef ore using the oven and g rill for the first time,
turn the oven on for approximately one half hour. Make
sure that the oven is empty, the thermostat on high, the
door open, and the room properly ventilated. The odor
which can be detected at times is due to the evapor ation
off the substances used to protect the oven and the grill
during the period between the time of production and
installation of the appliance.
Attention: Only use the bottom shelf of the oven when
using the rotisserie to cook (where present). F or all other
types of cooking, never use the bottom shelf and never
place anything on the bottom of the oven when it is in
operation because this could damage the enamel. Always
place your cookware (dishes, aluminium f oil, etc. etc.) on
the grate provided with the appliance inserted especially
along the oven guides.
The oven and grill knob (M)
This knob is used to select the different functions of the
oven and choose the right cooking temperature for the
food to be prepared in the ov en among the temperatures
shown on the knob (from Min to Max).
To light the oven burner, hold a lighted match or lighter
near hole “F” and turn the oven knob counter anti clockwise
up to the Max position.
Oven and grill electronic lighting device (L) (only a
few models)
Some models are equipped with electronic lighting device
on oven and grill.
T o light the oven gas burner press in the botton marked
by the symbol , press deeply and turn the oven knob
clockwise, till to the position “ Max”.
It is necessary to hold pressed in the knob for about
4 seconds in order to activate the flame failure device.
To light on the grill burner press in the bottom marked
by the symbol , press deeply and turn the oven knob
counter clock wise till to the position (grill).
It is necessary to hold pressed in the knob for about
4 seconds in order to activate the flame failure device.
In case of lack of electricity light the oven or grill manuall,
following the instruction of “the ov en knob par agraph”.
The rotisserie
When using the rotisserie act in this way:
a) fit supporting hook into the two holes in the lower side
of the grill protection (position A);
b) fit the spit into the hole in the centre of the back of the
oven, making sure that the fore clasping link of the spit
is correctly positioned on the supporting hook (position
B);
c) start up the rotisserie by pressing the botton "O".
F
The models equipped with a safety device on oven
burner, the knob must be kept pressed in for about 6
seconds to activate the flame failure device. (For the
models provided with electr onic lighting see the relative paragraph).
The cooking temperature is selected by matching the
desired temperature with the permanent reference on the
panel; the complete range of temperatures is sho wn below:
Min • 150 • 180 • 220 Max
130 140 160 200 250
The selected temperature is reached automatically and it
is kept constant by the knob-controlled thermostat.
To use the grill, turn the knob clockwise till to setting
, after holding a lighted match or a lighter close to
the grill burner.
The models equipped with a safety device on grill
burner, the knob must be held pressed in for about 6
seconds in order to activate the flame failure device
(for the model provided with electronic lighting see
Oven light button (O)
This is marked by the symbol and switchs on the light
inside the oven so that you can control the cooking without
opening the door.
Timer Knob
T o use the timer , the ringer "S" must be wound up by turning the knob one full turn clockwise ; then turn it back
, to the desired time so that the number of minutes on
the knob matches the reference mark on the panel.
Attention
Avoid the children touch the o v en door because it is v ery
hot during the cooking.
Practical advice for burner use
In order to get the maximum yield it is important to
remember the following:
· Use appropriate cookware for each burner (see table)
so as to avoid flames ov ershooting the edges .
10
Page 11
· At boiling point turn the knob to minimum.
· Use cookware with lids.
· Always use cookware with flat bottoms.
Burner ø Cookware Diameter (cm)
Fast (R) 24 - 26
Semi Fast (S) 16 - 20
Auxiliary (A) 10 - 14
Triple Crown (TC) 24 - 26
Cooking advice
The oven off ers a wide range of alternatives which allow
you to cook any type of food in the best possib le wa y . With
time you will learn to make the best use of this versatile
cooking appliance and the following directions are only a
guideline which may be varied according to your o wn personal experience.
N.B. On the models supplied with a reducer shelf,
remember that this should be used only for the auxiliary
burner when you use casserole dishes with a diameter
under 12 cm.
I used more than one level and they are not all at
the same cooking point
Use a lower temperature setting. It is not necessary to
remove the food from all the racks at the same time.
Baking cakes
The oven should alwa ys be warm before putting in cak es
wait till the end of preheating (about 15 min.). Cake-baking
temperatures are normally around 160°C. Do not open
the oven door during the baking process as this could
cause the cake to sink.
Beaten cake mixtures should not be too soft as this could
considerably lengthen cooking times. In general:
Pastry is too dry
Increase the temperature by 10°C and reduce the
cooking time.
Pastry dropped
Use less liquid or lower the temperature by 10°C.
Pastry is too da rk on t op
Place it on a lower rack, lower the temperature, and
increase the cooking t ime.
Cooked well on the inside but sticky on the outside
Cooking fish and meat
Meat must weigh at least one Kg. to stop it becoming too
dry. When cooking white meat, fowl and fish use low
temperatures. (150°C-175°C). When red meat must be
superficially well-cooked but succulent inside, it is
advisable to start with a high temperature (200-220°C)
for a short time, and then to reduce it at a later point.
Generally speaking, the more meat there is, the lower the
temperature and the longer the cooking time should
be.Place the meat in the centre of the grid and put a spilltray underneath to catch grease drips. Insert the grid so
that it is in the middle of the oven. If more heat from below
is required, use the 1° bottom shelf. For tastier roasts,
wrap the meat with bacon rashers or dot the meat with
lard and place it in the upper part of the oven. When some
types of food are cooked in the ventilated oven (duck,
rabbit, large fowl) they become too dry; in these cases,
better results are obtained using the combined oven.
Use less liquid, l ower the temperature, and increas e the
cooking time.
The pastry sticks to the pan
Grease the pan well and sprinkl e it wit h a dusting of
flour.
11
Page 12
Cooker routine maintenance and cleaning
Before each operation, disconnect the cooker from
the electricity .To assure the long life of the cooker, it must
be thoroughly cleaned frequently, keeping in mind that:
· the enamelled parts and the self-cleaning panels are
washed with warm water without using any abrasive
powders or corrosive substances which could ruin
them;
· the inside of the oven should be cleaned fairly often
while it is still warm using warm water and detergent,
followed b y careful rinsing and drying;
· the flame spreaders should be washed frequently with
hot water and detergent taking care to eliminate any
scale;
· in cookers equipped with automatic lighting, the
terminal part of the electronic instant lighting devices
should be cleaned frequently and the gas outlet holes
of the flame spreaders should be checked to make
sure they are free of any obstructions;
· Stainless steel may become marked if it comes into
contact with very hard water or harsh detergents
(containing phosphorous) for long periods of time. After
cleaning, it is advisable to rinse thoroughly and dry. It
is also recommended to dry any water drops;
• On models with glass covers, the covers should be
cleaned with hot water; the use of rough cloths or
abrasives is to be av oided.
N.B: avoid closing the cover while the gas burners are
still warm.
Important: per iodically check the wear of the gas hose
and substitute it if there are any defects; we recommended
changing it every year.

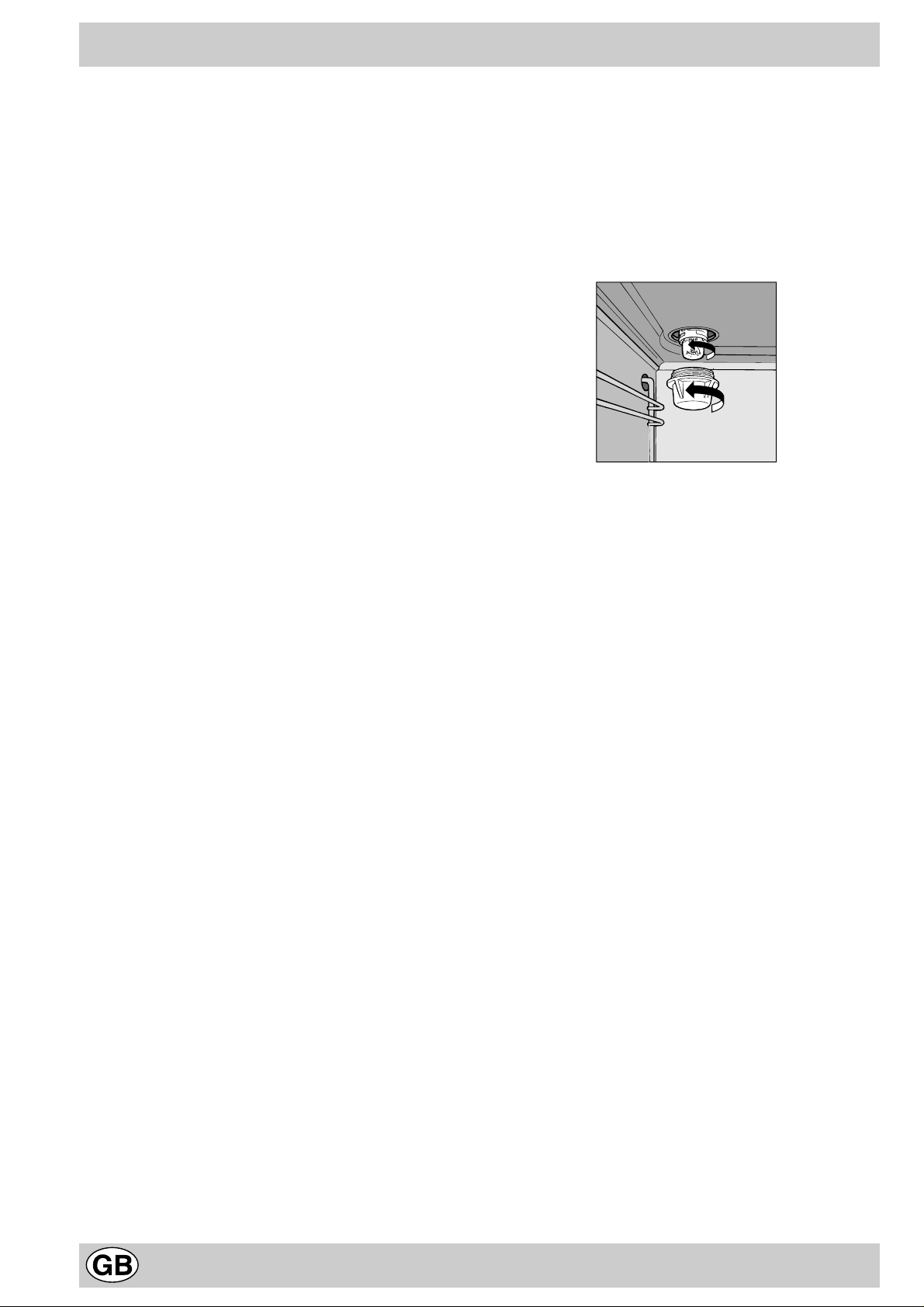

Replacing the oven lamp
· Unplug the oven from the mains;
· Remove the glass cover of the lamp-holder;
· Remove the lamp and replace with a lamp resistant to
high temperatures (300°C) with the following
characteristics::
- V oltage 230V
- Wattage 25W
- Type E14
· Replace the glass cover and reconnect the oven to
the mains.
Greasing the taps
The taps may jam in time or they ma y become difficult to
turn. If so, the y must be cleaned internally and the grease
replaced.
N.B: This operation must be carried by a technician
authorised by the manufacturer.
12
Page 13
Pratical advice for oven cooking
Food to be cooked
Pasta
Lasagne 2.5 3 210 - 75-80
Cannelloni 2.5 3 210 - 75-80
Pasta bakes 2.5 3 210 - 75-80
Meat
Veal 1.7 3 230 - 85-90
Chicken 1.5 3 220 - 110-115
Turkey 3.0 3 MAX - 95-100
Duck 1.8 3 230 - 120/125
Rabbit 2 3 230 - 105/110
Pork 2.1 3 230 - 100/110
Lamb 1.8 3 230 - 90-95
Fish
Mackerel 1.1 3 210-230 - 55-60
Dentex 1.5 3 210-230 - 60-65
Wt.
(Kg)
Cooking posit ion of
shelves from
bottom
Temperature
(°C)
Pre-heating time
(min)
Cooking time
(min.)
Trout baked in paper 1.0 3 210-230 - 40-45
Pizza
Neapolitan 1.0 3 MAX 15 30-35
Cake
Biscuits 0.5 3 180 15 30-35
Tarts 1.1 3 180 15 30-35
Chocolate cake 1 3 200 15 45- 50
Raised Cakes 1 3 200 15 50/55
Grill cooking
Toasted sandwiches n.° 4 4 10
Pork chops 1.5 4 30
Mackerel 1.1 4 35
Rotisserie
Veal on the spit 1 2 80
Chicken on the spit 2 2 90
NB: cooking times are approximate and may vary according to personal taste.
13
Page 14
14
Page 15
15
Page 16
Merloni Elettrodomestici
Viale Aristide Merloni 47
60044 Fabriano
Italy
Tel +39 0732 6611
Fax +39 0732 662501
www .merloni.com
Cucina con forno e grill gas
06/00 - 195026721.00 Xerox Business Services - Docutech
Loading...
