Page 1
Cooker with electr ic
ventilated oven
Instructions for installation and use
K 642 VS/G
K 642 V/G
Page 2
Cooker with electric ventilated oven
Instructions for installation and use
Page 3
Important safety warnings
T o maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• use only the MANUFACTURER Service
• use only ORIGINAL Spare P arts
1 This owner's manual is for a c lass 1 appliance (installed
independently) or class 2 - sub-class 1 appliances
(installed between two cabinets).
2 Before using the appliance, read the instructions in this
owner’ s manual carefull y since y ou should find all the
instruction you require to ensure safe installation, use
and maintenance.
Always keep this owner’s manual close to hand since
you may need to refer to it in the future.
3 When you have removed the packing, check that the
appliance is not damaged. If you have any doubts, do not
use the appliance, contact your nearest Ariston Service
Centre. Ne ver lea ve the packing components (plastic bags ,
foamed polystyrene, nails, etc.) within the reach of children
since they are a source of potential danger.
4 The appliance must be installed only by a qualified person in
compliance with the instructions provided. The manufacturer
declines all responsibility for improper installation which may
harm persons and animals and damage property .
5 The electrical safety of this appliance can only be guaranteed
if the cooker is correctly and efficiently earthed, in compliance
with current regulations on electrical safety. Alwa ys ensure
that the earthing is efficient; if you hav e any doubts call in a
qualified electrician to check the system. The man ufacturer
declines all responsibility for damage resulting from a system
which has not been earthed.
6 Before connecting the appliance to the mains, chec k that the
specifications indicated on the rating plate correspond to those
of the electrical mains system of your home.
7 The cooker must be connected to the mains electrical supply
via a earthed 13 or 15 amp. socket outlet, meeting the
electrical current requirements detailed under “electrical
Connection” in the installation section later in this book.
8 The openings and slots used for ventilation and dispersion
of heat on the rear and below the control panel must nev er
be covered.
9 This appliance must be used for the purpose for which it w as
expressly designed. Any other use (e.g. heating rooms) is
considered to be improper and consequently dangerous. The
manufacturer declines all responsibility f or damage resulting
from improper and irresponsible use.
10 A number of fundamental rules must be followed when using
electrical appliances. The following are of particular
importance:
• do not touch the appliance when your hands or feet are
wet
• do not use the appliance barefooted
• never allow the Mains Cable to be stretched, pulled or
damaged if the Cooker is moved f or cleaning etc. Do not
use the cooker if the Mains Cable is damaged, consult a
qualified electrician.
• do not allow the cooker to be used unsupervised by
children or persons unfamiliar with it.
11 Always s witch off the electrical supply to the cooker and allow
it to cool down before carrying out any cleaning operations
etc.
12 In the case of faults and/or faulty operation, switch off the
electricity supply to the cooker and do not tamper with it. For
repairs call only an authorised after-sales servicing centre
and request the use of original spare parts only. Failure to
comply with the above may compromise the safety of the
appliance.
13 Remember if you are discarding any domestic appliance
with which children etc. ma y pla y, make it safe by removing
the Mains Cable from it, after first disconnecting the electricity
supply. Remove glass parts where possible, and consider
sharp edges etc. which may no w be exposed.
14 Oven gloves or similar protection should be used when
moving containers in or out of hot ovens and care should be
be taken to av oid contact with hot surfaces by e xposed skin
on wrists or arms.
15 One of the commonest types of accident involving cooking
appliances is burns to babies and young children. These
can occur by:
a) T ouching hot parts
b) Being splashed with hot liquids
c) By pulling projecting pan handles and tipping hot liquids
over themselv es
16 Please remember that a small child’s skin is f ar more sensitive
and therefore easily burnt. Y ou are , therefore, strongly advised
to keep babies and young children well clear of this appliance
during use and whilst it is cooling down after use.
17 Unstable or out of shape pans should not be used on the
hob in case they cause spillage of hot liquids by tipping ov er.
18 Pans must only be placed in the centre of the b urners. Placing
pans off centre may cause cooking irregularites.
19 Special care should be taken when using chip pans etc. in
order to avoid splashing or spillage of hot oil. They should not
be used unattended since overheated oil ma y boil over and
could also ignite.
20 Parts of this appliance, cooking surfaces, retain heat for
considerable periods after switching off. Care should,
therefore, be tak en when touching these areas before the y
have completely cooled do wn.
21 Remember to keep children away from the appliance
when you use the grill or oven, since these parts become
very hot.
22 Never use flammable liquids such as alcohol or gasoline,
etc. near the appliance when it is in use.
23 Wear oven gloves when placing coockw are in the oven or
removing it.
24 Never use the o ven as place to store flammable material.
25 When using small electric appliances near the hob, keep the
supply cord away from the hot parts.
26 Make sure the knobs are in the “•”/”O” position when the
appliance is not in use.
27 W arning: open the door with care since if you are not careful
you may hurt yourself in the hinge area.
28 Gas units need a regular air replacement for a correct
functioning. Make sure that the requirements requested
in the “Positioning” paragraph are all observed in the
owner’ s manual.
3
Page 4
Installation
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
The following instructions should be read by a qualified
technician to ensure that the appliance is installed, regulated
and technically serviced correctly in compliance with current
regulations.
Important: remember to unplug the appliance from the
mains before regulating the appliance or carrying out
any maintenance work.
Positioning
Important: this unit may be installed and used only in
permanently ventilated rooms according to the British Standards
Codes Of Practice: B .S. 6172/B.S. 5440, P ar . 2 and B.S. 6891
Current Editions. The following requirements must be observed:
a) The cooker should not be installed in a bed sitting room with
a volume of less than 20m3. If it is installed in a room of
volume less than 5m3 an air vent of effectiv e area of 110cm
is required, if it is installed in a room of volume between 5m
and 10m3 a supplementary airvent area of 50cm2 is required,
if the volume exceeds 11m3 no airvent is required. However ,
if the room has a door or a window which opens directly to
the outside no air vent is required e ven when the volume is
between 5m3 and 11m3.
b) During prolonged use of the appliance you may consider it
necessary to open a window to the outside to improve
ventilation.
c) If there are other fuel burning appliances in the same room,
B.S.5440 Part 2 Current Edition, should, be consulted to
determine the requisite air vent requirements.

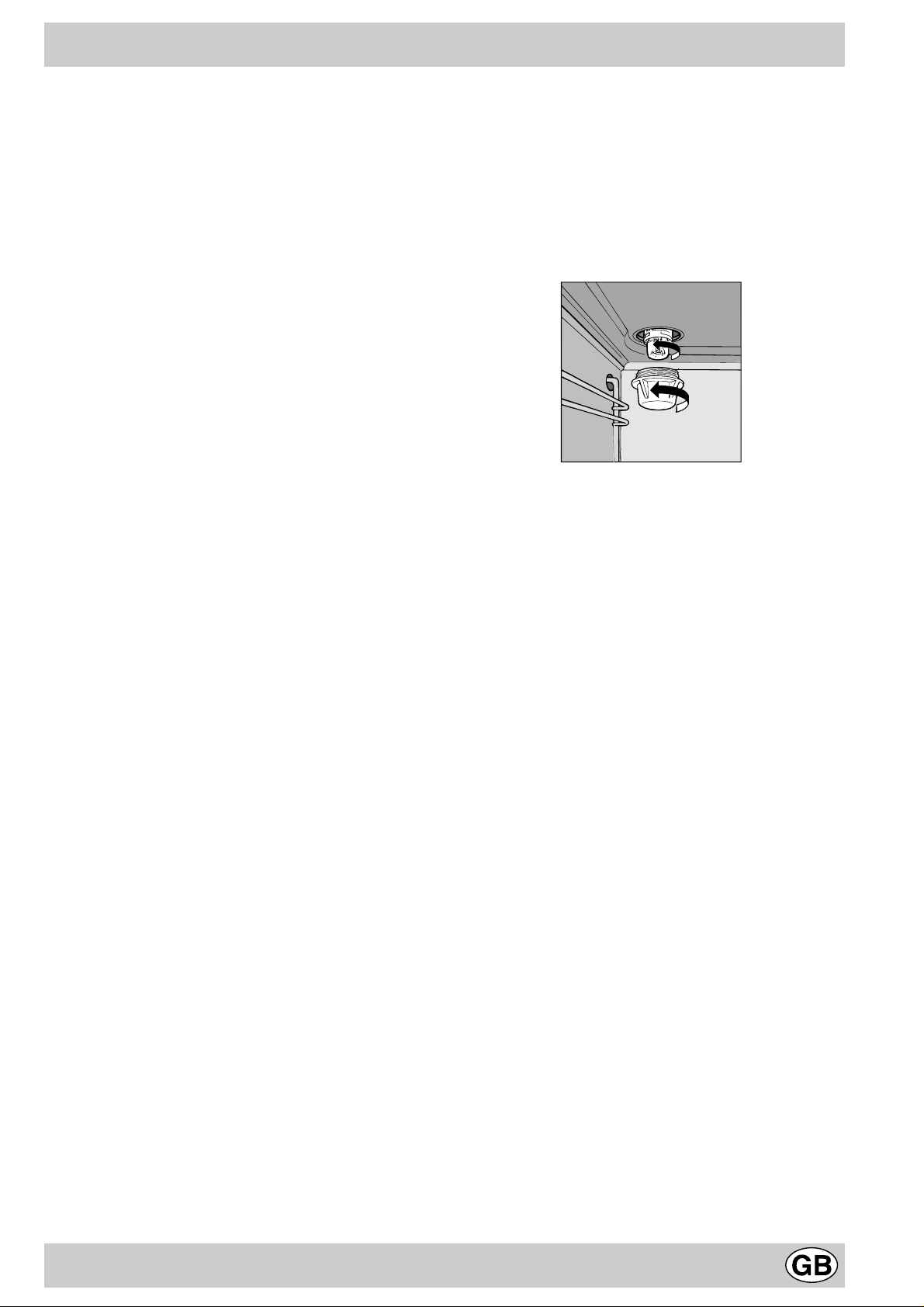

Levelling your appliance (only on a f ew models)
Y our cook er is supplied with feet for le velling the appliance. If
necessary, these feet can be screwed into the housings in
the corners of the cooker base.
Installation of the cooker
The cooker is prepared with protection degree against
excessive heating of type X, the appliance can theref ore be
installed next to cabinets, provided the height does not e xceed
that of the hob. If the cooker is placed touching walls or sides
of neighbouring cabinets, these must be capable of
withstanding a temperature rise of 50°C above room temperature. For a correct installation of the cooker the following
precautions must be followed:
a) The cooker may be located in a kitchen, a kitonen/diner
or bed sitting room, but not in a bathroom or shower room.
b) The furniture units next to the cooker , that is higher than
the working boards, must be placed at least 110mm from
the edge of the board. Curtains must not be fitted
2
3
immediately behind the cooker or within 110 mm. of the
sides of the cooker.
c) The hoods must be installed according to the
requirements in the hood handbook.
d) Wall cabinets may be fitted in line with the sides of the
base units, providing that the lower edge of the w all cabinet
is a minimum of 420 mm. abo ve the worktop. The minimum
distance combustible material kitchen units can be fitted
directly above the worktop is 700 mm (Fig. A).
e) The wall in contact with the back of the cooker must be of
flameproof material.
f) The cooker is fitted with a safety chain that must be
attached to a hook, secured to the wall behind the
appliance.
Note: some models can have their gas connection
inverted. It is important to make sure the safety chain
is always situated on the side which corresponds to
the hose holder (Fig. B).
Mounting the legs (only on a few models)
Press-fit legs are supplied which fit under the base of your
cooker.
Fig. A Fig. B
Gas connection
The cooker should be connected to the gas-supply by a corgi
registered installer. During installation of this product it is
essential to fit an approved gas tap to isolate the supply from
the appliance for the conv enience of any subsequent removal
or servicing. Connection of the appliance to the gas mains
or liquid gas must be carried out according to the prescribed
regulation in force, and only after it is ascertained that it is
adaptable to the type of gas to be used. If not, follow the
instructions indicated in the paragraph headed “Adaptation
to different gas types”. In the case of connection to liquid
gas, by tank, use pressure regulators that conform to the
regulation in force. The gas supply m ust be connected to the
left of the appliance. Be sure that the hose does not pass
through the rear of the cooker touching hot parts.
4
Page 5
HOT PARTS

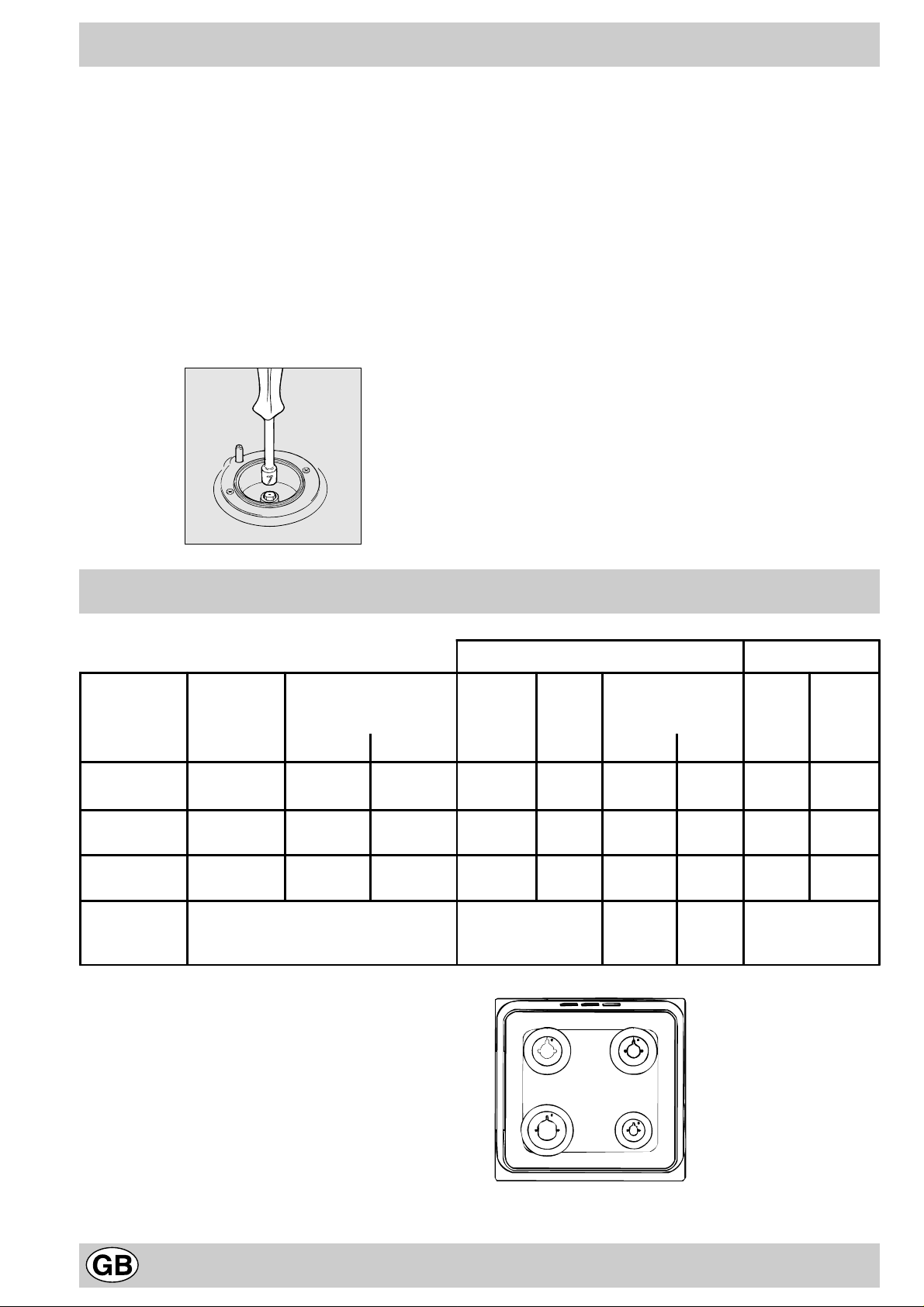

Important: make sure the supply pressure conforms with the
values shown in the table entitled “Caracteristics of the burners
and nozzles”. When the cooker is installed between cabinets
(recessed), the gas connection must be effected by an
approved flexible hose with bayonet fitting
(BS 669 Current Edition). The gas inlet for the cookers is a
threaded G 1/2 gas female fitting.
Connecting the gas supply
To make the connection, a flexible hose should be used
corresponding to the current gas regulations which are:
• the hose must nev er be at any point in its lenght in contact
with the “hot” parts of the cooker;
• the hose must never be longer than 1,5 metre;
• the hose must not be subject to any tension or torsional
stress and it must not have an y excessiv ely narrow curves
or bottlenecks;
• the hose must be easy to inspect along its entire length to
check its condition;
• the hose must always be in good condition, ne v er attempt
to repair.
Important: the installation must comply with gas safety
(installation and use) regulations 1984. In all cases f or the above,
by low , a qualified, corgi approv ed engineer must be called f or
installation.
Electrial connection
Po wer supply voltage and frequency: 230-240V a.c. 50 Hz.
Note: the supply cable must be positioned so that it never
reaches at any point a temperature 50°C higher than the room
temperature. The cable must be routed a way from the rear vents.
Should you require it, you may use a longer cable, however,
you must ensure that the cable supplied with the appliance is
replaced by one of the same specifications in accordance with
current standards and legislation.
Y our appliance is supplied with a 13 amp fused plug that can be
plugged into a 13 amp socket for immediate use . Before using
the appliance please read the instructions below .
WARNING - THIS APPLIANCE MUST BE EARTHED.
THE FOLLOWING OPERATIONS SHOULD BE CARRIED
OUT BY A QUALIFIED ELECTRICIAN.
Replacing the fuse:
When replacing a faulty fuse, a 13 amp ASTA approved fuse to
BS 1362 should always be used, and the fuse co ver re-fitted. If
the fuse cover is lost, the plug must not be used until a
replacement is obtained.
Replacement fuse covers:
If a replacement fuse cover is fitted, it must be of the correct
colour as indicated by the coloured marking or the colour that is
embossed in words on the base of the plug. Replacements can
be obtained directly from your nearest Service Depot.
Removing the plug:
If your appliance has a non-rewireable moulded plug and y ou
should wish to remove it to add a cab le extension or to re-route
the mains cable through partitions, units etc., please ensure
that either:
• the plug is replaced by a fused 13 amp re-wireable plug
bearing the BSI mark of approval.
or:
• the mains cable is wired directly into a 13 amp cable outlet,
controlled by a switch, (in compliance with BS 5733) which
is accessible without moving the appliance.
Please note: for appliances with a rating greater than 13 amp
(eg: electric hob , double ovens and freestanding electric cookers
etc.) the mains cable must be wired into a cooker output point
with a rating of 45 amp. In this case the cab le is not supplied.
Disposing of the plug:
Ensure that before disposing of the plug itself, you make the
pins unusable so that it cannot be accidentally inserted into a
socket. Instructions for connecting cab le to an alternative plug:
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
If the colours of the wires in the mains lead do not correspond
with the coloured markings identifying the terminals in your plug,
proceed as follows:
Connect Green & Yellow wire to terminal marked “E” or or
coloured Green or Green & Yellow .
Connect Brown wire to terminal marked “L” or coloured Red.
Connect Blue wire to terminal marked “N” or coloured Blac k.
If a 13 amp plug (BS 1363) is used it must be fitted with a 13
amp fuse. A 15 amp plug must be protected by a 15 amp fuse,
either in the plug or adaptor or at the distribution board. If y ou
are in any doubt about the electrical supply to your machine,
consult a qualified electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in accordance with
the following code:
BLUE “NEUTRAL” (“N”)
BRO WN “LIVE” (“L”)
GREEN AND YELLOW “EARTH” (“E”)
GREEN &
YELLOW
BROWN
BLUE
13 amp fuse
CROSS-BAR
CORD GRIP
Disposing of the appliance
When disposing of the appliance please remove the plug by
cutting the mains cable as close as possible to the plug body
and dispose of it as described above.
Adapting the cooker to different types of gas
In order to adapt the cooker to a different type of gas with
respect to the gas for which it was produced (indicated on
5
Page 6
the label attached to the lid), follow these steps:
a) replace the hose holder mounted on the appliance with
that supplied in the bag of “cooker accessories”.
Important: the hose holder for liquid gas is marked 8, the
hose holder for methane gas is marked 13. Always fit the
sealing gasket.
b) Replacing the burner nozzles on the hob:
• remove the grids and slide the burners from their
housings;
• unscrew the nozzles using a 7 mm soc ket spanner , and
replace them with nozzles for the new type of gas (see
table 1 “Burner and nozzle characteristics”).
• replace all the components by repeating the steps in
reverse order .
c) Minimum regulation of the hob burners:
•
turn the tap to minimum;
• remove the knob and adjust the regulation scre w , which
is positioned in or next to the tap pin, until the flame is
small but steady.
N.B.: in the case of liquid gas, the regulation screw must
be screwed in to the bottom.
• check that the flame does not turn off when you turn the
tap quickly from high to low .
d) Regulating the primary air of the burners:
The primary air of the burners requires no regulation.
Important
On completion of the operation, replace the old rating stick er
with one indicating the new type of gas used. This stic k er is
available from our Service Centres.
Note
Should the pressure of the gas used be different (or vary)
from the recommended pressure, it is necessary to fit a
suitable pressure regulator onto the inlet pipe in compliance
with current National Regulations relative to “regulators for
channelled gas”.
Burner and nozzle characteristics
Table 1 Liquid Gas Natural Gas
Burner Diameter
(mm)
Fast
(Large)(R)
Semi Fast
(Medium)(S)
Auxiliary
(Small)(A)
Supply
Pressures
100 3.00 0.7 41 86 218 214 116 286
75 1.90 0.4 30 70 138 136 106 181
55 1.00 0.4 30 50 73 71 79 95
Nominal (mbar)
Minimum (mbar)
Maximum ( mba r )
* At 15°C and 1013 mbar- dry gas
** Propane P.C.S. = 50,37 MJ/Kg
*** Butane P.C.S. = 49,47 MJ/Kg
Natural P.C.S. = 37,78 MJ/m
Thermal Power
kW (p.c.s.*)
By-Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Nominal Reduced (mm) (mm) *** ** (mm)
28-30
20
35
3
S
S
37
25
45
Flow*
20
17
25
l/h
K 642 VS/G
K 642 V/G
6
R
A
Page 7
Technical characteristics
Mains frequency and voltage of the electric section and characteristics of the gas section
Model Gas section Electric section
Class
K 642 VS/G
K 642 V/G
(1) The values in g/h refer to the capacities with l iqui d gas (Butane, Propane).
Inner dimensions of the oven:
Inner Volume of the Oven:
Innder dimensions of the plate plate warmer:
Voltage and Frequency of Power Suppl y:
II2H3+
Width: 40.7 cm
Depth: 40 cm
Height: 34 cm
55 lt
Width: 43 cm
Depth: 43 cm
Height: 8 cm
see data plate
Rated power
kW (1)
7,8 (567 g/h - G30)
(557 g/h - G31)
This appliance conforms with the following Eur opean
Economic Community directives:
- 73/23/EEC of 19/02/73 (Low V oltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 90/396/EEC of 29/06/90 (Gas) and subsequent
modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.
Voltage
240V~ 50/60Hz 2200W
Burners:
adaptable for use with all the types of gas indicated on
the data plate
7
Page 8

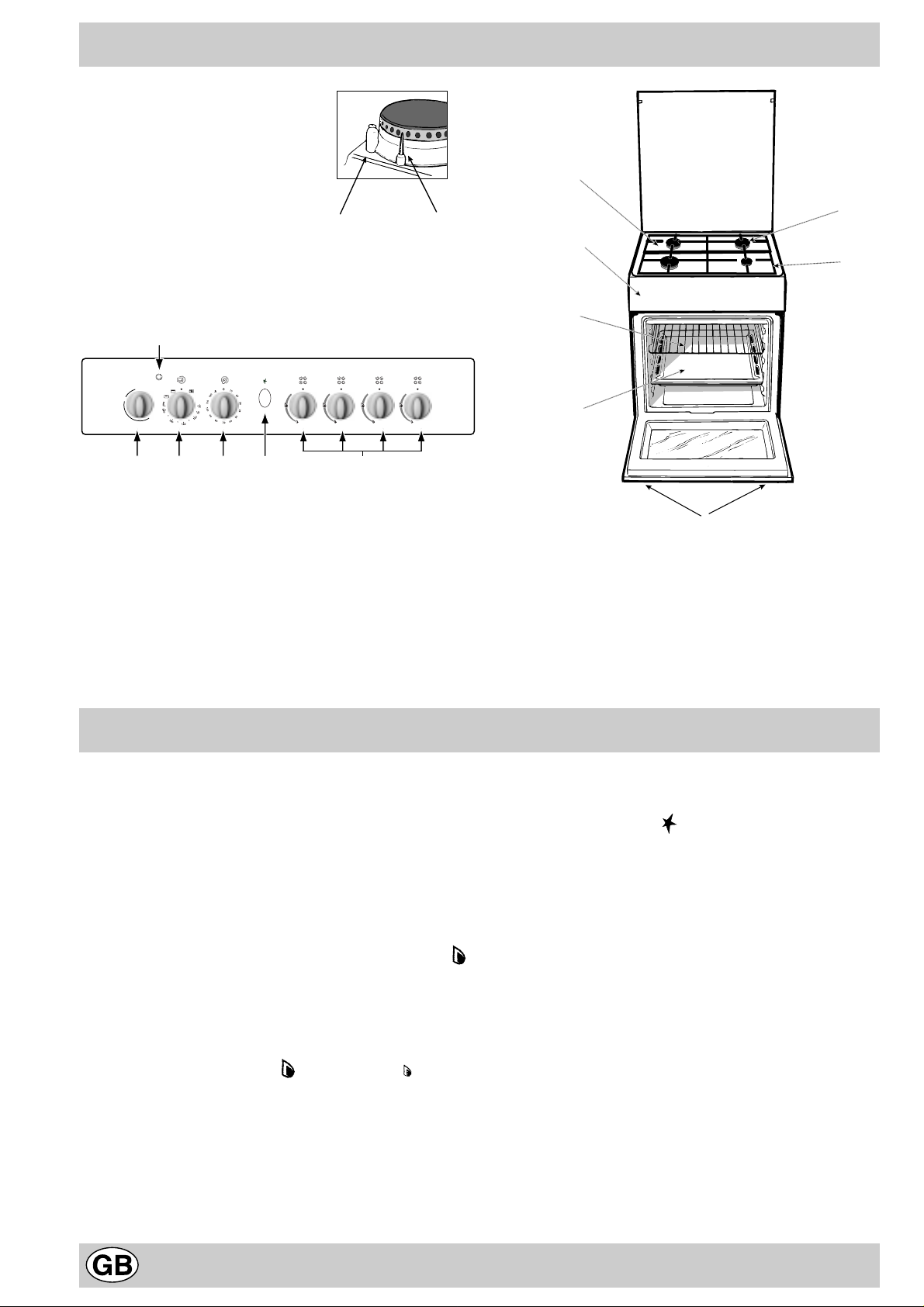

The cooker with electric ventilated oven
F
A
E
K
G
D
B
C
I
Grill
MAX
1/2
MIN
OMP
A Tray for Catching Overflows
B Gas Burner
C Instantaneous Electronic Lighting Device
D Top Gr ate
E Control P anel
F Adjustable Feet or Legs
G Dripping Pan or Baking Sheet
H Flame Failure Device for Cooktop Burners (only a
few models)
LN
H
I Thermostat Light
K Oven Rack
L Electronic Lighting for Hob Burners
M Oven Control Knob
N Control Knobs for Gas Burners on Hob
O Variable g rill Knob
P Cooking Control Timer Knob
The different functions and uses of the oven
The various functions included in the cooker are selected
by operating the control devices located on the cooker
control panel.
Control Knobs for the Gas Burners on the Hob
The position of the gas burner controlled by each one of
the knobs is shown by a symbol of a solid ring:•. To light
one of the burners, hold a lighted match or lighter near
the burner. Press down and turn the corresponding knob
in the counter-clockwise direction to the maximum
setting. Each burner can be operated at its maximum,
minimum or intermediate power. Shown on the knob are
the different symbols for off • (the knob is on this setting
when the symbol lines up with the reference mark on the
control panel), for maximum and minimum .
To obtain these settings, turn the knob counter-clockwise
with respect to the off position. To turn off the burner, turn
the knob clockwise until it stops (corresponding again with
the • symbol).
Electronic Lighting of the Hob Burners
Some models are equipped with instant electronic lighting of the gas burners located on the hob, which can be
identified by the presence of an igniter device (see detail
C). This de vice is activated b y lighting pressing on the “ L”
button, identified by the symbol. To tur n on a burner,
simply press the “L” button and then press while, at the
same time, pressing in and turning the control knob for
the burner in the anticlockwise direction until the burner
lights. To light the burner immediately, it is recom-
mended that the button be pressed first and then the
knob turned.
Caution: If the burner accidentally goes out, turn off
the burner using the knob and wait at least one minute
before relighting.
Models with Flame Failure Device (only a f e w models)
These models are identified by the presence of a flame
detection device (see detail H).
Important: Since the top burners are equipped with a
safety device, after lighting the burner keep the knob
pressed in for about 6 seconds to allow the gas to pass
until the safety thermocouple is heated.
Gas Cut Off (only a few models)
This cooker has a safety cut out feature which switches
off the burners when you close the cover. This device is
provided as a safety feature in case the co ver is lowered
8
Page 9
with the burners on. Alw ays turn off the gas and allow the
D
burners to cool before closing the cov er. Failure to f ollow
these instructions may cause the glass cover to shatter.
Keep the cov er open when using the o v en.
Attention: bef ore using the oven and grill f or the first time,
turn the oven on for approximately one half hour. Make
sure that the oven is empty, the thermostat on high, the
door open, and the room properly ventilated. The odor
which can be detected at times is due to the evaporation
off the substances used to protect the oven and the grill
during the period between the time of production and
installation of the appliance.
Attention: Only use the bottom shelf of the oven when
using the rotisserie to cook (where present). For all other
types of cooking, never use the bottom shelf and never
place anything on the bottom of the oven when it is in
operation because this could damage the enamel. Always
place your cookware (dishes, aluminium f oil, etc. etc.) on
the grate provided with the appliance inserted especially
along the oven guides.
Attention: to use the oven in manual mode without the
cooking control timer, match the indicator on the control
panel with the symbol on the timer knob .

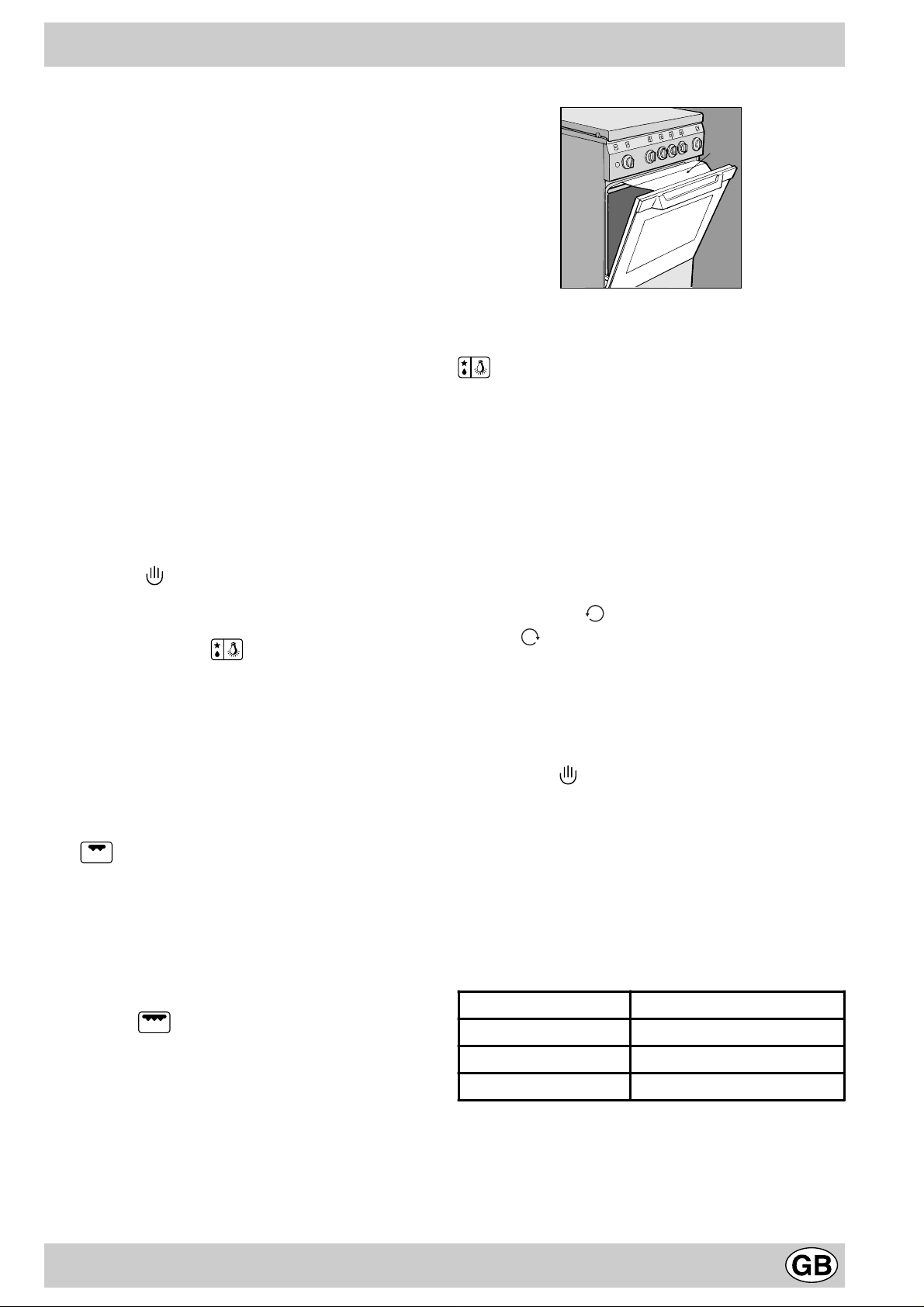

Using the oven
When the oven control knob (M) is turned in a clockwise
direction to the symbol the fan and oven light will
come on to assist in the defrosting of frozen food. Rotating
further to the complete range of temperatures shown on
the dial you can choose which is most suitable for the
food you are going to cook. The temperature is reached
automatically and controlled by the ov en thermostat (from
50°C to 240°C).
Note: Whilst using tag o ven for con ventional cooking knob
(O) must be set with “MAX” in line with the ref erence mark
on the control panel.
Grill
The top centre heating element will come on and the
rotisserie motor (if present) will be activated. On this
setting, food is cooked by the thermal radiation given off
in the downward direction by the electric heating element.
The very high temperature and direct heat of the grill
make it possible to brown meats on the surface while
locking in the juices to keep them tender.
Double Grill
Both of the top heating elements turn on and the rotisserie
motor (if present) is activated.
This over-sized grill has a completely new design, which
is the reason why cooking efficiency has increased by
50%. In addition, the double grill eliminates heat gaps in
the corners of the oven.
Important: when using the gr ill, the oven door must be
left partly open by positioning the deflector “D” between
door and panel to prevent the cooker knobs from
overheating.
Oven Light
The light comes on when the "M" knob is turned to the
setting. The light illuminates the oven and remains
on when any of the heating elements is turned on.
Thermostat Light (I)
This light indicates that the oven is heating. When it turns
off, the temperature inside the oven has reached the setting made with the thermostat knob. At this point, the light
will turn on and off as the oven maintains the temperature
at a constant level.
Cooking Control Timer Knob
Some models are equipped with a timer program to control
when the oven shuts off during cooking. To use this feature,
you must wind the "P" knob one full turn in the counter-
clockwise direction ; Then, turn the knob in the clockwise
direction , to set the time by matching up the indicator
on the control panel with the number of minutes on the
knob.
At the end of the programmed length of time, the timer will
sound and automatically turn off the oven.
Attention: to use the oven in manual mode without the
cooking control timer, match the indicator on the control
panel with the symbol on the timer knob .
When the oven is not in use, the cooking control timer can
be used like a normal timer.
Practical advice for burner use
In order to get the maximum yield it is important to
remember the following:
· Use appropriate cookware for each burner (see table)
so as to avoid flames ov ershooting the edges .
· At boiling point turn the knob to minimum.
· Use cookware with lids.
· Always use cookware with flat bottoms.
Burner ø Cookware diameter (cm)
Fast (R) 24 - 26
Semi Fast (S) 16 - 20
Auxiliary (A) 10 - 14
N.B. On the models supplied with a reducer shelf,
remember that this should be used only for the auxiliary
burner when you use casserole dishes with a diameter
under 12 cm.
9
Page 10
Cooking advice
When using the oven, only one rack or drip pan should be
used at a time. The rack or pan should be inserted into
the bottom or top guides depending on whether the food
needs more heat from the top or bottom.
Preheating
If the oven must be preheated (this is generally required
for leavened foods), we recommend using the
"conventional" oven feature which makes it possible to
reach the temperature desired in a very short time. After
the oven has been preheated, the red indicator light (I)
will turn off. At this point, y ou can select the most suitable
setting to cook the dish.
Cooking Fish and Meat
Meat must weigh at least 1 Kg in order to prevent it from
drying out. When cooking white meat, fowl and fish, use
low temperature settings (150°C-175°C). For red meat
that should be well done on the outside while tender and
juicy in the inside, it is a good idea to start with a high
temperature setting (200°C-220°C) f or a short time, then
turn the oven down afterwards. In general, the larger the
roast, the lower the temperature setting. Place the meat
on the centre of the rack and place the drip pan beneath it
to catch the fat.
Make sure that the rack is inserted so that it is in the centre
of the oven. If you would like to increase the amount of
heat from below, use the low rack heights. For savory
roasts (especially duck and wild game), dress the meat
with lard or bacon on the top.
Cooking Pastries
Always preheat the oven when cooking pastries. Do not
open the door in order to prev ent the pastry from dropping.
The batter or dough should not be too liquidy so that the
cooking time is not excessive . In general:
Pastry is too dry
Increase the temperature by 10°C and reduce the
cooking time.
Cooked well on the inside but sticky on the outside
Use less liquid, l ower the temperature, and increas e the
cooking time.
The pastry sticks to the pan
Grease the pan well and sprinkl e it wit h a dusting of
flour.
I used more than one level and they are not all at
the same cooking point
Use a lower temperature setting. It is not necessary to
remove the food from all the racks at the same time.
Using the Grill
Grilling may be carried out with a two stage heating
element situated in the top of the oven chamber. The
centre, or the complete area of the grill can be selected
by turning the oven control knob (M) in a clockwise
direction to align the symbols ( for the centre,
for the complete area) with the mark on the control panel.
The variable temperature control (O ) is positioned to right
of the oven knob. This knob will provide varying grill
temperatures when rotated from “max” to “min” and ma y
be adjusted to vary the level of heat at any time during the
grilling operation.
T o operate the grill
1. Turn the oven control knob (M) clockwise until the
required grilling symbol is in line with the mark on the
control panel. The element is now “on”.
2. The variable grill control (O) can now be operated to
select the required heat.
When utilizing the grill, place the rack at the lower le v els
(see cooking table). To catch g rease or fat and prevent
smoke, place a drip pan at the bottom rack lev el.
Pastry dropped
Use less liquid or lower the temperature by 10°C.
Pastry is too da rk on t op
Place it on a lower rack, lower the temperature, and
increase the cooking t ime.
10
Page 11
Cooker routine maintenance and cleaning
Before each operation, disconnect the cooker from
the electricity .To assure the long life of the cooker , it must
be thoroughly cleaned frequently, keeping in mind that:
· the enamelled parts and the self-cleaning panels are
washed with warm water without using any abrasive
powders or corrosive substances which could ruin
them;
· the inside of the oven should be cleaned fairly often
while it is still warm using warm water and detergent,
followed by careful rinsing and drying;
· the flame spreaders should be washed frequently with
hot water and detergent taking care to eliminate any
scale;
· in cookers equipped with automatic lighting, the
terminal part of the electronic instant lighting devices
should be cleaned frequently and the gas outlet holes
of the flame spreaders should be checked to make
sure they are free of any obstructions;
· Stainless steel may become marked if it comes into
contact with very hard water or harsh detergents
(containing phosphorous) for long periods of time. After
cleaning, it is advisable to rinse thoroughly and dry. It
is also recommended to dry any water drops;
• On models with glass covers, the covers should be
cleaned with hot water; the use of rough cloths or
abrasives is to be av oided.
N.B: avoid closing the cover while the gas burners are
still warm.
Important: per iodically check the wear of the gas hose
and substitute it if there are any defects; we recommended
changing it every year .
Replacing the oven lamp
· Unplug the oven from the mains;
· Remove the glass cover of the lamp-holder;
· Remove the lamp and replace with a lamp resistant to
high temperatures (300°C) with the following
characteristics::
- V oltage 230V
- Wattage 25W
- T ype E14
· Replace the glass cover and reconnect the oven to
the mains.
Greasing the taps
The taps may jam in time or they ma y become difficult to
turn. If so , they must be cleaned internally and the grease
replaced.
N.B: This operation must be carried by a technician
authorised by the manufacturer .
11
Page 12
Pratical advice for oven cooking
Food to be cooked Wt.
(wt)
Pasta
Lasagne 2.5 3 210 - 75-80
Cannelloni 2.5 3 210 MAX - 75-80
Oven-baked noodles 2.5 3 210 - 75-80
Meat
Veal 1.7 3 230 - 85-90
Chicken 1.5 3 220 - 110-115
Tur key 3.0 3 MAX MAX - 95-100
Duck 1.8 3 230 - 120/125
Rabbit 2 3 230 - 105/110
Pork 2.1 3 230 - 100/110
Lamb 1.8 3 230 - 90-95
Fish
Mackerel 1.1 3 210-230 - 55-60
Dentex 1.5 3 210-230 MAX - 60-65
Trout baked in paper 1.0 3 210-230 - 40-45
Pizza
Napolitan 1.0 3 MAX MAX 15 30-35
Cake
Biscuits 0.5 3 180 15 30-35
Tarts 1.1 3 180 MAX 15 30-35
Chocolate cake 1 3 200 15 45-50
Raised Cakes 1 3 200 15 50/55
Grill cooking
Toast n.° 4 4 10
Pork chops 1.5 4 MAX-MIN 30
Mackerel 1.1 4 35
Note: cooking times are appr oximate and may vary according to personal taste.
Cooking posit ion
of shelves from
bottom
Temperature
(°C)
Variable
grill
Pre-heating time
(min)
Cooking
time
(min.)
12
Page 13
131415
Page 14
Page 15
Page 16
Merloni Elettrodomestici
Viale Aristide Merloni 47
60044 Fabriano
Italy
Tel +39 0732 6611
Fax +39 0732 662501
www .merloni.com
Cucina con forno elettrico ventilato variabile (Spec. GB)
06/00 - 195026869.00 Xerox Business Services - Docutech
Loading...
