Instruction booklet

TUMBLE DRYER

English, 1

Italiano, 13

Deutsch, 37EEspañol, 49

Nederlands, 73

ISL66C ISL65C

Français, 25

Português, 61

Contents

Installation, 2

Door reversal instructions Where to put your dryer Ventilation Water drain Electrical connection Before you start using your dryer

Dryer description, 3

To open the door The features Control panel

Start and programmes, 4-6

Choosing a programme Table of programmes The controls

Laundry, 7-8

Sorting your laundry Wash care labels Special clothing items Drying times

Warnings and Suggestions, 9

General safety Disposal Saving energy and respecting the environment

Maintenance and Care, 10

Switching off the electricity Cleaning the filter after each cycle Empty the water container after each cycle Check the drum after each cycle Cleaning the condenser unit Cleaning the dryer

Troubleshooting, 11

Service, 12

Spare parts

Installation

! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the dryer works.

! Read these instructions carefully; the following pages contain important information on installation and suggestions on how the appliance works.

Door Reversal Instructions

Hinge

Door latch

Hinge

Door catch

Water drain

If your dryer is installed next to a drain the water can be plumbed into this drain. This does away with the need to empty the water container. Simply remove the top hose from its top fitting at the rear of the dryer and plumb the hose provided to the drain.

Electrical connections

Make sure of the following before you insert the plug into the the electrical socket:

●

The socket must be grounded.

●

The socket must be able to sustain the machines maximum power, which is indicated on the rating label (see Dryer Description).

●

Power voltage must be within the values indicated on the rating label (see Dryer Description).

●

The socket must be compatible with the dryers plug. Should this not be the case, replace the plug or the socket.

! The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if it is exposed to rain or storms.

The door of your dryer is reversible and can easily be changed. Exchange diagonally hinge brackets and blanking screws. Exchange door latch and catch with their opposite blanking plates (see diagram above).

Where to put your dryer

●

Place your dryer at a distance from gas ranges, stoves, heaters, or cook tops because flames can damage the appliance.

●

If you are going to install the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects on or above the machine and a 15mm space between the sides and lateral furnishings or walls. This is to ensure proper air circulation. Make sure that the back vents are not obstructed.

Ventilation

When the dryer is in use, there has to be adequate ventilation. Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout. Airflow around the dryer is essential to condense the water produced during the washing, the dryer will not operate efficiently in an enclosed space or cupboard. ! If using the dryer in a small or cold room some condensation could be experienced.

! Once installed, the dryers electrical wire and plug must be within easy reach.

! Do not use extension cords.

! The power cord must not be bent or squashed.

! The power cord supplied should be checked

periodically and replaced by a cord specially prepared for this dryer and fitted only be authorised technicians (see Service). New or longer power cords are supplied at an extra charge by authorised dealers.

! The manufacturer denies any responsibility should any of these rules not be followed.

! If in doubt about any of the above consult a qualified electrician.

Before you start using your dryer

Once you have installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transport.

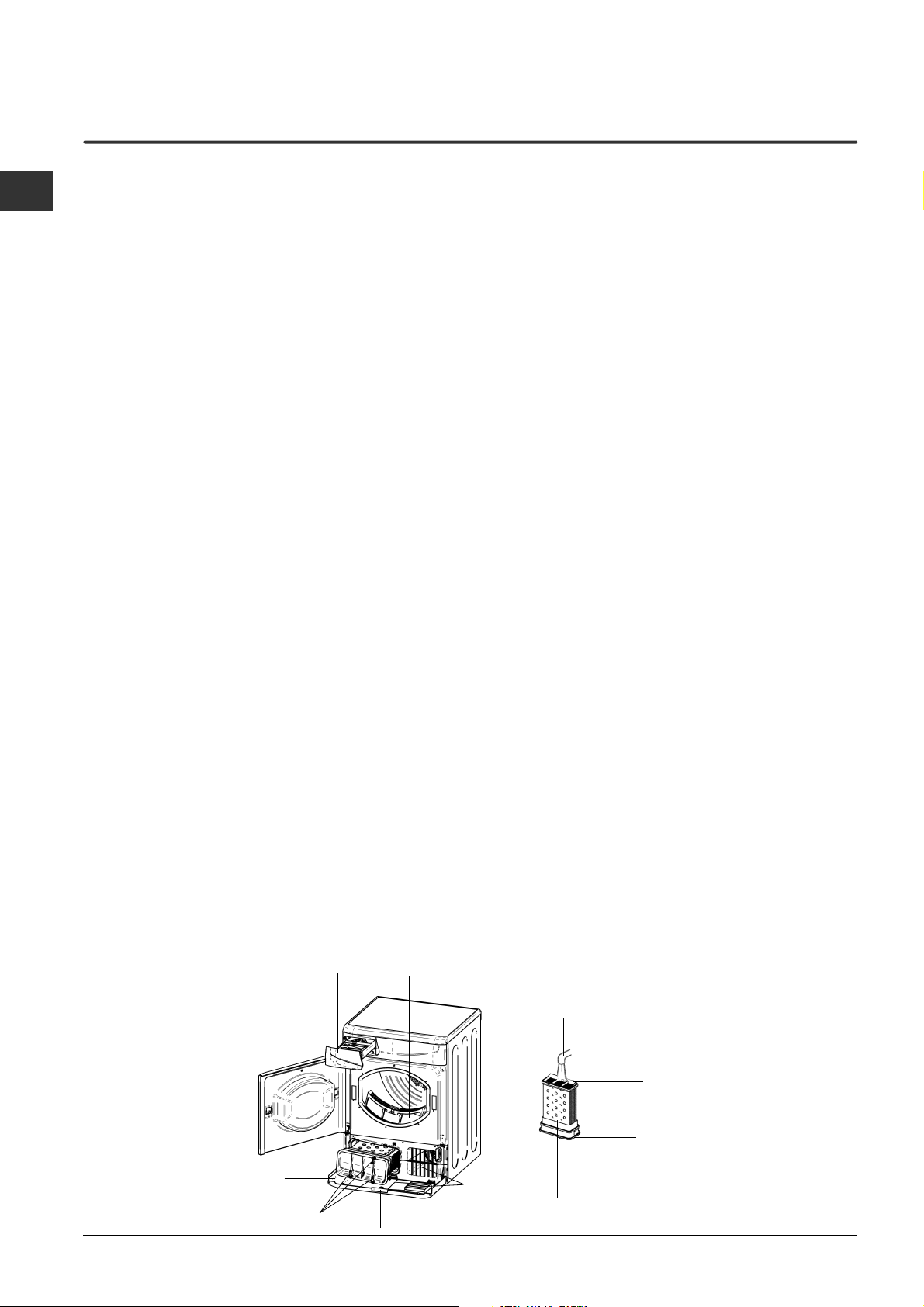

Dryer Description

To open the door The features

Press and release the front

panel in position shown

Door latch

Condenser cover

Condenser cover handle

(Pull to open)

Control panel

START/CANCEL

Progress or Delay

Lights

Empty Water

Water container

Button

Light

Filter

On/Off

Light

ON/OFF

Button

Rating plate

Model & Serial numbers

Door catch

Air intake grille

Installation

Description

Programmes Laundry

Start and

Programmes Guide

The START/CANCEL button starts a selected programme. When you press this button there will be one beep and the progress lights will flash to confirm the action. If you have not set a programme, the buzzer will beep four times. When a programme is running, holding this button in cancels the programme and stops the dryer (see Start and Programmes).

The OPTION buttons/lights select available options for your selected programme (see Start and Programmes). The lights indicate that the option has been selected.

The Programmes Guide allows you to consult a user friendly table of the available programmes.

The Empty Water light signals that the water container should be emptied. When it is flashing it indicates that the container is full. The light will take a few seconds to go out after

Buttons and lights

OPTION

replacing the empty container, the dryer must be running for this to happen (see The Controls).

The On/Off indicator light signals that your dryer is in use or ready to select a programme. If this light flashes it indicates there is a fault (see Troubleshooting).

The ON/OFF button : If the dryer is running and this button is pressed, the dryer stops. Press again, the dryer restarts.

The Progress or Delay lights show you the status of the programme, or the delay time when they flash. During a delayed start the lights will flash to show the delay selected. When (not flashing) they show each stage of the programme by the corresponding light turning on (see Start and Programmes).

The PROGRAMMES knob sets the programme: rotate it until the indicator is pointing to the programme you want to select (see Start and Programmes).

Indicator

PROGRAMMES

Knob

Warnings and

Suggestions

Maintenance and

Care Troubleshooting Service

Start and Programmes

Choosing a programme

1. Plug the dryer into the electrical socket.

2. Sort your laundry according to fabric type (see Laundry).

3. Open the door and make sure the filter is clean and in place and the water container is empty and in place (see Maintenance).

4. Load the machine and make sure items are not in the way of the door seal. Close the door.

5. If the On/Off light is not lit: Press the ON/OFF button .

6. Choose a programme by checking the Programmes Guide (see Programmes) as well as the indications for each type of fabric (see Laundry).

- Select a programme by rotating the PROGRAMMES knob.

7. Set a delay time and other options if necessary.

8. If you wish to select the buzzer sound, at the end of the progamme, press the ALARM Option button.

9. Press the START button to begin. During the drying programme, you can check on your laundry and take out items that are dry while others continue drying. When you close the door again, press the START button in order to resume drying.

10. During the last few minutes of Drying Programmes, before the programme is completed, the final COOL TUMBLE phase is entered (fabrics are cooled), this phase should always be allowed to complete.

11. When the programme is complete. The buzzer will sound, if this option selected. Open the door, take the laundry out, clean the filter and replace it. Empty the water container and replace it (see Maintenance). If you do not take out the laundry immediately, the dryer will tumble occasionally for 10 hours or until you open the door.

12. Unplug the dryer.

Easy Iron Programme

‘Easy Iron’ is a short 10 minute programme (8 minutes of heat followed by a 2 minute cool tumble period) which fluffs the fibres of clothing that have been left in the same position/location for an extended period of time. The cycle relaxes the fibres and makes them easier to iron and fold. ! ‘Easy Iron’ is not a drying programme and should not be used for wet articles of clothing. For best results:

1. Do not load more than the maximum capacity. These numbers refer to the dry weight:

Fabric Maximum load

Cotton and Cotton mixtures 2.5kg Synthetics 2kg Denim 2kg

2. Unload the dryer immediately after the end of the programme, hang, fold or iron the articles and put them away in the closet. Should this not be possible repeat the programme.

The ‘Easy Iron’ effect varies from one fabric to the next. It works well on traditional fabrics like Cotton or Cotton mix, and less well on acrylic fibres and on materials such as Tencel®.

Sport programme

Special shoes

●

This is a programme to dry one pair of sports shoes sized 37-46 (4-11).

●

The shoes must have been washed and spun at a minimum spin speed of 400rpm.

●

They must be used with the shoe rack provided. If you tumble shoes in the drum you will damage your dryer.

●

Remove the filter from its position in the front of the dryer and fit the rack.

●

Tuck the laces inside the shoes and load shoes with toes down and soles facing you.

●

Drying times will vary dependant on the size and style of shoe. If shoes are not completely dry at the end of the programme, run the programme again.

! Do not dry shoes with Gel inserts or flashing lights. ! Only dry shoes made from Synthetics or Canvas materials.

Special sports

●

This is a programme for tumble dryer safe garments, such as Tracksuits and Shorts marked with the symbol .

●

It can be used for load sizes up to 1.5kg

●

We recommend that garments are turned inside out before drying.

●

This programme will take up to 130 minutes. The actual time will vary depending on the size and density of the load and the spin speed used in your washer.

●

Loads dried using this programme are usually ready to wear, but on some heavier garments the edges may be slightly damp.

! When finished remove shoe rack and replace the filter.

Start and Programmes

Programmes

! If the On/Off light is not lit; Press the ON/OFF button and then select programme.

Programme

1 Cottons

Cupboard Dry

2 Cottons

Hanger Dry

3 Cottons

Ready to Iron

4 Synthetics

Cupboard Dry

5 Synthetics

Hanger Dry

What it does... How to set it... Note:

Dries your clothes on High heat setting, ready for putting away

Dries your clothes on High heat setting, ready for hanging.

Dries your clothes on High heat setting, ready for ironing.

Dries your clothes on Low heat setting, ready for putting away.

Dries your clothes on Low heat setting, ready for hanging.

1. Position the PROGRAMME knob on 1.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 2.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 3.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 4.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 5.

2. Select any Options, if required.

3. Press the START button .

Options available:

Alarm Delayed start

Options available:

Alarm Delayed start

Options available:

Alarm Delayed start

Options available:

Alarm Delayed start

Options available:

Alarm Delayed start

Installation

Description

Programmes Laundry

Start and

6 Synthetics

Ready to Iron

7 Special Shoes

8 Special Sports

9 Delicate

eg. Acrylics

10 Easy Iron

Timed Drying

(160, 120, 80 or 40 minutes)

Cool Tumble

Dries your clothes on Low heat setting, ready for ironing.

Dries your shoes on Low heat setting, ready to be worn (see previous page).

Dries your sports clothes on Low heat setting, ready to be worn (see previous page).

Dries your clothes on Low heat setting, ready to be worn.

Brief programme (approximately 10 minutes) that softens fibres of clothing that is ready for ironing.

Dries wet clothing that you wish to dry on low heat or small loads (less than 1kg).

Can be used with high heat option if you prefer to use a timed programme.

Brief programme (approximately 10 minutes) that cools fibres or clothing.

1. Position the PROGRAMME knob on 6.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 7.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 8.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 9.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on 10.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on the desired time: 160, 120, 80 or 40.

2. Select any Options, if required.

3. Press the START button .

1. Position the PROGRAMME knob on .

2. Select any Options, if required.

3. Press the START button .

Options available:

Alarm Delayed start

Options available:

Alarm

Options available:

Alarm Delayed start

Options available:

Alarm Delayed start

! This is not a drying programme (see previous page).

Options available:

Alarm

Options available:

Alarm , High Heat , Delayed Start .

Consult suggested drying times (see Laundry). The last 10 minutes of these programmes is the Cool Tumble (see below).

Options available:

Alarm

Warnings and

Suggestions

Maintenance and

Care Troubleshooting Service

Start and Programmes

The Controls

●

PROGRAMMES knob

! Warning, if after pressing the start button, the programmes knob position is changed, the new position will NOT change the programme selected. ! Position 0, turning the knob to position 0 resets and cancels a programme.

●

OPTION buttons / lights

These buttons are used to customise the selected programme to your requirements. A programme must have been selected on the programme knob before an option can be selected. Not all options are available for all programmes (see Start and Programmes). If an option is not available and you press the button, the buzzer will beep four times. If the option is available there will be one beep and the option light above the button lights to confirm the selection. After the start button has been pressed only the Alarm option can be changed.

Progress ( Drying, CoolTumble, Post Creasecare) / Delay (3hr 6hr 9hr 12hr) Lights

When the light above the delay button is on, these lights flash to indicate the delay time is selected. During other programmes they indicate the progress of the dryer, each one comes on as the corresponding phase starts.

Time Delay

The start of some programmes (see Start and Programmes) can be delayed for up to 12 hours in 3hr

steps. Ensure the water bottle is emptied before setting a delayed start. When a delayed start is in progress the light above the delay button will be on and the selected delay period light will flash (after the start button has been pressed). To set a delayed start, press the Time Delay button, and the light above the button will come on together with the 3hr delay light. Pressing the button again will advance the delay setting to 6hr, the 3hr light goes out and the 6hr light is on. Each time you press the button the delay setting advances 3 hours, as indicated by the corresponding light. If the 12hr light is on, pressing the button again will cancel the delay. You can also cancel the delay by turning the programmes knob to 0, wait for the buzzer to beep and then turn back to your selected programme.

Pre Creasecare

When a delayed start has been selected, the clothes are tumbled occasionally during the delayed period to help prevent creases developing.

High Heat

When available this button selects high heat. Press this button and a high heat setting is selected and the light above the button comes on. Timed programmes have a default of low heat, if the light alongside the button is on then pressing the button selects a low heat setting and the light goes out.

Alarm

Available on all programmes and allows the buzzer to give a signal at the end of the drying cycle, to remind you that the clothes are ready to be removed. Press the button and the light will show that the option is selected.

Post Creasecare

The clothes are occasionally tumbled after the end of the drying and cool tumble cycles, to help prevent creases developing should you not be available to remove the load immediately the programme is complete.

Empty Water Light / Container

(If you have plumbed your dryer to a drain this light can be ignored, as there is no need to empty the water container). When this light is on (not flashing) it reminds you to empty the water container. If the water container fills during a programme, the heater turns off and the dryer does a period of Cool Tumble then the light flashes and the buzzer sounds. After this it stops and all 3 progress lights and the 3hr delay light come on and the empty water light flashes. You must empty the water container and restart the dryer or the clothes will not dry. After re-starting the dryer, the light will take a few seconds to go out. To avoid this always empty the water container each time you use the dryer (see Maintenance).

●

Door Opening

Opening the door during a programme will stop the dryer and have the following effects:

●

All 3 progress lights abd the 3hr delay light come on.

●

During a delay phase the delay will continue to count down. The start button must be pressed to resume the delay programme. One of the delay lights will flash to show the current delay setting.

●

The start button must be pressed to resume the programme. The progress lights will change to show the current status.

●

During the cool tumble or post creasecare phase of a drying programme and anytime during an Airing or Cool Tumble programme, the programme will finish. Pressing the start button will re-start a new programme at the beginning.

●

Changing the programmes knob will select a new programme, after you press the start button. You can use this to select the Cool Tumble programme to cool the clothes, if you find them dry enough.

●

Note

If you have a power cut, switch off the power or remove the plug, press the START button and the programme will resume.

Laundry

Sorting your laundry

●

Check symbols on clothing labels to make sure that the articles can be tumble dried.

●

Sort laundry by fabric type.

●

Empty pockets and check buttons.

●

Close zippers and hooks and tie loose belts and strings.

●

Wring out each item in order to eliminate as much excess water as possible.

! Do not load dripping wet clothes into the dryer.

Maximum load size

Do not load more than maximum capacity. These numbers refer to dry weight: Natural fibres: 6kg max (13lb) Synthetic fibres: 3kg max (6.6lb)

! DO NOT overload the dryer as this could result in reduced drying performance.

Typical load

Clothes Blouse Cotton 150g 5oz

Other 100g 3oz

Dress Cotton 500g 1lb 2oz

Other 350g 12oz Jeans 700g 1lb 6oz 10 nappies 1000g 2lb 3oz Shirt Cotton 300g 10oz

Other 200g 7oz T-Shirt 125g 4oz

Wash Care Labels

Look at the labels on your garments, especially when tumble drying for the first time. The following symbols are the most common:

May be tumble dried

Do not tumble dry

Tumble dry at high heat setting

Tumble dry at low heat setting

Items not suitable for tumble drying

●

Articles that containing rubber or rubber-like materials or plastic film (pillows, cushions, or PVC rainwear), any other flammable articles or objects that contain flammable substances (towels soiled with hair spray).

●

Glass fibres (certain types of draperies)

●

Items which have been dry cleaned

●

Items with the ITCL Code (see Special clothing items). These can be cleaned with special

at-home dry cleaning products. Follow instructions carefully.

●

Large bulky items (quilts, sleeping bags, pillows, cushions, large bedspreads etc). These expand when drying and would prevent airflow through the dryer.

Installation

Description

Programmes Laundry

Start and

Warnings and

Suggestions

Maintenance and

Care Troubleshooting Service

Household Items Duvet cover Cotton 1500g 3lb 5oz (Double) Other 1000g 2lb3oz Large Tablecloth 700g 1lb 6oz Small Tablecloth 250g 9oz Tea Towel 100g 3oz Bath Towel 700g 1lb 6oz Hand Towel 350g 12oz Double Sheet 500g 1lb 2oz Single Sheet 350g 12oz

At the end of a drying cycle, cottons could still be damp if you grouped cottons and synthetics together. If this happens simply give them an additional short period of drying.

Laundry

Special clothing items

Blankets and Bedspreads: acrylic items (Acilan,

Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time.

Pleated or creased garments: read the manufacturer’s drying instructions on the garment.

Starched articles: do not dry these with non-starched items. Make sure that as much of the starch solution is removed from the load as possible before placing it in the dryer. Do not over-dry: the starch will become powdery and leave your clothing limp, which defeats the purpose of starch.

Drying times

The table below presents APPROXIMATE drying times in minutes. Weights refer to dry garments:

Cottons High (full) Heat Drying times 800-1000rpm in washing machine

Half Load Full Load

1kg 2kg 3kg 4kg 5kg 6kg 30-40 40-55 55-70 70-80 80-90 95-120

Synthetics Low (gentle) Heat Drying times on reduced spin in washing machine

Half Load Full Load

1kg 2kg 3kg 40-50 50-70 70-90

Times are approximate and can vary depending upon:

●

Amount of water retained in clothes after spin cycle: towels and delicates retain a lot of water.

●

Fabrics: items that are the same type of fabric but different textures and thicknesses may not have the same drying time.

●

Quantity of laundry: single items or small loads may take longer to dry.

●

Dryness: If you are going to iron some of your clothes, they can be taken out while still a bit damp. Others can be left longer if you need them to be completely dry.

●

Heat setting.

●

Room temperature: if the room where the dryer is located is cold, it will take longer for the dryer to dry your clothes.

●

Bulk: some bulky items can be tumble dried with care. We suggest that you remove these items several times, shake them out, and return them to the dryer until finished.

! Do not over-dry your clothes. All fabrics contain a little natural moisture, which keeps them soft and fluffy.

Acrylics / Low (gentle) Heat Drying times on reduced spin in washing machine

Half Load Full Load

1kg 2kg 40-80 80-100

Warnings and Suggestions

●

! The appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be read carefully.

This appliance conforms to the following EEC Directives:

- 72/23/EEC and 93/68/EEC (Low Voltage Equipment)

- 89/336/EEC, 92/31/EEC and 93/68/EEC (Electromagnetic Compatibility)

General safety

●

This tumble dryer has been designed for home, and not professional use.

●

This dryer must be used by adults, and the instructions in this booklet should be followed carefully.

●

Do not touch the appliance while barefoot or with wet hands or feet.

●

Unplug the machine by pulling on the plug, not the cord.

●

Children must not be in proximity of the dryer when in use. After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy.

●

The appliance must be installed correctly and have proper ventilation. The air intake at the front of the dryer and rear vent behind the dryer should never be obstructed (see Installation).

●

Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.

●

Check to see if the dryer is empty before loading it.

●

The back of the dryer could become very

hot. Never touch it while in use. Do not use the dryer unless the filter, water container and condenser are securely in place (see Maintenance). Do not use fabric softeners or dryer sheets in the dryer. Do not overload the dryer (see Laundry for maximum loads). Do not load items that are dripping wet. Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water. Carefully check all instructions on clothing labels (see Laundry). Do not dry garments that have been treated with chemical products.

Never dry articles that are contaminated with flammable substances (petrol, oil, paint, hair spray, creams, cooking fat or oils).

●

Do not tumble dry rubber, foam rubber, plastic, plastic foam, nappy pants or liners, polythene or paper.

●

Do not tumble dry large, very bulky items.

●

Do not tumble dry acrylic fibres at high temperatures.

●

Complete each programme with its Cool Tumble Phase.

●

Do not turn off the dryer when there are still warm items inside.

●

Clean the filter after each use (see Maintenance).

●

Empty the water container after each use (see Maintenance).

●

Clean the condenser unit after regular intervals (see Maintenance).

●

Do not allow lint to collect around the dryer.

●

Never climb on top of the dryer. It could result in damage.

●

Always follow electrical standards and requirements (see Installation).

●

Always buy original spare parts and accessories (see Service).

Disposal

●

Disposing of the packaging material: follow local regulations, so the packaging can be recycled.

●

Disposal of your old dryer: cut the power cord and remove the door before disposing of an old dryer.

Saving energy and respecting the environment

●

Wring out items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.

●

Always dry full loads - you save energy: single items or small loads take longer to dry.

●

Clean the filter after each use to contain energy consumption costs (see Maintenance).

Installation

Description

Programmes Laundry

Start and

Warnings and

Suggestions

Maintenance and

Care Troubleshooting Service

Maintenance and Care

Switching off the electricity

! Unplug your dryer when not using it, when cleaning it and during all maintenance operations.

Clean the filter after each cycle

The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. When finished drying, clean the filter by rinsing it under running water or with your vacuum cleaner. Should the filter become clogged up, the airflow inside the dryer will be seriously compromised: drying times lengthen and you will consume more energy. It may also damage your dryer.

The filter is found in front of the dryer trim (see diagram).

Removing the filter:

1. Pull the plastic grip of the filter upwards (see diagram).

2. Clean the filter and replace it correctly.

Ensure the filter is fully located flush into the tumble dryer trim.

! Do not use the dryer without replacing the filter.

Empty the water container after each cycle

Pull the container out of the dryer and empty it into a sink or other suitable drain. Replace the water

container securely. Always check and empty the container before you start a new drying programme.

Check the drum after each cycle

Turn the drum manually in order to remove small items (handkerchiefs) that could have been left behind.

Cleaning the condenser unit

Periodically (every month) remove the condenser unit and clean any build up of fluff from between the plates by rinsing it under the tap with cold water. This should be done with cold water from the rear of the condenser.

Removing the condenser:

1. Unplug the dryer and open the door.

2. Pull open the condenser cover (see diagram). Release the three catches by turning 90˚ counterclockwise then pull on the grip and remove from the dryer.

3. Clean the surface of the seals and replace, making sure that the catches have been secured.

Cleaning the dryer

●

External parts in metal or plastic and rubber parts can be cleaned with a damp cloth.

●

Periodically clean the surface of the stainless steel sensor inside the drum with vinegar to remove water contaminates. Apply carefully with a cloth, this will maintain the drying performance of the dryer. The sensor is located on the plastic vane inside the drum towards the front of the dryer. Rotate the drum if necessary to locate it.

●

Periodically (every 6 months) vacuum the front air intake grille and vents at the rear of the dryer, to remove any build up of fluff, lint or dust. Also to remove accumulation of fluff from the front of the condenser and filter areas, clean occassionally with a vacuum cleaner.

! Do not use solvents or abrasives. ! Your dryer uses special bearing components which

do not need lubrication. ! Have your dryer checked regularly by authorised technicians to ensure electrical and mechanical safety (see Service).

Water container

Condenser cover

Catches

Filter

Handle

Air intake

Ta p

Rear

Front

Condenser unit

Troubleshooting

One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions:

Problem:

The tumble dryer won’t start.

Possible causes / Solution:

●

The plug is not plugged into the socket, or not making contact.

●

There has been a power failure.

●

The fuse has blown. Try to plug another appliance into the socket.

●

You are using an extension cord? Try to plug the dryer’s power cord directly into the socket.

●

The door is not closed securely?

●

The PROGRAMMES knob has not been set properly (see Start and Programmes).

●

The START button has not been pressed (see Start and Programmes).

Drying cycle will not begin.

Its taking a long time to dry.

●

You have set a delayed time (see Start and Programmes).

●

The filter has not been cleaned (see Maintenance).

●

The temperature setting is not ideal for the type of fabric you are drying (see Start and Programmes, and see Laundry).

●

The water container needs emptying? The empty water light is flashing? (see Maintenance).

●

The condenser needs cleaning? (see Maintenance).

●

The correct drying time has not been selected for the load (see Laundry).

●

The air intake grille or rear vents are obstructed (see Installation, and see Maintenance).

●

The items were too wet (see Laundry).

●

The dryer was overloaded (see Laundry).

●

Empty water light is flashing but the dryer has only been running for a short period.

The water container was probably not emptied at the start of the programme. Do not wait for the empty water signal, always check and empty the container before starting a new drying programme (see Maintenance).

Installation Description

Programmes Laundry

Start and

Warnings and

Suggestions

Empty water light is on and the water container is not full.

The ON/OFF light flashes to indicate a fault.

Programme finishes and clothes are damper than expected.

●

This is normal, the light flashes when the container is full. If the light is on but not flashing it is just a reminder to empty the container (see Start and Programmes).

●

Note down the other lights that are on and contact the Service Centre (see Service).

! For safety the dryer has a maximum programme time of 3 hours. If an automatic programme has not sensed the required final moisture in this time the dryer will complete the programme and stop. Check the above points and run the programme again, if the results are still damp, contact the Service Centre (see Service).

Maintenance and

Care Troubleshooting Service

Service

Before calling the Service Centre:

●

Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting).

●

If not, turn off the dryer and call the Service Centre closest to you.

What to tell the Service Centre:

●

name, address and post code.

●

telephone number.

●

the type of problem.

●

the date of purchase.

●

the appliance model (Mod.).

●

the serial number (S/N). This information can be found on the data label inside the door of the machine.

Spare Parts

This dryer is a complex machine. Repairing it yourself or having a non-authorised person try to repair it could cause harm to one or more persons, could damage the machine and could invalidate the spare parts warranty. Call an authorised technician if you experience problems while using the machine. The spare parts have been designed exclusively for this appliance and not for other uses.

Service

Libretto di istruzioni

ASCIUGATRICE

English, 1

Italiano, 13

Deutsch, 37EEspañol, 49

Nederlands, 73

ISL66C ISL65C

Français, 25

Português, 61

Indice

Installazione, 14

Istruzioni per invertire la posizione dello sportello Dove installare l’asciugatrice Aerazione Tubo di scarico dell’acqua Collegamento elettrico Informazioni preliminari

Descrizione del prodotto, 15

Per aprire lo sportello Caratteristiche Pannello di controllo

Avvio e programmi, 16-18

Scelta del programma Tabella dei programmi I comandi

Bucato, 19-20

Controllo del bucato Etichette con le istruzioni per il lavaggio Tessuti particolari Tempi di asciugatura

Avvertenze e suggerimenti, 21

Sicurezza Smaltimento Risparmio energetico e rispetto dell’ambiente

Cura e manutenzione, 22

Scollegamento dell’apparecchio dalla rete elettrica Pulizia del filtro al termine di ogni ciclo Svuotare il recipiente di raccolta dell’acqua dopo ogni ciclo Controllo del cestello al termine di ogni ciclo Pulizia dell’unità di condensazione Pulizia dell’asciugatrice

Ricerca guasti, 23

Assistenza, 24

Ricambi

Installazione

! Tenere a portata di mano il presente libretto, così da poterlo consultare facilmente ad ogni evenienza.

! Se l’asciugatrice viene utilizzata in una stanza piccola

o fredda è possibile che si generi un po’ di condensa. Tenere il libretto sempre vicino all’asciugatrice; nel caso in cui l’apparecchio venga venduto o ceduto ad altre

Tubo di scarico dell’acqua

persone, ricordarsi di consegnare loro questo libretto, così da permettere anche ai nuovi possessori di conoscere le avvertenze e i suggerimenti sull’utilizzo dell’asciugatrice. ! Leggere attentamente queste istruzioni: le pagine che seguono contengono importanti informazioni sull’installazione e utili suggerimenti sul funzionamento dell’elettrodomestico.

Istruzioni per invertire la posizione dello sportello

Cerniera

Fermo dello sportello

Se l’asciugatrice viene collocata vicino ad un tubo di

scarico, è possibile far defluire l’acqua al suo interno.

In questo modo si evita di dover svuotare il recipiente

di raccolta dell’acqua. È sufficiente rimuovere il tubo

flessibile superiore dalla sua sede sul retro

dell’asciugatrice e collegare il flessibile in dotazione al

tubo di scarico.

Collegamento elettrico

Prima di inserire la spina nella presa elettrica,

verificare che:

Dispositivo

di chiusura

sportello

●

la presa sia dotata di messa a terra

●

la presa sia in grado di supportare la potenza massima prevista per l’asciugatrice, così come indicata sull’etichetta che riporta le prestazioni di esercizio (vedere la sezione Descrizione del prodotto)

●

la tensione di alimentazione sia compresa nei valori indicati dall’etichetta che riporta le prestazioni di

Cerniera

Lo sportello dell’asciugatrice è reversibile ed è facile da cambiare. Spostare diagonalmente le staffe delle cerniere e le viti di chiusura. Invertire il dispositivo di chiusura ed il fermo dello sportello con le piastre di chiusura del lato opposto (vedere lo schema qui sopra).

esercizio (vedere la sezione Descrizione del prodotto)

●

la presa sia compatibile con il tipo di spina dell’asciugatrice. In caso contrario, sostituire la spina o la presa.

! L’asciugatrice non può essere installata in ambienti

all’aperto, anche se riparati. Può essere molto peri

coloso esporre questo elettrodomestico alla pioggia o a

Dove installare l’asciugatrice

un temporale.

! Dopo l’installazione dell’elettrodomestico, il cavo e la

●

Le fiamme possono danneggiare l’asciugatrice che deve pertanto essere installata lontano da cucine a gas, stufe, termosifoni o piani di cottura.

●

Se l’elettrodomestico verrà installato sotto un banco da lavoro, è necessario lasciare uno spazio vuoto di almeno 10 mm sopra il pannello superiore dell’elettrodomestico; i pannelli laterali dovranno invece avere uno spazio libero intorno di almeno 15 mm. In questo modo sarà garantita la circolazione dell’aria. Controllare che le prese d’aria del pannello posteriore non siano ostruite.

spina elettrica devono rimanere a portata di mano.

! Non utilizzare prolunghe.

! Il cavo elettrico non deve essere tagliato né

calpes tato.

! Controllare regolarmente il cavo elettrico e, se

necessario, farlo sostituire solo da tecnici qualificati

che installeranno un altro cavo specifico per questo

elettrodomestico (vedere la sezione Assistenza).

Presso i rivenditori autorizzati è possibile acquistare cavi

di ricambio e cavi più lunghi di quelli montati in fabbrica.

! Il produttore declina ogni responsabilità nei casi in

cui le presenti regole non vengano rispettate.

Aerazione

È importante che l’ambiente in cui si utilizza l’asciugatrice sia sufficientemente aerato Assicurarsi inoltre che

! Se si nutrono dei dubbi a riguardo, consultare un

elettricista. l’ambiente in cui viene installata l’asciugatrice non sia umido e che vi sia un adeguato ricambio di aria.

Informazioni preliminari

Garantire un adeguato flusso d’aria intorno all’asciugatrice in modo da permettere che l’acqua prodotta durante il lavaggio si condensi; l’asciugatrice non funzionerà correttamente se posizionata in uno spazio chiuso o all’interno di un mobile.

Una volta installata l’asciugatrice, prima di metterla in

funzione, pulire l’interno del cestello, così da rimuovere

lo sporco che può essersi accumulato durante il

trasporto.

Descrizione del prodotto

Per aprire lo sportello Caratteristiche

Premere e rilasciare il pannello

frontale nella posizione indicata

Dispositivo

di chiusura

sportello

Coperchio condensatore

Maniglia coperchio condensatore

(Tirare per aprire)

Pannello di controllo

spie di

Progressione o Ritardo

START/CANCELLA

Spia luminosa

svuota acqua

recipiente di raccolta dell’acqua

Filtro

pulsante

spia

On/Off

pulsante

ON/OFF

Prestazioni di esercizio

Numero di serie e numero di modello

Fermo dello sportello

Griglia di entrata dell’aria

Installazione

Descrizione

programmi Bucato

Avvio e

la Guida Programmi

Il pulsante START/CANCELLA avvia un programma selezionato. Quando si preme questo pulsante, verrà emesso un segnale acustico e le spie di avanzamento lampeggeranno per confermare l’azione. Se non si ha impostato un programma il segnalatore acustico suonerà quattro volte. Quando un programma è in funzione, premendo questo pulsante si cancella il programma e si arresta l’asciugatrice (vedere la sezione Avvio e programmi).

I pulsanti e spie OPZIONE selezionano le opzioni disponibili per il programma selezionato (vedere la sezione Avvio e programmi). Le spie indicano che l’opzione è stata selezionata.

Con la Guida Programmi è possibile consultare una semplice tabella dei programmi disponibili.

Spia luminoso Svuota acqua segnala che il recipiente di raccolta dell’acqua deve essere svuotato. Quando lampeggia indica che il recipiente è pieno. L’indicatore si spegnerà alcuni secondi dopo averriposizionato il recipiente vuoto; perché ciò sia possibile l’asciugatrice deve essere in funzione (vedere Comandi).

pulsanti e spie

OPZIONE

La spia On/Off segnala che l’asciugatrice è in funzione o pronta per selezionare un programma. Se questa spia lampeggia indica la presenza di un’anomalia (vedere Ricerca guasti).

Il pulsante ON/OFF : Se l’asciugatrice è in funzione e viene premuto questo pulsante l’asciugatrice si arresta. Premendolo nuovamente, l’asciugatrice si riavvia.

Le spie di Progressione o Ritardo indicano lo stato del programma o, quando lampeggiano, il tempo impostato per la programmazione ritardata. Durante un avvio ritardato le spie lampeggiano per indicare il ritardo selezionato. Quando non lampeggiano indicano ogni fase del programma all’accensione della spia corrispondente (vedere la sezione Avvio e programmi).

La manopola PROGRAMMI consente di impostare il programma desiderato: ruotarla fino a quando l’indicatore si troverà sul programma che si desidera selezionare (vedere la sezione Avvio e programmi).

Indicatore

manopola

PROGRAMMI

suggerimenti

Avvertenze e

manutenzione Ricerca guasti Assistenza

Cura e

Avvio e programmi

Scelta del programma

1. Inserire la spina dell’asciugatrice nella presa di alimentazione elettrica.

2. Selezionare il bucato in base al tipo di tessuto (vedere la sezione Bucato).

3. Premere lo sportello per aprirlo e controllare la corretta posizione e la pulizia del filtro ed accertarsi che il recipiente di raccolta dell’acqua sia vuoto e posizionato correttamente (vedere la sezione Manutenzione).

4. Caricare l’elettrodomestico, facendo attenzione ad evitare che qualche indumento possa frapporsi tra lo sportello e la relativa guarnizione. Chiudere lo sportello.

5. Se la spia On/Off non è accesa: Premere il pulsante ON/OFF .

6. Scegliere un programma verificando la Guida Programmi (vedere Programmi) e anche le indicazioni per ciascun tipo di tessuto (vedere Bucato).

- Selezionare un programma ruotando la manopola PROGRAMMI.

7. Impostare un tempo di ritardo ed altre opzioni, se necessario.

8. Se si desidera selezionare il segnalatore acustico, alla

9. Premere il pulsante START per avviare il programma. Durante il funzionamento, è possibile aprire lo sportello per estrarre i capi che nel frattempo si sono asciugati e lasciare asciugare gli altri. Dopo aver richiuso lo sportello, è necessario ripremere il pulsante START, per mettere nuovamente in funzione l’asciugatrice.

10. Durante gli ultimi minuti dei programmi di asciugatura, prima del termine del programma, viene inserita la fase ASCIUGATURA A FREDDO (i tessuti vengono raffreddati), questa fase deve sempre essere attivata per terminare il ciclo.

11. Quando il programma è terminato, il segnalatore acustico suona, se questa opzione è selezionata. Aprire lo sportello, estrarre il bucato, pulire il filtro e metterlo nuovamente in posizione. Svuotare il recipiente di raccolta dell’acqua e rimetterlo al suo posto (vedere la sezione Manutenzione). Se non si estrae immediatamente il bucato, l’asciugatrice funzionerà occasionalmente per 10 ore o finché non viene aperto lo sportello.

12. Scollegare l’asciugatrice dalla rete elettrica.

fine del programma, premere il pulsante opzione ALLARME.

Programma di stiratura facile

“Stiratura facile” è un breve programma di 10 minuti (8 minuti di riscaldamento seguiti da 2 minuti di asciugatura a freddo) che gonfia le fibre dei tessuti rimasti immobili per un lungo periodo di tempo. Il ciclo distende le fibre dei capi in modo da agevolarne la stiratura e la piegatura. ! Questo non è un programma di asciugatura e non va quindi utilizzato con capi ancora bagnati. Per risultati ottimali:

1. Non caricare il cestello oltre la capacità massima. I seguenti valori si riferiscono al peso degli indumenti asciutti:

Tessuto Carico massimo

Cotone e Misto cotone 2,5 kg Sintetico 2 kg Denim 2 kg

2. Svuotare l’asciugatrice subito dopo la fine del programma; appendere, piegare o stirare i capi per poi riporli nell’armadio. Se ciò non fosse possibile, ripetere il programma.

L’effetto prodotto dal programma “Stiratura facile” varia da tessuto a tessuto. I migliori effetti si ottengono su tessuti tradizionali, quali Cotone o Misto cotone; invece, le caratteristiche di tessuti quali le fibre acriliche o il Tencel® non consentono di ottenere gli stessi risultati.

Programma sport

Scarpe Speciali

●

Questo è un programma per asciugare un paio di scarpe sportive di misura da 37-46.

●

Le scarpe devono essere state lavate e centrifugate ad una velocità di centrifuga minima di 400rpm.

Sport Speciali

●

Questo è un programma per preservare gli indumenti nell’asciugatrice, come tute da ginnastica e calzoncini contrassegnati con il simbolo .

●

Può essere usati per carichi fino ad 1.5kg

●

Consigliamo di rivoltare gli indumenti prima dell’avvio dell’asciugatura.

●

Questo programma impiegherà fino a 130 minuti. Il tempo attuale varia dalle dimensioni, dalla densità del carico e dalla velocità di centrifuga usata nella lavatrice.

●

I carichi asciugati con questo programma sono di solito pronti da indossare, ma in alcuni indumenti più pesanti i bordi potrebbero essere leggermente umidi.

●

Devono essere usate con l’apposita rastrelliera per scarpe fornita. Se si asciugano scarpe nel tamburo l’asciugatrice verrà danneggiata.

●

Rimuovere il filtro dalla sua posizione nella parte anteriore dell’asciugatrice e posizionare la rastrelliera.

●

Infilare i lacci all’interno delle scarpe e caricare le scarpe con le punte rivolte in basso e le suole davanti.

●

I tempi di asciugatura variano dal formato e dal tipo di scarpa. Se le scarpe non sono completamente asciutte alla fine del programma, avviare nuovamente il programma.

! Non asciugare scarpe con gel all’interno o luci lampeggianti. ! Asciugare solo scarpe fatte di materiale sintetico o tela. ! Al termine del programma rimuovere la rastrelliera per scarpe e riposizionare il filtro.

Avvio e programmi

Programmi

! Se la spia On/Off non è accesa; Premere il pulsante ON/OFF e selezionare il programma.

Programma

Cotone

Asciugatura armadio

Cotone

Asciugatura appendino

Cotone

Pronti per la stiratura

Sintetici

Asciugatura armadio

Sintetici

Asciugatura appendino

Sintetici

Pronti per la stiratura

7 Scarpe Speciali

8 Sport Speciali

9 Delicati

Acrilici

10 Stiratura facile

Asciugatura temporizzata

(160, 120, 80

o 40 minuti)

Asciugatura a freddo

Funzione Impostazione Nota:

Asciuga gli indumenti con impostazione temperatura alta, pronti per essere riposti nell’armadio.

Asciuga gli indumenti con impostazione temperatura alta, pronti per essere appesi.

Asciuga gli indumenti con impostazione temperatura alta, pronti per la stiratura.

Asciuga gli indumenti con impostazione bassa temperatura, pronti per essere riposti nell’armadio.

Asciuga gli indumenti con impostazione bassa temperatura, pronti per essere appesi.

Asciuga gli indumenti con impostazione bassa temperatura, pronti per la stiratura.

Asciuga le scarpe con impostazione bassa temperatura, pronte per essere indossate (vedere pagina precedente).

Asciuga gli indumenti sportivi con impostazione bassa temperatura, pronti per essere indossati (vedere pagina precedente).

Asciuga gli indumenti sportivi con impostazione bassa temperatura, pronti per essere indossati.

Programma breve (circa 10 minuti) che ammorbidisce le fibre dei capi pronti per la stiratura.

Asciuga il bucato umido che si desidera asciugare a bassa temperatura o piccolo carichi (inferiore ad 1kg).

Può essere usato con l’opzione temperatura alta se si preferisce usare un programma a tempo.

Programma breve (circa 10 minuti) che raffredda le fibre o i capi.

1. Posizionare la manopola PROGRAMMI su 1.

2. Selezionare eventuali opzioni, se necessario.
