INDESIT IS 70 C (UK) User Manual

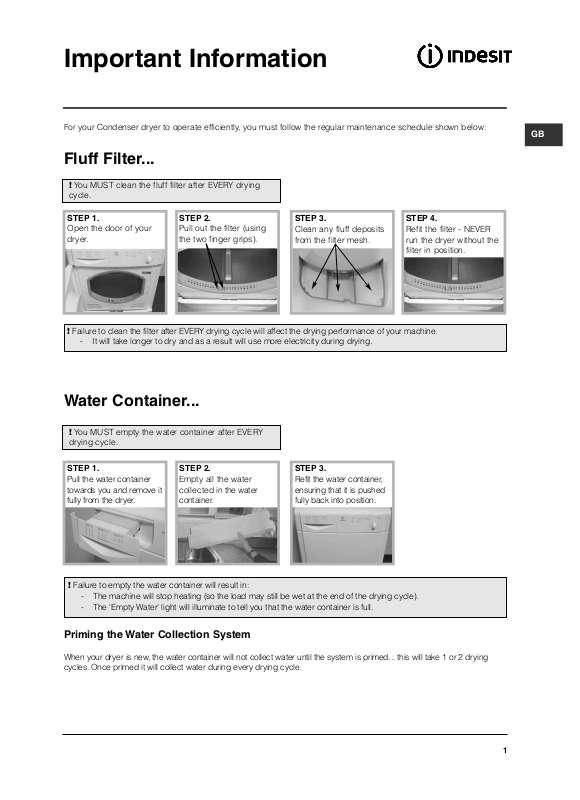

Important Information

For your Condenser dryer to operate efficiently, you must follow the regular maintenance schedule shown below:

Fluff Filter...

! You MUST clean the fluff filter after EVERY drying
cycle.

STEP 1.

Open the door of your
dryer.

! Failure to clean the filter after EVERY drying cycle will affect the drying performance of your machine.

- It will take longer to dry and as a result will use more electricity during drying.

STEP 2.

Pull out the filter (using
the two finger grips).

STEP 3.

Clean any fluff deposits
from the filter mesh.

STEP 4.

Refit the filter - NEVER
run the dryer without the
filter in position.

GB

Water Container...

! You MUST empty the water container after EVERY
drying cycle.

STEP 1.

Pull the water container
towards you and remove it
fully from the dryer.

! Failure to empty the water container will result in:

- The machine will stop heating (so the load may still be wet at the end of the drying cycle).

- The ‘Empty Water’ light will illuminate to tell you that the water container is full.

STEP 2.

Empty all the water
collected in the water
container.

Priming the Water Collection System

When your dryer is new, the water container will not collect water until the system is primed... this will take 1 or 2 drying
cycles. Once primed it will collect water during every drying cycle.

STEP 3.

Refit the water container,
ensuring that it is pushed
fully back into position.

1

Important Information

GB

Condenser Unit...

! You MUST clean the fluff from the condenser EVERY
month.

STEP 1.

Open the condenser cover

- hold the handle and
pull towards you.

STEP 2.

Remove the condenser by
rotating the 3 clips then
pulling the condenser
towards you.
(There may be some water
in the tubes, this is normal).

STEP 3.

Flush the condenser, from
the rear with water, to
remove any fluff deposits.

STEP 4.

Refit the condenser unit

- ensure that the unit is
pushed in fully, all 3 clips
are re-secured and the
positiong arrows on the
front of the condenser are
pointing upwards.

●

Check that:

- The positioning arrows are pointing upwards.

- The 3 clips are re-secured back into their ‘lock’ position.

Rotate 3 clips

! Failure to clean the condenser could cause premature
failure of your dryer.

2

Instruction booklet

TUMBLE DRYER

GB

English

IS70C

Contents

Installation, 4

Door reversal instructions
Where to put your dryer
Ventilation
Water drain
Electrical connection
Before you start using your dryer

Dryer description, 5

The front
The back
Control panel

Start and programmes, 6

Choosing a programme

Laundry, 7-8

Sorting your laundry
Wash care labels
Special clothing items
Drying times

Warnings and Suggestions, 9

General safety
Disposal
Saving energy and respecting the environment

GB

Maintenance and Care, 10

Switching off the electricity
Cleaning the filter after each cycle
Empty the water container after each cycle
Check the drum after each cycle
Cleaning the condenser unit
Cleaning the dryer

Troubleshooting, 11

Service, 12

Spare parts

! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and
should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the
dryer so that the new owner may be informed about warnings and suggestions on how the appliance works.
! Read these instructions carefully; the following pages contain important information on installation and suggestions
on how the appliance works.

3

Installation

GB

Where to put your dryer

●

Place your dryer at a distance from gas ranges,
stoves, heaters, or cook tops because flames can
damage the appliance.

Minimum gap 10mm

●

If you are going to install the
appliance under a work
counter, be sure to leave a
10mm space between the

Minimum gaps

15mm

top and any other objects
on or above the machine and
a 15mm space between the
sides and lateral furnishings
or walls.

This is to ensure proper air circulation.
! Make sure that the back vents are not obstructed.

Ventilation

When the dryer is in use, there has to be adequate
ventilation. Make sure you put your dryer in an
environment that is not damp and has proper air
circulation throughout. Airflow around the dryer is
essential to condense the water produced during the
washing, the dryer will not operate efficiently in an
enclosed space or cupboard.
! If using the dryer in a small or cold room some
condensation could be experienced.
! We do not recommend that the dryer is installed in a
cupboard but the dryer must never be installed
behind a lockable door, a sliding door or a door with a
hinge on the opposite side to that of the dryer door.

Door Reversal Instructions

Hinge

Door latch

Door catch

Electrical connections

Make sure of the following before you insert the plug
into the the electrical socket:

●

Ensure your hands are dry.

●

The socket must be grounded.

●

The socket must be able to sustain the machines
maximum power, which is indicated on the rating label
(see Dryer Description).

●

Power voltage must be within the values indicated on
the rating label (see Dryer Description).

●

The socket must be compatible with the dryers plug.
Should this not be the case, replace the plug or the socket.

! Do not use extension cords.
! The dryer must not be installed outdoors, even if the space is

sheltered. It can be very dangerous if it is exposed to rain or
storms.
! Once installed, the dryers electrical wire and plug must be
within easy reach.

! The power cord must not be bent or squashed.
! The power cord supplied is fitted with a BS1363 plug and a 13

amp BS1362 fuse. If you need to replace the fuse, use only
those rated at 13 amp (13A) and ASTA approved to BS1362.

Moulded plug

Changing the plug

The wires in the power cord are coloured in accordance
with the following:

Green and Yellow
(Earth) wire to terminal
marked ‘E’, symbol ,
or coloured green and
yellow.

Blue (Neutral) wire to
terminal marked ‘N’ or
coloured black.

Cord clamp

! The plug must not be used
without the fuse cover in place.
If a replacement fuse
holder/cover is required, it must
be of the same colour coding or
wording as shown on the base of
the plug.
Replacements are available from
authorised dealers.

13A ASTA approved
fuse to BS1362.

Brown (Live) wire to
terminal marked ‘L’ or
coloured red.

Hinge

The door of your dryer is reversible and can easily be
changed. Exchange diagonally hinge brackets and
blanking screws. Exchange door latch and catch with
their opposite blanking plates (see diagram above).

Water drain

If your dryer is installed next to a drain the water can be
plumbed into this drain. This does away with the need to
empty the water container. (see Plumbing your Dryer).

4

! If the plug being replaced is a non-rewirable type,
then the cut-off plug must be disposed of safely. DO
NOT leave it where it can be inserted into a socket and
create a shock hazard.
! The power supply cord should be checked periodically
and replaced by a cord specially prepared for this dryer
and fitted only by authorised technicians (see Service).
New or longer power cords are supplied at an extra
charge by authorised dealers.
! The manufacturer denies any responsibility should
any of these rules not be followed.
! If in doubt about any of the above consult a
qualified electrician.

Before you start using your dryer

Once you have installed your dryer and before you
use it, clean the inside of the drum to remove any dust
that could have accumulated during transport.
