Indesit IS50EA User Manual

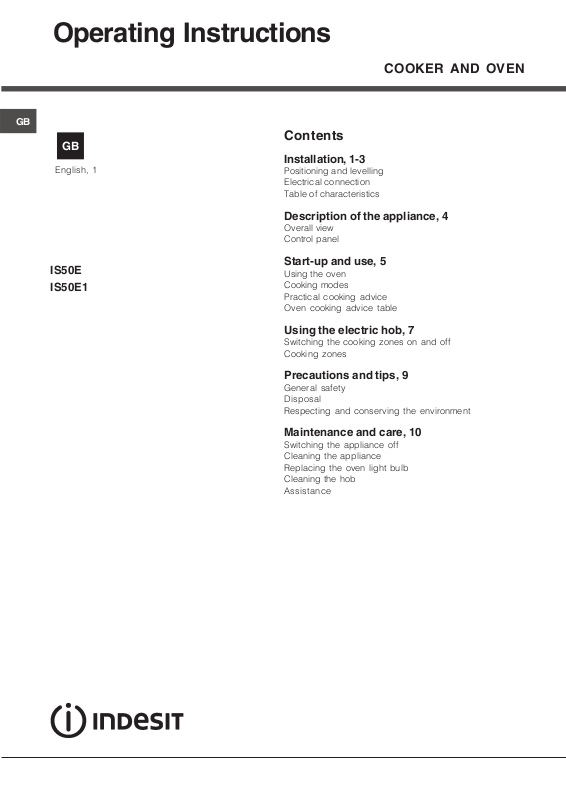

Operating Instructions

Contents

Installation, 1-3

English, 1

Positioning and levelling Electrical connection Table of characteristics

Description of the appliance, 4

Overall view Control panel

COOKER AND OVEN

IS50E IS50E1

Start-up and use, 5

Using the oven Cooking modes Practical cooking advice Oven cooking advice table

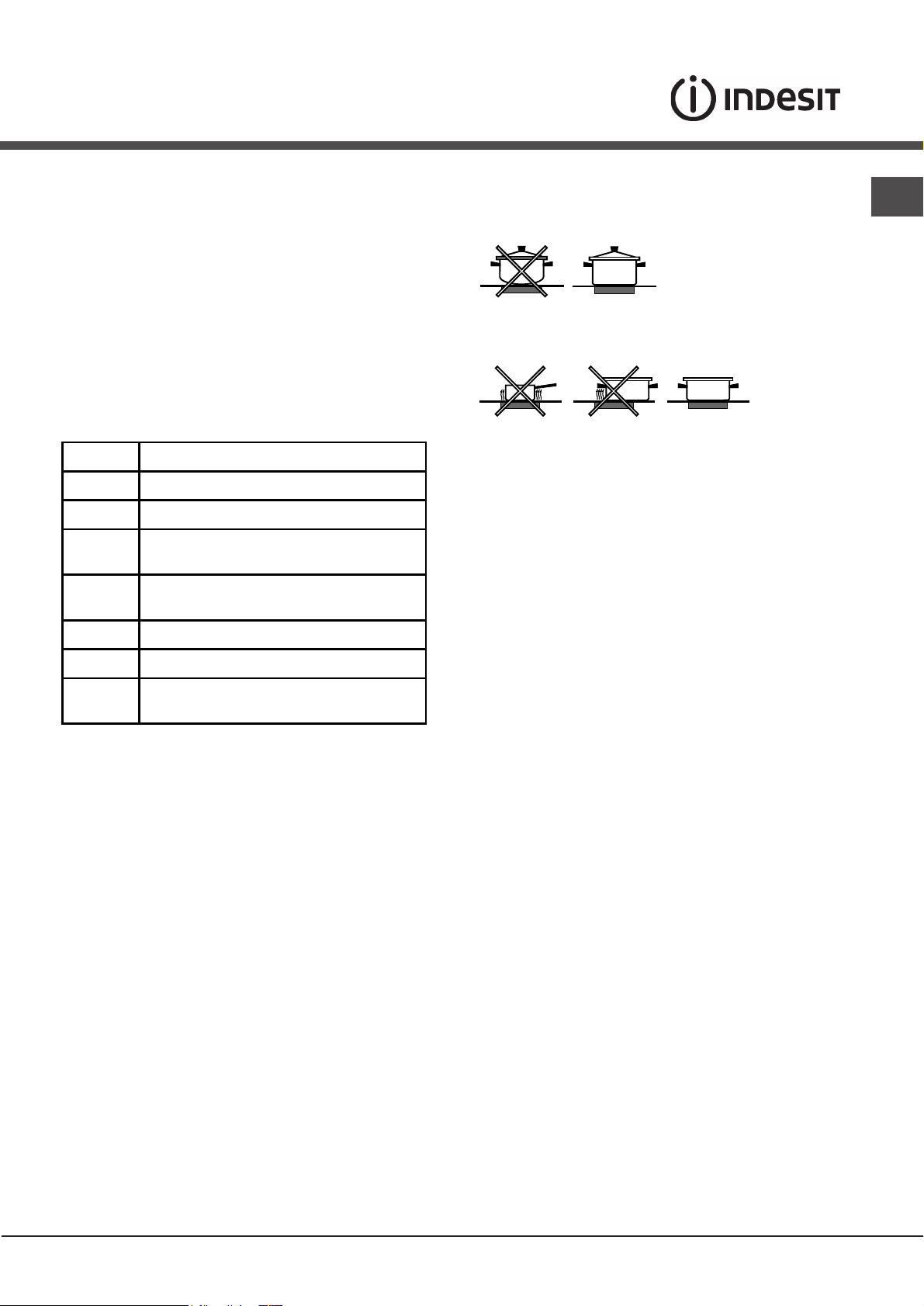

Using the electric hob, 7

Switching the cooking zones on and off Cooking zones

Precautions and tips, 9

General safety Disposal Respecting and conserving the environment

Maintenance and care, 10

Switching the appliance off Cleaning the appliance Replacing the oven light bulb Cleaning the hob Assistance

Installation

HOOD

420

Min.

min. 650 mm. with hood

min.

700 mm. without hood

mm.

600

Min. mm.

420

Min. mm.

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe installation and operation of the appliance.

! Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified professional according to the instructions provided.

! Any necessary adjustment or maintenance must be performed after the cooker has been disconnected from the electricity supply.

Positioning and levelling

! It is possible to install the appliance alongside cupboards whose height does not exceed that of the hob surface.

! Make sure that the wall in contact with the beck of the appliance is made from a non-flammable, heatresistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit (not in the bathroom).

• If the top of the hob is higher than the cupboards, the appliance must be installed at least 200 mm away from them.

• If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420 mm between this cabinet and the top of the hob. This distance should be increased to 700 mm if the wall cabinets are flammable (

see figure

• Do not position blinds behind the cooker or less than 200 mm away from its sides.

• Any hoods must be installed according to the instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the appliance, screw the adjustable feet into the places provided on each corner of the base of the cooker (

figure

see

The legs* fit into the slots on the underside of the base of the cooker.

Electrical connection

lectric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after removing the back panel of the cooker itself with a screwdriver. .B.: the following installation procedure must be carried out by a qualified electrician. The electrical installation must comply with the IEE Regulations, Building & local By-Lays. For the installation of the feeding cable carry out the following operations:

 Unscrew screw “V” (see fig. A)  Pull and open the junction blok lid

Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow Earth Blue Neutral

Brown Live As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Green & Yellow wire to terminal marked “E” or Green or Green & Yellow.

Brown wire to terminal marked “L” or coloured Red. Blue wire to terminal marked “N” or coloured Black (see fig. B).

 fix the feeding cable in the special cable stop and close

the cover.

N.B.: the power supply cable must have these minimum

requirements:

Type: H05RR-F

Section: 3x4 mm

or coloured

TABLE OF CHARACTERISTSICS

Dimensions Oven HxDxW

34x39x44

Fig. A Fig. B

Connecting the supply cable to the mains WARNINGS: THIS APPLIANCE MUST BE EARTHED. Important: The cooker must be connected to the

mains by a switched (double pole) cooker outlet correctly fused with a capacity appropriate to that shown on the cooker Rating Plate. All electrical wiring from the consumer unit to the cooker, via the switched double pole cooker outlet, must be of an acceptable type and current rating as above. Note: the supply cable must be positioned so that it never reaches at any point a temperature 50°C higher than the room temperature. The cable must be routed away from the rear vents.

Volume

Useful measurements relating to the oven compartment Voltage and frequency

Electric Hob

ENERGY LABEL

This appliance conforms to the following

58 l

width 42 cm depth 44 cm height 18 cm

see data plate

Rapid Ø 180 mm: 2000 W Rapid Ø 145 mm: 1500 W

Max. Hob Power Absorption: 7000 W Directive 2002/40/EC on the label of electric ovens. Standard EN 50304

Energy consumption for Natural convection – heating mode: Static mode;

European Economic Community directives: 2006/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments - 04/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EEC 1275/2008 (Stand-by/ Off mode)

HOT PARTS

700 mm

Description of the appliance

Overall view

Electric hob

DRIPPING PAN

Control panel

GRILL rack

Adjustable foot

GUIDE RAILS

for the sliding racks

position 5 position 4 position 3 position 2 position 1

Adjustable foot

THERMOSTAT knob

Timer knob*

Only available in certain models.

THERMOSTAT

indicator light

PROGRAMMER knob

ACTIVE HOTPLATE indicator light

ACTIVE HOTPLATE knobs
