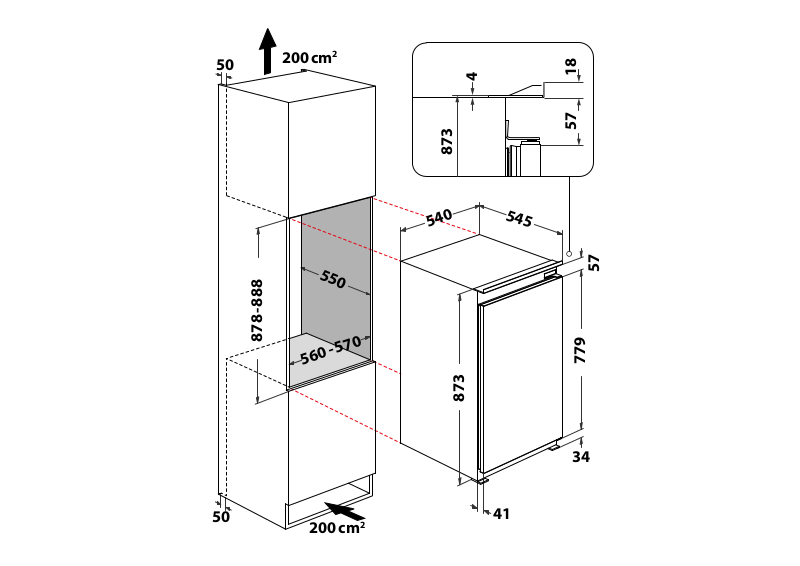

INDESIT INS 901 AA.1 Extended Technical Drawing

-888878
-
560
570
550
540
41
57
779
873
545
57
873
18
34
50
50
200
cm
2
200
cm
2
INS 901 AA.1

12NC/Fx: F155624 GTIN (EAN) code:

8050147556245
DIMENSION MEASURE
WOODEN CABINET - Overall Wooden Cabinet - BI
01. Height MIN of the tall cabinet Niche, including all required space for installation or ventilation (HMIN_T)
02. Height MAX of the tall cabinet Niche, including all required space for installation or ventilation (HMAN_T)
03. Width MIN of the tall cabinet Niche, including all required space for installation or ventilation (WMIN_T)
04. Width MAX of the tall cabinet Niche, including all required space for installation or ventilation (WMAN_T)
05. Depth of the tall cabinet Niche, including all required space for installation or ventilation (DN_T) 550 mm
06. Height MIN of the base cabinet Niche, including all required space for installation or ventilation (HMIN_B)
07. Height MAX of the base cabinet Niche, including all required space for installation or ventilation (HMAN_B)
08. Width MIN of the base cabinet Niche, including all required space for installation or ventilation (WMIN_B)
09. Width MAX of the base cabinet Niche, including all required space for installation or ventilation (WMAN_B)
10. Depth of the base cabinet Niche, including all required space for installation or ventilation (DN_B)
11. Indicates whether a ventilation opening is needed or not. Default is "N" Yes
12. Appliance can be used as base for other appliances from the same manufacturer. Default is "N"
WOODEN CABINET - Door – Drawer
13. Height MIN Decorative Front, if appliance has more than one front, only the most bottom left front is described here (HMIF)
14. Width MIN Decorative Front, if appliance has more than one front, only the most bottom left front is described here (WMIF)
15. Weight/Thickness of the decorative bottom front panel of the Kitchen manufacturer needs (essential)
16. Weight MAX of the decorative bottom front panel of the Kitchen manufacturer (WEMAF) 0 kg
17. Thickness MIN Decorative Front, if appliance has more than one front only the most bottom left front is described here(TMIF)
18. Thickness MAX Decorative Front, if appliance has more than one front only the most bottom left front is described here(TMAF)
Additional Fronts (2 doors)
19. Height MIN Decorative Front, when appliance has more than one front, upper front is discribed here (HMIFU)
20. Width MIN Decorative Front, when appliance has more than one front, upper front is discribed here (WMIFU)
21. Weight/Thickness of the decorative upper front panel of the Kitchen manufacturer needs (essential)
22. Weight MAX of the decorative upper front panel of the Kitchen manufacturer (WEMAFU) 0 kg
23. Thickness MIN Decorative Front, when appliance has more than one front, upper front is discribed here (TMIFU)
24. Thickness MAX Decorative Front, when appliance has more than one front, upper front is 0 mm
878 mm
888 mm
560 mm
570 mm
0
0
0
0
0
No
779
mm
560 mm
No
0 mm
0 mm
0
mm
0 mm
No
0 mm
DIMENSION MEASURE
APPLIANCE
Overall Appliance
01. Height MIN Product, watch the detail drawing for the exact position of the dimension line (HMIP)
02. Height MAX product, watch the detail drawing for the exact position of the dimension line (HMAP)
03. Width product, watch the detail drawing for the exact position of the dimension line (WP) 540 mm
04. Depth product without front, watch the detail drawing for the exact position of the dimension line (DP)
05. Depth product, watch the detail drawing for the exact position of the dimension line (D) 545 mm
06. Depth MIN plinth return front (DMIPRF) 0 mm
07. Depth MAX plinth return front (DMAPRF) 41 mm
08. Height MIN Plinth return. This dimension is taken by minimum appliance height (HMIPR) 34 mm
09. Height MAX Plinth return. This dimension is taken at minimum appliance height (HMAPR) 34 mm
Door or Drawer
10. Height front. When appliance has more than one front, only the most bottom left front is discribed here (HF)
11. Width front. When appliance has more than one front, only the most bottom left front is discribed here (WF)
12. Depth front (DF) 0 mm
13. Maximum depth all protruding elements, e.g. handles, controls (DC) 0 mm
14. Lateral clearance between front edge and most protruding elements which avoid to open a neighbour front more than 90° (CC)
15. Projection of front in relation to housing of appliance (FPT) 18 mm
16. Projection of front in relation to bearing area of the appliance. Taken at MIN height of appliance if adjustable height(FPB)
17. Height Product Panel. When product panel is missing, set to 0 (HMAPP) 57 mm
18. Lateral projection of front including controls when door is opened totaly. At the side where the hinge is mounted (FPOD)
19. Space in front, which is required to guarantee full operability. The most protruding part gives this dimension (RSF)
20. Lateral projection of opened front at the side where the hinge is fixed (FPD) 0 mm
21. Door hinge positiong and tipology Right-
22. Type of preparation to fix the cover door Sliding
23. Maximum angle when door is opened totaly (AOD) 0 °
24. Maximum thickness of the upper front panel (TUFP) 4 mm
Additional Fronts (2 doors)
25. Height front, when appliance has more than one front, upper front is discribed here (HUF) 0 mm
26. Width front, when appliance has more than one front, upper front is discribed here (WUF) 0 mm
27. Useful space between the 2 doors, including hinges size (HMAFG) 0 mm
28. Distance between the bottom of the product and the center line between the fridge doors (HFG)
873 mm
873 mm
0 mm
779 mm
540 mm
0 mm
0 mm
0 mm
549 mm
changeable
system
0 mm
