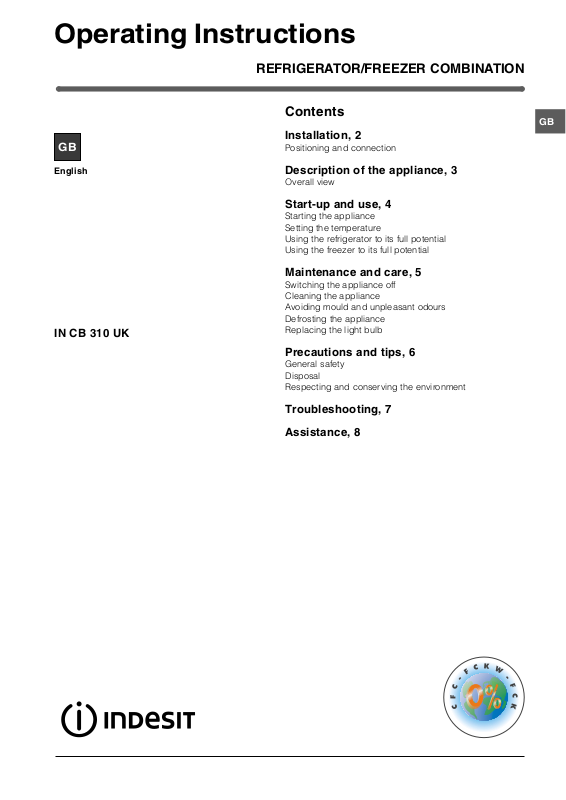

Operating Instructions
|
|
|
|
REFRIGERATOR/FREEZER COMBINATION |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Contents |
|
||||
|
|
|
|
GB |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Installation, 2 |
|
||||
|
|
GB |
|
|
|||||
|
|
|
Positioning and connection |
||||||
|
|
|
Description of the appliance, 3 |
||||||
English |
|||||||||
|
|
|
|
Overall view |
|||||
|
|
|
|
Start-up and use, 4 |
|||||
|
|
|
|
Starting the appliance |
|||||
|
|
|
|
Setting the temperature |
|||||
|
|
|
|
Using the refrigerator to its full potential |
|||||
|
|
|
|
Using the freezer to its full potential |
|||||
|
|
|
|
Maintenance and care, 5 |
|||||
|
|
|
|
Switching the appliance off |
|||||
|
|
|
|
Cleaning the appliance |
|||||
|
|
|
|
Avoiding mould and unpleasant odours |
|||||
|
|
|
|
Defrosting the appliance |
|||||
IN CB 310 UK |
Replacing the light bulb |
||||||||
|
|
|
|
Precautions and tips, 6 |
|||||
|
|
|
|
General safety |
|||||
|
|
|
|
Disposal |
|||||
|
|
|
|
Respecting and conserving the environment |
|||||
|
|
|
|
Troubleshooting, 7 |
|||||
|
|
|
|
Assistance, 8 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Installation
! Before placing your new appliance into operation GB please read these operating instructions carefully. They
contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.
Positioning and connection
Positioning
1.Place the appliance in a well-ventilated humidity-free room.
2.Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good 3. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
Electrical connections
After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:
•The appliance is earthed and the plug is compliant with the law.
•The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
•The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
•The socket is compatible with the plug of the appliance.
If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.
!Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
!The cable must not be bent or compressed.
!The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
!The manufacturer declines any liability should these safety measures not be observed.
2
Description of the appliance
Overall view
GB
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.
LAMP |
Removable lidded |
|
shelf with EGG TRAY |
||
(see Maintenance) |
SHELVES•
Removable multipurpose
SHELVES•
|
Compartment for a |
FRUIT and |
2 LITRE BOTTLE |
VEGETABLE bin |
|
|
BOTTLE shelf |
TEMPERATURE |
|
CONTROL |
|
FREEZER and
STORAGE compartment
STORAGE compartment
• Varies by number and/or position.
3
