INDESIT IGW 620 IX UK Daily Reference Guide

DAILY REFERENCE

GUIDE

EN

THANK YOU FOR PURCHASING AN INDESIT PRODUCT

To receive more comprehensive help and support, please register your product at www.indesit.com/register

You can download the Safety Instructions and the Use and Care Guide by visiting our WWW website docs.indesit.eu and following the

instructions on the back of this booklet.

Before using the appliance carefully read the Health and Safety guide.

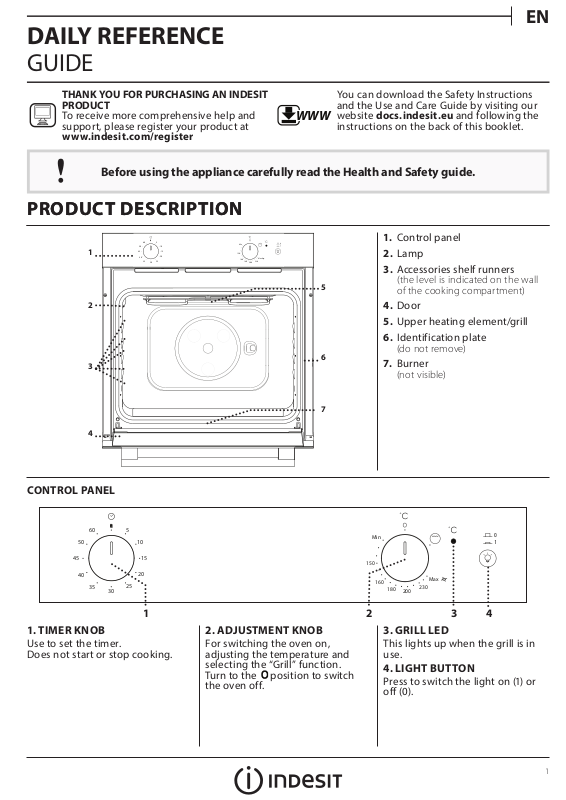

PRODUCT DESCRIPTION

1

2

3

4

60	0	5
50			10	Min
45			15	150
40			20	160		Max
35		25				230
	30			180	200

5

6

7

1.Control panel

2.Lamp

3.Accessories shelf runners

(the level is indicated on the wall of the cooking compartment)

4.Door

5.Upper heating element/grill

6.Identification plate

(do not remove)

7.Burner

(not visible)

CONTROL PANEL

	60	0	5
	50		10		Min
	45		15		150
	40		20			160				Max
	35		25							230
		30				180			200
			1		2					3	4
1. TIMER KNOB				2. ADJUSTMENT KNOB				3. GRILL LED
Use to set the timer.				For switching the oven on,				This lights up when the grill is in
Does not start or stop cooking.				adjusting the temperature and				use.
				selecting the “Grill” function.				4. LIGHT BUTTON
				Turn to the position to switch				Press to switch the light on (1) or
				the oven off.
								off (0).

1

ACCESSORIES

				Download the Use and Care Guide from
			WWW	docs.indesit.eu for more information

WIRE SHELF

DRIPPING PAN (IF PRESENT) BAKING TRAY

The number of accessories may vary depending on which model is purchased. Other accessories can be purchased separately from the After-sales Service.

FITTING THE COVER ON THE BURNER

To fit the cover on the burner

correctly, place it on the

bottom of the cooking

compartment.

Position it so that the words “AVANTI - FRONT” are facing the outside and so that the cover cannot move sideways

once lowered into position.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

• Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first. Then slide it horizontally along the shelf runners as far as possible.

• The other accessories, such as the baking tray, are inserted horizontally by sliding them along the shelf runners.

2

EN

USING THE APPLIANCE FOR THE FIRST TIME

HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal.

Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Heat the oven to 250° C for about one hour. Follow the instructions for setting the function correctly.

Notes: It is advisable to air the room after using the appliance for the first time.

DAILY USE

. STARTING THE OVEN

Keeping the oven door closed, push and turn the adjustment knob to the maximum temperature mark Max . Hold the adjustment knob down for a couple of seconds to make sure that the oven switches on.

The electronic switch-on knob must not be pressed and held for more than 15 seconds.

To change the temperature, turn the adjustment knob to the temperature you require.

Min

150

160

180

200

230

Max

If you want to stop cooking at any point and switch the oven off, turn the adjustment knob to the position.

If the oven fails to switch on or it switches off accidentally, turn the adjustment knob back to the position, open the oven door and wait at least one minute before attempting to switch the oven on again.

GRILL FUNCTION

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread.

We suggest placing food on the 5th shelf. When grilling meat, we recommend using a dripping pan to collect the cooking juices: Position it on the 4th shelf, adding approx. 200 ml of drinking water.

Preheat the oven for 3-5 minutes. The oven door must remain closed during cooking.

The roasting spit (if provided) can be used with this function.

To select the “Grill” function, turn the adjustment knob to symbol.

Once the function has started, the LED will light up to indicate that the function has been activated.

. SETTING THE TIMER

This option does not interrupt or activate cooking but allows you to use the display as a timer, both while a function is active and when the oven is off.

To activate the timer, turn the timer knob to the desired length of time: An audible signal will sound once the timer has finished counting down the selected time.

3
