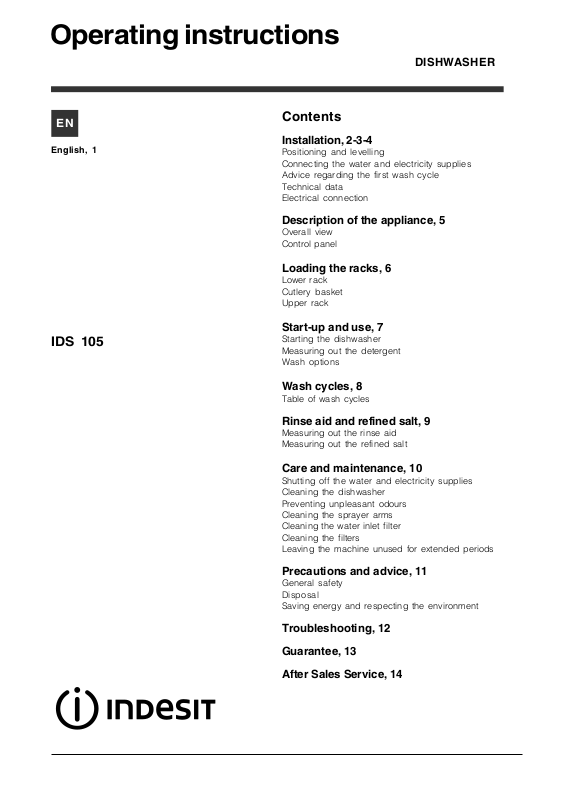

Indesit IDS 105 User Manual 2

Operating instructions

DISHWASHER

English, 1

IDS 105

Contents

Installation, 2-3-4

Positioning and levelling Connecting the water and electricity supplies Advice regarding the first wash cycle Technical data Electrical connection

Description of the appliance, 5

Overall view Control panel

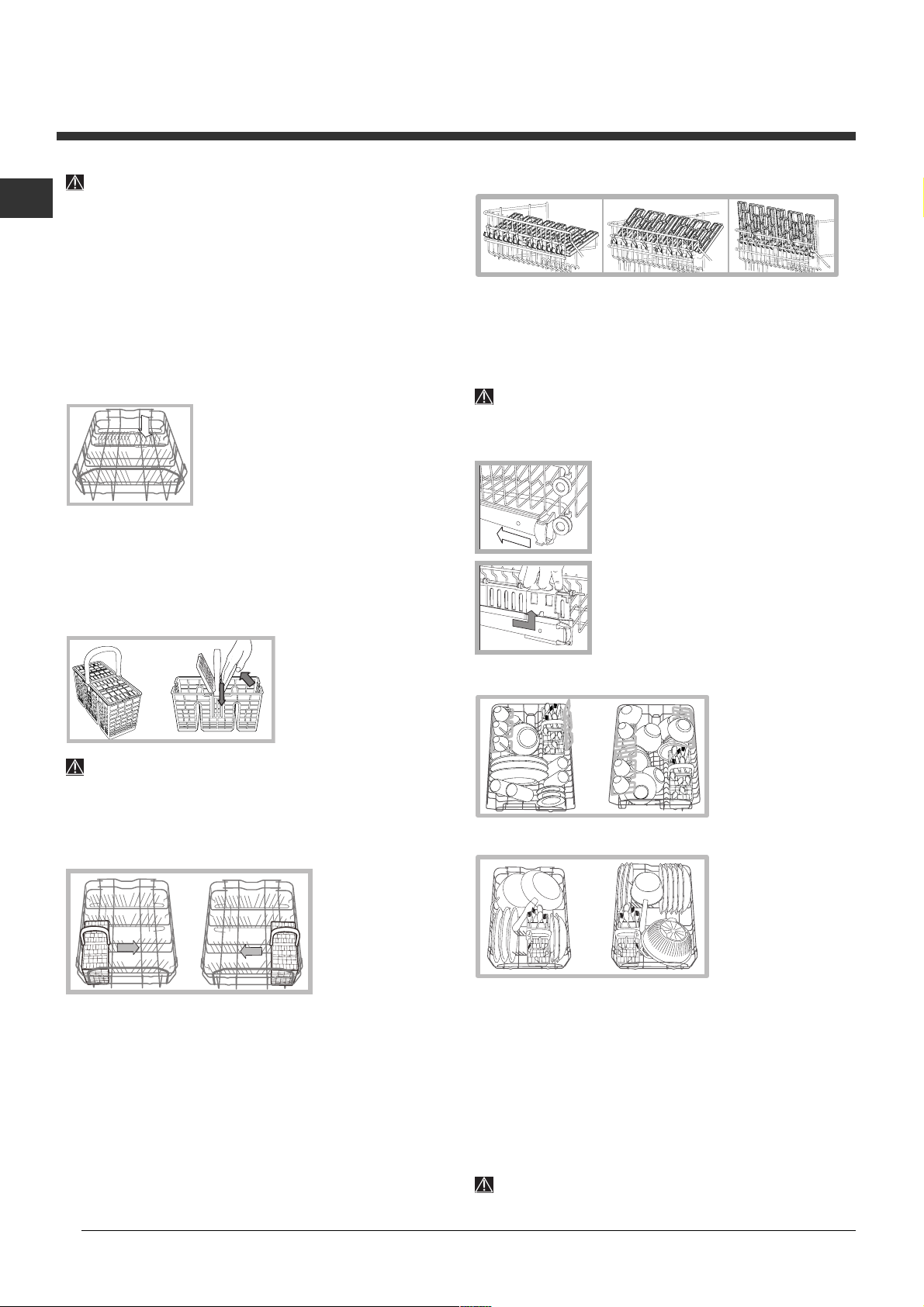

Loading the racks, 6

Lower rack Cutlery basket Upper rack

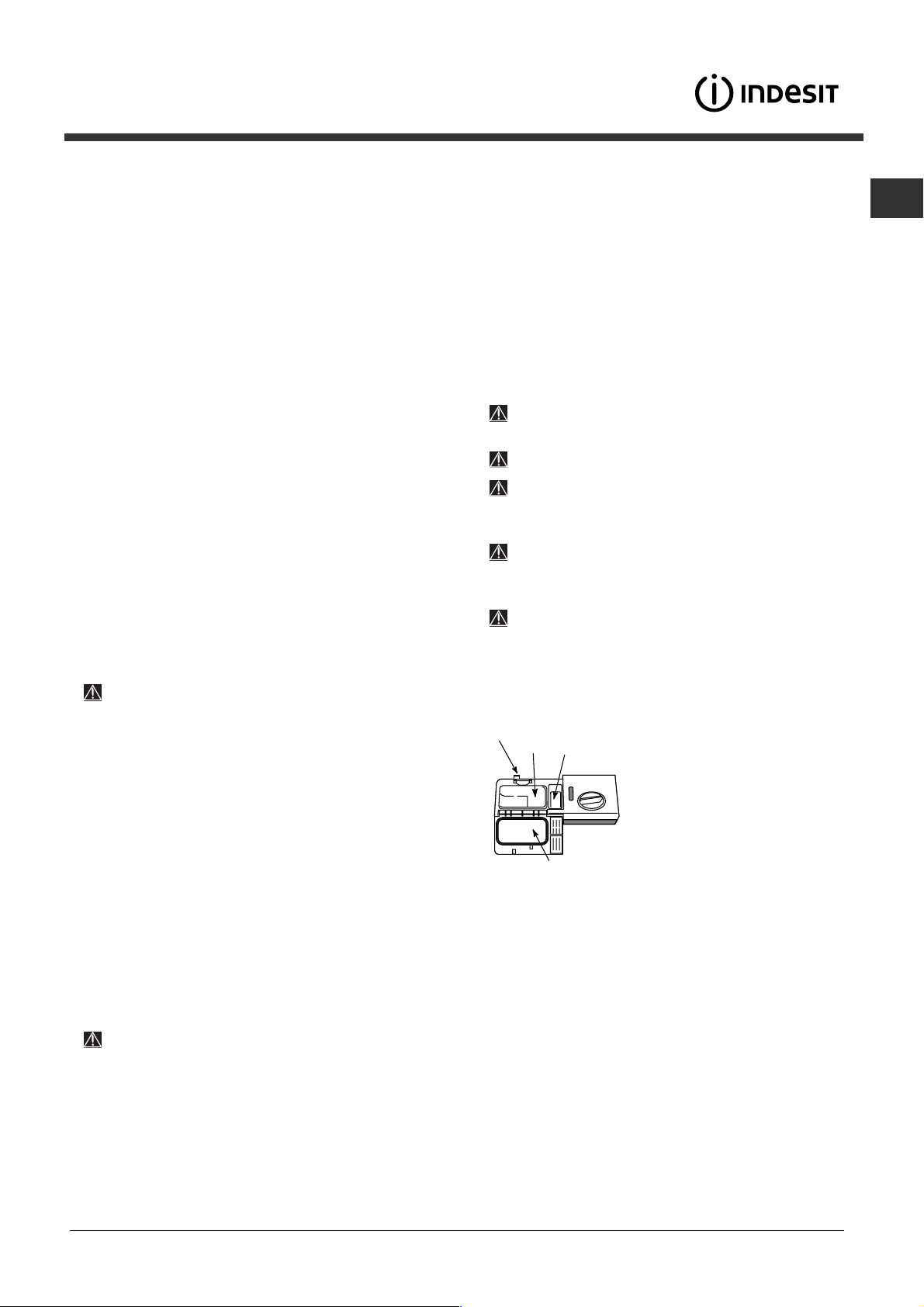

Start-up and use, 7

Starting the dishwasher Measuring out the detergent Wash options

Wash cycles, 8

Table of wash cycles

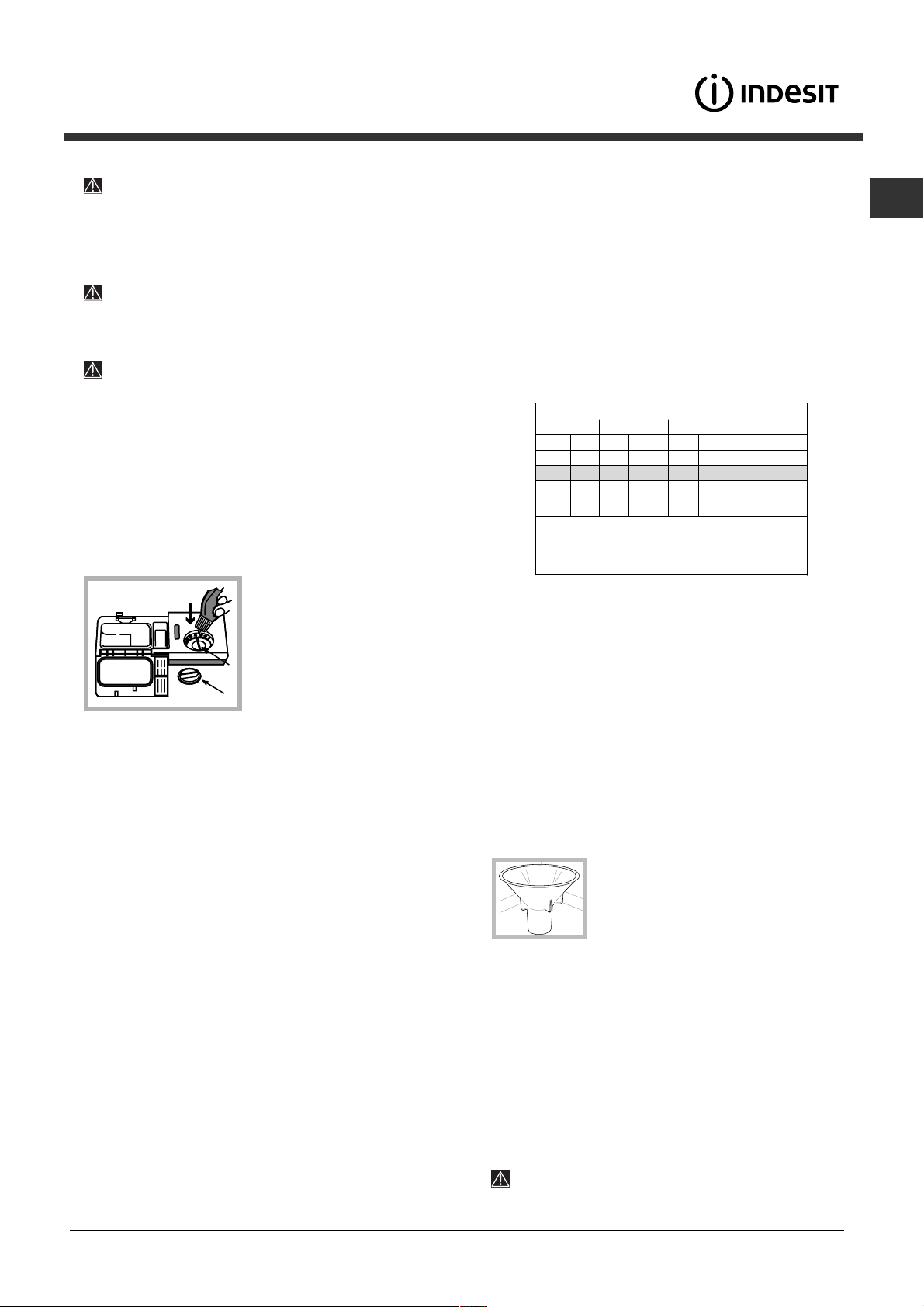

Rinse aid and refined salt, 9

Measuring out the rinse aid Measuring out the refined salt

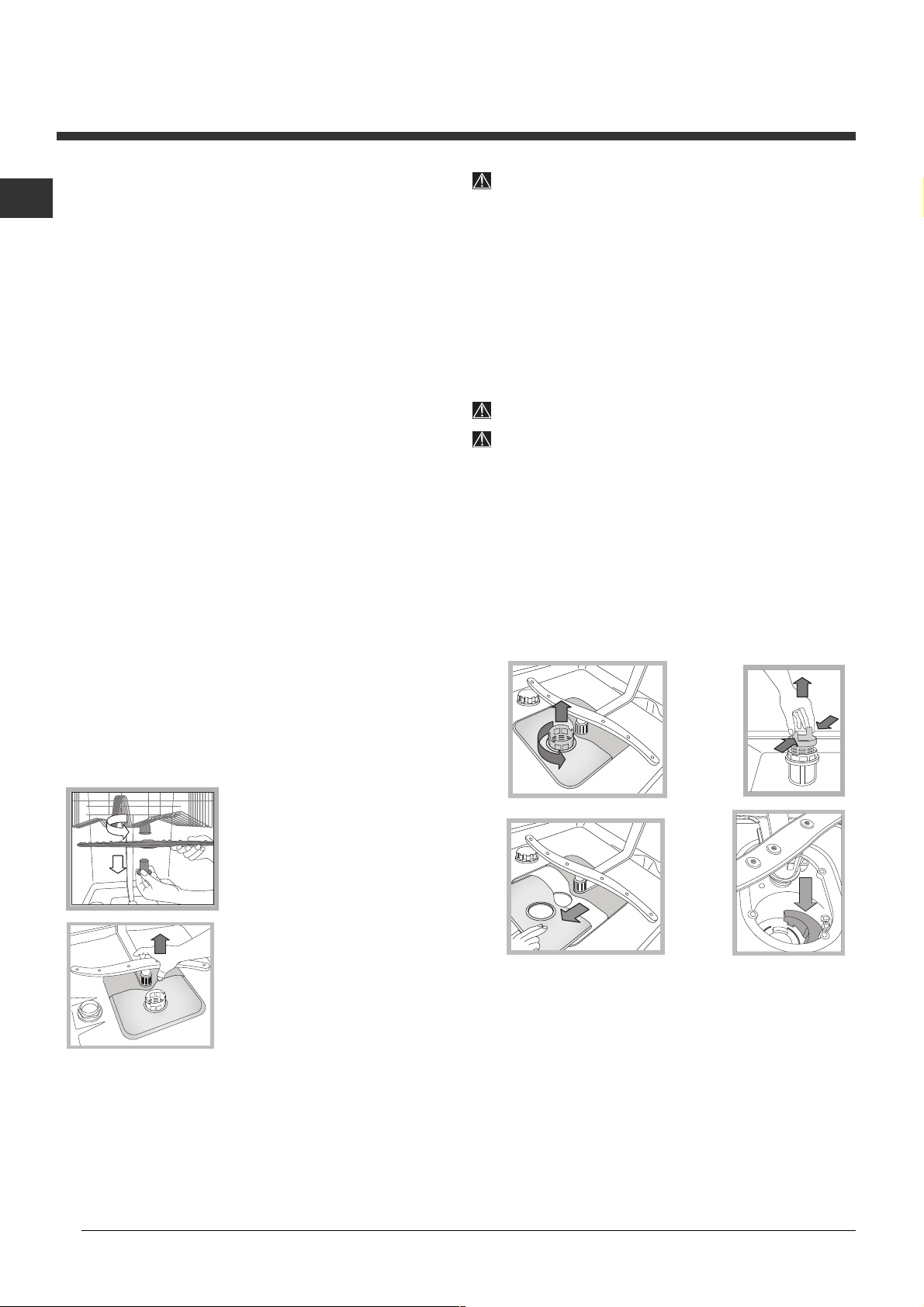

Care and maintenance, 10

Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods

Precautions and advice, 11

General safety Disposal Saving energy and respecting the environment

Troubleshooting, 12

Guarantee, 13

After Sales Service, 14

Installation

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop sheet).

* (see the Assembly instruction

Connecting the water inlet hose

 To a suitable cold water connection point: before

attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.

 To a suitable hot water connection point: your

dishwasher may be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C. Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance).

The water pressure must be within the values indicated in the Technical data table (see adjacent information).

The hose should not be bent or compressed.

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm.

3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

4. Adjust the height of the rear foot from the front of the appliance a hexagonal spanner (red color) with an opening of 8 mm in a clockwise direction to increase the height or in an anticlockwise direction to decrease the height.

* on the central lower part of the dishwasher, turning

Connecting the water and electricity supplies

Connection to the water and electricity supplies

should only be performed by a qualified technician.

The dishwasher should not stand on top of the water

hoses or the electricity supply cable.

The appliance must be connected to the water supply network using new hoses. Do not use old hoses.

The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation.

The outlet hose must be at a height ranging from 40 to 80 cm from the floor / surface where the dishwasher rests (A). Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

* Only available in selected models.

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Anti-condensation strip*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.

Some models are also equipped with the supplementary safety device New Acqua Stop flooding protection even in the event of a supply hose rupture.

*, which guarantees anti-

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

 The socket is earthed and complies with current

regulations.

 The socket can withstand the maximum load of the

appliance, which is indicated on the data plate located on the inside of the door (see chapter entitled Description of the appliance).

 The power supply voltage falls within the values

indicated on the data plate on the inside of the door.

 The socket is compatible with the plug of the

appliance. If this is not the case, ask an authorised technician to replace the plug (see After Sales Service); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See After Sales Service)

The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add only then approximately 1 kg of salt (see chapter entitled Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). - After the salt has been poured into the machine, the LOW SALT indicator light

If the salt container is not filled, the water softener

and the heating element may be damaged as a result.

Technical data

width 45 cm

Dimensions

Capacity 10 standard place-settings

Water supply pressure

Power supply voltage

Total absorbed power

Fuse See appliance data plate

height 85 cm depth 60 cm

0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 psi – 145 psi

See appliance data plate

This dishwasher conforms to the following European Community Directives:

-2006/95/EC (Low Voltage)

-2004/108/EC (Electromagnetic Compatibility)

-2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign)

-97/17/EC (Labelling)

-2002/96/ CE Waste Electrical and Electronic Equipment (WEEE)

* switches off.

* Only available in selected models.

Electrical Connection

If your appliance is supplied with a 13 amp. fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instruction below.

WARNING: THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacemente fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colours as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

Ifyour appliance has a non-rewireable moulded plug and you should wish to remove it to re-route the mains cable through partitions, units etc., please esure that either:

- the plug is replaced by a fused 13 amp re-wireable plug bearing the BSI mark of approval

- or:

- the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS

5733) which is accessible without moving the appliance.

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminal in your plug, proceed as follows: connect Green & Yellow wire to terminal market E or coloured Green or Green & Yellow. Connect Brown wire to terminal marked L or coloured Red. Connect Blue wire to terminal marked N or coloured Black.

If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse. A15 amp plug must be protected by a 15 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt about the electrical supply to your machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN AND YELLOW EARTH (E) or

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instruction for connecting cable to an altenative plug:

Important: the wires in the mains lead are coloured in accordance with the following code: Green & Yellow - Earth Blue - Neutral Brown - Live

CAUTION:

- Once the appliance has been installed, the electrical plug and socket should remain accessible.

- The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

Description of the appliance

Overall view

1. Upper rack

2. Upper sprayer arm

3. Tip-up compartments

4. Rack height adjuster

5. Lower rack

6. Lower sprayer arm

7. Cutlery basket

8. Washing filter

9. Salt dispenser

10. Detergent and rinse aid dispensers

11. Data plate

12. Control Panel

***

Control panel

ON/OFF/RESET

button

Select wash

cycle knob

Washing

indicator light

Drying indicator

light

indicator light

Start/Pause button and indicator light

Low Salt indicator light

End

***Only in completely built-in models. * Only available in selected models.

The number and type of wash cycles and options may vary depending on the dishwasher model.
