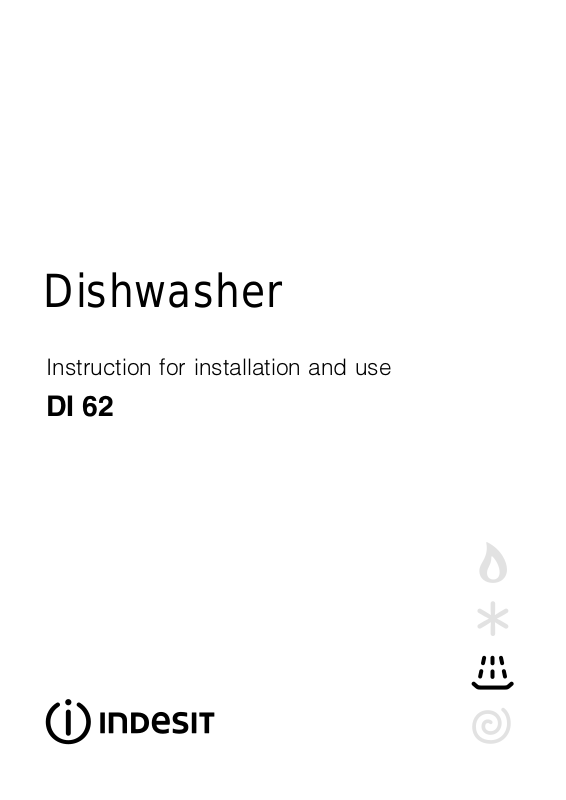

Indesit DI 62 User Manual

Dishwasher

Instruction for installation and use

DI 62

Safety Is a Good Habit to Get Into

NOTICE Carefully read the instructions contained in this manual, as they provide important information which is essential to safe and proper installation, use and maintenance of the appliance.

This appliance complies with the following EEC directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications.

1.Carefully dispose of the packing material.

2.After removing the packing, check to make sure that the

appliance is not damaged. If in doubt, contact a qualified professional.

3.The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.

4.Fundamental rules to follow when using the appliance:

- Never touch the dishwasher when barefoot or with wet hands or feet;

- We discourage the use of extension cords and multiple sockets;

- During installation, the power supply cord must not be

excessively or dangerously bent or flattened;

- If the appliance is not operating properly or maintenance must be performed, disconnect the appliance from the power supply.

5.Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open.

6.This appliance cannot be installed outdoors, not even if the area in which it is installed is covered by a roof; it is also very dangerous to leave it exposed to the rain and elements.

7.Do not touch the heating element during or after a wash cycle.

8.Do not lean or sit on the door when it is open, as this could overturn the dishwasher.

9.If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the wall socket. Then, consult the section entitled, "Troubleshooting." If you cannot resolve the problem, contact a service centre.

10.Appliances which are no longer being used must be made inoperable by cutting the power supply cord and removing the door lock.

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

l call only the Service Centers authorized

by the manufacturer

l always use original Spare Parts

Close-up View (control panel)

ON - OFF Button

ON - OFF Light

Knob For Selecting Cycles

Cycles Indicator Light

Close-up View (Interior)

Upper Rack

Top Sprayer Arm

Rack Height Adjustor

Lower Rack

Bottom Sprayer Arm

Salt Container Cap

Washing Filter

Detergent and Rinse Aid Dispenser

Technical characteristics

Width cm. 59,5

Depth cm. 57

Height cm. 82

Capacity 12 standard place settings

Mains water pressure 20 KPa÷ 1MPa (0,2 ÷10 bar)

Power voltage See data plate

Total absorber power See data plate

Fuse See data plate

Salt, Detergent and Rinse Aid ....

Salt

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

Loading the Salt into the Softener

Always use salt intended for use with dishwashers. The salt container is located beneath the lower rack and should be filled as follows:

1. Remove the lower rack and then unscrew and remove the cap from the salt container;

2. If you are filling the container for the first time, fill it with water;

3. Place the end of the funnel (supplied) into the hole and introduce about 2 kg of salt. It is normal for a small amount of water to come out of the salt container.

4. Carefully screw the cap back on.

The salt container should be filled after about every 30 wash cycles.

Warning: To prevent rust from forming , we advise you to load the salt before beginning a wash cycle.

Detergent

Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The detergent dispenser is located on the inside panel of the door.

Loading the detergent

To open lid "A", press button "B". The cleaning detergent should be introduced into the two containers "C"and "D" up to the rim.

After pouring in the detergent, replace the lid, pressing down until it clicks. Dishwasher detergent in tablets is now available on the market, in which case you should place one tablet into container "D" and replace the lid.

Notice: To facilitate closing the cover, remove any excess detergent on the edges of the dispenser.

Rinse Aid

This product makes dishes sparkle more as it improves their drying. The rinse aid container is situated on the inside of the appliance door; you should refill it when you see the container is empty by means of indicator light “D”. (If your dishwasher is fitted with a “low rinse aid” indicator light, fill the container up when the indicator light flashes or lights up).

Loading the Rinse Aid

To open the dispenser, turn the "C" cap in the anti-clockwise direction and then pour in the rinse aid, making sure not to overfill. The amount of rinse aid used for each cycle can be regulated by turning the "F" dose adjustor, located beneath the "C" cap, with a screwdriver. There are 6 different settings; the normal dosage setting is 4.

Important:

Proper dosage of the rinse aid improves drying. If drops of water remain on the dishes or spotting occurs, the dosage adjustor should be turned to a higher setting. If the dishes have white streaks, turn the dosage adjustor to a lower setting.

gr.

Warning

Three-in-one dishwasher tablets are now available on the market, and combine the detergent, salt and rinse aid all in one. If the water in your area is hard or very hard, we still recommend you pour extra salt into the relevant dispenser to prevent the formation of white streaks on your dishes or on the appliance interior. Add rinse aid to the corresponding container only if you are dissatisfied with the results on your dishes. In any case, please read the manufacturer's instructions provided on the packet.
