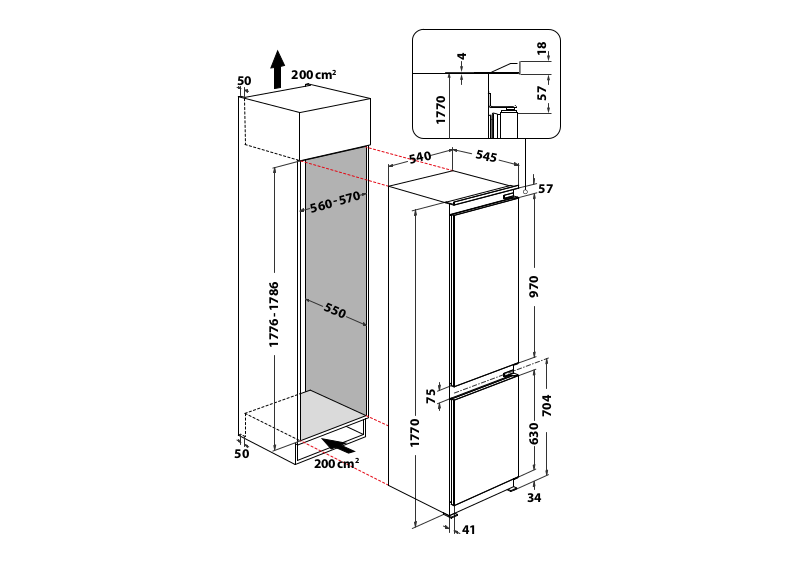

INDESIT B 18 A2 D/I 2 Extended Technical Drawing

970

630

704

540

1770

550

-17861776

570

560

545

200

1770

B 18 A2 D/I 2

12NC/Fx: F161346 GTIN (EAN) code:

8050147613467

DIMENSION MEASURE

WOODEN CABINET - Overall Wooden Cabinet - BI

01. Height MIN of the tall cabinet Niche, including all required space for installation or ventilation (HMIN_T)

02. Height MAX of the tall cabinet Niche, including all required space for installation or ventilation (HMAN_T)

03. Width MIN of the tall cabinet Niche, including all required space for installation or ventilation (WMIN_T)

04. Width MAX of the tall cabinet Niche, including all required space for installation or ventilation (WMAN_T)

05. Depth of the tall cabinet Niche, including all required space for installation or ventilation (DN_T) 550 mm

06. Height MIN of the base cabinet Niche, including all required space for installation or ventilation (HMIN_B)

07. Height MAX of the base cabinet Niche, including all required space for installation or ventilation (HMAN_B)

08. Width MIN of the base cabinet Niche, including all required space for installation or ventilation (WMIN_B)

09. Width MAX of the base cabinet Niche, including all required space for installation or ventilation (WMAN_B)

10. Depth of the base cabinet Niche, including all required space for installation or ventilation (DN_B)

11. Indicates whether a ventilation opening is needed or not. Default is "N" Yes

12. Appliance can be used as base for other appliances from the same manufacturer. Default is "N"

WOODEN CABINET - Door – Drawer

13. Height MIN Decorative Front, if appliance has more than one front, only the most bottom left front is described here (HMIF)

14. Width MIN Decorative Front, if appliance has more than one front, only the most bottom left front is described here (WMIF)

15. Weight/Thickness of the decorative bottom front panel of the Kitchen manufacturer needs (essential)

16. Weight MAX of the decorative bottom front panel of the Kitchen manufacturer (WEMAF) 0 kg

17. Thickness MIN Decorative Front, if appliance has more than one front only the most bottom left front is described here(TMIF)

18. Thickness MAX Decorative Front, if appliance has more than one front only the most bottom left front is described here(TMAF)

Additional Fronts (2 doors)

19. Height MIN Decorative Front, when appliance has more than one front, upper front is discribed here (HMIFU)

20. Width MIN Decorative Front, when appliance has more than one front, upper front is discribed here (WMIFU)

21. Weight/Thickness of the decorative upper front panel of the Kitchen manufacturer needs (essential)

22. Weight MAX of the decorative upper front panel of the Kitchen manufacturer (WEMAFU) 0 kg

23. Thickness MIN Decorative Front, when appliance has more than one front, upper front is discribed here (TMIFU)

24. Thickness MAX Decorative Front, when appliance has more than one front, upper front is 0 mm

1776 mm

1786 mm

560 mm

570 mm

970

560 mm

0 mm

DIMENSION MEASURE

APPLIANCE

Overall Appliance

01. Height MIN Product, watch the detail drawing for the exact position of the dimension line (HMIP)

02. Height MAX product, watch the detail drawing for the exact position of the dimension line (HMAP)

03. Width product, watch the detail drawing for the exact position of the dimension line (WP) 540 mm

04. Depth product without front, watch the detail drawing for the exact position of the dimension line (DP)

05. Depth product, watch the detail drawing for the exact position of the dimension line (D) 545 mm

06. Depth MIN plinth return front (DMIPRF) 0 mm

07. Depth MAX plinth return front (DMAPRF) 41 mm

08. Height MIN Plinth return. This dimension is taken by minimum appliance height (HMIPR) 34 mm

09. Height MAX Plinth return. This dimension is taken at minimum appliance height (HMAPR) 34 mm

Door or Drawer

10. Height front. When appliance has more than one front, only the most bottom left front is discribed here (HF)

11. Width front. When appliance has more than one front, only the most bottom left front is discribed here (WF)

12. Depth front (DF) 0 mm

13. Maximum depth all protruding elements, e.g. handles, controls (DC) 0 mm

14. Lateral clearance between front edge and most protruding elements which avoid to open a neighbour front more than 90° (CC)

15. Projection of front in relation to housing of appliance (FPT) 18 mm

16. Projection of front in relation to bearing area of the appliance. Taken at MIN height of appliance if adjustable height(FPB)

17. Height Product Panel. When product panel is missing, set to 0 (HMAPP) 57 mm

18. Lateral projection of front including controls when door is opened totaly. At the side where the hinge is mounted (FPOD)

19. Space in front, which is required to guarantee full operability. The most protruding part gives this dimension (RSF)

20. Lateral projection of opened front at the side where the hinge is fixed (FPD) 0 mm

21. Door hinge positiong and tipology Right-

22. Type of preparation to fix the cover door Sliding

23. Maximum angle when door is opened totaly (AOD) 0 °

24. Maximum thickness of the upper front panel (TUFP) 4 mm

Additional Fronts (2 doors)

25. Height front, when appliance has more than one front, upper front is discribed here (HUF) 970 mm

26. Width front, when appliance has more than one front, upper front is discribed here (WUF) 540 mm

27. Useful space between the 2 doors, including hinges size (HMAFG) 75 mm

28. Distance between the bottom of the product and the center line between the fridge doors (HFG)

1770 mm

0 mm

630 mm

540 mm

0 mm

changeable

system

704 mm
