Page 1
Model type:
AVD109EX
Commercial code:
28446
Page 2
General notes
Technical Documentation guidelines
----------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------
You can find herewith some generic information to simplify cunsulting of technical documentation:
1. Models of same range share the same exploded views, which report the richest set of spare parts:generally, a model does not
necessarly have a related spare part for each particular shown on exploded views.
2. Some spare parts can not be represented directly on the exploded views (instruction booklets, specific kit, etc...). You can find
those codes in the spare parts list with the same reference of particular where spares are installed or with references 099, 999.
Instruction booklets, once managed, appear with 000 reference.
3. On the higher right site of each exploded view there is a serial number which indicates the beginning of the production of
certain range:some models might have more than an exploded view for a given category, each distinguished by a different serial
no.and linked to another spare parts list, In this case, serial no. is required to supply the right spare part code. Exploded view to be
considered is the one with a more recent serial no. but previous than the one of the model that needs assistance.
4.Exploded views might require further updates even after publishing. Addition of new spares will go on following the already
existing numeration references. Revision number of an exploded view is shown into last four digits of serial number into upper
right hand corner.
5.The spare parts list associated to an exploded view shows related codes of spares managed for a certain model; for each spare
part other informations are available:
REF: reference no of spare into a table; SUBSTITUTE: list of spare(s) which can replace a code but that keeps same functional
characteristics
INDUSTRIAL CODE: list of variables of a model (shown into model label) where such spare is used; NOTICE: code of
information(s) to refer to complete technical intervention, track for changes or to find correct spare part code.
6. Some notices, into a same section are generic therefore cannot be directly linked to a spare part. In order to assist a model in
the best way as possible, it is helpful to pay attention to all notices and constantly verify documentation updates
7.Technical documentation cover shows model name and its commercial codes
mod.AVD109EX page 2
Page 3
1140150 Exploded views
mod.AVD109EX page 3
Page 4
1140150 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
000 C00095731 user instructions booklet rs-gb-p-
002 C00091882 pivot pin drawer front 106.5x5
003 C00091889 1 x C00098713 control avd 80284460200
80284460201
80284460252
003 C00098713 1 x C00116554 control lcd evoii amd n1040359 80284460200
80284460201
80284460252
003 C00116554 1 x C00143339 control lcd evoii amd pw 80284460900
80284460905
004 C00091890 potentiometer support avd
005 C00094065 1 x C00118964 knob timer disc 28 pr b27 n1040359 80284460200
80284460201
80284460252
005 C00116381 1 x C00203083 knob timer disc pw 80284460900
80284460905
006 C00094205 1 x C00116666 control panel + handle avd109it n1040359 80284460200
80284460201
80284460252
006 C00116666 control panel + handle pw 80284460900
80284460905
007 C00091873 1 x C00115953 wash timer knob white 27 avd n1040359 80284460200
80284460201
80284460252
007 C00115953 wash timer knob white pw avd 80284460900
80284460905
008 C00092157 1 x C00115670 door frame and glass assy 80284460200
1 x C00115678 80284460201
80284460252
008 C00115670 1 x C00116553 door frame+glass assy evoii b27 n1040359 80284460252
008 C00116240 door frame+glass assy evoii pw 80284460900
80284460905
009 C00092158 1 x C00116576 door handle kit b27 ariston n1040359 80284460200
80284460201
80284460252
mod.AVD109EX page 4
Page 5
1140150 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
009 C00116576 door handle assy white pw 80284460900
80284460905
010 C00064505 plinth white 80284460200
80284460201
80284460252
010 C00110325 1 x C00116552 plinth white n1040359 80284460200
80284460201
80284460252
010 C00116552 plinth white pw 80284460900
80284460905
011 C00087084 foot
012 C00083828 foot spring (11x8.5mm)
013 C00019846 civata t 1/2 t m4x12

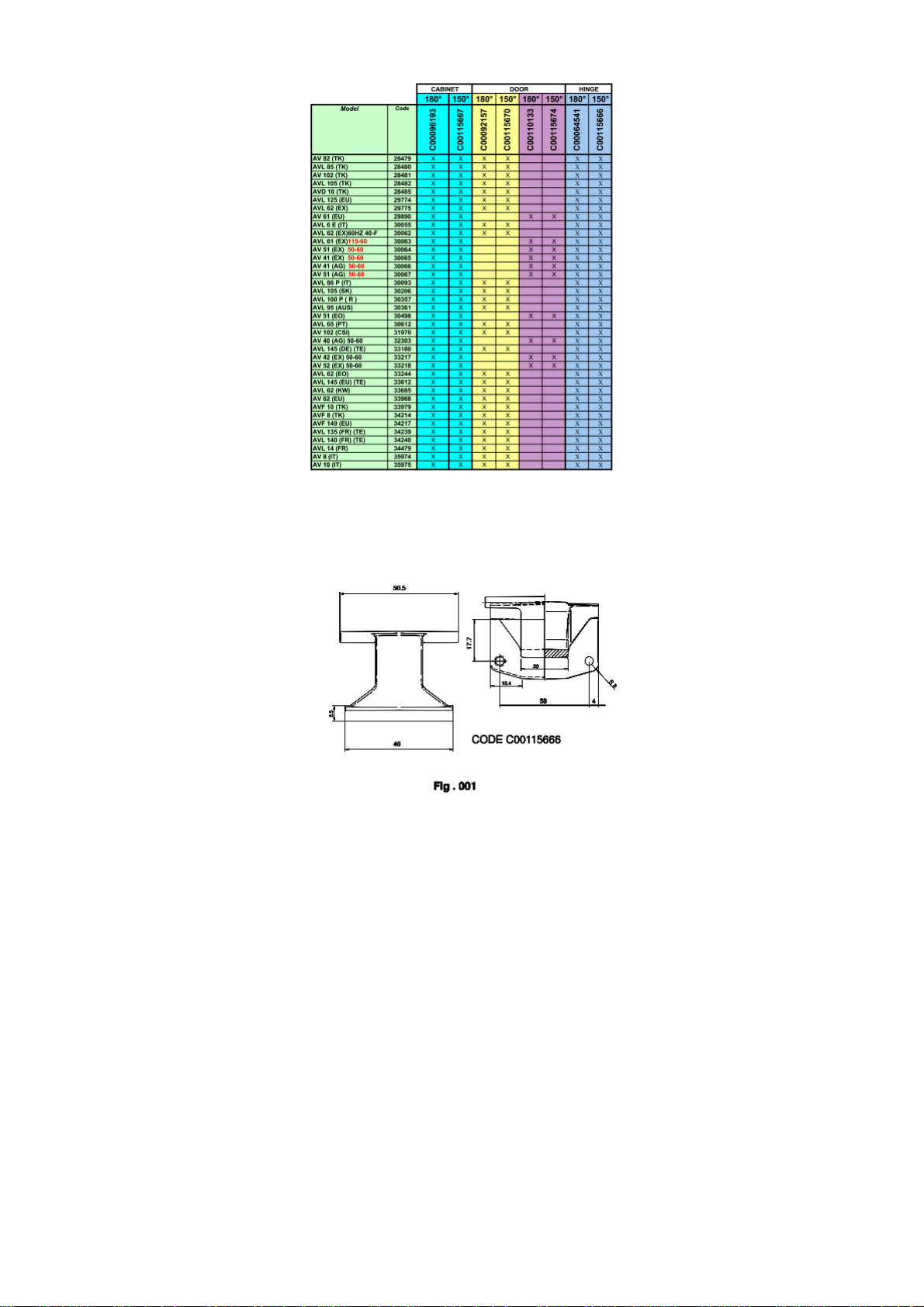

014 C00064541 outer door hinge assembly n1040349 80284460200
n1040359 80284460201
80284460252
014 C00115666 zama hinge 150° 80284460900
015 C00002497 nut m4x3,2x7
016 C00012687 self-tapping screw hi-lo 3,5x13
018 C00089803 blanking plug d = 53 mm
019 C00046666 collar for drain hose
020 C00089419 blanking plug 6.5 mm
021 C00065871 blanking plug
022 C00099313 1 x C00116923 rear cover - white n1040359 80284460200
80284460201
80284460252
022 C00116923 rear cover - white pw 80284460900
80284460905
023 C00084817 blanking plate-rear(test plug)
024 C00094018 insulation pad (front panel)
025 C00091904 cable clamp hose
026 C00077411 transit bolts kit (1 screw + 1
027 C00046667 wiring stop
027 C00064550 drain hose holder
029 C00091867 1 x C00116550 worktop - white 595 x 522 mm n1040359 80284460200
mod.AVD109EX page 5
Page 6
1140150 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
029 C00116550 worktop - white(pw) 595 x 522 80284460900
80284460905
030 C00091836 1 x C00115662 cabinet white standard n1040359 80284460200
2 x C00115666 80284460201
1 x C00115676 80284460252
030 C00115662 1 x C00116539 cabinet white standard 80284460252
030 C00116539 cabinet white standard pw evoii 80284460900
80284460905
031 C00091886 pushbutton display grey left avd
032 C00091884 pushbutton display grey right avd
033 C00094356 push buttons on-off white 27 evo2 n1040331 80284460200
n1040359 80284460201
80284460252
033 C00116387 push buttons on-off pw evo2 80284460900
mod.AVD109EX page 6
Page 7
1140230 Exploded views
mod.AVD109EX page 7
Page 8
1140230 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
001 C00064786 1 x C00143260 bolt m8x23 torx tefl
002 C00002591 bearing 20x47x14
003 C00064785 1 x C00193879 bolt m8x22 tb6lt
004 C00002590 bearing 17x40x12 6203-2z skf
005 C00042890 sealing ring 600 rpm
008 C00088408 bolt + washer
009 C00064517 tank cradle channel-top left right
010 C00064548 upper counterweight 11 kg
011 C00064515 anchorage pad - suspension
012 C00064502 suspension spring - tank
013 C00092154 40613... door seal
013 C00110326 40614... door seal
014 C00092156 door seal retainer front
015 C00092155 door seal- rear retainer
016 C00092178 front counterweight
017 C00092411 1 x C00094908 hose clamp
018 C00092174 hose tank to filter with oko ball
019 C00092412 hose clamp
020 C00091148 1 x C00094908 clamp d=79 mm
021 C00093848 cradle outer- set n1040325
022 C00030443 1 x C00047136 nut romob m8
023 C00065152 nut romob m6x22x1,5
024 C00093884 shock absorber 80 n 8.15 mm
025 C00064789 lifter - extractable
026 C00094273 1 x C00094272 outer- set 46 l. evoii n1040300
1 x C00094275
027 C00093750 bolt zink m8x40
028 C00092161 hose dispenser to tank
029 C00064514 1 x C00112708 bearing spider assembly
030 C00066080 drum pulley cone d=210 mm h=
031 C00074218 belt (1046-1051mm h8) n1040365 80284460200
80284460201
80284460252
80284460900
031 C00118629 belt l=1046 - 1051 mm h8 80284460900
mod.AVD109EX page 8
Page 9
1140230 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
099 C00001109 loctite 270 10 gr.
mod.AVD109EX page 9
Page 10
1140330 Exploded views
mod.AVD109EX page 10
Page 11
1140330 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
001 C00094203 1 x C00115769 supply cable 3 x 1.0 1,5mt shuko n1040365 80284460200
80284460201
80284460252
80284460900
001 C00115769 supply cable 3 x 1.0 1,5mt shuko 80284460900
003 C00019902 plastic -u- to make drain hose
004 C00027466 drain hose - to sink l=1860mm
005 C00091885 wiring dashboard avd avsd evoii
006 C00087067 60228... 1 x C00143095 programme select bitron 16
006 C00143095 60301... programme selector potentiometer 80284460905
008 C00064537 support - pressure switch
009 C00095412 reading desk symbols
009 C00095413 reading desk pr28 rs 14802557601
010 C00093813 support - programme guide evo ii
012 C00046148 soap dispenser drawer (rotary)
013 C00092176 dispenser body
014 C00092151 pressure switch 1 l.78-50 n1040299
015 C00092412 hose clamp
016 C00092170 pipe pressostat l= 470mm. evo ii
017 C00019755 anti-vibration bush (foam)
018 C00092173 air trap x oko
020 C00065185 bolt m4,5 x 11
020 C00091911 door interlock avd
022 C00045023 filter handle
022 C00045025 filter seal
022 C00045027 pump filter kit
023 C00076510 1 x C00092264 self cleaning pump 240v./50hz.
027 C00040932 self locking nut m6
028 C00094023 50222... motor three phase cim2-55 n1040351 80284460200
80284460201
028 C00097258 tacho generator for motor ceset
028 C00116103 50223... 80322... motor three phase standard (stator 80284460252
80284460900
80284460905
028 C00265827 80323... motor three phase standard (stator n4008f00
mod.AVD109EX page 11
Page 12
1140330 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
029 C00087188 heat element + sensor hole n1040300
030 C00058523 pillar retainer-heating element
031 C00083915 thermistor ntc
033 C00066292 insulated tweezers
033 C00084943 1 x C00099862 serial cable lb2000 - pc n1040317
033 C00095669 1 x C00145046 hardware key mk1 n1040317
036 C00046152 additive container
037 C00046157 stopper detergent container
038 C00092177 2 x C00064534 hopper cover 1e 2u ev
1 x C00110333
1 x C00115914
039 C00110333 fill valve 2 way (7lt rst 2.5)
040 C00064534 seal - dispenser to valve
041 C00005572 sealing washer-mains inlet hose
042 C00005781 inlet hose filter
043 C00003070 mains inlet hose cold 25c 10bar
044 C00064946 electrovalve support 1 ev
045 C00092348 self-scraping screw 3,5x8
046 C00094047 support cover 3 f
046 C00094049 bracket for module 3 f
047 C00254298 51025... module(3 phase /3.5 software/inc n4008c01 80284460905
047 C00257406 51024... module wd>1200 rpm+sc fw2.74 n1040378 80284460200
n4008c01 80284460201
80284460252
80284460900
049 C00019682 rubber bush 20 mm - motor n1040365 80284460200
80284460201
80284460252
80284460900
049 C00118675 rubber bush 20 mm - motor 80284460900
050 C00074153 spacer motor support l= 187 mm
051 C00074152 bolt m6x30
055 C00260448 50223... 51024... card avd109ex evoii 8kb n4008c01 80284460252
80284460900
055 C00262127 51025... card avd109ex evoii 8kb n4008c01 80284460905
mod.AVD109EX page 12
Page 13
1140330 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial
055 C00273608 50222... card avd109ex evo ii sw n4008c01 80284460200
80284460201
056 C00272306 smart reader for card 8kb 32kb +
mod.AVD109EX page 13
Page 14
1140960 Exploded views
mod.AVD109EX page 14
Page 15
1140960 Spare parts list
Ref. Code From To S/N Substitute Description Notice Industrial

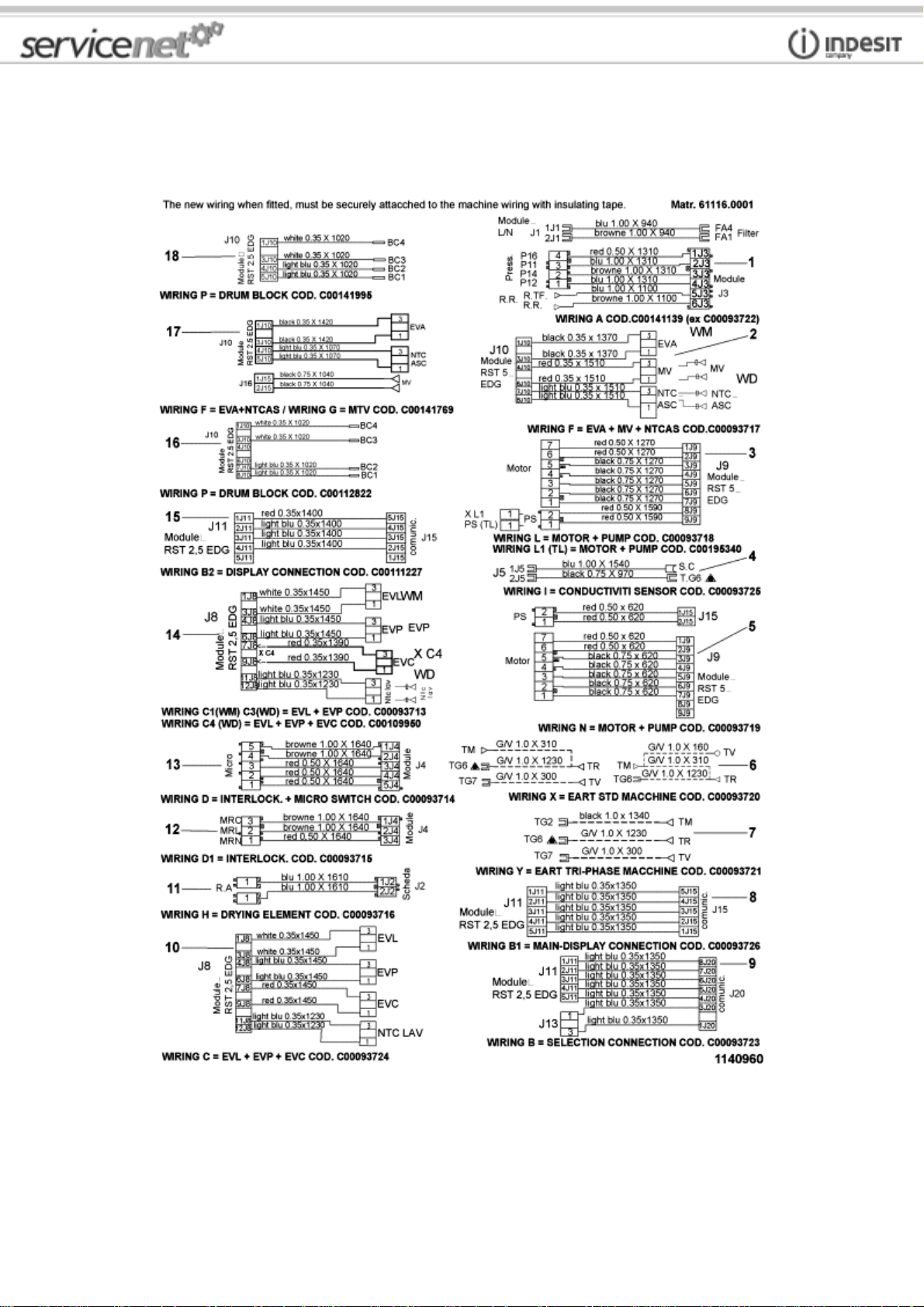

001 C00141139 wiring
005 C00093719 wiring pump-motor-module
006 C00093720 wiring standard earth 80284460900
007 C00093721 wiring earth triphase n1040365 80284460200
80284460201
80284460252
80284460900
008 C00093726 wiring display
013 C00093714 wiring door lock-module j4
014 C00093713 wiring ntc-evl+evp-module j8
mod.AVD109EX page 15
Page 16
Notices

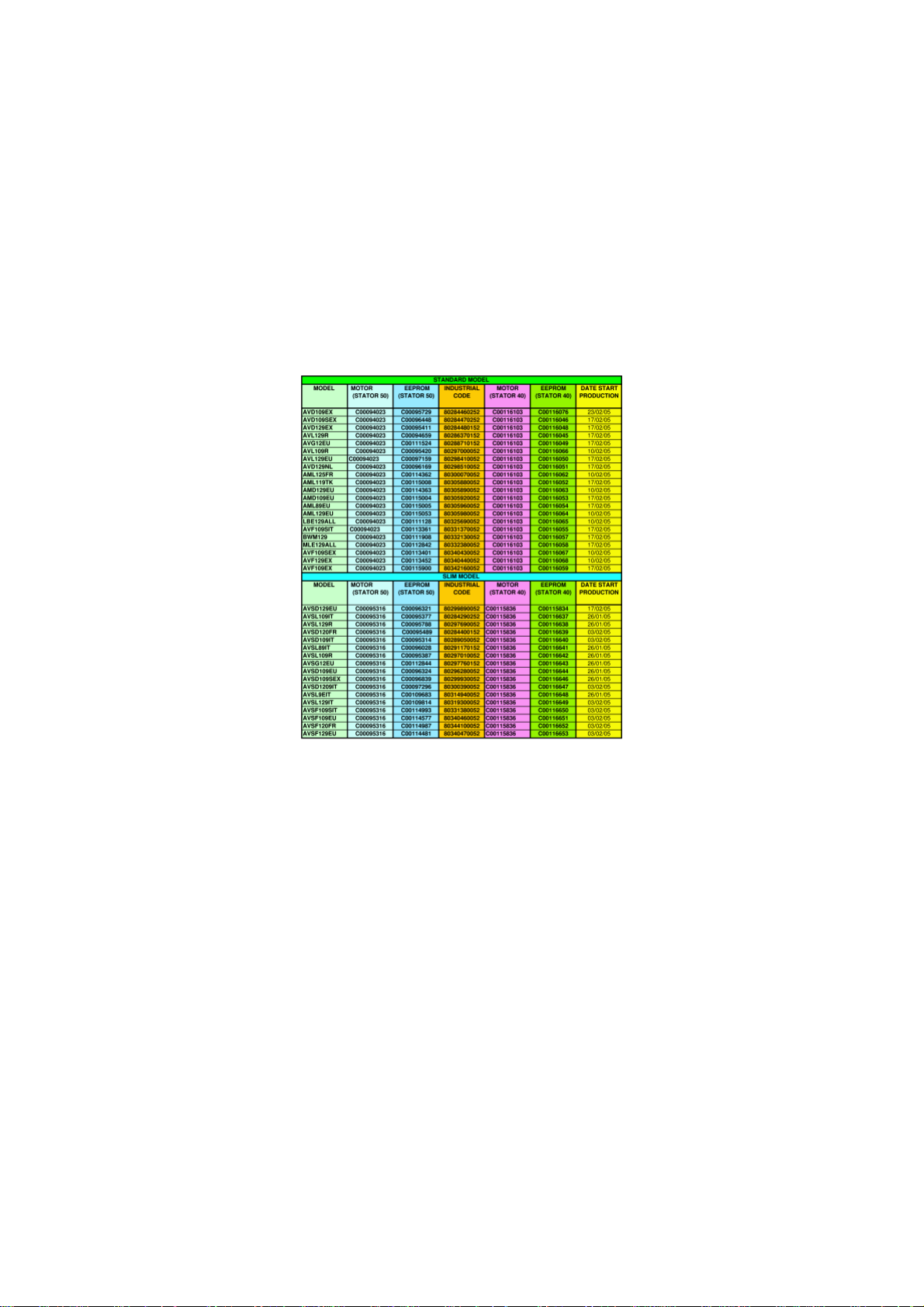

n1040242: Power card with welded eeprom.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial number 20304.0001, IDC power card with welded eeprom is used to ensure the perfect connection of all parts, in the
Comunanza, Teverola and Brembate factories.
To replace the module with welded eeprom, it will be necessary to use the eeprom indicated in the SAT document of the model
concerned.
To replace the module on a unit with welded eeprom both the SAT module and the eeprom are required, because the latter cannot
be reused.

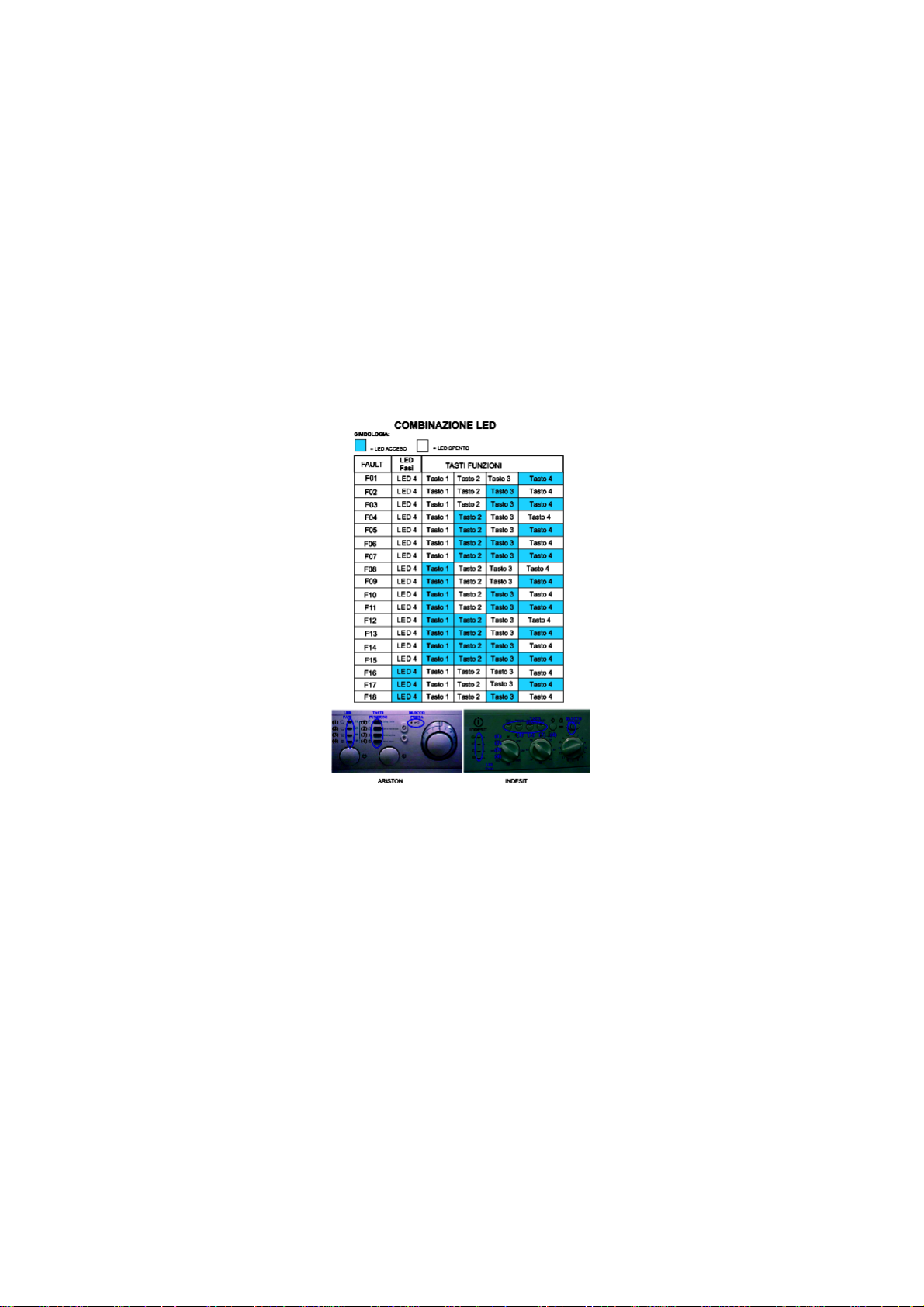

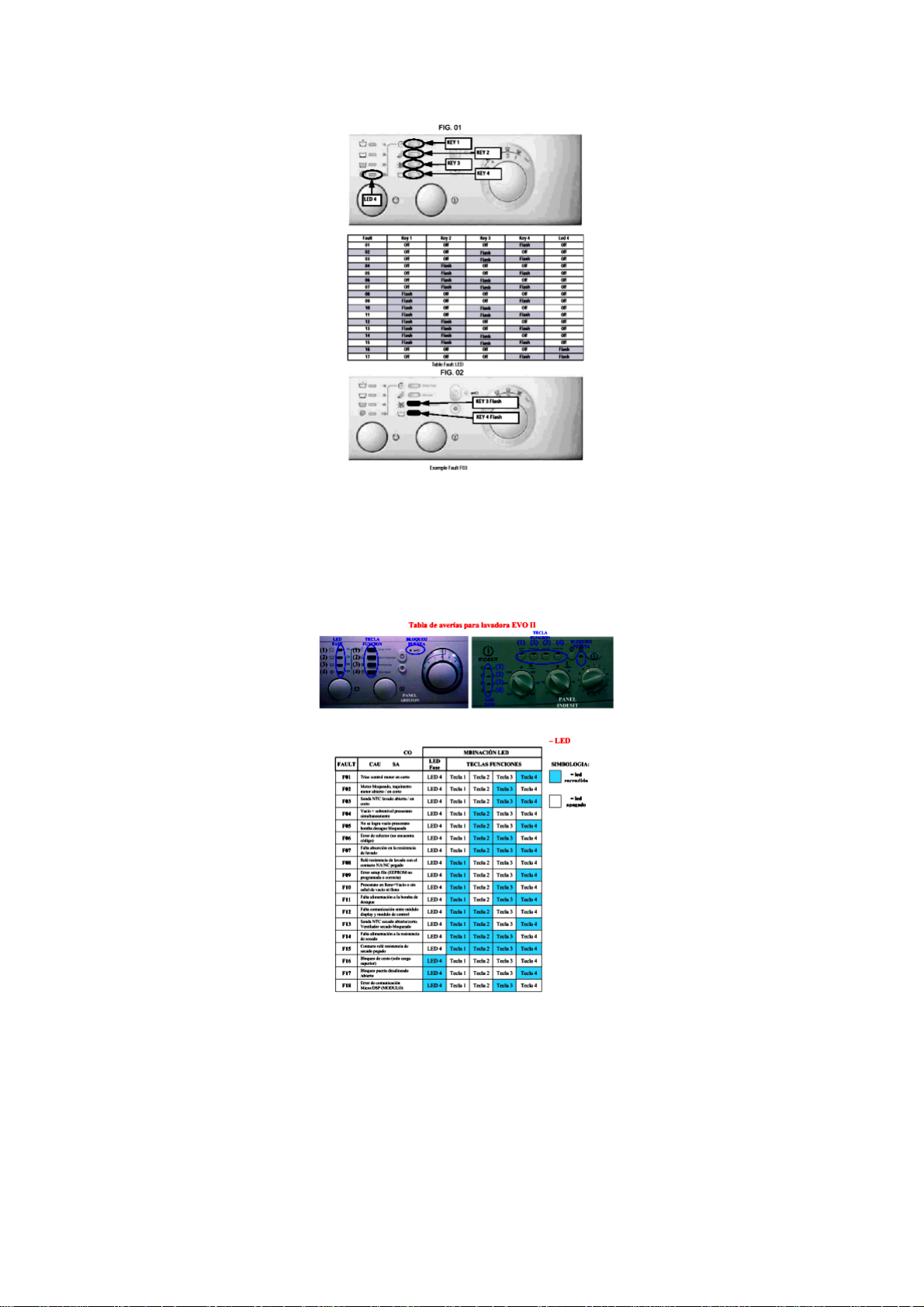

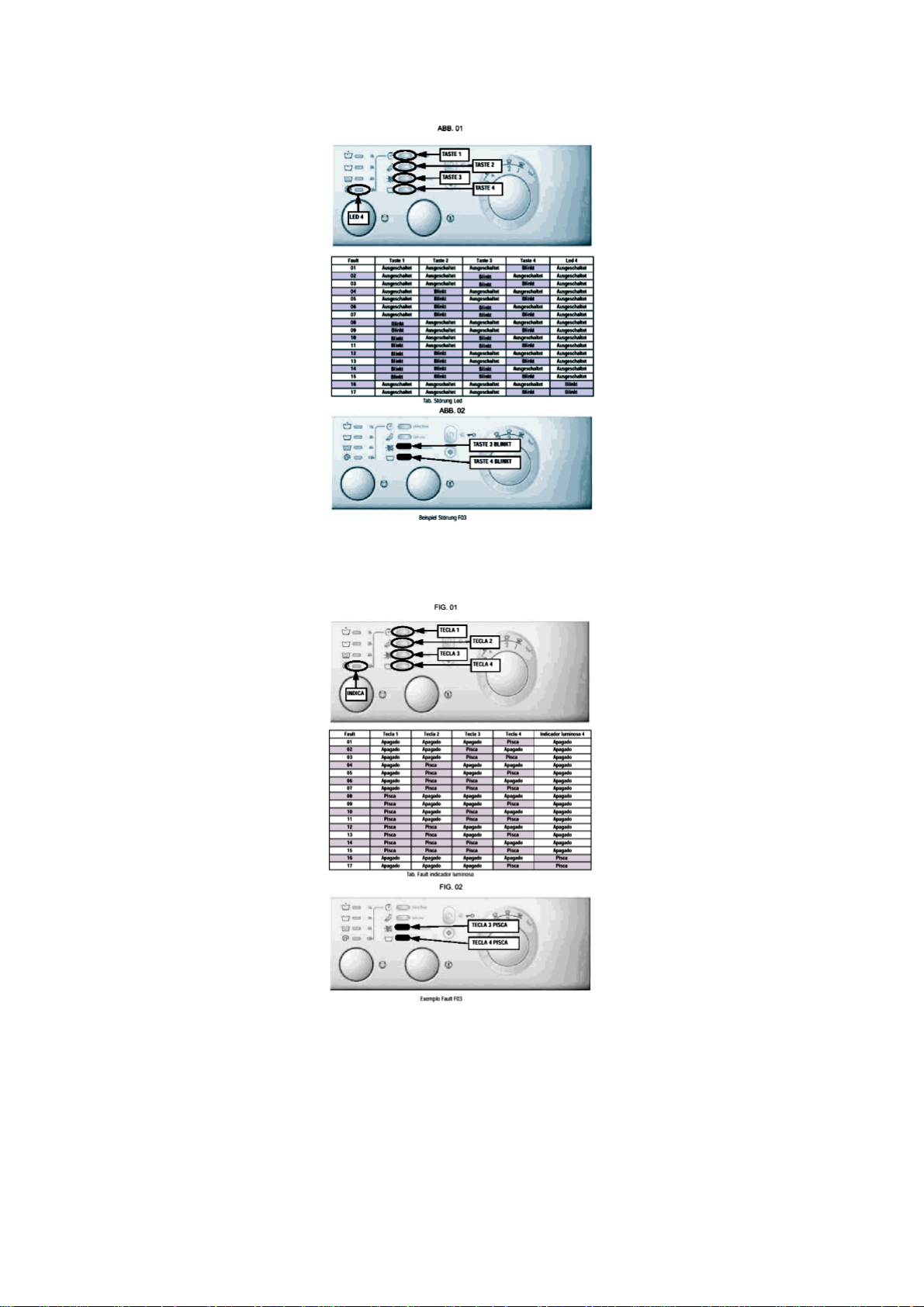

n1040296: List of EVOII FAULTS and troubleshooting.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
In case of washing-machine fault in carrying out the self-test function, the machine reproposes the fault previously signalled and
the same fault is shown on the display of the new hardware key.
The type of fault can be signalled in different ways:
- on AVD models the fault is shown directly on the machine display.
- on AVL models the fault is signalled by LEDs.
Reading of Faults signalled by LEDs
When the machine has a fault:
1. The window is locked
2. The door lock light flashes fast (> 1 Hz)
3. The control panel LEDs light up, to signal the fault, according to the table (fig. 01).
The example shown in fig. 02 (Example Fault F03) below indicates which LEDs are flashing if the machine has Fault F03
List of faults, malfunctions and Warnings:
F01: Triac Motor short circuit
- Check for water leaks that may affect connector J9 causing the relevant contacts to short
- Check the motor terminal block (possible problems due to chemical effects of work residuals on the contacts which may cause
short-circuiting)
- Replace Card
F02: Motor blocked, Tachometrics in Short Circuit/Open
- Check motor if blocked
mod.AVD109EX page 16
Page 17
- Check efficiency of J9 connector on card
- Check the tachometric winding verifying an ohmic resistance reading of 115 - 170 ohm between pins
1 and 2 on wiring connector J9. In case of short circuit/open circuit check the wiring between pins 1 and 2 of J9 relevant to the
tachometrics. With three-phase motor, make sure there is ohmic continuity between J9 pins 6 and 7.
- Replace motor
- Replace card
F03: NTC Open or in Short Circuit or washing heater relay stuck (signalled in presence of full load)
- Check efficiency of J8 connector contacts on card
- Check NTC verifying that the ohmic resistance value at room temperature 20°C is approx. 20Kohm on J8 wiring connector pin
11 and 12.
- If the measurement is incorrect check J8/NTC wiring continuity
Check the same parameter directly on NTC
- Replace NTC
- Replace Card
F04: Simultaneous empty and overflow (pressure switch stuck on empty).
If the pressure switch contact is stuck on empty the washing-machine loads water until reaching the overflow. The drain pump is
automatically started by the contact on the overflow pressure switch.
- Check efficiency of J3 connector contacts on card
- Check pressure switch status by checking ohmic continuity on wiring connector J3 pins 2 and 4 (it must only be present with tub
empty), pins 2 and 3 (it must only be present with water in the drum) and pins 2 and 1 (it must only be present with water in the
tub above normal level, more than halfway up door glass).
- Check wiring of connector J3/pressure switch
- Replace pressure switch
- Replace card.
F05: Pump Blocked or pressure switch empty not reached
- Check efficiency of J9 connector on card, verifying a voltage of 220V between pins 8 and 9
- Check that pump if being fed
- Check Pump Filter + wall drain
- Change Pump
- Replace Card
F06: No on AVD and AVL
F07: No Wash Heating Element Absorption (the fault is only signalled with the pressure switch on empty)
- Check efficiency of J3 connector contacts on card
- Check continuity of the wash heating element on J3 connector pins 5 and 6. The 1800W 230V heating element has a resistance
of 25 ohm.
- Check connection of pressure switch J3 connector pins 2 and 3: there must not be ohmic continuity (shared with full load).
Check connection of pressure switch J3 connector pins 2 and 4: there must be ohmic continuity
- Replace Heating Element
- Replace Pressure Switch
- Replace Card
F08: Wash Heater Relay Stuck (signalled in presence of empty) or pressure switch stuck on Full (simultaneously empty and full)
- Check efficiency of J3 connector contacts on card
- Check pressure switch status by checking ohmic continuity on wiring connector J3 pins 2 and 4 (it must only be present with
tub empty), pins 2 and 3 (it must only be present with water in the drum) and
pins 2 and 1 (it must only be present with water in the tub above normal level, more than halfway up door glass).
- Check wiring J3/pressure switch
- Check connection of heating element J3 connector pins 5 and 6.
- Replace pressure switch
- Replace Card
F09: Machine Setup Error (Eeprom error)
mod.AVD109EX page 17
Page 18
- In case of production card with Eeprom soldered: replace the card and Eeprom
- In case of replacement of Eeprom and card, check correct housing of Eeprom on card socket
F10: No full and empty signal
- Check efficiency of J3 connector contacts on card
- Check pressure switch status by checking ohmic continuity on wiring connector J3 pins 2 and 4 (it must only be present with
tub empty), pins 2 and 3 (it must only be present with water in the drum) and
pins 2 and 1 (it must only be present with water in the tub above normal level, more than halfway up door glass).
- Check wiring of connector J3/Pressure switch
- Replace Pressure Switch
- Replace Card
F11: No Pump Feedback (Drain pump disconnected or winding broken)
- Check efficiency of J9 connector on card
- Check continuity of the Pump on J15 connector pins 1 and 2 (in case of washing-machine with Easy Door door lock) or on J9
connector pins 8 and 9 (in case of conventional door lock), checking a resistive value equal to 170 ohm.
- Check wiring of connector J15 (or J9)/Pump
- Replace Pump
- Replace Card
F12: No Communication Display/LED Card-Main Board
- Check efficiency of contacts on card of J11 connector
- Check the continuity of J11 connector-display card 5-pin connector
- Replace Main Board
- Replace Display Card/LED
F13: Drying NTC sensor open / Drying system NTC wiring disconnected
Check efficiency of J10 connector on card
Check NTC on J10 connector pins 7 and 8 verifying that the ohmic value of the sensor at room temperature 20°C is approx.
20Kohm
Check continuity of NTC/J10 connectors wiring
Replace NTC
Replace card
F14: Drying heater open or not connected
Check efficiency of J2 connector contacts on card
Check continuity of drying heater on J2 wiring connector pins 1 and 2, verifying that the ohmic value of the 1300W 230V heating
element is approx. 40Kohm
Check wiring of connector J10/drying heater
Replace heating element
Replace card
F15: Drying heater always on (drying relay contact stuck or drying Triac short circuit)
Check efficiency of J2 connector contacts on card of
Check wiring of connector J2/drying heater
Check wiring of connector J3/pressure switch
Replace card
F16: Drum locking (top-loading only)
F17: Door lock unfed/open (with Easy Door)
- Check presence of 230V mains power on J4 wiring connector inserted on card between pins 3 and 4,
(not present with machine on standby) and presence of power from 230V door lock between pins 3 and 5
- Check ohmic continuity of the door microswitch on J4 connector inserted on card between pins 1 and 2 (with door closed/on
open/off)
- Check continuity of J4/door lock wiring
- Check door hooking
mod.AVD109EX page 18
Page 19
- Replace door lock
- Replace card
F17: Door lock unfed/open (conventional door lock, not Easy Door)
- Check presence of 230V mains power on J4 wiring connector inserted on card between pins 2 and 3,
(not present with machine on standby) and presence of power from 230V door lock between pins 3 and 1
- Check door hooking
- Replace door lock
- Replace card
F18 --> Communication error microprocessor / DSP (Digital Signal Processor)
- Replace card
mod.AVD109EX page 19
Page 20
mod.AVD109EX page 20
Page 21
n1040300: Short heating element for 46 l.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial number 30606.0001, all washing machines with 46 litre tubs, codes 094283, 094273 and 094279, have been equipped
with shorter heating elements, which required the heater retaining bracket hole to be moved back (see fig. 01).
mod.AVD109EX page 21
Page 22
As the tub replacement mainly concerns premodification appliances, it was decided that with those supplied as replacements the
retaining bracket will remain in the old position. Therefore, if the tub needs replacing, it will not be necessary to also replace the
heating element or make the hole and position the retaining bracket.
When replacing the heating element pay particular attention to the serial number of the appliance and therefore the choice of the
SAT code.
Codes of short heating elements:
Washing machine
Code 087188 - HEATING ELEMENT+ F. PROBE 1700W/230V 169.5IDC
Washer-dryer
Code 066086 - HEATING ELEMENT WITH THERMOFUSE 1700W / 230V+T
Codes of premodification long heating elements:
Washing machine
Code 086661 - IDC HEATING ELEMENT + PROBE1700W 230V L212.5MM;
Washer-dryer
Code 064556 - WASHER-DRYER HEATING ELEMENT WITH THERMOFUSE 1700W / 230V+TE
The new heating elements have been included in the documentation of all models affected by this modification.

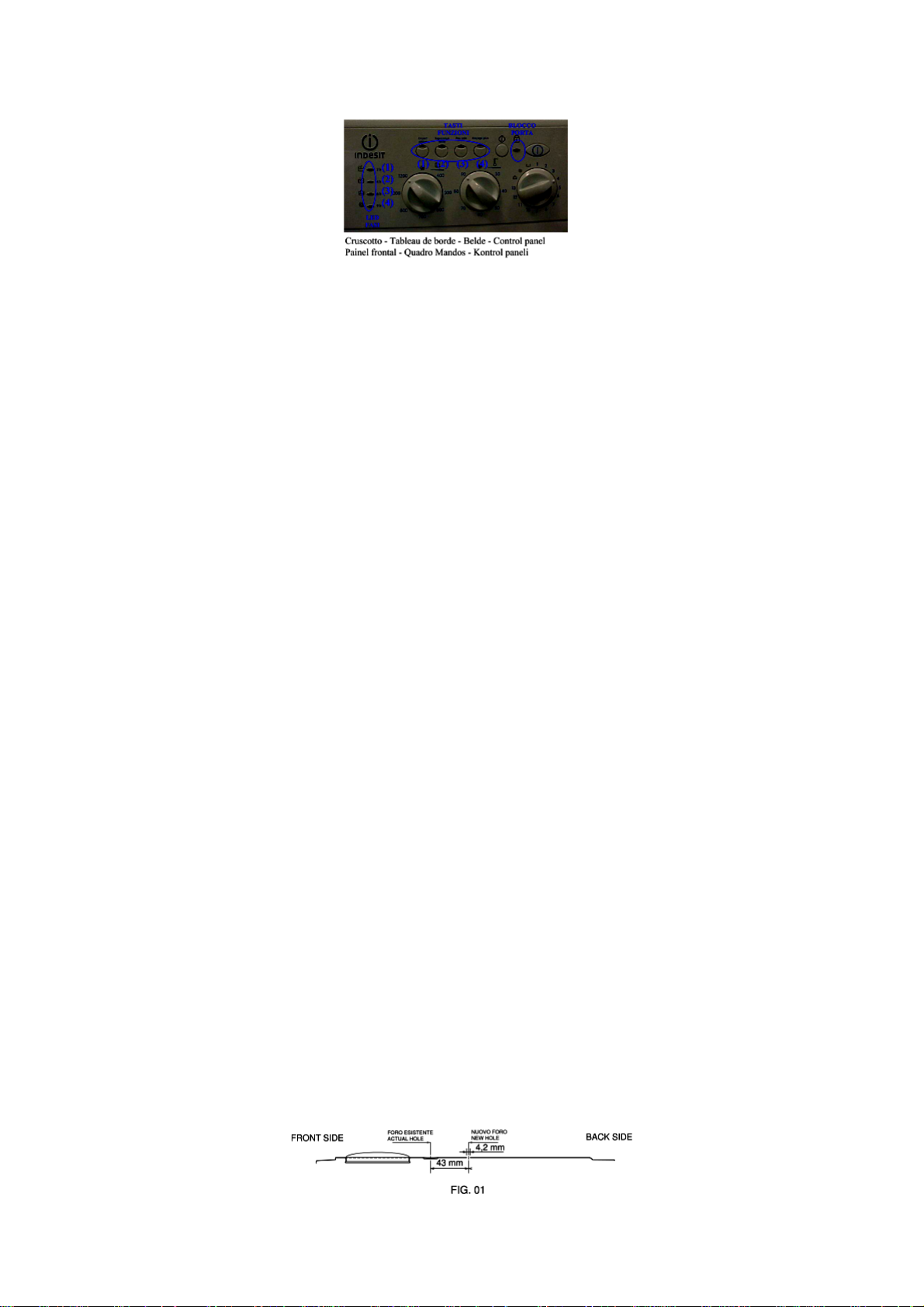

If the heating element retaining bracket needs to be shifted, it must be removed and then the new hole must be made in the tub
using a 4.2 mm bit, taking into account that the distance between the two holes must in any case be 43 mm.
To plug the old hole use the s/steel TMT M4 X 12 screw (screw kit code 037132) with vellumoid washer and the self-locking
flanged nut code 037135, bearing in mind that the head of the screw must protrude and that its tightening must not cause the
vellumoid gasket supplied with the screw to break.
mod.AVD109EX page 22
Page 23

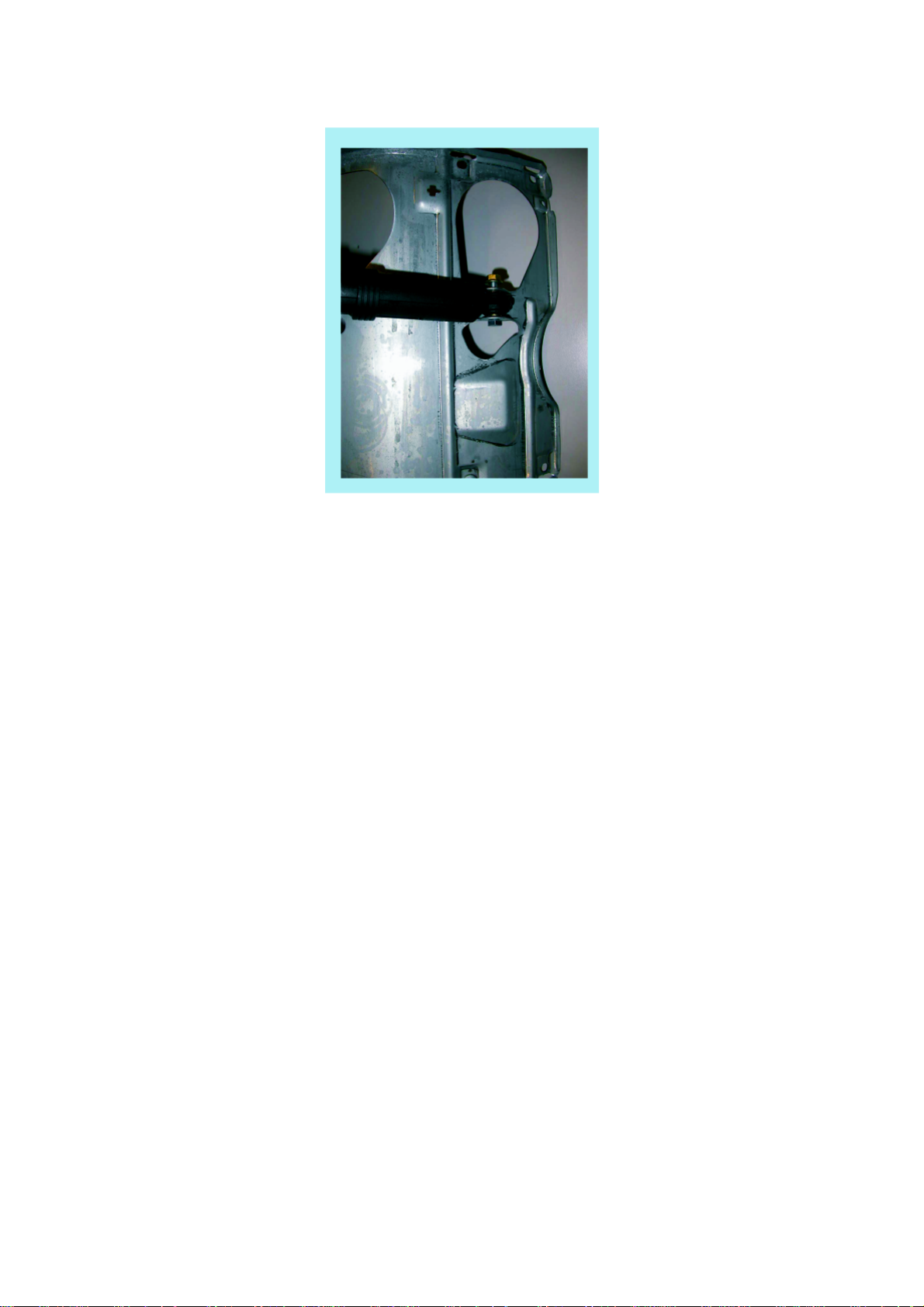

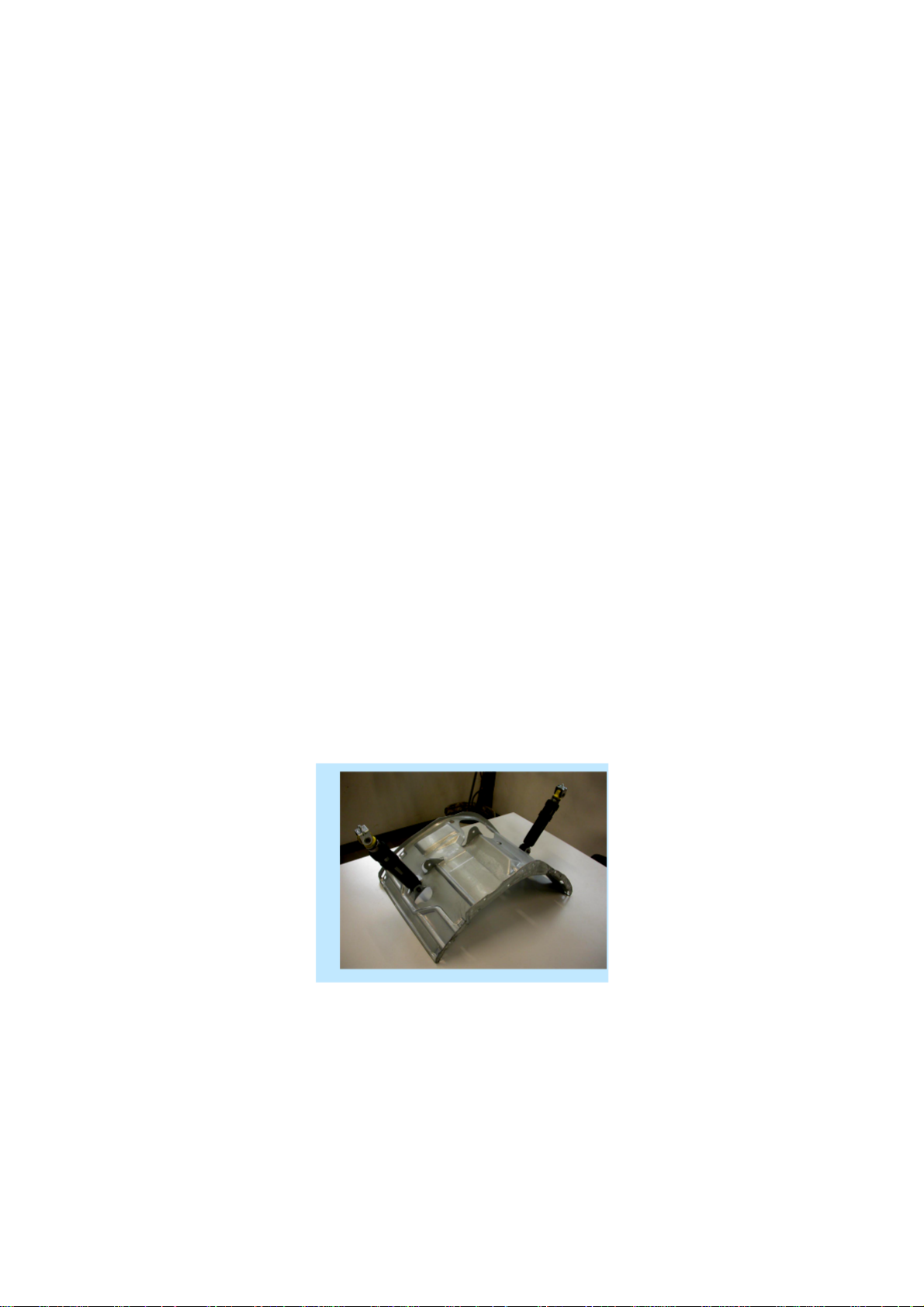

n1040325: New shock absorber fixing system with pin
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial no. 40427.0001, shock absorbers have been fixed to the tank unit cradle with two 11 mm pins code C00110163 (see
fig. 01 and 02 enclosed) in place of the 8 mm screws code 093750 and relevant locking nuts code 030443, on all washing
machines and dryers produced in the Comunanza factory.
The items affected by this modification are:
1) The cradles have the same Service code, as they can be used in place of the new ones after widening the shock absorber fixing
holes to a diameter of 10 mm.
Code 093848 - Tank unit cradle 46 lt
Code 093878 - Tank unit cradle 40 lt.
2) The new shock absorbers, with fixing bushing having no s/steel spacer, are not managed as they are interchangeable with the
premodified items (make sure they are CIMA type, as the managed items), fixed with M8 screws code 093750 and related
locking nut code 030443 (see figs. 05 and 06).
Code 093884 - Shock absorber 80 N
Code 093885 - Shock absorber 100 N

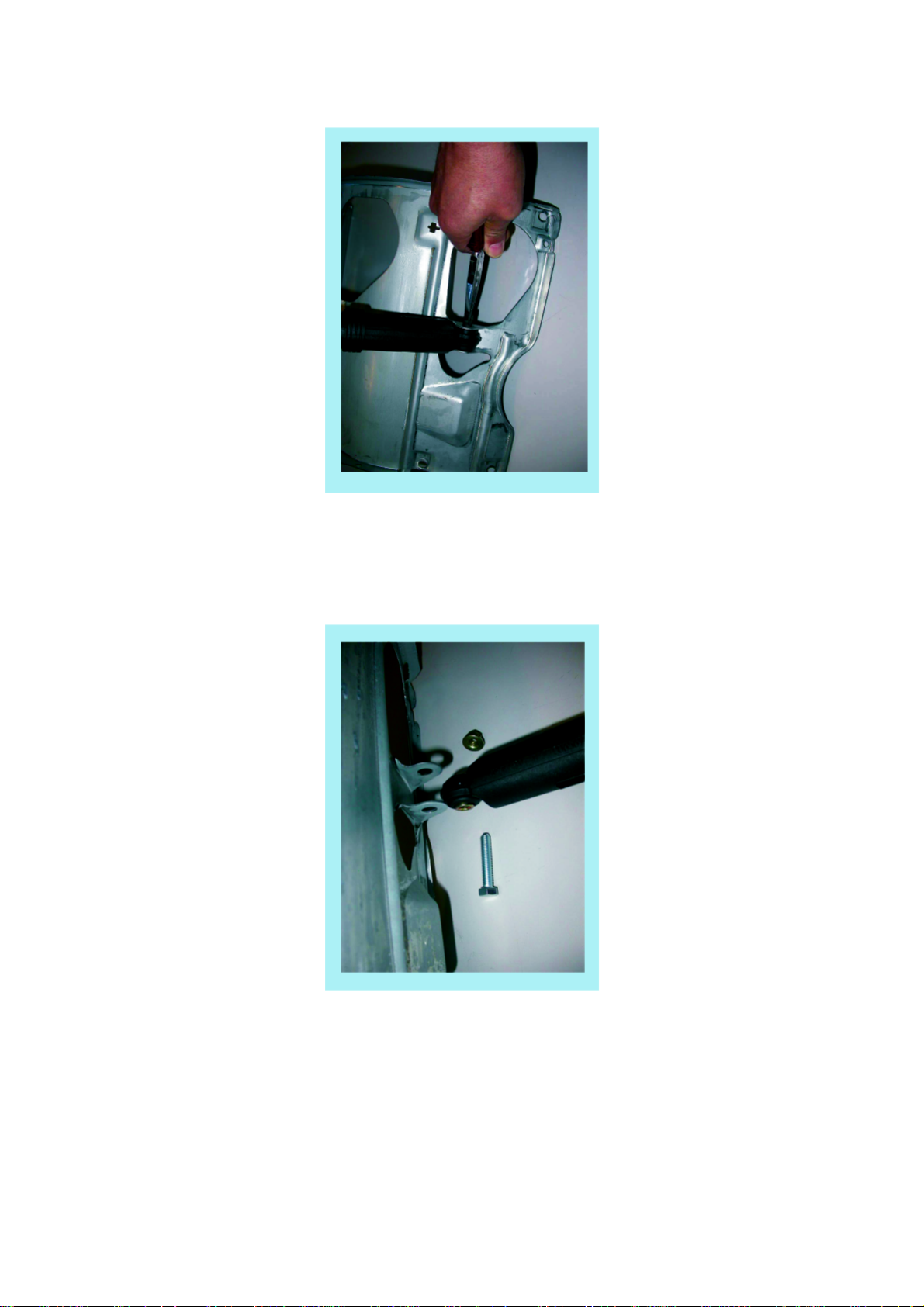

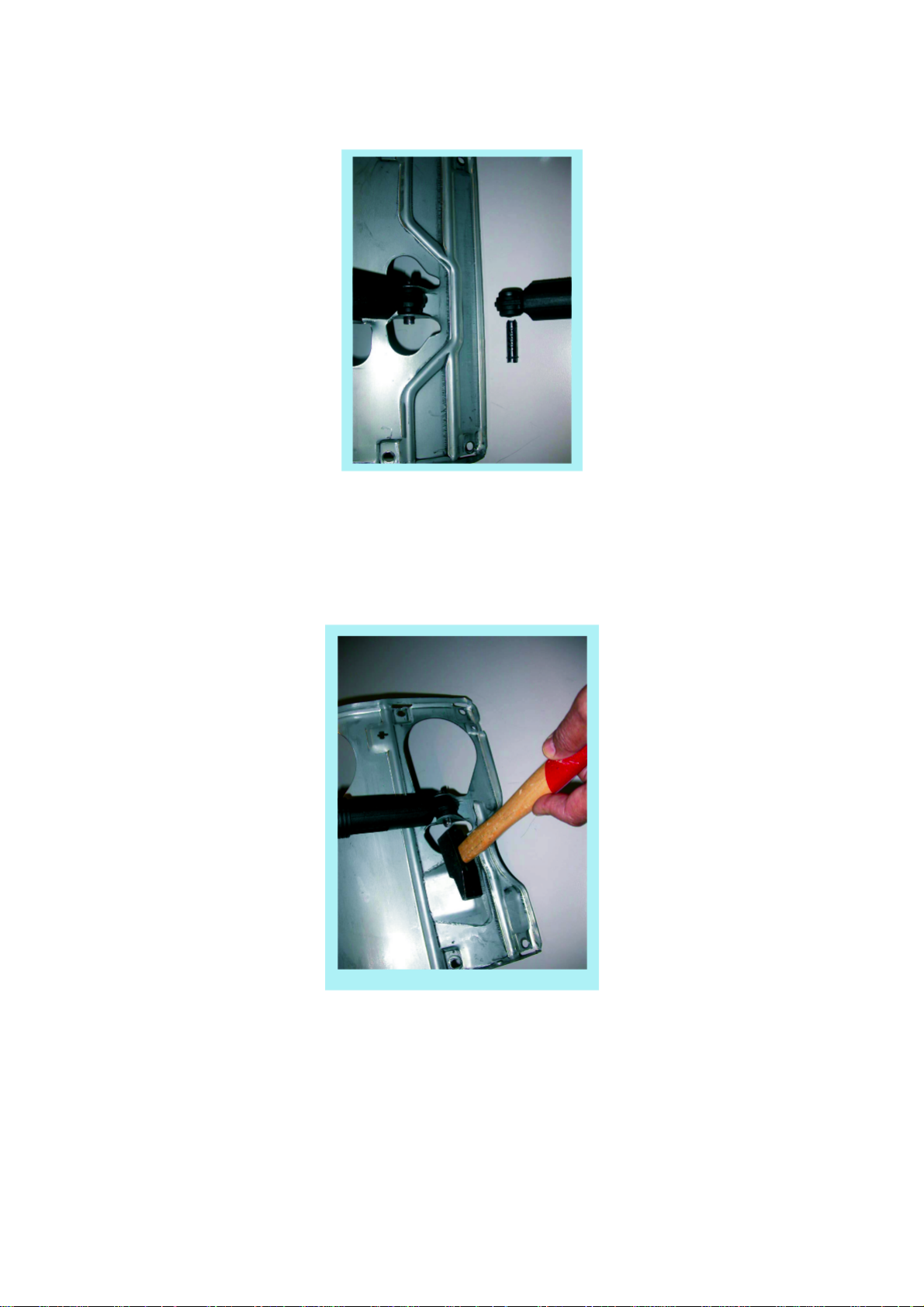

To remove the shock absorber from the tank, first extract the pin with a few hammer taps (see fig.03) until it is aligned with the
tank bracket and then pull it out with a pair of pliers (see fig. 04).
(To refit the shock absorber use a new pin. Insert the pin until the toroidal edge is aligned with the bracket.)
mod.AVD109EX page 23
Page 24
mod.AVD109EX page 24
Page 25
n1040349: Introduction of 150° Zamac hinge on Ariston 46 models.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial no. 50207.0001, all Ariston models produced in the Teverola factory (see table 001 attached) with industrial code
(given on the rating plate) starting with 46, have been equipped with a Zamac hinge with 150° opening angle, code C00115666
mod.AVD109EX page 25
Page 26
(see Fig.001).
This modification has involved the introduction of the following items:
Code C00115670 - Complete door EVOII 150° white 27 with standard glass;
Code C00115674 - Complete door EVOII 150° white 27 with long glass;
Code C00115667 - EVOII body for 150° hinge white 27;
The premodified items are not interchangeable separately with the modified ones.
Code C00110133 - Complete door EVOII Standard 180° white 27 standard glass;
Code C00092157 - Complete door EVOII 180° white 27 long glass;
Code C00096193 - EVOII body for 150° hinge white 27;
The hinge code C00064541 continues to be used on the build-under models produced in the Comunanza factory.
mod.AVD109EX page 26
Page 27
n1040351: Three-phase motors package 40 factory 80.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Since February 2005, all 800, 1000 and 1200 rpm washing machines produced in factory 80 have been equipped with three-phase
motors (package 40 code C00115836 for Snelle models and C00116103 for Standard models) and related eeproms.
mod.AVD109EX page 27
Page 28
The new items are not interchangeable separately with the premodification ones that will continue to be used.
The last two numbers of the Industrial Code given on the rating plate of the modified models are 52 (e.g. 80300070052).
To determine the codes of the motor or eeprom to be used, it is necessary to know the industrial code or serial number of the
appliance being repaired and consult the table n1040351TAB001 attached.
n1040359: Polar White Factory 80 (Comunanza)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial no. 50315.0001, the new "Polar White" colour is used on all washing machines and washer-dryers produced in
factory 80 in place of White 27.
The third last number of the Industrial Code given on the rating plate of the modified models is 9 (e.g. 80286390900).
To determine the new Polar White codes, it is necessary to know the industrial code or serial number of the appliance being
repaired.
The new items, which bear the initials "PW" in place of "B27", are not aesthetically interchangeable with premodification items
as the whites are different. Both colours will be available for some time.
The items affected by this modification are:
Body, rear panel, top, control panel, handles, buttons, knobs, knob disc, door and plinth.
mod.AVD109EX page 28
Page 29
n1040365: Elimination of dielectric components from all three-phase models
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial no. 50314.0001, dielectric components have been eliminated from all three-phase models produced in the Comunanza
factory (80).
The modification involves the following parts: motor, bushing, elastic belt, earth wiring and power supply cables with filter.
The new items are not interchangeable separately with the premodification ones. The new codes are indicated below.
Modified appliances with serial number = o > 50314.0001.
C00118629 - BELT L=1046 - 1051 MM H8 ELASTIC;
C00118675 - MOTOR PIN BUSHING 20 MM;
C00115769 - POWER CABLE 3 x 1.0 1.5MT SHUKO THREE-PHASE (+ enhanced filter);
C00118821 POWER CABLE UK 3X1 L1950MM+THREE-PHASE FILTER (+ enhanced filter);
C00118820 - POWER CABLE L=2.55M AUSTR. THREE-PHASE (+ enhanced filter);
C00093720 THREE-PHASE EARTH WIRING.
Premodified appliances, with serial number < 50314.0001.
C00074218 - BELT L=1046 - 1051 MM H8 ELASTIC DIELECTRIC;
C00019682 - MOTOR PIN BUSHING 20 MM DIELECTRIC
C00094203 - POWER CABLE 3 x 1.0 1.5MT SHUKO THREE-PHASE
C00111940 - POWER CABLE UK 3X1 L1950MM+THREE-PHASE FILTER
C00096465 - POWER CABLE L=2.55M AUSTR. THREE-PHASE
C00093721 THREE-PHASE EARTH WIRING

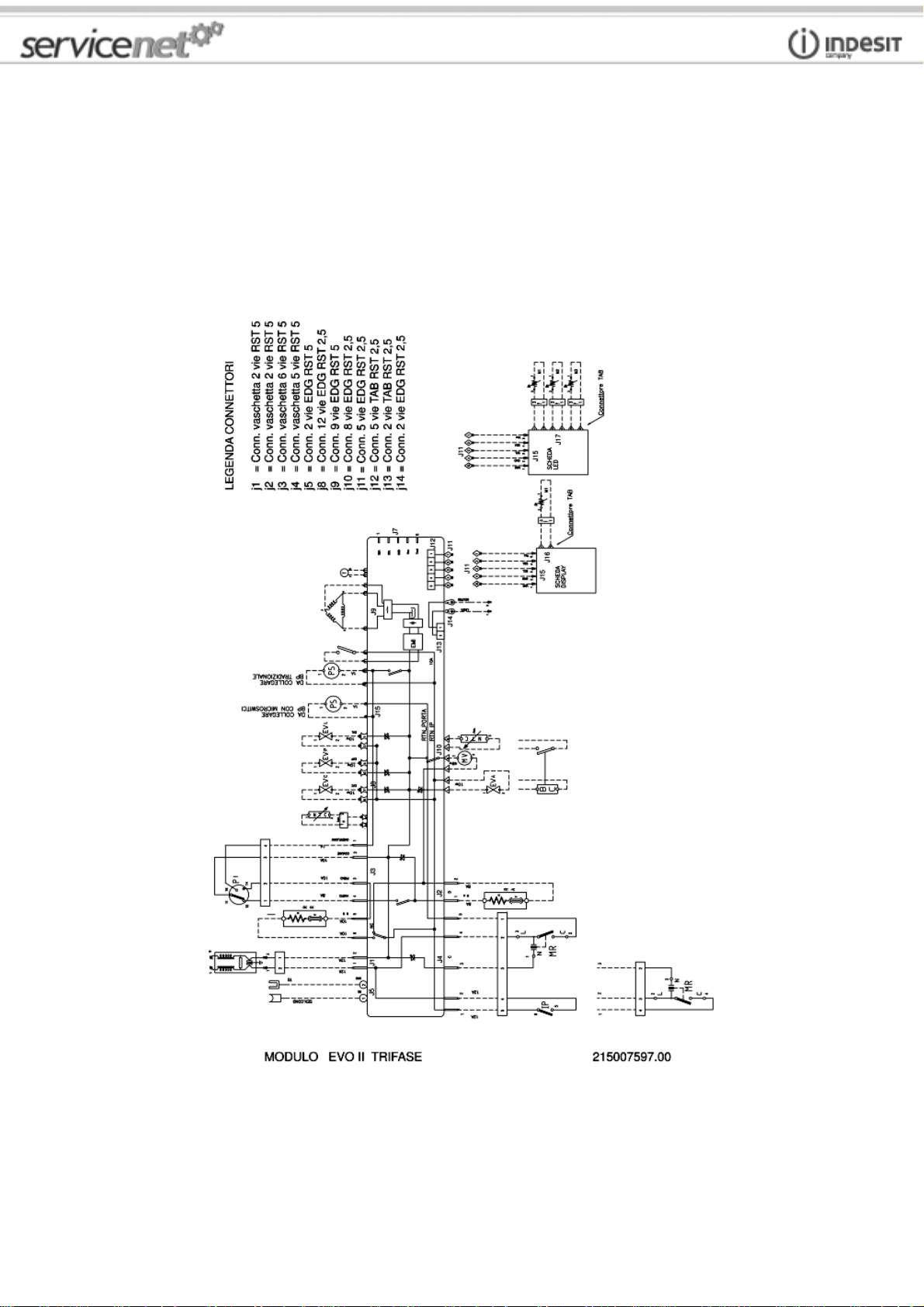

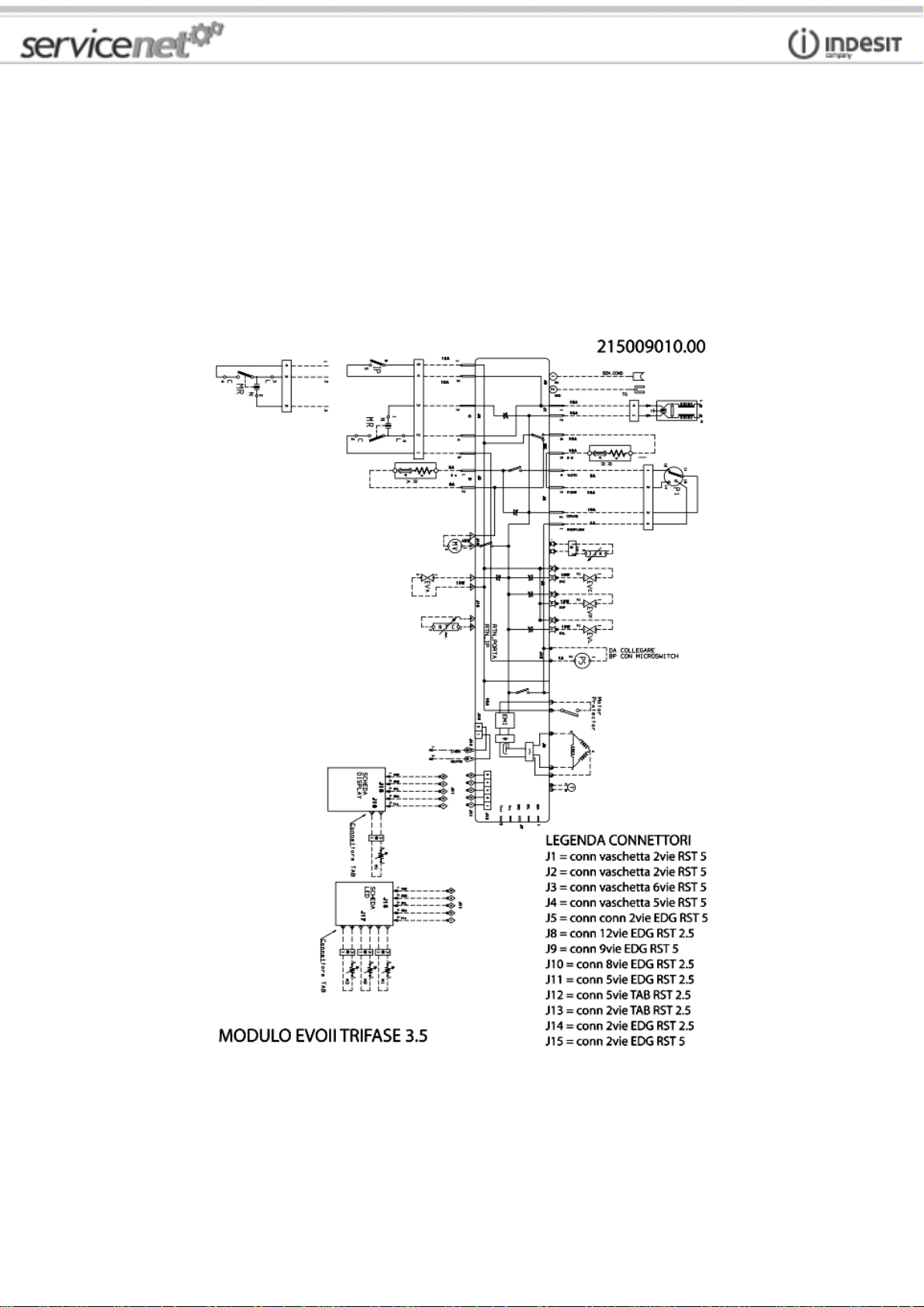

n1040378: 3.5 three phase module, factory 80 (Comunanza)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From October 2005, the new 3.5 module has been installed on three phase Comunanza models (80)
New parts:
C00254298 - Three phase module for card LB-WD 3.5;
C00141769 - J10-MV J16-EVA/NT WD cables (see picture attached).
Premodification parts:
C00257406 - MODULO WD>1200 G. +SC FW2.74 (CARD)
C00093717 - Cables J10-EWA MV NT WD.
The new items are not interchangeable with the premodification ones.
New CARDS codes have been introduced for use with modified products; the list of part codes affected is given below along with
the industrial code on which the modification was introduced, the relevant serial number, the eeprom code introduced (to be used
only on modified products) and the model code.
80288730905 - 51024.0001 - C00141772 - AVD149EX
80298490905 - 51017.0001 - C00141774 - AVL169EU
80319300905 - 51015.0001 - C00141775 - AVSL129IT
80328540905 - 51017.0001 - C00141773 - AVL135FR
80314940905 - 51020.0001 - C00141777 - AVSL9EIT
80325690905 - 51003.0001 - C00141784 - LBE129ALL
80286370905 - 51008.0001 - C00141789 - AVL129R
80332130905 - 51011.0001 - C00141790 - BWM129
80284480905 - 51007.0001 - C00141795 - AVD129EX
mod.AVD109EX page 29
Page 30
80284460905 - 51025.0001 - C00141796 - AVD109EX
80297000905 - 51007.0001 - C00141797 - AVL109R
80340430055 - 51020.0001 - C00141799 - AVF109SEX
80342160905 - 51015.0001 - C00141800 - AVF109EX
80344100905 - 51020.0001 - C00141801 - AVF120FR
80297010905 - 51013.0001 - C00141803 - AVSL109R
80291170905 - 51012.0001 - C00141805 - AVSL89IT
80284291005 - 51015.0001 - C00141806 - AVSL109IT
80340440905 - 51025.0001 - C00141809 - AVF129EX
80319780905 - 51013.0001 - C00141770 - AML135FR
80305920905 - 51024.0001 - C00141781 - AMD109EU
80332140905 - 51011.0001 - C00141779 - BWD129
80305890905 - 51025.0001 - C00141782 - AMD129EU
80325700905 - 51011.0001 - C00141784 - CDE129ALL
80305960905 - 51005.0001 - C00141785 - AML89EU
80305980905 - 51013.0001 - C00141787 - AML129EU
80300070905 - 51013.0001 - C00141788 - AML125FR
80332390905 - 51014.0001 - C00141798 - MLSE129ALL
80284470255 – 51027.0001- C00142008 - AVD109SEX
80296280905 – 50928.0001 - C00142009 - AVSD109EU
80297690905 – 51027.0001 - C00142010 - AVLS129R
80299930055 - 51102.0001 - C00142011 - AVSD109SEX
80300080905 – 51027.0001 - C00142012 - AMD145FR
80297760905 - 51031.0001 - C00254537 - AVSG12EU
80340451005 - 51104.0001 - C00142013 – AVF149EX
80340460905 - 51028.0001 - C00142014 - AVSF109EU
80340470905 - 51029.0001 - C00142015 - AVSF129EU
80331370055 – 51027.0001 - C00142017 - AVF109SIT
80288710905 - 60215.0001 - C00141808 - AVG12EU.
80303630905 - 51031.0001 - C00098467 -AVD149DE
80284340905 - 60131.0001 - C00142007 - AVG1600EU
80284890905 - 60131.0001 - C00143734- AVG16TK
80339800105 - 60208.0001 - C00254277 - AVF169SK.
n4008c01: Smart Card - LVB/DRYERS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning April 2008 spare parts warehouse started to manage the EVOII modules with eeprom fixed, these can only be
programmed with smart card/palmare/pc.
Attention!! The premodification with eeprom socket can be programmed with smart card/palmare/pc using a blank eeprom or
with pre programmed eeprom.
Spare parts of modules with eeprom fixed/eeprom socket:
C00265676 with eeprom fixed - C00143068 with eeprom socket - for models with conducibility sensor
C00254298 with eeprom fixed - C00143068 with eeprom socket - for models without conducibility sensor
C00254297 with eeprom fixed - C00259941 with eeprom socket
C00254531 with eeprom fixed - C00143058 with eeprom socket
C00254297 with eeprom fixed - C00143057 with eeprom socket - for models without blocking drum
C00265697 with eeprom fixed - C00143057 with eeprom socket - for models with blocking drum
C00254297 with eeprom fixed - C00143056 with eeprom socket
C00254530 with eeprom fixed - C00259738 with eeprom socket
mod.AVD109EX page 30
Page 31
C00254533 with eeprom fixed - C00143060 with eeprom socket
C00254535 with eeprom fixed - C00145013 with eeprom socket
C00254530 with eeprom fixed - C00145551 with eeprom socket
C00254529 with eeprom fixed - C00142293 with eeprom socket
C00257406 with eeprom fixed - C00143989 with eeprom socket
C00257409 with eeprom fixed - C00144151 with eeprom fixed
C00254530 with eeprom fixed - C00143069 with eeprom fixed
DRYERS
C00255835 with eeprom fixed - C00258789 with eeprom socket
C00255835 with eeprom fixed - C00194077 with eeprom socket
This notice has a "reference list" specific for each product where you can find the link between smart card and the eeprom code
with the same software.
n4008f00: Thermic link wire removed on three-phase motor
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Attention!
When you assist the premodification models using the new motor code you MUST use the thermic link wire code C00265838.
The spare part warehouses will manage the premodification motor until the end of the stock, after they will be replaced with new
ones and thermic link wire.
TRIPHASE P40 46 L – INOX TUB
C00265827 new motor without thermic link wire - C00116103 premodification motor with thermic link wire
mod.AVD109EX page 31
Page 32
TRIPHASE P40 46 L – PLASTIC TUB
C00265826 new motor without thermic link wire - C00142390 premodification motor with thermic link wire
TRIPHASE P50 52 L
C00265829 new motor without thermic link wire - C00142205 premodification motor with thermic link wire
TRIPHASE P32 46 L TOP LOADING
C00265832 new motor without thermic link wire - C00262375 premodification motor with thermic link wire
TRIPHASE P40 46 L TOP LOADING
C00265834 nuovo new motor without thermic link wire - C00112739 premodification motor with thermic link wire
In the attached image you can see the fixing of thermic link wire in the motor therminal box.
mod.AVD109EX page 32
Page 33
Electric schemes and links

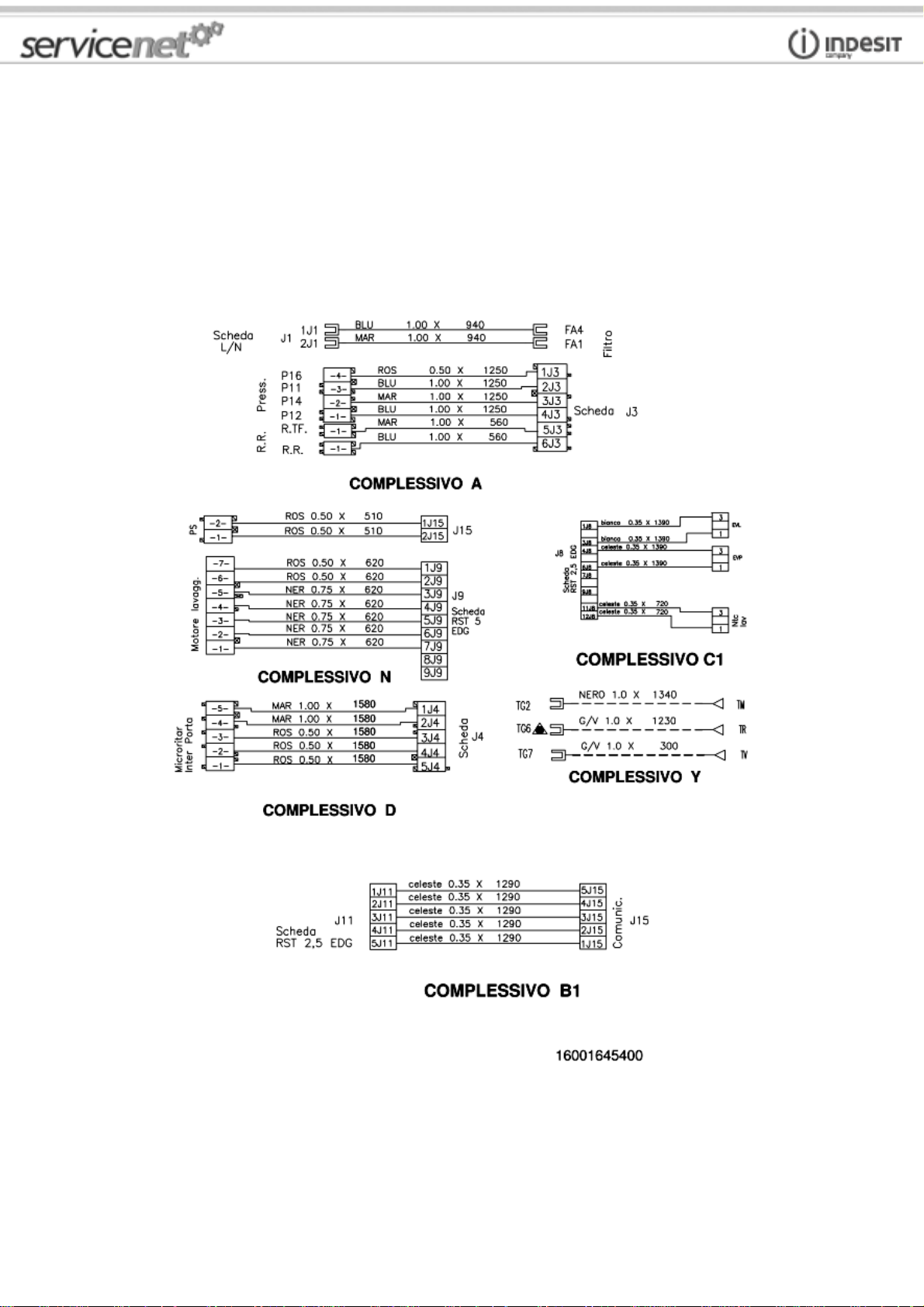

Cod. 16001645400
mod.AVD109EX page 33
Page 34
Legend
Legend: 16001645400
mod.AVD109EX page 34
Page 35
Electric schemes and links
Cod. 21500759700
Valid plan for the following Industrial codes 80284460200,80284460201,80284460252,80284460900
mod.AVD109EX page 35
Page 36
Legend
Legend: 21500759700
mod.AVD109EX page 36
Page 37
Electric schemes and links
Cod. 21500901000
Valid plan for the following Industrial codes 80284460905
mod.AVD109EX page 37
Page 38
Legend
Legend: 21500901000
AQS Aquastop electrovalve Mzbn/MTA zbn timer motor
B Buzzer N Neutral or Terminal Board
BC Blocco Cesto NC Spin cycle exclusion
BF Terminal board contact, motor fan and dryer P Pressure switch
BP Buzzer P1 1st level pressure cut-off switch
C Condensator P2 2nd level pressure cut-off switch
CA Condensator PA High speed potentiometer
DV Switching device PB Low speed potentiometer
EF/CL Electro-Valve Cold Water / Bleach PL Pure Wool
EF/L Electro-Valve Cold Water / Wash PM Motor Thermoprotector
EF/P Electro-Valve Cold Water / Prewash PR Timer programmer or Pressure switch
ER Exclude Heating Element PS Drain pump
ET Thermostat disactivation R Heating element
EV Electrovalve RE Relay
EVA Dryer electrovalve RR Heating element
EVC Hot water electrovalve RV Speed regulator
EVF Elettrovalvola acqua fredda Ras/RA Dryer heating element
EVL Wash electrovalve S LED
EVP Pre Wash electrovalve SL Line LED
FA Antijamming filter SO Door LED
FD Delicate drying cycle thermostat SR Heating LED
FE Strong drying cycle thermostat ST Temperature selector
FRT Thermofusible Heating Element SV Speed Selector for Spin
I Inverter T Timer contacts
I1..2..3.. Switches/switching devices TA Drying timer contacts
IA Switch On/Off TB Low Temperature Thermostat
IC Switch N.C. - 1/2 Load TC Spider wheel earth
ID Switch display TFL Flange earth
IE Water Saving Device TG Main earth
IF Switch - Spin Reduction TH Thermostat
IP Door switch TH1 1st temperature thermostat
IR Line switch TH2 2nd temperature thermostat
IS Water-stop TH3 3rd temperature thermostat
mod.AVD109EX page 38
Page 39
L Line or Lamp THF Operating thermostat
LB Low Level THR Adjustable thermostat
LN Normal Level TM Motor earth
LS Pilot lamp TMB Main cabinet earth
M Earth-symbol TMP Motor thermal protector
MC Spin cycle motor TMS Thermostop
MI MOTOR WITH PULLEY TP Thermal protector
ML Wash cycle motor TPS Drain pump earth
MO Terminal Board TR Heating element earth
MP Door dip-switch TS Safety thermostat
MR Thermal Lock TT Timer earthing connection
MT Timer motor TTH Earthing Thermostat
MV Motor fan TV Tank earth
MV -Ras Dryer heating element ZBN Timer
mod.AVD109EX page 39
Loading...
