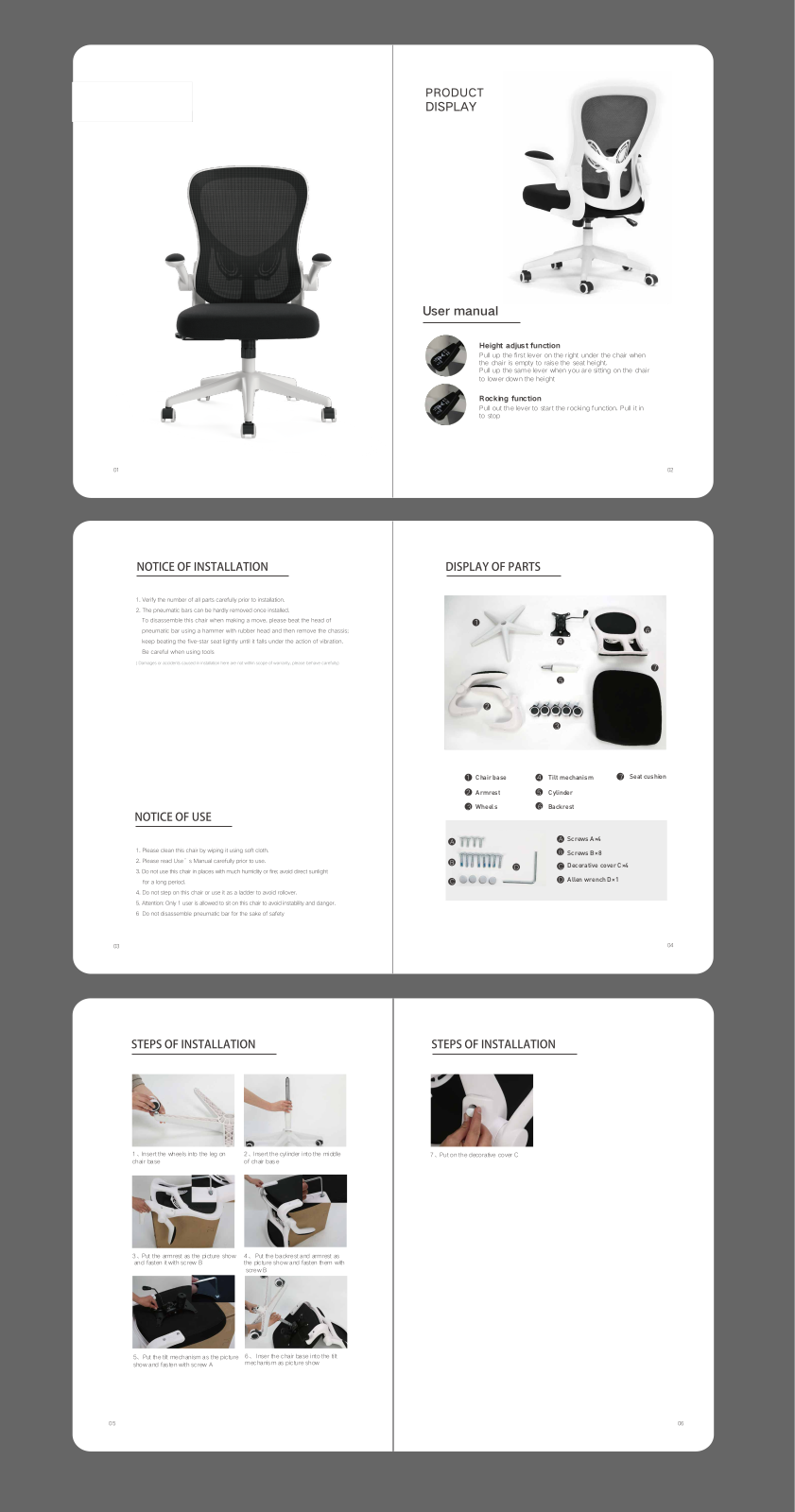

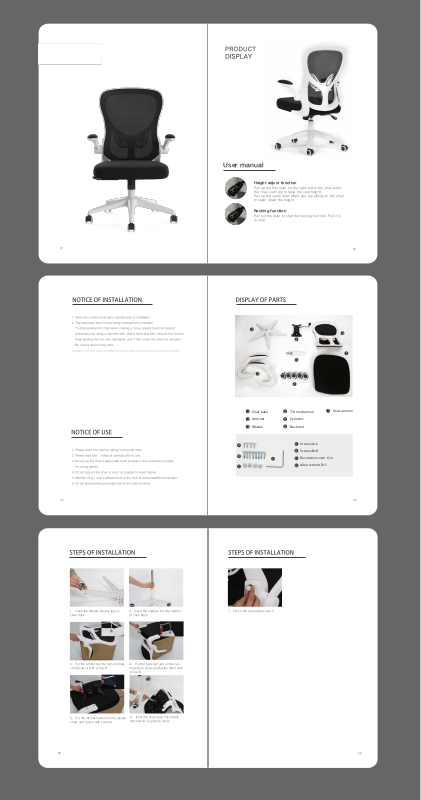

User manual
Height adjust function
Pull up the first lever on the right under the chair when
the chair is empty to raise the seat height.
Pull up the same lever when you are sitting on the chair
to lower down the height
Rocking function
Pull out the lever to start the rocking function. Pull it in
01
to stop
02
1
6
4
7
5
2
3
Chair base
1
Armrest
2
Wheels
3
32
4
5
6
Tilt mechanism
Cylinder
Backrest
7
Seat cushion
A
B
C
D
A
Screws A×4
B
Screws B×8
Decorative cover C×4
C
Allen wrench D×1
D
03
04
1、Insert the wheels into the leg on
chair base
3、Put the armrest as the picture show
2、Insert the cylinder into the middle
of chair base
4、 Put the backrest and armrest as
7、Put on the decorative cover C
and fasten it with screw B
5、Put the tilt mechanism as the picture
show and fasten with screw A
the picture show and fasten them with
screw B
6、 Inser the chair base into the tilt
mechanism as picture show
05
06
