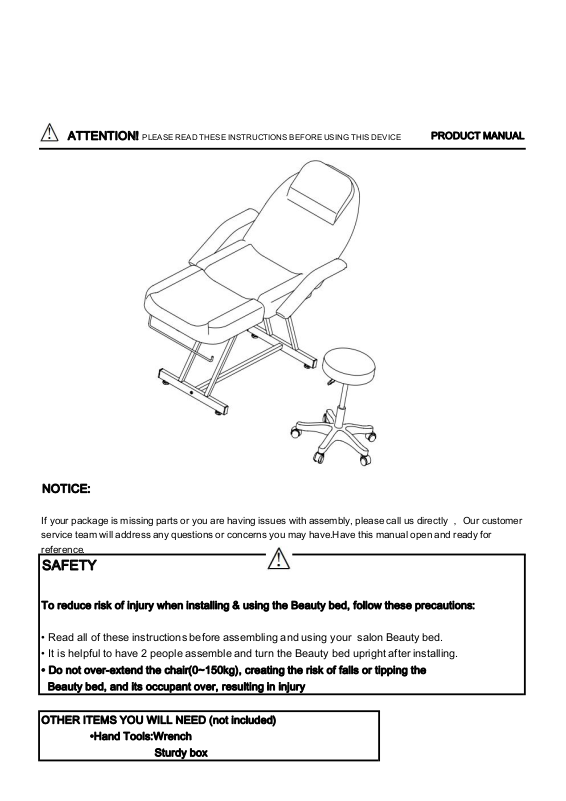

Page 1
ATTENTION!
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS DEVICE
PRODUCT MANUAL
NOTICE:
If your package is missing parts or you are having issues with assembly, please call us directly ， Our customer
service team will address any questions or concerns you may have.Have this manual open and ready for
reference.
SAFETY
To reduce risk of injury when installing & using the Beauty bed, follow these precautions:
• Read all of these instructions before assembling and using your salon Beauty bed.
• It is helpful to have 2 people assemble and turn the Beauty bed upright after installing.
• Do not over-extend the chair(0~150kg), creating the risk of falls or tipping the
Beauty bed, and its occupant over, resulting in injury
OTHER ITEMS YOU WILL NEED (not included)
•Hand Tools:Wrench
Sturdy box
Page 2
PARTS & FEATURES
Parts Item Picture
Parts name
Quatity Parts Item Picture
Parts name
Quatity
A
Seat
cushion
1 E
Leg
Support
1
B
Backrest
1 F
Armrest
2
C1
Leg Ⅰ
1 H
Five star
base
1
C2
Leg Ⅱ
1 I
Pneumati
c pump
1
D
Towel
holder
1 J
Round
seat
1
A
B
C1
D
E
F
HIJ
C2
2
Page 3
Installation instruction
FIRST：Install backrest(B)to seat
cushion(A)
1.Putting seat cushion（A）upside
down,
2.Remove 4 bolts which PRE-fixed on
the seat cushion (A)
3.Install backrest(B)to seat cushion(A)
with the 4 bolts .
please see diagram besides
SECOND：Install legs(C)Onto seat
cushion(A)and backrest(B)
1.remove 6 bolts which pre-fixed on
the seat cushion(A) .
2.install 2 legs(C1+C2) to seat
cushion (A) with the 6 bolts .
Install the leg(C1) which
pre-installed short Spring
on the side which installed
backrest.
please see diagram besides
A
B
C2
C1
bolt
3
Page 4
THIRD：Install Leg Support(E)to
the middle of legs
1.remove the 2 bolts which pre-fixed in
the leg support (E).
2.insert leg support(E)to the middle of
legs(C1 and C2) with the 2 bolts.
please see diagram besides
FORTH：Install towel holder(D)to
the seat cushion(A)
1.remove the 2 bolts which prefixed on the seat cushion(A)
2.Install towel holder(D)to the
seat cushion by the 2 bolts.
please see diagram besides
E
D
bolt
4
Page 5
FIFTH：Insert 2 handrests(F) to the
backrest(B)and seat cushion(A)
1：putting the chair up right
2: Insert 2 handrests to the holes on
each sides of bed.
please follow up the diagram besides
Assemble small stool
FIRST：Putting pneumatic
pump(I)into five star base(H)
1.Putting pneumatic pump(I)into
five star base(H), please see
diagram besides
F
F
ABI
H
5
Page 6
SECOND：Assemble round seat
(J）onto pneumatic pump(I)
1.Assemble round seat(J）onto
pneumatic pump(I),then finish all
assemble,please see diagram besides
Function description
Adjustment of backrest and seat
Adjusting the support bar on the two
supports to match the rack, which can
adjust the tilt of the backrest and the
Seat cushion
（ Notice! When moving the
adjustment support rod, it must not
exceed the gear on both sides of the
rack. Notice!
Please adjust 8 screws of seat cushion
and backrest when the leg support
doesn't match the two plastic rack of
backrest. )
J
I
6
Page 7
Using of towel holder
The Towel holder can hang towels
Tower holder
7
