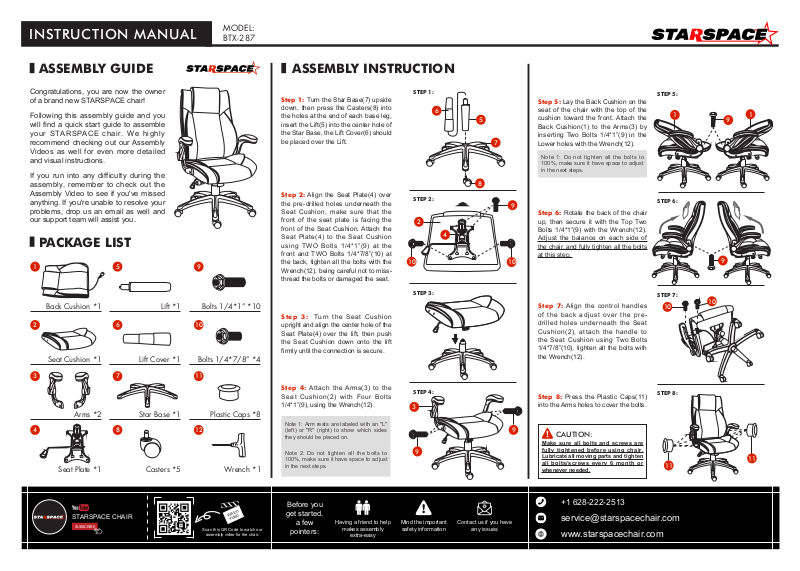

INSTRUCTION MANUAL
MODEL:
BTX-287
ASSEMBLY GUIDE
Congratulations, you are now the owner
of a brand new STARSPACE chair!
Following this assembly guide and you
will nd a quick start guide to assemble
your STARSPACE chair. We highly
recommend checking out our Assembly
Videos as well for even more detailed
and visual instructions.
If you run into any difficulty during the
assembly, remember to check out the
Assembly Video to see if you've missed
anything. If you're unable to resolve your
problems, drop us an email as well and
our support team will assist you.
PACKAGE LIST
1 5 9
Back Cushion *1 Lift *1
2 6 10
Seat Cushion *1 Lift Cover *1
Bolts 1/4*1” *10
Bolts 1/4*7/8” *4
ASSEMBLY INSTRUCTION
Step 1:
Turn the Star Base(7) upside
down, then press the Casters(8) into
the holes at the end of each base leg,
insert the Lift(5) into the center hole of
the Star Base, the Lift Cover(6) should
be placed over the Lift.
Step 2:
Align the Seat Plate(4) over
the pre-drilled holes underneath the
Seat Cushion, make sure that the
front of the seat plate is facing the
front of the Seat Cushion. Attach the
Seat Plate(4) to the Seat Cushion
using TWO Botls 1/4*1”(9) at the
front and TWO Bolts 1/4*7/8”(10) at
the back, tighten all the bolts with the
Wrench(12), being careful not to missthread the bolts or damaged the seat.
Step 3:
Turn the Seat Cushion
upright and align the center hole of the
Seat Plate(4) over the lift, then push
the Seat Cushion down onto the lift
rmly until the connection is secure.
STEP 1:
STEP 2:
2
10
STEP 3:
Step 5:
Lay the Back Cushion on the
6
5
7
8
4
10
seat of the chair with the top of the
cushion toward the front. Attach the
Back Cushion(1) to the Arms(3) by
inserting Two Bolts 1/4*1”(9) in the
Lower holes with the Wrench(12).
Note 1: Do not tighten all the bolts to
100%, make sure it have space to adjust
in the next steps.
9
Step 6:
Rotate the back of the chair
up, then secure it with the Top Two
Bolts 1/4*1”(9) with the Wrench(12).
Adjust the balance on each side of
the chair, and fully tighten all the bolts
at this step.
Step 7:
Align the control handles
of the back adjust over the pre-
drilled holes underneath the Seat
Cushion(2), attach the handle to
the Seat Cushion using Two Bolts
1/4*7/8”(10), tighten all the bolts with
the Wrench(12).
STEP 5:
STEP 6:
STEP 7:
10
1
10
1
9
9
3 7 11
Arms *2 Star Base *1
4 8 12
Seat Plate *1 Casters *5 Wrench *1
STARSPACE CHAIR
SUBSCRIBE
Scan this QR Code to watch our
Plastic Caps *8
Watch
video
assembly video for the chair.
Step 4:
Attach the Arms(3) to the
Seat Cushion(2) with Four Bolts
1/4*1”(9), using the Wrench(12).
Note 1: Arm rests are labeled with an "L"
(left) or "R" (right) to show which sides
they should be placed on.
Note 2: Do not tighten all the bolts to
100%, make sure it have space to adjust
in the next steps.
Before you
get started,
a few
pointers:
Having a friend to help
makes assembly
extra-easy
STEP 4:
3
9
Mind the important
safety information
Contact us if you have
any issues
Step 8:
Press the Plastic Caps(11)
into the Arms holes to cover the bolts.
9
CAUTION:
Make sure all bolts and screws are
fully tightened before using chair.
Lubricate all moving parts and tighten
all bolts/screws every 6 month or
whenever needed.
+1 628-222-2513
service@starspacechair.com
www.starspacechair.com
STEP 8:
11
11
INSTRUCTION MANUAL
MODEL:
BTX-287
INSTRUCTIONS FOR USE
1.Seat Height:Paddle-shaped
lever on the right side
To raise:
While taking your weight off
chair, lift lever up.
To lower:
While seated, lift lever up.
At the proper height, your feet should rest
* *
flat on the floor.
3.Operating the tilt lockout
To let your chair tilt back,pull
the control handle out.
To stop your chair from tilting,sit
forward,then push the control
handle in.
2.Tilt Tension: Long stem under
the seat cushion with knob
+
_
Set the tilt tension to control the resistance
you feel when leaning back.
4.Adjustable lumbar support
The built-in adjustable lumbar
support with controlled lumbar
knob effectively relieves pressure
from the lumbar region.
To increase tension:
While seated, turn knob
forward (toward + sign).
To decrease tension:
While seated, turn knob
backward (toward - sign).
SAFETY AND MAINTENANCE
Do not stand on the chair, Do Not use the chair as stepladder.
Use this product for seating one person at a time.
Do not use the chair unless all bolts and screws are rmly secured.
Avoid contact with sharp objects to prevent puncturing the fabric.
Every 6 months, check all bolts and screws to ensure they are tight.
To clean, spot clean only using a damp towel and mild cleaner, rst
test on a small, obscure area of fabric.
Chair weight limit not to exceed
250 lbs
.
SAFETY INFORMATION
Sit in the center of
the chair,with your
back to the backrest
chair around when a
person is sitting in it
Do not sit at the
front edge of the
Do not push the
chair
Do not push down
on the backrest
when a person is
Do not stand on the
reclined
chair
Do not place all
your weight on the
Do not use the chair
with more than one
backrest only
person
LIMITED WARRANTY
STARSPACE promises to repair or replace any STARSPACE chair that is found
to be defective in material or workmanship within one (1) year from the date of
original purchase so long as you, the original purchaser, still owns it. This is your
sole and exclusive remedy. This warranty is subject to the provisions below.
EXCLUSIONS:
This warranty does not apply and no other warranty applies to:
Normal wear and tear, which are to be expected over the course of ownership.
Misuse, abuse or excessive use of the product.
Modications or attachments to the product that are not approved by STARSPACE.
Products that were not installed, used, or maintained in accordance with product
instructions and warnings.
Products used for rental or commercial purposes.
Damage caused by the carrier in-transit is handled under separate terms.
Seating Usage: Normal use for seating is identied as the equivalent of a single
shift, forty- (40) hour workweek. To the extent that a seating product is used in
a manner exceeding this, the applicable warranty period will be reduced in a
pro-rata manner.
Some retailers might have custom models imported direct from the factory and
therefore are not supported by our local service team because we don’t have
the correct parts, please contact your retailer directly for support. If you have
any questions about that we will be happy to assist and identify those items.
RETURN POLICY
We adopt a 30 days return policy which means that all products purchased on this
website may be returned to us within the timeframe. You need to contact us within
30 days after the product(s) came into your possession and the product(s) must be
returned to us without any undue delays.
Returned products must be returned in the same condition as they were sent
and they must be sent in its original packaging.
If the product is not faulty, (i.e. if you changed your mind or if you are unhappy
with the product for some other reason), the cost of shipping will fall on
you. And it is your responsibility that the package arrives safely to us so we
recommend that you use a courier service where it is possible to track the
shipment.
If the product is faulty when you receive it please contact us and we will help
you out.
We reserve the right to give a partial refund in cases when the product(s) is not
in an unused condition, is damaged or have missing parts not due to our error.
HOW RETURNS WORK
Contact us through the contact form on our website and attach the invoice to the
message as a proof of purchase. And please also write the reason for return.
We will then get back to you as soon as possible with information on where to
send the product(s).
As soon as we have received the product(s) and made an inspection we will
inform you of our decision.
If a refund is approved we will automatically credit the purchase to your credit
card or original method of payment.
：
：
