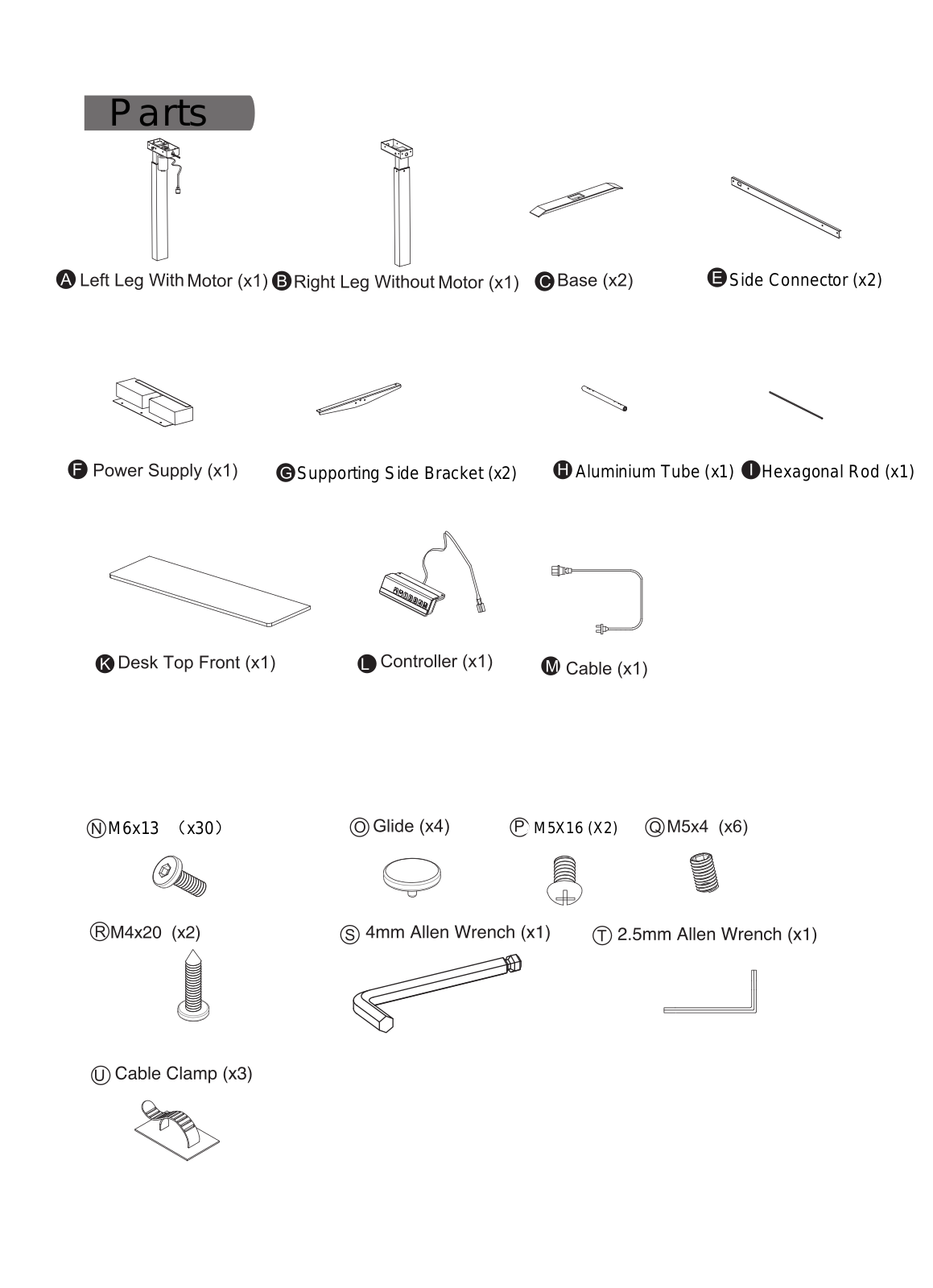

Parts
M5X16 (X2)
Side Connector (x2)Side Connector (x2)Side Connector (x2)
Side Connector (x2)
Supporting Side Bracket (x2)
Aluminium Tube (x1)Aluminium Tube (x1)
Aluminium Tube (x1)
Hexagonal Rod (x1)
M6x13 （x30）

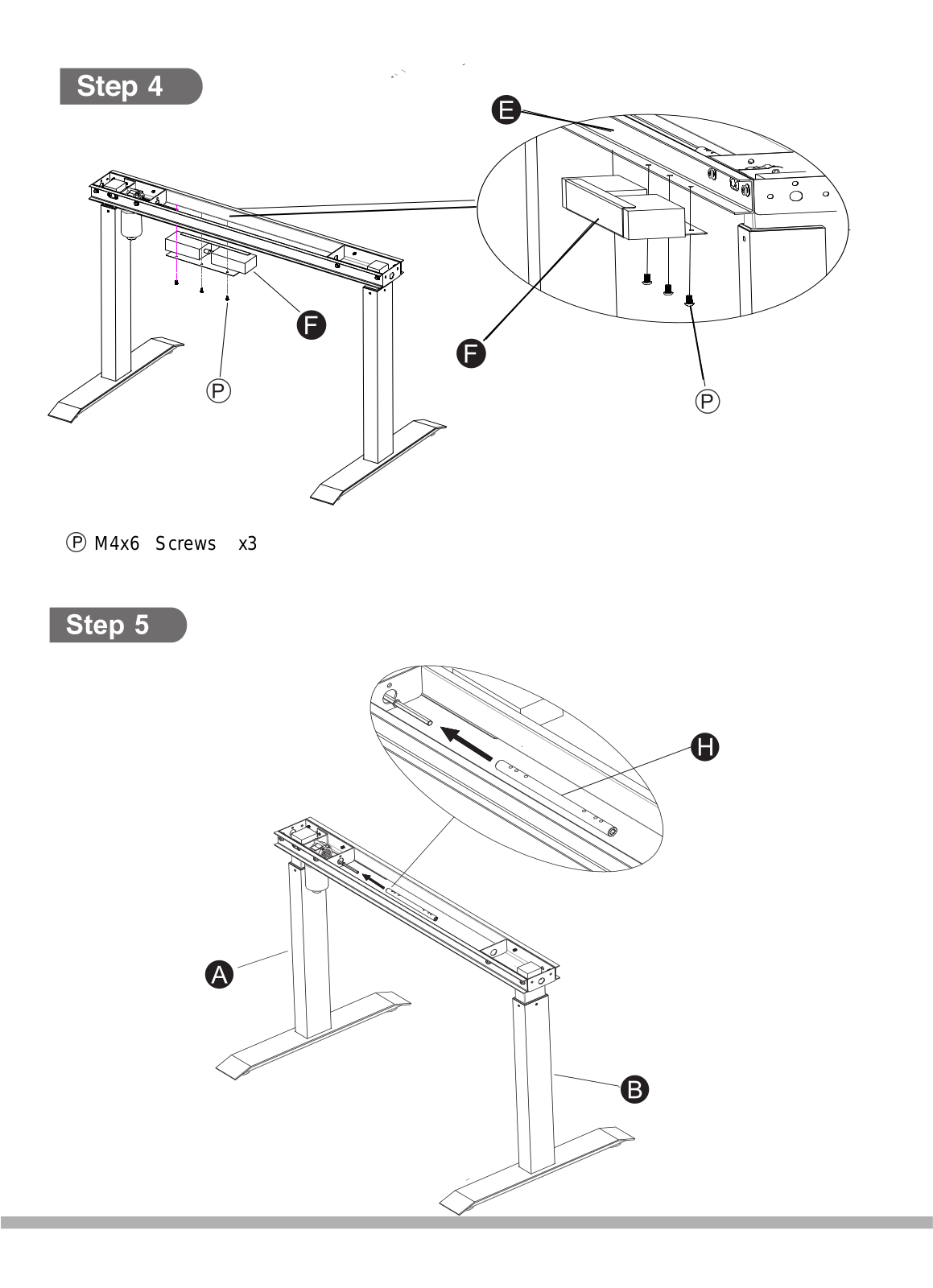

M4x6 Screws x3
K
K

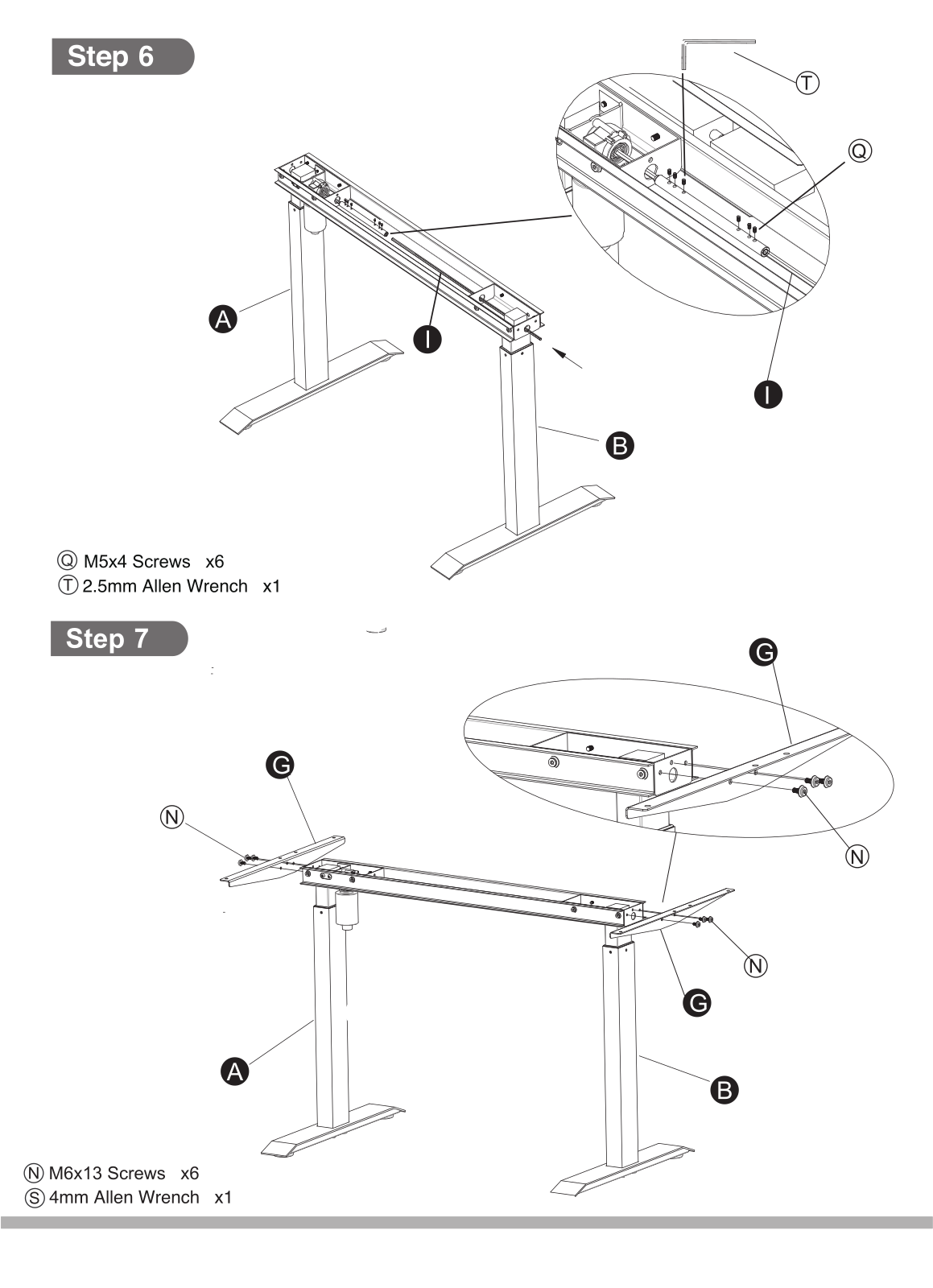

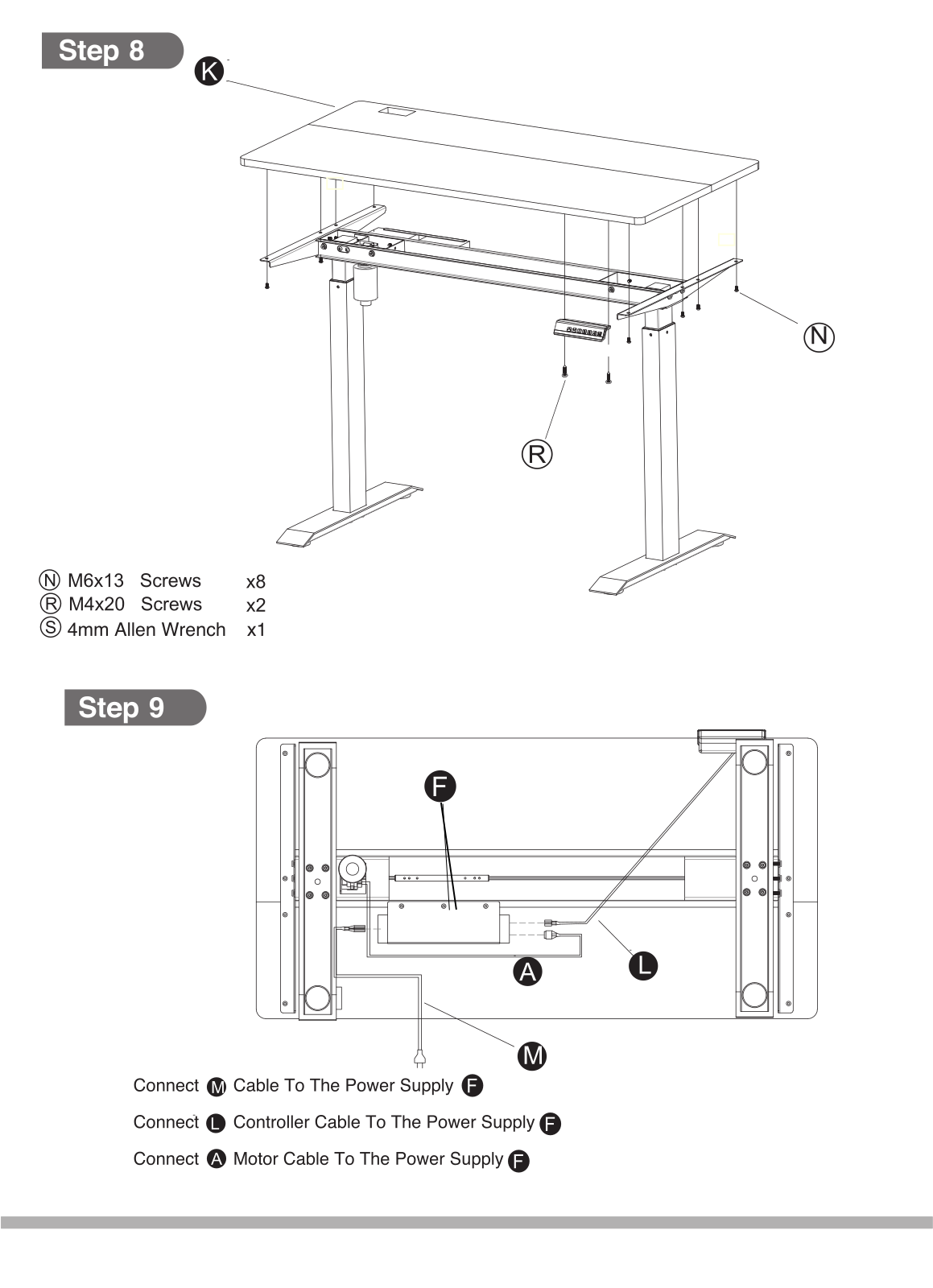

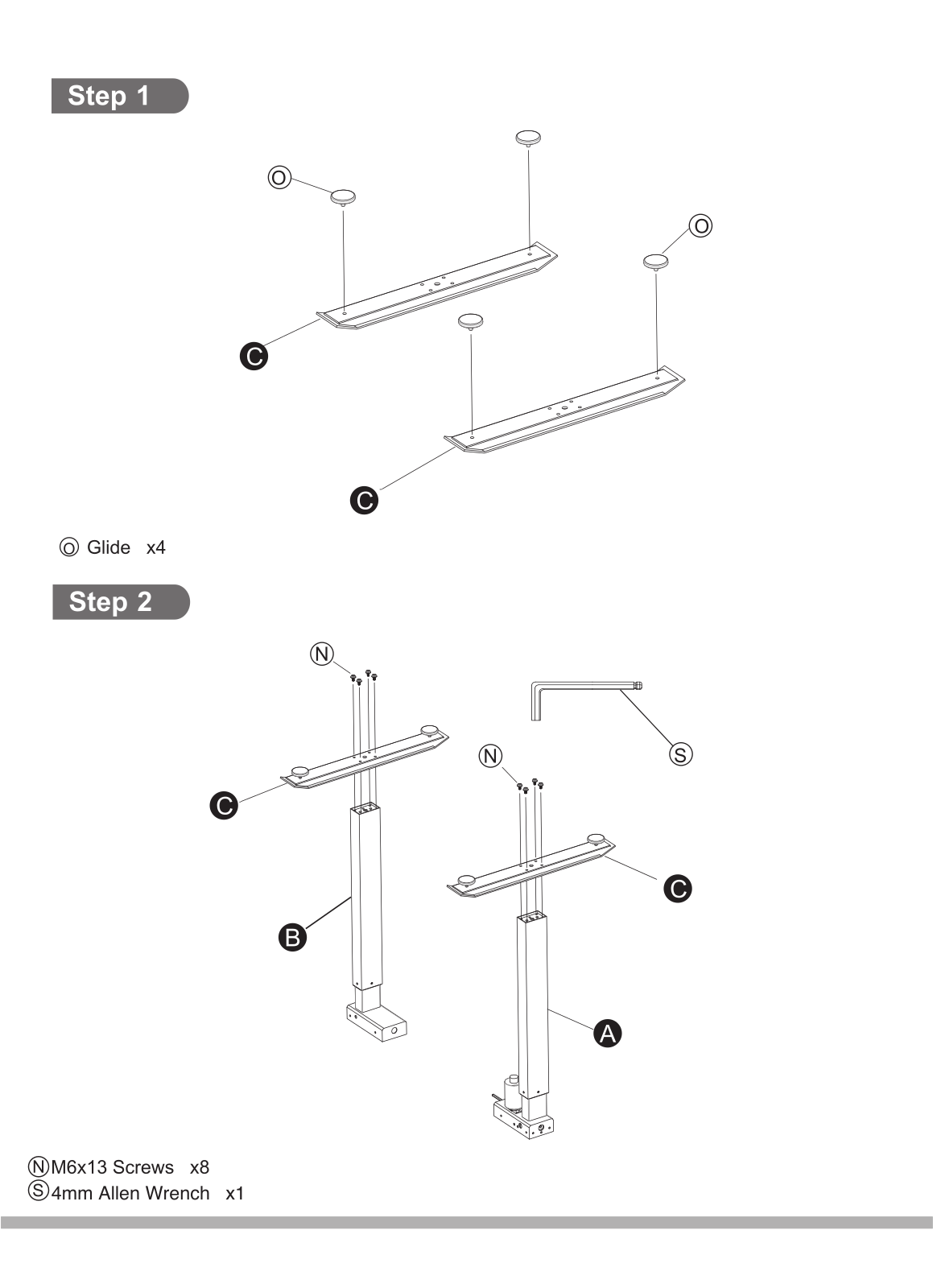

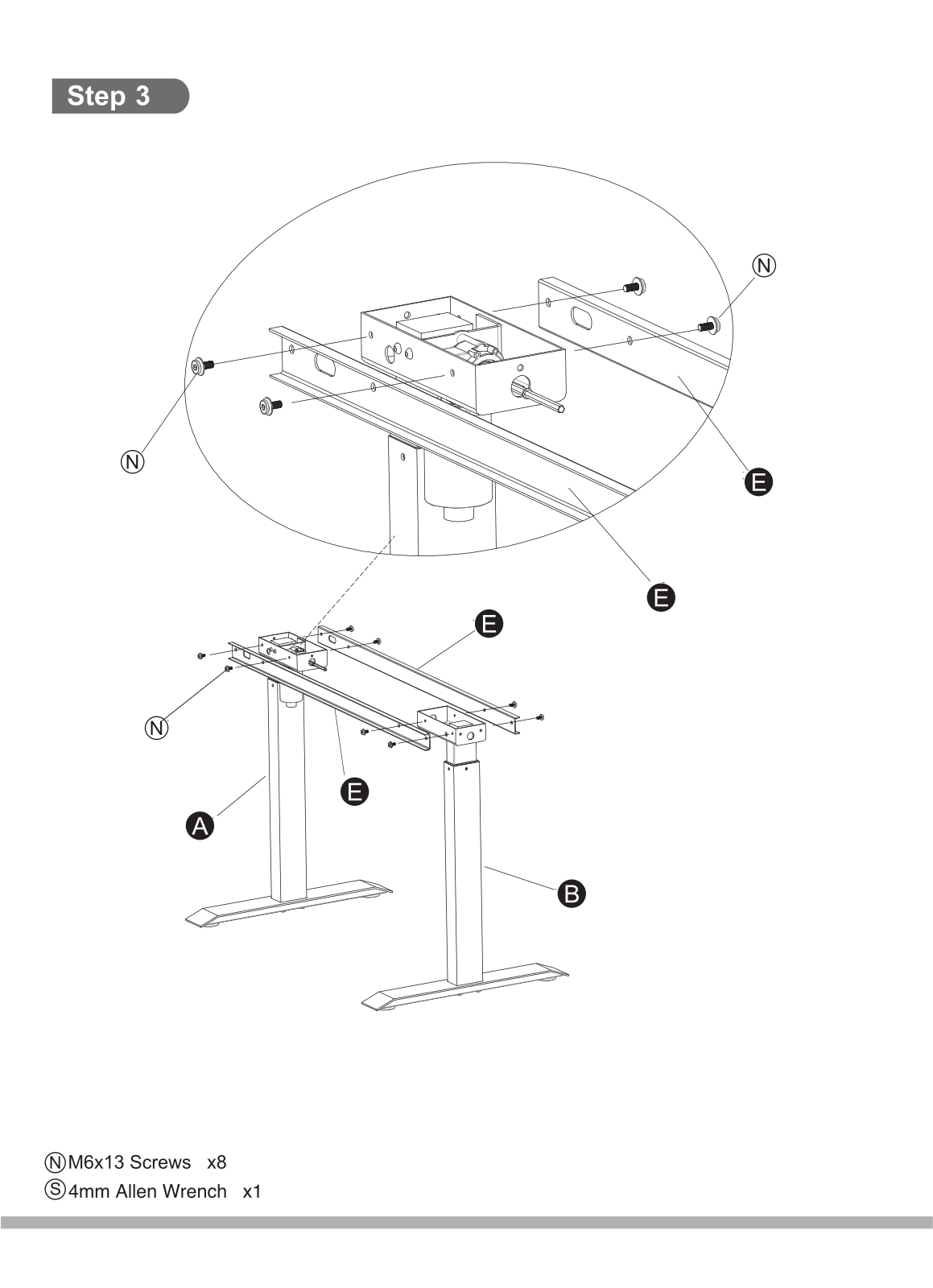

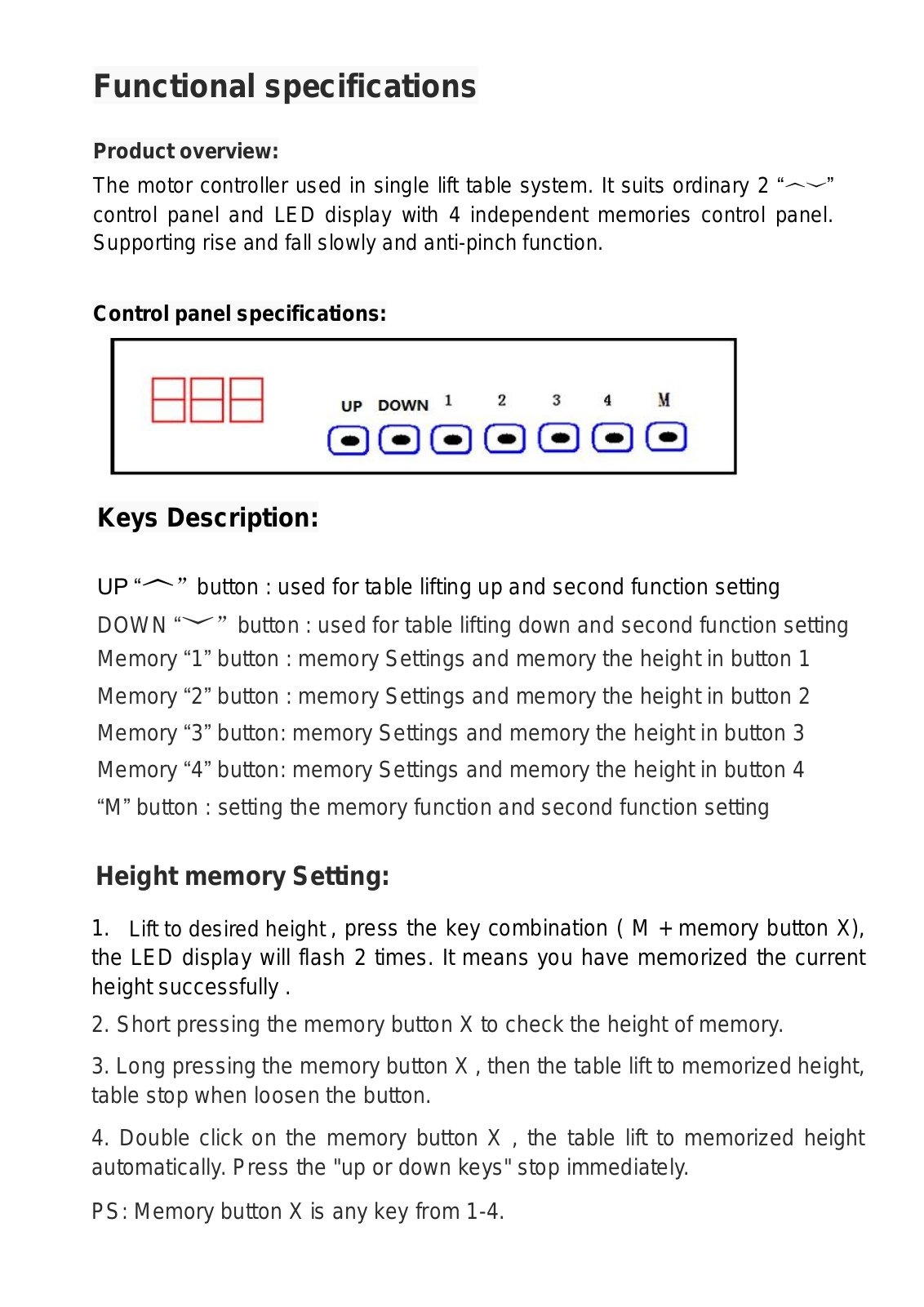

Functional specifications
Product overview:
The motor controller used in single lift table system. It suits ordinary 2 “︿﹀”
control panel and LED display with 4 independent memories control panel.
Supporting rise and fall slowly and anti-pinch function.

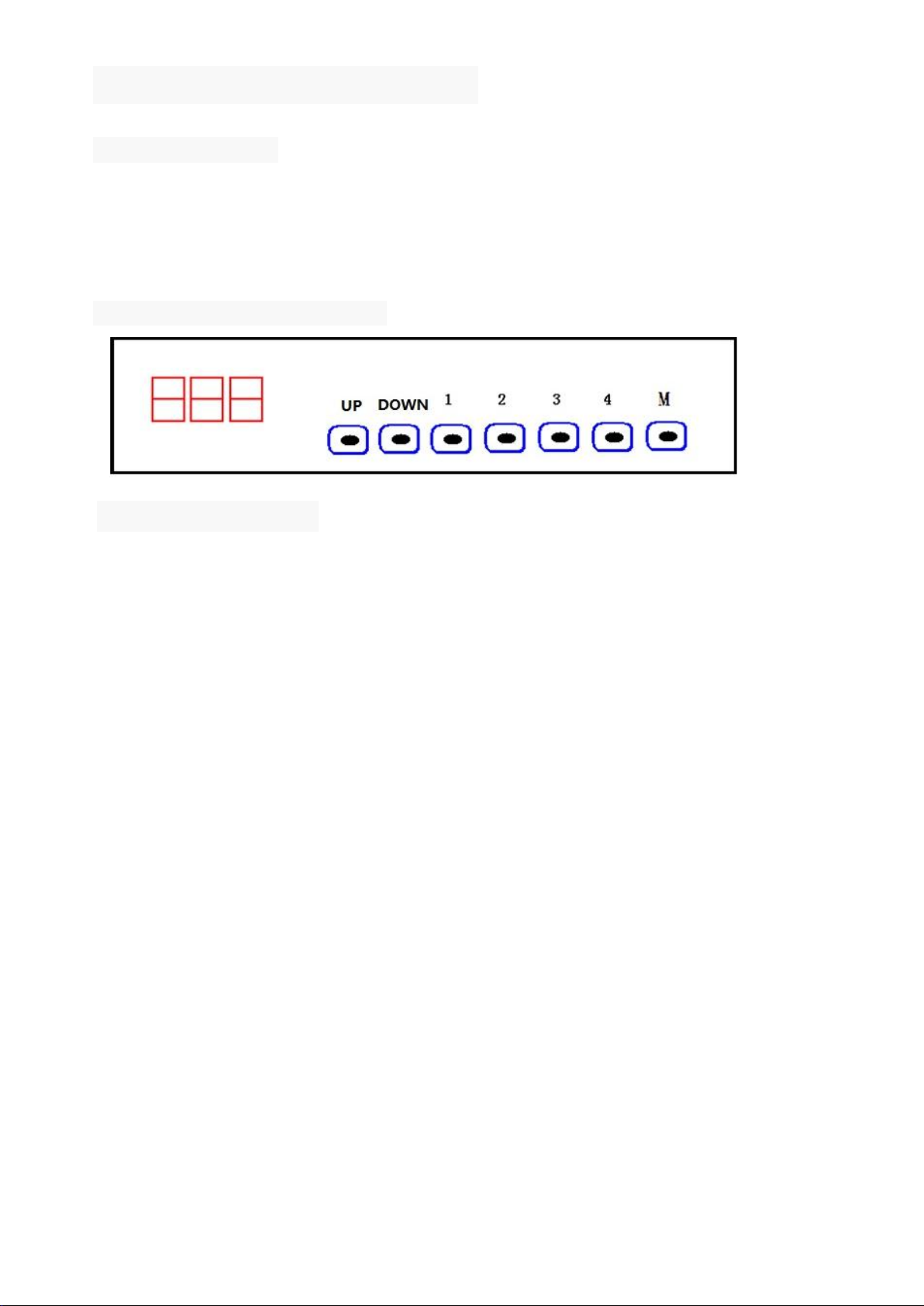

Control panel specifications:
Keys Description:
UP “︿”button : used for table lifting up and second function setting
DOWN “﹀”button : used for table lifting down and second function setting
Memory “1” button : memory Settings and memory the height in button 1
Memory “2” button : memory Settings and memory the height in button 2
Memory “3” button: memory Settings and memory the height in button 3
Memory “4” button: memory Settings and memory the height in button 4
“M” button : setting the memory function and second function setting
Height memory Setting:
1. , press the key combination ( M + memory button X),
Lift to desired height
the LED display will flash 2 times. It means you have memorized the current
height successfully .
2. Short pressing the memory button X to check the height of memory.
3. Long pressing the memory button X , then the table lift to memorized height,
table stop when loosen the button.
4. Double click on the memory button X , the table lift to memorized height
automatically. Press the "up or down keys" stop immediately.
PS: Memory button X is any key from 1-4.

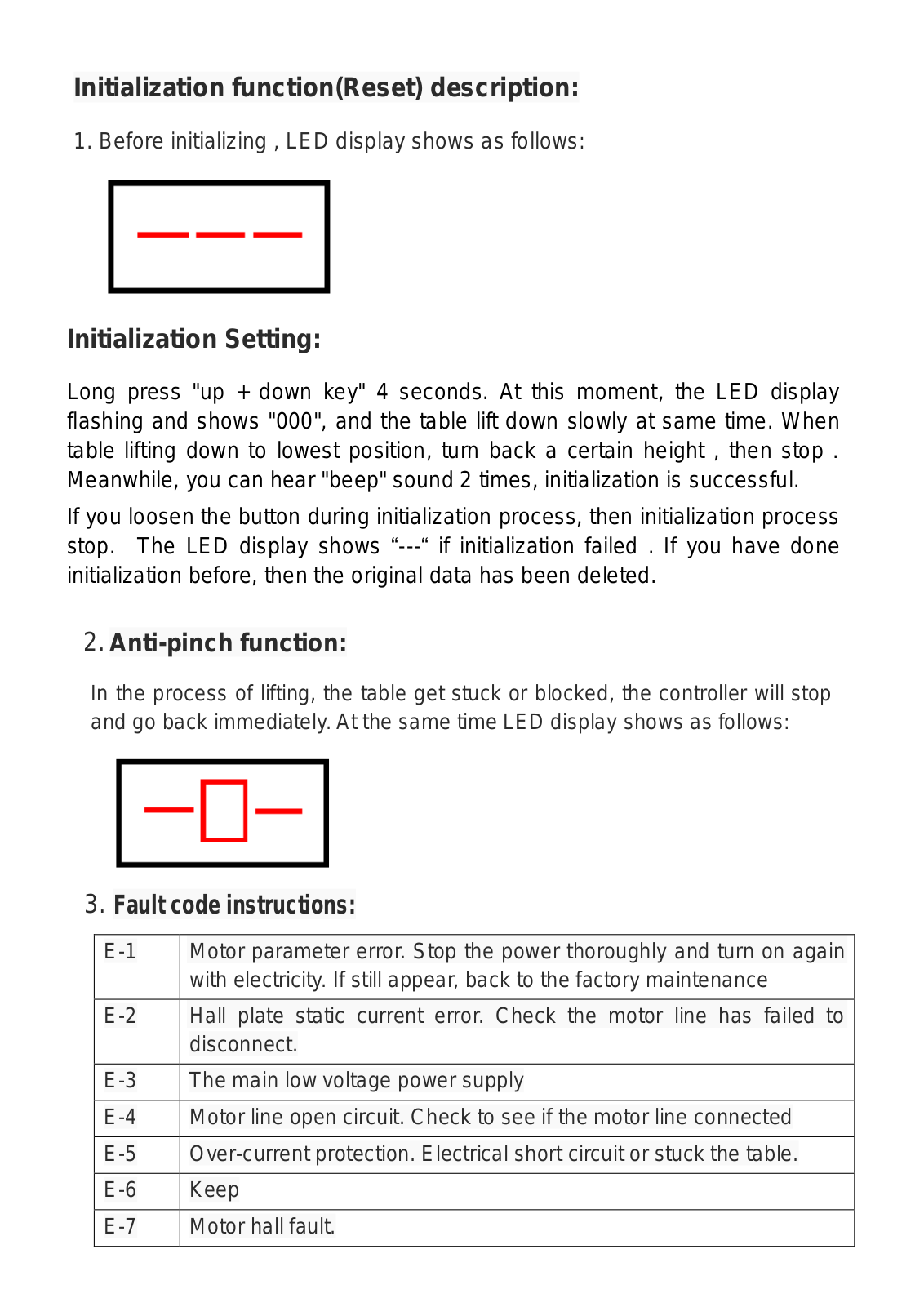

Initialization function(Reset) description:
1. Before initializing , LED display shows as follows:
Initialization Setting:
Long press "up + down key" 4 seconds. At this moment, the LED display
flashing and shows "000", and the table lift down slowly at same time. When
table lifting down to lowest position, turn back a certain height , then stop .
Meanwhile, you can hear "beep" sound 2 times, initialization is successful.
If you loosen the button during initialization process, then initialization process
stop. The LED display shows “---“ if initialization failed . If you have done
initialization before, then the original data has been deleted.
2.
Anti-pinch function:
In the process of lifting, the table get stuck or blocked, the controller will stop
and go back immediately. At the same time LED display shows as follows:
3.
Fault code instructions:
E-1 Motor parameter error. Stop the power thoroughly and turn on again
with electricity. If still appear, back to the factory maintenance
E-2 Hall plate static current error. Check the motor line has failed to
disconnect.
E-3 The main low voltage power supply
E-4 Motor line open circuit. Check to see if the motor line connected
E-5 Over-current protection. Electrical short circuit or stuck the table.
E-6 Keep
E-7 Motor hall fault.
