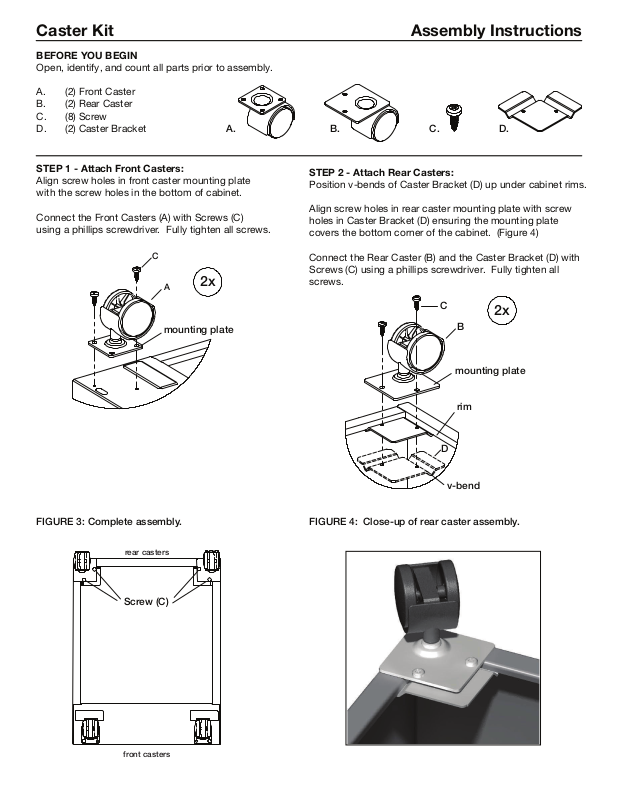

Caster Kit Assembly Instructions
BEFORE YOU BEGIN
Open, identify, and count all parts prior to assembly.
(2) Front Caster
A.
(2) Rear Caster
B.
(8) Screw
C.
(2) Caster Bracket
D.
A.
B.
C.
D.

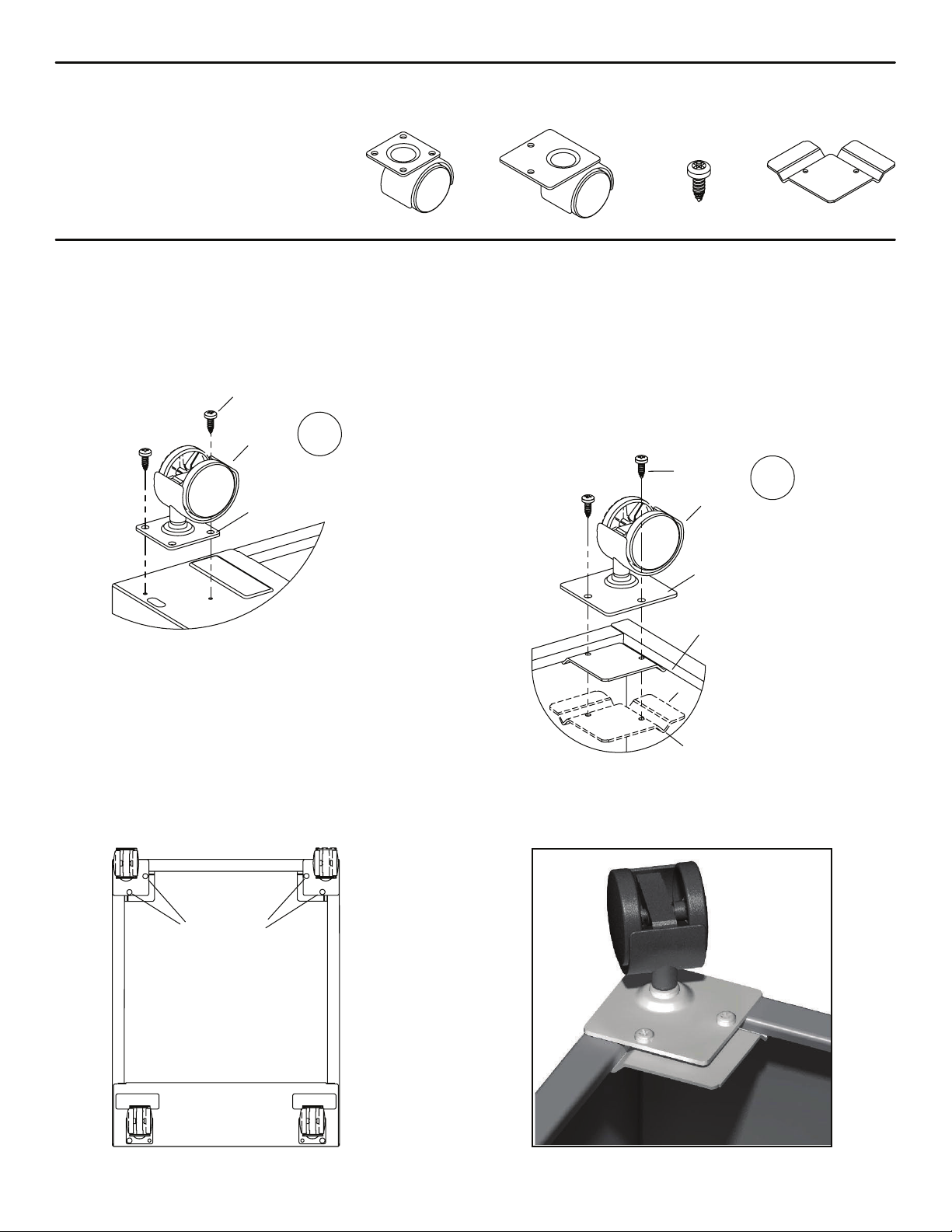

STEP 1 - Attach Front Casters:
Align screw holes in front caster mounting plate
with the screw holes in the bottom of cabinet.
Connect the Front Casters (A) with Screws (C)
using a phillips screwdriver. Fully tighten all screws.
C
A
mounting plate
2x
STEP 2 - Attach Rear Casters:
Position v-bends of Caster Bracket (D) up under cabinet rims.
Align screw holes in rear caster mounting plate with screw
holes in Caster Bracket (D) ensuring the mounting plate
covers the bottom corner of the cabinet. (Figure 4)
Connect the Rear Caster (B) and the Caster Bracket (D) with
Screws (C) using a phillips screwdriver. Fully tighten all
screws.
C
B
mounting plate
rim
D
2x
v-bend
FIGURE 3: Complete assembly. FIGURE 4: Close-up of rear caster assembly.
rear casters
Screw (C)
front casters
