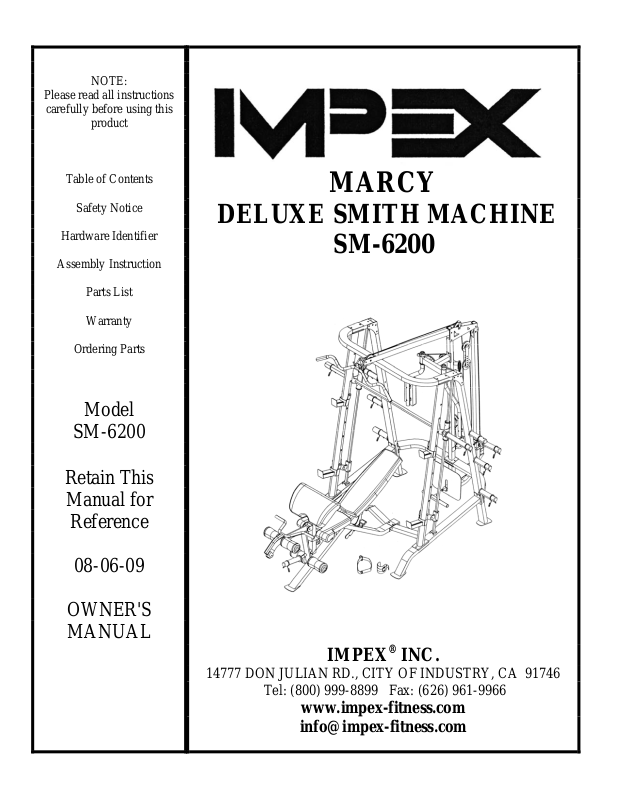

Impex SM-6200 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY

DELUXE SMITH MACHINE

SM-6200

Model

SM-6200

Retain This

Manual for

Reference

08-06-09

OWNER'S
MANUAL

IMPEX® INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN..................................................................................... 1

IMPORTANT SAFETY NOTICES.................................................................... 2

SMITH MACHINE HARDWARE PACK….......…............................................. 4

SMITH MACHINE ASSEMBLY INSTRUCTIONS............................................ 7

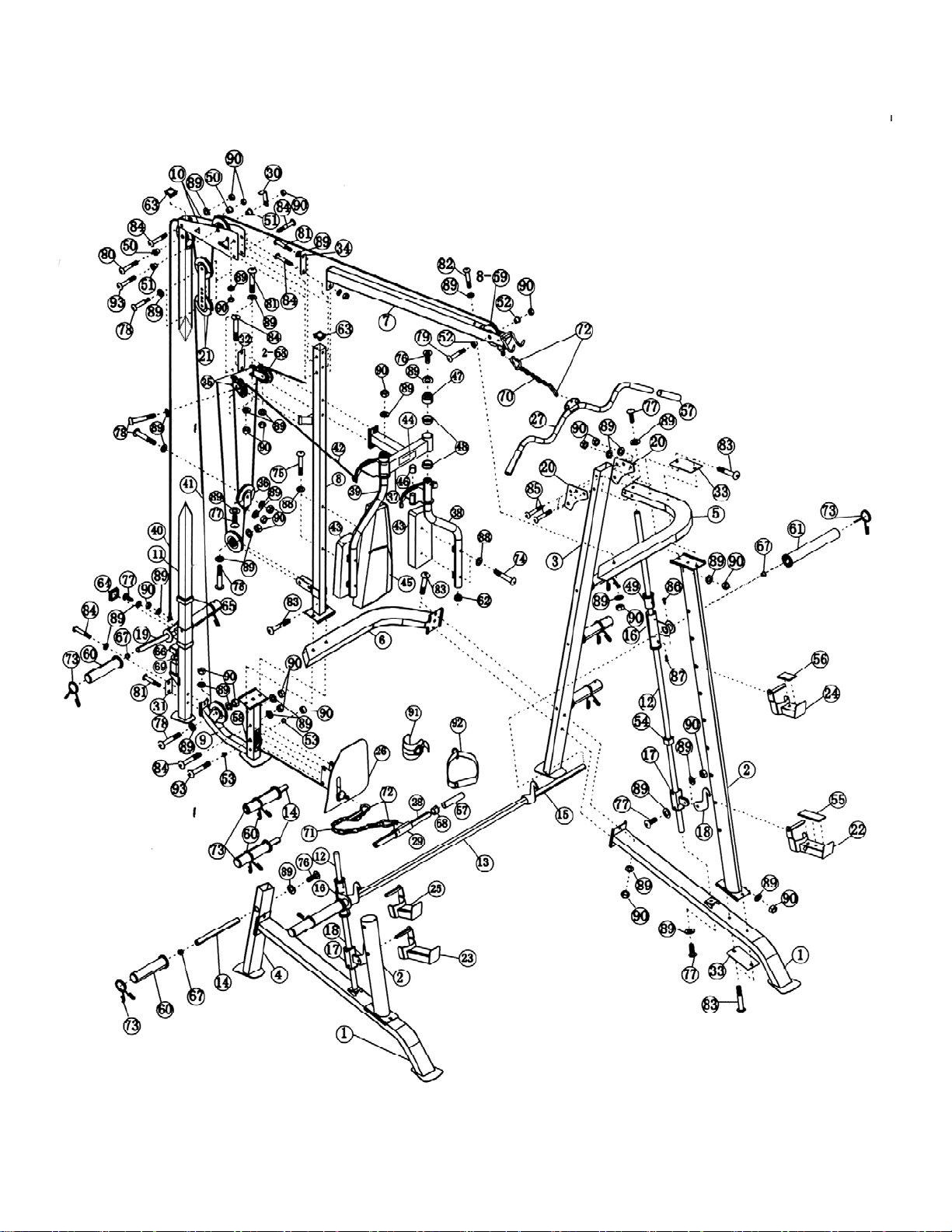

EXPLODED DIAGRAM…………………………………………………………….. 19
SMITH MACHINE PARTS LIST………..…………………………………………. 20

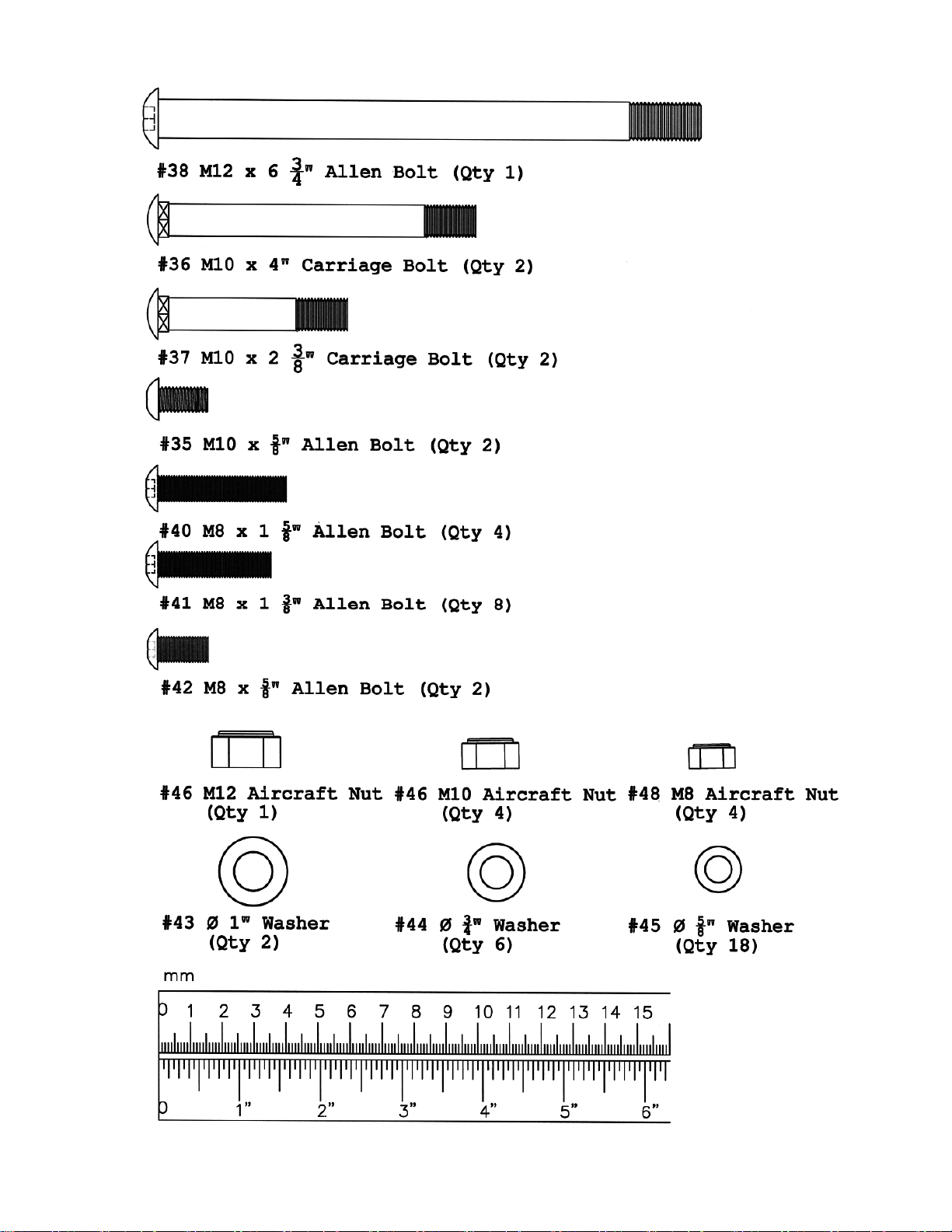

MULTI-PURPOSE BENCH HARDWARE PACK………………………………… 21

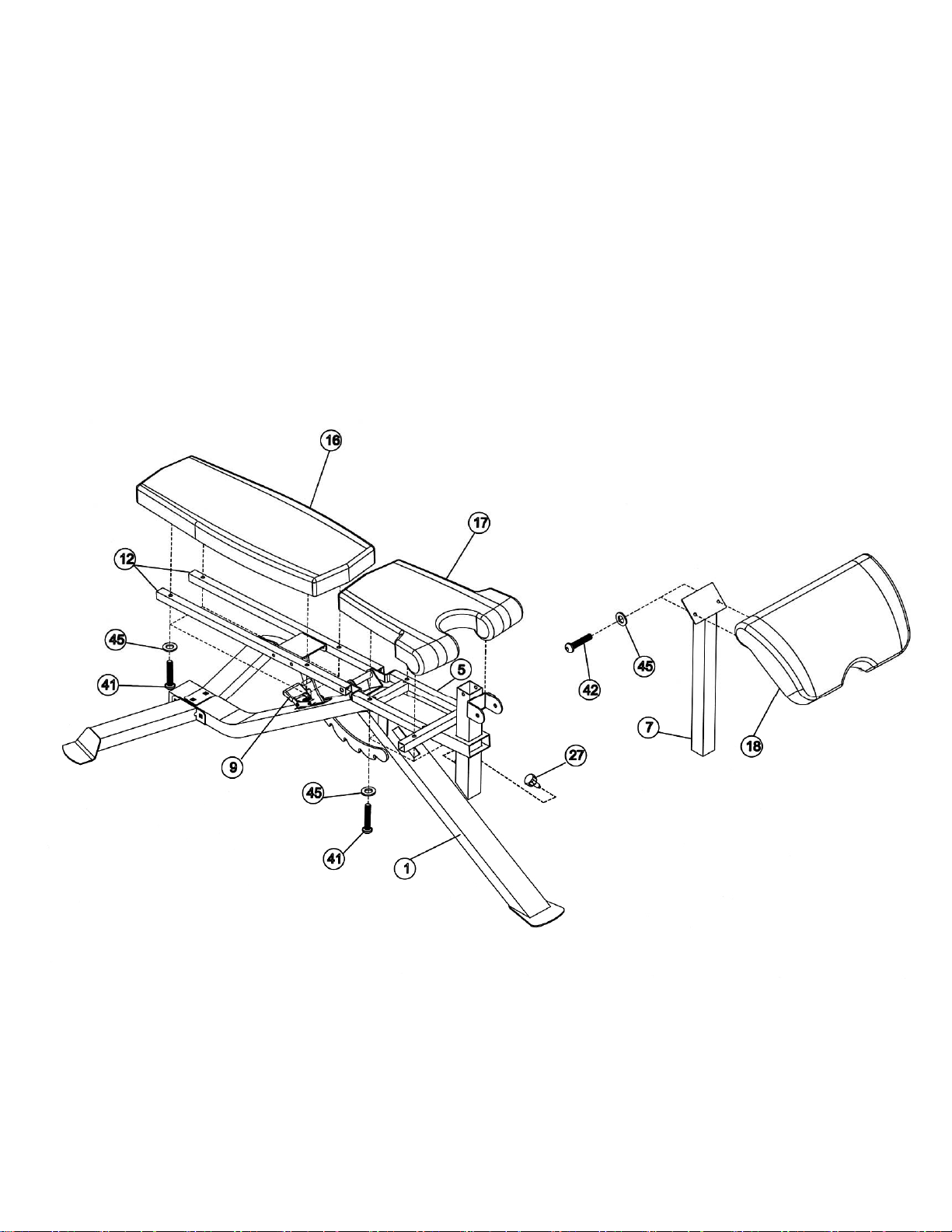

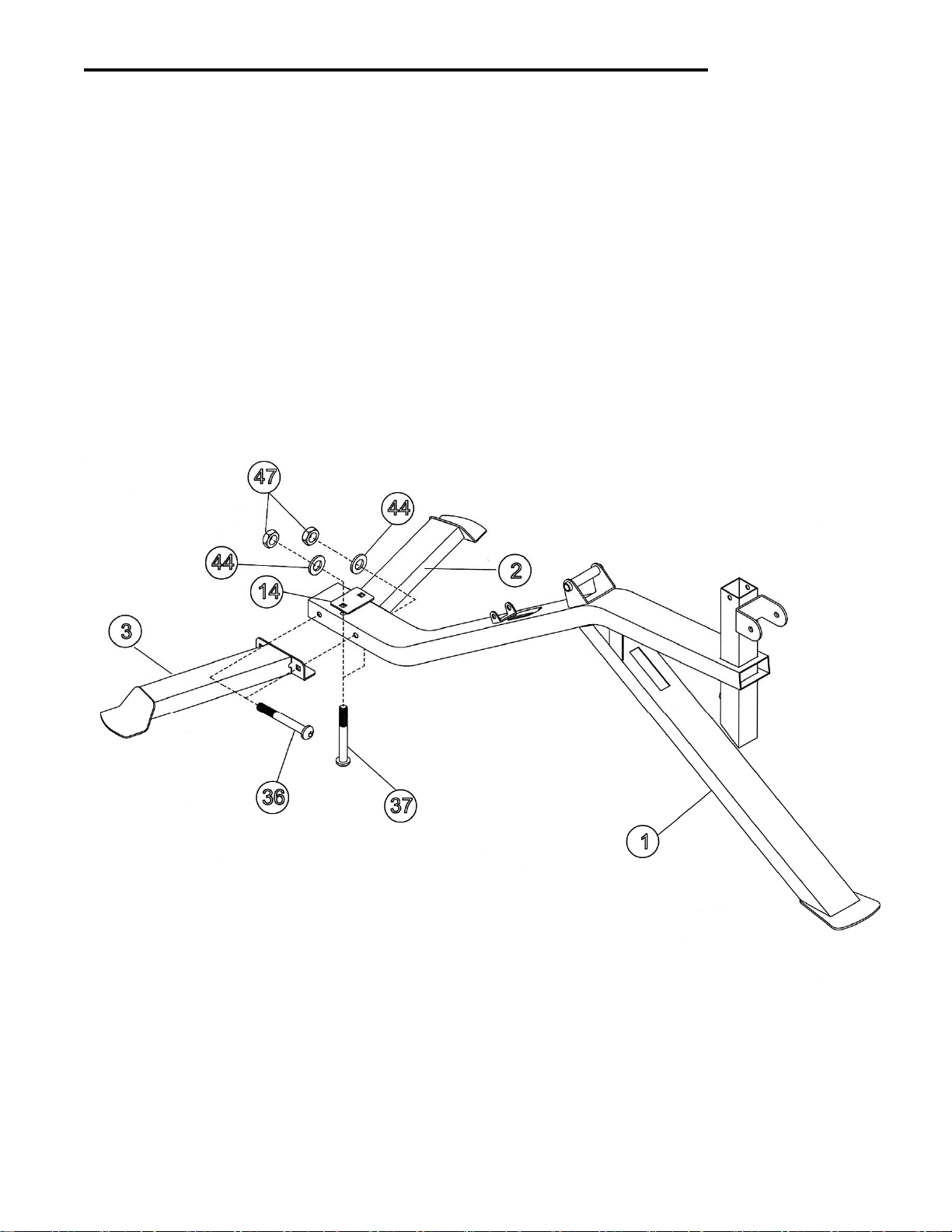

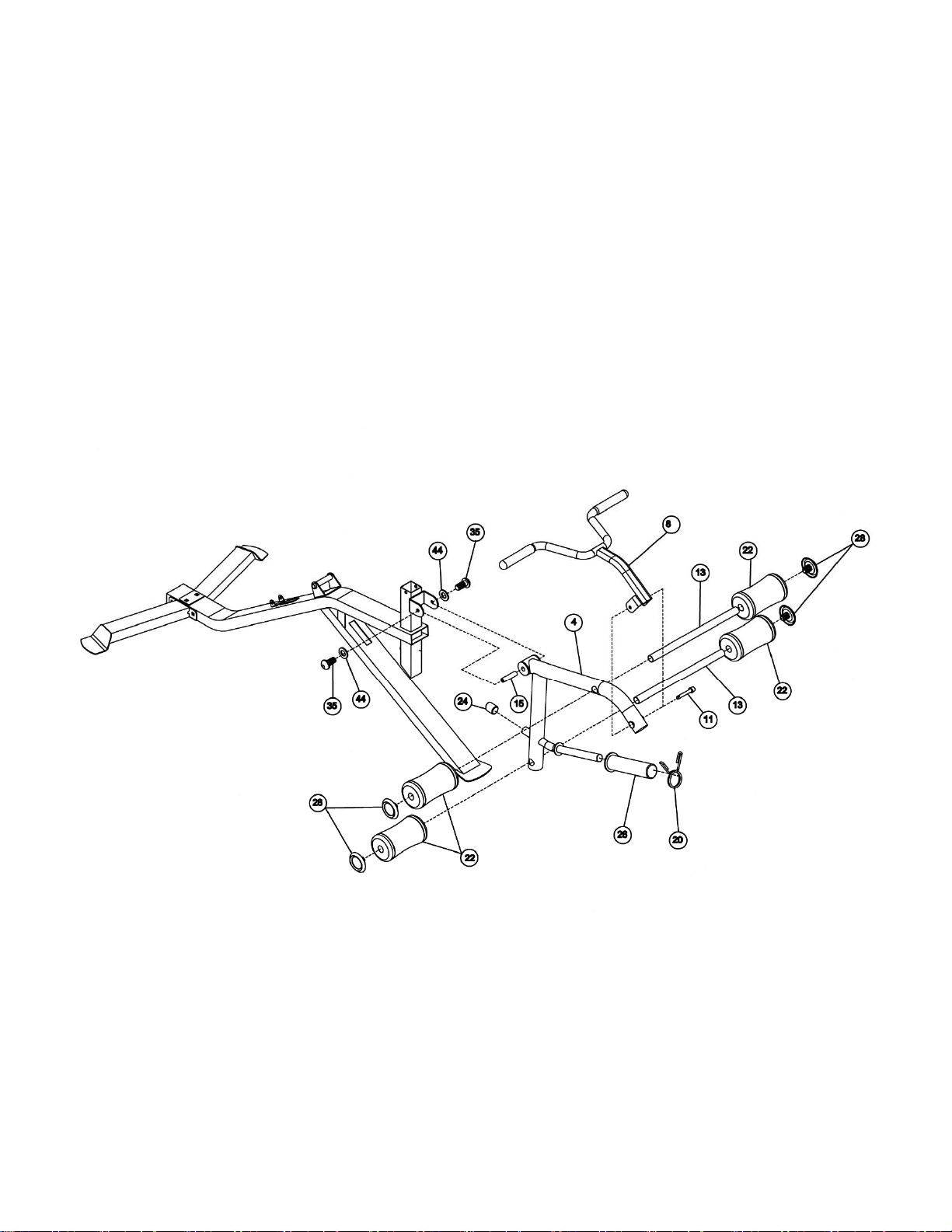

MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTIONS.............................. 22

EXPLODED DIAGRAM…………………………………………………………….. 26
MULTI-PURPOSE BENCH PARTS LIST………………………………………… 27

WARRANTY.................................................................................................… 28

ORDERING PARTS......................................................................................... 28

BEFORE YOU BEGIN

Thank you for selecting the MARCY SM-6200 Smith Machine by IMPEX
For your safety and benefit, read this manual carefully before using the
machine. As a manufacturer, we are committed to provide you complete
customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct
assistance from our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.

®

INC.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual before
you assemble or operate your machine. In particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Maximum user’s weight on Bench: 300 lbs.

5. Maximum weight on the Weight Bar: 300 lbs.

6. Maximum weight on the Bar Catch: 300 lbs

7. Maximum weight on Leg Developer: 100 lbs.

8. Maximum Weight Capacity including user weight: 600 lbs

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

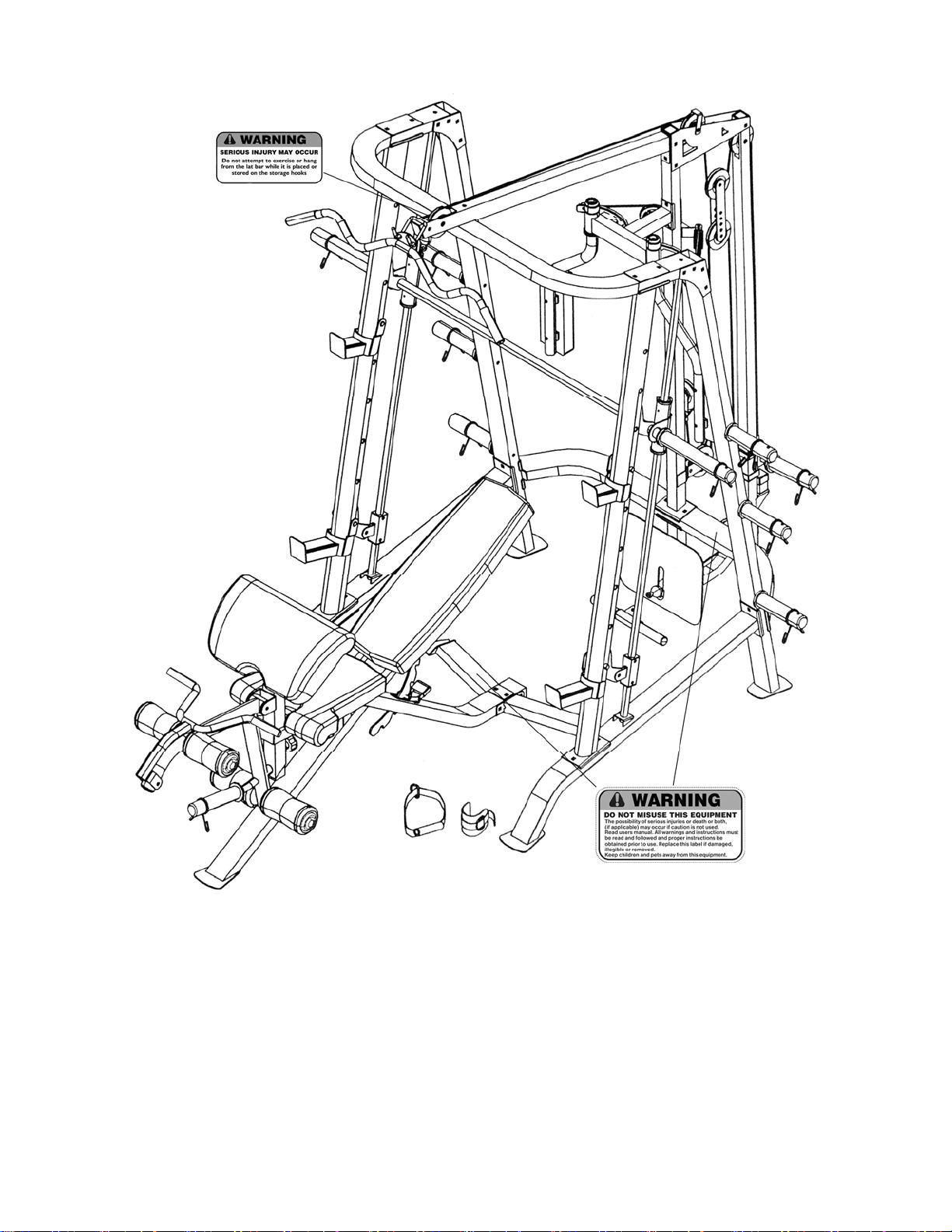

WARNING LABEL PLACEMENT

The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer and Upper
Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for
replacements. Apply the labels in the location shown.

3

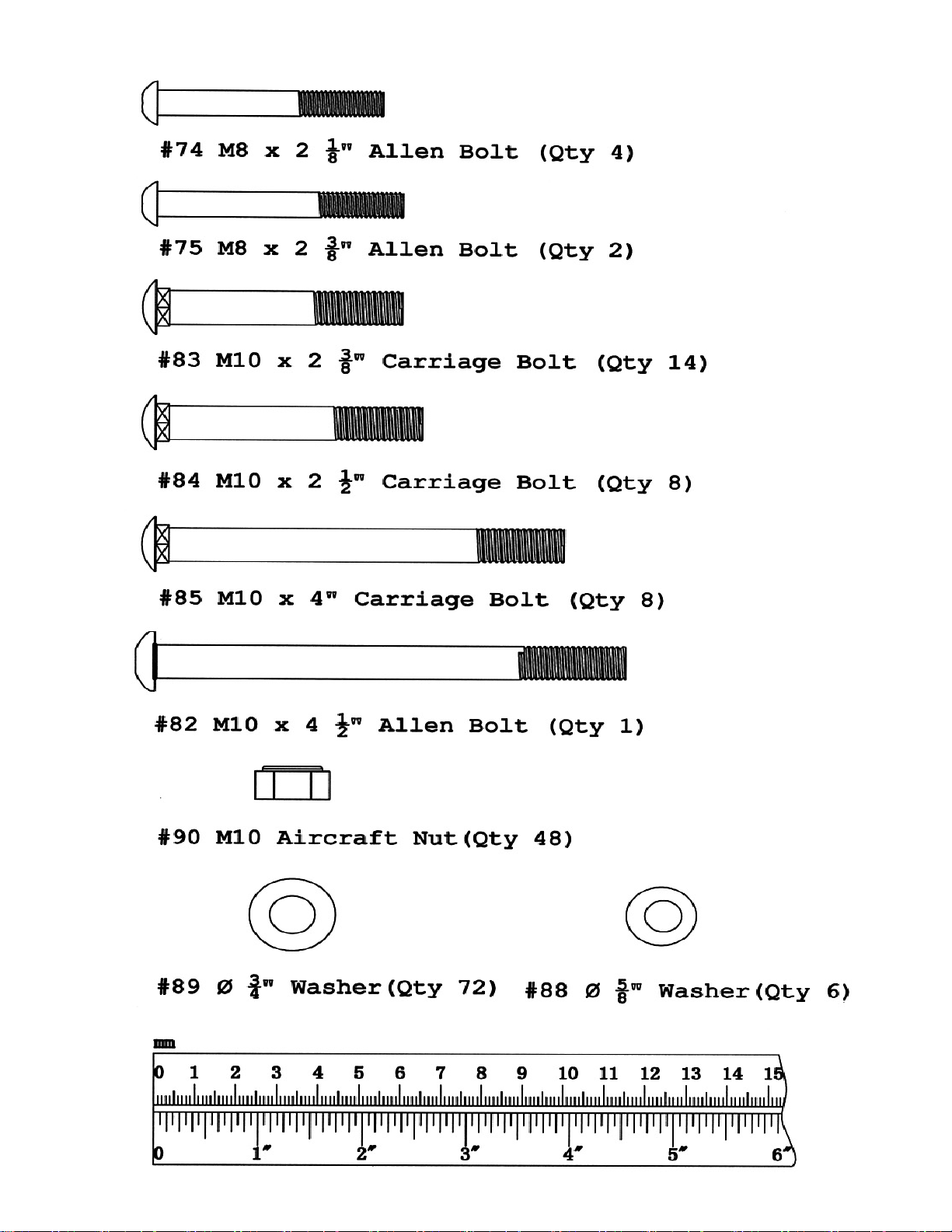

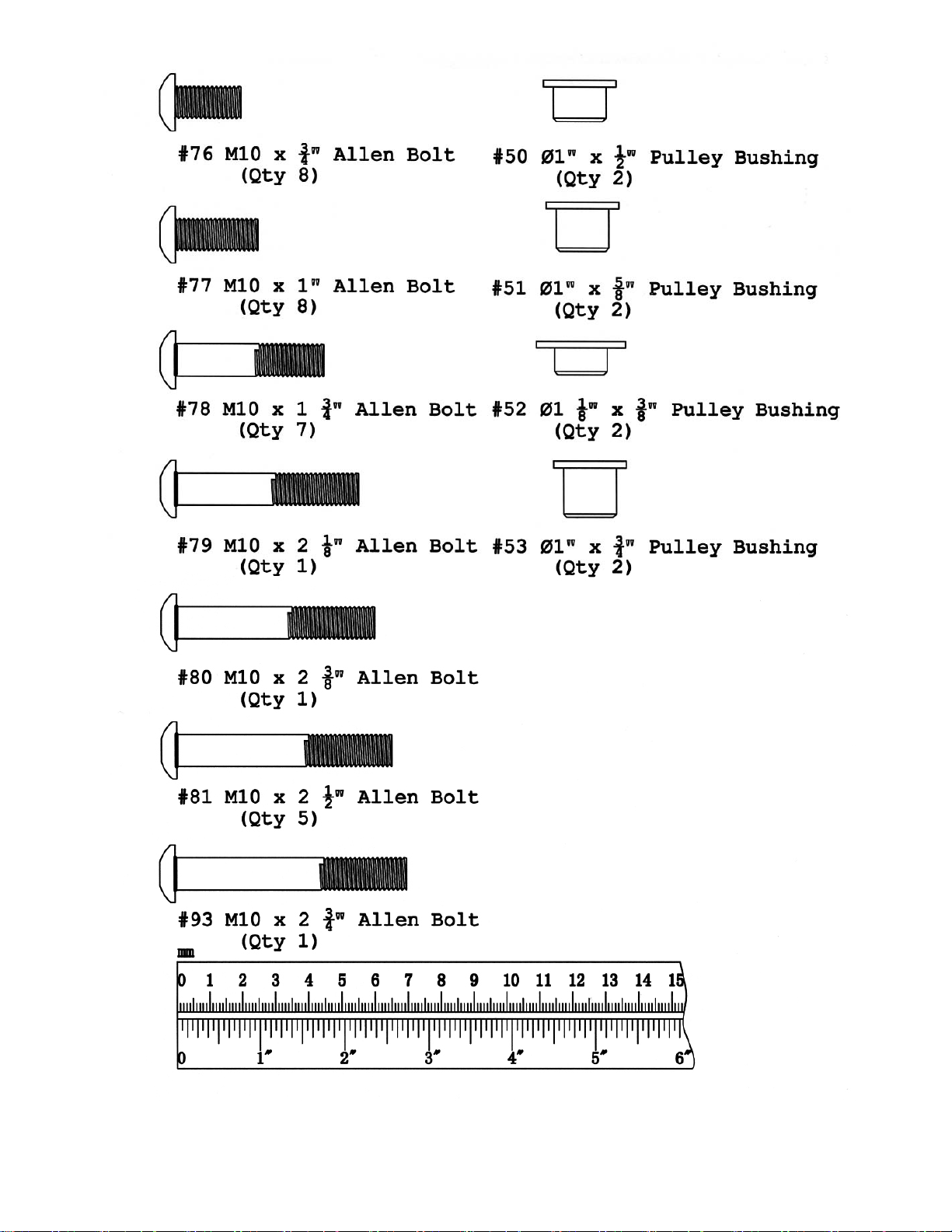

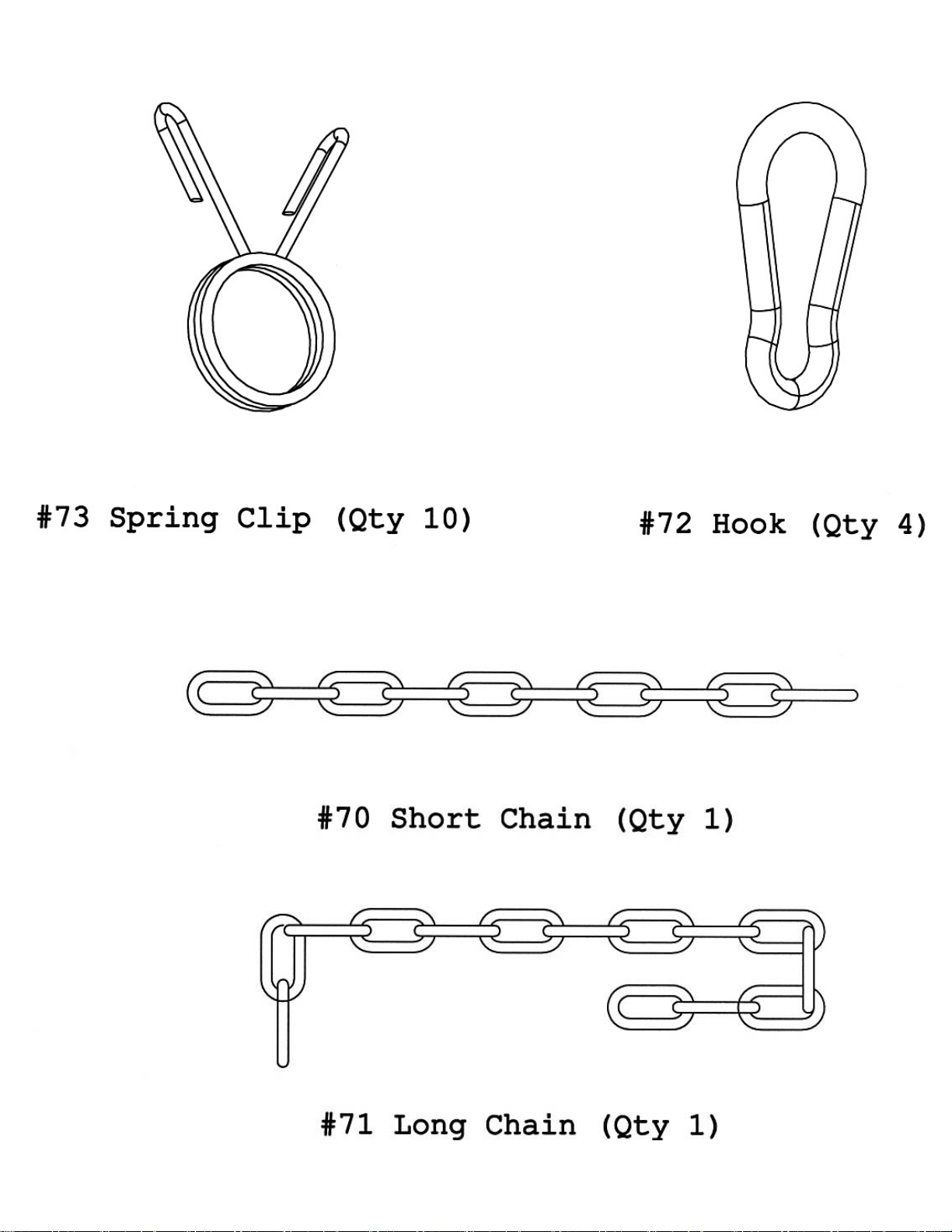

SMITH MACHINE HARDWARE PACK

4

SMITH MACHINE HARDWARE PACK

5

SMITH MACHINE HARDWARE PACK

6

SMITH MACHINE ASSEMBLY INSTRUCTION

Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

STEP 1 (See Diagram 1)

A.) Do not tighten all nuts and bolts until instructed to do so.
B.) Attach one Base Frame (#1) to the Left Vertical Frame (#3). Attach the Cross Brace (#6)

to the back of the Left Vertical Frame. Align the holes and secure the Base Frame, Left
Vertical Frame, and the Cross Brace together with two M10 x 2 3/8” Carriage Bolts (#83),
Ø ¾” Washers (#89), and M10 Aircraft Nuts (#90). Repeat the same procedure to install
the other side.

C.) Attach a Guide Rod (#12) onto the Base Frame (#1). Secure it to the Base Frame with

one M10 x 1” Allen Bolt (#77) and Ø ¾” Washer (#89) from the bottom.

D.) Slide one Lower Safety Stop Frame (#17) onto the Guide Rod from the top then slide one

Safety Stop Frame (#16) onto the Guide Rod.

E.) Attach a Front Vertical Frame (#2) onto the Base Frame (#1). Secure it with two M10 x 2

3/8” Carriage Bolts (#83), one 6” x 2 ¾” Bracket (#33), two Ø ¾” Washers (#89), and two
M10 Aircraft Nuts (#90).

F.) Attach a Safety Hook (#18) to the Lower Safety Stop Frame (#17). Securely it with one

M10 x 1” Allen Bolt (#77), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#90).

Attach the Safety Hook onto the selected slot on the back of the Front Vertical Frame.
G.) Repeat Procedure C through F above to install the other side.
H.) Place the Front Top Beam (#5) onto the two Front Vertical Frames (#2).
I.) Insert the top of the Guide Rods (#12) into the holes on the Front Top Beam. Secure each

Guide Rod to the Front Top Beam with one M10 x 1” Allen Bolt (#77) and Ø ¾” Washer

(#89).
J.) Secure each Front Vertical Frame (#2) to the Front Top Beam (#5) with two M10 x 2 3/8”

Carriage Bolts (#83), one 6” x 2 ¾” Bracket (#33), two Ø ¾” Washers (#89), and two M10

Aircraft Nuts (#90).
K.) Secure the Front Top Beam to the Left Vertical Frame (#3) with four M10 x 4” Carriage

Bolts (#85), two Triangle Brackets (#20), four Ø ¾” Washers (#89), and four M10 Aircraft

Nuts (#90). Repeat the same procedure to secure the other side.

7

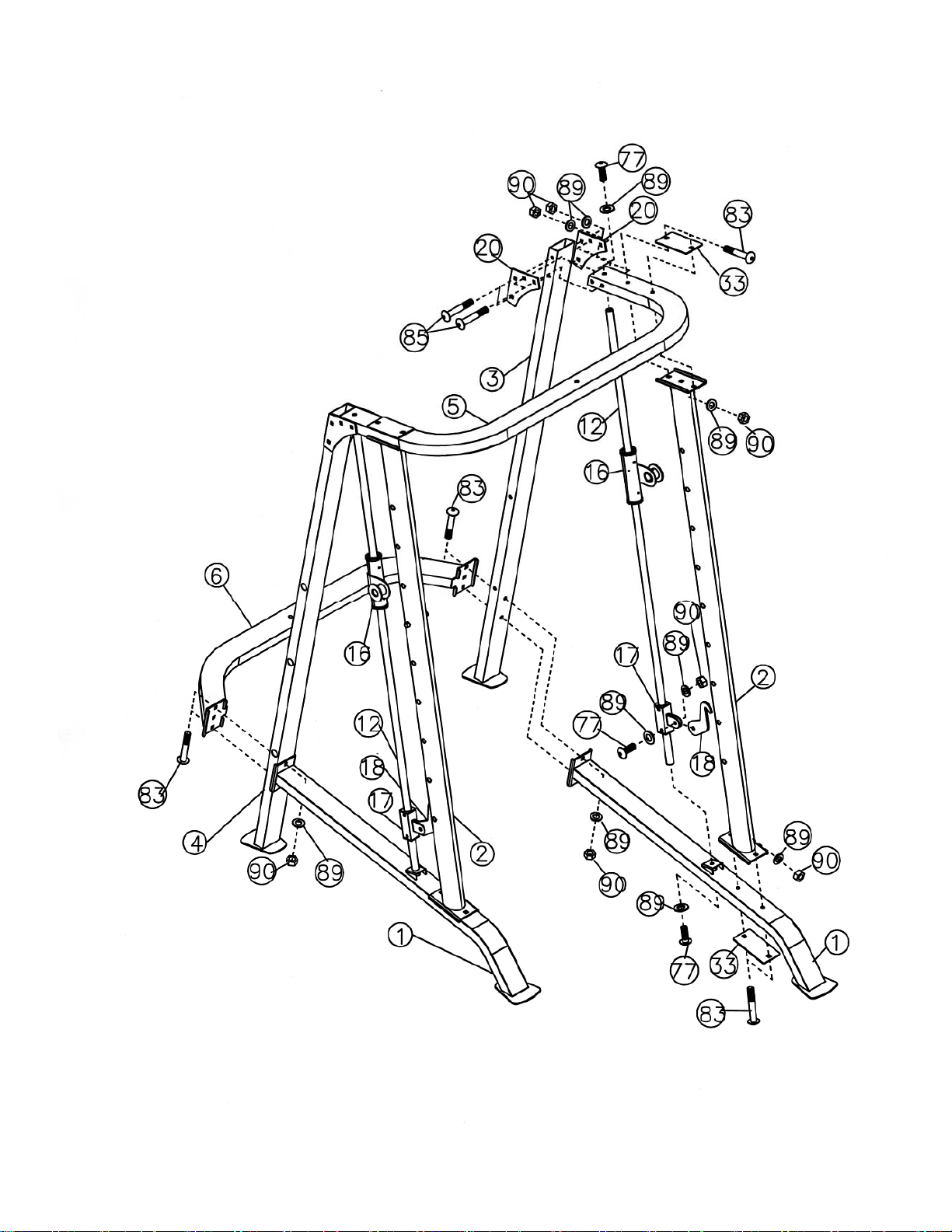

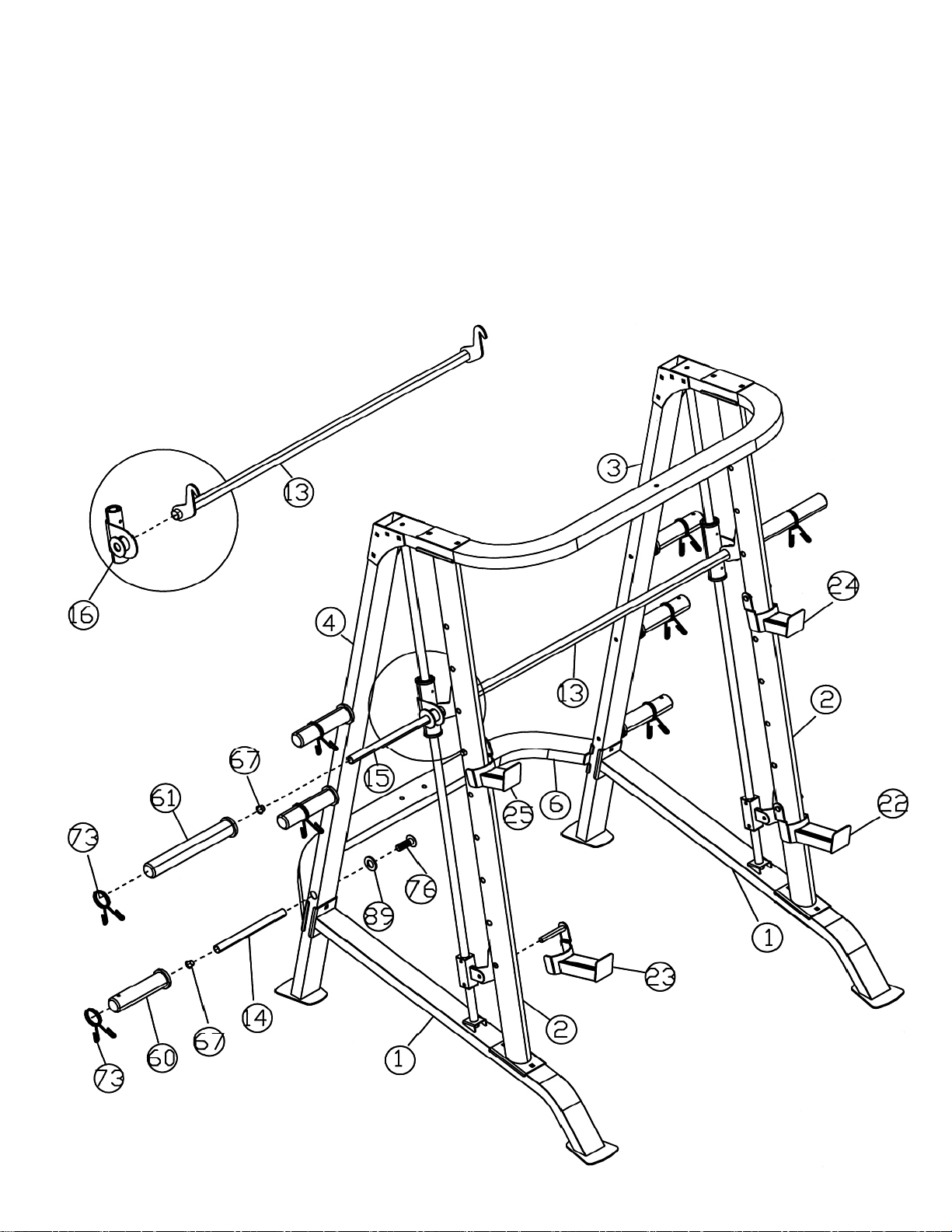

DIAGRAM 1

8

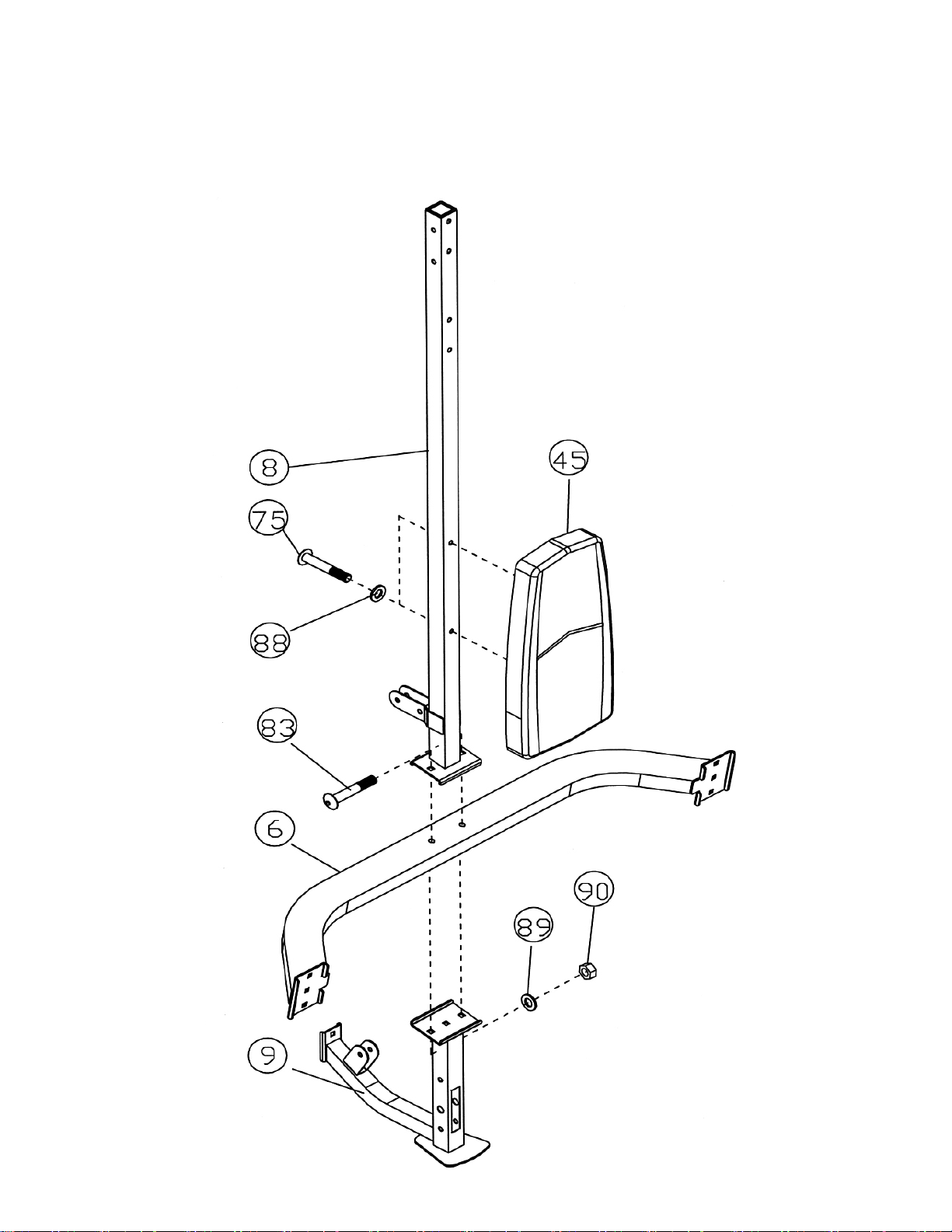

STEP 2 (See Diagram 2)

A.) Attach the Vertical Frame Base (#9) to the Cross Brace (#6) from the bottom. Attach the

Rear Vertical Frame (#8) onto the Cross Brace on the top. Align the holes and secure
them together with two M10 x 2 3/8” Carriage Bolts (#83), Ø ¾” Washers (#89), and M10
Aircraft Nuts (#90).

B.) Attach the Backrest Board (#45) to the Rear Vertical Frame (#8). Secure it with two M8 x 2

3/8” Allen Bolts (#75) and Ø 5/8” Washes (#88).

9

STEP 3 (See Diagram 3)

A.) Attach the Weight Glide Post (#11) to the bracket on the Vertical Frame Base

(#9). Secure it with one 3 1/8” x 1 ¾” Bracket (#31), M10 x 2 ½” Carriage Bolt
(#84), Ø ¾” Washer (#89), and M10 Aircraft Nut (#90) to the upper hole, one
M10 x 2 ½” Allen Bolt (#81) and one Ø ¾” Washer (#89) to the lower hole.

B.) Slide the Sliding Weight Post (#19) onto the Weight Glide Post (#11)) from the

top. Make sure the triangular cable connecting bracket on the Sliding Weight
Post faces up.

C.) Attach the Upper Frame (#7) onto the Front Top Beam (#5). Secure it with one

M10 x 4 ½” Allen Bolt (#82), two Ø ¾” Washers (#89), and one M10 Aircraft Nut
(#90).

D.) Attach the rear of the Upper Frame (#7) to the top of the Rear Vertical Frame

(#8). Secure it with one 4 3/8” x 1 ¾” Bracket (#34), M10 x 2 ½” Allen Bolt (#81),
and Ø ¾” Washer (#89) to the upper hole. Secure the bottom hole with one M10
x 2 ½” Carriage Bolt (#84), Ø ¾” Washer (#89), and M10 Aircraft Nut (#90).

E.) Attach the two Cover Brackets (#10) to the Rear Vertical Frame (#8) and Weight

Glide Post (#11) from both sides.

F.) Secure the Cover Brackets to the Rear Vertical Frame and Weight Glide Post

with four M10 x 2 ½” Carriage Bolts (#84), Ø ¾” Washers (#89), and M10 Aircraft
Nuts (#90).

G.) Securely tighten all Nuts and Bolts previously installed.

10

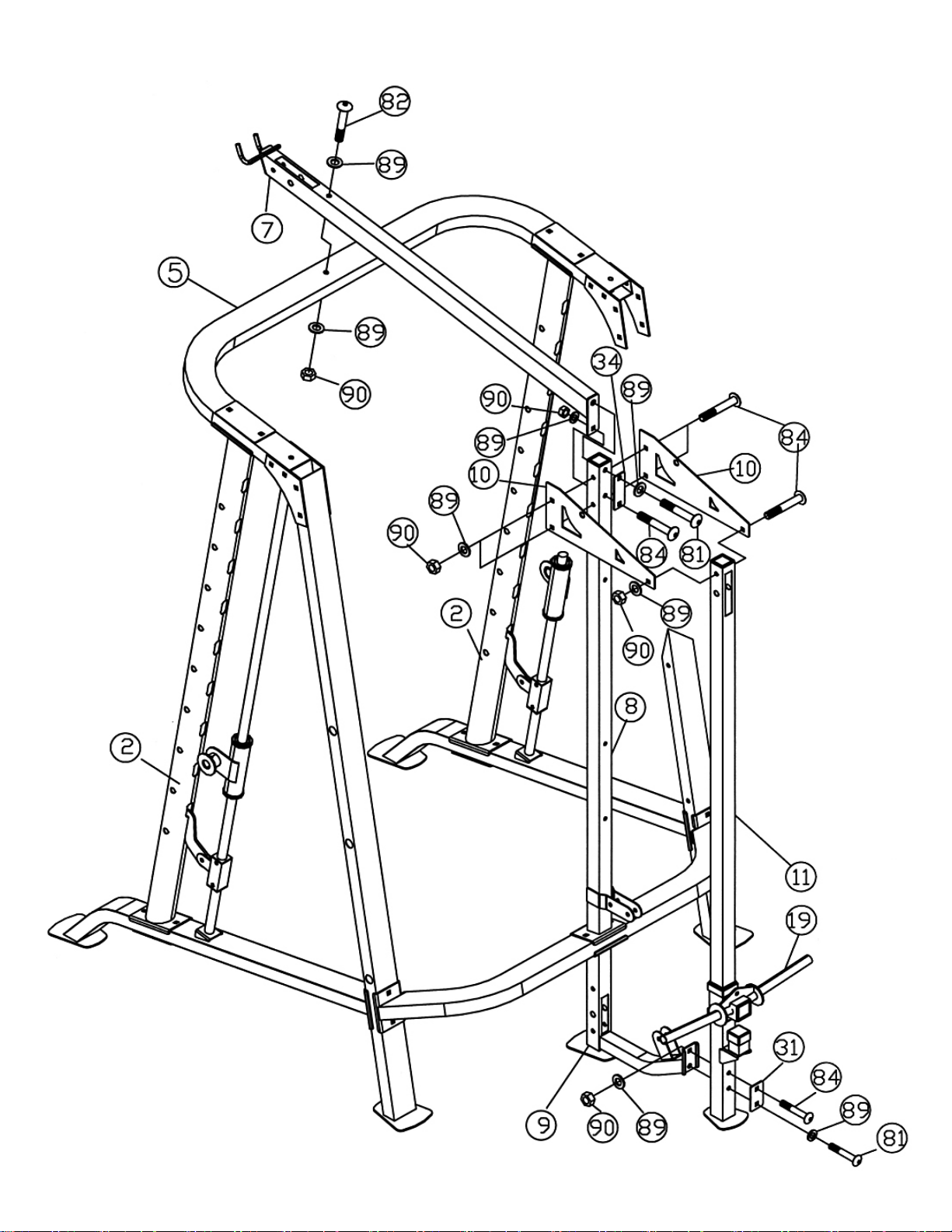

DAIGRAM 3

11

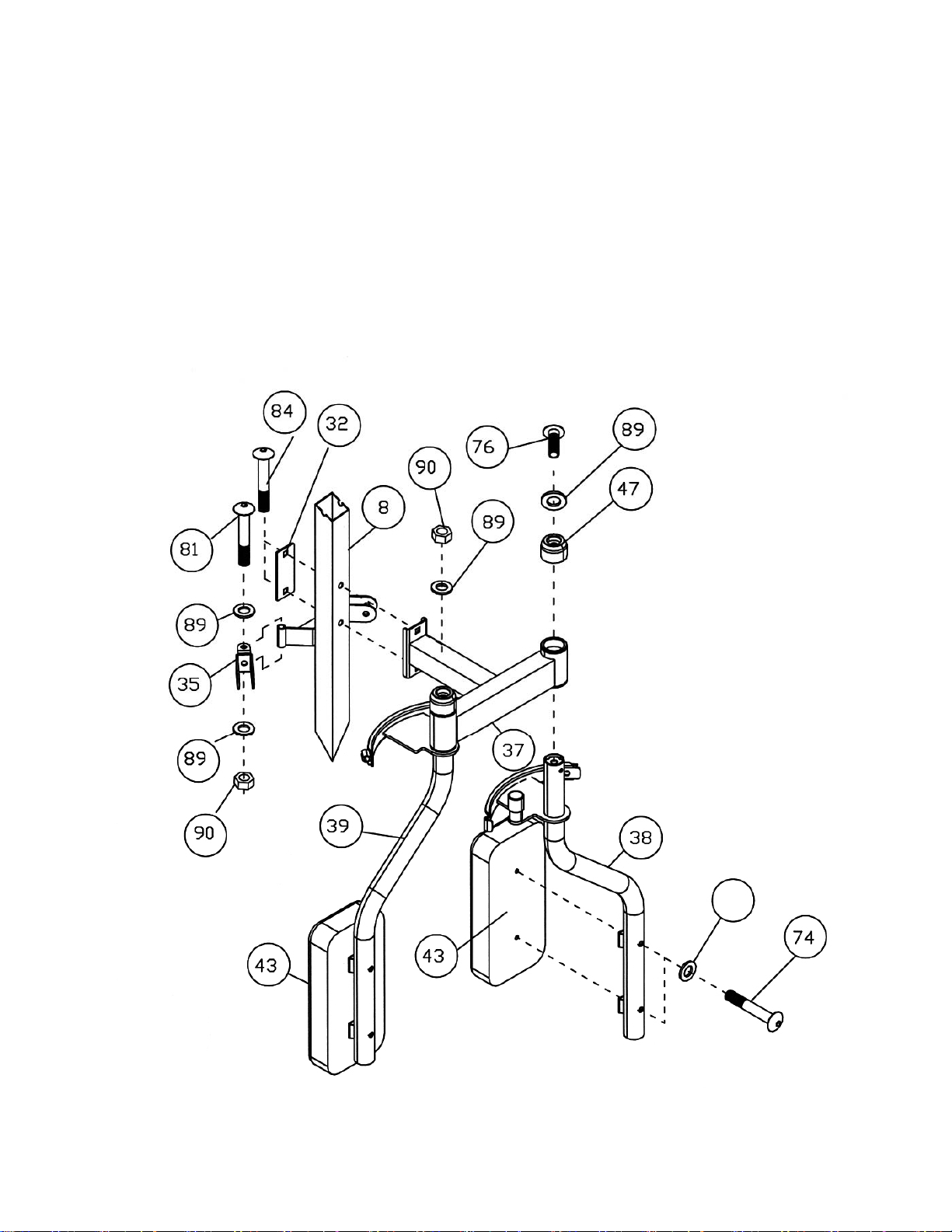

STEP 4 (See Diagram 4)
A.) Attach the Butterfly Base (#37) to the Rear Vertical Frame (#8). Secure it with two M10 x 2

½” Carriage Bolts (#84), Ø ¾” Washers (#89), and M10 Aircraft Nuts (#90).

B.) Attach two Swivel Pulley Brackets (#35) to the open brackets on the Rear Vertical Frame

(#8). Secure each Bracket with one M10 x 2 ½” Allen Bolt (#81), two Ø ¾” Washers (#89),
and one M10 Aircraft Nut (#90). Do not over tighten the nuts and bolts. Make sure the
brackets are able to swivel on the bolts.

C.) Insert the axle on the Left Butterfly (#38) through the holes on the Butterfly Base from the

bottom. Secure it with one Lock Ring (#47), Ø ¾” Washer (#89), and M10 x ¾” Allen Bolt
(#76).

D.) Attach one Butterfly Arm Pad (#43) to the Left Butterfly. Secure it with two M8 x 2 1/8” Allen

Bolts (#74) and Ø 5/8” Washers (#88).

E.) Repeat Procedures C & D above to install the other side.

DIAGRAM 4

12

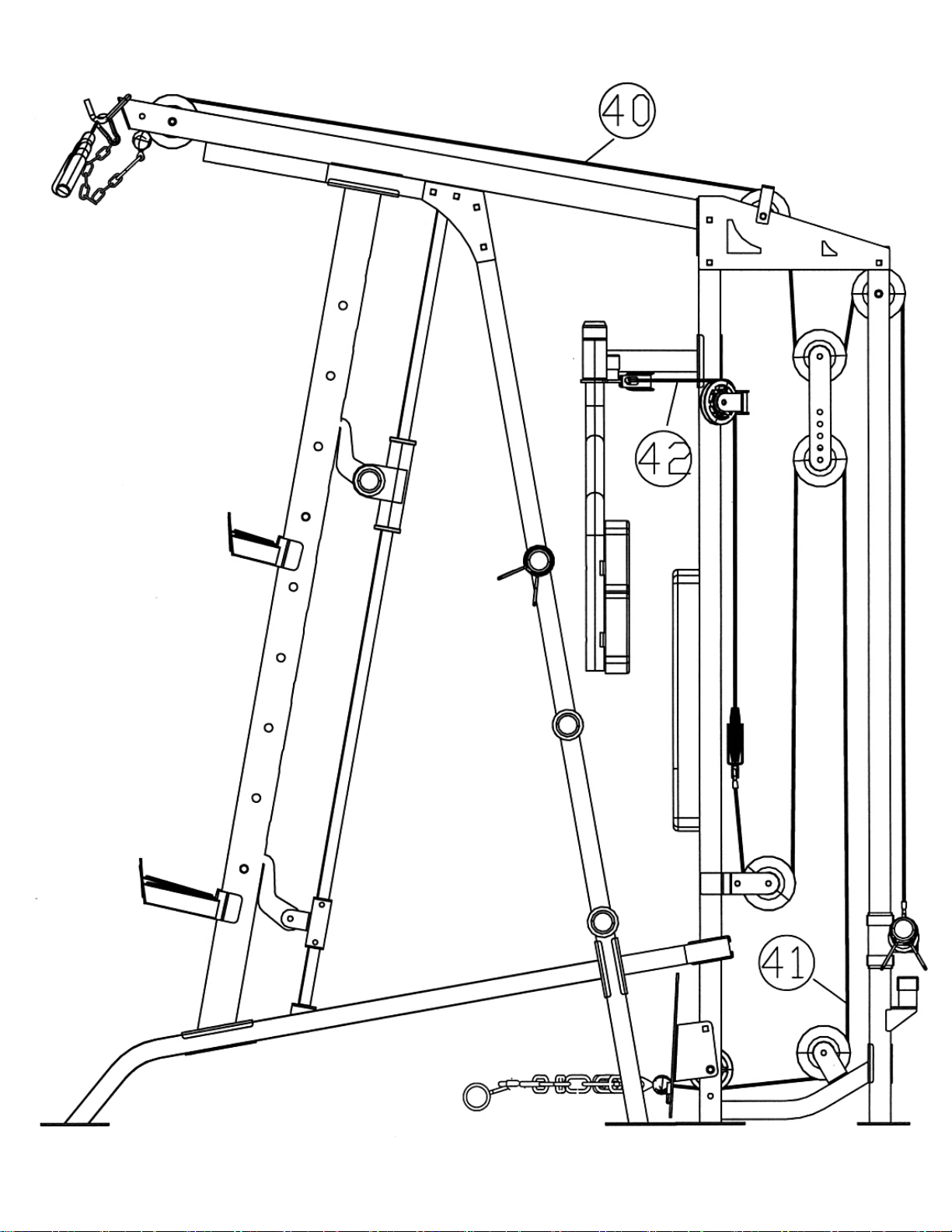

CABLE LOOP DIAGRAM

13

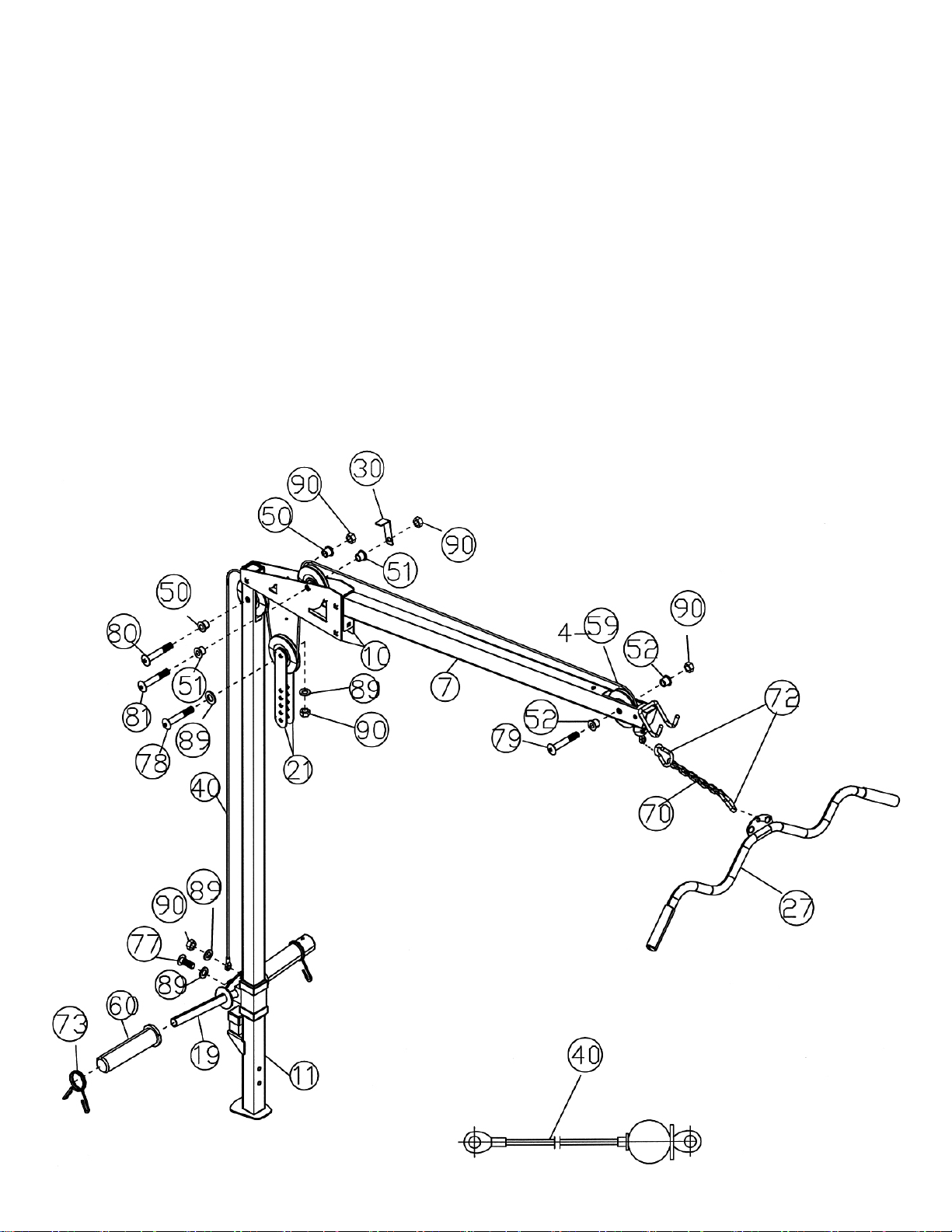

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach the 142” Upper Cable (#40) to the front opening on the Upper Frame (#7). Attach a Pulley

(#59) to the opening. Secure it with one M10 x 2 1/8” Allen Bolt (#79), two Ø 1 1/8” x 3/8” Pulley
Bushings (#52), and one M10 Aircraft Nut (#90). Make sure the ball stopper on the Cable is
underneath the Frame.

B.) Draw the Cable over the Pulley along the Upper Frame to the opening in between the two Cover

Brackets (#10). Attach a Pulley to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#81), two
Ø 1” x 5/8” Pulley Bushings (#51), one L-shaped Cable Retainer (#30) and M10 Aircraft Nut (#90).

C.) Draw the Cable around the Pulley then downward. Attach a Pulley in between the two Double

Floating Pulley Brackets (#21). Secure the Pulley with one M10 x 1 ¾” Allen Bolt (#78), two Ø ¾”
Washers (#89), and one M10 Aircraft Nut (#90). Let the Bracket hanging for now.

D.) Draw the Cable around the Pulley then up to the opening on top of the Weight Glide Post (#11).

Attach a Pulley (#59) to the opening. Secure it with one M10 x 2 3/8” Allen Bolt (#80), two Ø 1” x
½” Pulley Bushings (#50), and one M10 Aircraft Nut (#90).

E.) Draw the Cable around the Pulley then down to the Sliding Weight Post (#19). Secure the Cable

to the Sliding Weight Post with one M10 x 1” Allen Bolt (#77), two Ø ¾” Washers (#89), and one
M10 Aircraft Nut (#90). Attach two Olympic Sleeves (#60) to the Sliding Weight Post. Attach two
Spring Clips (#73) to the Sleeves.

F.) Connect the Lat Bar (#27) to the Cable with a Short Chain (#70) and two C-Clips (#72).

14

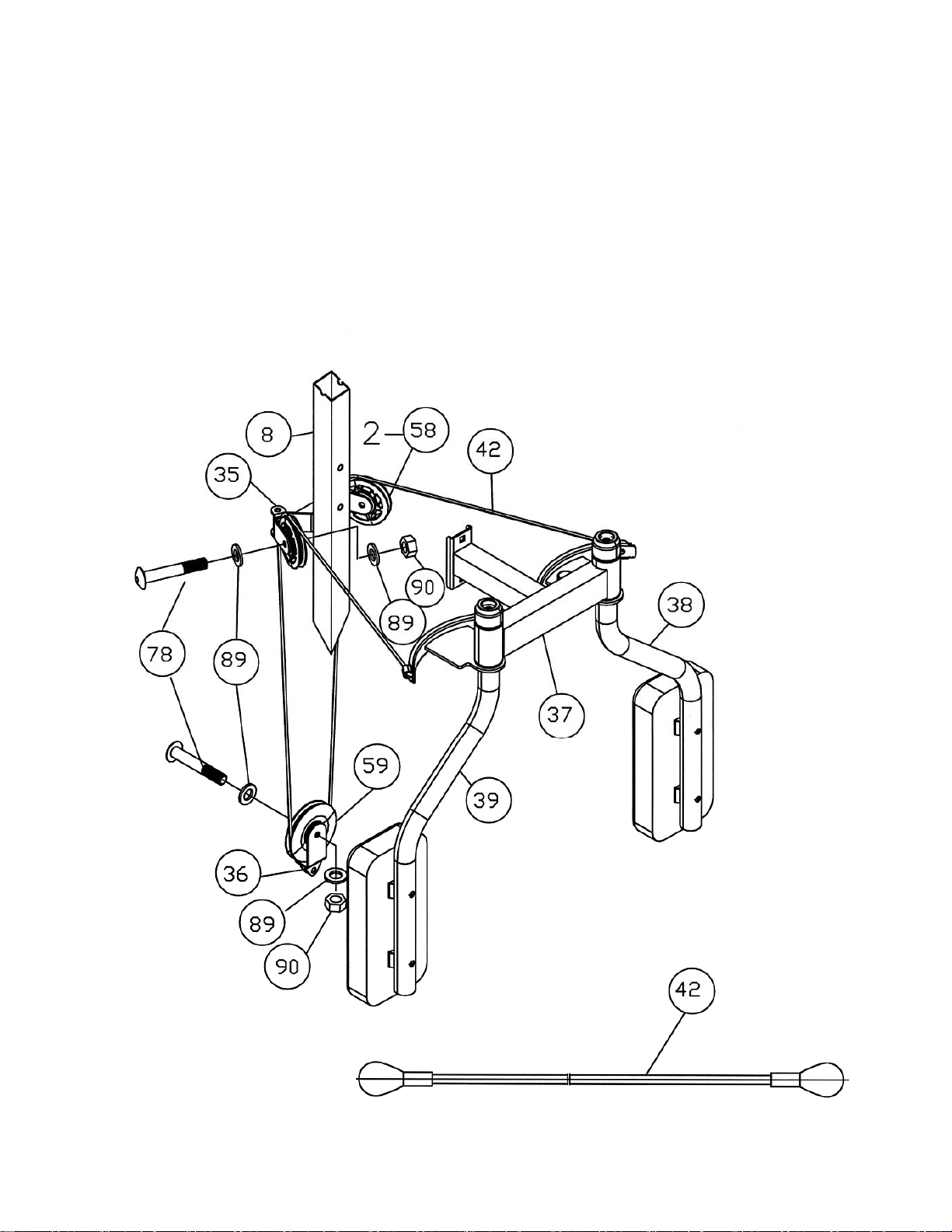

STEP 6 (See Diagram 6 & Cable Loop Diagram)

A.) Attach one end of the 86” Butterfly Cable (#42) to the clip on the Right Butterfly (#39). Draw

the Cable to the right open Swivel Pulley Bracket (#35).

B.) Attach a Small Pulley (#58) to the Swivel Pulley Bracket. Secure it with one M10 x 1 ¾” Allen

Bolt (#78), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#90).

C.) Draw the Cable around the Pulley then downward. Attach the Cable to a Single Floating

Pulley Bracket (#36). Install a Pulley (#59) to the Bracket. Secure it with one M10 x 1 ¾”

Allen Bolt (#78), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#90).
D.) Let the Bracket hanging for now.
E.) Draw the Cable upward to the left open Swivel Pulley Bracket. Repeat Procedure B above to

install another Small Pulley.
F.) Draw the Cable around the Pulley they clip the end to the Left Butterfly (#38).

DIAGRAM 6

15

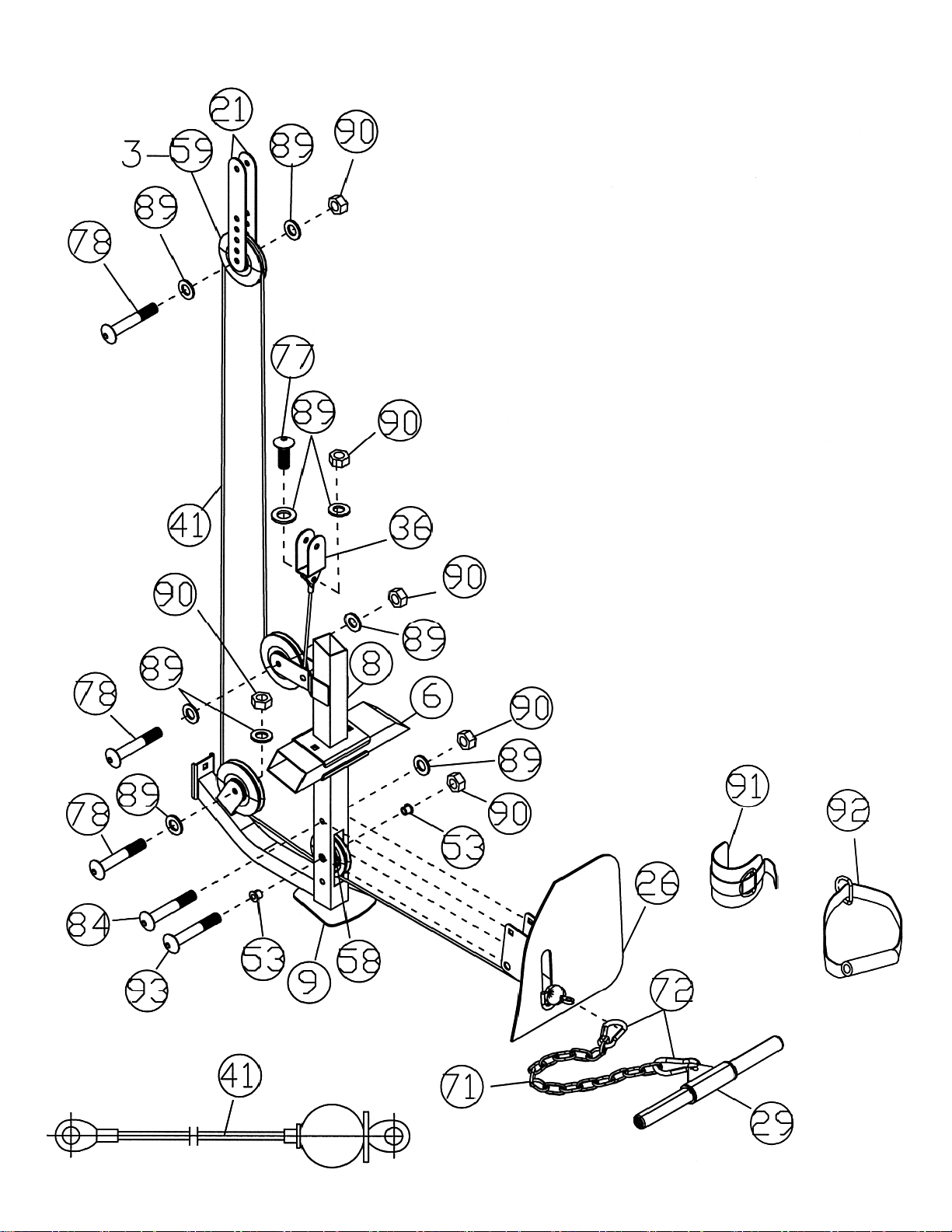

STEP 7 (See Diagram 7 & Cable Loop Diagram)

A.) Insert the tip of the 127” Lower Cable (#41) through the opening on the Foot Plate (#26)

to the opening on the Vertical Frame Base (#9).

B.) Attach a Small Pulley (#58) to the opening. Attach the Foot Plate to the Frame. Align the

holes and secure the Foot Plate, Vertical Frame Base, and the Small Pulley with one M10
x 2 ¾” Allen Bolt (#93), two Ø 1” x ¾” Pulley Bushings (#53), and one M10 Aircraft Nut
(#90). Secure the Foot Plate to the Vertical Frame Base with one M10 x 2 ½” Carriage
Bolt (#84), Ø ¾” Washer (#89), and M10 Aircraft Nut (#90).

C.) Draw the Cable underneath the Pulley to the open bracket on the Vertical Frame Base.

Install a Pulley (#59) with a M10 x 1 ¾” Allen Bolt (#78), two Ø

¾” Washers (#89) and one

M10 Aircraft Nut (#90).

D.) Draw the Cable around the Pulley then upward to the Double Floating Pulley Bracket

(#21) previously installed in Step-5. Install another Pulley with one M10 x 1 ¾” Allen Bolt
(#78), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#90). Note: After finishing the
entire cable assembly, come back to this step and adjust the tension of the cables. To
increase the tension, move up the Pulley on the Double Floating Pulley Brackets. To
decrease the tension, move the Pulley down.

E.) Draw the Cable around the Pulley then downward to the open bracket on the back of the

Rear Vertical Frame (#8). Install another Pulley.

F.) Draw the Cable around the Pulley and upward to the Single Floating Pulley Bracket (#36)

previously installed in Step-6. Secure the Cable to the Bracket with one M10 x 1” Allen
Bolt (#77), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#90).

G.) Connect the Long Chain (#71) to the Cable with a C-clip (#72). Depends on the exercise,

connect the Shiver Bar (#29), Ankle Strap (#91), or Single Handle (#92) to the Long
Chain with another C-clip.

16

DIAGRAM 7

17

STEP 8 (See Diagram 8)

A.) NOTE: Help of another person is strongly recommended for this step. Place the Lifting

Sleeve (#13) in between the two Safety Stop Frames (#16). Align the holes and insert the
Weight Bar (#15) all the way through. Center the bar and use the two M8 x 3/8” Allen Bolts
(#86) on the two Safety Stop Frame to secure the Weight Bar on each side.

B.) Turn the safety catch hook forward on the Lifting Sleeve to secure its position on the

selected holes on the Front Vertical Frames (#2). Attach a Long Olympic Sleeve (#61) to
each end of the Weight Bar. Attach a Spring Clip (#73) to the Sleeve.

C.) Attach six Weight Posts (#14) to the Left & Right Vertical Frames (#3 & 4). Secure each

Weight Post with one M10 x ¾” Allen Bolt (#76) and Ø ¾” Washer (#89).

D.) Attach six Olympic Sleeves (#60) to the Weight Posts. Attach six Spring Clips (#73) to the

sleeves. Insert the Left & Right Bar Holders (#24 & 25), the Left & Right Safety Catches
(#22 & 23) into the selected holes on the Front Vertical Frames.

18

SMITH CAGE EXPLODED DIAGRAM

19

SMITH CAGE PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Base Frame 2 51 Ø 1” x 5/8” Pulley Bushing 2
2 Front Vertical Frame 2 52 Ø 1 1/8” x 3/8” Pulley Bushing 2
3 Left Vertical Frame 1 53 Ø 1” x ¾” Pulley Bushing 2
4 Right Vertical Frame 1 54 1 ½” Sleeve 4
5 Front Top Beam 1 55 5 ¾” x 2” Rubber Bumper 2
6 Cross Brace 1 56 3 3/8” 2” Rubber Bumper 2
7 Upper Frame 1 57 6” Handle Grip 4
8 Rear Vertical Frame 1 58 Small Pulley 3
9 Vertical Frame Base 1 59 Pulley 8
10 Cover Bracket 2 60 Olympic Sleeve 8
11 Weight Glide Post 1 61 Long Olympic Sleeve 2
12 Guide Rod 2 62 Ø 1 ½” Con-shaped End Cap 2
13 Lifting Sleeve 1 63 1 ¾” End Cap 2
14 Weight Post 6 64 2” Square End Cap 1
15 Weight Bar 1 65 2” x 1 ¾” End Cap 2
16 Safety Stop Frame 2 66 1 ½” Square End Cap 1
17 Lower Safety Stop Frame 2 67 Ø 1” End Cap 10
18 Safety Hook 2 68 Ø 1 ½” x 1” Bushing 2
19 Sliding Weight Post 1 69 Ø 1 ½” Washer 1
20 Triangle Bracket 4 70 Short Chain 1
21 Double Floating Pulley Bracket 2 71 Long Chain 1
22 Left Safety Catch 1 72 Hook 4
23 Right Safety Catch 1 73 Spring Clip 10
24 Left Bar Holder 1 74 M8 x 2 1/8” Allen Bolt 4
25 Right Bar Holder 1 75 M8 x 2 3/8” Allen Bolt 2
26 Foot Plate 1 76 M10 x ¾” Allen Bolt 8
27 Lat Bar 1 77 M10 x 1” Allen Bolt 8
28 Shiver Bar Handle 1 78 M10 x 1 ¾” Allen Bolt 7
29 Shiver Bar 1 79 M10 x 2 1/8” Allen Bolt 1
30 L-shaped Cable Retainer 1 80 M10 x 2 3/8” Allen Bolt 1
31 3 1/8” x 1 ¾” Bracket 1 81 M10 x 2 ½” Allen Bolt 5
32 4 3/8” x 1 ¾” Bracket 1 82 M10 x 4 ½” Allen Bolt 1
33 6” x 2 ¾” Bracket 4 83 M10 x 2 3/8” Carriage Bolt 14
34 4 3/8” x 1 ½” Bracket 1 84 M10 x 2 ½” Carriage Bolt 8
35 Swivel Pulley Bracket 2 85 M10 x 4” Carriage Bolt 8
36 Single Floating Pulley Bracket 1 86 M8 x 3/8” Allen Bolt 2
37 Butterfly Base 1 87 ST2.9 Screw 8
38 Left Butterfly 1 88 Ø 5/8” Washer 6
39 Right Butterfly 1 89 Ø ¾” Washer 72
40 142” Upper Cable 1 90 M10 Aircraft Nut 48
41 127” Lower Cable 1 91 Ankle Strap 1
42 86” Butterfly Cable 1 92 Single Handle 1
43 Butterfly Arm Pad 2 93 M10 x 2 ¾” Allen Bolt 1
44 Decal 1
45 Backrest Board 1
46 Ø 1 1/8” x 1 1/8” Rubber Bumper 2
47 Lock Ring 2
48 Ø 2” x Ø 1 ½” Bushing 4
49 Safety Stop Frame Sleeve 4
50 Ø 1” x ½” Pulley Bushing 2

20

MULTI-PURPOSE BENCH HARDWARE PACK

21

MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTION

Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended that this machine be assembled by two or
more people to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach the Left & Right Rear Stabilizer (#2 & #3) to the Main Frame (#1) from each side.
B.) Secure them together with two M10 x 2 3/8” Carriage Bolts (#37) from bottom, one 3” x 2”

Bracket (#14), two Ø ¾” Washers (#44), and two M10 Aircraft Nuts (#47).

C.) Secure them together with two M10 x 4” Carriage Bolts (#36), two Ø ¾” Washers (#44), and

two M10 Aircraft Nuts (#47) from the side.

DIAGRAM 1

22

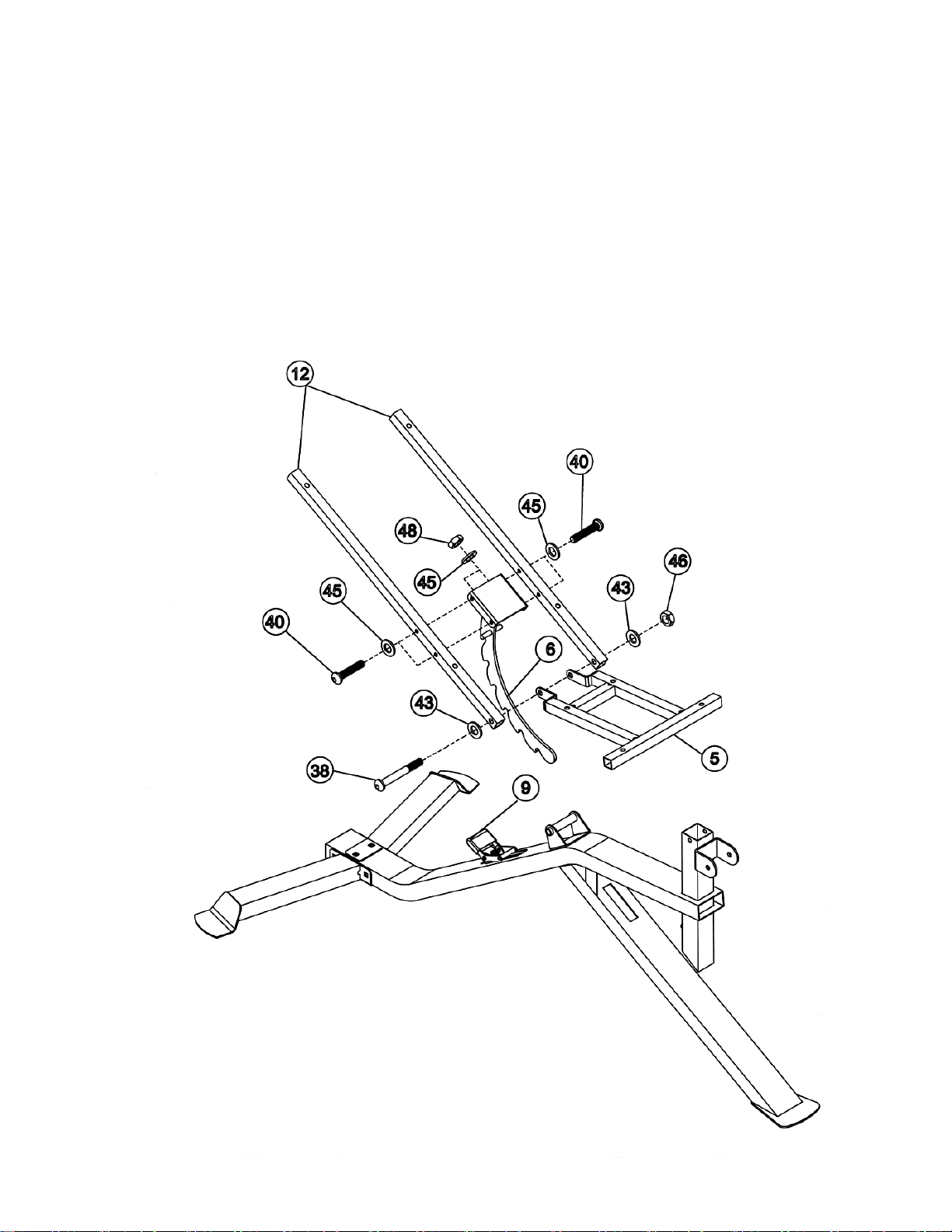

STEP 2 (See Diagram 2)

A.) Align the bracket on the Backrest Adjustment Support (#6) in between the two

Backrest Supports (#12). Secure it with four M8 x 1 5/8” Allen Bolts (#40), eight Ø 5/8”
Washers (#45), and four M8 Aircraft Nuts (#48). Do not tighten the Nuts and Bolts
yet.

B.) Insert the Backrest Adjustment Support (#6) into the opening on the Main Frame (#1).

Press or step down on the Backrest Adjustment Lever (#9) to allow the Support to go
through.

C.) Attach the Seat Bracket (#5) to the pivot on the Main Frame. Attach the bottom side-

holes on the Backrest Supports (#12) to the Seat Bracket. Align the holes. Secure
them together with one M12 x 6 ¾” Allen Bolt (#38), two Ø 1” Washers (#43), and one
M12 Aircraft Nut (#46).

D.) Securely tighten all Nuts and Bolts installed.

DIAGRAM 2

23

STEP 3 (See Diagram 3)

A.) Place the Seat Pad (#17) onto Seat Bracket (#5). Secure it with four M8 x 1 3/8” Allen Bolts

(#41) and Ø 5/8” Washers (#45).

B.) Attach the Backrest Board (#16) to the two Backrest Supports (#12). Secure it with four M8 x 1

3/8” Allen Bolts (#41) and Ø 5/8” Washers (#45).

C.) When adjusting the Backrest Board to an incline position, simply pull up the Board. When

adjusting the Board to a decline position, press or step down on the Backrest Adjustment Lever
(#9) to disengage the Lever to allow the Board to go down.

D.) Attach the Arm Curl Pad (#18) to the Arm Curl Stand (#7). Secure it with two M8 x 5/8” Allen

Bolts (#42) and two Ø 5/8” Washers (#45).

E.) Insert the Arm Curl Stand into the Leg Developer holder on the Main Frame (#1). Use the M18

Lock Knob (#27) to lock the Stand at desired position.

DIAGRAM 3

24

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#4) to the open bracket on the Leg Developer holder on Main

Frame (#1). Secure it with an Axle (#15), two M10 x 5/8” Allen Bolts (#35), and two Ø ¾”
Washers (#44).

B.) Insert two Foam Tubes (#13) halfway through the holes on the Leg Developer. Push four

Foam Rolls (#22) onto the Tubes from both sides. Plug four Foam Roll End Caps (#28) into
the ends of the Tubes.

C.) Attach an Olympic Sleeve (#26) onto the weight post on the Leg Developer. Attach a Spring

Clip (#20) to the Olympic Sleeve.

D.) Attach the Curl Bar Handle Support (#8) to the Leg Developer. Secure it with a Lock Pin

(#11).

E.) Remove the Curl Bar Handle Support when doing Leg Developer exercises.

DIAGRAM 4

25

26

MULTI-PURPOSE BENCH PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Frame 1 2 Left Rear Stabilizer 1 3 Right Rear Stabilizer 1 4 Leg Developer 1 5 Seat Bracket 1 6 Backrest Adjustment Support 1 7 Arm Curl Stand 1 8 Curl Bar Handle Support 1 9 Backrest Adjustment Lever 1 10 ¾” Curl Bar Support End Cap 1 11 Lock Pin 1 12 Backrest Support 2 13 Foam Tube 2 14 3” x 2” Bracket 1 15 Axle 1 16 Backrest Board 1 17 Seat 18 Arm Curl Pad 1 19 2” x 1 ¾” Sleeve 1 20 Spring Clip 1 21 Spring 1 22 Foam Roll 4 23 Ø 2” End Cap 2 24 Ø 1 ¼” x 1 3/8” End Cap 1 25 Ø 1” x 3/8” Bushing 2 26 Olympic Sleeve 1 27 M18 Lock Knob 1 28 Foam Roll End Cap 4 29 Ø 1” End Cap 1 30 1” Square End Cap 4 31 Ø 2” Leg Developer Bushing 2 32 3 1/8” x 1 5/8” End Cap 2 33 Lever Cover 1 34 6” Grip 2 35 M10 x 5/8” Allen Bolt 2 36 M10 x 4” Carriage Bolt 2 37 M10 x 2 3/8” Carriage Bolt 2 38 M12 x 6 ¾” Allen Bolt 1 39 M10 x 2 ½” Allen Bolt 1 40 M8 x 1 5/8” Allen Bolt 4 41 M8 x 1 3/8” Allen Bolt 8 42 M8 x 5/8” Allen Bolt 2 43 Ø 1” Washer 2 44 Ø ¾” Washer 8 45 Ø 5/8” Washer 18 46 M12 Aircraft Nut 1 47 M10 Aircraft Nut 5 48 M8 Aircraft Nut 4 #6 Allen Wrench (Tool) 1 #5 Allen Wrench (Tool) 1 #4 Allen Wrench (Tool) 1

Pad 1

27

IMPEX® INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under normal
use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty
extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or
repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs. No other warranty beyond that
specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or other damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential
damages or whatsoever natures. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state to state.

Register on-line at www.impex-fitness.com

IMPEX

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[email protected]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

28

®

INC.
