TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICES...................................................................……….. 2

HARDWARE PACK……….....….....................................................................……….. 4

ASSEMBLY INSTRUCTIONS.........................................................................……….. 7

EXPLODED DIAGRAM……………………………………………………………………… 18
PARTS LIST………………………………………………………………………………….. 19

RESISTANCE CHART………….......................................................................………. 20

WARRANTY.................................................................................................…………. 21

ORDERING PARTS.......................................................................................………… 21

BEFORE YOU BEGIN

Thank you for selecting the MARCY MWM-1509 HOME GYM by IMPEX®
INC. For your safety and benefit, read this manual carefully before using
the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer
Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
and all posted warning labels before you assemble or operate your machine. In
particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands and feet away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

13. Do not intend to insert weight selector pin while the weight stack or top plate
is in elevated position.

14. Be certain the weight Selector Pin is completely inserted.

15. Never use dumbbells or other means to increase the weight resistance. Use only weight
plates provided by manufacturer.

16. This machine is designed and intended for home and consumer use only.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ
ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL REPLACEMENT

The warning labels shown here have been placed on the Rear Base and Upper Frame. If the labels are
missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in
the location shown.

3

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

4

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

5

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

6

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches, two Allen
Wrenches, and one Philips Screwdriver. NOTE: It is strongly recommended this
machine be assembled by two or more people to avoid possible injury.

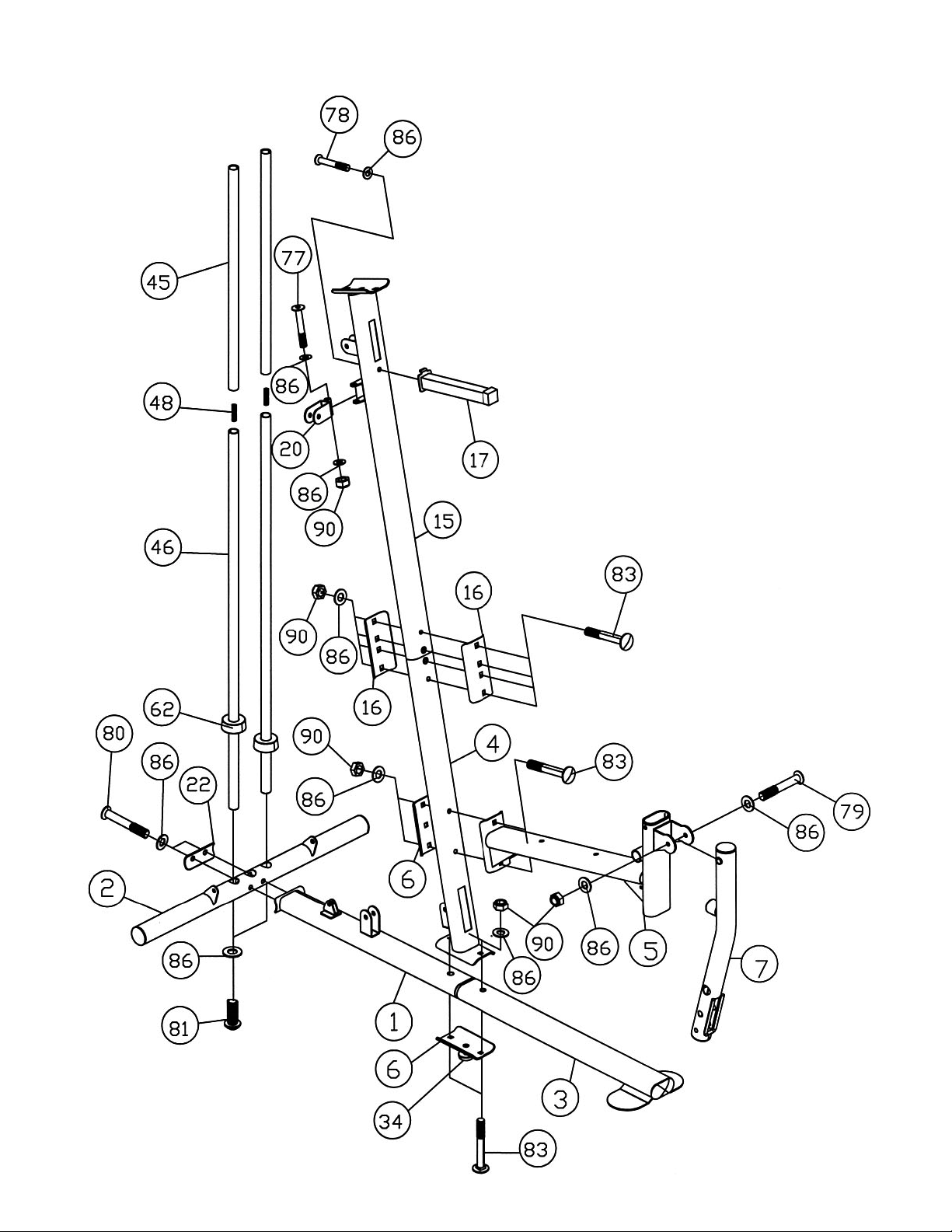

STEP 1 (See Diagram 1)

A.) Connect two Lower Guide Rods (#46) and two Upper Guide Rods (#45) with two M10

Stud Bolts (#48). Firmly thread the Rods together.

B.) Insert the two Lower Guide Rods (#46) into the holes on the Rear Base Frame (#2).

Secure them with two M10 x 1” Allen Bolts (#81) and Ø ¾” Washers (#86) from the
bottom. Slide two Ø 2 ½” x 1” Rubber Bumpers (#62) onto the Guide Rods.

C.) Attach the Main Base Frame (#1) to the Rear Base Frame (#2). Secure it with two M10

x 2 ¾” Allen Bolts (#80), two Ø ¾” Washers (#86), and one 4” Curved Bracket (#22).

D.) Make sure the two triangular brackets on the Rear Base Frame are facing toward the

front.
E.) NOTE: Do not tighten all the Nuts and Bolts until instructed to do so.
F.) Attach the Front Base Frame (#3) to the Main Base Frame.
G.) Attach the Lower Vertical Frame (#4) onto the Main Base Frame and Front Base

Frame. Secure them together with two M10 x 2 3/8” Carriage Bolts (#83), one 5 ½”

Curved Bracket (#6), two Ø ¾” Washers (#86), and two M10 Aircraft Nuts (#90).
H.) Attach the Seat Support (#5) to the Lower Vertical Frame (#4). Secure it with two M10

x 2 3/8” Carriage Bolts (#83), one 5 ½” Curved Bracket (#6), two Ø ¾” Washers (#86),

and two M10 Aircraft Nuts (#90).
I.) Attach the Leg Developer (#7) to the Seat Support. Secure it with one M10 x 3 1/8”

Allen Bolt (#79), two Ø ¾” Washers (#86), and one M10 Aircraft Nut (#90). Do not over

tighten the Nut and Bolt. Make sure the Leg Developer is able to swivel.
J.) Attach the Upper Vertical Frame (#15) to the Lower Vertical Frame (#4). Secure them

with four M10 x 2 3/8” Carriage Bolts (#83), two 5 ½” 4-Holes Brackets (#16), four Ø ¾”

Washers (#86), and four M10 Aircraft Nuts (#90).
K.) Attach the Stopper Frame (#17) to the Upper Vertical Frame. Secure it with one M10 x

2 3/8” Allen Bolt (#78) and Ø ¾” Washer (#86).

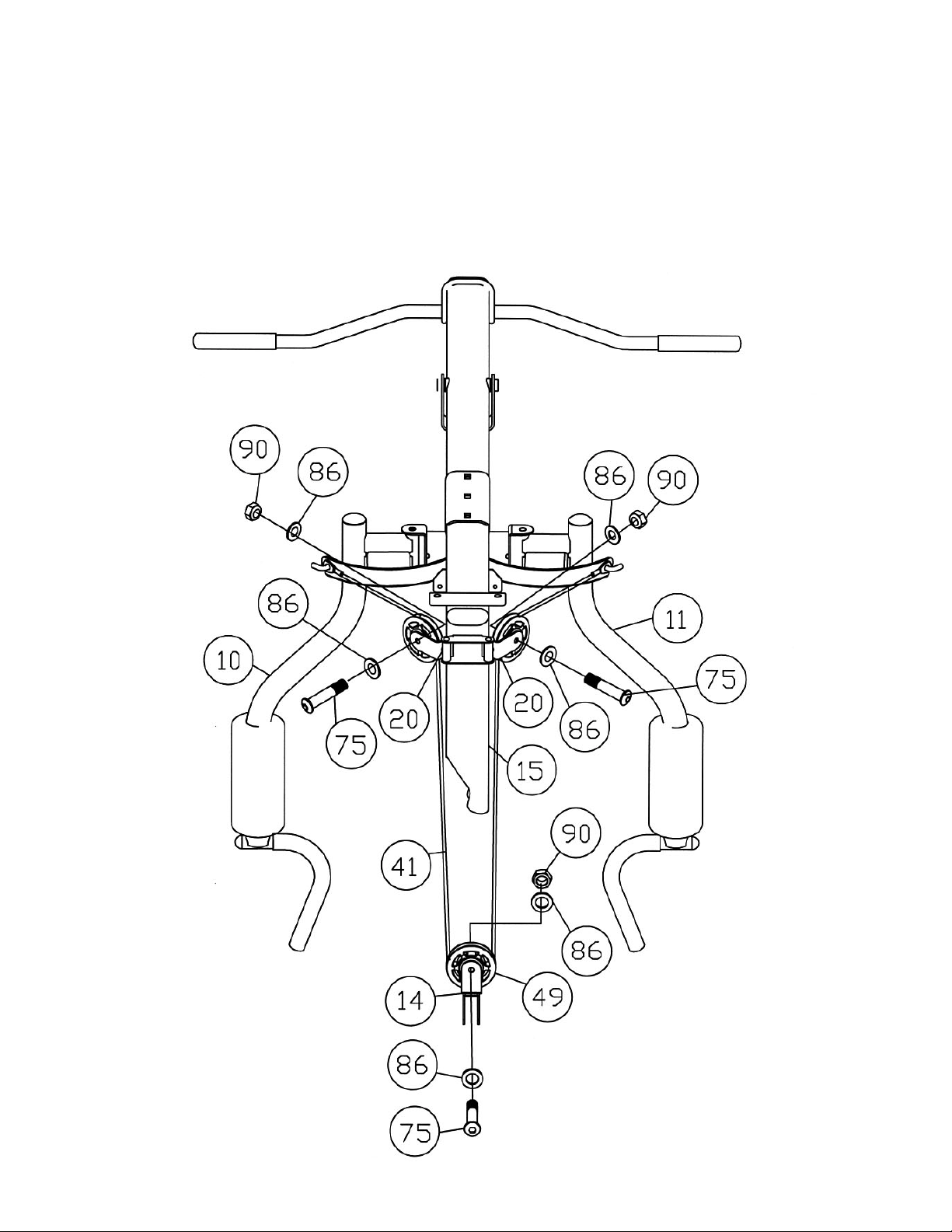

L.) Attach a Swivel Pulley Bracket (#20) to the bracket behind the Upper Vertical Frame

(#15). Secure it with one M10 x 2 ½” Allen Bolt (#77), two Ø ¾” Washers (#86), and

one M10 Aircraft Nut (#90). Repeat to install the other side. Do not over tighten the

nuts and bolts. Make sure the Brackets are able to swivel.

7

DIAGRAM 1

8

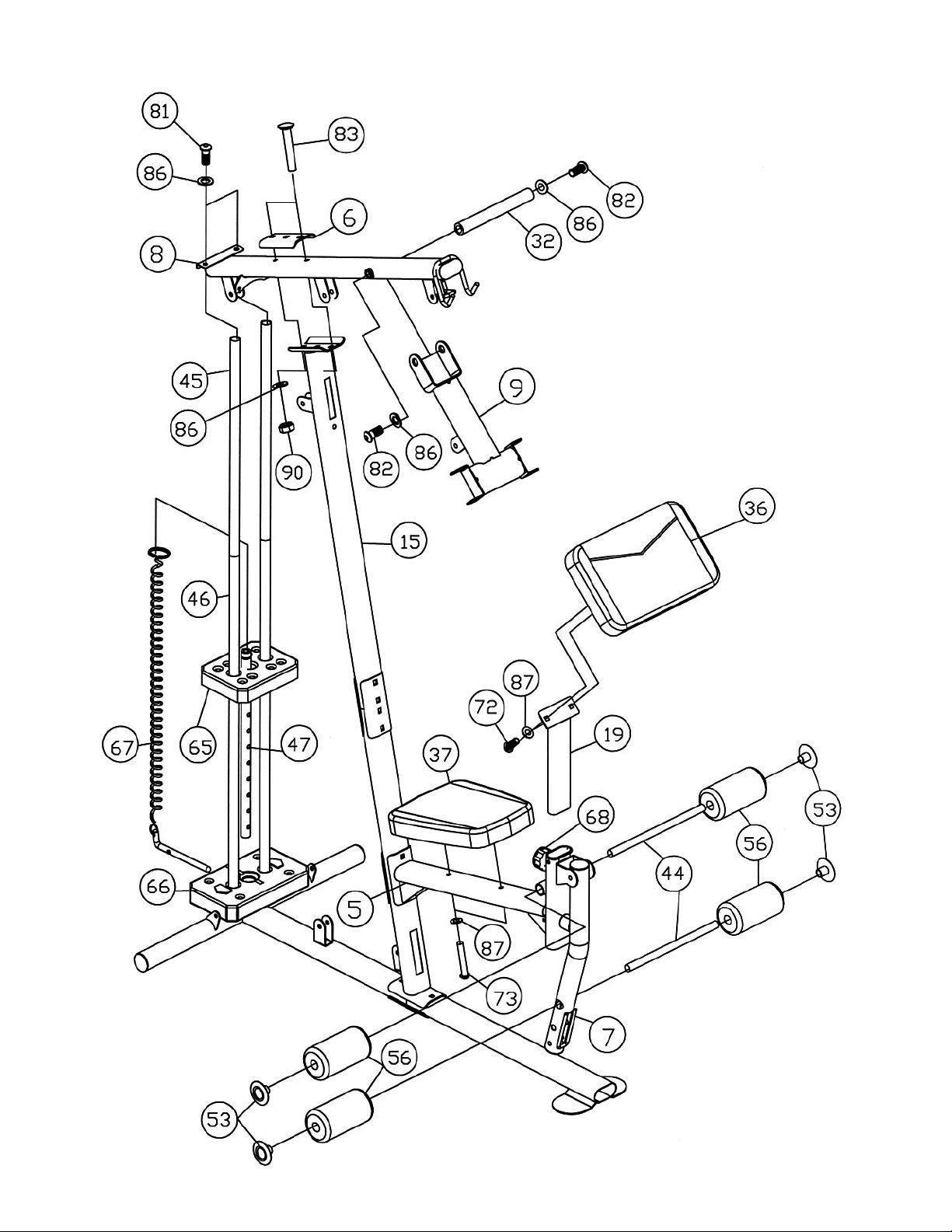

STEP 2 (See Diagram 2)

A.) Slide 9 Weight Plates (#66) onto the Guide Rods. Make sure the grooves on the

Weight Plates are all facing the back of the machine and downward. Insert the

Selector Rod (#47) through the center hole on the Weight Plates.
B.) Slide the Selector Stem (#65) onto the Guide Rods.
C.) Slide the Ring on the Selector Pin (#67) onto the Selector Rod. Insert the Selector

Pin into the selected groove to choose the number of weight plates for exercise.

Note: Each weight plate weights approximately 10 lbs.
D.) Attach the Upper Frame (#8) onto the two Guide Rods. Secure the two Guide

Rods to the Upper Frame with two M10 x 1” Allen Bolts (#81) and Ø ¾” Washers

(#86).
E.) Place the Upper Frame onto the Upper Vertical Frame (#15). Secure it with two

M10 x 2 3/8” Carriage Bolts (#83), one 5 ½ Curved Bracket (#6), two Ø ¾”

Washers (#86), and two M10 Aircraft Nuts (#90).
F.) Securely tighten all Nuts and Bolts previously installed.
G.) Attach the Front Press Base (#9) to the Upper Frame. Align the holes and insert

an Axle (#32) through the holes. Secure each end of the Axle with one M10 x 5/8”

Allen Bolt (#82) and one Ø ¾” Washer (#86).
H.) Place the Seat Pad (#37) onto the Seat Support (#5). Secure it with two M8 x 2

1/8” Allen Bolts (#73) and two Ø 5/8” Washers (#87).
I.) Attach the Arm Curl Pad (#36) to the Arm Curl Stand (#19). Secure it with two M8

x 5/8” Allen Bolts (#72) and Ø 5/8” Washers (#87). Insert the Arm Curl Stand into

the opening on the Seat Support Frame. Use a Lock Knob (#68) to lock the Arm

Curl Stand at desired height.
J.) Insert two Foam Tubes (#44) halfway through the holes on the Leg Developer

and Seat Support. Push four Foam Rolls (#56) onto the Tubes. Plug four Foam

Roll End Caps (#53) into the ends.

9

DIAGRAM 2

10

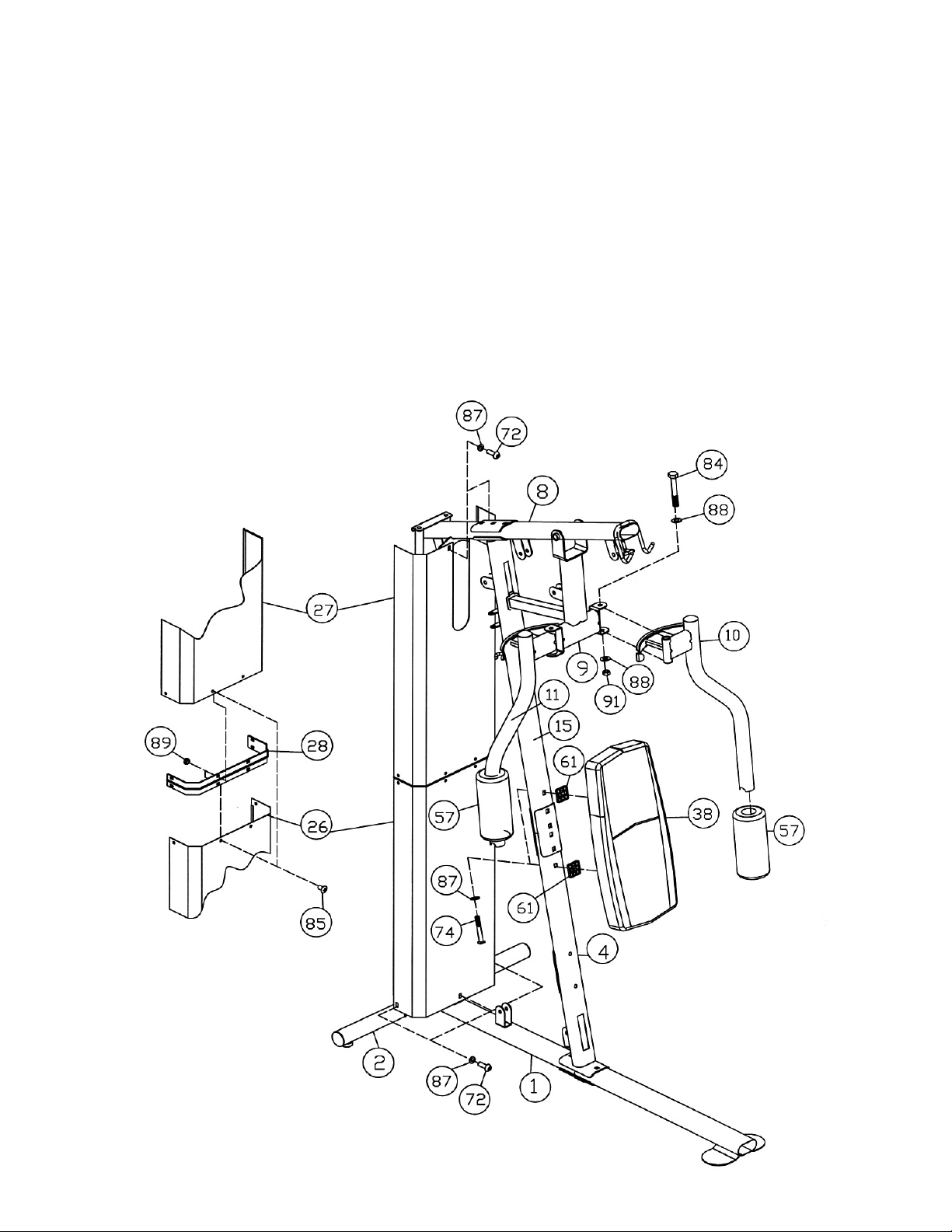

STEP 3 (See Diagram 3)

A.) Attach the Lef t Butterf ly (#10) to the open bracket on the Front Press Base (#9). Secure it

with one M12 x 4” Hex Bolt (#84), two Ø 1” Washers (#88), and one M12 Aircraft Nut (#91).
B.) Slide a Butterfly Foam Roll (#57) onto the Left Butterfly arm.
C.) Repeat Steps A&B above to install the Right Butterfly (#11).
D.) Attach two 1 ¾” Spacers (#61) to the Lower & Upper Vertical Frames (#4 & #15). Attach the

Backrest Board (#38) to the Spacers. Secure it with two M8 x 2 ½” Allen Bolts (#74) and Ø

5/8” Washers (#87).
E.) Attach the Lower Weight Stack Cover (#26) to the Main Base Frame (#1) and Rear Base

Frame (#2). Secure it with three M8 x 5/8” Allen Bolts (#72) and Ø 5/8” Washers (#87).
F.) Attach the Cover Connecter (#28) to the Lower Weight Stack Cover. Secure it with four M6 x

3/8” Philips Screws (#85) and M6 Regular Nuts (#89).
G.) Attach the Upper W eight Stack Cover (#27) to the Upper Frame (#8). Secure it with two M8 x

5/8” Allen Bolts (#72) and Ø 5/8” Washers (#87).
H.) Secure the Upper Weight Stack Cover to the Cover Connecter with four M6x 3/8” Philips

Screws (#85) and M6 Regular Nuts (#89).

11

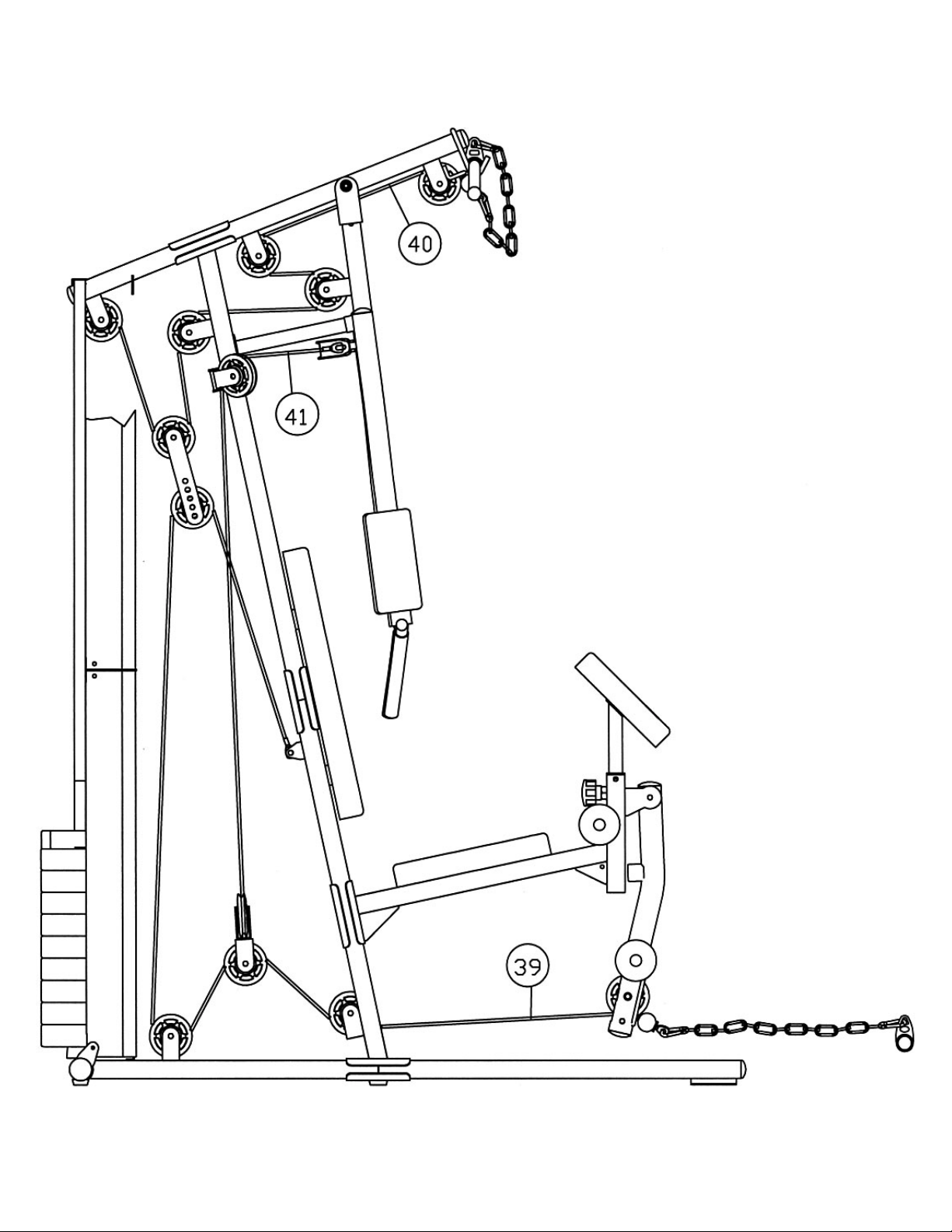

CABLE LOOP DIAGRAM

12

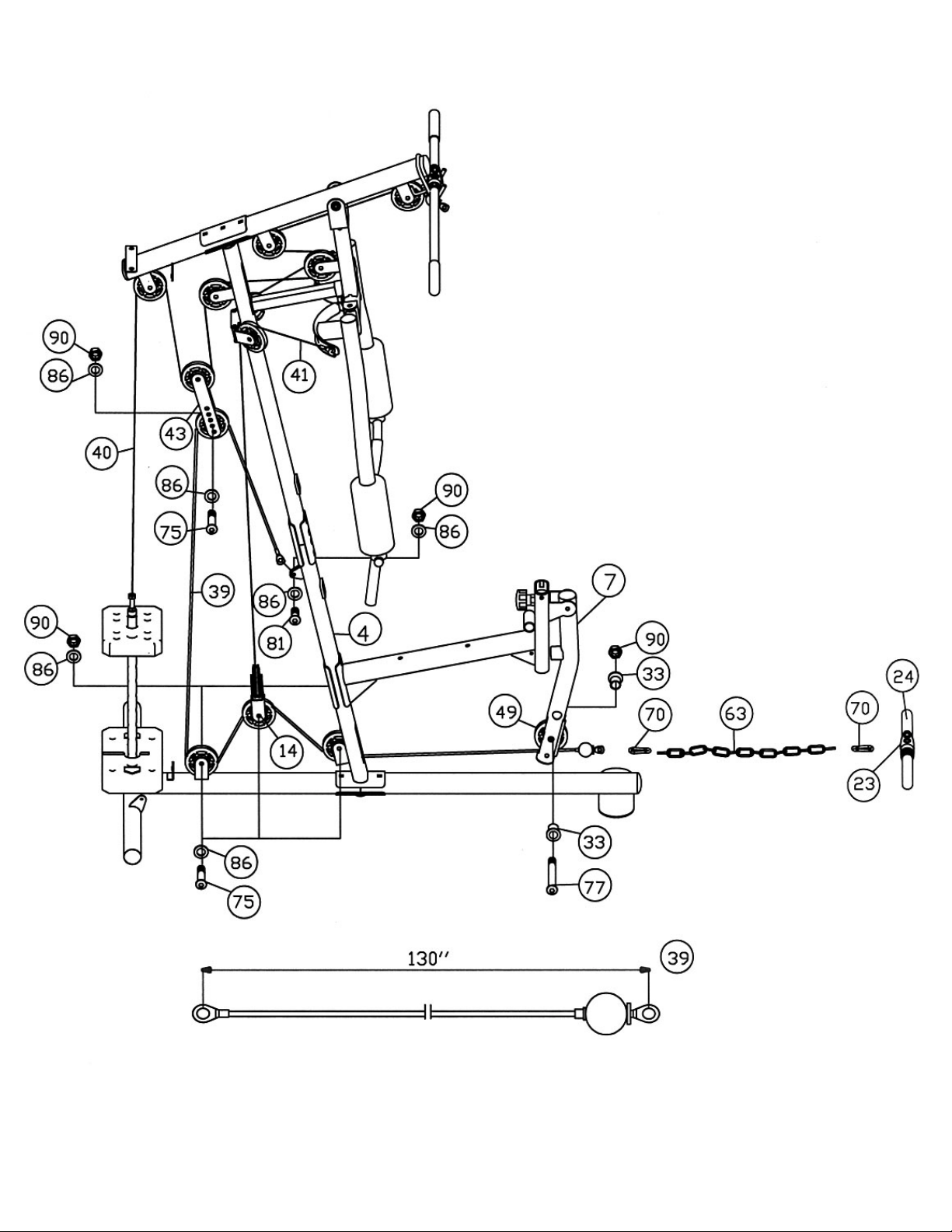

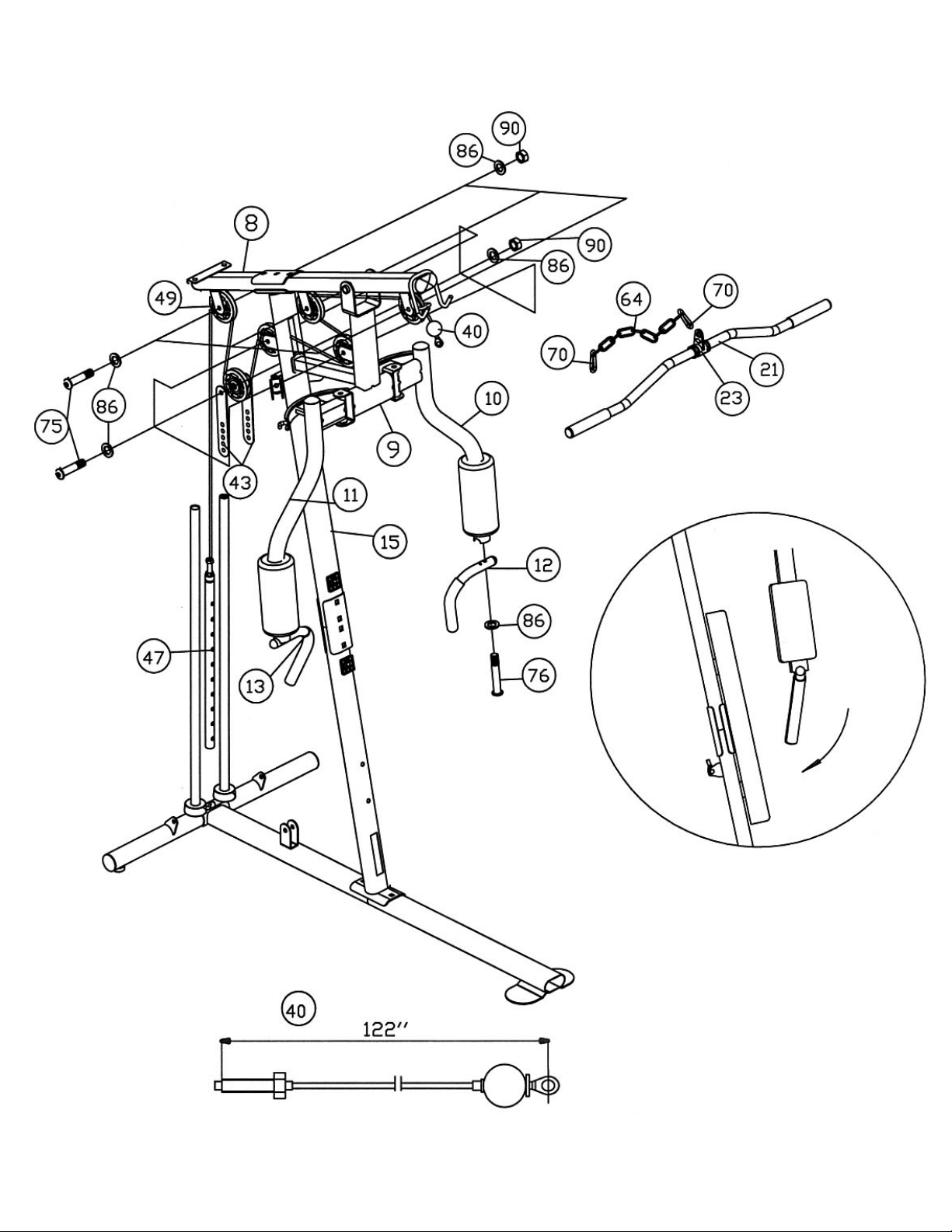

STEP 4 (See Diagram 4 & Cable Loop Diagram)

A.) Attach the 122” Upper Cable (#40) to the open bracket underneath the front of

Upper Frame (#8).

B.) Attach a Pulley (#49) to the open bracket. Secure it with one M10 x 1 ¾” Allen

Bolt (#75), two Ø ¾” Washers (#86), and one M10 Aircraft Nut (#90). Note: The
Ball Stopper on the Cable should be underneath the Frame and Pulley.

C.) Draw the Cable towards the back of the machine to the open bracket under the

Upper Frame. Repeat Procedure B above to install another Pulley.

D.) Draw the Cable around the Pulley then pull back to the open bracket on the back

of Front Press Base (#9).
E.) Repeat Procedure B above to install another Pulley.
F.) Draw the Cable around the Pulley then to the open bracket on the back of the

Upper Vertical Frame (#15). Repeat Procedure B above to install another Pulley.
G.) Draw the Cable around the Pulley then downward. Attach the Cable to two

Double Floating Pulley Brackets (#43). Install another Pulley. Let the bracket

hanging for now.
H.) Pull the Cable around the Pulley then upward to the open bracket underneath

the Upper Frame between the two Guide Rods. Install a Pulley to the bracket.
I.) Pull the Cable downward between the two Guide Rods to the Selector Rod

(#47). Fully thread the bolt at the end of the Cable into the top opening on the

Selector Rod.
J.) Connect the Lat Bar (#21) to a Short Chain (#64) with a C-clip (#70). Then

connect the Short Chain to the Upper Cable with another C-clip.
K.) Attach the Left Front Press Handle (#12) to the Left Butterfly (#10). Secure it with

one M10 x 2 1/8” Allen Bolt (#76) and Ø ¾” Washer (#86). Repeat the same

procedure to install the other side. Make sure the Handles are pointing toward

the back of the machine.

13

DIAGRAM 4

14

STEP 5 (See Diagram 5 & Cable Loop Diagram)

A.) Attach one end of the 119” Butterfly Cable (#41) to the hook on the Right Butterfly (#11).
B.) Draw the Cable to the right open bracket on the back of Upper Vertical Frame (#15).
C.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#75), two Ø ¾”

Washers (#86), and one M10 Aircraft Nut (#90).

D.) Draw the Cable over the Pulley then downward. Attach the Cable to a Crossed Double

Floating Pulley Bracket (#14). Install a Pulley. Let the Bracket hanging for now.

E.) Pull the Cable around the Pulley then upward to the left open bracket on the back of Upper

Vertical Frame. Install a Pulley.

F.) Draw the Cable to the Left Butterfly (#10). Attach the end to the hook on the Left Butterfly.

15

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach the 130” Lower Cable (#39) to the opening on the bottom of the Leg

Developer (#7).

B.) Attach a Pulley (#49) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#77),

two Pulley Bushings (#33), and one M10 Aircraft Nut (#90).

C.) Draw the Cable underneath the Pulley through the opening on the Lower Vertical

Frame (#4) to the open bracket on the back.

D.) Attach a Pulley to the open bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#75),

two Ø ¾” Washers (#86), and one M10 Aircraft Nut (#90).

E.) Pull the Cable upward to the Crossed Double Floating Pulley Bracket (#14)

previously installed in Step-5. Install another Pulley.

F.) Draw the Cable over the Pulley then downward to the open bracket on the Main Base

Frame. Install a Pulley.

G.) Pull the Cable around the Pulley then upward to the Double Floating Pulley Brackets

(#43) previously installed in Step-4. Install a Pulley.

H.) Draw the Cable around the Pulley then pull downward to the triangle bracket on the

back of the Lower Vertical Frame (#4). Secure the Cable to the bracket with one M10
x 1” Allen Bolt (#81), two Ø ¾” Washers (#86), and one M10 Aircraft Nut (#90).

I.) Adjust the tension of the Cable by adjusting the Pulley position on the Double

Floating Pulley Bracket (#43). If the cables are too loose, move up the Pulley. If the
cables are too tight, move down the Pulley.

J.) For best performance of the machine, adjust the Cables so the Selector Stem (Top

Plate) on the weight stack is ¼” above the first plate. While pinning the weight stack,
push down on the Selector Stem to close up the gap then pin the plates. This will
remove the slag in the cable system so the range of motion is smooth and tight.

K.) Connect the Shiver Bar (#24) to a Long Chain (#63) with a C-clip (#70). Connect the

Long Chain to the Lower Cable with another C-clip.

16

DIAGRAM 6

17

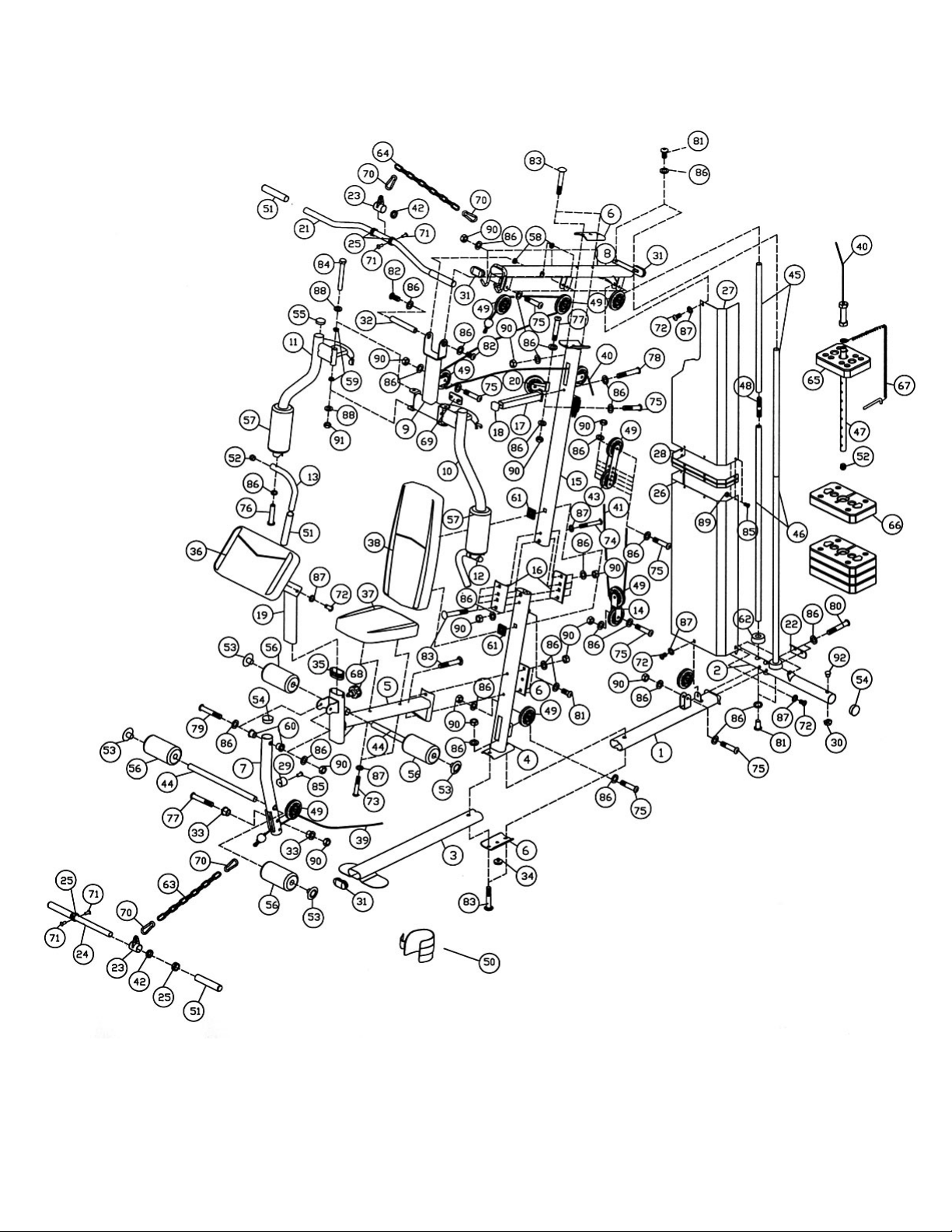

EXPLDOED DIAGRAM

18

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Base Frame 1
2 Rear Base Frame 1
3 Front Base Frame 1
4 Lower Vertical Frame 1
5 Seat Support 1
6 5 ½” Curved Bracket 3
7 Leg Developer 1
8 Upper Frame 1
9 Front Press Base 1
10 Left Butterfly 1
11 Right Butterfly 1
12 Left Front Press Handle 1
13 Right Front Press Handle 1
14 Crossed Double Floating Pulley Bracket 1
15 Upper Vertical Frame 1
16 5 ½” 4-Holes Bracket 2
17 Stopper Frame 1
18 1 1/8” Stopper Frame End Cap 1
19 Arm Curl Stand 1
20 Swivel Pulley Bracket 2
21 Lat Bar 1
22 4” Curved Bracket 1
23 Bar Handle 2
24 Shiver Bar 1
25 Plastic Ring 4
26 Lower Weight Stack Cover 1
27 Upper Weight Stack Cover 1
28 Cover Connecter 1
29 Ø 1 ½” Leg Developer Rubber Bumper 1
30 Ø 1 3/8” x ¾” Floor Spacer 3
31 3 1/8” End Cap 3
32 Axle 1
33 Pulley Bushing 2
34 Ø 1 5/8” x 7/8” Floor Spacer 1
35 3 1/8” Sleeve 1
36 Arm Curl Pad 1
37 Seat Pad 1
38 Backrest Board 1
39 130” Lower Cable 1
40 122” Upper Cable 1
41 119” Butterfly Cable 1
42 Handle Bushing 4
43 Double Floating Pulley Bracket 2
44 Foam Tube 2
45 Upper Guide Rod 2
46 Lower Guide Rod 2
47 Selector Rod 1
48 M10 Stud Bolt 2
49 Pulley 14
50 Ankle Strap 1

51 Handle Grip 6
52 Ø 1” Con-shaped End Cap 3
53 Foam Roll End Cap 4
54 Ø 2” End Cap 4
55 Ø 1 ¾” End Cap 2
56 Foam Roll 4
57 Butterfly Foam Roll 2
58 Ø 1” x Ø 5/8” Bushing 2
59 Ø 1” x Ø ½” Bushing 4
60 Ø ¾” x Ø ½” Bushing 2
61 1 ¾” Spacer 2
62 Ø 2 ½” x 1” Rubber Bumper 2
63 Long Chain 1
64 Short Chain 1
65 Selector Stem 1
66 Weight Plate 9
67 Selector Pin 1
68 Lock Knob 1
69 1 ½” x 3” Rubber Bumper 1
70 C-clip 4
71 Rivet 8
72 M8 x 5/8” Allen Bolt 7
73 M8 x 2 1/8” Allen Bolt 2
74 M8 x 2 ½” Allen Bolt 2
75 M10 x 1 ¾” Allen Bolt 13
76 M10 x 2 1/8” Allen Bolt 2
77 M10 x 2 ½” Allen Bolt 3
78 M10 x 2 3/8” Allen Bolt 1
79 M10 x 3 1/8” Allen Bolt 1
80 M10 x 2 ¾” Allen Bolt 2
81 M10 x 1” Allen Bolt 5
82 M10 x 5/8” Allen Bolt 2
83 M10 x 2 3/8” Carriage Bolt 10
84 M12 x 4” Hex Bolt 2
85 M6 x 3/8” Philips Screw 9
86 Ø ¾” Washer 55
87 Ø 5/8” Washer 11
88 Ø 1” Washer 4
89 M6 Regular Nut 8
90 M10 Aircraft Nut 28
91 M12 Aircraft Nut 2
92 Ø 5/8” End Cap 1
#5 Allen Wrench (Tool) 1
#6 Allen Wrench (Tool) 1

19

WM-1509 WEIGHT RESISTANCE CHART

Station 1 2 3 4 5 6 7 8 9

Front Press 30 42 54 66 78 90 102 114 126

Butterfly 15 20 25 30 35 40 45 50 55

Lat Pull 30 40 50 60 70 80 90 100 110

Low Pulley 30 40 50 60 70 80 90 100 110

WEIGHT PLATE

Leg Developer 30 40 50 60 70 80 90 100 110

* Each plate weights approximately 10 lbs.

*Numbers are approximate. Actu al weight may vary.
*Value for butterfly is for each arm.

20

IMPEX® INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free f rom defects in workmanship and m aterial, under
normal use and service conditions , f or a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to
replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused by
or attributable to freight damage, abuse, m isus e, improper or abnorm al usage or repairs not provided by an
IMPEX authorized service center or for pr oducts us ed f or commercial or rental purposes. No other warr anty
beyond that specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or prof its , los s of enj oyments or us e, cos ts of r emoval, installation or other
consequential damages or whatsoever natures. Som e states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a par ticular purpose is limited in its s cope and duration to the terms set f orth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state to state.

Register on-line a t www.impe x-fitne ss.co m

IMPEX

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS

Replacement parts can be order ed by calling our Customer Servic e Department toll- free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[email protected]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

21

®

INC.
