Page 1
NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts

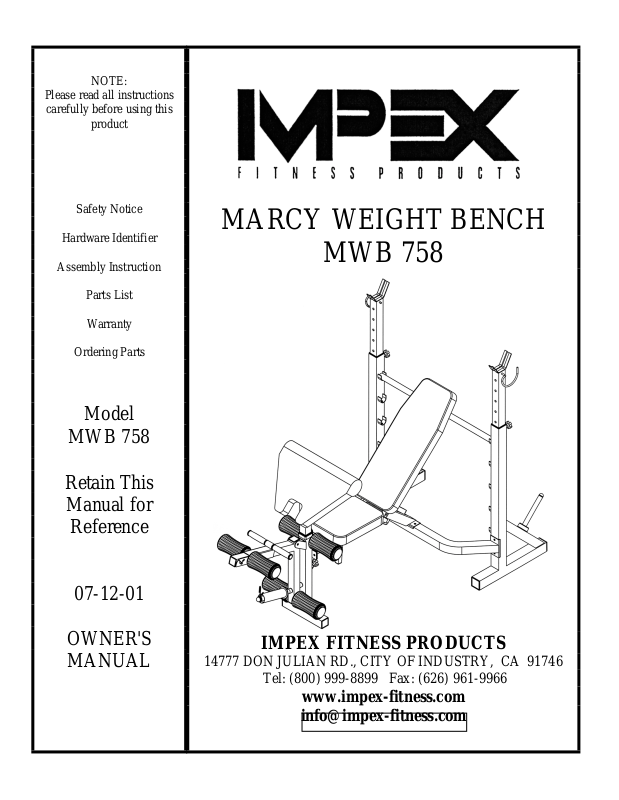

MARCY WEIGHT BENCH
MWB 758
Model
MWB 758
Retain This
Manual for
Reference
07-12-01
OWNER'S
MANUAL
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
Page 2
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
HARDWARE IDENTIFIER.....…....................................................................... 3
ASSEMBLY INSTRUCTIONS........................................................................... 4

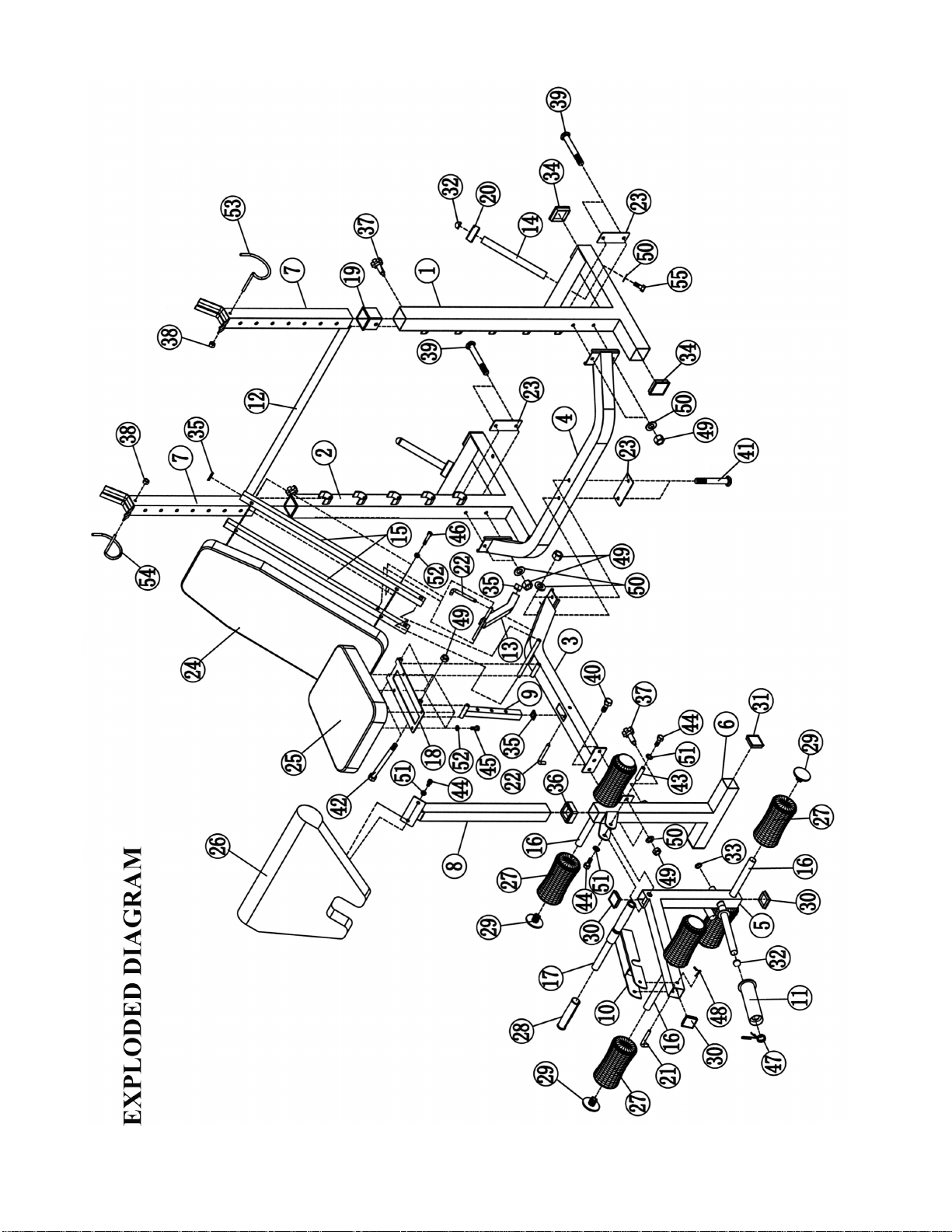

EXPLODED DIAGRAM……………………………………………………………... 8
PARTS LIST……………………………………………………………………….. 9
WARRANTY.................................................................................................… 10
ORDERING PARTS......................................................................................... 10
BEFORE YOU BEGIN
Thank you for selecting the MARCY 758 Bench by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays,
our TOLL-FREE customer service number.
will provide immediate assistance to you.
Our Customer Service Agents
please call
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
1
Page 3
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
Keep children and pets away from the machine at all times. DO NOT
1.
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2
Page 4
3
Page 5
ASSEMBLY INSTRUCTION
Tools Required to Assemble the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended this machine to be assembled by two or
more people to avoid possible injury.

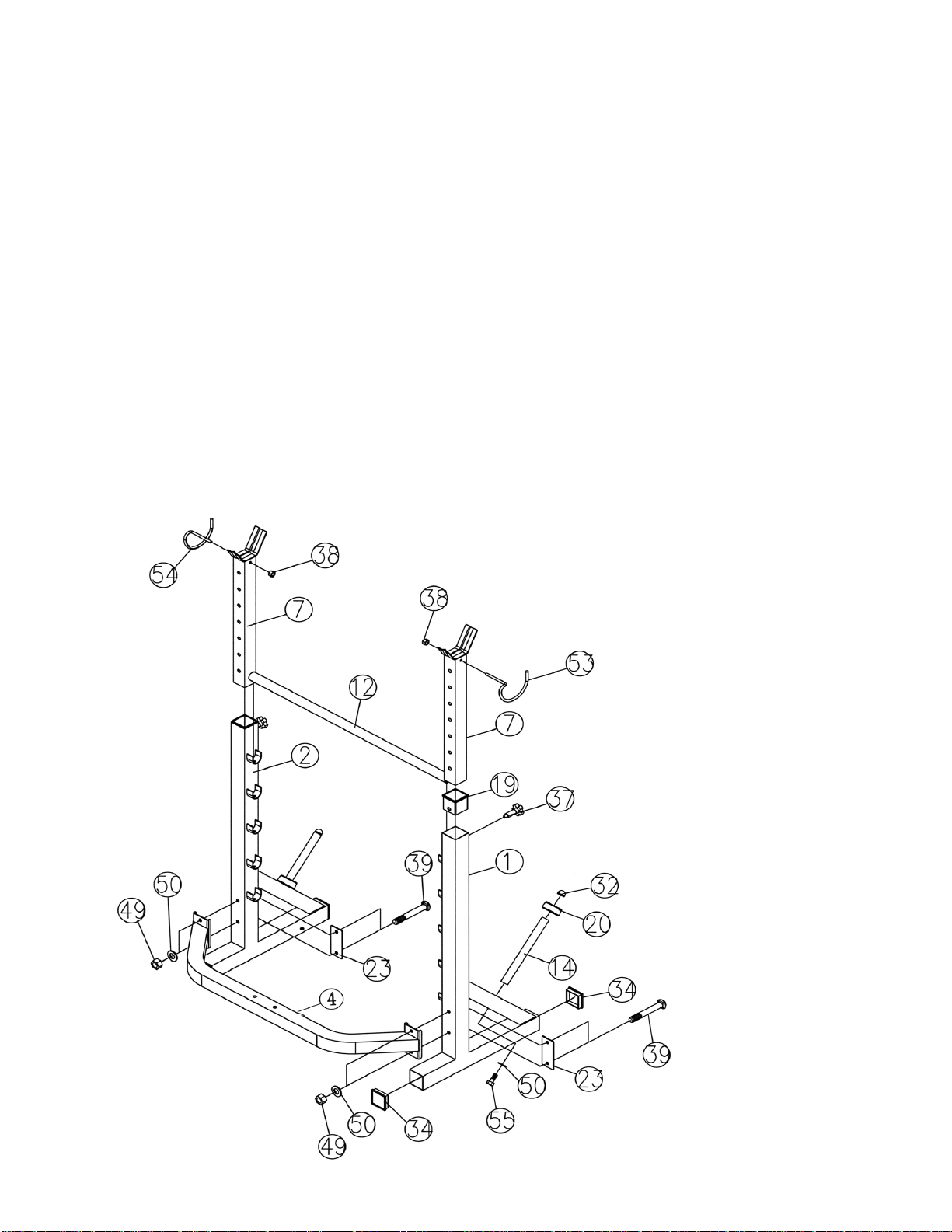

STEP 1 (See Diagram 1)
A.) Connect the Lef t and Right Upright Beams (#1) & (#2) by a Cross Brace (#4) in the mid-
span. Align the holes and secure them with one Bracket (#23), two M10 x 3 1/8” Carriage
Bolts (#39), two ∅ ¾” Washers (#50), and M10 Aircraft Nuts (#49) on each end of the
Cross Brace.
B.) Place Backrest Adjustment Bar (#12) between the two Upright Beams on the selected bar
holder to obtain desired incline of Backrest.
C.) Insert two Crutches (#7) into the top openings on the Upright Beams. Secure them with
two Lock Knobs (#37) through selected holes to obtain desired height of the Supports.
D.) Insert the Left and Right Safety Hooks (#53) & (#54) into the holes on the Crutches (#7).
Secure them with two M8 Aircraft Nuts (#38).
E.) Attach a Weight Plate Holder (#14) onto the back of the Left Upright Beam (#1). Secure it
with a M10 x 1” Allen Bolt (#55) and ∅3/4” Washer (#50). Push a Rubber Bumper (#20)
onto the Holder (#14). Repeat the step to install the other side.
DIAGRAM 1
4
Page 6

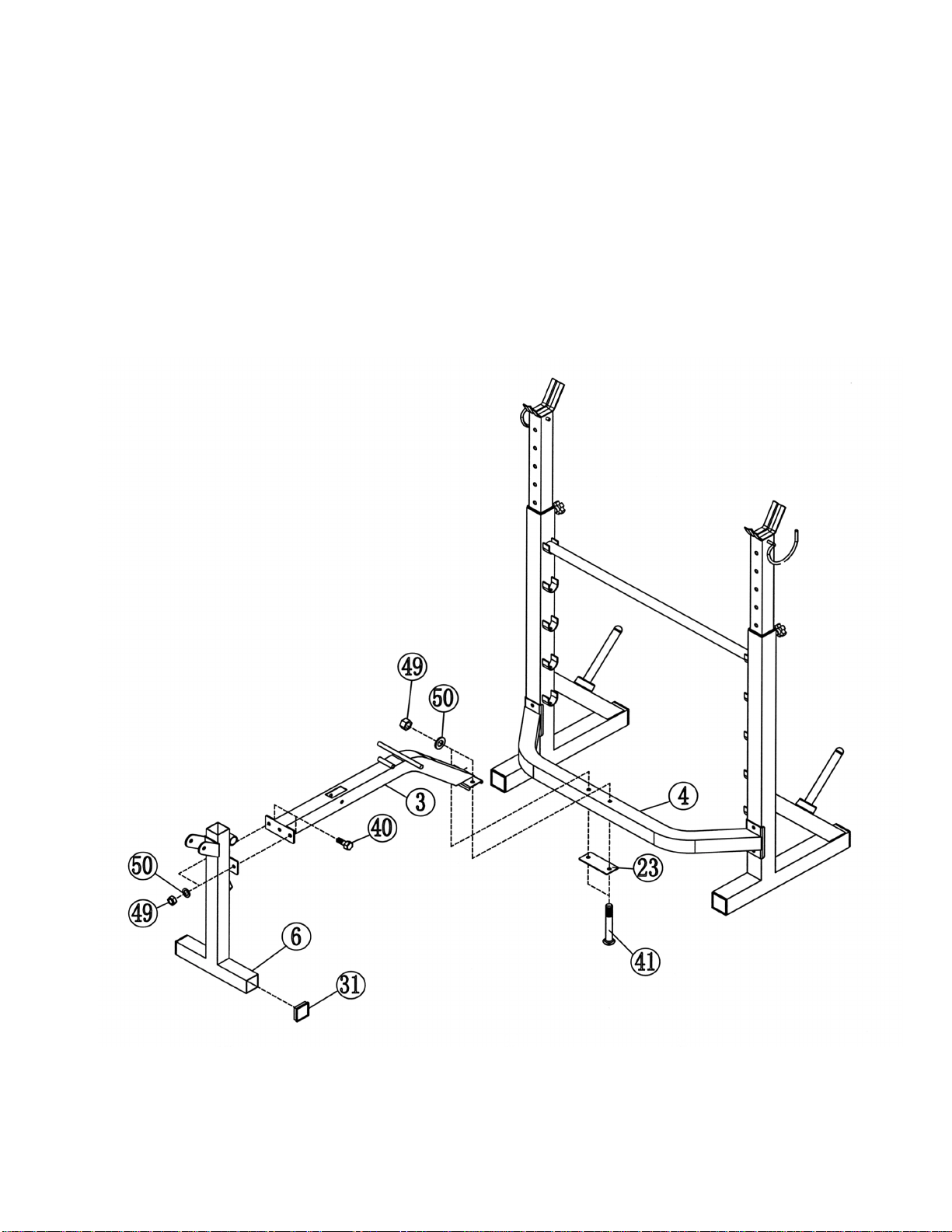

STEP 2 (See Diagram 2)
A.) Attach the back of Main Seat Support (#3) to the Cross Brace (#4). Secure it with one
Bracket (#23), two M10 x 2 ¾” Carriage Bolts (#41), two ∅ ¾” Washers (#50), and
M10 Aircraft Nuts (#49).
B.) Attach the Front Stabilizer (#6) to the front of the Main Seat Support (#3). Secure it
with two M10 x 1” Carriage Bolts (#40), ∅ ¾” Washers (#50), and M10 Aircraft Nuts
(#49).
DIAGRAM 2
5
Page 7

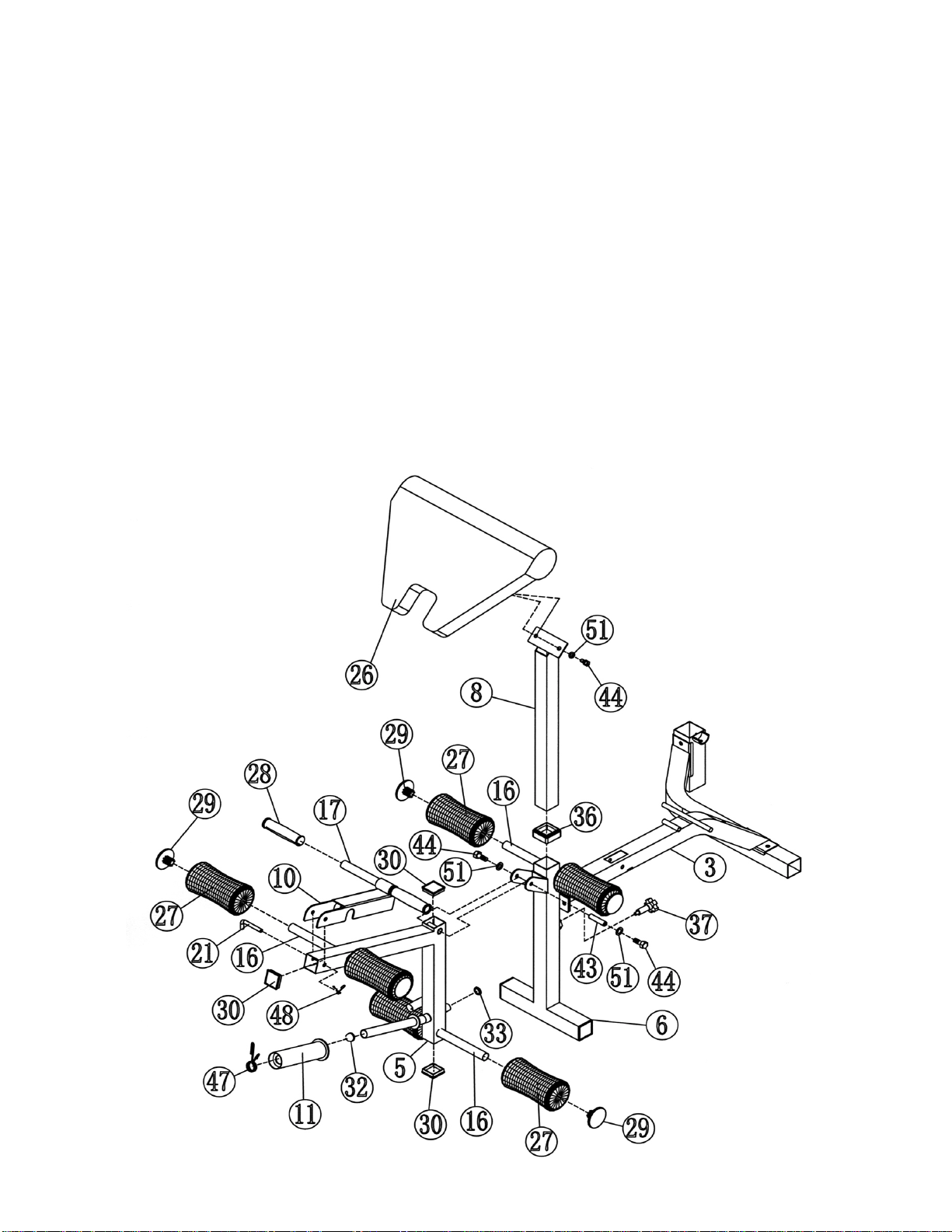

STEP 3 (See Diagram 3)
A.) Attach the Leg Developer (#5) to the bracket on the Front Stabilizer (#6). Secure it with
an Axle (#43), two ∅ 5/8” Washers (#51), and M8 x 5/8” Allen Bolts (#44).
B.) Attach the Handle Bracket (#10) to the Leg Developer (#5). Secure it with a 2 ¾” L-
shaped Pin (#21) and a Spring Clip (#48). Slide the Handle Tube (#17) onto the
Handle Bracket. Push two Handle Grips (#28) onto the Handle Tube (#17) from both
ends.
C.) Insert one Foam Roll Tube (#16) halfway through the hole on the Front Stabilizer (#6).
Insert two Foam Roll Tubes (#16) halfway through the holes on the Leg Developer
(#5). Push six Foam Rolls (#27) onto the Tubes from both sides. Plug six Foam Roll
Caps (#29) to the ends. Slide the Olympic Sleeve (#11) onto the weight holder in front
of the Leg Developer. Attach the Olympic Spring Clip (#47) to the Sleeve.
D.) Attach the Arm Curl Pad (#26) to the Arm Curl Stand (#8). Secure it with two M8 x 5/8”
Allen Bolts (#44) and ∅ 5/8” Washers (#51).
E.) Insert the Arm Curl Stand (#8) into the top opening on the Front Stabilizer (#6). Secure
it with a Lock Knob (#37).
DIAGRAM 3
6
Page 8

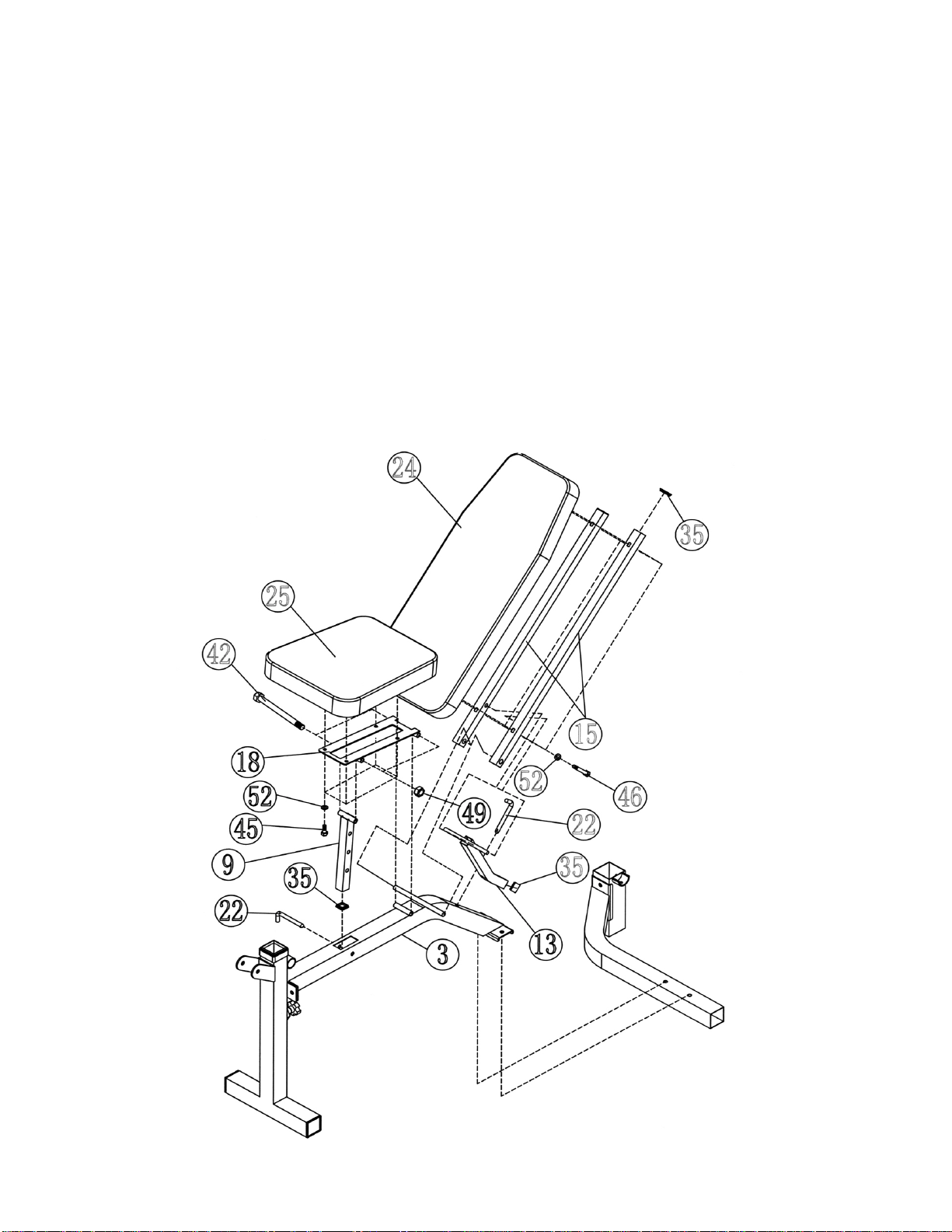

STEP 4 (See Diagram 4)
A.) Attach the Seat Bracket (#18) to the short pivot on the Main Seat Support (#3). Secure it with
a M10 x 4 ¾” Allen Bolt (#42) and M10 Aircraft Nut (#49). Attach the Seat Support Bar (#9)
to the pivot on the Seat Bracket (#18). Secure it with a M10 x 4 ¾” Allen Bolt (#42) and M10
Aircraft Nut (#49). Insert the Seat Support Bar (#9) into the opening on the Main Seat
Support (#3). Insert a 4” L-shaped Pin (#22) through the holes to obtain the desired incline
of the Seat.
B.) Place the Seat (#25) onto the Seat Bracket (#18). Secure it with f our M6 x 5/8” Allen Bolts
(#45) and ∅ ½” Washers (#52).
C.) Attach the two side-holes on the Backrest Supports (#15) to the long pivot on the Main Seat
Support (#3). Attach the Backrest Incline Support (#13) to the holes in between the two
Backrest Supports (#15). Place the Backrest Board (#24) onto the Supports. Secure it with
four M6 x 1 3/8” Allen Bolts (#46) and ∅ ½” Washers (#52).
D.) Insert a 4” L-shaped Pin (#22) through the holes on the Backrest Incline Support (#13) and
Main Seat Support (#3) to lock the Backrest Board in a vertical position. NOTE: The Incline
Support is not designed to sustain any weight. The only purpose is to get the Backrest
board out of the user’s way when using the Uprights for squat exercise. For any other
Weight Lifting exercises, remove the Pin.
DIAGRAM 4
7
Page 9
8
Page 10
PARTS LIST
KEY NO. DESCRIPTION Q’ty
1
Left Upright Beam 1
2 Right Upright Beam 1
3 Main Seat Support 1
4 Cross Brace 1
5 Leg Developer 1
6 Front Stabilizer 1
7 Crutch 2
8 Arm Curl Stand 1
9 Seat Support Bar 1
10 Handle Bracket 1
11 Olympic Sleeve 1
12 Backrest Adjustment Bar 1
13 Backrest Incline Bar 1
14 Weight Plate Holder 2
15 Backrest Support 2
16 Foam Tube 3
17 Handle Tube 1
18 Seat Bracket 1
19 Sleeve 2
20 Rubber Bumper 2
21 2 ¾” L-shaped Pin 1
22 4” L-shaped Pin 2
23 Bracket 3
24 Backrest Board 1
25 Seat 1
26 Arm Curl Pad 1
27 Foam Roll 6
28 Handle Grip 2
29 Foam Roll Cap 6
30 1 ¾” Square End Cap 3
31 2” Square End Cap 2
32 Cone-shaped End Cap 3
33 1” End Cap 1
34 2 3/8” End Cap 4
35 1” Square End Cap 4
36 2” Sleeve 1
37 Lock Knob 3
38 M8 Aircraft Nut 2
39 M10 x 3 1/8” Carriage Bolt 4
40 M10 x 1” Carriage Bolt 2
41 M10 x 2 ¾” Carriage Bolt 2
42 M10 x 4 ¾” Allen Bolt 2
43 Axle 1
44 M8 x 5/8” Allen Bolt 4
45 M6 x 5/8” Allen Bolt 4
46 M6 x 1 3/8” Allen Bolt 4
47 Olympic Spring Clip 1
48 Spring Clip 1
49 M10 Aircraft Nut 10
50
51
52
53 Left Safety Hook 1
54 Right Safety Hook 1
55 M10 x 1” Allen Bolt 2
∅
¾” Washer 10
∅
5/8” Washer 4
∅
½” Washer 8
9
Page 11
IMPEX INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Fram e from the date of purc hase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to
replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX m ust be prepaid by the
customer. This warranty does not extend to any product or damage to a produc t caus ed by or attr ibutable to
freight damage, abuse, m is us e, improper or abnormal usage or repairs not provided by an IMPEX author ized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or perform ance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, los s of enjoyments or use, c osts of rem oval, ins tallation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a par ticular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other r ights which vary from state to s tate.
Register on-line at www.imp ex-fitness. com
IMPEX INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be order ed by calling our Customer Service Department toll- free at
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
10
1-800-999-8899
