BEFORE YOU BEGIN

Thank you for selecting the MARCY Multi-purpose Bench MWB-682 by
IMPEX INC. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

3. Maximum weight capacity 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ
ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL REPLACEMENT

The Warning Label shown here has been placed on the Rear Stabilizer. If the label is missing or illegible, please
call customer service at 1-800-999-8899 for replacement. Apply the lable in location shown.

3

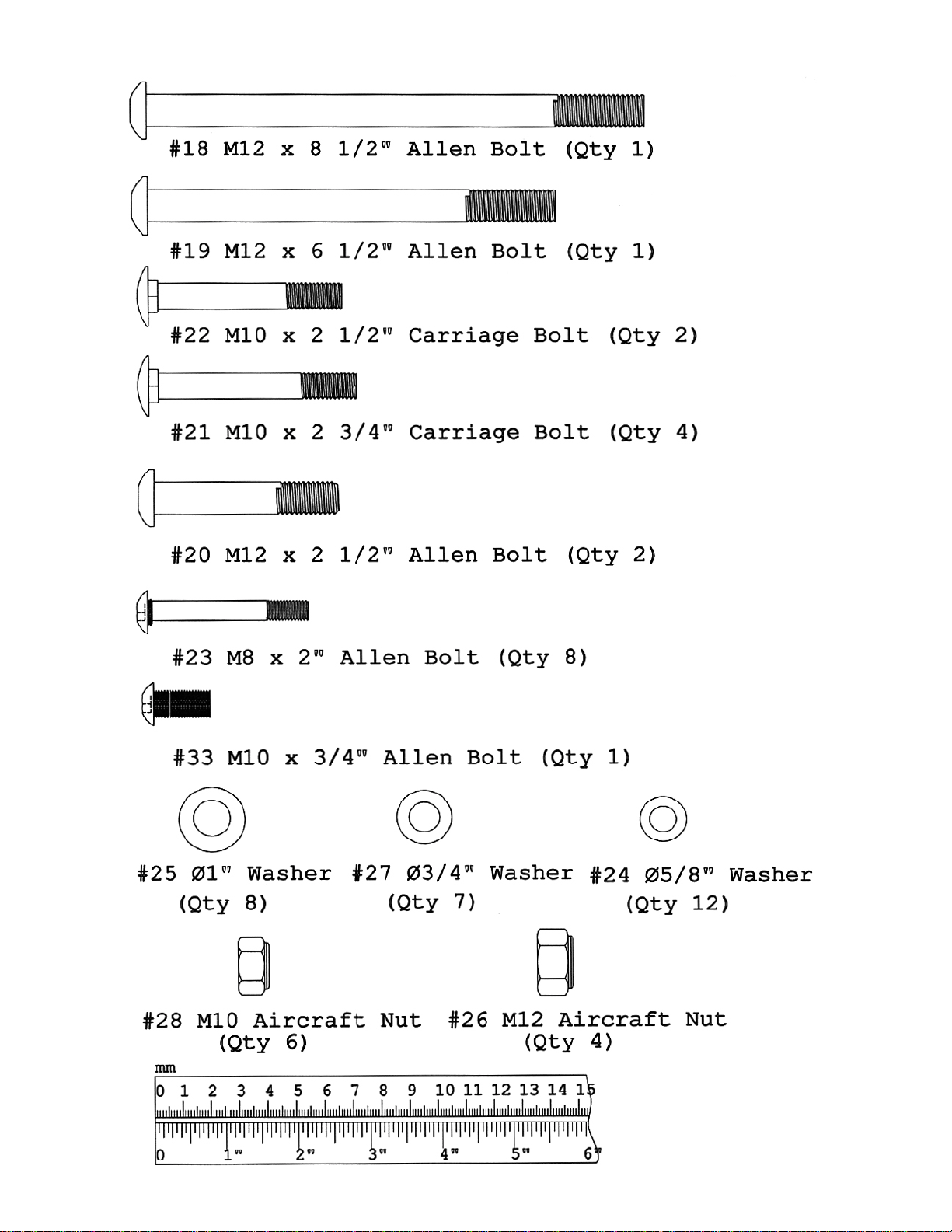

HARDWARE PACK

4

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.

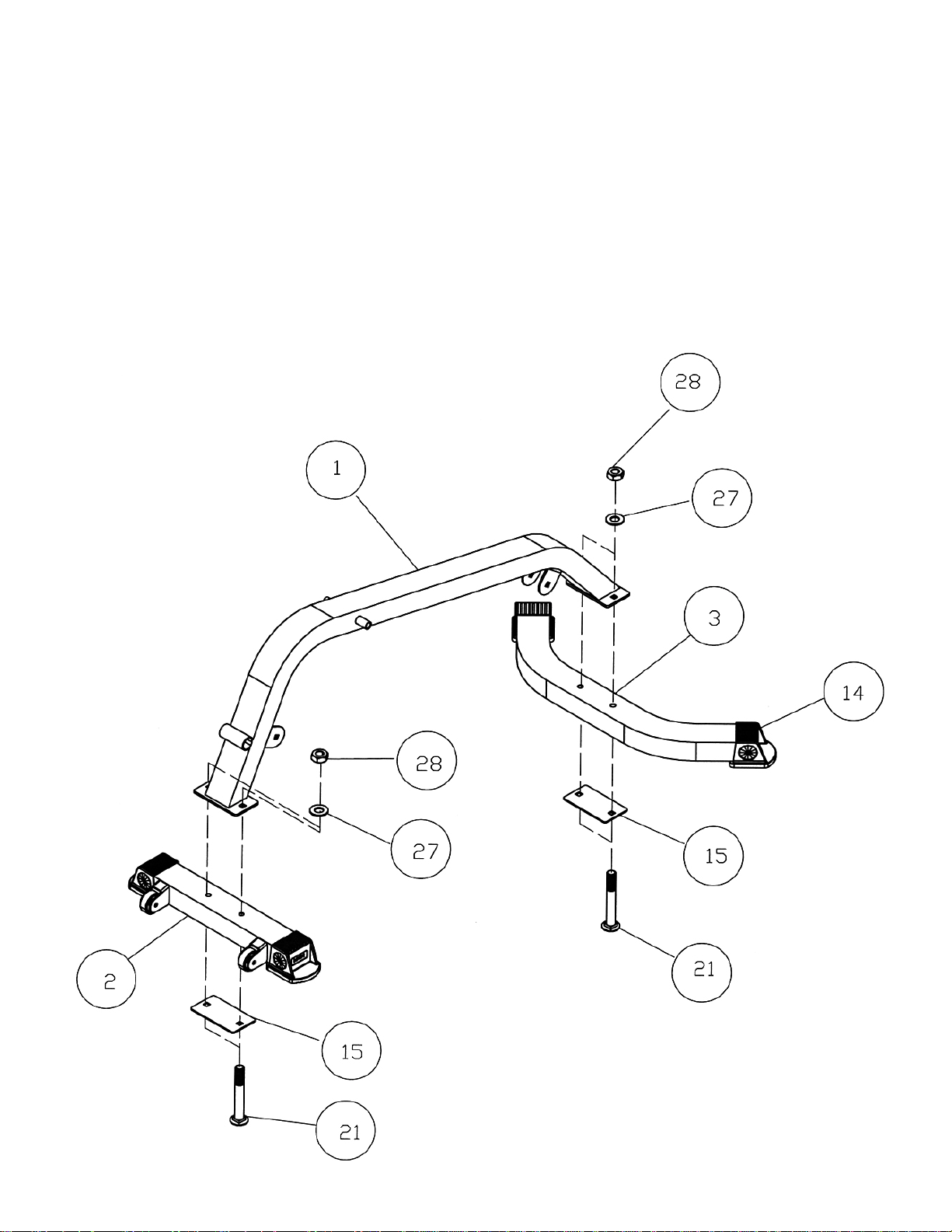

STEP 1 (See Diagram 1)

A.) Attach the Main Frame (#1) to the Front Stabilizer (#2). Secure it with two M10 x 2 ¾”

Carriage Bolts (#21), one Bracket (#15), two ∅ ¾” Washers (#27), and two M10 Aircraft
Nuts (#28).

B.) Attach the Main Frame (#1) to the Rear Stabilizer (#3). Secure it with two M10 x 2 ¾”

Carriage Bolts (#21), one Bracket (#15), two ∅ ¾” Washers (#27), and two M10 Aircraft
Nuts (#28).

DIAGRAM 1

5

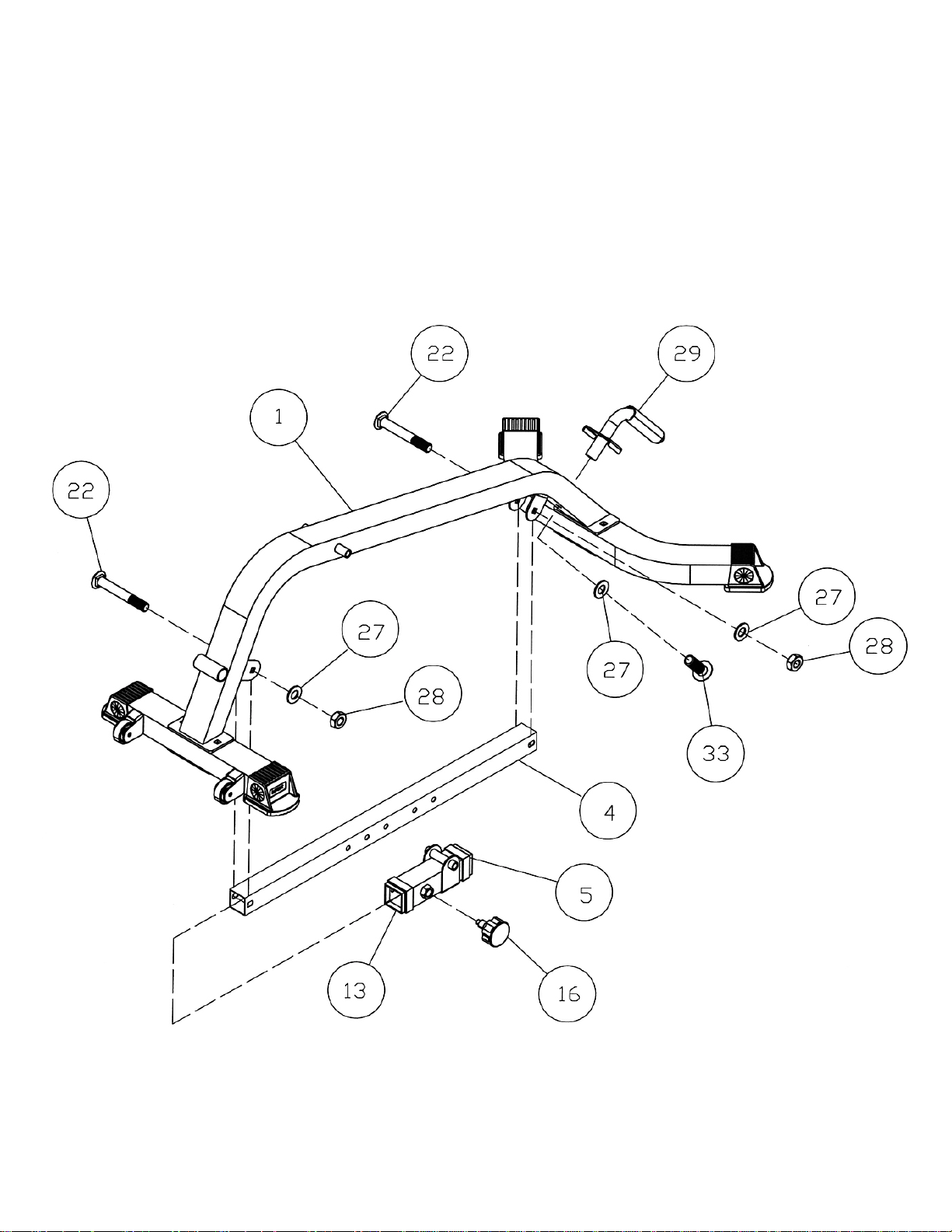

STEP 2 (See Diagram 2)

A.) Slide the Sliding Block (#5) onto the Incline Adjustment Bar (#4).
B.) Attach both ends of Incline Adjustment Bar to the open brackets on the Main Frame

(#1). Secure each end with one M10 x 2 ½” Carriage Bolt (#22), Ø ¾” Washer (#27),

and M10 Aircraft Nut (#28).
C.) Use a Lock Knob (#16) to lock the desired incline position.
D.) Attach the Handle (#29) to the Main Frame. Secure it with one M10 x ¾” Allen Bolt

(#33) and Ø ¾” Washer (#27).

DIAGRAM 2

6

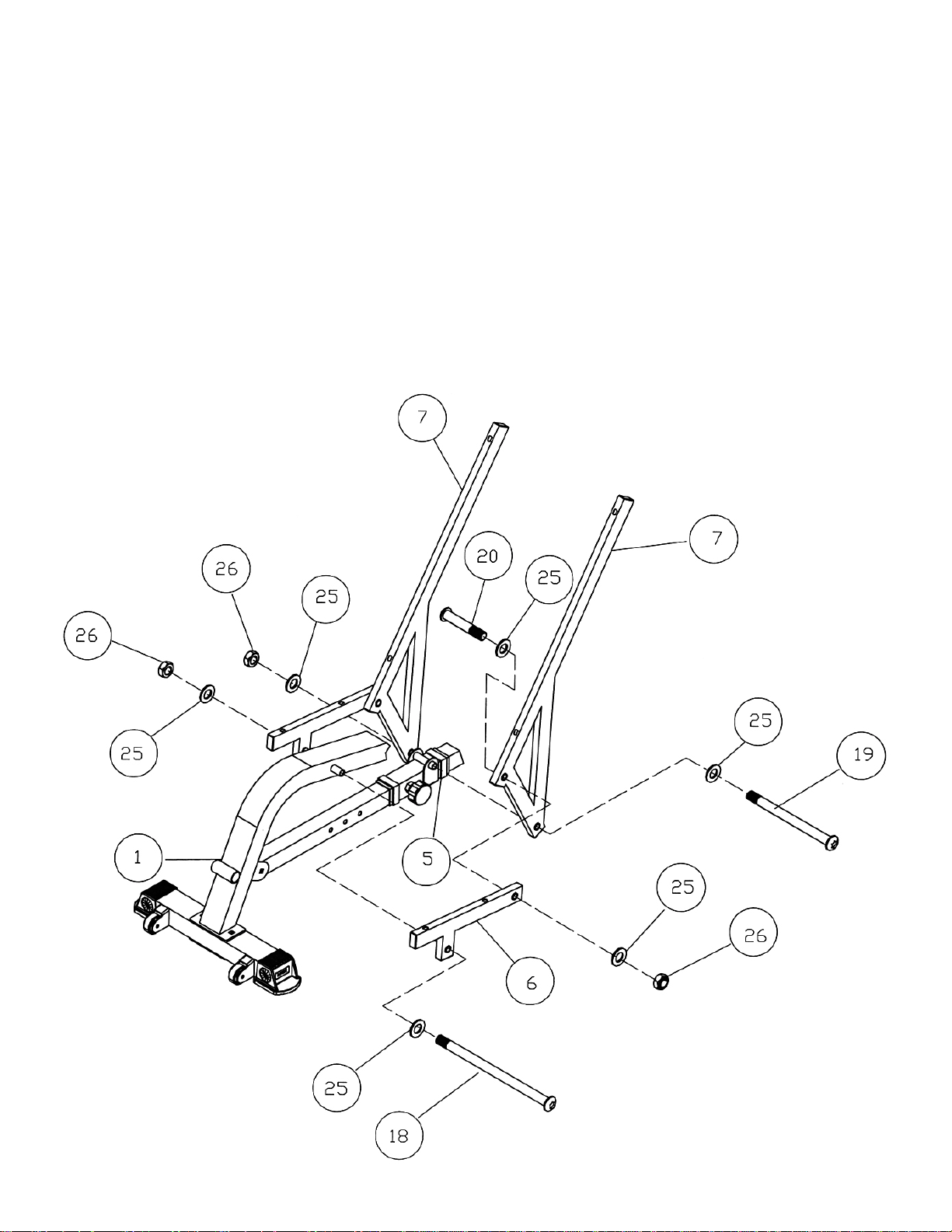

STEP 3 (See Diagram 3)

A.) Attach the lower holes on the Backrest Supports (#7) to the pivot on the Sliding Block

(#5). Secure them with one M12 x 6 ½” Allen Bolt (#19), two ∅ 1” W ashers (#25), and

one M12 Aircraft Nut (#26).
B.) Attach the Seat Support Frame (#6) to the hole on the Backrest Support (#7). Make

sure the Seat Support Frame is on the outside of the Backrest Support. Align the holes

and secure them with one M12 x 2 ½” Allen Bolt (#20), two Ø 1” Washers (#25), and

one M12 Aircraft Nut (#26). Repeat the same step to install the other side. Note: The

Bolt must be inserted from inside of Backrest Support to the outside of the Seat

Support Frame.
C.) Loosen up the Knob Bolt on the Sliding Track to adjust the position so the front end of

the two Seat Support Frames (#6) can be aligned to the pivot on the Main Frame (#1).

Secure them with one M12 x 8 ½” Allen Bolt (#18), two Ø 1” Washers (#25), and one

M12 Aircraft Nut (#26).

DIAGRAM 3

7

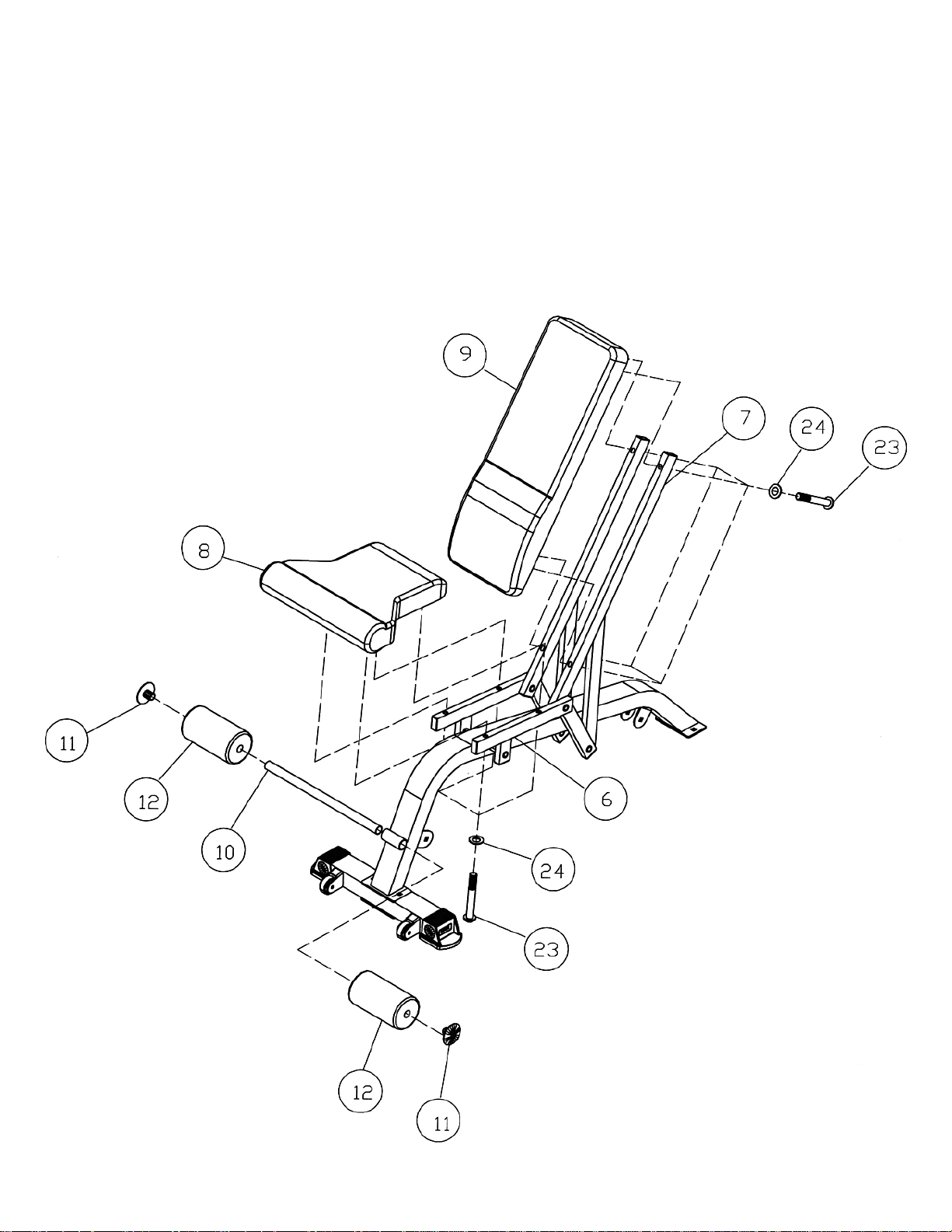

STEP 4 (See Diagram 4)

A.) Insert the Foam Tube (#10) halfway through the hole on the Main Frame (#1).

Push two Vinyl Foam Rolls (#12) onto the Foam Tube from both ends. Plug the
Foam Roll End Caps (#11) into the ends.

B.) Place the Seat (#8) onto the Seat Support Frames (#6). Secure it with four M8 x 2”

Allen Bolts (#23) and ∅ 5/8” Washers (#24).

C.) Place the Backrest Board (#9) onto the Backrest Supports (#7). Secure it with four

M8 x 2” Allen Bolts (#23) and ∅ 5/8” Washers (#24).

DIAGRAM 4

8

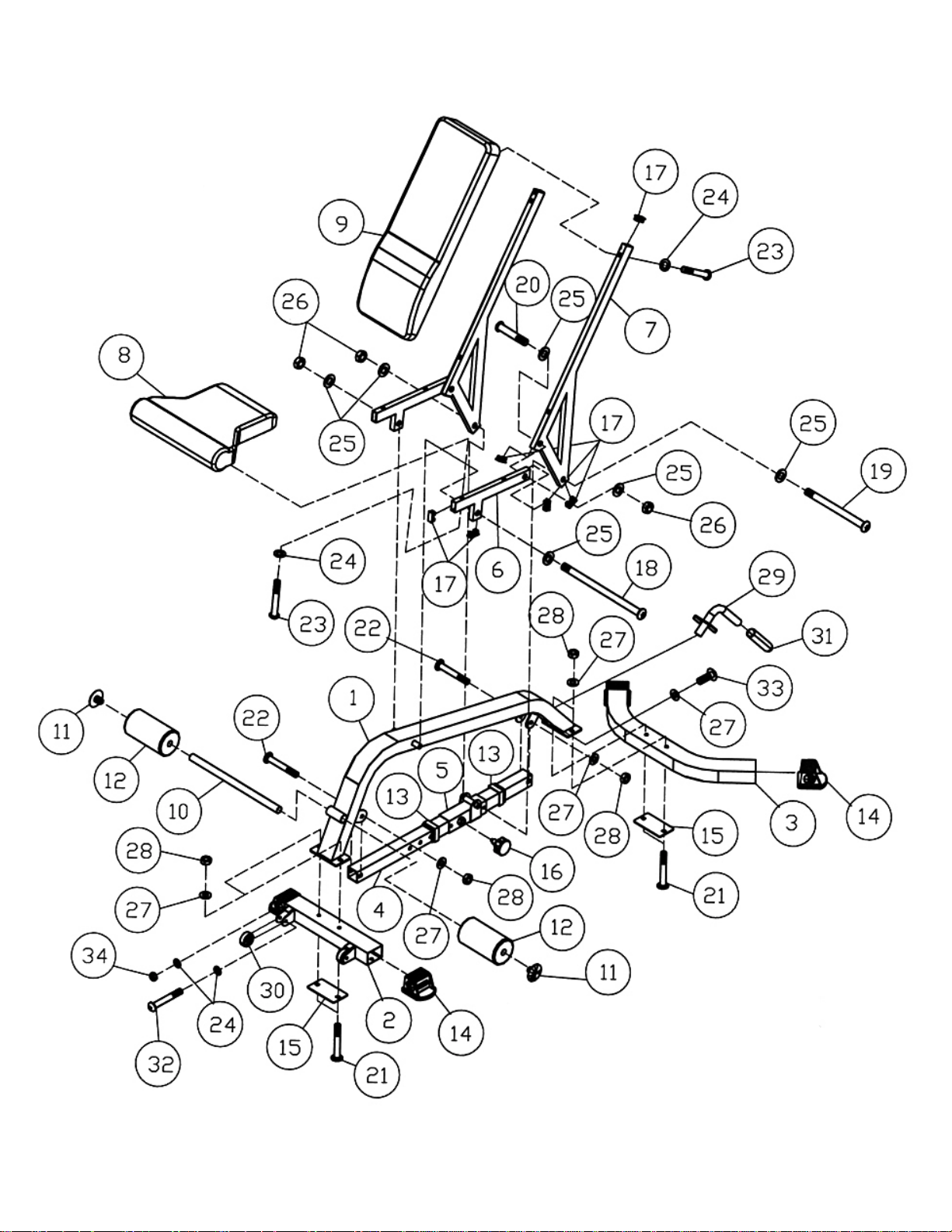

EXPLODED DIAGRAM

9

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Frame 1
2 Front Stabilizer 1
3 Rear Stabilizer 1
4 Incline Adjustment Bar 1
5 Sliding Block 1
6 Seat Support Frame 2
7 Backrest Support 2
8 Seat 1
9 Backrest Board 1
10 Foam Tube 1
11 Foam Roll End Cap 2
12 Vinyl Foam Roll 2
13 Sliding Block Sleeve 2
14 2 ¾” x 2” End Cap 4
15 Bracket 2
16 Lock Knob 1
17 1 5/8” x ¾” End Cap 12
18 M12 x 8 ½” Allen Bolt 1
19 M12 x 6 ½” Allen Bolt 1
20 M12 x 2 ½” Allen Bolt 2
21 M10 x 2 ¾” Carriage Bolt 4
22 M10 x 2 ½” Carriage Bolt 2
23 M8 x 2” Allen Bolt 8
24 ∅ 5/8” Washer 12
25 Ø 1” Washer 8
26 M12 Aircraft Nut 4
27 Ø ¾” Washer 7
28 M10 Aircraft Nut 6
29 Handle 1
30 Wheel 2
31 Handle Grip 2
32 M8 x 1 ¾” Allen Bolt 2
33 M10 x ¾” Allen Bolt 1
34 M8 Aircraft Nu t 2

10
