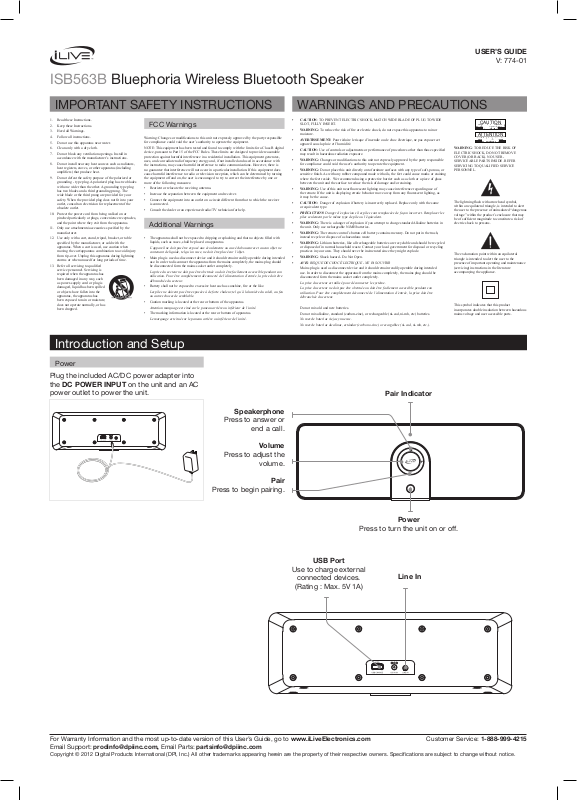

Ilive ISB563B User Manual

ISB563B Bluephoria Wireless Bluetooth Speaker

USER’S GUIDE

V: 774-01

IMPORTANT SAFETY INSTRUCTIONS

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

• The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne

contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son

utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

• Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu

ou autres choses de semblable.

• Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.

• The marking information is located at the rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

Introduction and Setup

Power

Plug the included AC/DC power adapter into the DC POWER INPUT on the unit and an AC power outlet to power the unit.

WARNINGS AND PRECAUTIONS

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of controls or adjustments or performance of procedures other than those specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive nish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son

utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

Pair Indicator

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

Speakerphone

Press to answer or

end a call.

Volume

Press to adjust the

volume.

Pair

Press to begin pairing.

Press to turn the unit on or off.

USB Port

Use to charge external

connected devices.

(Rating : Max. 5V 1A)

Power

Line In

For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com Customer Service: 1-888-999-4215 Email Support: prodinfo@dpiinc.com, Email Parts: partsinfo@dpiinc.com

Bluetooth Setup

Using Bluetooth

Line In

Pairing a Bluetooth Device for the First Time

1. Power on the unit by pressing the Power

button.

The Pairing Indicator will ash blue quickly.

When pairing, remain within 3 feet of the unit.

2. Using the native controls on your Bluetooth device, select the “ISB563” in your Bluetooth settings to pair.

If your device requests a password, enter the default password “ 0 0 0 0 ”.

Refer to the user’s manual for your specic device for instructions on pairing and connecting Bluetooth devices.

3. When successfully paired and connected, the Pairing Indicator will display a solid

blue light.

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

If your device should become unpaired or you nd it is unable to connect, repeat the above steps or press the Pair button to start the pairing process pairing again.

Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.

2. Use the native controls on the connected Bluetooth Device to select a track.

3. To play or pause the selected track, use the native controls on the connected Bluetooth Device.

4. Audio played through the connected

Bluetooth device will now be heard

through the speakers.

Using the Speakerphone

1. Follow the instructions in Pairing a Bluetooth Device.

2. When a call is received, a ringtone will sound through the speakers.

3. Press the Speakerphone button to accept the call or accept the call with the native controls on the connected device.

4. The incoming call received through the

device will now be heard through the

speakers.

5. To end the call, press the Speakerphone

button or end the call using the native

controls on the connected device.

Using the Line In

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the

Line In on the unit and an audio output on an MP3 player or other audio source.

2. Use the native controls on the connected MP3 player or other audio source to play and control audio played through the clock radio.

Charging

Charging a Device

1. Make sure the unit is plugged into the wall.

2. Using the appropriate USB charging

cable (not included), connect one end

to the device and the other to the USB Port on the unit.

Refer to the user’s manual for your

specic device for manufacturers required charging amperage as well as determining the appropriate cable for your device before charging.

3. The device will now charge.

Power and Pairing Indicator Lights

Status Pairing Indicator

Power Off No light

Power On Slowly ashing blue light

Ready to Pair Quickly ashing blue light

Bluetooth Connected Solid blue light

Line In Mode Red light

International Support

To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

Para descargar este Manual del Usuario en

inglés, español y francés, o para obtener

respuestas a preguntas frecuentes, visite la sección de apoyo en www.iLiveElectronics.

com

Pour télécharger ce guide de l’utilisateur en

anglais, espagnol ou français, ou pour obtenir

des réponses à des questions fréquemment

posées, consultez la rubrique d’assistance

sur www.iLiveElectronics.com
