iLive | ITB382

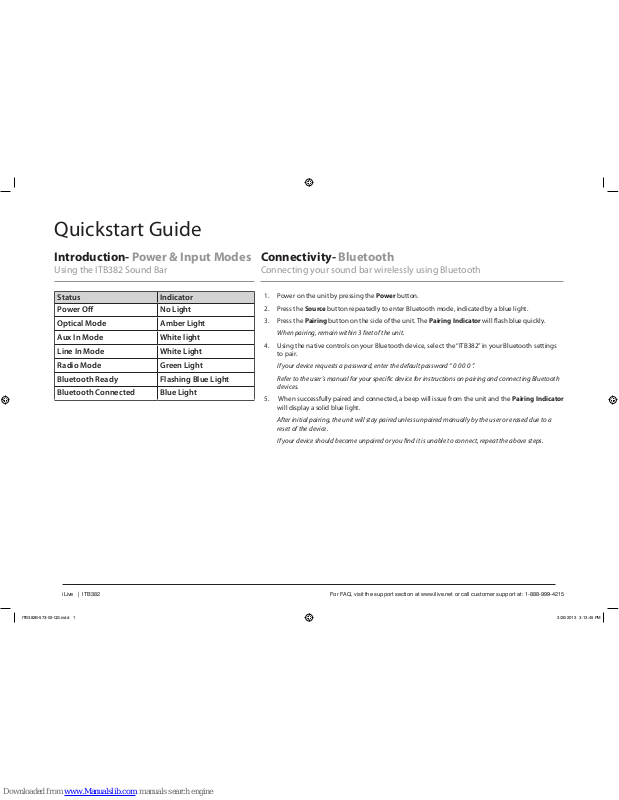

Quickstart Guide
For FAQ, visit the support section at www.ilive.net or call customer support at: 1-888-999-4215
Introduction- Power & Input Modes
Using the ITB382 Sound Bar
Connectivity- Bluetooth
Connecting your sound bar wirelessly using Bluetooth
Status Indicator
Power O No Light
Optical Mode Amber Light
Aux In Mode White light
Line In Mode White Light
Radio Mode Green Light
Bluetooth Ready Flashing Blue Light
Bluetooth Connected Blue Light
1. Power on the unit by pressing the Power button.
2. Press the Source button repeatedly to enter Bluetooth mode, indicated by a blue light.
3. Press the Pairing button on the side of the unit. The Pairing Indicator will ash blue quickly.
When pairing, remain within 3 feet of the unit.
4. Using the native controls on your Bluetooth device, select the “ITB382” in your Bluetooth settings
to pair.
If your device requests a password, enter the default password “ 0 0 0 0 ”.
Refer to the user’s manual for your specic device for instructions on pairing and connecting Bluetooth
devices.
5. When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator
will display a solid blue light.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a
reset of the device.
If your device should become unpaired or you nd it is unable to connect, repeat the above steps.
ITB382B-573-02-QS.indd 1 3/20/2013 3:13:45 PM
iLive | ITB382
Quickstart Guide
For FAQ, visit the support section at www.ilive.net or call customer support at: 1-888-999-4215
Usability- The Learn feature
Teach your sound bar to recognize commands from a single remote
1. With the power O, press
the Learn button on the
unit.
2. Press the button you
desire to be learned on the
included remote.
For example: Volume+
3. Press the corresponding
button on your remote.
4. Press the Learn button on
the unit.
5. The programmed button
on your remote will now be
able to control your sound
bar.
What is the learning feature?
The learning feature captures remote commands from your
television remote, and teaches your bar speaker to operate
when these commands are pressed. Power, volume and mute
are a few examples of commands that the bar speaker can
learn.
Why use the learning feature?
Teaching the bar speaker remote commands will reduce the
number of remotes needed, save time searching for remote
codes, and improve the ease of operation.
AUX/
LINE
POWER
SOURCE
LEARN
PAIRING
L
S
VOLUME
Sample Remote
IT382B Remote
POWER
SOURCE
LEARN
PAIRING
L
S
VOLUME
ITB382B-573-02-QS.indd 2 3/20/2013 3:13:46 PM
