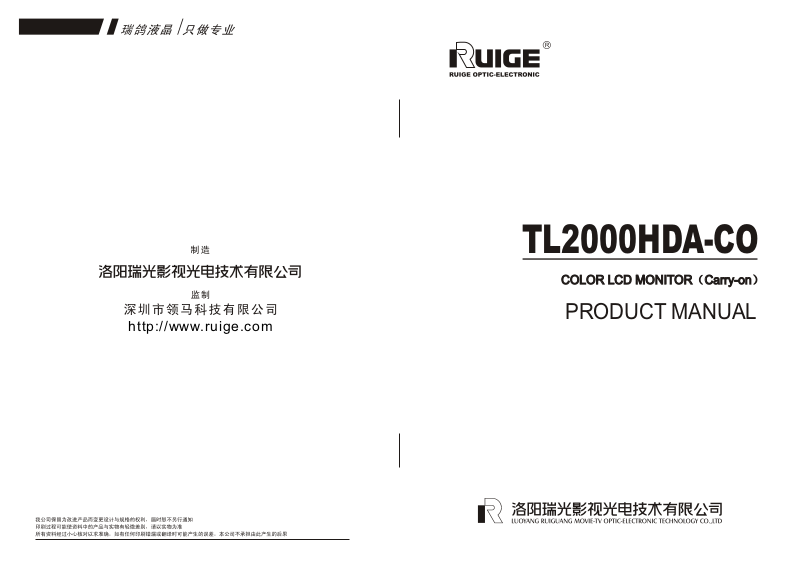

ikan TL2000HD-CO User Manual
TL2000HDA-CO
COLOR LCD MONITOR Carry-onCOLOR LCD MONITOR Carry-on
http://www.ruige.com
PRODUCT MANUAL
TL2000HDA-CO
COLOR LCD MONITOR Carry-on COLOR LCD MONITOR Carry-on
Special Notice
Non-professional maintenance personne should
not dismantle the product without approval!
The voltage of other DC power used shall not be
Higher than nominal input voltage
Confirm whether power polarity is correct.
Liquid crystal screen is made of non-rigid materials
and shall not been collided or squeezed.
Rub the surface of display screen with absorbent
cotton or soft cloth.
Don't use the monitoring function of this product
when it is installed on the handle of camera for
shooting to prevent possible sound feedback.
Don't use this product in humid, high-temperature
environment.
http//:www.ruige.com
Email:ruige@ruige.com
Preparation before operation- open the case
Malfunction detect
Below checking method can be adopted if any problem
occurred when operating this system.
If there is still problem that can not be resolved please
contact neighbouring RUIGE sales center.
1. Follow the arrow to open the case
3
1
2
2. Lightly lift the box cover, the upper cover automatically open and stop
at the designing angle
No image
1. Video cable come off or wrong connection
2. No signal input Checking whether the output end is connected well
3. LCD monitor power is off Put the power switch on the - location
4. Using the power cable with adverse pole Refer to (Power input method)
Picture /color abnormal display
1. Video cable with bad connection Change the new cable
2. Outside interfere to the video cable
3. The video signal input intensity is too low
4. The saturation and brightness is adjusted too
much
5. Picture distortion Reset the aspect ratio
Speaker can not work
1. Audio cabl with bad connection Checking whether the output end is well connected
2. The volume is adjusted the lowest location
3. Switch the video signal ,then no voice
Solution
Checking cable quality and confirm input end
or not
Solution
Change the new environment to check again
Checking whether the intensity is less than 0.8v
Adjust to middle location
Solution
or not
Adjust it at the proper location
Only 1 line audio output
1
30
Table
Preparation before operation- open the case---------------------------------------- 1
Preparation before operation- lift the controller-------------------------------------- 2
Preparation before operation- fix the sunhood--------------------------------------- 3
Preparation before operation- external power----------------------------------------4
Instruction of knobs and buttons operationr----------------------------------------- 5-6
Signal Formats-------------------------------------------------------------------------------- 7
Functional menu----------------------------------------------------------------------------- 8
Color temperature--------------------------------------------------------------------------- 9
Scaling seting------------------------------------------------------------------------------- 10
Scan mode-----------------------------------------------------------------------------------11
Short-cut Key setting----------------------------------------------------------------------- 12
Mark aspect----------------------------------------------------------------------------------13
Safety Setting------------------------------------------------------------------------------- 14
Mark-line Options--------------------------------------------------------------------------- 15
Embedded Audio---------------------------------------------------------------------------16
Wave Form----------------------------------------------------------------------------------- 17
UMD Setting--------------------------------------------------------------------------------- 18
Color Only------------------------------------------------------------------------------------ 19
HV delay------------------------------------------------------------------------------------- 20
TALLY connection----------------------------------------------------------------------------21
TALLY mode setting------------------------------------------------------------------------- 22
Peaking Filter--------------------------------------------------------------------------------- 23
Language------------------------------------------------------------------------------------ 24
Menu duration-------------------------------------------------------------------------------25
Text color------------------------------------------------------------------------------------- 26
Device information------------------------------------------------------------------------- 27
Restore Setting------------------------------------------------------------------------------ 28
Specification-------------------------------------------------------------------------------- 29
Malfunction detect------------------------------------------------------------------------ 30
Preparation before operation- fix the sunhood
1. The sunhood can not only meet the normal demand of the shading,
but also protect the screen from being impacted. After finishing the
shooting , fold the sunhood and put in the inside of the case, no need
other space for the hood.
SDI
SDI
D65
32
32
32
0
Restore Setting
Press the (BRIGHT) knob to enter the
main menu.
2. Under special circumstances, hood can be extended by 8cm to
get better shading effect.
Note: the hood is removable, indoor monitoring ,just turn the switch on the
upper right corner to easily take away the hood.
SDI
SDI
SDI
30S
30S
30S
Turn the (BRIGHT) knob to select the
System setting and press it to enter
the System setting interface.
After entering the System setting
interface,turn the (BRIGHT) knob to select
the Sytem restore to get the dialog box.
Turn the (BRIGHT) knob to select the Yes
and press the BRIGHT knob to confirm
menu disappear automatically , all the
parameterrestore to the original status.
3 28
HDMI
Specification
Size 20
Resolution 1600 900
Dot pitch 0.2766 H 0.2766 W mm
Brightness 250cd/m
Contrast 1000 1:
Viewing angle Left / Right / Up /Down 89 / 89 / 89 / 89
Aspect ratio 4:3 / 16:9 Switch
Video input HD / SD-SDI 2line
Composite 1line
NTSC / PALAuto detect Loop through
HDMI 1line
VGA 1line
Audio input Dual speaker 1line 8 2W 0.7Vp-p
Video output HD / SD-SDI 1line
2
Preparation before operation- lift the controller
Turn the switch of the audio / video controller ( shown as below),the con-
1.
troller automatically rise so that the user can operate the function keys
2. In order to avoid interference with the LCD screen and sun hood, the controllermust return back after use , press the middle(shown as below) of the
controller to the lock location
Composite 1line NTSC / PAL Auto detect
Voltage input DC 12V
Power consumption 30W
Dimension L 550 H 430 D 210mm
Weight around 7.25 Kg
29
2
