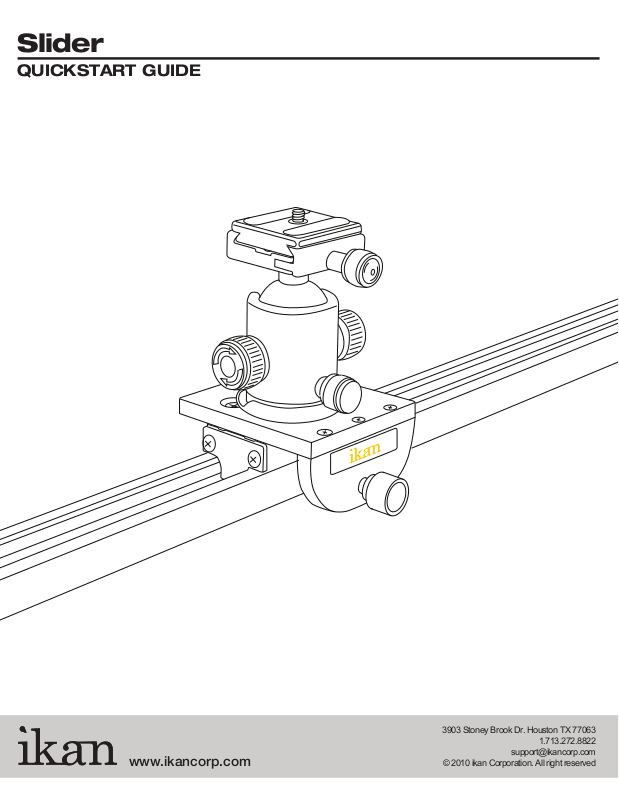

ikan SLD-01 User Manual

Slider

QUICKSTART GUIDE

www.ikancorp.com

3903 Stoney Brook Dr. Houston TX 77063

1.713.272.8822

[e-mail]

© 2010 ikan Corporation. All right reserved

Slider

QUICKSTART GUIDE

What’s included

 1 x Slider

 1 x Slider Case

 1 x Adjustable Ball Head

 1 x 1/4-20 Screw for

Verical Assembly

1.285”

 2 x Tabletop Feet

0.85”

 2 x 1/4-20 Screw for
Mounting Feet

Checked by

www.ikancorp.com 713-272-8822

Slider

QUICKSTART GUIDE

GETTING STARTED

Whether shooting horizontally or vertically, you will need to attach the Adjustable
Ball Head to the Slider Base. To do so, simply line up the 3/8-16 screw on the
Slider Base with the 3/8-16 hole on the bottom of the Adjustable Head and turn
clockwise to tighten.

Tripod Plate

Tripod Head

Plate Lock

Adjustment Lock

Adjustment Lock

Pan Lock

3/8-16 Screw

Carriage

Carriage Lock
