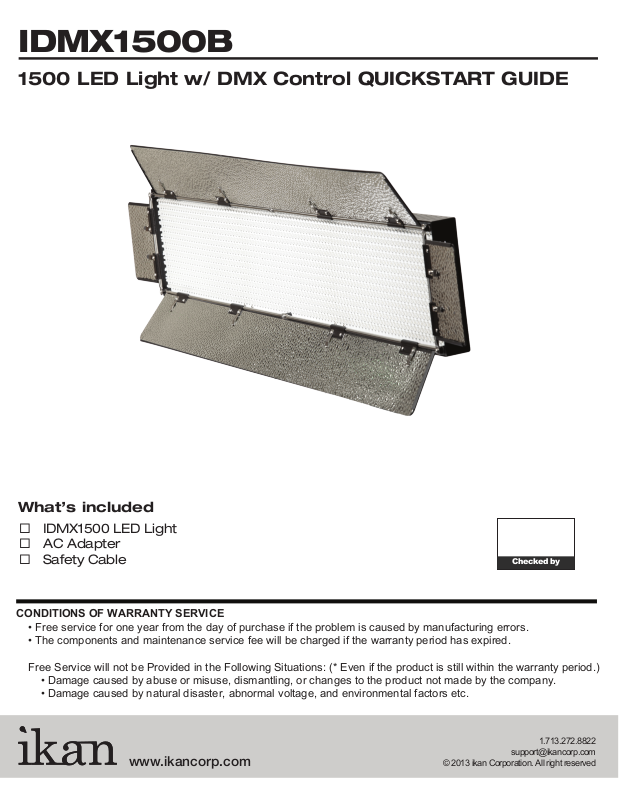

IDMX1500B
1500 LED Light w/ DMX Control QUICKSTART GUIDE
What’s included
IDMX1500 LED Light
AC Adapter
Safety Cable
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
© 2013 ikan Corporation. All right reserved
Checked by
1.713.272.8822
support@ikancorp.com
IDMX1500B
1500 LED Light w/ DMX Control QUICKSTART GUIDE
Attention:
If not using DMX, make sure that
DIP Switch #11 is in the ON position.
Dip
Switches
Power Plug
+
1 2 3 4 5 6 7 8 9 10 11 12
+
4-Pin
BACK
Locking Ears for
Safety Chain
Local Control
Switch 11
Temperature
Knob
Dimmer
Knob
Dmx 512
In/Out
ikancorp.com
AC Power supply
Power On
GETTING STARTED
1. Power on the light using the Main Power switch
2. Control the amount of light with the Dimmer Knob clock-wise until you hear a “click”.
3. Turn the light off by twisting the Dimmer Knob counter clock-wise unit you hear a “click”.
4. The IDMX1500 can also be powered by the included AC adapter.
ADJUSTING THE BRIGHTNESS
The Dimmer Knob on the back of the light allows you to adjust the intensity of the light. Adjust the intensity of
the light by turning the Dimmer Knob clock-wise to increase the intensity and counter clock-wise to reduce it.
SPECIFICATIONS
Operating Volts: 24V
Color Temperature: 3200 K - 5600 K
Brightness: 3 ft. / 5749 lux / 5600 K
Dimension: 38.9” x 7.3” x 1.6”
Weight: 7.5 lbs
www.ikancorp.com 713-272-8822
