IKA HRC 2 control Operating Instructions Manual

20000015725a

HRC 2 control_112017

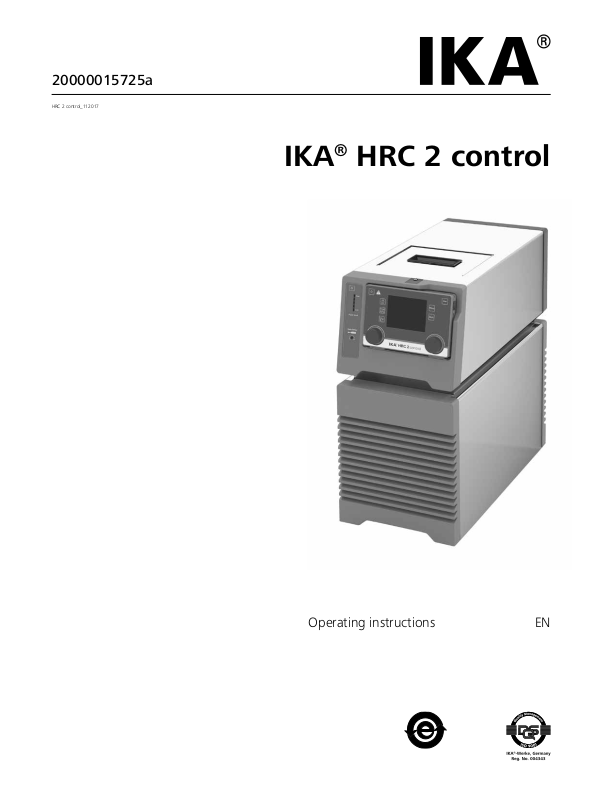

IKA® HRC 2 control

Operating instructions EN

Device setup

1

2

3

2

Fig. 1

Item Designation 1 Wireless Controller (WiCo) 2 Handle 3 Venting grid 4 Filling opening lid 5 RS 232 port 6 USB port 7 External temperature sensor socket 8 Multifunction port 9 Overﬂow 10 Backﬂow 11 Power socket 12 Power switch 13 Pump connection OUT 14 Pump connection IN

4

5 6

7 8

14 13

12 11

10 9

2

3

2

Source language: German

EN

Contents

Page

Device setup .................................................................................................................................................2

Declaration of Conformity ............................................................................................................................ 4

Note for USA (FCC) ....................................................................................................................................... 4

Note for Canada (IC) ..................................................................................................................................... 4

Explication of warning symbols ...................................................................................................................4

Safety instructions .......................................................................................................................................5

General information �� 5 Disposal of device �� 6 Fluids �� 6 Battery pack RB 1 (for WiCo) �� 6

Correct use ................................................................................................................................................... 7

Use �� 7 Range of use (indoor use only) �� 7 Wireless remote control �� 7

Unpacking .................................................................................................................................................... 8

Unpacking �� 8 Delivery scope �� 8

Preparations .................................................................................................................................................8

Setting up �� 8 Connecting the tubings �� 8 Inserting battery into the WiCo �� 9 Mounting the WiCo to the station �� 9 Filling and draining �� 9 Fluid (Standard information for IKA® fluid)�� 11 Moving the device �� 12 Charging the Battery Pack RB 1 (rechargeable battery) �� 12 Changing battery to WiCo �� 12

WiCo – holder WH 10 �� 12

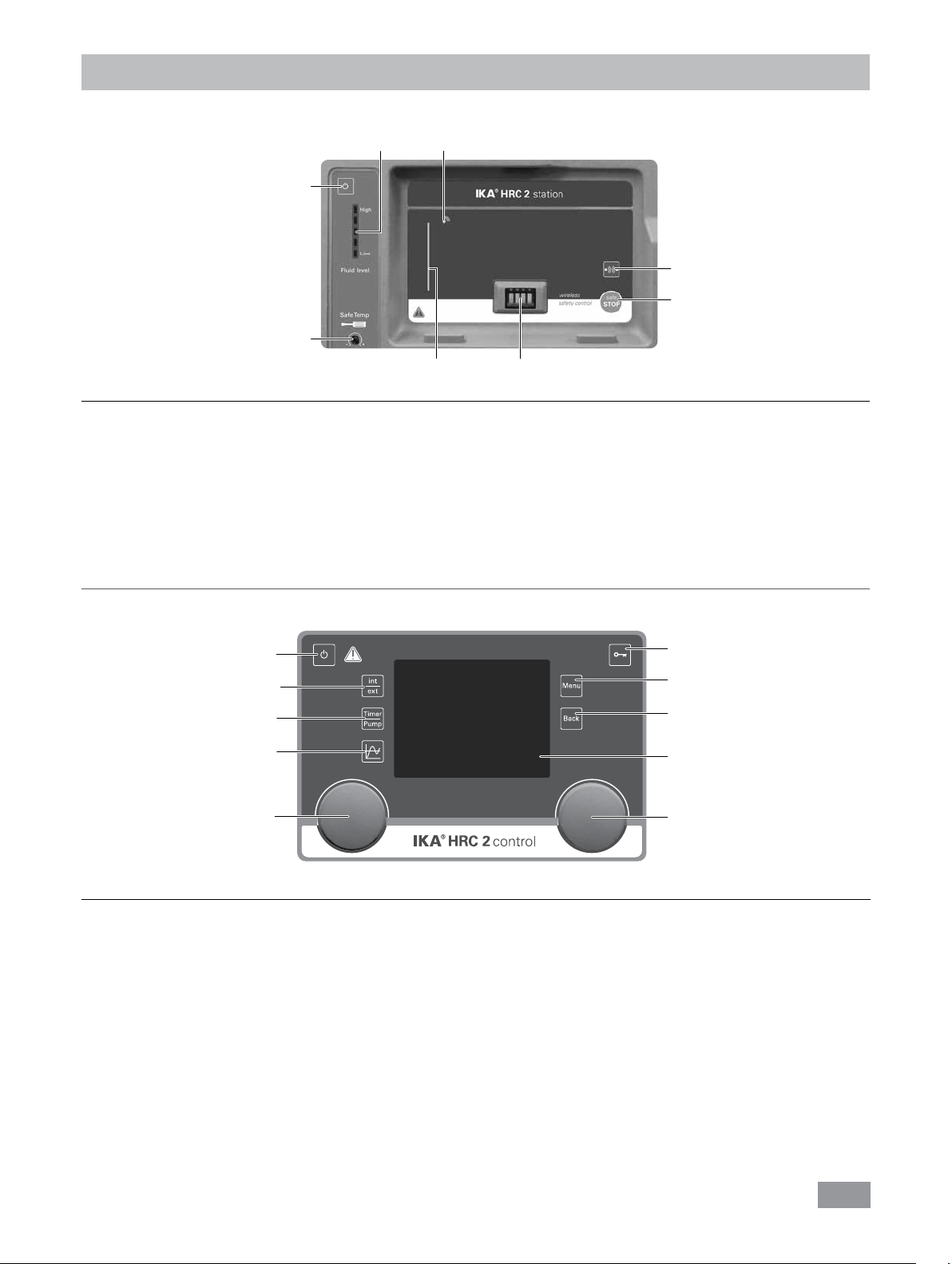

Operator panel and display ........................................................................................................................13

station �� 13 WiCo �� 13

Setting the safety temperature ..................................................................................................................14

Commissioning ........................................................................................................................................... 14

Useful information .....................................................................................................................................15

Working with WiCo .................................................................................................................................... 16

Working screen at the time of delivery �� 16 Explanation of symbols on the working screen �� 16 Menu navigation and structure �� 17 Menu (Details) �� 19

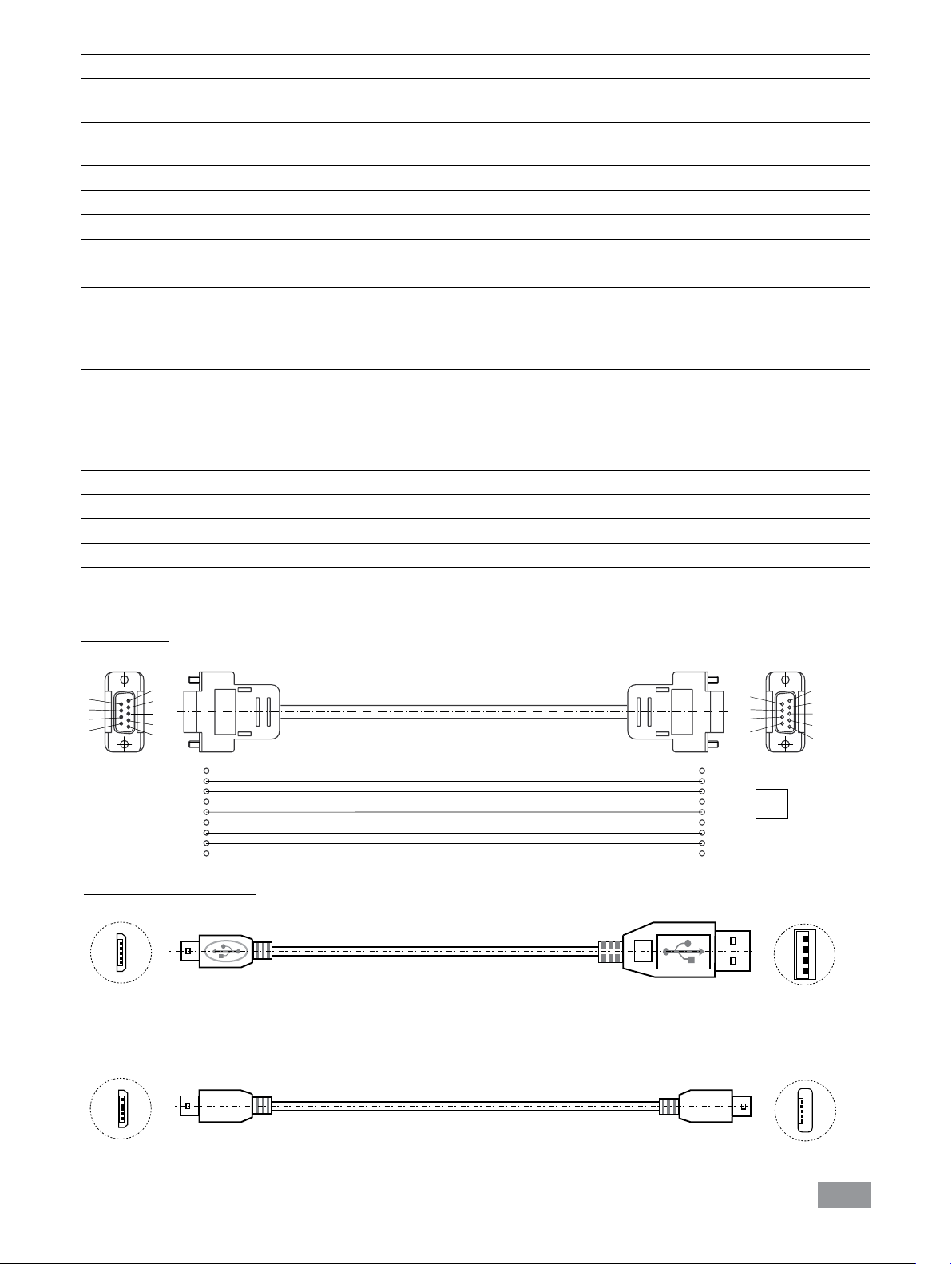

Interface and output ..................................................................................................................................24

Maintenance and cleaning .........................................................................................................................27

Error codes ................................................................................................................................................. 28

Accessories .................................................................................................................................................29

Technical data ............................................................................................................................................30

Warranty ....................................................................................................................................................32

Pump performance curve ........................................................................................................................... 32

3

Declaration of Conformity

We declare under our sole responsibility that this product corresponds to the regulations 2014/35/EU, and 2011/65/EU and conforms with the standards or standardized documents: EN 61010-1, EN 61010-2-010, EN 61326-1 and DIN 12876-1�

Bluetooth® module: Directive: 2014/53/EU Standards: EN 300328, EN 301489-17, EN 301489-1, EN 60950-1

2006/42/EC,

2014/30/EU

Note for USA (FCC)

This equipment complies with Part 15 of the FCC rules� Any changes or modiﬁcations not expressly approved by the Manufacturer could void the user's authority to operate the equipment� This device complies with Part 15 of the FCC rules subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept all interference received, including interference that may cause undesired operation�

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment� This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications� Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense�

Note for Canada (IC)

This device complies with Industry Canada license-exempt RSS standard(s)� Operation is subject to the following two conditions: (1) This device may not cause interference (2) This device must accept any interference, including interference that may cause undesired operation of the device� This device complies with Health Canada’s Safety Code 6/IC RSS-210� The installer of this device should ensure that RF radiation is not emitted in excess of the Health Canada’s requirement�

Explication of warning symbols

Indicates an (extremly) hazardous situation, which, if not avoided, will result in death,

DANGER

serious injury�

Indicates a hazardous situation, which, if not avoided, can result in death, serious injury�

WARNING

Indicates a potentially hazardous situation, which, if not avoided, can result in injury�

CAUTION

Indicates practices which, if not avoided, can result in equipment damage�

NOTICE

Indicates a hazardous situation that cause from a hot surface!

CAUTION

Hot surface!

4

Safety instructions

General information:

• Read the operating instructions completely before

starting up and follow the safety instructions.

• Keep the operating instructions in a place where it can be accessed by everyone�

• Ensure that only trained staff work with the device�

• Follow the safety instructions, guidelines, occupational health, safety and accident prevention regulations�

• Set up the device in a spacious area on an even, stable, clean, non-slip, dry and ﬁreproof surface�

• Do not operate the device in explosive atmospheres

• Protect the device and accessories from bumping and impacting�

• Check the device and accessories for damage before each use� Do not use damaged components�

• Safe operation is only guaranteed with the accessories described in the ”Accessories” section�

• The device must only be operated with the original power cord�

• The socket for the power cord must be easily accessible�

• Socket must be earthed (protective ground contact)�

• The voltage stated on the type plate must correspond to the power voltage�

•

The device can only be disconnected from the power supply by pulling out the power plug or the connector plug�

• Disconnect the power plug before attaching or changing any accessories�

• Disconnect the power plug before cleaning, maintenance or moving the device�

• The device must only be opened by trained specialists, even during repair� The device must be unplugged from the power supply before opening� Live parts inside the device may still be live for some time after unplugging from the power supply�

NOTICE

safe operation, for example to keep foreign objects and liquids, etc� from getting into the device�

• The device must only be used as prescribed and as described in the operating instructions� This includes operation by instructed specialist personnel�

• When using critical or hazardous materials in your processes, IKA® recommends to use additional appropriate measures to ensure safety in the experiment� For example, users can implement measures that inhibit ﬁre or explosions or comprehensive monitoring equipment�

• Process pathogenic material only in closed vessels under a suitable fume hood� Please contact IKA® application support if you have any question�

Coverings or parts that can be removed from the device must be put back on the device again to ensure

�

CAUTION

can be easily accessed must be installed in the work area�

• A laboratory circulator heats/refrigerates and circulates ﬂuid according to speciﬁed parameters� This involves hazards due to high and low temperatures, ﬁre and general hazards due to electrical energy� The user safety can not be ensured simply with design requirements on the part of the device� Further hazard sources may arise due to the type of tempering ﬂuid, e�g� by exceeding or undercutting certain temperature thresholds or by the breakage of the container and reaction with the carrier ﬂuid� It is not possible to consider all eventualities� They remain largely subject to the judgment and responsibility of the operator� For this reason, it may become necessary for user to take other precautionary safety measures�

• Insucient ventilation may result in the formation of explosive mixtures� Only use the device in well ventilated areas�

WARNING

not be exceeded even in the event of a fault� Check the safe temperature circuit on a regular basis (see section "Setting the safety temperature")�

• When device is used for external circulation, extra precaution must be taken for hot/cold liquid leakage due to damaged hose:

- Use suitable hoses for connection�

- Secure hoses and tubes against slippage and avoid kinks�

- Check hoses, tubes and bath at regular intervals for pos-

sible material fatigue (cracks/leaks)�

• Power cable should not get in contact with hot parts and ﬂuids�

If the power switch is not within reach when device is operating, an EMERGENCY STOP switch that

The safety circuit (safe temperature) must be adjusted so that the maximum permissible temperature can-

Do not start up the device if:

WARNING

- It is damaged or leaking

-

Cable (not only power cable) is damaged�

• Be careful when reﬁlling a hot bath�

CAUTION

• After a power failure during operation, the device may start automatically (depending on operating mode)�

• Transport the device with care (see section “Moving the device“)��

At high operating temperature, the temperature of housing parts, surfaces and tubes can exceed 70 ° C�

5

• Do not transport or empty the bath while it is still hot/ cold� This may result in accidents, especially scalding injuries or frostbite�

Disposal of device:

• The device must be disposed of in accordance with national or local regulations

Fluids:

CAUTION

WARNING

the chemical hazards that may be associated with the bath ﬂuid used� Observe all safety warnings for the ﬂuids�

• Depending on the bath ﬂuid used and the type of operation, toxic or ﬂammable vapors can arise� Ensure suitable extraction�

• Do not use any ﬂuid which may cause dangerous reactions during processing�

• Only use recommended bath ﬂuids� Only use non-acid and non corroding ﬂuids�

WARNING

that has been set� The safe temperature limit must always be set to at least 25 ºC lower than the ﬂash point of the ﬂuid used� Examine regularly the function of the safety temperature limiter�

NOTICE

basis (see the chapter “Filling and draining”)�

• Continuous monitoring of the bath and the ﬁlling level of the bath ﬂuid is required, especially at high temperatures�

• To ensure a sucient ﬂuid circulation, the viscosity of the bath ﬂuid at the lowest operating temperature must not exceed a value of 50 mm2/s�

NOTICE

•

Untreated tap water is not recommended� It is recommended to use distilled water or high purity water (ion exchangers) and add 0�1 g soda (sodium carbonate Na /liter, to reduce corrosive properties�

CAUTION

Beware of the risk of burning due to delay in boiling!

Only use ﬂuids, which fulﬁll the requirements for safety, health and device compatibility� Be aware of

Only process and heat up any ﬂuid that has a ﬂash point higher than the adjusted safe temperature limit

Never operate the device without sucient heat carrier ﬂuid! Check the ﬂuid level detection at a regular

If water is used at higher temperature, there is heavy loss of ﬂuid due to the evaporation of the steam�

2CO3

Risk of burning caused by vapor or hot water at the outlet of the cooling coil�

NOTICE

Don’t use following ﬂuids:

- Untreated tap water

- Acids or bases

- Solutions with halides: chlorides, ﬂuorides, bromides, iodides or sulfur

- Bleach (Sodium Hypochlorite)

- Solution with chromates or chromium salts

- Glycerine

- Ferrous water�

NOTICE

and external devices)� When doing this, also open the stopper and union nuts caps of the pump outputs and inputs and blow compressed air through all the pump outputs and inputs! Beware of the risk of burning due to delay in boiling!

Battery pack RB 1 (for WiCo):

NOTICE

(Station) will continue to run or is shut down depending on the value settings for “Time Out”, “Safe Speed” and “Safe Temperature”� If the device is set so that it continues to run when the battery of the WiCo is fully discharged, the only means of switching the station off are the “safe STOP”, “ON/OFF” button and the “Power switch”!

NOTICE

•

Keep the battery pack out of reach of children at all times�

• Store the battery pack in a cool, dry place�

•

Never throw the battery pack into a ﬁre� Keep it away from direct sunlight and temperatures above 60 °C� High temperatures will damage the battery pack and render it unusable� Temperatures above 100 °C may cause it to explode�

• Never throw the battery pack into water or expose it to moisture� Water may lead to a short-circuit, causing the battery pack to explode�

•

Do not deform or crush the battery pack or damage it in any other way� This can cause battery ﬂuid to leak and/or the battery pack to explode�

• When not in use, keep battery packs away from paperclips, coins, keys, nails, screws or other small metal objects which could cause the contacts to be bridged� Short-circuiting may result in an explosion�

)

• Explosion of a battery pack may release battery ﬂuid and cause a ﬁre�

• The lithium polymer battery pack must only be used and charged in IKA® products designed for use with this battery pack�

When changing the bath ﬂuid, remove the remaining water from the complete system (including hoses

If during operation the battery pack RB 1 (rechargeable battery) becomes fully discharged, the device

Please note the following safety instructions for the battery pack RB 1 (rechargeable battery):

6

• When the battery pack is inserted it should slide in easily and without resistance� Do not force it�

• If the battery pack is removed for an extended period of time, store it in a sealed plastic bag to prevent short-circuiting due to moisture or contact with metal components�

• The operating temperature range of the battery pack is from 0 °C to + 45 °C� Note that the battery pack capacity will be reduced at temperatures below 20 °C�

•

Only the rechargeable battery types recommended in the technical data may be used in the device!

Do not charge batteries that have leaked or that are discolored, deformed or damaged in any other way�

Disposal instructions:

• When disposing of the IKA® battery pack, please tape over

the contacts with adhesive tape to prevent short-circuiting due to moisture or contact with metal components� Shortcircuiting may result in an explosion�

Correct use

• Use:

Use HRC 2 (Heated Recirculating Chiller) for tempering and circulating ﬂuids�

Intended Use: Tabletop device

• Do not throw used battery packs into your household waste� Dispose of them properly in accordance with statutory regulations�

End users are obliged by law to return all used disposable and rechargeable batteries� Throwing them

into the household waste is prohibited� Disposable/ rechargeable batteries containing harmful substances are marked with this symbol to indicate that they may not be disposed of as household waste�

• You can return used disposable and rechargeable batteries free of charge to your local authority collection site or to any battery retailer� In doing so you will be complying with statutory regulations and helping to protect the environment�

• Batteries must be disposed of in accordance with local and national regulations�

This device is suitable for use in all areas except:

- Residential areas

- Areas that are connected directly to a low-voltage supply

network that also supplies residential areas�

• Range of use (indoor use only):

- Laboratories - Schools

- Pharmacies - Universities

• Wireless remote control:

Before using the wireless link between the WiCo and the laboratory device, ﬁrst check whether your region is included in the radio communication approval for the device� If it is not, remote control can also be performed using a USB cable�

The safety of the user cannot be guaranteed:

- If the device is operated with accessories that are not sup-

plied or recommended by the IKA®�

- If the device is operated improperly or in contrary to the

IKA® speciﬁcations�

- If the device or the printed circuit board are modiﬁed by

third parties�

7

Unpacking

• Unpacking:

- Unpack the device carefully�

- Any damage should be notiﬁed immediately to the shipping agent (post oce, railway network or logistics company)�

• Delivery scope:

- HRC 2 control with WiCo

- Power cables

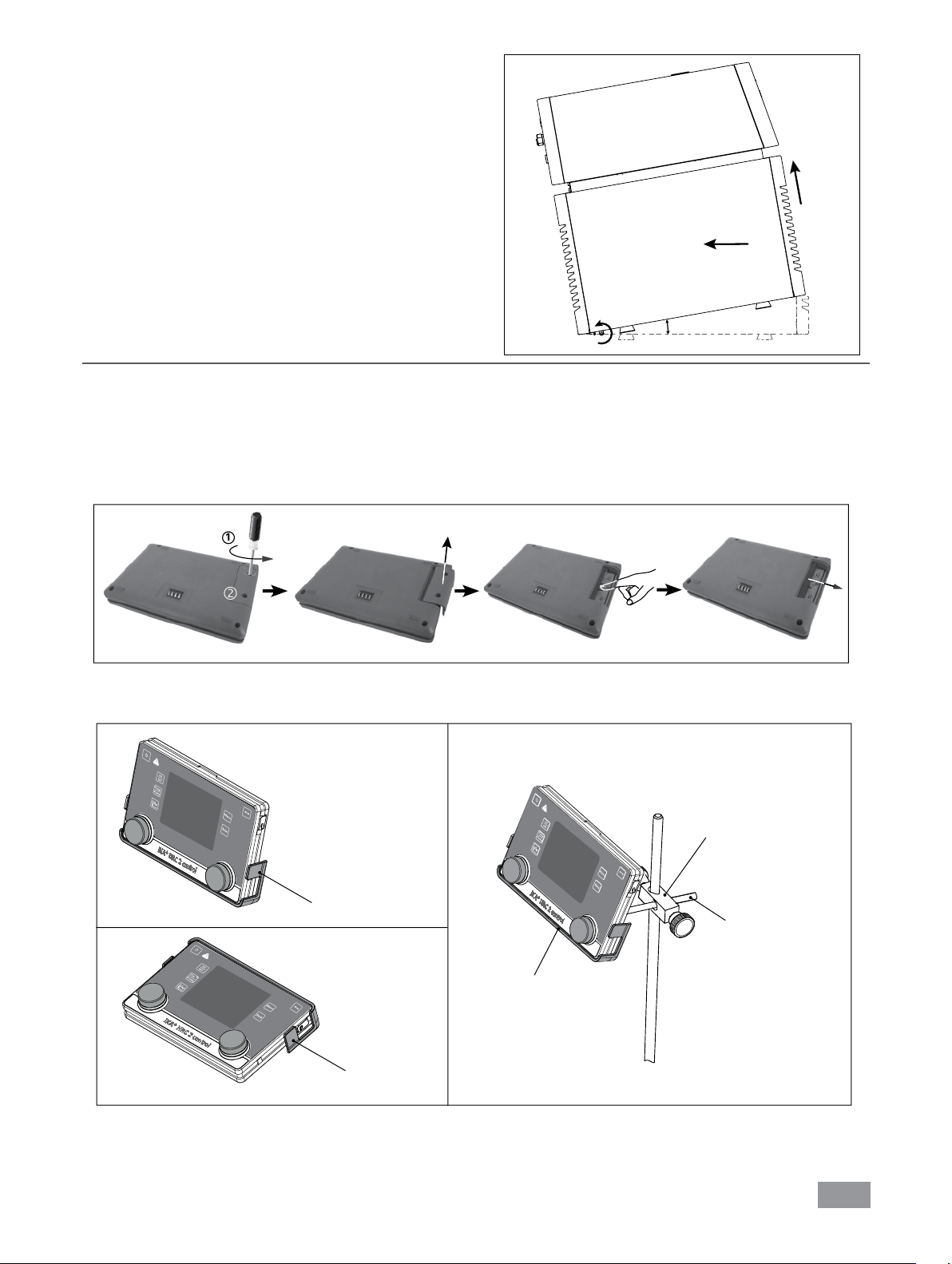

- Hose olive NW 8 (2 pieces) see Fig� 2

- Hose olive NW 12 (2 pieces) see Fig� 2

- Screwdriver (use for safety circuit) see Fig� 3

- OS 1�0 power supply (for WiCo) see Fig� 4

- USB 2�0 cable micro A–micro B

- USB 2�0 cabel A–micro B

- Plastic cap (for “Overﬂow” connector)

- Plastic cap (for “Backﬂow” connector)

- User guide

- Warranty card�

Fig. 4

Fig. 3Fig. 2

Adapter Europe, Switzerland

Adapter England

Adapter USA, China

Adapter Australia

Preparations

• Setting up:

- Place the unit on an even, stable, clean, nonslip, dry and ﬁreproof surface�

- Keep at least 20 cm of open space on the front and rear side�

- The place for installation should be large enough and provide sucient air ventilation to ensure the room does not warm up excessively because of the heat from device radiates to the environment�

- Do not set up the device in the immediate vicinity of heat sources and do not expose to sun light�

- Cooling machine, pump motor and electronics produce intrinsic heat that is dissipated via the venting grids (3)! Never cover these venting grids!

Note: After setting up the device, wait at least one hour before starting the operation to avoid the damage to the cooling system�

• Connecting the tubings:

- Unscrew the union nuts and stoppers using a wrench (SW19) from the pump connector IN (14) and OUT

Stopper

(13)�



- Connect the hoses for circulating the external system to the pump connection M 16 x 1 for IN and OUT directly or with the olives�

- Screw the hose olives to the pump connection IN and OUT with union nuts� Slide the hoses (NW 12) onto the olives� The hoses must be secured with suitable clamps�



Fig. 5

- Via a hose to the “Overﬂow” connector, overﬂowing ﬂuid can be directed into a suitable vessel� The vessel should be positioned lower than the “Overﬂow” connector�

- Connect the “Backﬂow” connector to IKA eter with a suitable hose�

Olive

Union nut

Fig. 6

®

calorim-

Union nut

Fig. 5

8

External



control

system

• Mounting the WiCo to the station:



IKA®

Calorimeter

Fig. 7

Note: Please note the permissible temperature range of

hoses� For hot ﬂuids we recommend the IKA® LT 5�20 hoses� When the external system is not necessary, please seal the pump connection IN and OUT with the existing union nuts and stoppers� When IKA® calorimeter is not connected, please close the “Backﬂow” connector with included backﬂow cap� In case of closed external system, if there is in any case no risk of exceeding the maximum ﬂuid level, you can close the “Overﬂow” connector with the included overﬂow cap� This minimizes the energy loss and protects, in case of long-term applications with low temperatures and high humidity, against unwanted water input and the associated volume increase� Check ﬂuid heat expansion!

• Inserting battery into the WiCo:

®

IKA

HRC 2 control

R 2



Fluid level

High

Low

Fig. 9

If the WiCo need be permanently attached to the

Note:

station, we strictly recommend to fasten the unlocking button with the integrated screw (turn counter clock wise)�

• Filling and draining:

- Before ﬁlling the ﬂuid into the bath, open the front cover as indicated in following ﬁgure�

®

HRC 2

IKA



Model: WiCo CBC 5

Note: notch upward!

Model: WiCo CBC 5

Fig. 8



Model: WiCo CBC 5

LPS

IP 40

LPS IP 40



LPS IP 40



Fig. 10



Model: WiCo CBC 5

LPS

IP 40

- Check and make sure that the drain valve is closed (rotate clockwise to the stop position, see Fig� 11)�

Note: Please note information in section “Commissioning”�

- Connect the power plug and turn on the device with power switch (12)�

- The low level icon (

) appears on the display of the WiCo� Meanwhile, the bottom LED segment of ﬂuid level indicator lights up in red color to indicate the low ﬂuid level�

- Open the ﬁlling opening lid (4) and remove the stopper from the ﬁlling opening� Then, ﬁll ﬂuid to the bath�

Note:

The stopper must be kept being plugged in dur-

ing during operation except for ﬁlling ﬂuids�

9





Drain port

Drain valve

High

Low

® ®

HRC 2 control

RC 2 control IKA IKA

el v

Fluid le





Fig. 11

Bracket

Note: Pay attention to the ﬂuid level information�

Fluid level information on the WiCo display:

— Low level — High level

Fluid level information on the ﬂuid level indicator:

Red (High Level)

Red (Low Level)

Fig. 12

- To drain the ﬂuid from the bath, connect a hose to the drain port and turn the drain valve in counter clockwise direction with a straight screwdriver�



Fig. 13

Warning: Do not empty the bath while it is still hot/cold,

there is a risk of burning/freezing�

10

• Fluid (Standard information for IKA® ﬂuid):

®

IKA

Designation

CF�EG28�N10�80�8 CF�EG39�N20�80�16 CF�EG44�N25�80�19 CF�EG48�N30�80�22 UF�Si�N30�150�10LV HF�Si�20�200�50 HF�Si�20�250�50A H2O (Water) 

Customized 1

Customized 2



Operating temperature

range for open bath

application

(°C)

-10 �� 80 -10 … 80 90 115

-20 … 80 -20 … 80 90 115

-25 … 80 -25 … 80 90 115

-30 … 80 -30 … 80 90 115

-30 … 130 -30 … 150 20 … 200 20 … 200 255 >280 20 … 200 20 … 250 255 >280

5 … 95 5 … 95 - -

Operating temperature

range for closed bath

applications

Check the suitability of the fluid according to your application�

Nomenclature for IKA® fluid: CF�EG28�N10�80�8 --

(5) Addition information (4) Kinematic viscosity (8

mm²/s

) (3) Temperature range (- 10–80 °C) (2) Chemical composition (Ethylene Glycol 28 %) (1) Classiﬁcation (Cooling ﬂuid)

(°C)

Safety temperature

(°C)

145 

Flash point

(°C)

>170

(1) Classiﬁcation:

HF: Heating Fluid CF: Cooling Fluid UF: Universal Fluid

(2) Chemical composition:

Si: Silicone oil EG: Ethylene Glycol

(3) Temperature range: (

Minimum temperature� Maximum temperature)

N: Negative Temperature

(4) Viscosity:

Viscosity at 25 °C for Heating Fluid (HF) Viscosity at -20 °C for Cooling Fluid (CF) Viscosity at 25 °C for Universal Fluid (UF)

Dynamic viscosity [mPa•s] is a product of kinematic viscosity [mm²/s] and density [kg/m³] of the ﬂuid divided by 1000�

(5) Additional information:

A: Oil Additives LV: Low Viscosity



Note: for open bath application!



Note: Tap water may be unsuitable for operation because the calcium carbonate content may cause calcification�

High purity water (from icon exchangers) and distilled or bi-distilled water are unsuitable for operation due to corrosive

properties of these media� High purity water and distillates are suitable as a medium after adding 0�1 g soda (Na2CO3, sodium carbonate) per liter of water�

 Note: The limits can be adjusted according to the ﬂuid used�

11

1



• Moving the device:

Empty all ﬂuid in the bath before moving device from one place to other place� The device can be lifted up and moved by holding the top handles or bottom handles� It can also be moved on ﬂat surface by lifting and pushing the front of the device� It is easy to move the device with the help of the wheels� The angle of inclination should never be more than 10 º at any direction when move the device!

Note: The device must not be moved during operation� After moving the device, you must wait at least one hour before restarting the unit�

Fig. 14

• Charging the Battery Pack RB 1 (rechargeable battery):

The battery pack in the WiCo can be charged by any of the following means:

- On the station

- Via a USB cable at the PC or station

- Via an OS 1.0 power supply unit�

•

Changing battery to WiCo:





max. 10 ˚



Fig. 15

Note: Please observe the relevant safety instructions in the "Safety instructions" section for the RB 1 battery pack!

•

WiCo – holder WH 10:

IKA

®

HRC 2

control

IKA

®

HRC 2

WiCo – holder WH 10

control

WiCo – holder WH 10

H 44 Boss head clamp

H 38 Holding rod



Fig. 16

IKA

®

HRC 2

control

WiCo – holder WH 10

12

Operator panel and display

• station:

H

A

B

Fig. 17

Item Designation Function A On/Off button: Switch on/off the station� B Adjustable safety circuit: Adjust the safety temperature limit with delivered screwdriver� C LED bar: Display different status of the circulator with different color� D Contacts: Communicate and charge the WiCo� E "safe STOP" button: Safe stop the working of the station in emergency� F

Bluetooth® searching button:

Search the WiCo when the Bluetooth® is active�

G Bluetooth® LED: Bluetooth® indicator� H Fluid level indicator: Indicate the bath ﬂuid level (when the ﬂuid level is too low or too high, the bottom

or the top LED segment change into red color)�

G

F

E

C

D

• WiCo:

L

M

N

O

P

V

U

T

S

R

Fig. 18

Item Designation Function L On/Off M “int/ext” button: N “Timer/Pump” button:

button

: Switch the WiCo on and off�

Switch between the internal and external temperature display and control� Switch between the timer and pump display�

O Graph button: Display time/temperature graph� P Rotating/pressing knob: Set the temperature value�

Start/Stop the heating/cooling function� R Rotating/pressing knob: Navigation, selecting and changing the settings in the menu� Set the pump speed value� Start/Stop the pump function�

S Display: Screen� T “Back” U "Menu"

button

: Return to the previous menu level�

button

: Press it once: main menu is displayed�

Press it a second time: back to the working screen�

V Lock

button

: Lock/Unlock the knobs and buttons�

13

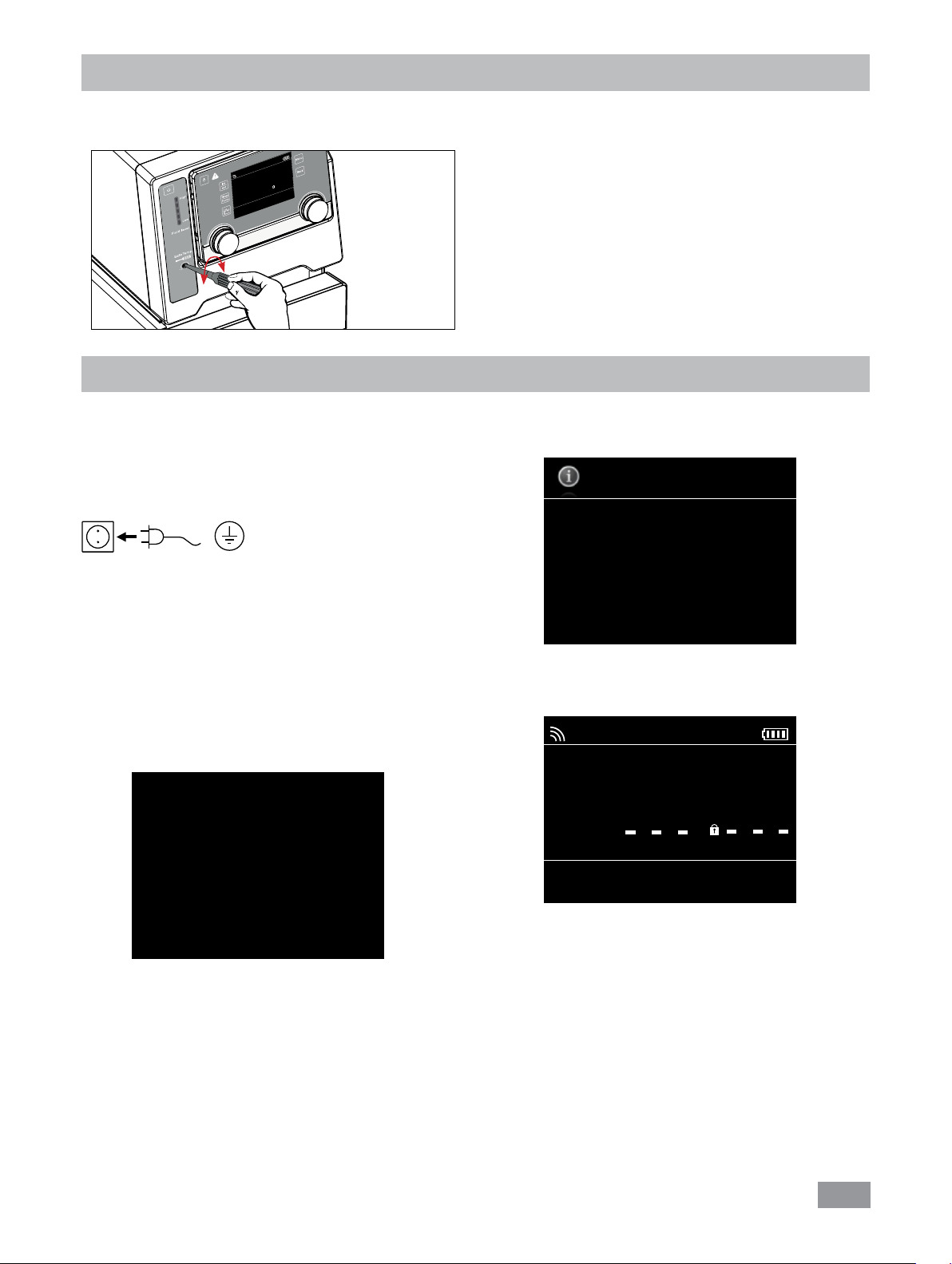

Setting the safety temperature

A

0.00

int °C

ext °C

int 5.00 2000

set °C Pump rpm

Safe Temp °C

25.00110.00

Setting the safety temperature with screwdriver delivered with the device�

High

Low

el

v

Fluid le

®

HRC 2 control

RC 2 control

IKA

+

-

Fig. 19

Commissioning

Note: Before commissioning, make sure that the device has not been moved in one hour!

Check whether the voltage given on the type plate corresponds to the available power voltage�

The socket used must be earthed (ﬁtted with earth contact)�

If these conditions have been met, the machine is ready for operation when the power plug is plugged in� If these conditions are not met, safe operation is not guaranteed and the machine could be damaged�

Observe the ambient conditions (temperature, humidity, etc�) listed under “Technical Data”�

After pressing the power switch (12) of the station, the screen of the WiCo displays the device designation and the software version after a beep�

The safety temperature setting will appear on the display�

Factory setting: maximum value� Adjustment range: 0 to 110 °C�

Warning: The safe temperature limit must always be set to at least 25 ºC lower than the ﬂash point of the ﬂuid used�

After several seconds, screen display the information of WiCo�

Information

Internal Max: 85 °C

Internal Min: 5 °C

External Max: 85 °C

External Min: 5 °C

Fluid: H

O (Water)

2

Fig. 21

Then the working screen appears and the device is ready for operation�

A

0.00

int °C

IKA

Circulator HRC Control Version 1.2.008

Fig. 20

®

ext °C

Safe Temp °C

int 5.00 2000

set °C Pump rpm

Fig. 22

Change the temperature setting with left knob (P)� Change the pump speed setting with the right knob (R)�

In standby status, activate the tempering function by pressing the left knob (P)� The device start tempering function� Meanwhile, the pump starts to run at once� After pressing the power switch (12) the start-up of the compressor is delayed (about 3 minutes)� In working status, press the right knob (R) to stop operation of the pump� The tempering function and the pump stops�

14

Note: In standby status, press the right knob (R) to start the pump function, the tempering function will not be activated� In working status, press the left knob (P) to stop the tempering, the pump keep running�

When the WiCo is switched on without being connected to the station, the green LED bar (C) and the green Bluetooth® LED (G) on station lights up� The control elements of the WiCo allow to be locked by pressing the lock button (V) about 2 seconds, so no accidental changes during operation are possible (lock symbol

appears in the display)� By pressing lock button (V) about 2 seconds again, the control elements are released (lock symbol disappears from the display)�

Useful information

Note: In an emergency, the device function can be turned off by pressing the “safe STOP” key (E) at the front of station� The LED bar (C) changed into red color� A message appears in the display indicates that the station was forced off� To restart, press the power switch (6) or On/ Off button (A) off and on again�

If the Bluetooth® function of the WiCo is activated, the Bluetooth® icon appears on the screen and the user can search the WiCo by pressing the searching button (F)� Then, a beep is heard�

The station is controlled via a WiCo� If the WiCo is mounted on the station, data is exchanged between the station and WiCo via the contacts (D)� The screen of the WiCo displays the home icon � The WiCo is equipped with a USB socket (Universal Serial Bus) with which the WiCo can be connected with station, the USB icon appears on the screen� If the WiCo is not connected with station via a USB cable, the data exchange between the station and the WiCo via Bluetooth®� In this case, the Bluetooth® icon is displayed �

Depending on the structure of the building, the WiCo can be operated at a distance up to 15 m from the station, using the Bluetooth® connection� The WiCo could be either installed on the station or put on a safe place where is accessed easily by the user during operation� If the WiCo is mounted on the station, the battery is charged through the contacts (D)� The battery could also be charged via the USB port on the WiCo (See “Charging the Battery Pack RB 1“ in “Preparations“ section)�

15

•

Working screen at the time of delivery:

A

Working with WiCo

A Operating Mode:

This symbol indicates the operating mode currently selected (A, B, C, D)�

0.00

int °C

ext °C

Safe Temp °C

int 5.00 2000

set °C Pump rpm

Fig. 23

Note: The wireless symbol appears only when the sta-

tion is switched on�

•

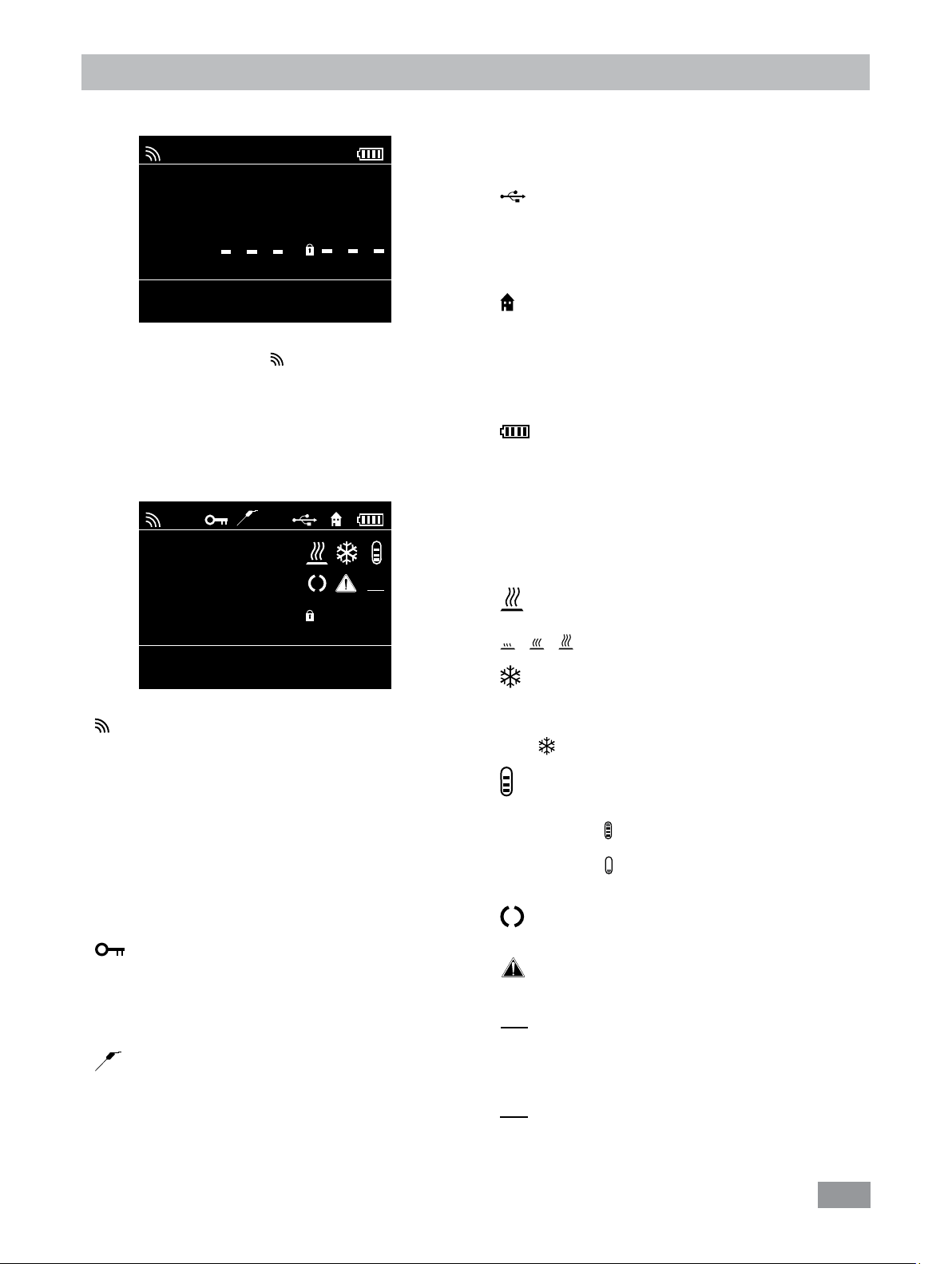

Explanation of symbols on the working screen:

The symbols displayed change depending on the status and settings of the WiCo and the station� The screen below shows the most signiﬁcant symbols on the working screen�

99

A

10.00

int °C

PC

10.00 110

ext °C

int 10.00 2000

set °C Pump rpm

Fig. 24

Bluetooth®:

This symbol means the station and the WiCo are communicating via Bluetooth®� The symbol no longer appears if no Bluetooth® communication is being performed�

99 Device number:

This ﬁgure appears when the “Device Number“ is activated in menu option “Display“� The ﬁgure can be set from 0 to 99� See section “Display“ under “Menu (Details)“�

Lock: This symbol means that the function of the buttons and the rotary knobs for controlling the WiCo are disabled� The symbol no longer appears if the functions are enabled once again�

Temperature Sensor:

This symbol appears when the external temperature sensor is connected�

Safe Temp °C

USB:

This symbol means the WiCo is communicating or the battery is charged via a USB cable� The symbol no longer appears if no USB cable is being used for communicating with the station�

Home:

This symbol means that the WiCo is connected to the station and is communicating with the station via the

contacts� The symbol no longer appears if the WiCo is removed from the station�

Battery pack:

This symbol indicates the charging status of the RB 1 battery pack within the WiCo� The charging symbol appears if the WiCo

- is connected to a PC via a USB cable

- is connected to a station via a USB cable

- is connected to the power supply unit OS 1�0 via a USB cable

-

is connected to the station via the charger contacts�

Heating

This symbol indicates that the heating function is active�

  indicate active heating process�

Refrigerating This symbol indicates that the refrigerating function is active�

 indicates active refrigerating process�

Fluid level

This symbol indicates ﬂuid level� The red symbol means the ﬂuid is above the maximum ﬂuid level� Excess ﬂuid should be drained out� The red symbol means the ﬂuid is below the minimum ﬂuid level� Please add ﬂuid�

Pump:

This symbol indicates that the pump is activated�

Warning:

This symbol indicates that warning is active�

PC

PC Control:

This symbol means that either the station or the WiCo is connected to a computer and is being controlled from the computer�

PR

Program Control:

This symbol indicates that the WiCo is controlled by a program (see “PROGRAMS”)�

16

• Menu navigation and structure:

Back

Menu navigation:

 Press the "Menu" button (U)�  Select the menu by turning the right rotating/pressing knob (R) to the right or

U

left�

T

 Open the menu item by pressing the right rotating/pressing knob (R)�  Turn the rotating/pressing knob (R) to select the desired menu option and edit

the values or settings�

R

 Press the rotating/pressing knob (R) to get into sub menu items to active/inac-

tive to switch settings or to conﬁrm settings ("OK")�

 Press the "Back" button (T) to a setting or cancel to return to the previous

menu�

Fig. 25

HRC 2

Control elements

for menu navigation

 Press the "Menu" button (U) to return directly to the working screen�

Note: When the tempering or pump functions are active, the menu is locked� On the display, the active menu option is highlighted in yellow� The active status of a menu item is marked with a check (√)�

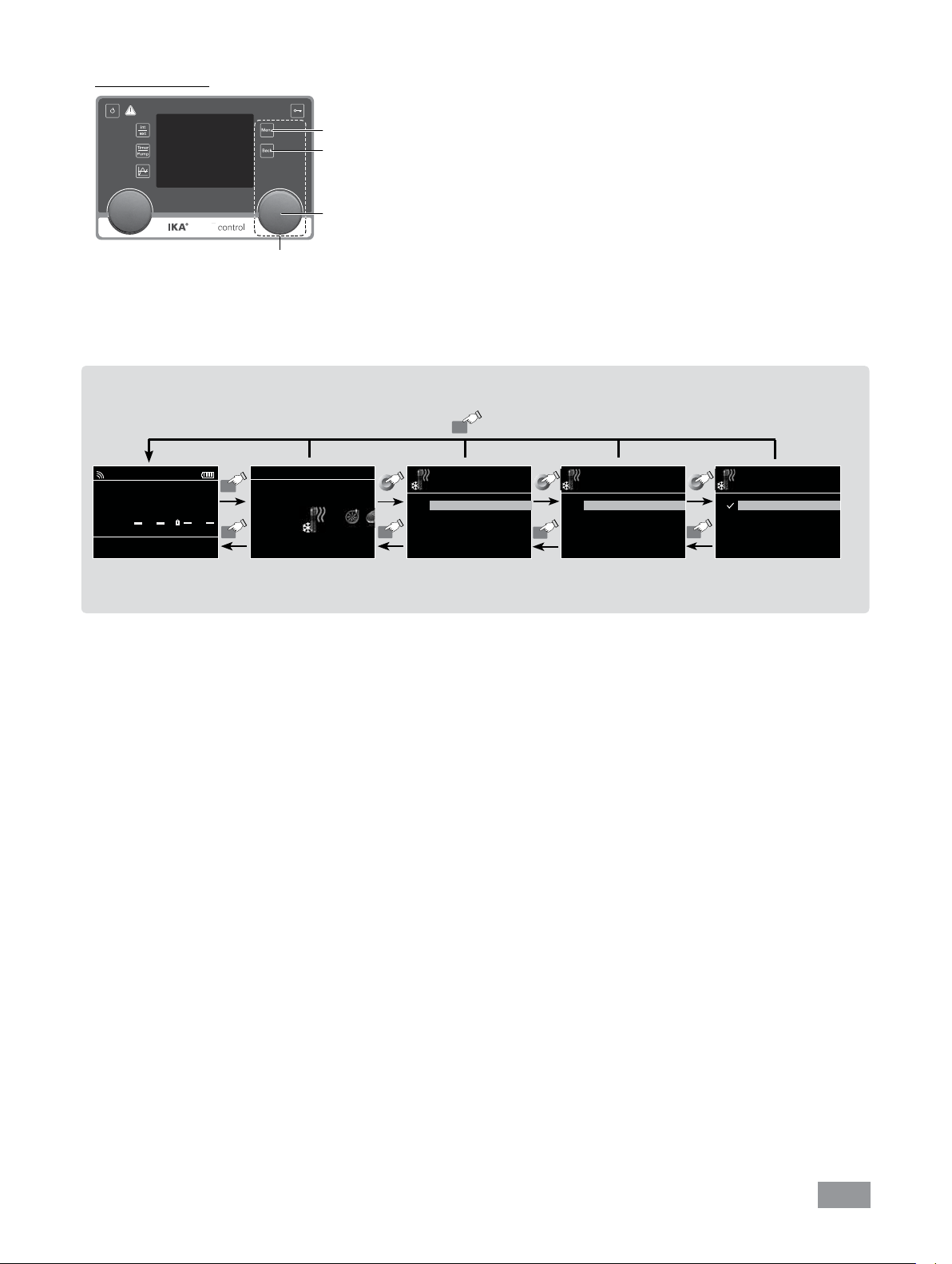

Menu navigation:  

A

0.00

int °C

int 5.00 2000

ext °C

set °C Pump rpm

Press the “Menu“ button (U) and rotate rotating/pressing knob (R)� Press the ”Back” button (T) or the ”Menu” button (U)�

Menu

Safe Temp °C

Menu

MENU

TEMPERING

Back

Tempering

Control

Limits

Temperature Sensor

> Tempering

Control

Control Mode

Control Parameters

Back

Fluids

Note: If you press the “Menu“ button (U), the system skips directly back to the working screen�

If you press the “Back“ button (T), the system skips back to the previous screen�

Fig. 26

> Tempering > Control

Control Mode

Internal (int)

Back

External (ext)

17

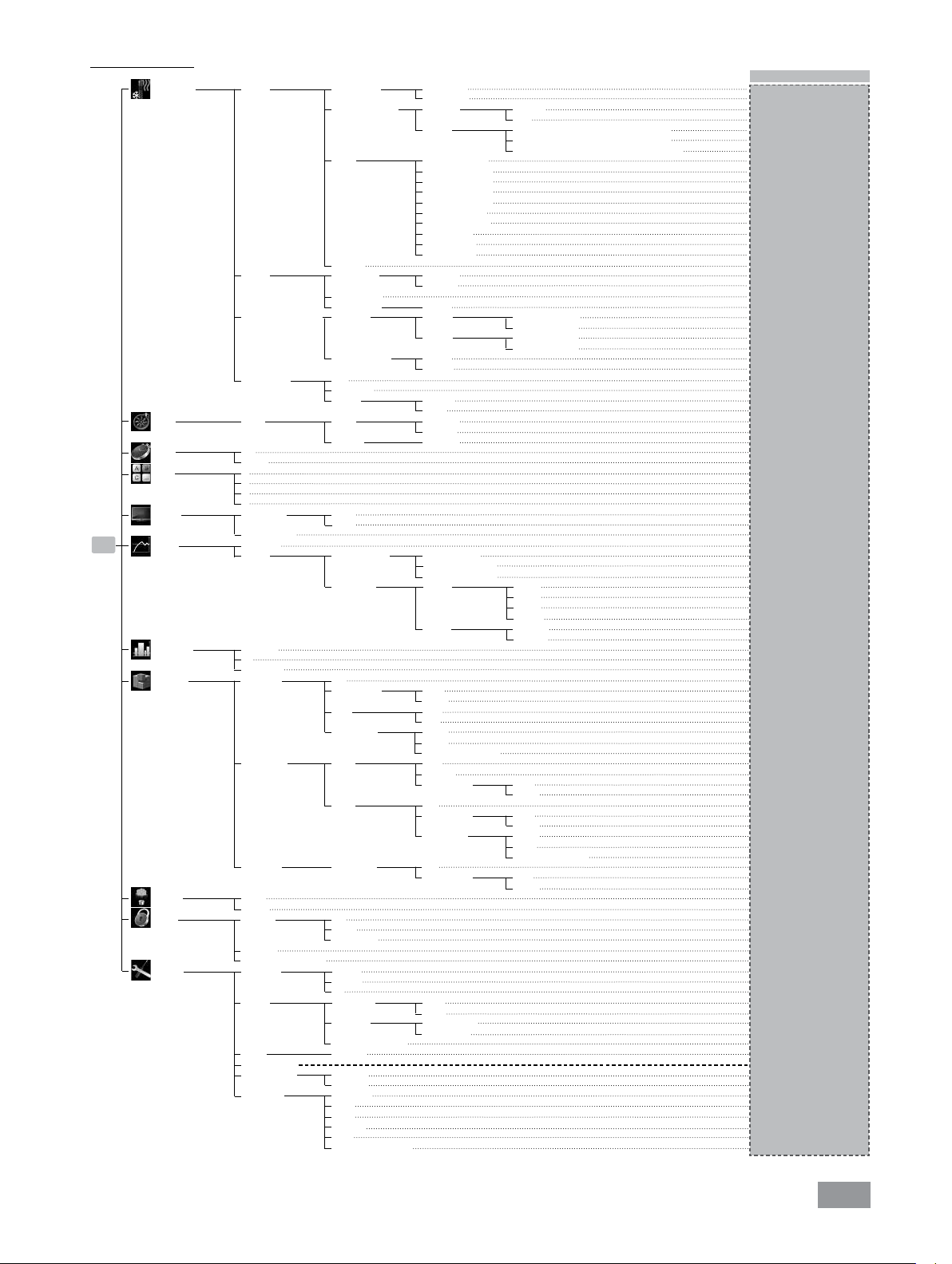

Menu structure:

TEMPERING Control Control Mode

PUMP Limits Speed

TIMER Set

MODE A

DISPLAY Main Screen Pump

Menu

GRAPH Automatic

PROGRAMS Program 1

MODULES M1 - Valve

OUTGAS Speed

SAFETY Time out

SETTING Languages

Internal (int) activated

Control Parameters

Fluids

Cooling

Limits

Temperature Sensor

Notiﬁcation

Display

B C D

Device number

Manual Axis Assignment Set Temperature

... Program 10

M2 - Output

M3 - Input Ext. Standby

Interval

Password Safe Temp. Conﬁrmation

Display

Sound Factory Settings Communication

Information

Eternal (ext)

I T (int - ext)I Power Output Calibration

Reset Calibration

ON Hysteresis Sound Inﬁnite

Pressure

Timer

Axis Scaling

ON Default Status Open

Reﬁll

Temperature

Alarm

Switch

Set Speed Temperature 30.00 °C

English Deutsch ... Background

Brightness

Firmware Update Info Key Tone

Device name Bluetooth Tempering Pump Safety Software Intro Firemware Update Info

Eternal (ext) Automatic Accurate

Manual

CF.EG28.N10.80.8 CF.EG39.N20.80.16 CF.EG44.N25.80.19 CF.EG48.N30.80.22 UF.Si.N30.150.10LV

HF�Si�20�200�50 HF�Si�20�250�50A

O (Water)

H

2

Customized 1 Customized 2

Maximum Minimum

Heating Internal

Eternal

Internal Eternal

Beep

Maximum Minimum Maximum

Actual Internal Temp. Actual External Temp. X - Axis

Y - Axis

Closed Start Stop Higher Lower Int > Set Temperature Error Warning Default Status

ON Default Status

Temperature

ON Default Status

Black White

Standard Mode Battery Mode

Fast Internal (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) Eternal (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) Information (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn)

2 Point Calibration 3 Point Calibration 2 Point Calibration 3 Point Calibration

15 min 30 min 60 min 120 min Maximum Minimum

Open Closed

Open Closed Higher Lower Int > Set Temperature

Open Closed

Factory Settings

activated

-

60.0, 5.0, 0.3, 3, +1.00, -1.00

1.0, 15.0, 0.0, 90, +1.00, -1.00

-

activated

-

activated 85 °C 5°C 100 °C 100 %

-

± 0.0 K

activated 4000 rpm 2000 rpm

0.5 bar 00:00 [hh:mm]

activated

-

activated

1 activated activated activated activated

activated

-

85 ºC 5 ºC

-

activated

Level 2 Level 4 85 ºC 5 ºC

-

activated

-

activated

85 ºC

5 ºC

-

activated

2000 rpm 10 s 00:30 [mm:ss] 2000 rpm

000

activaed

-

activated

100 % 40 %

-

Circulator WiCo activated yes yes yes yes yes yes

18

• Menu (Details):

°C

t

°C

t

°C

t

°C

t

TEMPERING:

1. Control:

1) Control Mode:

Internal (int): The temperature is regulated according to the internal temperature sensor�

Extern (ext): The temperature is regulated according to the external temperature sensor�

2) Control parameters:

Automatic: The optimal control parameters for PID temperature control are determined automatically� This is the recommended mode� Selecting "Automatic" allows you to set the dynamics for temperature control�

Accurate: precise tempering without overshooting� Fast: fast tempering with minimal overshooting�

Ts: Sampling time

The sampling time Ts (s) is the time interval over which the control deviation is determined and the respective control variable (dependent on Kp, Ti and Td) is calculated� Ts must be adjusted to match the response characteristic (total of all time constants) of the closed loop controlled system, so that the control variable can deliver a uniform and measurable change in the control deviation� Ts values that are too small or too large can lead to instability of the controller�

Prop_Bp: Proportional Band Maximum� Prop_Bn: Proportional Band Minimum�

The Proportional Band is the range below (Prop_Bp) and above (Prop_Bn) the set value in which the control output value is calculated via the difference between the actual and the set value and the PID parameters�

Examples of non-optimal settings:

Kp too high

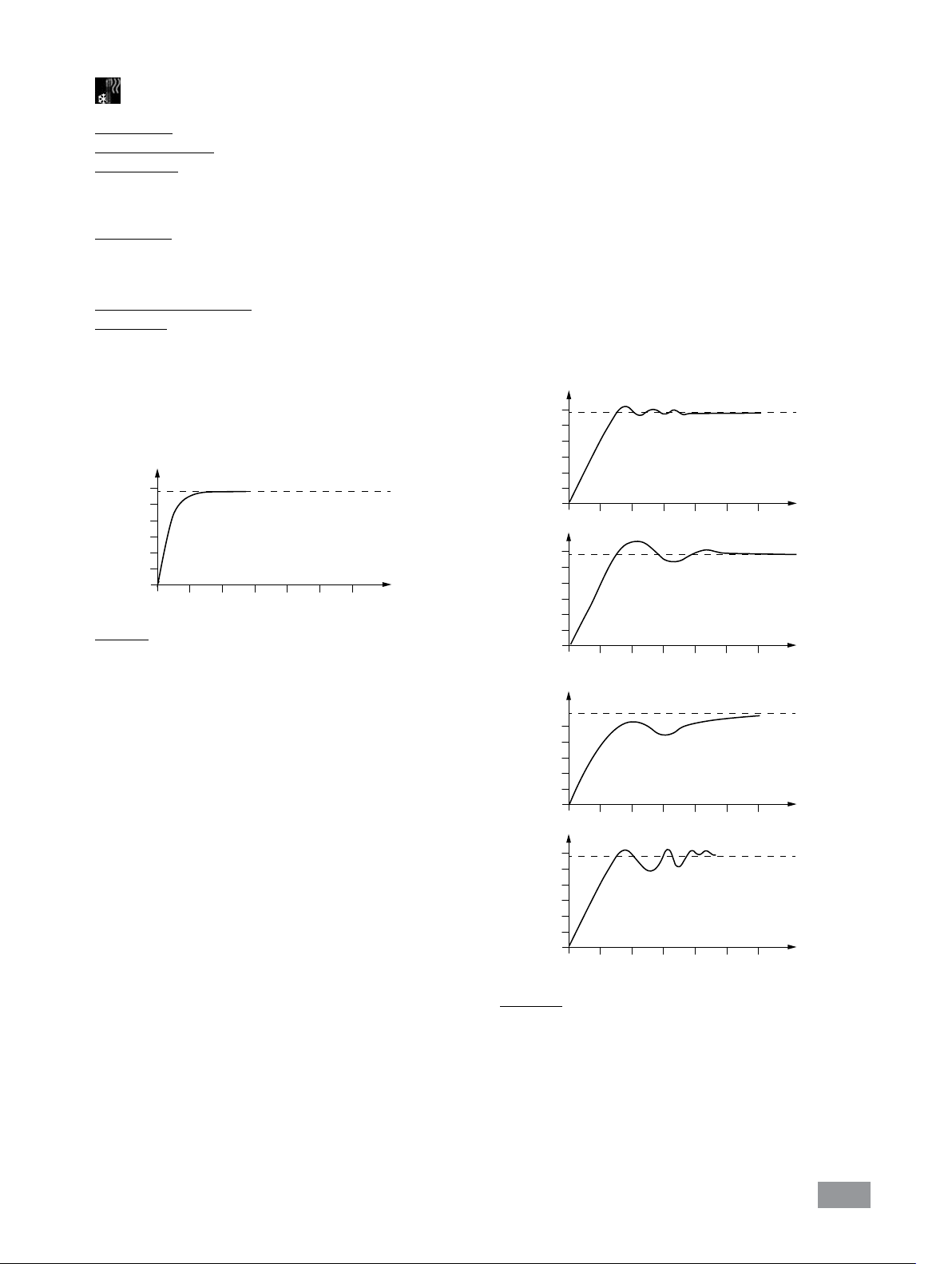

Fig. 27

(heating curve in "Automatic" mode) Manual: The control parameters for PID temperature control can be set manually� "Manual" should only be used in the event of special temperature control requirements� When "Manual" is selected, the following parameters can be set for "Internal (int)" and "External (ext)" temperature control: Kp: Proportional coecient The proportional coecient Kp is the controller ampliﬁcation and determines how strongly the control deviation (the difference between the target temperature and actual temperature) directly affects the control variable (ontime of the cooling)� Kp-values that are too large can lead to the controller overshooting� Ti: Integral time The integral time Ti (s) is the correction time and determines how strongly the duration of the control deviation affects the control variable� Ti compensates for an existing control deviation� A high Ti means a smaller and slower effect on the control variable� Ti-values that are too small can lead to instability of the controller� Td: Differential time The differential time Td (s) is the derivative time and determines how strongly the rate of change of the control deviation affects the control variable� Td compensates for rapid control deviations� A high Td means a smaller and slower effect on the control variable� Td-values that are too large can lead to instability of the controller�

Ti too low

Kp too low Ti too high

Td too high

t

Fig. 28

3) Fluids:

Under the option "Fluids", a variety of ﬂuids can be selected� The selected ﬂuid limits the setting range of the target temperature� See table in the section “Fluid (Standard information for IKA® ﬂuid)“� The maximum and minimum temperature values of the selected ﬂuid can be set within these limitations�

19

4) Cooling:

This menu option allows you to activate/deactivate the cooling function�

Under "l Δ T (int - ext) l", the maximum difference between the internal and external temperature can be set� The function limits the absolute temperature difference between the external system and internal bath during the

2. Limits:

Under the option "External (ext)", the maximum and minimum temperature for external temperature control can be limited�

heating up and cooling down process� This can protects sensitive device like the glass reactors from thermal shock (e�g� glass break)� Under “Power Output“, the maximum heating output can be set as a percentage of nominal heat output�

3. Temperature sensor:

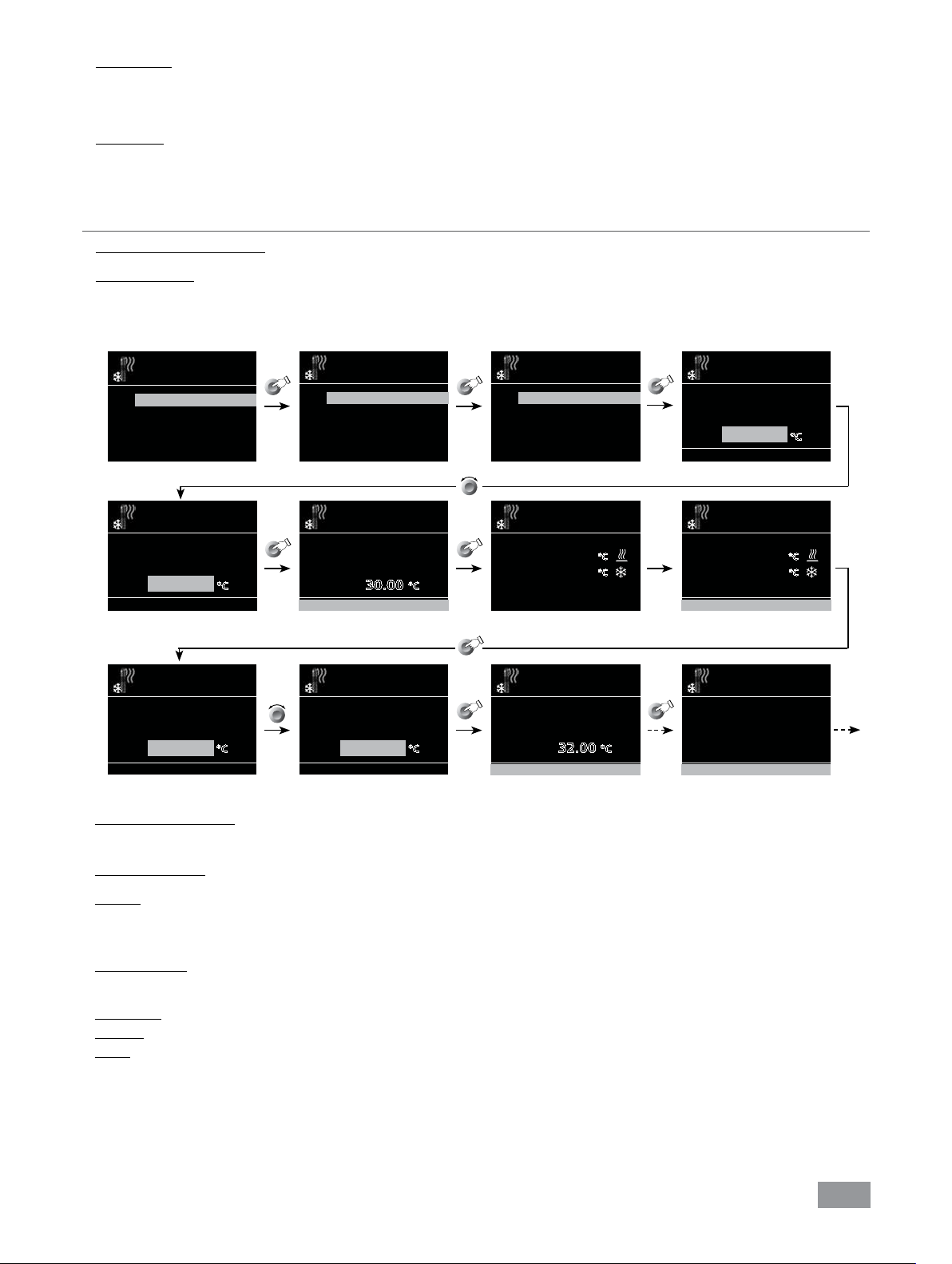

1) Calibration:

The internal and the external temperature measurement can be calibrated and adjusted� You can select 2-point calibration or 3-point calibration for internal and external measurement� Calibration proceeding (example: 2-point calibration):

> Tempering

Temperature Sensor

Calibration

Reset Calibration

> Temperature Sensor

Calibration

Internal

External

> Calibration

Internal

2 Point Calibration

3 Point Calibration

> Calibration > Internal

2 Point Calibration

Temperature sensor calibration

Step: 1 / 2

at

5.00 C

OK

> Calibration > Internal

2 Point Calibration

Temperature sensor calibration

Step: 1 / 2

at

30.00 C

OK

> Calibration > Internal

2 Point Calibration

Enter the temperature from the

measuring device

Step: 1 / 2

5.00 C

OK

> Calibration > Internal

2 Point Calibration

Temperature sensor calibration

Step: 1 / 2

at

30.00 C

OK

> Calibration > Internal

2 Point Calibration

Enter the temperature from the

measuring device

Step: 1 / 2

32.00 C

OK

> Calibration > Internal

2 Point Calibration

Step: 1 / 2

Target Temp: 30.00 C Actual Temp: 25.00 C

Please wait...

> Calibration > Internal

2 Point Calibration

Enter the temperature from the

measuring device

Step: 1 / 2

32.00 C

OK

> Calibration > Internal

2 Point Calibration

Step: 1 / 2

Target Temp: 30.00 C Actual Temp: 30.00 C

OK

> Calibration > Internal

2 Point Calibration

Sensor calibrated successfully

OK

Fig. 29

2) Reset Calibration:

By “Reset Calibration”, the calibration value for the internal or the external temperature sensor will be deleted�

4. Notiﬁcation:

1) ON:

This menu option allows you to activate/deactivate the “Notiﬁcation“ function� A green check mark and a beep informing when the target value (hysteresis) has been reached�

2) Hysteresis:

This menu option allows you to set the hysteresis from 0 to ± 2�0 K�

3) Sound:

Inﬁnite: Beep until you press the “Back” button� Beep: Single beep�

20

PUMP:

Limits:

In “Limits“ menu option, you are allowed to set the maximum and minimum speed to the pump, and also the maximum pressure�

TIMER:

1. Set:

You can set a target time (duration) in this menu option� When device functions are started normally, this time is displayed on the working screen� The device functions stop automatically once this time has expired� The running time is then displayed again on the display�

Note: To deactivate the target time speciﬁcation, set the target time to 00:00�

GRAPH:

In this menu, you can set the options for the time-temperature diagram�

1. Automatic:

The scaling of the temperature axis (Y-axis) is automatically determined, depending on the target temperature and the actual internal and external temperature� The time axis (X-axis) is permanently scaled to 30 minutes�

2. Manual:

1) Axis Assignment:

The temperature values to be displayed can be selected�

2) Axis scaling:

Scaling of the time (X) and temperature axis (Y) can be selected or set�

2. Display:

Activate the timer display on the main display (working screen)�

MODE:

1. Operating Mode A:

After power-on/power failure no automatic restart of functions�

2. Operating Mode B:

After power-on/power failure automatic restart of functions, depending on previous settings�

3. Operating mode C:

Set values (set in A or B) cannot be changed� After power-on/power failure automatic restart of functions, depending on previous settings�

4. Operating mode D:

Conﬁrmation request for set value changes, if functions are active� After power-on/power failure no automatic restart of functions�

DISPLAY:

1. Main Screen:

In the “Main Screen“ menu option, you can specify what information will be displayed on the screen�

2. Device Number:

In the “Device number“ menu option, you are allowed to edit the device number from 0 to 99 that will be shown on the main screen� When using multiple units, it may be helpful to identify WiCo and station�

Note: Labeling device number to the station�

PROGRAMS:

Under programs, 10 user-deﬁned temperature-time proﬁles can be created� A program can consist of up to 10 segments� Once a program has been selected, the following options are available:

1. Start:

Starts the program upon request of loop mode�

1) Inﬁnite loop: Upon completion of the last segment, the program continues with the ﬁrst segment until you end the program by stopping a device function�

2) Loop Count: Indicates the total number of loop cycles until program end�

Note: At the end of the program all device functions are switched off�

2. Edit:

Edit/change program�

1) Seg No.: Segment number�

2) Ctrl. Sensor (int/ext): Determines whether control is

through the internal (int) or external (ext) temperature sensor�

3) Temp.: Target temperature�

4) Ctrl.Mode (Time / +/- x.x K): In "Ctrl�Mode Time" the

target values and settings of the segment are valid for the duration indicated in the column "Time hh:mm"� Afterwards, the next program segment is automatically executed� In "Ctrl�Mode +/- x�xx K", the hysteresis (tolerance) of the actual temperature to the target temperature is set (e�g� +/- 0�1 K)� The target values and settings of the segment are valid until the actual temperature reaches the target temperature +/- hysteresis for the ﬁrst time� Afterwards, the next program segment is automatically executed�

21

5) Pump rpm: Target speed of pump�

6) M1 (ON/OFF): MODULES M1-Valve:

OFF: M1 valve in initial state ON: M1 valve in inverted initial state�

Note: The initial state of the M1 valve is deﬁned in

“MODULES M1-Valve” in “Default Status” as “Open” or “Closed”�

7) M2 (ON/OFF): MODULES M2-Output switch

OFF: M2-output switch in initial state� ON: M2-output switch in inverted initial state�

2) Default Status:

Deﬁne the default state (OFF) of the external valve as “Open” or “Closed”� It depends on the valve type (normally open or closed)�

3) Reﬁll:

Use the external M1 valve to automatically check the level when operating with water� Observe “Default Status” setting�

Start: Set the valve switch-on point (ON)�

Stop: Set the valve switch-off point (OFF)�

Note: The initial state of the M2-Output switch is deﬁned in “MODULES M2-Output” in “Default Status” as “Open” or “Closed”�

8) Cool: Activate/deactivate the cooling function�

OFF: cooling function is deactivated� ON: cooling function is activated�

Edit: Edit/change program parameters� Delete: Delete program segment� Insert: Inserts a new program segment after the selected

segment�

Save: Saves changes�

3. Delete:

Deletes the selected yellow background program�

OK: Conﬁrm the process� Cancel: Cancels the process�

4. View:

Temperature-time overview displays for the program with segments of the selected program�

Note: If hysteresis is set as "Ctrl�Mode +/-x�xx K" for one or more segments in the program, the duration of the program cannot be determined� Press and turn the knob (R) to display the segment details� Once the program has been started, the program no�, segment no� (active/total) and the remaining duration of the segment or hysteresis are displayed in the graph�

Note: Prior to using the “Reﬁll” menu option, check the function of the buoyage� The “Reﬁll” menu option has higher priority than the program M1 segment settings�

4) Temperature:

Temperature-dependent control of the M1-valve� By entering the boundaries of “Higher” and “Low”, the temperature range is set in which the M1-valve can be opened� If you activate a rule “Int / ext> Set Temperature” is an automatic control of the M1-valve dependence on the target temperature� By the “Hysteresis” value (set temperature hysteresis) the control stability can be optimized�

Note: int / ext stands according to the selected control mode (internal (int) or external (ext)) for the actual temperature to be controlled�

2. M2-Output:

1) Alarm:

Activate the alarm output (switch contact)�

Error: In case of an error the “M2-Output — Switch” is activated (ON, inverted initial state)�

Warning: In case of a warning the “M2-Output — Switch” is activated (ON, inverted initial state) When “Warning” is activated, “Error” is simultaneously activated (see section “Error code”)�

MODULES:

In “Modules” the multifunction port (8) outputs and inputs can be conﬁgured� The outputs M1 and M2 can be controlled via “PROGRAMS”�

1. M1-Valve:

1) ON:

Switche the external valve to the active state (inverted initial state)�

Note: In a started „Program“ the M1 segment settings have higher priority�

Default Status: Deﬁnes the default status (OFF) of the “M2-Output — Alarm” as “Open” or “Closed”� It depends on the alarm type (normally open or closed)�

2) Switch:

Activate the switch output�

ON: Switche output into the active state (inverted initial state)�

Note: When the “Program” is started, the M1 segment settings have higher priority�

Default Status: Deﬁnes the initial state (OFF) of the switch output as “Open” or “Closed”� It depends on the switch type (normally open or closed)�

22

Temperature (int) Temperature-dependent control of the M2-switch� By entering the boundaries of “Higher” and “Low”, the temperature range is set in which the M2-switch can be opened� If you activate a rule “Int / ext> Set Temperature” is an automatic control of the M2-switch dependence on the target temperature� By the “Hysteresis” value (set temperature hysteresis) the control stability can be optimized�

Note: int / ext stands according to the selected control mode (internal (int) or external (ext)) for the actual temperature to be controlled�

Note: The initial safe temperature is 30 ºC and is activated after the time limit is set (see “Set”)�

2. Password:

In the “Password” menu, the menu settings can be locked by a 3-digit password�

3. Safe Temp. Conﬁrmation:

This menu allow you to conﬁrm the safe temperature of the station at start-up� This menu can conﬁrm (safety temperature of the station) at start-up of the set “Safe Temp”� A check mark (√) indicates that the function is activated�

3. M3-Input:

Ext. Standby:

External standby input to stop the device functions Temper and Pump�

ON: Activate the ext� standby function� Device functions are stopped in the event of an inverted initial state (ON) at the input�

Default Status: Deﬁne the default status (OFF) of the input as “Open” (high level) or “Closed” (low level)�

OUTGAS

In the menu option, you are allowed to set the outgas speed from 2000 rpm to 4000 rpm and outgas interval from 10 seconds to 240 seconds� This function can be used when ﬁlling external devices such as laboratory reactors�

SAFETY

1. Time out:

1) Set:

In the menu option “Set”,you can determine a time limit in the event of a communication breakdown between the station and the WiCo� The station continues to work with the preset target values until the preset time value has expired� Following that, the station runs using the preset safety temperature and safety speed�

SETTING

1. Languages:

The “Language“ menu option allows you to select the desired language�

2. Display:

The ”Display“ menu option allows you to change the background color and brightness of the working screen� You can also activate the “Firmware Update Info“ screen in this menu�

3. Sound:

The ”Sound” menu option allows you to activate/deactivate the key tone�

4. Factory Settings:

Select the ”Factory settings” menu option by turning and pressing the rotary/push knob� The system requests conﬁrmation to restore the factory settings� Pressing the ”OK” button resets all the system settings to the original standard values set at dispatch from the factory (see “Menu structure”)�

5. Communication:

The ”Device name” menu option allows you to edit the device name� This can relatively identify the paired station� The ”Bluetooth®” menu option allows you to activate/ deactivate the ”Bluetooth®” function� A check mark shows that the option is activated�

Note: The initial time out is 30 seconds and you can deﬁne up to 60 minutes for this time limit�

2) Speed:

In the “Speed“ menu option, you can specify a appropriate and safe speed for speciﬁed temperature�

Note: The factory setting of the safe speed is 2000 rpm and is activated after the time limit is set (see “Set”)�

3) Temperature:

In the “Temperature“ menu option, you can specify a temperature that is appropriate and safe for the circulating task�

6. Information:

The ”Information” menu option offers you an overview of the most important system settings of the device�

23

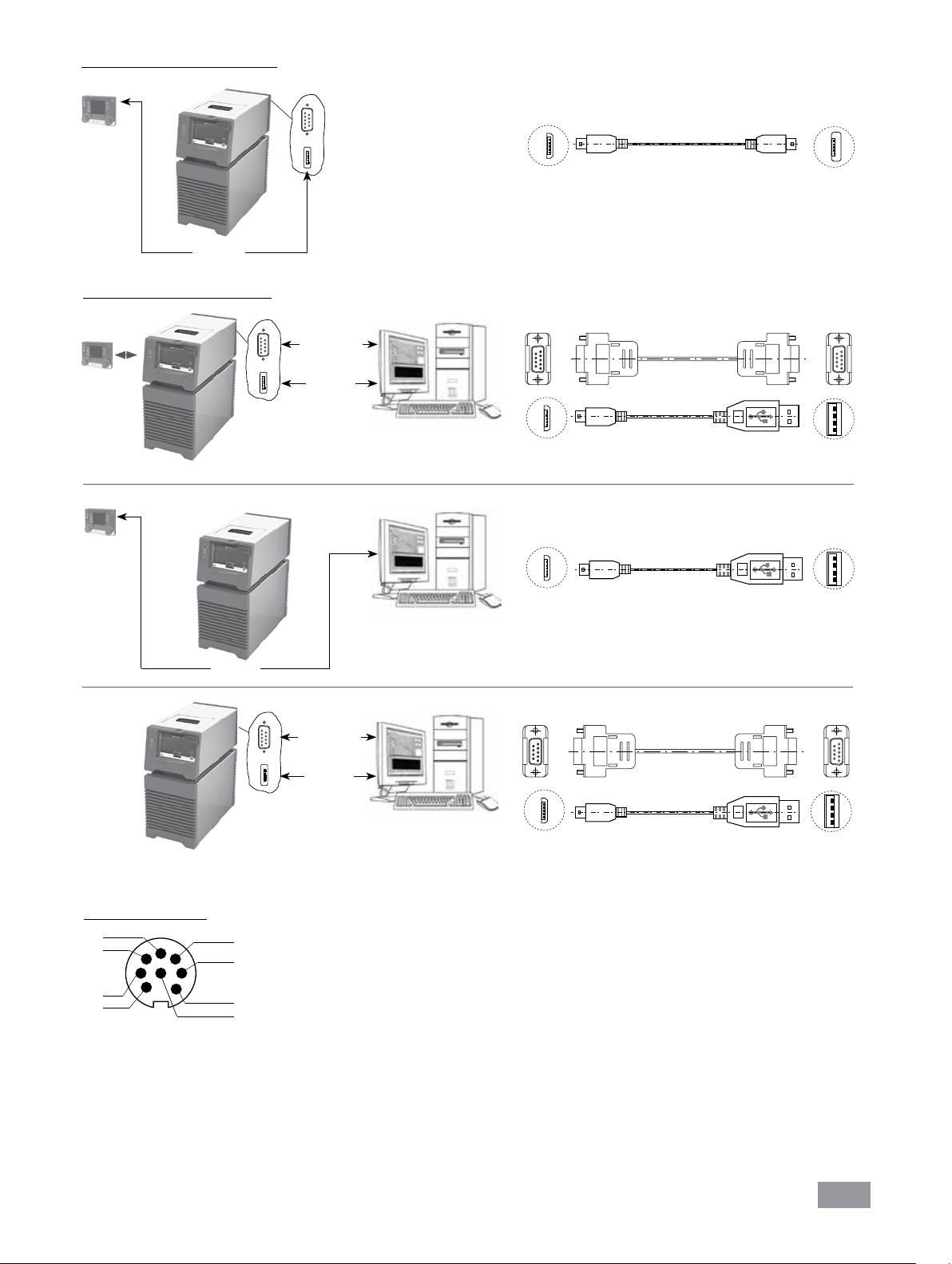

Interface and output

The device can be connected to a PC and operated with the laboratory software labworldsoft USB port or USB port on the WiCo�

Note: Please observe the system requirements together with the operating instructions and help section included with the software�

USB interface:

The Universal Serial Bus (USB) is a serial bus for connecting the device to the PC� Equipped with USB devices can be connected to a PC during operation (hot plugging)� Connected devices and their properties are automatically recognized� Use the USB port in conjunction with labworldsoft® for operation in “Remote” mode and also to update the ﬁrmware�

USB device drivers:

First, download the latest driver for IKA® devices with USB port from:

http://www.ika.com/ika/lws/download/usb-driver.zip.

Install the driver by running the setup ﬁle� Then connect the

IKA® device through the USB data cable to the PC�

The data communication is via a virtual COM port� Conﬁguration, command syntax and commands of the virtual COM ports are as described in RS 232 port�

Device software update: For device software update, visit IKA® website www.ika. com and enter the “Service” menu� Download and run the

Firmware Update Tool� Find and click the Firmware Update Tool in your PC after installation� Register your E-mail and password� Connect the device to your PC via the USB cable� Then, you can update the device software according to instructions of the Firmware Update Tool�

®

through the RS 232 port,

RS 232 interface:

Conﬁguration

- The functions of the interface connections between the stirrer machine and the automation system are chosen from the signals speciﬁed in EIA standard RS 232 in accordance with DIN 66 020 Part 1�

- For the electrical characteristics of the interface and the allocation of signal status, standard RS 232 applies in accordance with DIN 66 259 Part 1�

- Transmission procedure: asynchronous character transmission in start-stop mode�

- Type of transmission: full duplex�

- Character format: character representation in accordance with data format in DIN 66 022 for start-stop mode� 1 start bit; 7 character bits; 1 parity bit (even); 1 stop bit�

- Transmission speed: 9600 bit/s�

- Data ﬂow control: none

- Access procedure: data transfer from the stirrer machine to the computer takes place only at the computer’s request�

Command syntax and format:

The following applies to the command set:

- Commands are generally sent from the computer (Master) to the device (Slave)�

- The device sends only at the computer’s request� Even fault indications cannot be sent spontaneously from the device to the computer (automation system)�

- Commands are transmitted in capital letters�

- Commands and parameters including successive parameters are separated by at least one space (Code: hex 0x20)�

- Each individual command (incl� parameters and data) and

each response are terminated with CR LF (Code: hex 0x0d hex 0x0A) and have a maximum length of 80 characters�

- The decimal separator in a number is a dot (Code: hex 0x2E)�

The above details correspond as far as possible to the recommendations of the NAMUR working party (NAMUR recommendations for the design of electrical plug connections for analogue and digital signal transmission on individual items of laboratory control equipment, rev� 1�1)� The NAMUR commands and the additional speciﬁc IKA® co mmands serve only as low level commands for communication between the device and the PC� With a suitable terminal or communications programme these commands can be transmitted directly to the circulator equipment� The IKA® software package, Labworldsoft®, provides a convenient tool for controlling circulating equipment and collecting data under MS Windows, and includes graphical entry features, for pump motor speed ramps for example�

Commands

NAMUR Commands Function

IN_PV_1 Read the external actual temperature IN_PV_2 Read the internal actual temperature IN_PV_3 Read the safety actual temperature IN_PV_4 Read the pump actual speed IN_SP_1 Read the internal setting temperature (if 0: internal control)

Read the external setting temperature (if 1: external control)

IN_SP_3 Read the safety setting temperature

24

9

6 7 8 9

IN_SP_4 Read the pump setting speed IN_TMODE Read temperature control 0: internal control

1: external control

OUT_SP_1 xxx Set the internal setting temperature XXX (if 0: internal control)

Set the external setting temperature XXX (if 1: external control) OUT_SP_12@n Set the WD safety temperature with echo of the set (deﬁned) value� OUT_SP_4 xxx Set the pump speed XXX OUT_SP_42@n Set the WD-safety speed with echo of the set (deﬁned) value� OUT_TMODE_0 Set to Internal temperature control OUT_TMODE_1 Set to External temperature control OUT_WD1@n Start the watchdog mode 1 and set the time for the watchdog to n (20��1500) seconds�

Echo of the Watchdog time�

During a WD1-event, the tempering and pump functions are switched off�

This command needs to be send within the watchdog time� OUT_WD2@n Start the watchdog mode 2 and set the watchdog time to n (20��1500) seconds�

Echo of the watchdog time�

During a WD2-event, the set temperature is changed to the WD safety temperature and the

pump set speed is set to the WD safety speed�

This command needs to be send within the watchdog time� RESET Reset the PC control and stop the device functions� START_1 Start the tempering function� START_4 Start the pump function STOP_1 Stop the tempering function STOP_4 Stop the pump function

Connections between device and external devices:

PC 1�1 Cable: This cable is required to connect RS 232 port (5) to a PC�

Fig. 30

1 2 3 4 5

RxD 2 TxD 3

GND 5

RTS 7 CTS 8

1

4

6

9

USB 2�0 Cable A - micro B: This cable is required to connect USB port to a PC�

USB micro B

Fig. 31

USB 2�0 cable micro A - micro B: This cable is required to connect WiCo to station�

5 4 3 2 1

1 2 RxD

3 TxD 4 5 GND 6 7 RTS 8 CTS

9 8 7 6

PC

A

USB A

USB micro B

USB Micro A

Fig. 32

25

Connection WiCo to station:

USB micro B

Fig. 33

USB cable

Connection the device to PC:

USB micro B

USB micro A

PC 1.1 cable

or

USB cable

USB A

USB micro B

9-pin RS 232 9-pin RS 232

A

USB micro B

A

USB micro B USB A

USB micro A

USB A

Fig. 34

Multifunction port:

2 4

1 6

Fig. 35

USB cable

5

3

7 8

9-pin RS 232 9-pin RS 232

PC 1.1 cable

or

USB cable

USB micro B

USB A

USB micro B USB A

1 M1 Output Valve + (+24Vdc/max� 0�8A) 2 M1 Output Valve 3 M2 Output Alarm/Switch 1 (max� 30Vdc/ac/max� 1A) 4 M2 Output Alarm/Switch 2 5 M3 Input standby + (+5V ca� 10mA) 6 M3 Input standby - (0V only for Standby) 7 --- (reserved for later use, do not connect!) 8 --- (reserved for later use, do not connect!)

A

26

Maintenance and cleaning

To avoid contamination, it is essential to check and change the bath ﬂuid regularly� If water is used for bath ﬂuid, we recommend to add Water bath protective media� The protective media stops the growth of algae, bacteria and other microorganisms�

To keep the full cooling performance, the dust ﬁlter of the cooler must be checked regularly and cleaned if necessary�

• Switch off the device and disconnect power cable�

• Open the front venting grid (3)�

• Remove the bracket�

• Clean condenser dust ﬁlter with a vacuum cleaner or

wash the ﬁlter in the water and dry it before assembly�

Note: Don’t touch the condenser surface with hard parts�

Cleaning:

Disconnect main plug prior to cleaning!

Use only cleaning agents which have been approved by

®

to clean the device�

IKA Dirt Cleaning agent

Dye Isopropyl alcohol Construction

material Cosmetics Foodstuffs Water containing tenside Fuel Water containing tenside

Water containing tenside / isopropyl alcohol

Spare parts order:

When ordering spare parts, please give:

- machine type

- serial number, see type plate

- item and designation of the spare part, see www.ika.com

- software version�

Repair: Please send in device for repair only after it has been cleaned and is free from any materials which may constitute a health hazard.

For repair, please request the “Decontamination Certiﬁcate” from IKA®, or download printout of it from the IKA® website www.ika.com� If you require servicing, return the device in its original packaging� Storage packaging is not sucient� Please also use suitable transport packaging�

For materials which are not listed, please request information from IKA® application support� Wear protective gloves while cleaning the devices� Electrical devices may not be placed in the cleansing agent for the purpose of cleaning� Do not allow moisture to get into the devicewhen cleaning� Before using another than the recommended method for cleaning or decontamination, the user must ascertain with

IKA® that this method does not damage the device�

27

Error codes

Any malfunctions during operation will be identiﬁed by an error message on the display� Proceed as follows in such cases:

 Switch off device using the main switch at the back of the device  Carry out corrective measures  Restart device

Error code Effect Cause Solution Error 01 Pump off

Heating/refrigerating off

Error 02 Pump off

Heating/refrigerating off

Error 04 Pump off

Heating/refrigerating off

Error 06

Error 09 Pump off

Error 11 Pump off

Error 12 Pump off

Error 13 Pump off

Error 15 Pump off

Error 16 Pump off

Error 17 Pump off

Error 20 Pump off

Pump off Heating/refrigerating off

Heating/refrigerating off

No external sensor - Check this sensor

Motor over current (rate current)

Motor hall signal missing - Reduce pump motor speed

Too low liquid level (when the heating function is activated)

Device internal temperature is too high

Temperature difference between control sensor and safety sensor is too much

Safety temperature alarm

Heater switched off by safety circuit - Check safety temperature set value, ﬂuid

Safety shutdown of the compressor - Restart the device

Errors at the compressor (suction side)

Errors at the compressor (pressure side)

Fan cooling system error

- Reduce pump motor speed

- Use ﬂuid with lower viscosity

- Check if the pump impeller is blocked

- Use ﬂuid with lower viscosity

- Check if the pump impeller is blocked

- Check the ﬂuid level and buoyage

- Check the ambient temperature and let the device cool down

- Check the fan and clean the grids at the rear side

- Check safety temperature circuit and bath ﬂuid

- Check the bath temperature measurement

level

- Restart the device

-

Restart the device

Warning message Effect Cause Solution High ﬂuid level

warning Low ﬂuid level

warning 

 Note: When the heating function is not activated, the screen show only these warning information if ﬂuid level is too high or too low�

When the heating function is activated, if the ﬂuid level goes slowly up/down to the warning level, the screen show high/ low ﬂuid level warning message and icon� If the ﬂuid level is corrected, the warning message and high/low level icon disappear� After low ﬂuid level warning, if the ﬂuid level decreases further, the screen show Error 6�

If the actions described fails to resolve the fault or another error code is displayed then take one of the following steps:

- Contact the service department

- Send the device for repair, including a short description of the fault�

Warning message and high level icon appear

Warning message and low level icon appear

Too high ﬂuid level - Check the ﬂuid level and buoyage

- Drain excess ﬂuid from bath�

Too low ﬂuid level - Check the ﬂuid level and buoyage

- Add more ﬂuid to bath�

28

Accessories

Tubing and hoses: LT 5.20 Metal hose (isolated M16 x 1) LT 5.21 PTFE hose (isolated M16 x 1) H.PVC.8 PVC tube (nominal width 8) H.PVC.12 PVC tube (nominal width 12) H.SI.8 Silicone tube (nominal width 8) H.SI.12 Silicone tube (nominal width 12) H.PUR.8 PUR tube (nominal width 8 mm H.PUR.12 PUR tube (nominal width H.FKM.8 FKM tube (nominal width H.FKM.12 FKM tube (nominal width

Tubing insulations: ISO. 8 Insulation (8 mm) ISO.12 Insulation (12 mm)

See more accessories on www.ika.com.

12 mm)

8 mm) 12 mm)

Valve: MV 1 Magnetic valve CO V 1 Closed pressure valve

Additional accessories: PC 1.1 Cable (RS 232) Pt 100.30 Temperature sensor

)

Labworldsoft

®

29

Technical data

station

Operating voltage VAC 230 ± 10 % / 115 ± 10 % / 100 ± 10 % Frequency Hz 50 / 60 Max� input power W 1800 (230 VAC) / 1500 (115 VAC) / 1210 (100 VAC) Working temperature range °C - 30 �� + 100 Operating temperature range °C - 30 �� + 100 Temperature stability – internal temperature control

70 °C, water (according to DIN 12876) Temperature control PID (Automatic / user setting) Temperature measurement, absolute accuracy

Internal (int) (adjustable by calibration) External (ext) (adjustable by calibration)

External Pt 100 temperature sensor tolerance to DIN EN 60751 class A, ≤ ± (0�15 + 0�002 x |T|), e�g� at max� 100°C (adjustable by calibration)

Temperature setting Knob on WiCo Temperature setting resolution K 0�1 Temperature display TFT LCD on WiCo Temperature display resolution K 0�01 Classiﬁcation according to DIN 12876-1 Class III (FL) suitable for ﬂammable and non-ﬂammable ﬂuids Safety circuit (adjustable) °C 0 �� + 110 Safety temperature display TFT LCD on WiCo Heating capacity W 1500 (230 VAC) / 1200 (115 VAC) / 910 (100 VAC) Cooling capacity according to DIN 12876 (at 4000 rpm):

+ 20 °C + 10 °C 0 °C

- 10 °C

- 20 °C

Refrigerant Refrigerant quantity g 230 Max� refrigerating system pressure bar 20 Pump speed (adjustable) rpm 2000 �� 4000 Max� pump pressure/suction bar 0�5 / 0�25 Max� ﬂow rate (at 0 bar) l/min 21 Bath volume I 1�4–4�0 Fluid maximum viscosity mm Low ﬂuid level protection Yes Interface USB, RS 232, multi-function port Permitted on-time % 100 IP code according to EN 60 529 Protection class I Excess voltage category II Contamination level 2 Permitted ambient temperature °C + 5 �� + 32 Permitted ambient humidity % 80 Dimension (W x D x H) mm 220 x 525 x 475 Weight kg 29 Operation at a terrestrial altitude m max� 2000

K ± 0�05

K K

K ± 0�35 (at 100°C)

W

2

/s 50

± 0�5 ± 0�5

400 370 320 240 130

R134a 

IP 21

30

WiCo

Permitted on time % 100 Max� communication distance (dependent on the building) Dimensions (W x D x H) mm 160 x 40 x 105 Weight kg 0�3 Ambient temperature °C + 5 �� + 40 Ambient humidity (relative) % 80 IP code according to EN 60529 IP 40 Interface USB

RB 1 Battery pack

Voltage V 3�7 Charging capacity mAh 2000 Charging time h 4�5 Working time h 15 Battery type Lithium-polymer

Note: Refrigerant must be disposed of in accordance with local and national regulations�

Subject to technical changes!

m 15

31

Warranty

0 5 10 15 20

500

-200

-300

In accordance with IKA® warranty conditions, the warranty period is 24 months� For claims under the warranty please contact your local dealer� You may also send the machine direct to our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable for freight costs�

The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use, insucient care or maintenance not carried out in accordance with the instructions in this operating manual�

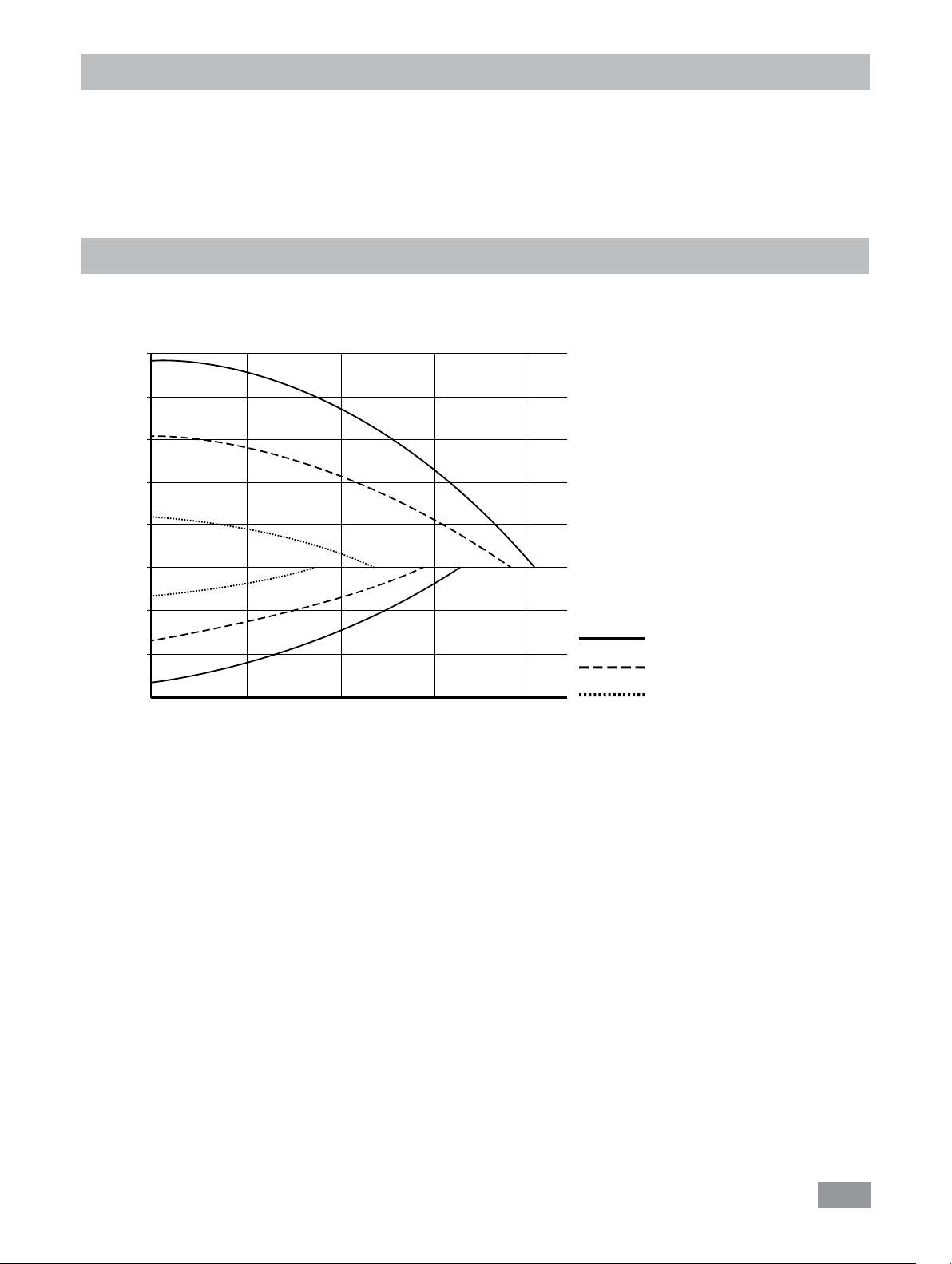

Pump performance curve

Pump performance curve measured with water:

(Measurements done according DIN 12876-2 with water at 20 °C; pump in a closed-loop circuit)�

400

300

200

100

0

ΔP [mbar]

-100

Fig. 36

4000 rpm

3200 rpm 2000 rpm

Q [l/min]

32

IKA®-Werke GmbH & Co.KG

Janke & Kunkel-Str� 10 D-79219 Staufen Tel� +49 7633 831-0 Fax +49 7633 831-98 sales@ika�de

www.ika.com

IKA HRC 2 control Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
