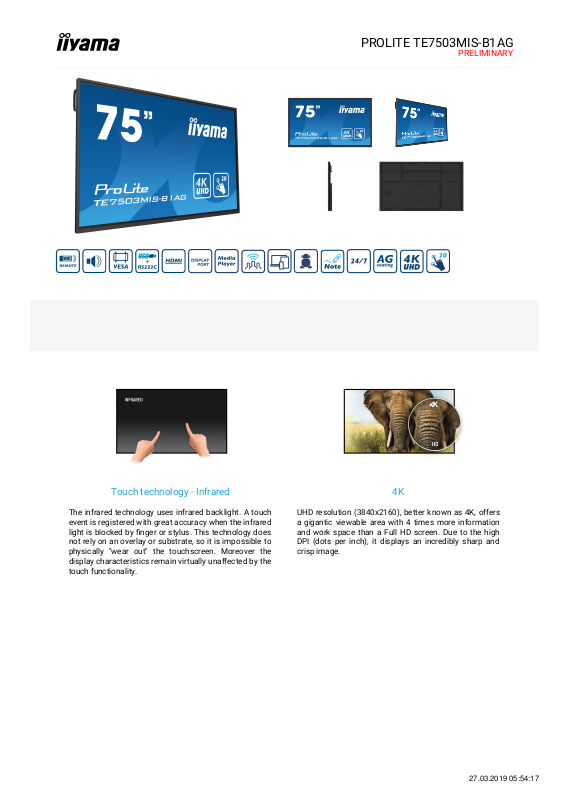

PROLITE TE7503MIS-B1AG

PRELIMINARY

Touch technology - Infrared

The infrared technology uses infrared backlight. A touch
event is registered with great accuracy when the infrared
light is blocked by finger or stylus. This technology does
not rely on an overlay or substrate, so it is impossible to
physically "wear out" the touchscreen. Moreover the
display characteristics remain virtually unaffected by the
touch functionality.

4K

UHD resolution (3840x2160), better known as 4K, offers
a gigantic viewable area with 4 times more information
and work space than a Full HD screen. Due to the high
DPI (dots per inch), it displays an incredibly sharp and
crisp image.

27.03.2019 05:54:17

Design Thin bezel

Diagonal 74.5", 189,3cm

Panel IPS Direct LED, AG coated glass

Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)

Aspect ratio 16:9

Brightness 350 cd/m² typical

Static contrast 1100:1 typical

Response time 6ms

Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support 1.07B 10bit

Horizontal Sync 30 - 80KHz

Vertical Sync 55 - 75Hz

Viewable area W x H 1649.66 x 927.94mm

Bezel colour and finish black, matte

Touch technology infrared

Touch points 20 (HID, only with supported OS)

Touch accuracy +- 2mm

Touch method stylus, finger, glove

Touch interface USB

Analog signal input VGA x1 (max. 1920x1080 @60Hz)

Digital signal input HDMI x3 (v.2.0 x3, max. 3840x2160 @60Hz)

DisplayPort x1 (max. 3840x2160 @30Hz)

Audio input Mini jack x1

Monitor control input RS-232c x1

RJ45 (LAN) x1 (Internet for Android only)

Digital signal output HDMI x1 (v.2.0,. 3840x2160 @60Hz)

Audio output S/PDIF (Optical) x1

Mini jack x1
Speakers 2 x 10W

HDCP yes

USB ports x4 (v.2.0 x1 update (bottom), v.3.0 x2 media playback / peripherals / storage

(side), v.3.0 x1 peripherals / webcam (top))

Integrated software iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives,

WPS office and ScreenSharePro for wireless connection with
Windows/iOS/Android devices

Hardware Dual core A73+A53 CPU, Quad core Mali G51 GPU, 4gb RAM, 32 gig internal

memory, WiFi module (OWM001)

WiFi yes

Extra PC Slot, touch pen recognition, two touch pens

Kiosk mode yes

DISPLAY CHARACTERISTICS01

TOUCH02

INTERFACES / CONNECTORS / CONTROLS03

FEATURES04
