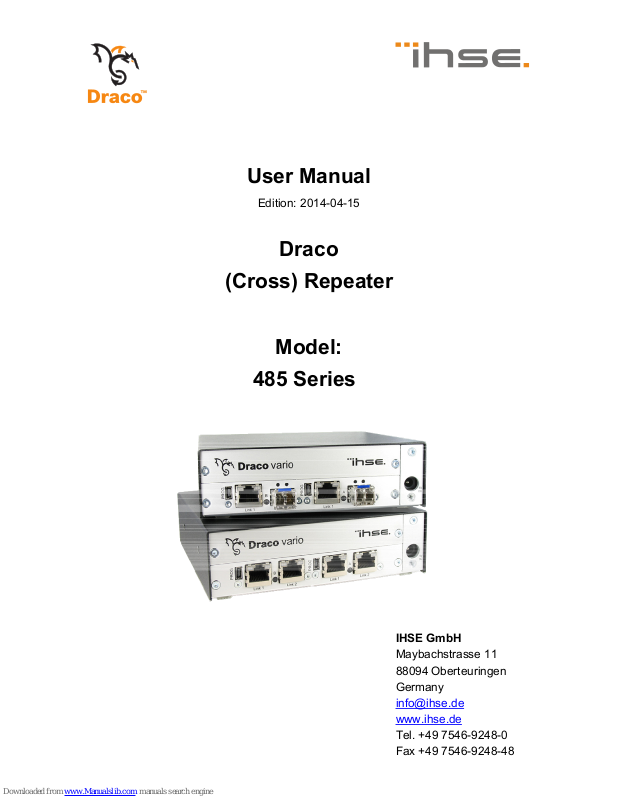

User Manual

Edition: 2014-04-15

Draco

(Cross) Repeater

Model:

485 Series

Draco (Cross) Repeater

2 2014-04-15

Copyright

© 2014. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.

Information in this document is subject to change without notice.

Trademarks

All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.

Disclaimer

While every precaution has been taken during preparation of this manual,
the manufacturer assumes no liability for errors or omissions. The
manufacturer assumes no liability for damages resulting from the use of
the information contained herein.

The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.

Contents

2014-04-15 3

Contents

1 About This Manual ....................................................................... 5

1.1 Scope.................................................................................. 5

1.2 Validity ................................................................................ 5

1.3 Cautions and Notes ............................................................ 5

2 Safety Instructions....................................................................... 6

3 Description ................................................................................... 7

3.1 Application .......................................................................... 7

3.2 System Overview ................................................................ 8

3.3 Product Range .................................................................... 9

3.3.1 Chassis ................................................................. 9

3.3.2 (Cross) Repeater Modules .................................. 10

3.4 Accessories Upgrade Kits ................................................. 10

3.5 Accessories....................................................................... 11

3.6 Device Views .................................................................... 11

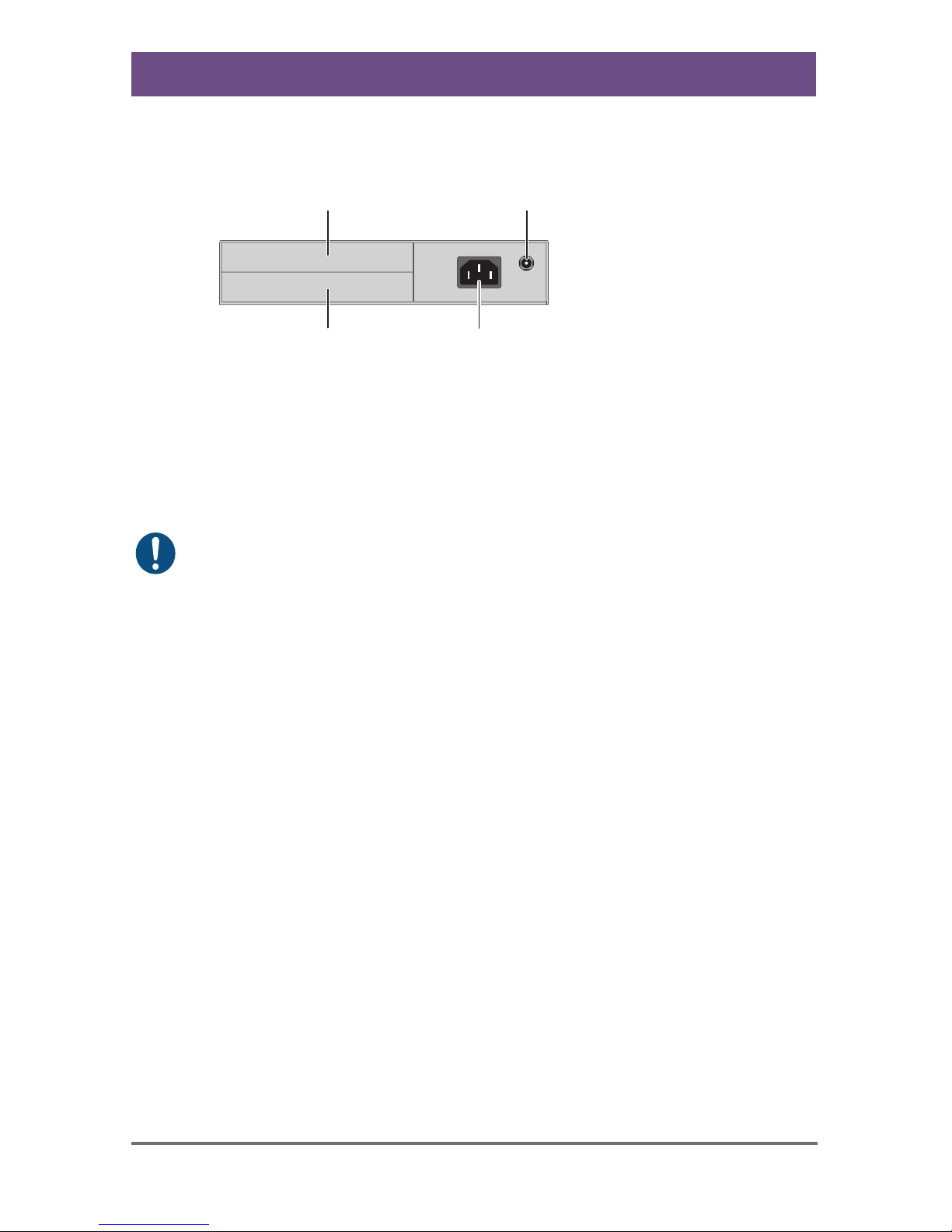

3.6.1 2-fold Vario Chassis 474-BODY2/2R .................. 11

3.6.2 2-fold Vario Chassis 474-BODY2N ..................... 12

3.6.3 4-fold Vario Chassis 474-BODY4/4R .................. 13

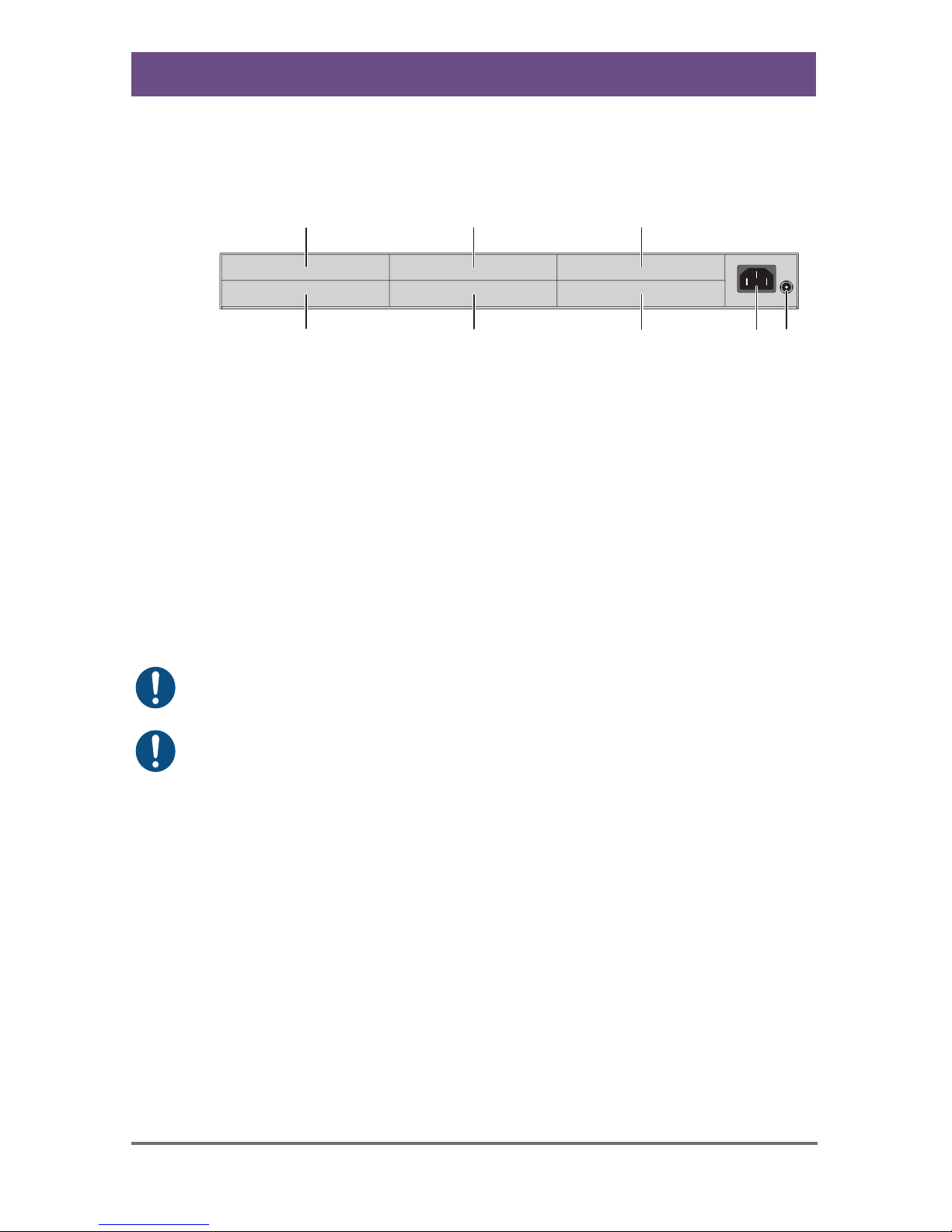

3.6.4 6-fold Vario Chassis 474-BODY6R ..................... 14

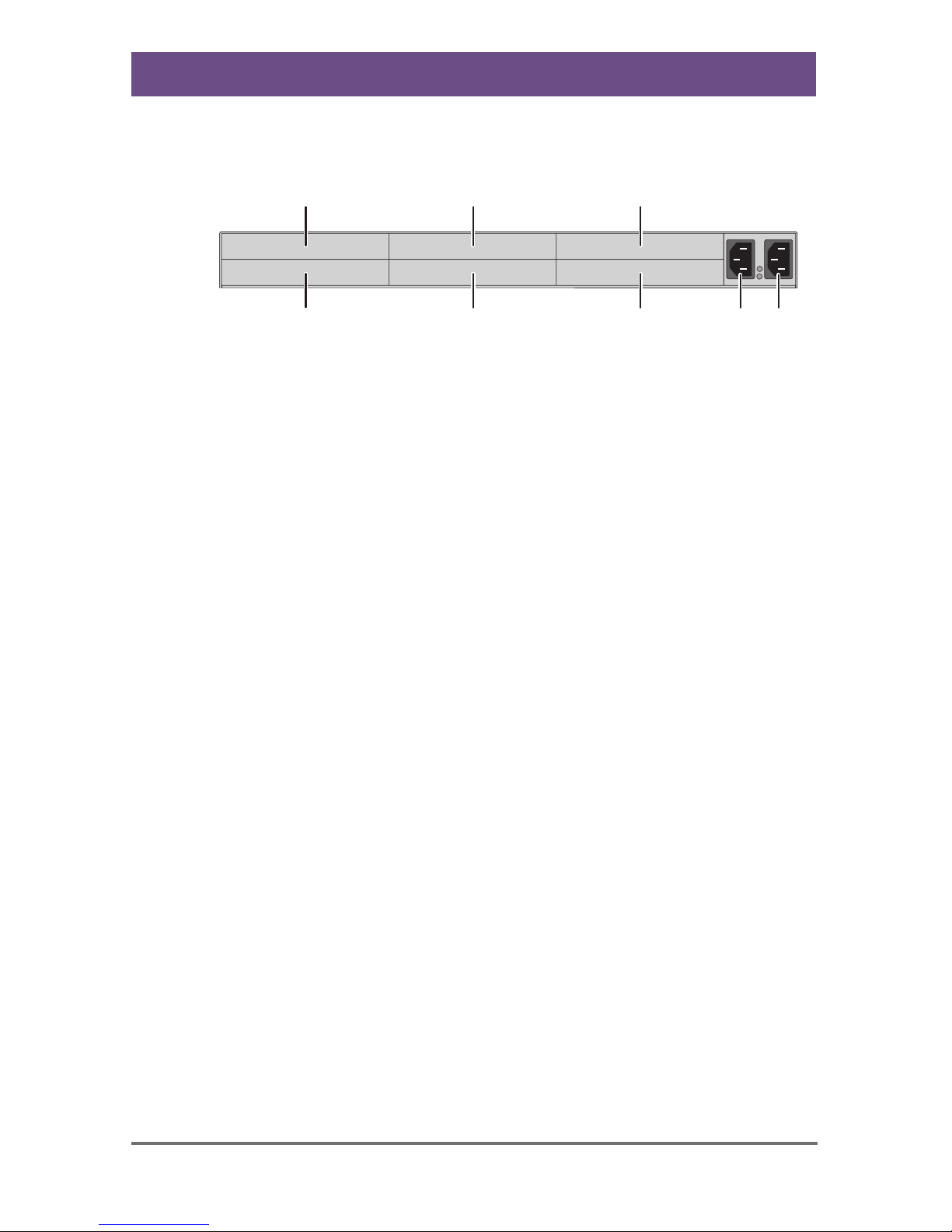

3.6.5 6-fold Vario Chassis 474-BODY6BP................... 15

3.6.6 6-fold Vario Chassis 474-BODY6BPF................. 16

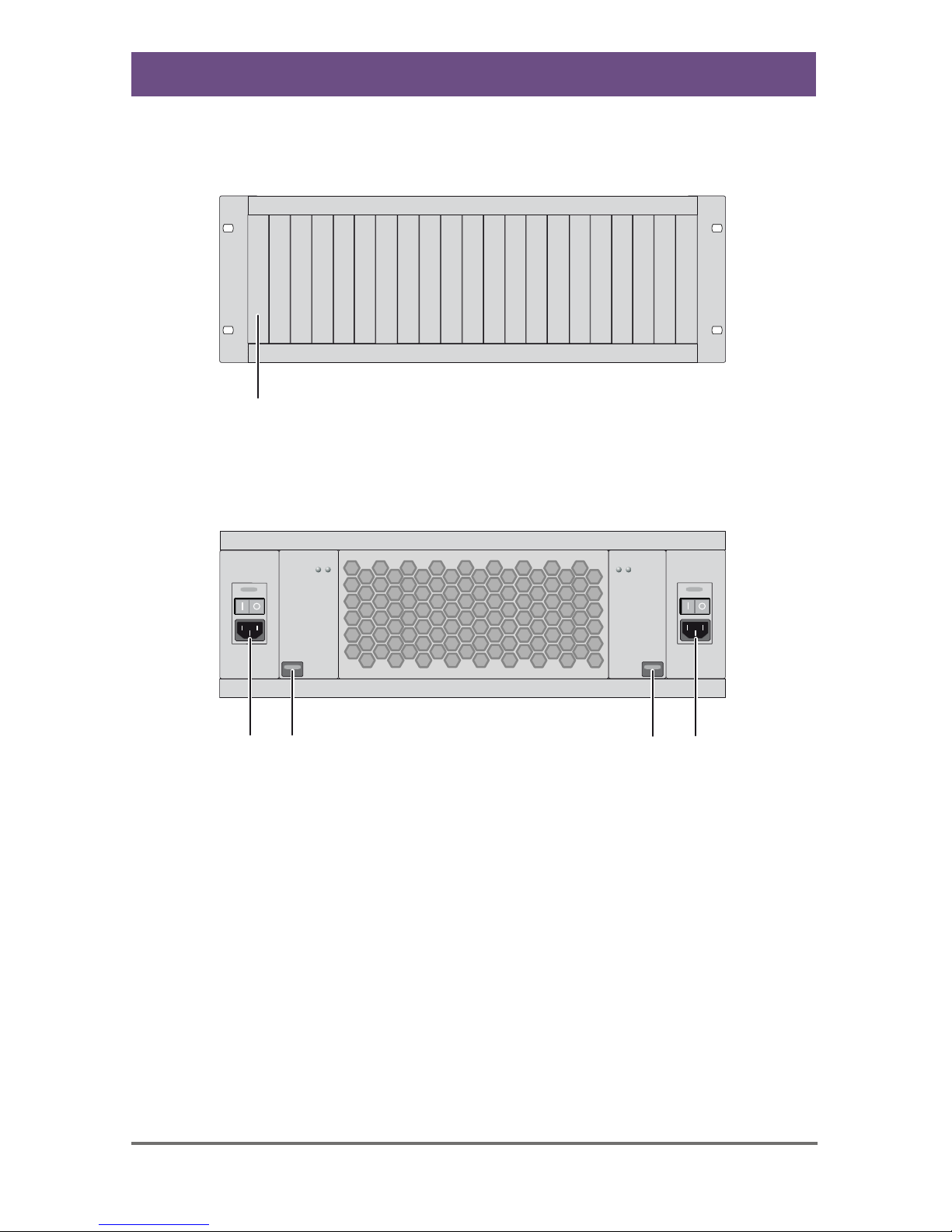

3.6.7 21-fold Vario Chassis 474-BODY21R ................. 17

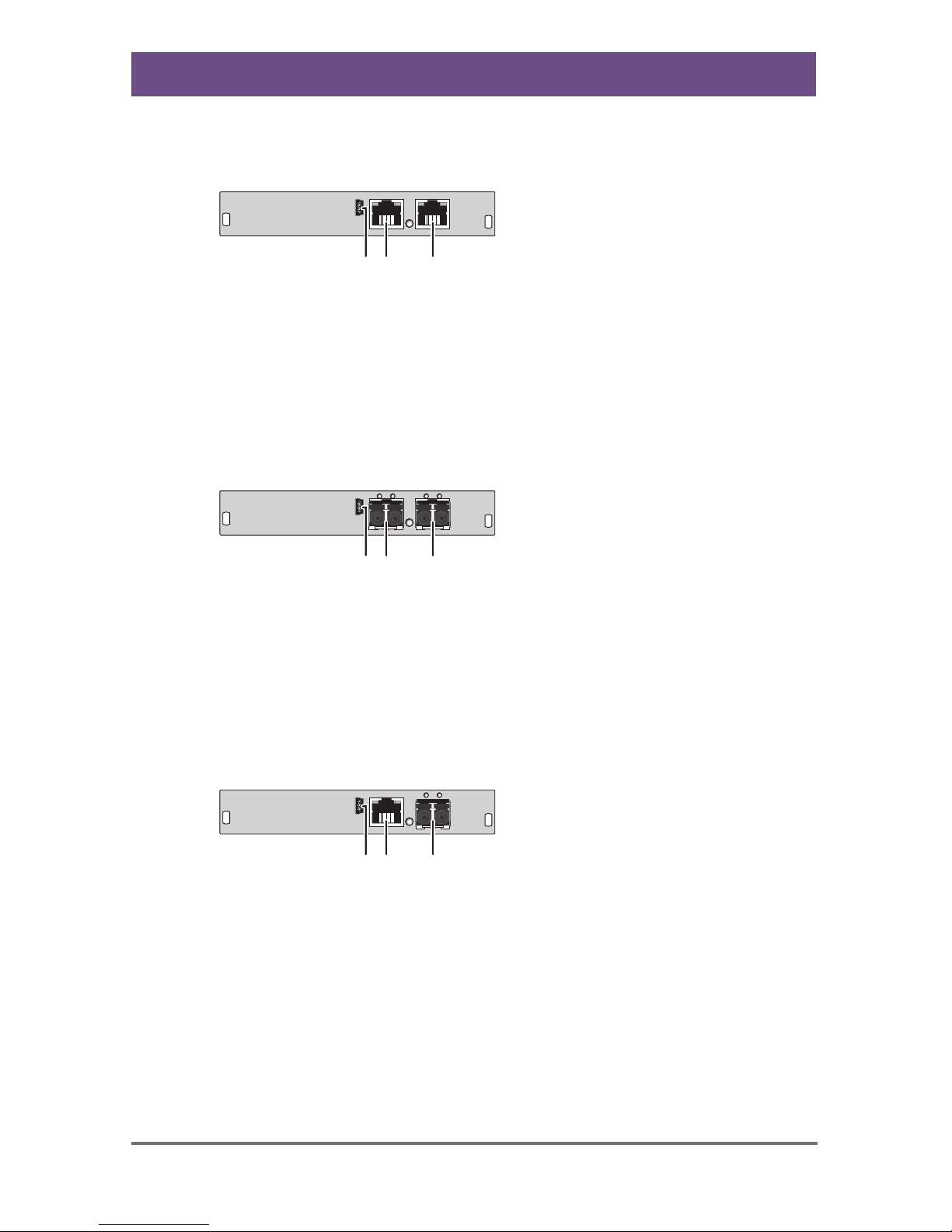

3.6.8 Model 485-BC ..................................................... 18

3.6.9 Model 485-BS ..................................................... 18

3.6.10 Model 485-BX ..................................................... 18

3.6.11 Model 485-BCC .................................................. 19

3.6.12 Model 485-BSS................................................... 19

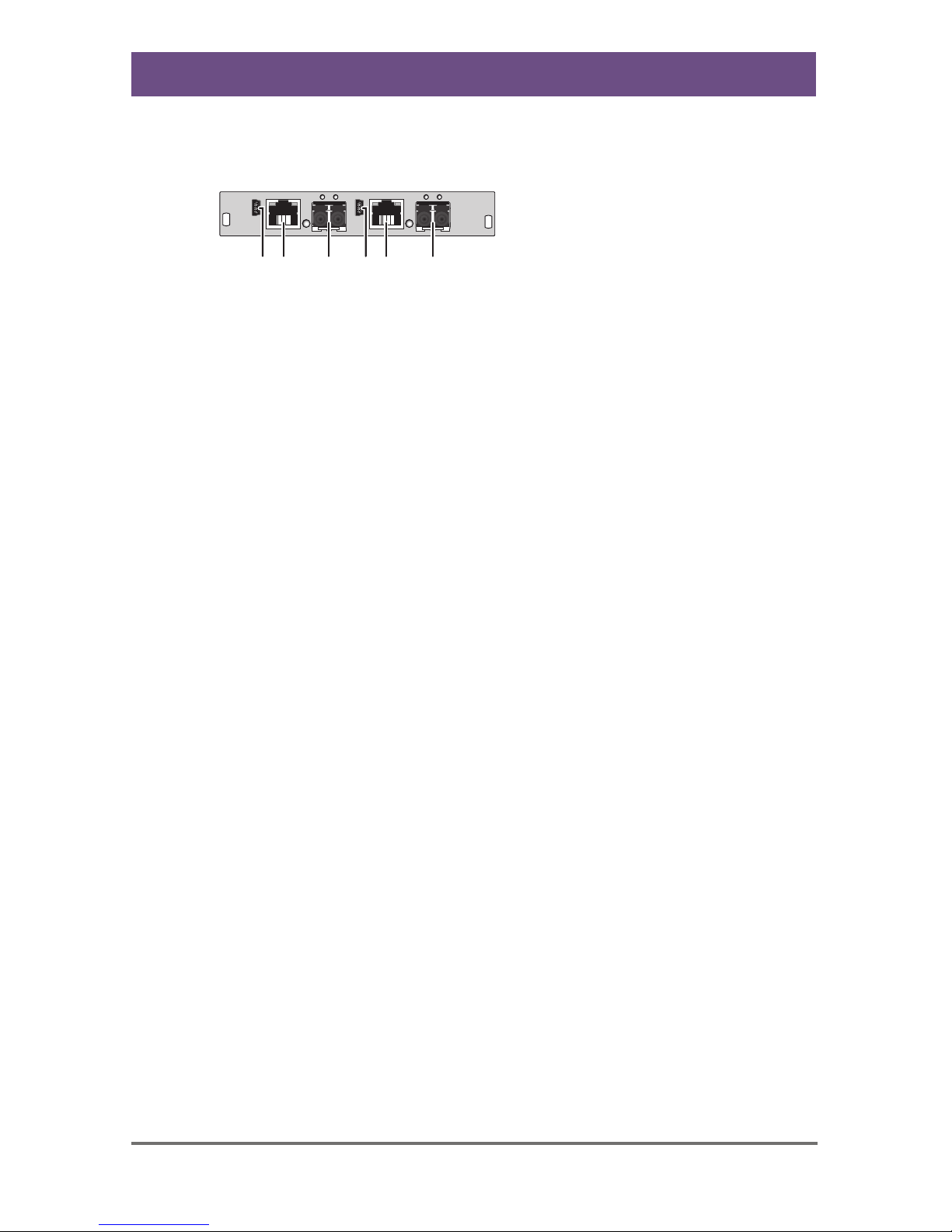

3.6.13 Model 485-BXX................................................... 20

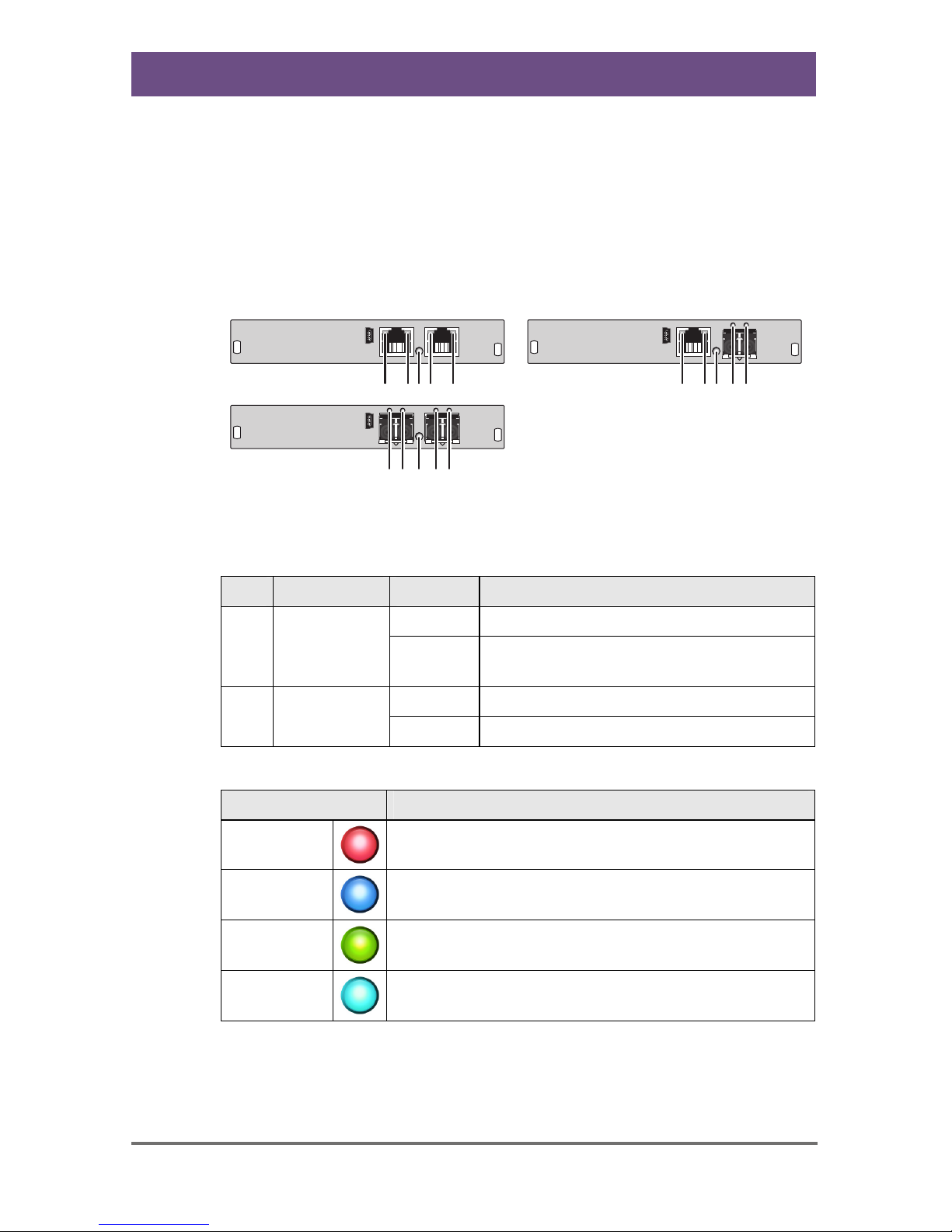

3.7 Status LEDs ...................................................................... 21

3.7.1 Status (Cross) Repeater Module......................... 21

Draco (Cross) Repeater

4 2014-04-15

4 Installation .................................................................................. 22

4.1 Package Contents............................................................. 22

4.2 System anschließen.......................................................... 22

4.2.1 (Cross) Repeater Setup ...................................... 22

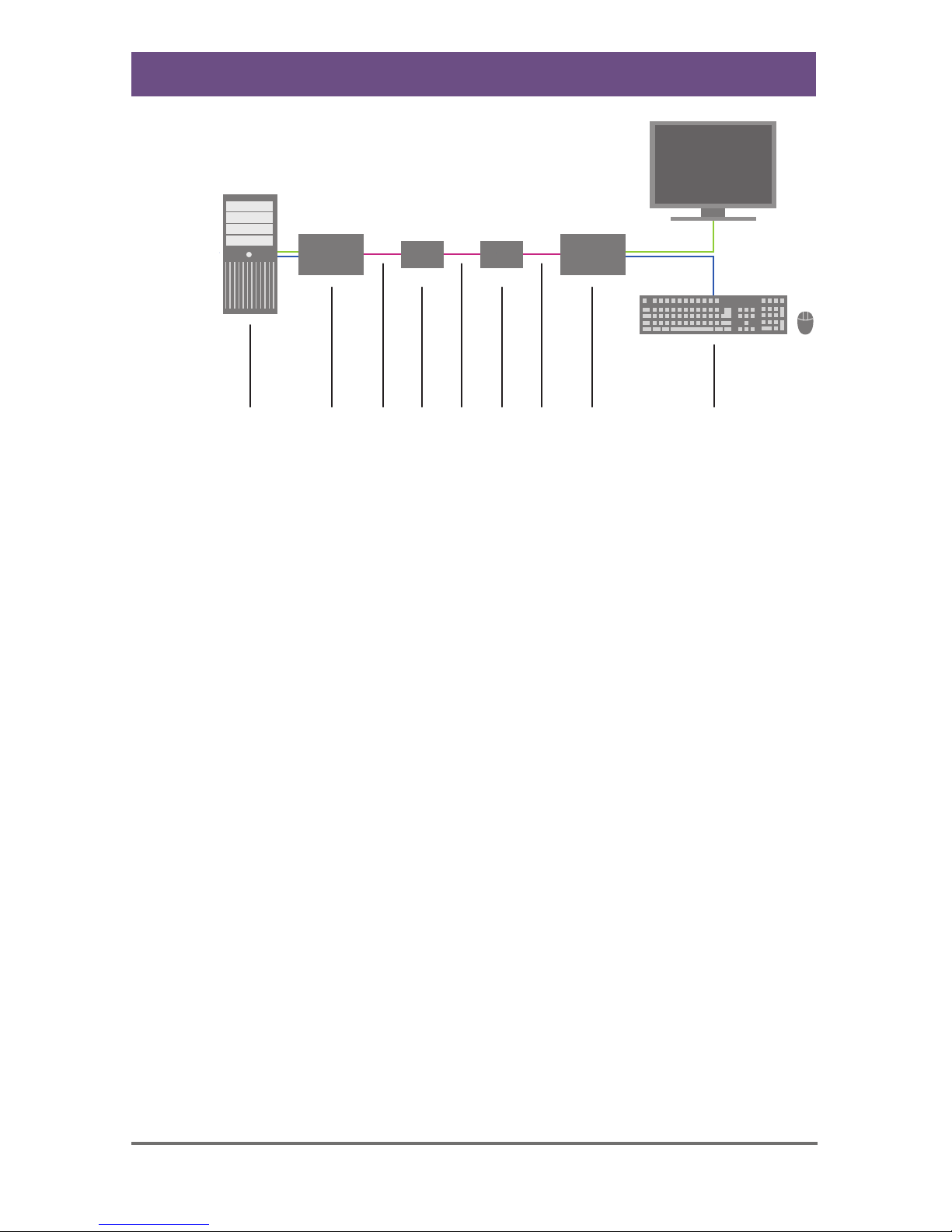

4.3 Example Applications........................................................ 23

5 Configuration.............................................................................. 25

6 Operation .................................................................................... 25

7 Specifications............................................................................. 26

7.1 Interfaces .......................................................................... 26

7.1.1 RJ45 (Interconnect) ............................................ 26

7.1.2 Fiber SFP Type LC (Interconnect) ...................... 26

7.2 Interconnect Cable............................................................ 27

7.2.1 Cat X ................................................................... 27

7.2.2 Fiber.................................................................... 28

7.3 Connector Pinouts ............................................................ 29

7.4 Power Supply.................................................................... 30

7.5 Environmental Conditions ................................................. 30

7.6 Size................................................................................... 31

7.7 Shipping Weight................................................................ 32

8 Troubleshooting......................................................................... 33

8.1 General Failures ............................................................... 33

9 Technical Support ...................................................................... 34

9.1 Support Checklist.............................................................. 34

9.2 Shipping Checklist ............................................................ 34

10 Certificates.................................................................................. 35

10.1 CE Declaration Of Conformity........................................... 35

10.2 North American Regulatory Compliance........................... 36

10.3 Product Safety .................................................................. 36

10.4 WEEE ............................................................................... 37

10.5 RoHS/RoHS 2................................................................... 37

11 Glossary...................................................................................... 38

Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu di esem Handbuch @ 5\mod_1278 573163276_6.doc @ 41510 @ 1222 @ 1

About This Manual

2014-04-15 5

1 About This Manual

1.1 Scope

This manual describes how to install your (Cross) Repeater, how to
operate it and how to perform trouble shooting.

1.2 Validity

This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.

1.3 Cautions and Notes

The following symbols are used in this manual:

This symbol indicates an important operating instruction that should be
followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.

This symbol indicates important information to help you make the best use
of this product.

This symbol indicates best practice information to show recommended
and optimal ways to use this product in an efficient way.

Pos: 2 /806-IHSE/Sicherheitshinweis e/ATB_Sicherheits hinweise @ 5\mod_127857332 1245_6.doc @ 41528 @ 1 @ 1

Draco (Cross) Repeater

6 2014-04-15

2 Safety Instructions

To ensure reliable and safe long-term operation of your (Cross) Repeater
please note the following guidelines:

Installation

 Only use in dry, indoor environments.
 The (Cross) Repeater and the power supply units can get warm. Do

not install components in an enclosed space without any airflow.

 Do not place the power supply directly on top of the device.
 Do not obscure ventilation holes.
 Only use power supplies originally supplied with the product or

manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged chassis.

 Connect all power supplies to grounded outlets. In each case, ensure

that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.

 Do not connect the link interface to any other equipment, particularly

network or telecommunications equipment.

 Take any required ESD precautions.

In order to disconnect the device completely from the electric circuit, all
power cables have to be removed.

Repair

 Do not attempt to open or repair a power supply unit.
 Do not attempt to open or repair the (Cross) Repeater. There are no

user serviceable parts inside.

 Please contact your dealer or manufacturer if there is a fault.

Pos: 3 /806-IHSE/Beschreibung/UEB_Besc hreibung @ 5\mod_1278 573379151_6.doc @ 41546 @ 1 @ 1

Description

2014-04-15 7

3 Description

Pos: 4 /806-IHSE/Beschreibung/Verwen dungszweck/485-xx @ 11\ mod_1395145109102_6. doc @ 140748 @ 2 @ 1

3.1 Application

The (Cross) Repeater is basically used in order to double the maximum
cabling distance between a KVM extender CON or CPU Unit or even a
KVM matrix. In addition to that the device can also be used for media
conversion from Cat X to fiber or vice versa.

The device is available as a pure Cat X or fiber version (repeater) and as
a hybrid version of Cat X and fiber (cross repeater) for an additional
electrical/optical signal conversion.

Pos: 5 /806-IHSE/Beschreibung/Syste m-Übersicht /485-xx @ 11\ mod_1395145337503_6. doc @ 140779 @ 2 @ 1

Draco (Cross) Repeater

8 2014-04-15

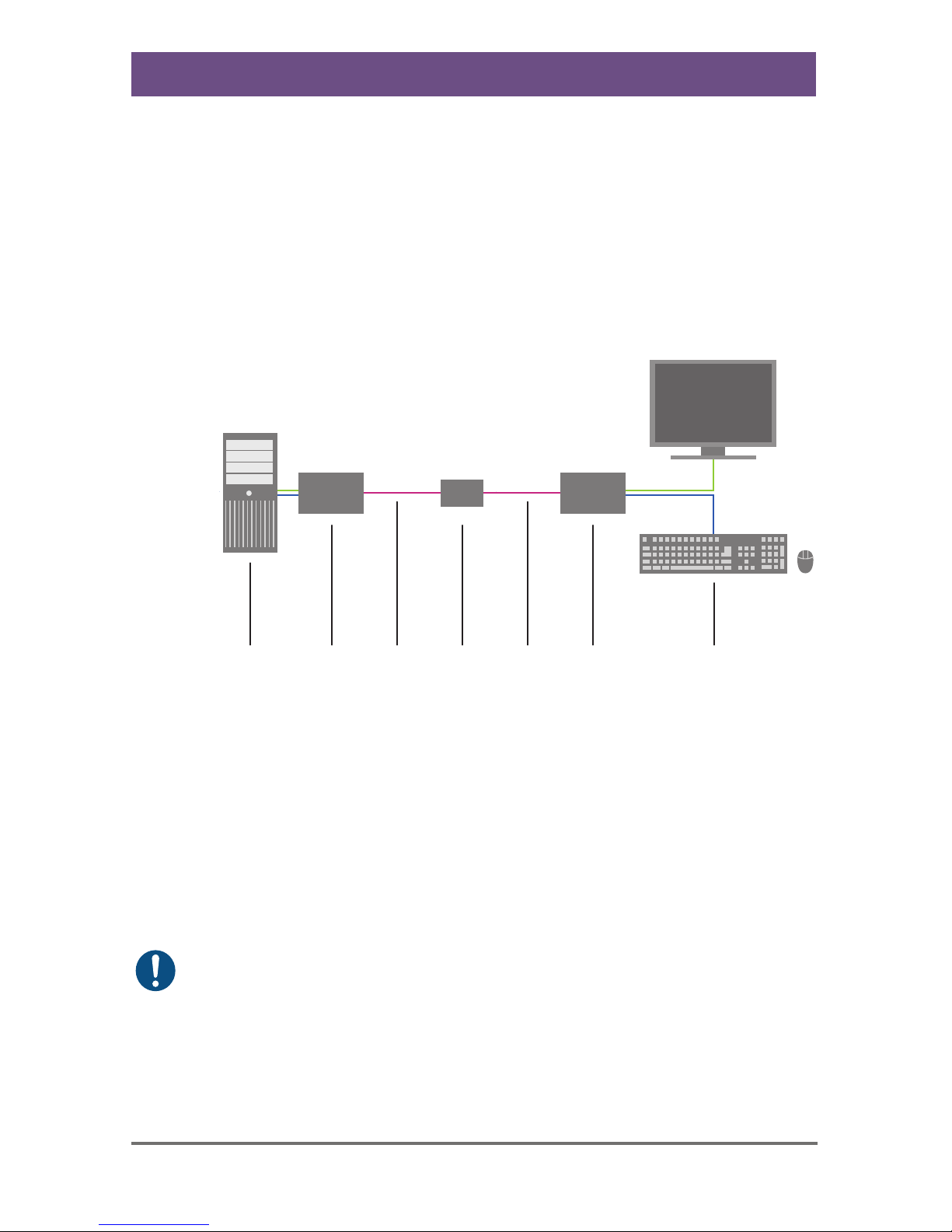

3.2 System Overview

The (Cross) Repeater consists of at least one module depending on the
application.

The device is connected between a KVM extender CON and CPU Unit via
the interconnect cable or can be alternatively connected between a KVM
extender unit and a KVM matrix.

The (Cross) Repeater communicates with both the KVM extenders and a
KVM-Matrix via the interconnect cables.

1 2 4 53 761 2 4 53 76

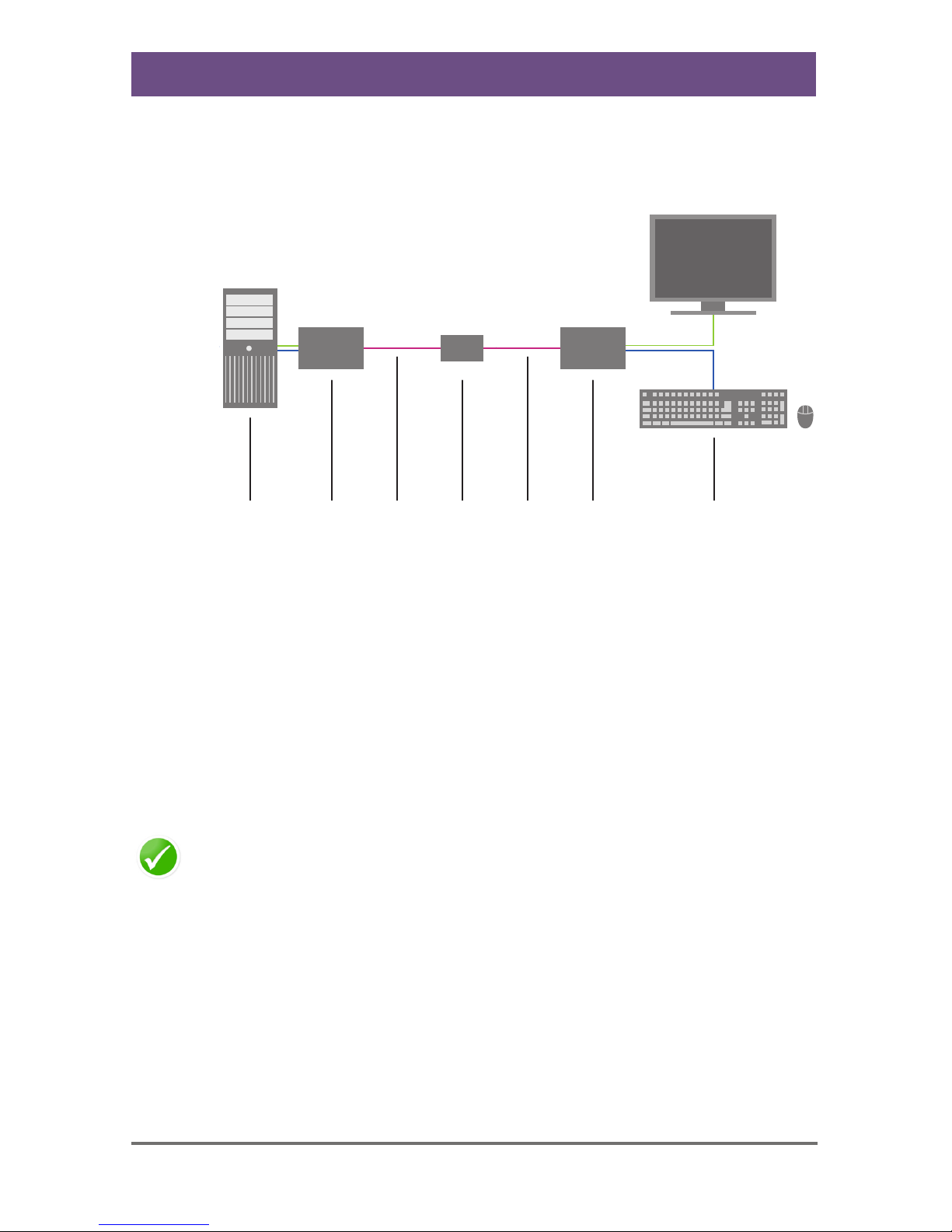

System Overview

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable (Cat X or fiber)
4 (Cross) Repeater
5 Interconnect cable (Cat X or fiber)
6 KVM Extender CON Unit
7 Console (monitor, keyboard, mouse)

See Chapter 4.3, Page 23 for installation examples.

Pos: 6 /806-IHSE/Beschreibung/Geräte typen/485-xx @ 11\mod_ 1395145641436_6.doc @ 140805 @ 233 @ 1

Description

2014-04-15 9

3.3 Product Range

3.3.1 Chassis

Model Description

474-BODY2

Empty chassis for up to 2 boards, 1x external power
supply unit

474-BODY2R

Empty chassis for up to 2 boards, 1x external power
supply unit, preparation for redundancy for a second
power supply unit (external)

474-BODY2N

Empty chassis for up to 2 boards, 1x internal power
supply unit, preparation for redundancy for a second
power supply unit (external)

474-BODY4

Empty chassis for up to 4 boards, 1x external power
supply unit

474-BODY4R

Empty chassis for up to 4 boards, 1x external power
supply unit, preparation for redundancy for a second
power supply unit (external)

474-BODY6R

Empty chassis for up to 6 boards, 1x internal power
supply unit, preparation for redundancy for a second
power supply unit (external)

474­BODY6BP

Empty chassis for up to 6 boards, active backplane, 2x
internal power supply unit (redundancy)

474­BODY6BPF

Empty chassis for up to 6 boards, active backplane, 2x
internal power supply unit (redundancy) with connectors
on rear side

474­BODY21/4U

Empty chassis for up to 21 boards, 1x internal power
supply unit, preparation for redundancy for a second
power supply unit (internal)

Draco (Cross) Repeater

10 2014-04-15

3.3.2 (Cross) Repeater Modules

Model Description

485-BC Repeater module Cat X for range extension up to 280 m
485-BS

Repeater module fiber (Single-Mode) for range
extension up to 20,000 m

485-BX

Repeater module Cat X/fiber (Single-Mode) for an
electrical/optical media conversion, maximum extension
10,140 m

485-BCC

Dual repeater module Cat X for range extension up to
280 m

485-BSS

Dual repeater module fiber (Single-Mode) for range
extension up to 20,000 m

485-BXX

Repeater module Cat X/fiber (Single-Mode) for an
electrical/optical media conversion, maximum extension
10,140 m

Pos: 7 /806-IHSE/Beschreibung/Einbauop tionen/474-xx @ 6\mod_1 304580008551_6.doc @ 50839 @ 2 @ 1

3.4 Accessories Upgrade Kits

Model Description

474-2RMK 19"/1U rack mount kit for 2-fold chassis
474-

2NRMK

19"/1U rack mount kit for 2-fold chassis with internal PSU

474-4RMK 19"/1U rack mount kit for 4-fold chassis
474-6RMK 19"/1U rack mount kit for 6-fold chassis
474-

VPLATE

Fastening strips for screw or snap on for 2-, 4- and 6-fold
chassis

474­OPTRED

Retrofitting for redundant power supply option (without

power supply) for 2- and 4-fold chassis
474-PSU2 Power supply for 2-fold chassis (spare or redundancy)
474-PSU4 Power supply for 4-fold chassis (spare or redundancy)
474-PSU6 Power supply for 6-fold chassis (spare or redundancy)
474-PSU21 Power supply for 6-fold-chassis (spare or redundancy)
474-BLND1 Blind plate 3U/4HP for 2-, 4- and 6-fold chassis
474-BLND2 Blind plate 3U/8HP for 2-, 4- and 6-fold chassis

Description

2014-04-15 11

(Cross) Repeaters and the power supply units can get warm and must not
be installed in closed rooms with no air circulation. For rack-mount
installations, at least 0.5 U (height unit) is required above the (Cross)
Repeater for ventilation.

Pos: 8 /806-IHSE/Beschreibung/Zubehör/ 485-xx @ 11\mod_139514 5995119_6.doc @ 140842 @ 2 @ 1

3.5 Accessories

Model Description

260-5G International power supply unit 100...240 VAC / 5 VDC / 3 A
260-5U International power supply unit 100...240 VAC / 5 VDC / 4 A
474-

PSULOCK

IEC connection cable for power supply, lockable

Pos: 9 /806-IHSE/Beschreibung/Gerätean sichten/UEB_Ger äteansichten @ 5\mod_127 8573737808_6.doc @ 41654 @ 2 @ 1

3.6 Device Views

Pos: 10 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/2-fach Vario- Gehäuse 474-BODY2/2R @ 6\mod_1 304580280566_6.doc @ 508 58 @ 3 @ 1

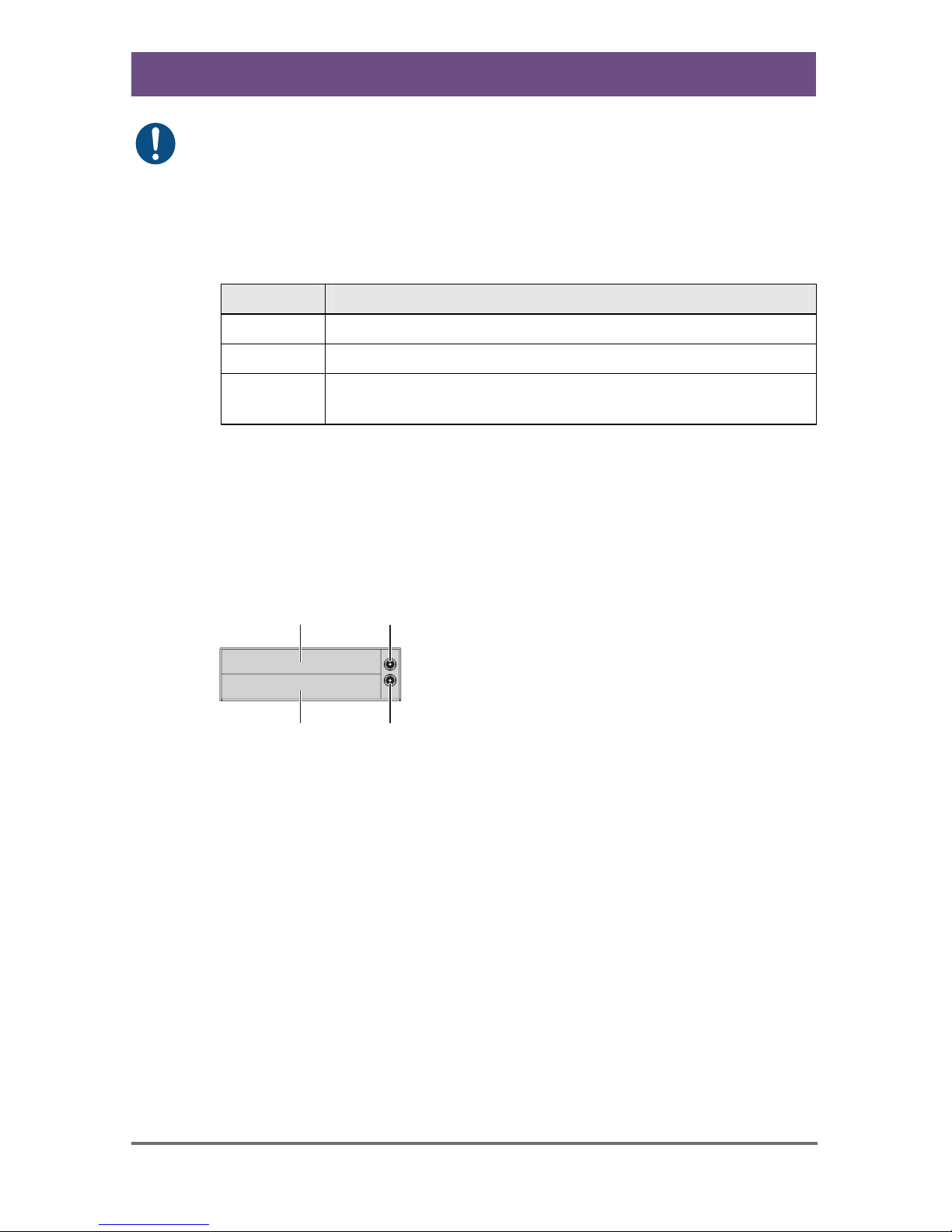

3.6.1 2-fold Vario Chassis 474-BODY2/2R

CPU and CON Unit

1

2

3

4

Rear View

1 Slot for modules #1
2 Connect to 5VDC power supply (standard)
3 Slot for modules #2
4 Connect to 5VDC power supply (redundancy, optional)

Pos: 11 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/2-fach Vario- Gehäuse 474-BODY2N @ 8\mod_13485 78478411_6.doc @ 6938 0 @ 3 @ 1

Draco (Cross) Repeater

12 2014-04-15

3.6.2 2-fold Vario Chassis 474-BODY2N

CPU and CON Unit

1

2

3

4

Rear View

1 Slot for modules #1
2 Connect to power supply (standard)
3 Slot for modules #2
4 Connect to 5VDC power supply (redundancy)

The 2-fold vario chassis with an internal power supply is not equipped with
a fuse on its primary side. Therefore the protection against excessive
currents has to be provided by the electrical installation of the building.

Pos: 12 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/4-fach Vario- Gehäuse 474-BODY4/4R @ 6\mod_1 304580359098_6.doc @ 508 76 @ 3 @ 1

Description

2014-04-15 13

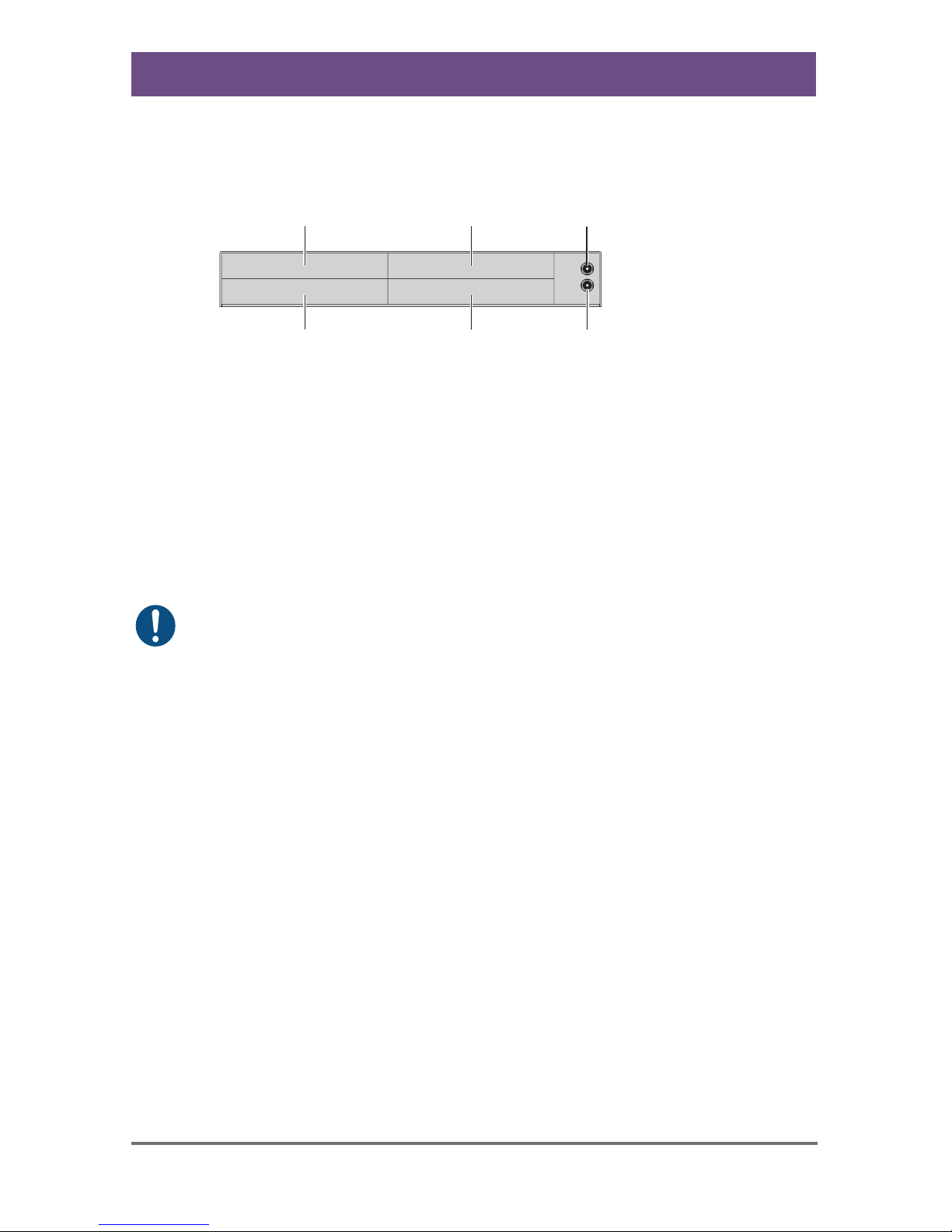

3.6.3 4-fold Vario Chassis 474-BODY4/4R

CPU and CON Unit

3

4

5

1

2

6

Rear View

1 Slot for modules #3
2 Slot for modules #1
3 Connect to 5VDC power supply (standard)
4 Slot for modules #4
5 Slot for modules #2
6 Connect to 5VDC power supply (redundancy, optional)

For operation with three KVM Extender CON modules and a USB 2.0
CON module in a 4-fold vario chassis, two power supplies are necessary.
In this case, redundancy is inapplicable.

Pos: 13 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/6-fach Vario- Gehäuse 474-BODY6R @ 6\mod_13045 80442488_6.doc @ 5089 4 @ 3 @ 1

Draco (Cross) Repeater

14 2014-04-15

3.6.4 6-fold Vario Chassis 474-BODY6R

CPU and CON Unit

3

4

5

1

2

6

8

7

Rear View

1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Connect to power supply (standard)
5 Connect to 5VDC power supply (standard)
6 Slot for modules #6
7 Slot for modules #4
8 Slot for modules #2

For operation with KVM Extender modules in a 6-fold vario chassis, two
power supplies are necessary. In this case, redundancy is inapplicable.

The 6-fold vario chassis is not equipped with a fuse on its primary side.
Therefore the protection against excessive currents has to be provided by
the electrical installation of the building.

Pos: 14 /806-IHSE/Beschreibung/Gerätea nsichten/481- xx/6-fach Vario- Gehäuse 474-BODY6BP @ 9\mod_1367 827188730_6.doc @ 71694 @ 3 @ 1

Description

2014-04-15 15

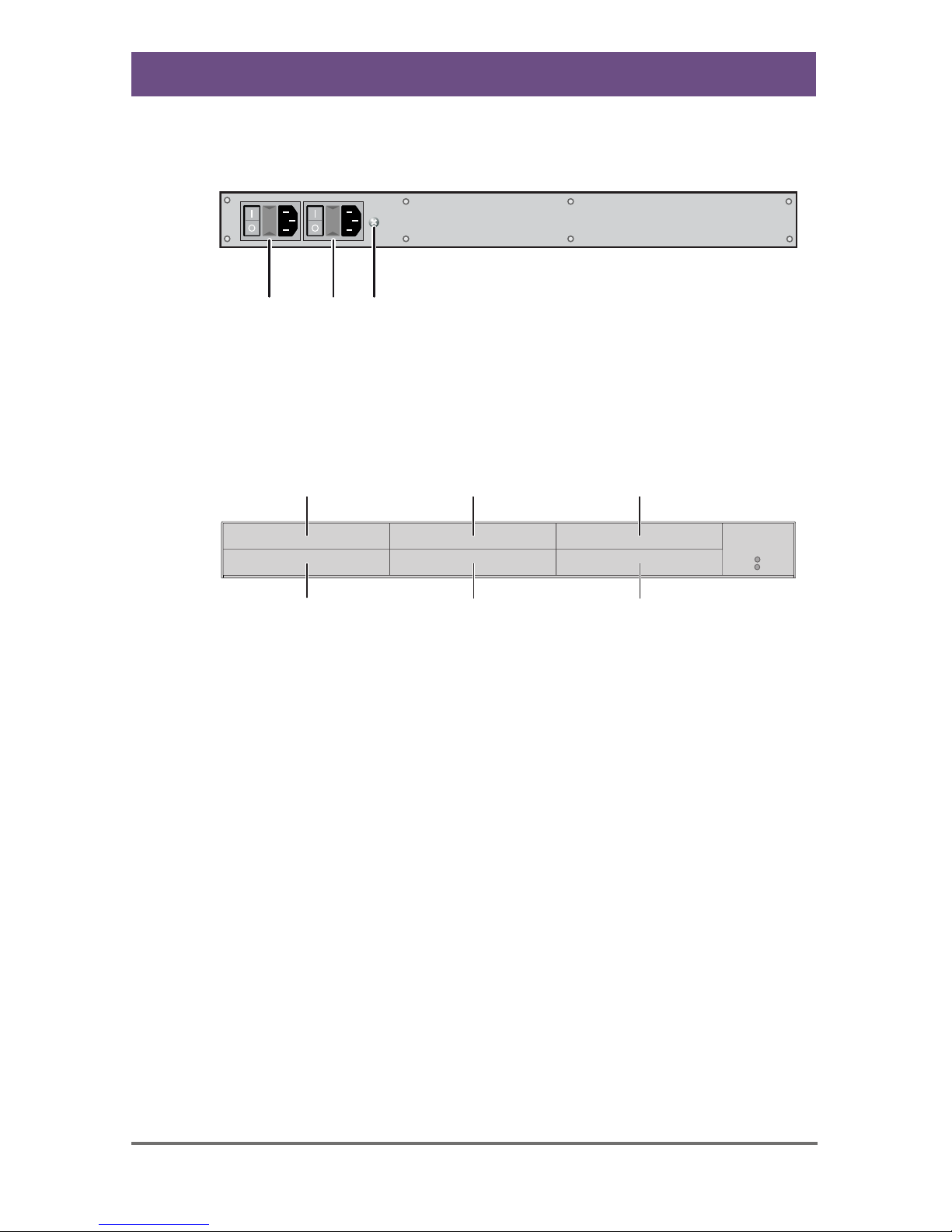

3.6.5 6-fold Vario Chassis 474-BODY6BP

CPU and CON Unit

123

Front View

1 Connect to power supply 1
2 Connect to power supply 2 (redundancy)
3 Grounding

3

45

1

2

6

Rear View

1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Slot for modules #6
5 Slot for modules #4
6 Slot for modules #2

Pos: 15 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/6-fach Vario- Gehäuse 474-BODY6BPF @ 11\mod_13 92644763729_6.doc @ 132650 @ 3 @ 1

Draco (Cross) Repeater

16 2014-04-15

3.6.6 6-fold Vario Chassis 474-BODY6BPF

CPU and CON Unit

3

67

1

2

8

4 5

Rear View

1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Connect to power supply 1
5 Connect to power supply 2 (redundancy)
6 Slot for modules #2
7 Slot for modules #4
8 Slot for modules #6

Pos: 16 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1

Description

2014-04-15 17

Pos: 17 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/21-fach Vario- Gehäuse 474-BODY21R @ 8\mod_134 8579151346_6.doc @ 69400 @ 3 @ 1

3.6.7 21-fold Vario Chassis 474-BODY21R

CPU and CON Unit

1

Rear View

1 Slots for modules #1 - #21

1

2

3

4

Front View

1 Connect to power supply 2
2 Locking for power supply 2 (redundancy)
3 Locking for power supply 1 (standard)
4 Connect to power supply 1

Pos: 18 /806-IHSE/Beschreibung/Gerätea nsichten/485- xx/485-BC @ 11\mod_13951500 15320_6.doc @ 140874 @ 3 @ 1

Draco (Cross) Repeater

18 2014-04-15

3.6.8 Model 485-BC

Module

12 3

Rear View

1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2

Pos: 19 /806-IHSE/Beschreibung/Gerätea nsichten/485- xx/485-BS @ 11\mod_1395151 298709_6.doc @ 140905 @ 3 @ 1

3.6.9 Model 485-BS

Module

12 3

Rear View

1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2

Pos: 20 /806-IHSE/Beschreibung/Gerätea nsichten/485- xx/485-BX @ 11\mod_1395153 879791_6.doc @ 140936 @ 3 @ 1

3.6.10 Model 485-BX

Module

12 3

Rear View

1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2

Pos: 21 /806-IHSE/Beschreibung/Gerätea nsichten/485- xx/485-BCC @ 11\mod_1395153 925309_6.doc @ 140967 @ 3 @ 1

Description

2014-04-15 19

3.6.11 Model 485-BCC

Module

142 3 65

Rear View

1 Service port (repeater #1)
2 Connect to interconnect cable 1

(repeater #1)

3 Connect to interconnect cable 2

(repeater #1)
4 Service port (repeater #2)
5 Connect to interconnect cable 1

(repeater #2)
6 Connect to interconnect cable 2

(repeater #2)

Pos: 22 /806-IHSE/Beschreibung/Geräteansi chten/485-xx/485- BSS @ 11\mod_1395154011282_ 6.doc @ 140998 @ 3 @ 1

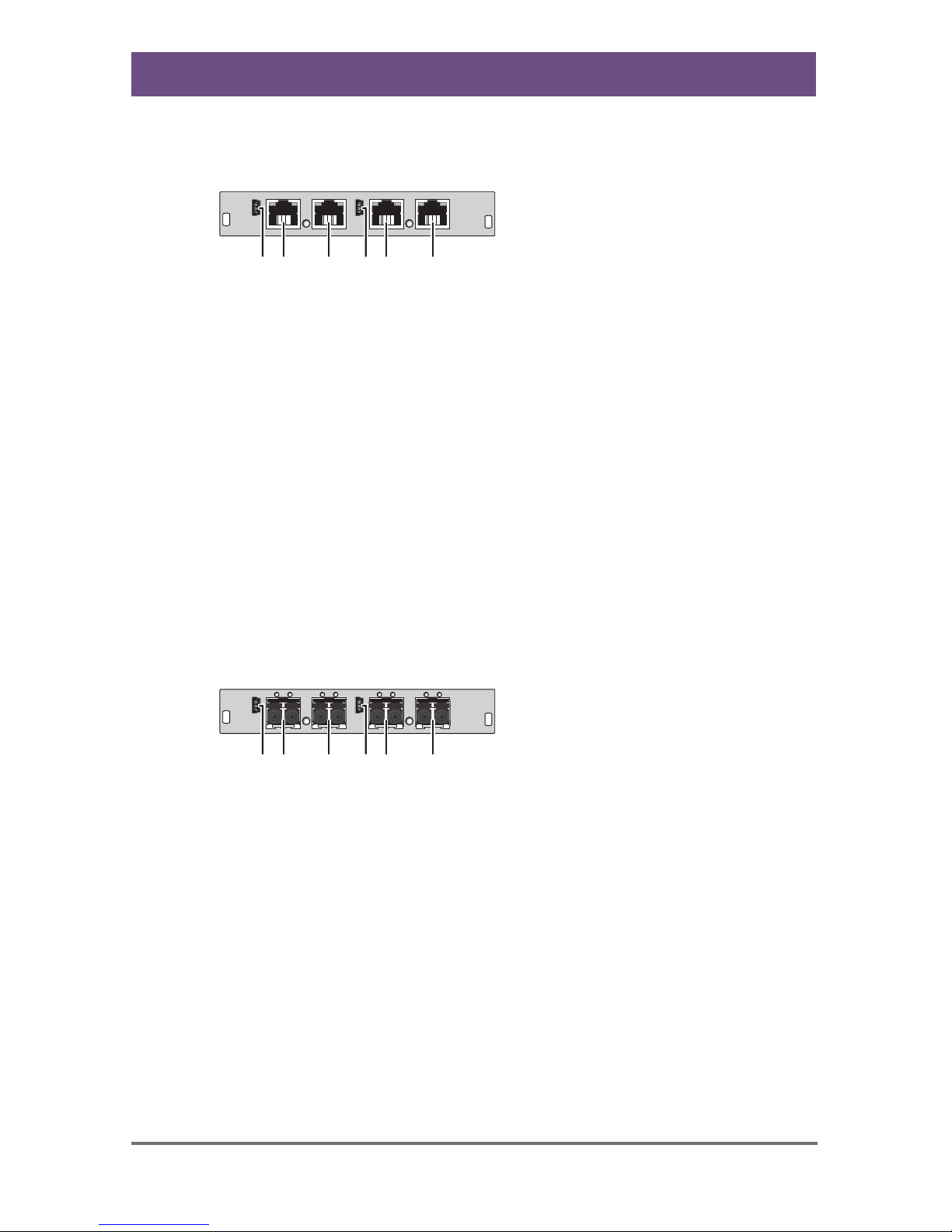

3.6.12 Model 485-BSS

Module

2 3 5 6

14

Rear View

1 Service port (repeater #1)
2 Connect to interconnect cable 1

(repeater #1)
3 Connect to interconnect cable 2

(repeater #1)
4 Service port (repeater #2)
5 Connect to interconnect cable 1

(repeater #2)
6 Connect to interconnect cable 2

(repeater #2)

Pos: 23 /806-IHSE/Beschreibung/Geräteansi chten/485-xx/485- BXX @ 11\mod_1395154080863_ 6.doc @ 141029 @ 3 @ 1

Draco (Cross) Repeater

20 2014-04-15

3.6.13 Model 485-BXX

Module

2 3 5 6

14

Rear View

1 Service port (repeater #1)
2 Connect to interconnect cable 1

(repeater #1)
3 Connect to interconnect cable 2

(repeater #1)
4 Service port (repeater #2)
5 Connect to interconnect cable 1

(repeater #2)
6 Connect to interconnect cable 2

(repeater #2)

Pos: 24 /806-IHSE/Beschreibung/Diagnos e LEDs/UEB_Diagnose_LE Ds @ 6\mod_13045840047 23_6.doc @ 51146 @ @ 1

Description

2014-04-15 21

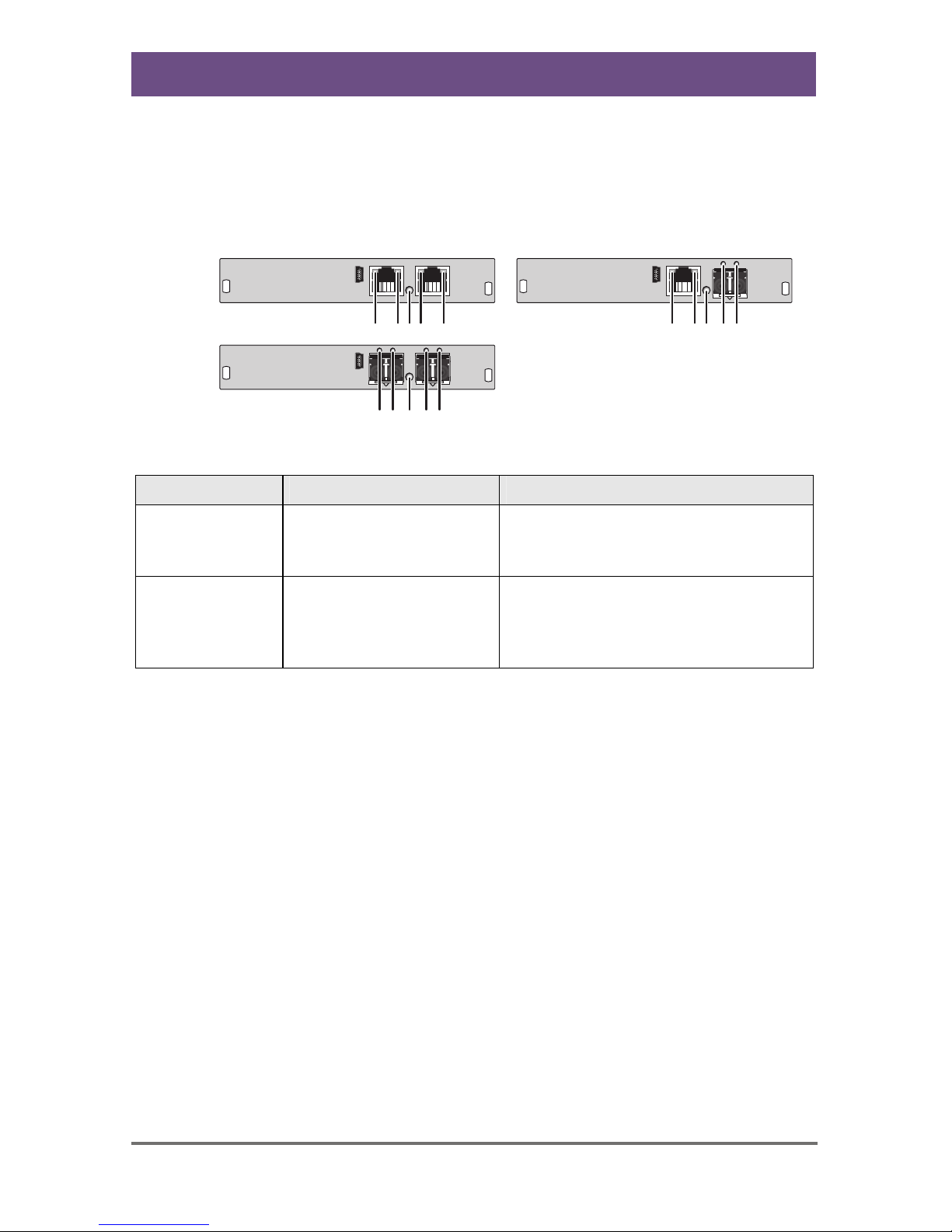

3.7 Status LEDs

Pos: 25 /806-IHSE/Beschreibung/Diagnos e LEDs/485-xx @ 11\mod_13 95154726794_6.doc @ 141055 @ 3 @ 1

3.7.1 Status (Cross) Repeater Module

The (Cross) Repeater module is fitted with a multi color LED for overall
status indication and with two further LEDs for indication of the connection
status.

Module

12345

12 3 45

12345

Rear View Rear View

LED 1/2 and 4/5: Connection Status

Pos. LED Status Description

Off Connection available 1/4

Failure LED

(green)

On or
Flashing

Connection failure (flashing for about
20 s following a connection failure)

Flashing No connection via interconnect cable 2/5

Status LED

(green)

On Connection available

LED 3: Device Status

LED color Description

Red Device ready

Blue

Link 1 (left connector) available, Link 2 (right
connector) not detected

Green

Link 2 (right connector) available, Link 1 (left
connector) not detected

Light Blue

Link 1 (left connector) and Link 2 (right connector)
available

Pos: 26 /806-IHSE/Installation/UEB_I nstallation @ 5\mod_12 78574971589_6.doc @ 41768 @ 1 @ 1

Draco (Cross) Repeater

22 2014-04-15

4 Installation

Pos: 27 /806-IHSE/Installation/Liefer umfang prüfen/48 5-xx @ 11\mod_139515521 6299_6.doc @ 141092 @ 2 @ 1

4.1 Package Contents

Your extender package contains the following items:

(Cross) Repeater:

 (Cross) Repeater in the vario chassis
 1x (redundancy 2x) 5 VDC international power supply unit per KVM

Extender unit (depending on chassis)
 1x (redundancy 2x) country-specific power cord (depending on

chassis)
 Quick Setup

If anything is missing, contact your dealer.

Pos: 28 /806-IHSE/Installation/Syst em anschließen/485- xx @ 11\mod_1395155663403_ 6.doc @ 141123 @ 23 @ 1

4.2 System anschließen

First time users are recommended to setup the system in the same room
as a test setup. This will allow you to identify and solve any cabling
problems, and experiment with your system more conveniently.

 Please verify that interconnect cables, interfaces, and handling of the

devices comply with the requirements (see Chapter

7, Page 26).

4.2.1 (Cross) Repeater Setup

1. Switch off all devices.

2. Connect the (Cross) Repeater with the interconnect cable(s).

3. Connect the chassis of the (Cross) Repeater to the power supply.

4. Power up the system.

To power up the system, the following sequence is recommended:
Monitor – CON Unit – (Cross) Repeater – CPU Unit – source.

Pos: 29 /806-IHSE/Installation/Ins tallationsbeispi ele/485-xx @ 11\mod_139 5156295171_6.doc @ 141154 @ 2 @ 1

Installation

2014-04-15 23

4.3 Example Applications

This section illustrates typical installations of (Cross) Repeaters:

Pos: 58 /806-IHSE/Installation/Ins tallationsbeispi ele/477-xx_COMP @ 5\ mod_1291124264328_258. doc @ 44766 @ @ 1

1 2 4 53 761 2 4 53 76

Single Media Conversion

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable (Cat X)
4 (Cross) Repeater
5 Interconnect cable (fiber)
6 KVM Extender CON Unit
7 Console (monitor, keyboard, mouse)

The example shown in this application scenario will be primarily
recommended, if connections through KVM matrix must be bypassed in
case of major matrix problems. Therefore KVM extenders with Cat X and
with fiber connector can be directly connected to each other.

Draco (Cross) Repeater

24 2014-04-15

1 2 4 5 83 7 96

Pos: 46 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69459 @ @ 1

Dual Media Conversion

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable (Cat X)
4 (Cross) Repeater #1
5 Interconnect cable (fiber)
6 (Cross) Repeater #2
7 Interconnect cable (Cat X)
8 KVM Extender CON Unit
9 Console (monitor, keyboard, mouse)

Pos: 30 /806-IHSE/Konfiguration/ UEB_Konfiguration @ 5\mod_127 8575517073_6.doc @ 41846 @ 1 @ 1

Configuration

2014-04-15 25

5 Configuration

Pos: 31 /806-IHSE/Konfiguration/485 _Einleitung @ 11\mod_13 95156666210_6.doc @ 141185 @ @ 1

The (Cross) Repeater does not require any configuration and is ready for
use per default.

Pos: 32 /806-IHSE/Betrieb/UEB_Betri eb @ 5\mod_1278577614980_6. doc @ 41970 @ 1 @ 1

6 Operation

Pos: 33 /806-IHSE/Betrieb/485_Einlei tung @ 11\mod_13951567253 31_6.doc @ 141216 @ @ 1

The (Cross) Repeater does not have any adjustable operating modes and
is ready for use per default.

Pos: 34 /806-IHSE/Technische Daten/UEB_ Technische Daten @ 5\mod_12 78578165261_6.doc @ 42096 @ 1 @ 1

Draco (Cross) Repeater

26 2014-04-15

7 Specifications

Pos: 35 /806-IHSE/Technische Daten/Sc hnittstellen/UEB_Sc hnittstellen @ 5\mod_12 78578201870_6.doc @ 42114 @ 2 @ 1

7.1 Interfaces

Pos: 36 /806-IHSE/Technische Daten/Sc hnittstellen/RJ45 (G erätekommunikation) @ 5\mod_1278578339308 _6.doc @ 42186 @ 3 @ 1

7.1.1 RJ45 (Interconnect)

Communication between Cat X devices requires a 1000BASE-T
connection.

Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with
RJ45 connectors at both ends. All four cable wire pairs are used.

Pos: 37 /806-IHSE/Technische Daten/Sc hnittstellen/Glasf aser SFP Typ LC @ 5\mod_127893 7700855_6.doc @ 43149 @ 3 @ 1

7.1.2 Fiber SFP Type LC (Interconnect)

Communication of fiber devices is performed via Gigabit SFPs that are
connected to suitable fibers fitted with connectors type LC (see

Chapter 7.2.2, Page 28).

The correct function of the device can only be guaranteed with SFPs
provided by the manufacturer.

SFP modules can be damaged by electrostatic discharge (ESD).
 Please consider ESD handling specifications.

Pos: 38 /806-IHSE/Technische Daten/Verbi ndungskabel/UEB_V erbindungskabel @ 5\ mod_1279191107845_6.d oc @ 43870 @ 2 @ 1

Specifications

2014-04-15 27

7.2 Interconnect Cable

Pos: 39 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (Cat X) @ 5\ mod_1278578406026_6.doc @ 42205 @ 3 @ 1

7.2.1 Cat X

A point-to-point connection is required. Operation with several patch fields
is possible. Routing over an active network component, such as an
Ethernet Hub, Router or Matrix, is not allowed.

 Avoid routing Cat X cables along power cables.
 If the site has 3-phase AC power, try to ensure that CPU Unit and

CON Unit are on the same phase.

To maintain regulatory EMC compliance, correctly installed shielded Cat X
cable must be used throughout the interconnection link.

To maintain regulatory EMC compliance, all Cat X cables need to carry
ferrites on both cable ends close to the device.

Type of Interconnect Cable

The (Cross) Repeater requires interconnect cabling specified for Gigabit
Ethernet (1000BASE-T). The use of solid-core (AWG24), shielded, Cat 5e
(or better) is recommended.

Cat X Solid-Core Cable
AWG24

S/UTP (Cat 5e) cable according to EIA/TIA­568-B. Four pairs of wires AWG24.
Connection according to EIA/TIA-568-B
(1000BASE-T).

Cat X Patch Cable
AWG26/8

S/UTP (Cat 5e) cable according to EIA/TIA­568-B. Four pairs of wires AWG26/8.
Connection according to EIA/TIA-568-B
(1000BASE-T).

The use of flexible cables (patch cables) type AWG26/8 is possible,
however the maximum possible extension distance is halved.

Pos: 40 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (Cat X)_Kab ellänge 477- xx @ 5\mod_1278937761105_6. doc @ 43167 @ @ 1

Maximum Acceptable Cable Length

Cat X Installation Cable
AWG24

140 m (400 ft)

Cat X Patch Cable
AWG26/8

70 m (200 ft)

Pos: 41 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (LW L) @ 5\mod_1278937967667_6. doc @ 43186 @ 3 @ 1

Draco (Cross) Repeater

28 2014-04-15

7.2.2 Fiber

A point-to-point connection is necessary. Operation with multiple patch
panels is allowed. Routing over active network components, such as
Ethernet Hubs, Switches or Routers, is not allowed.

Type of Interconnect Cable

(Cable notations according to VDE)

Type of cable Specifications

Single-mode 9μm  Two fibers 9μm

 I-V(ZN)H 2E9 (in-house patch cable)
 I-V(ZN)HH 2E9 (in-house breakout cable)
 I/AD(ZN)H 4E9 (in-house or outdoor

breakout cable, resistant)

 A/DQ(ZN)B2Y 4G9 (outdoor cable, with

protection against rodents)

Multi-mode 50μm  Two fibers 50μm

 I-V(ZN)H 2G50 (in-house patch cable)
 I/AD(ZN)H 4G50 (in-house or outdoor

breakout cable, resistant)

Multi-mode 62.5μm  Two fibers 62.5μm

 I-V(ZN)HH 2G62.5 (in-house breakout

cable)

 A/DQ(ZN)B2Y 4G62.5 (outdoor cable,

with protection against rodents)

Maximum Acceptable Cable Length

Type of cable Maximum Acceptable Cable Length

Single-mode 9μm 10,000 m (32,800 ft)
Multi-mode 50μm (OM3) 1,000 m (3,280 ft)
Multi-mode 50μm 400 m (1,300 ft)
Multi-mode 62.5μm 200 m (650 ft)

If you use single-mode SFPs with multi-mode fibers, you normally can
double the maximum acceptable cable length.

Pos: 42 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (LW L)_Steckverbinder 477- xx @ 5\mod_1278954447542 _6.doc @ 43740 @ @ 1

Type of Connector

Connector

LC Connector

Pos: 43 /806-IHSE/Technische Daten/Pinbe legungen/UEB_Pinb elegungen @ 5\mod_12785 78683636_6.doc @ 42315 @ 2 @ 1

Specifications

2014-04-15 29

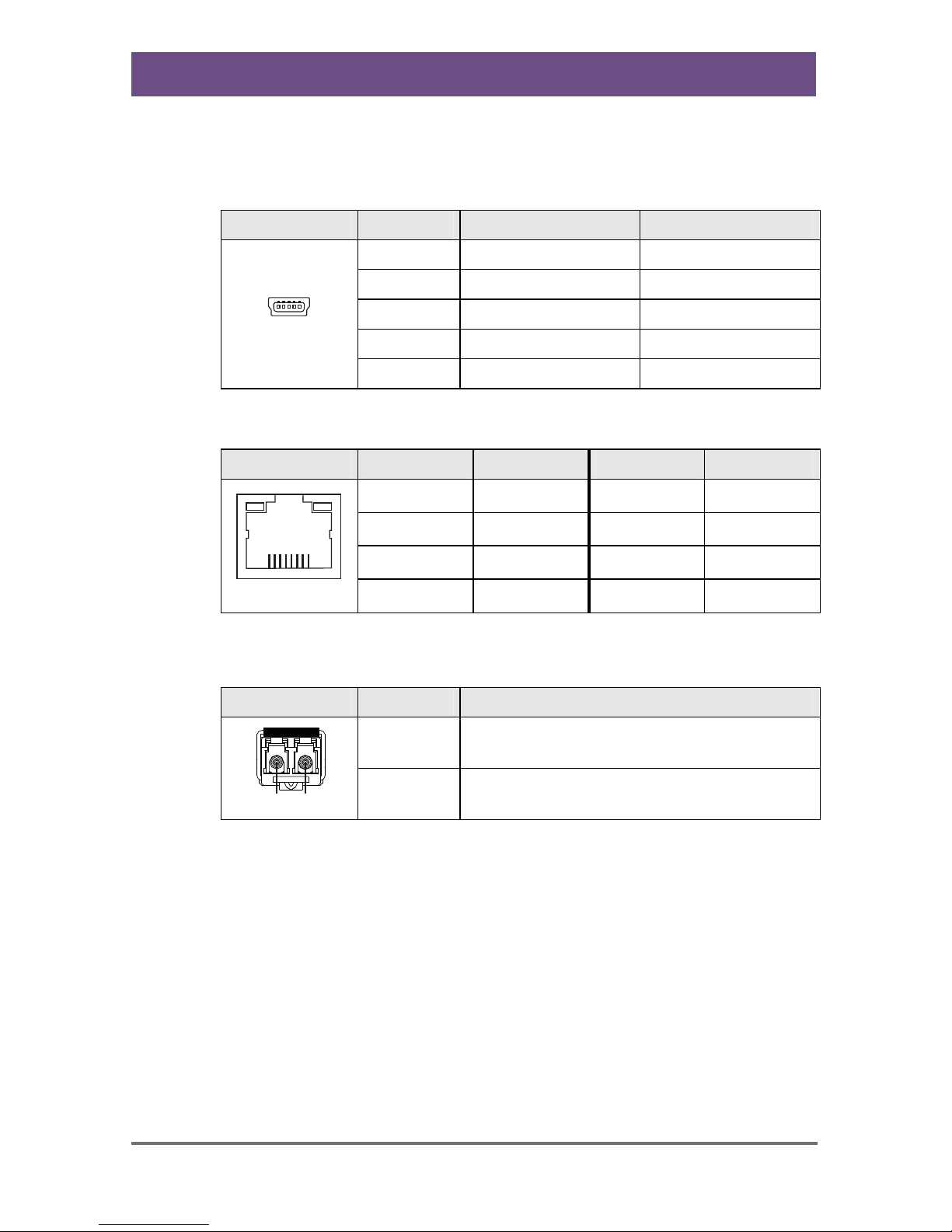

7.3 Connector Pinouts

Pos: 44 /806-IHSE/Technische Daten/Pinbe legungen/Buchse Mini-USB Typ B @ 5\mod_127857879 4167_6.doc @ 42387 @ @ 1

Connector Mini USB Type B

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –

....5

1

5 GND Black

Pos: 45 /806-IHSE/Technische Daten/Pinbe legungen/RJ45 @ 5\mod_1 278578820011_6.doc @ 42405 @ @ 1

RJ45

Picture Pin Signal Pin Signal

1 D1+ 5 D3–

2 D1– 6 D2–

3 D2+ 7 D4+

8..........1

4 D3+ 8 D4–

Pos: 46 /806-IHSE/Technische Daten/Pinbe legungen/Glasfaser SFP Typ LC @ 5\mod_127893850 1151_6.doc @ 43210 @ @ 1

Fiber SFP Typ LC

Picture Diode Signal

1 Data OUT

12

2 Data IN

Pos: 47 /806-IHSE/Technische Daten/Stro mversorgung/485- xx @ 11\mod_139515734124 2_6.doc @ 141242 @ 2 @ 1

Draco (Cross) Repeater

30 2014-04-15

7.4 Power Supply

AC Power Supply

Model Max. Current Max. Voltage Frequency

474-BODY2N 700 mA max. 100-240 V 50/60 Hz

474-BODY6R 1,400 mA max. 100-240 V 47-63 Hz
474-BODY6BP 800 mA max. 100-240 V 50/60 Hz
474-BODY6BPF 800 mA max. 100-240 V 50/60 Hz
474-BODY21/4U 4,000 mA max. 2x 100-240 V 50/60 Hz

DC Power Supply

Model Max. Current Max. Voltage

474-BODY2/2R 3,000 mA 5 VDC
474-BODY2N 5,000 mA 5 VDC
474-BODY4/4R 5,000 mA 5 VDC
474-BODY6R 8,000 mA 5 VDC

Power Requirement

Power Requirement
(per Unit)

(Cross) Repeater:

 Max. 300 mA

Pos: 48 /806-IHSE/Technische Daten/Einsa tzbedingungen/A TB_Einsatzbedingung en @ 5\mod_1278578980026 _6.doc @ 42480 @ 2 @ 1

7.5 Environmental Conditions

Operating Temperature

41 to 113°F (5 to 45°C)

Storage Temperature

–13 to 140°F (–25 to 60°C)

Relative Humidity

Max. 80% non-condensing

Pos: 49 /806-IHSE/Technische Daten/Ab messungen/474-xx @ 6\mod _1304586358176_6.doc @ 51345 @ 2 @ 1

Specifications

2014-04-15 31

7.6 Size

Devices in the 2-fold Vario Chassis 1

CPU Unit / CON Unit

145 x 147 x 41 mm (5.7" x 5.8" x 1.7")

Shipping Box

210 x 140 x 165 mm (8.3" x 5.5" x 6.5")

Devices in the 2-fold Vario Chassis 2

CPU Unit / CON Unit

221 x 147 x 41 mm (8.7" x 5.8" x 1.7")

Shipping Box

550 x 365 x 115 mm (21.7" x 14.4" x 4.5")

Devices in the 4-fold Vario Chassis

CPU Unit / CON Unit

293 x 147 x 41 mm (11.5" x 5.8" x 1.7")

Shipping Box

550 x 365 x 115 mm (21.7" x 14.4" x 4.5")

Devices in the 6-fold Vario Chassis 6R

CPU Unit / CON Unit

442 x 147 x 41 mm (17.4" x 5.8" x 1.7")

Shipping Box

760 x 365 x 115 mm (29.9" x 14.4" x 4.5")

Devices in the 6-fold Vario Chassis 6BP / 6BPF

CPU Unit / CON Unit

442 x 250 x 41 mm (17.4" x 9.8" x 1.7")

Shipping Box

550 x 372 x 155 mm (21.7" x 14.6" x 6.1")

Devices in the 21-fold Vario Chassis

CPU Unit / CON Unit

482 x 462 x 176 mm (19.0" x 18.2" x 6.9")

Shipping Box

645 x 574 x 368 mm (25.4" x 22.6" x 14.5")

Pos: 50 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1

Draco (Cross) Repeater

32 2014-04-15

Pos: 51 /806-IHSE/Technische Daten/Transp ortgewicht /474- xx @ 6\mod_1304586413879_ 6.doc @ 51363 @ 2 @ 1

7.7 Shipping Weight

Devices in the 2-fold Vario Chassis 1

CPU Unit / CON Unit

0.4 kg (0.9 lb)

Shipping Box

2.2 kg (4.9 lb)

Devices in the 2-fold Vario Chassis 2

CPU Unit / CON Unit

0.8 kg (1.8 lb)

Shipping Box

2.6 kg (5.7 lb)

Devices in the 4-fold Vario Chassis

CPU Unit / CON Unit

0.9 kg (2.0 lb)

Shipping Box

3.4 kg (7.5 lb)

Devices in the 6-fold Vario Chassis 6R

CPU Unit / CON Unit

1.4 kg (3.1 lb)

Shipping Box

4.6 kg (10.1 lb)

Devices in the 6-fold Vario Chassis 6BP / 6BPF

CPU Unit / CON Unit

2.5 kg (5.5 lb)

Shipping Box

3.5 kg (7.7 lb)

Devices in the 21-fold Vario Chassis

CPU Unit / CON Unit

10.0 kg (22.1 lb)

Shipping Box

14.5 kg (32.0 lb)

Pos: 52 /806-IHSE/Hilfe im Problemfall/ UEB_Hilfe im Problemfal l @ 5\mod_1278579113839_ 6.doc @ 42536 @ 1 @ 1

Troubleshooting

2014-04-15 33

8 Troubleshooting

Pos: 53 /806-IHSE/Hilfe im Problemfall/A llgemeine Störung/48 5-xx @ 11\mod_139521879 3981_6.doc @ 141316 @ 2 @ 1

8.1 General Failures

Module

12345

12 3 45

12345

Rear View

Diagnosis Possible Reason Measure

LED 3 off

Power supply

 Check power supply units and

the connection to the power
network.

LED 2 off or
LED 5 off

Connection between
(Cross) Repeater and
KVM extender unit or
KVM matrix

 Check interconnect cables and

connections.

Pos: 54 /806-IHSE/Technische Unterstütz ung/ATB_Technisc he Unterstützung @ 5\mod_1 278579487089_6.doc @ 42650 @ 122 @ 1

Draco (Cross) Repeater

34 2014-04-15

9 Technical Support

Prior to contacting support please ensure you have read this manual, and
then installed and set-up your (Cross) Repeater as recommended.

9.1 Support Checklist

To efficiently handle your request it is necessary that you complete a
support request checklist (Download). Please ensure that you have the
following information available before you call:

 Company, name, phone number and email
 Type and serial number of the device (see bottom of device)
 Date and number of sales receipt, name of dealer if necessary
 Issue date of the existing manual
 Nature, circumstances and duration of the problem
 Components included in the system (such as graphic source/CPU,

OS, graphic card, monitor, USB-HID/USB 2.0 devices, interconnect

cable) including manufacturer and model number
 Results from any testing you have done

9.2 Shipping Checklist

1. To return your device, contact your dealer to obtain a RMA number

(Return-Material-Authorization).

2. Package your devices carefully, preferably using the original box.

Add all pieces which you received originally.

3. Note your RMA number visibly on your shipment.

Devices that are sent in without a RMA number cannot be accepted. The
shipment will be sent back without being opened, postage unpaid.

Pos: 55 /806-IHSE/Zertifikate/UEB_ Zertifikate @ 5\mod_12785 79534933_6.doc @ 42668 @ 1 @ 1

Certificates

2014-04-15 35

10 Certificates

Pos: 56 /806-IHSE/Zertifikate/ATB_E uropäische Konformi tätserklärung @ 5\mod_1 278579640901_6.doc @ 42686 @ 2 @ 1

10.1 CE Declaration Of Conformity

The products listed below in the form as delivered comply with the
provisions of the following European Directives:

2004/108/EG Council Directive on the approximation of the laws of
the Member States relating to electromagnetic
compatibility

CE Marking 2009
Product list:
485 Series

The products comply with the following harmonized standards for
Information Technology Equipment:

 EN 55022:2010 + A1:2007 (Class A)
 EN 55024:2010 + A1:2001 + A2:2003

This declaration certifies the conformity to the specified directives but
contains no assurance of properties. The safety instructions and
installation guidelines noted in this manual shall be considered in detail.
Compliance with the specifications for cable lengths and types is
mandatory.

Manufacturer:
IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Deutschland

Oberteuringen, 26 January 2010
The Management

Use in a Domestic Environment

This is a Class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.

Draco (Cross) Repeater

36 2014-04-15

10.2 North American Regulatory Compliance

This equipment has been found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

Shielded cables must be used with this equipment to maintain compliance
with radio frequency energy emission regulations and ensure a suitably
high level of immunity to electromagnetic disturbances.

All power supplies are certified to the relevant major international safety
standards.

Pos: 57 /806-IHSE/Zertifikate/474- xx_Produktsicher heit @ 9\mod_13739646017 86_6.doc @ 77511 @ 2 @ 1

10.3 Product Safety

The product safety of the devices is proven by the compliance to the
following standards:

 IEC 60950-1A1:2010
 EN 60950-1/A12:2011
 UL 60950-1-2007
 CAN/CSA-C22.2 60950-1-07

The compliance is verified and confirmed by TÜV Süd, Germany.

Pos: 58 /806-IHSE/Zertifikate/ATB_WEEE @ 5\ mod_1278579673292_6.doc @ 42704 @ 2 @ 1

Certificates

2014-04-15 37

10.4 WEEE

The manufacturer complies with the EU Directive 2012/19/EU on the
prevention of waste electrical and electronic equipment (WEEE).

The device labels carry a respective marking.

Pos: 59 /806-IHSE/Zertifikate/ATB_ RoHS @ 5\mod_1278579714214_6. doc @ 42722 @ 2 @ 1

10.5 RoHS/RoHS 2

This device complies with the Directive 2011/65/EU of the European
Parliament and of the council of 8 June 2011 on the restriction of the use
of certain hazardous substances in electrical and electronic equipment
(RoHS 2, RoHS II).

The device labels carry a respective marking.

Pos: 60 /806-IHSE/Glossar/ATB_Glossar @ 5\mod_1278576825433_ 6.doc @ 41890 @ 1 @ 1

Draco (Cross) Repeater

38 2014-04-15

11 Glossary

The following terms are commonly used in this guide or in video and KVM
technology:

Term Explanation

AES/EBU

Digital audio standard that is officially known as
AES3 and that is used for carrying digital audio

signals between devices.
Cat X Any Cat 5e (Cat 6, Cat 7) cable
CGA

Color Graphics Adapter (CGA) is an old analog

graphic standard with up to 16 displayable colors and

a maximum resolution of 640x400 pixels.
Component

Video

Component Video (YPbPr) is a high-quality video

standard that consists of three independently and

separately transmittable video signals, the luminance

signal and two color difference signals.
Composite Video

Composite Video is also called CVBS and it is part of

the PAL TV standard.
CON Unit

Component of a KVM Extender or Media Extender to

connect to the console (monitor(s), keyboard and

mouse; optionally also with USB 2.0 devices)
Console Keyboard, mouse and monitor
CPU Unit

Component of a KVM Extender or Media Extender to

connect to a source (computer, CPU)
CVBS

The analog color video baseband signal (CVBS) is

also called Composite Video and it is part of the PAL

TV standard.
DDC

Display Data Channel (DDC) is a serial

communication interface between monitor and

source (computer, CPU). It allows a data exchange

via monitor cable and an automatic installation and

configuration of a monitor driver by the operating

system.
Dual Access

A system to operate a source (computer, CPU) from

two consoles
Dual Link

A DVI-D interface for resolutions up to 2560x2048 by

signal transmission of up to 330 MPixel/s (24-bit)
Dual-Head A system with two video connections

Glossary

2014-04-15 39

Term Explanation

DVI

Digital video standard, introduced by the Digital

Display Working Group (http://www.ddwg.org

). Single
Link and Dual Link standard are distinguished. The
signals have TMDS level.

DVI-I

A combined signal (digital and analog) that allows
running a VGA monitor at a DVI-I port – in contrast to
DVI-D (see DVI).

EGA

The Enhanced Graphics Adapter (EGA) is an old
analog graphic standard, introduced by IBM in 1984.
A D-Sub 9 connector is used for connection.

Fiber Single-mode or multi-mode fiber cables
HDMI

An interface for an all-digital transmission of audio
and video data. It is differentiated between the HDMI
standards 1.0 to 1.4a.

The signals have TMDS level.

KVM Keyboard, video and mouse
Mini-XLR

Industrial standard for electrical plug connections
(3 pole) for the transmission of digital audio and
control signals

Multi-mode

62.5µ multi-mode fiber cable or 50µ multi-mode fiber
cable

OSD

The On-Screen-Display is used to display information
or to operate a device.

Quad-Head A system with four video connections
RCA (Cinch)

A non-standard plug connection for transmission of
electrical audio and video signals, especially with
coaxial cables

S/PDIF

A digital audio interconnect that is used in consumer
audio equipment over relatively short distances.

SFP

SFPs (Small Form Factor Pluggable) are pluggable
interface modules for Gigabit connections. SFP
modules are available for Cat X and fiber
interconnect cables.

Single Link

A DVI-D interface for resolutions up to 1920x1200 by
signal transmission of up to 165 MPixel/s (24-bit).

Alternative frequencies are Full HD (1080p), 2K HD
(2048x1080) and 2048x1152.

Single-Head A system with one video connection
Single-mode 9µ single-mode fiber cable

Draco (Cross) Repeater

40 2014-04-15

Term Explanation

S-Video (Y/C)

S-Video (Y/C) is a video format transmitting
luminance and chrominance signals separately.
Thereby it has a higher quality standard than CVBS.

TOSLINK

Standardized fiber connection system for digital
transmission of audio signals (F05 plug connection)

Triple-Head A system with three video connections
USB-HID

USB-HID devices (Human Interface Device) allow for
data input.

There is no need for a special driver during
installation; "New USB-HID device found" is reported.

Typical HID devices include keyboards, mice,
graphics tablets and touch screens. Storage, video
and audio devices are not HID.

VGA

Video Graphics Array (VGA) is a computer graphics
standard with a typical resolution of 640x480 pixels
and up to 262,144 colors. It can be seen as a
follower of the graphics standards MDA, CGA and
EGA.

=== Ende der Liste für Textmarke Inhalt ===
