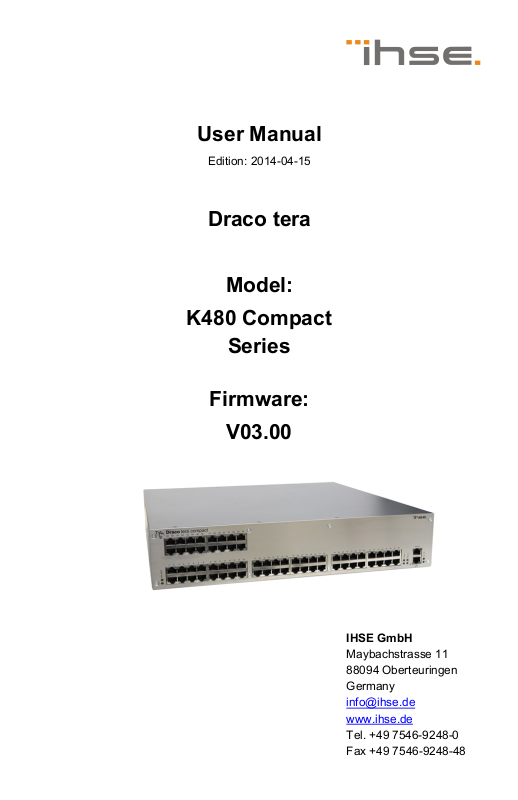

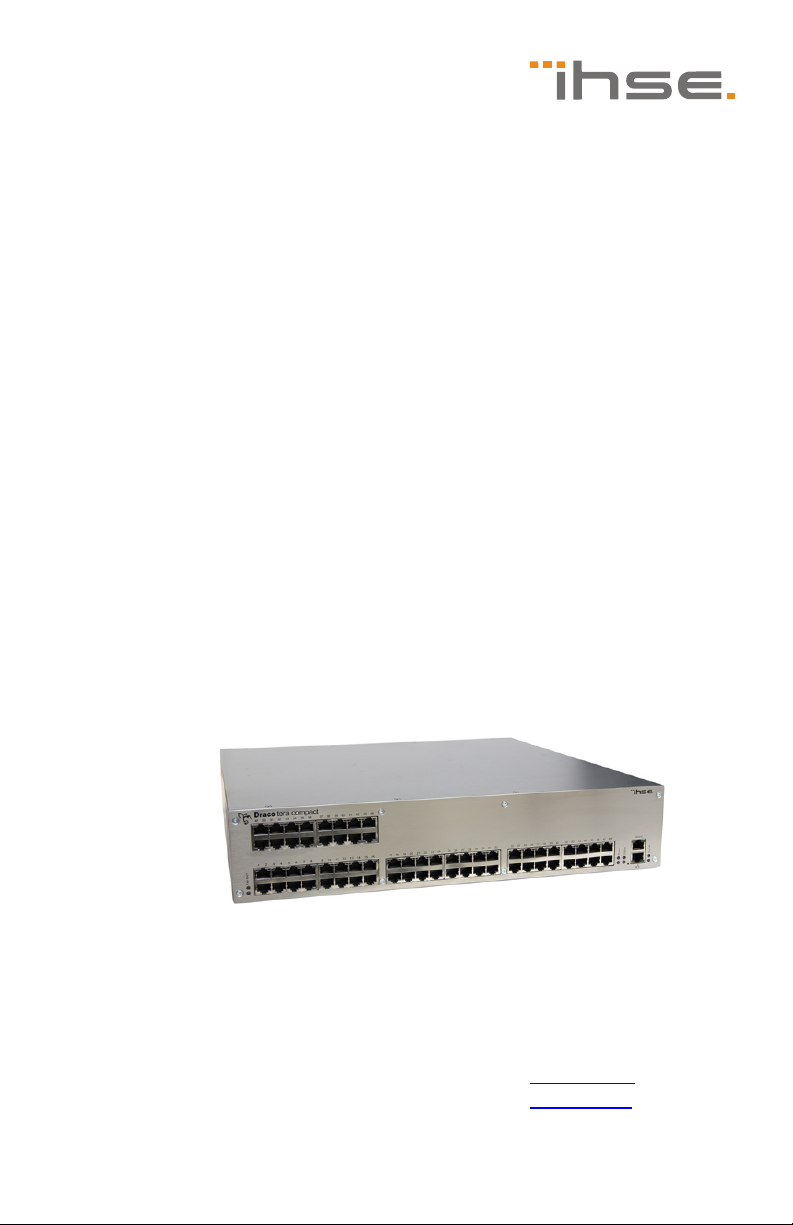

Ihse K480-80F, K480-48C, K480-48F, K480-32C, K480-32F User Manual

User Manual

Edition: 2014-04-15

Draco tera

Model:

K480 Compact

Series

Firmware:

V03.00

IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Germany

[e-mail]
www.ihse.de

Tel. [phone]
Fax [phone]

Draco tera

Copyright

© 2014. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.

Information in this document is subject to change without notice.

Trademarks

All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.

Disclaimer

While every precaution has been taken during preparation of this manual,
the manufacturer assumes no liability for errors or omissions. Neither does
the manufacturer assume any liability for damages resulting from the use
of the information contained herein.

The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.

2 2014-04-15

Contents

Contents

1 About This Manual ....................................................................... 8

1.1 Scope.................................................................................. 8

1.2 Validity ................................................................................ 8

1.3 Cautions and Notes ............................................................ 8

1.4 Spellings ............................................................................. 8

2 Safety Instructions....................................................................... 9

3 Description ................................................................................. 10

3.1 Application ........................................................................ 10

3.2 Access Options ................................................................. 10

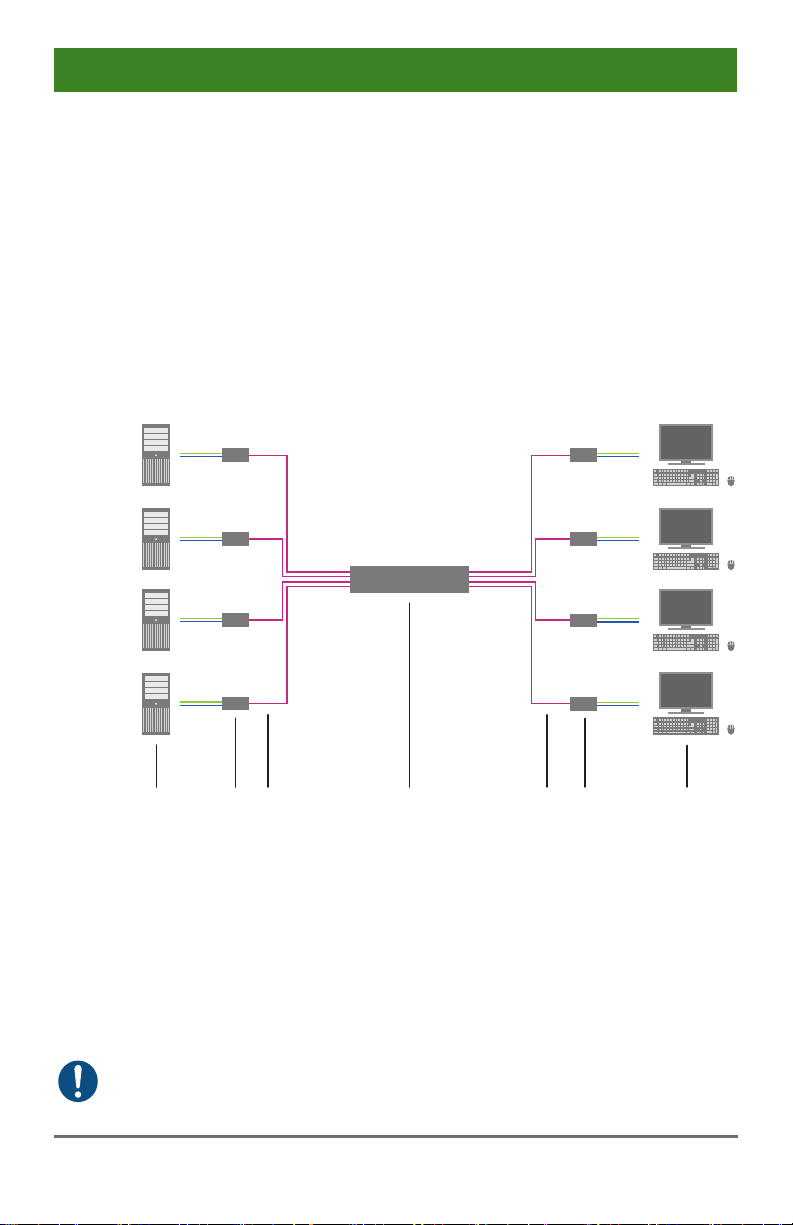

3.3 System Overview .............................................................. 11

3.4 Product Range .................................................................. 12

3.5 Options.............................................................................. 13

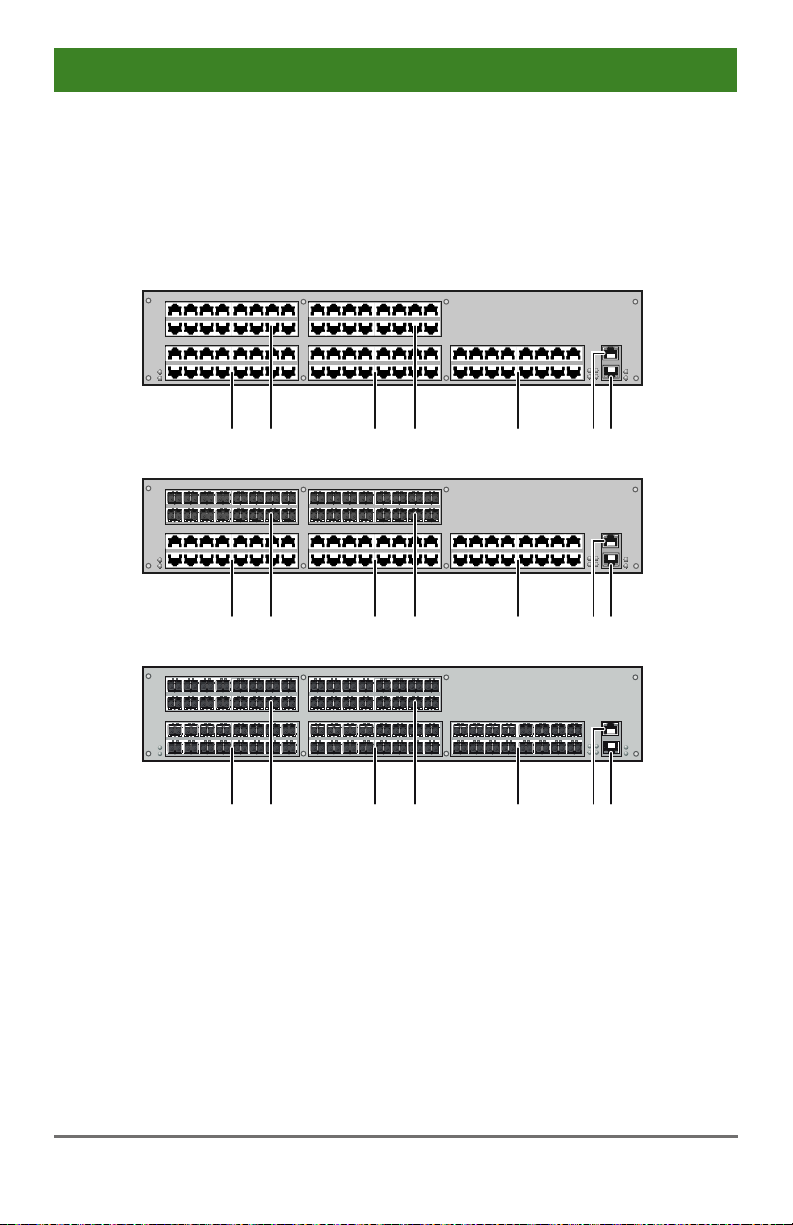

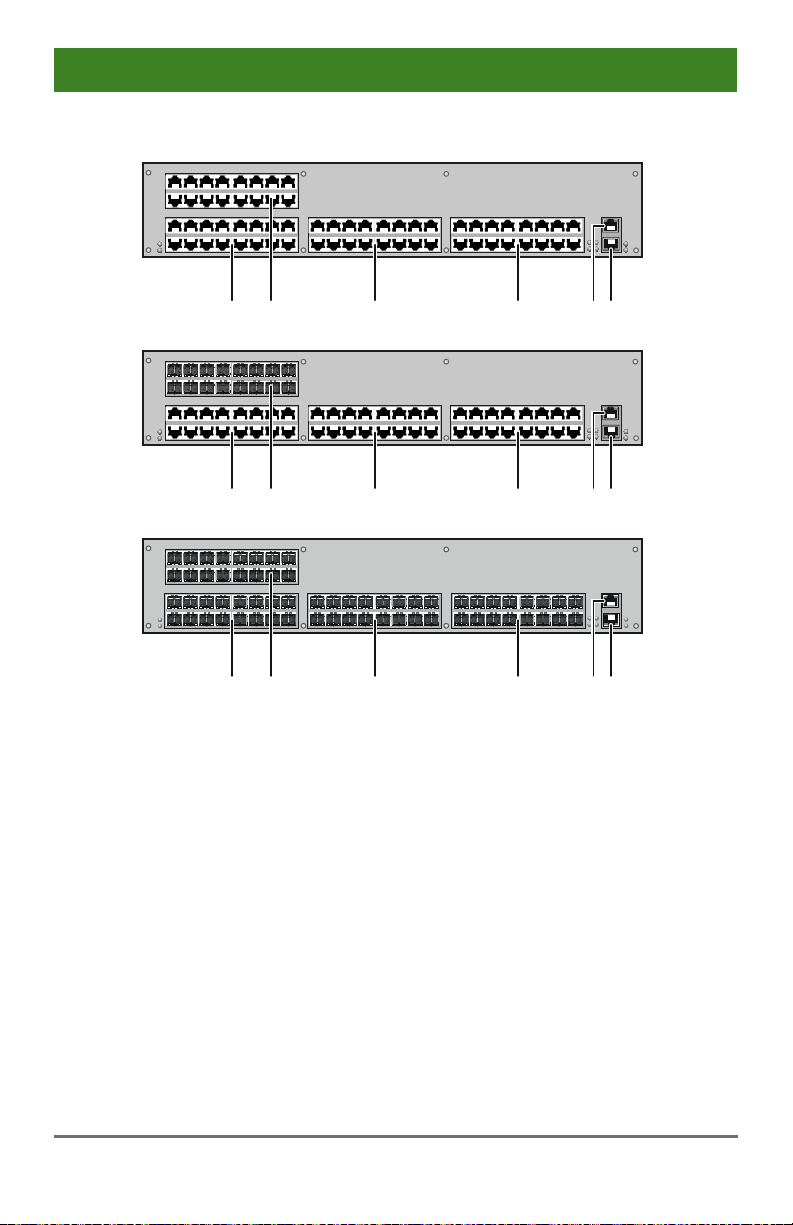

3.6 Device Views .................................................................... 14

3.6.1 Draco tera 80 Port............................................... 14

3.6.2 Draco tera 64 Port............................................... 16

3.6.3 Draco tera 48 Port............................................... 18

3.6.4 Draco tera 32 Port............................................... 20

3.6.5 Draco tera 16 Port............................................... 21

3.6.6 Draco tera 8 Port................................................. 22

3.6.7 Draco tera 8 Port Vario Module........................... 22

3.7 Diagnostics and Status ..................................................... 23

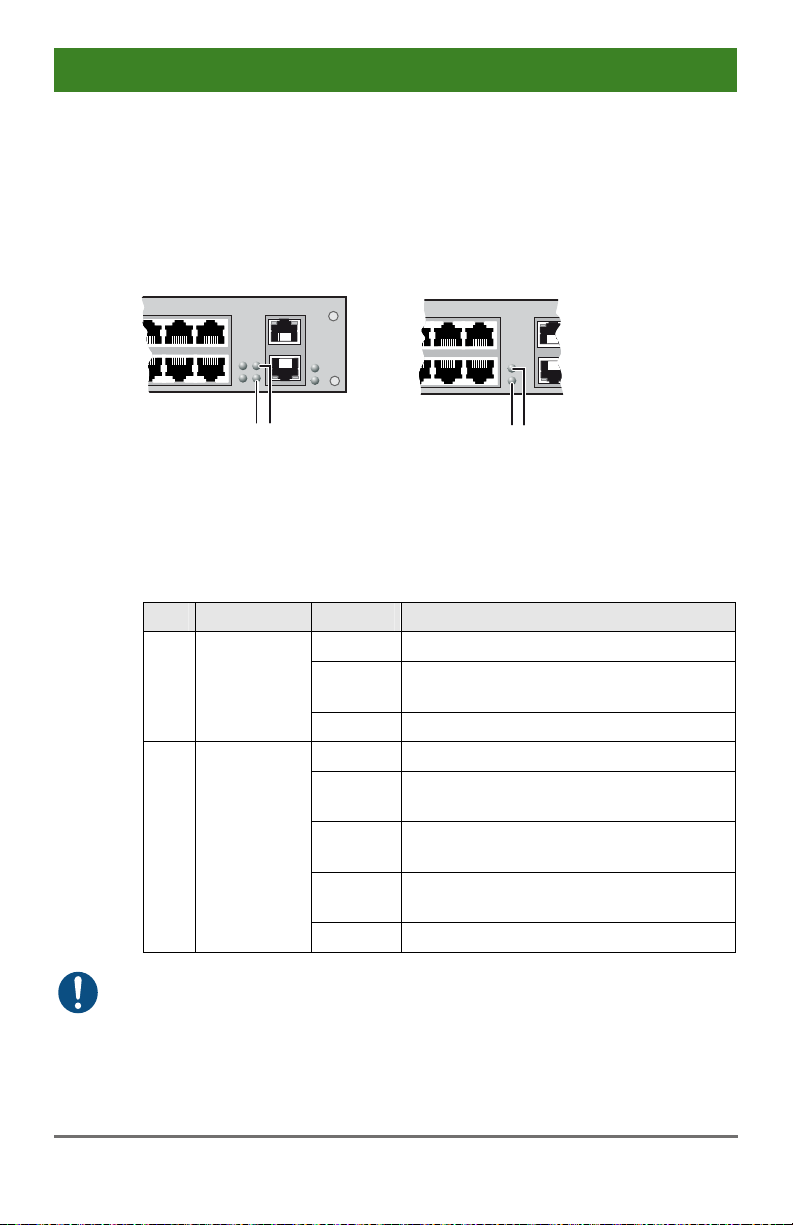

3.7.1 Status LEDs........................................................ 23

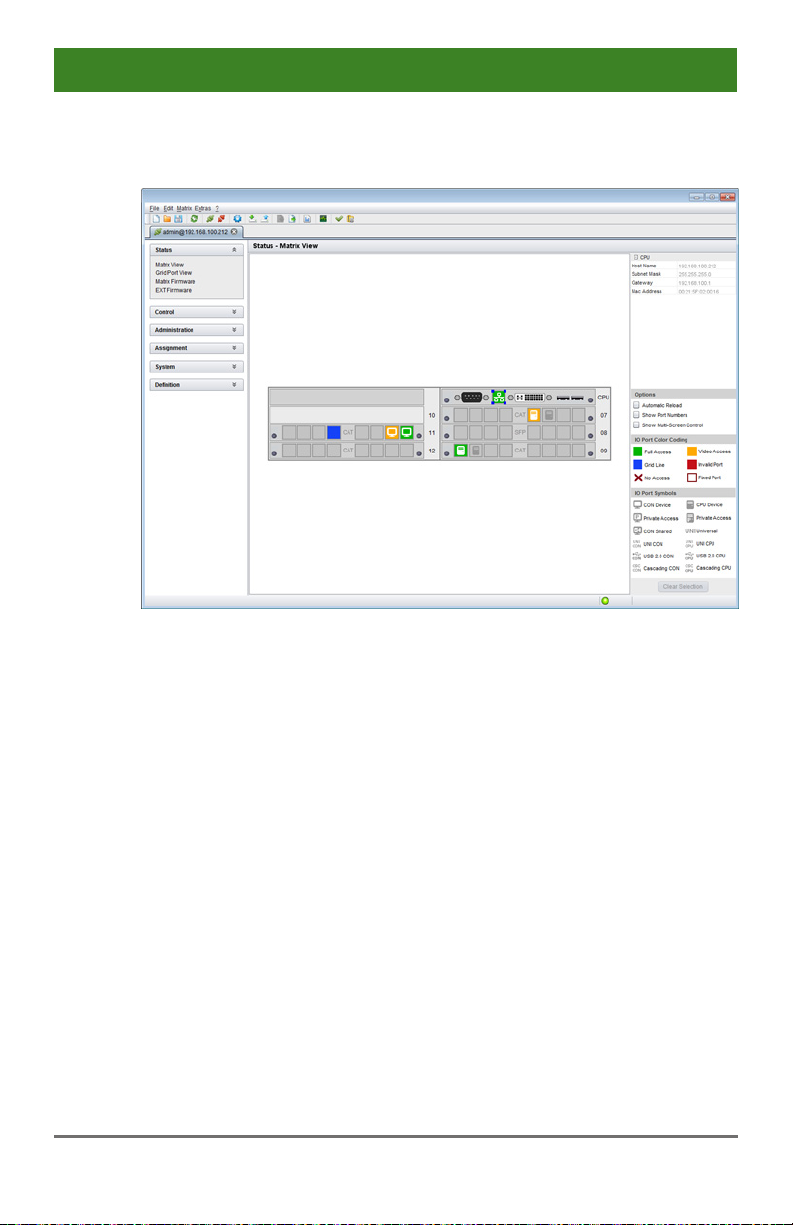

3.7.2 Port Status .......................................................... 27

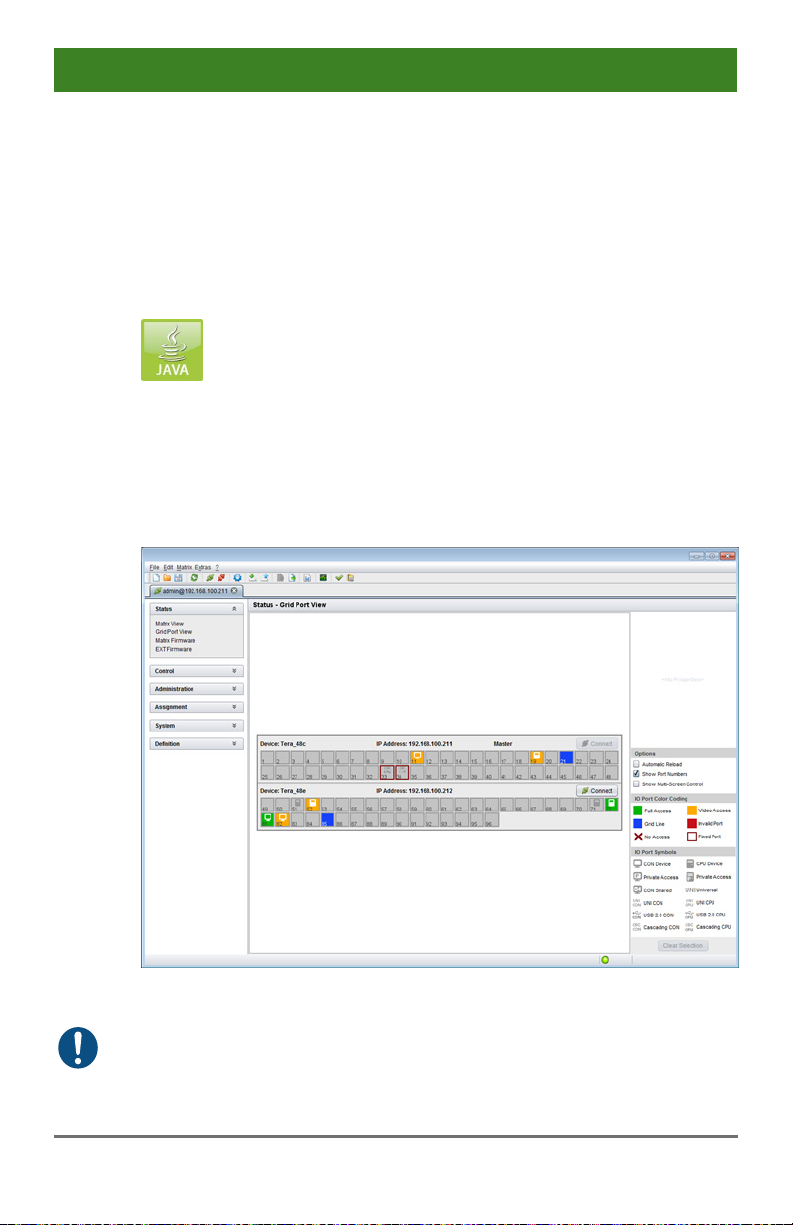

3.7.3 Port Status Matrix Grid........................................ 31

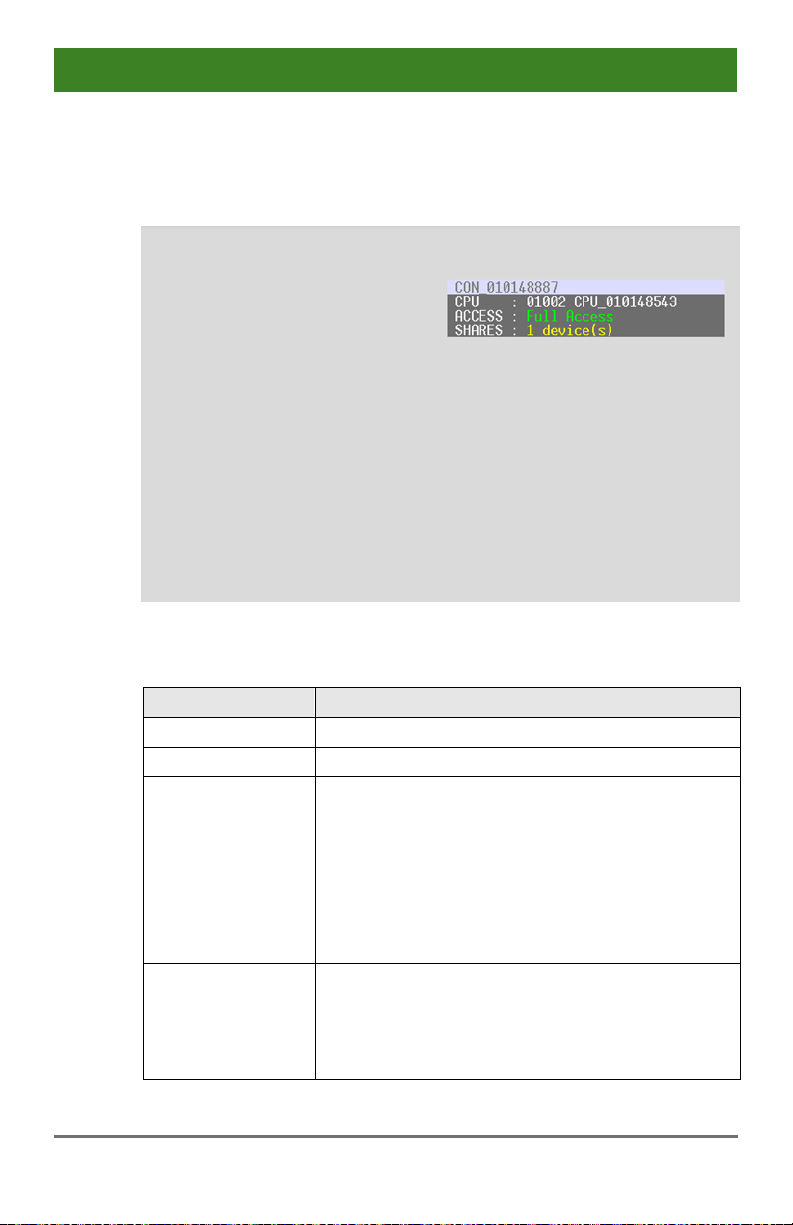

3.7.4 Extender OSD..................................................... 32

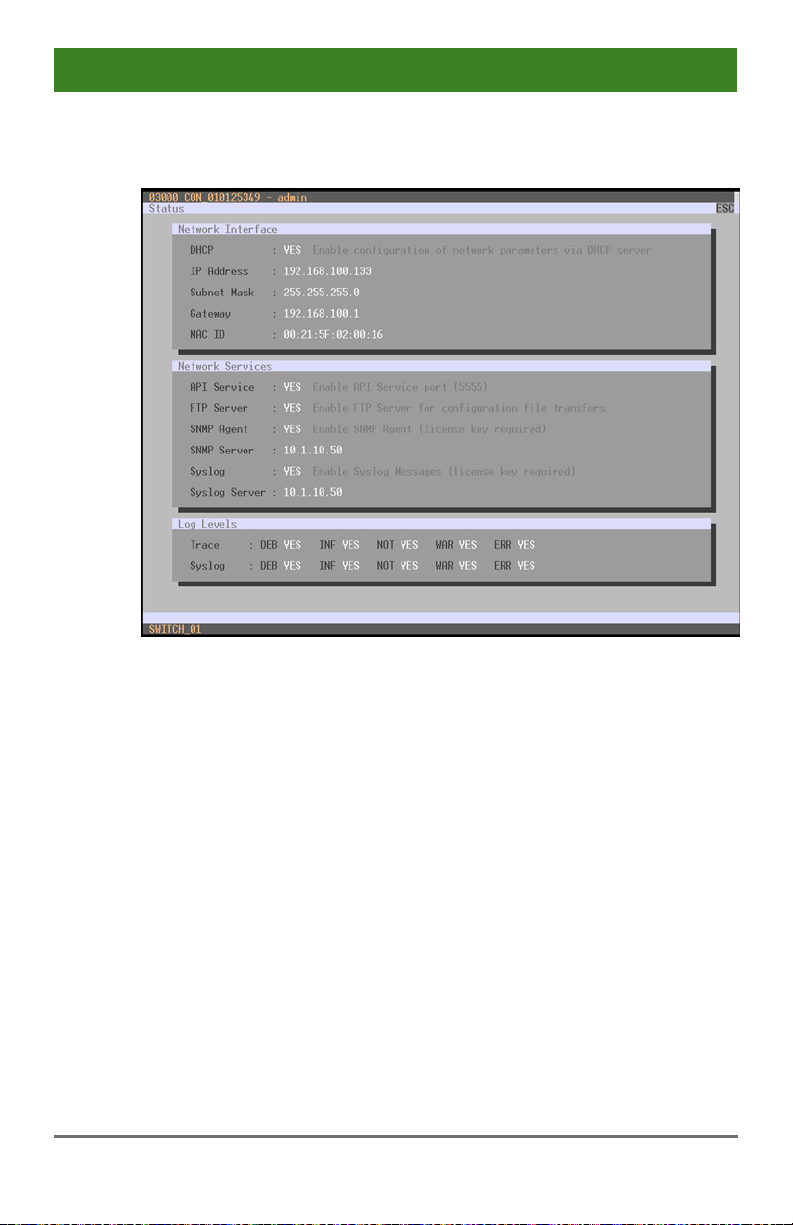

3.7.5 Network Status.................................................... 33

3.7.6 Firmware Status Matrix ....................................... 36

3.7.7 Firmware Status Extender................................... 38

3.8 Trace Function .................................................................. 39

3.9 Syslog Monitoring ............................................................. 40

2014-04-15 3

Draco tera

4 Installation .................................................................................. 48

5 Configuration.............................................................................. 56

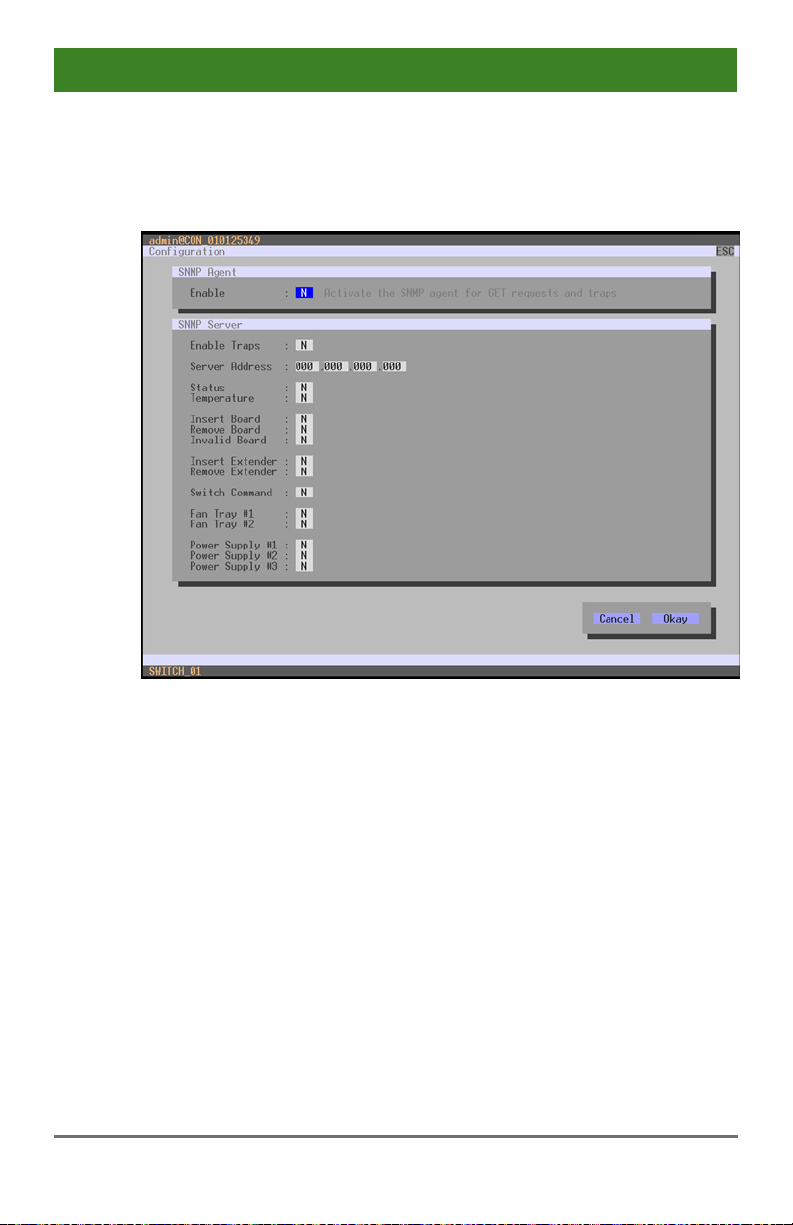

3.10 SNMP................................................................................ 42

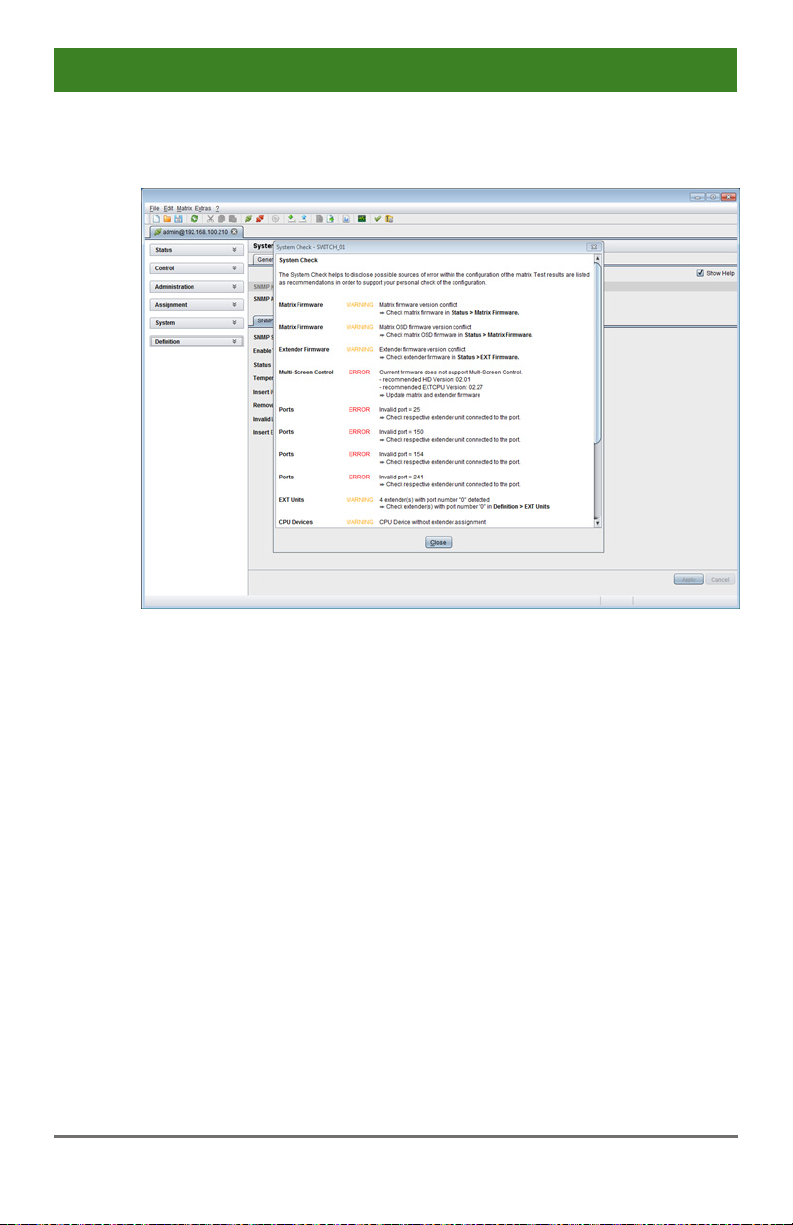

3.11 System Check................................................................... 46

4.1 Package Contents............................................................. 48

4.2 System Setup.................................................................... 48

4.3 Example Applications........................................................ 50

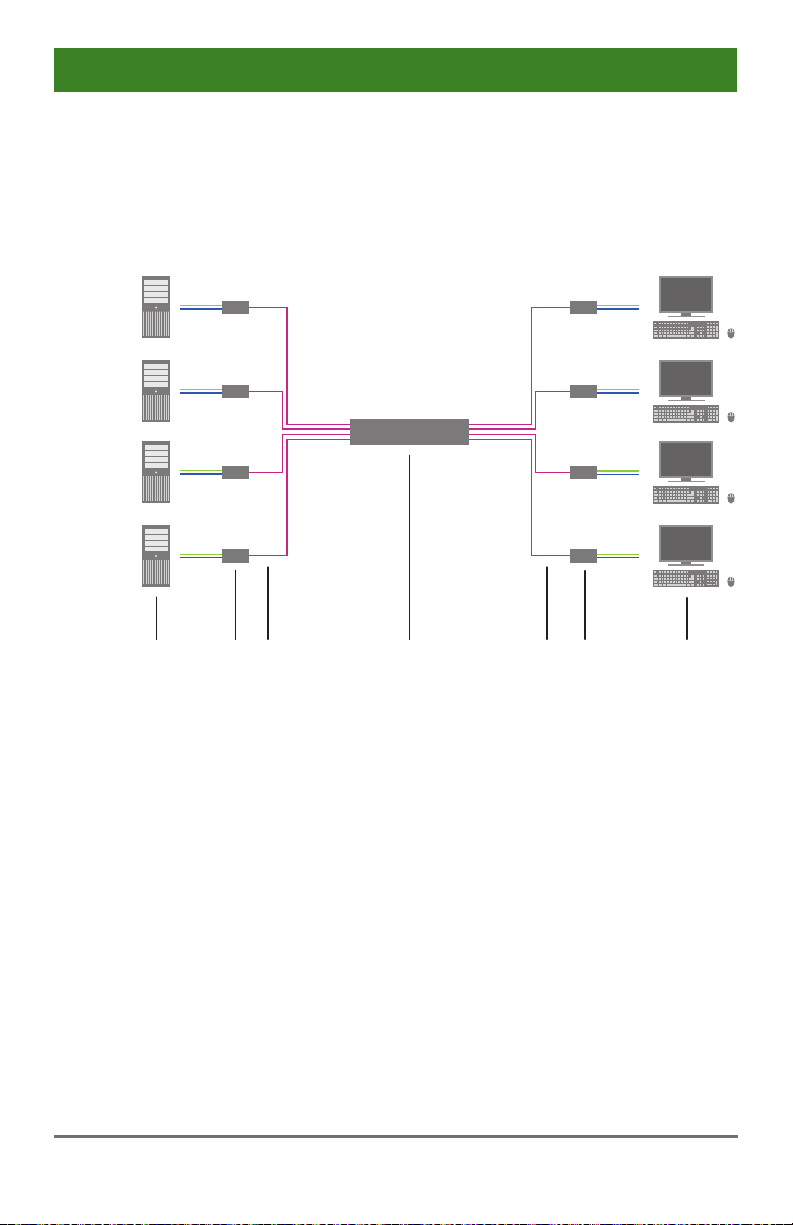

4.3.1 KVM Matrix ......................................................... 51

4.3.2 Parallel Operation (Stacking) .............................. 52

4.3.3 Matrix Grid .......................................................... 54

5.1 Command Mode ............................................................... 56

5.2 Control Options ................................................................. 58

5.2.1 Control via OSD .................................................. 58

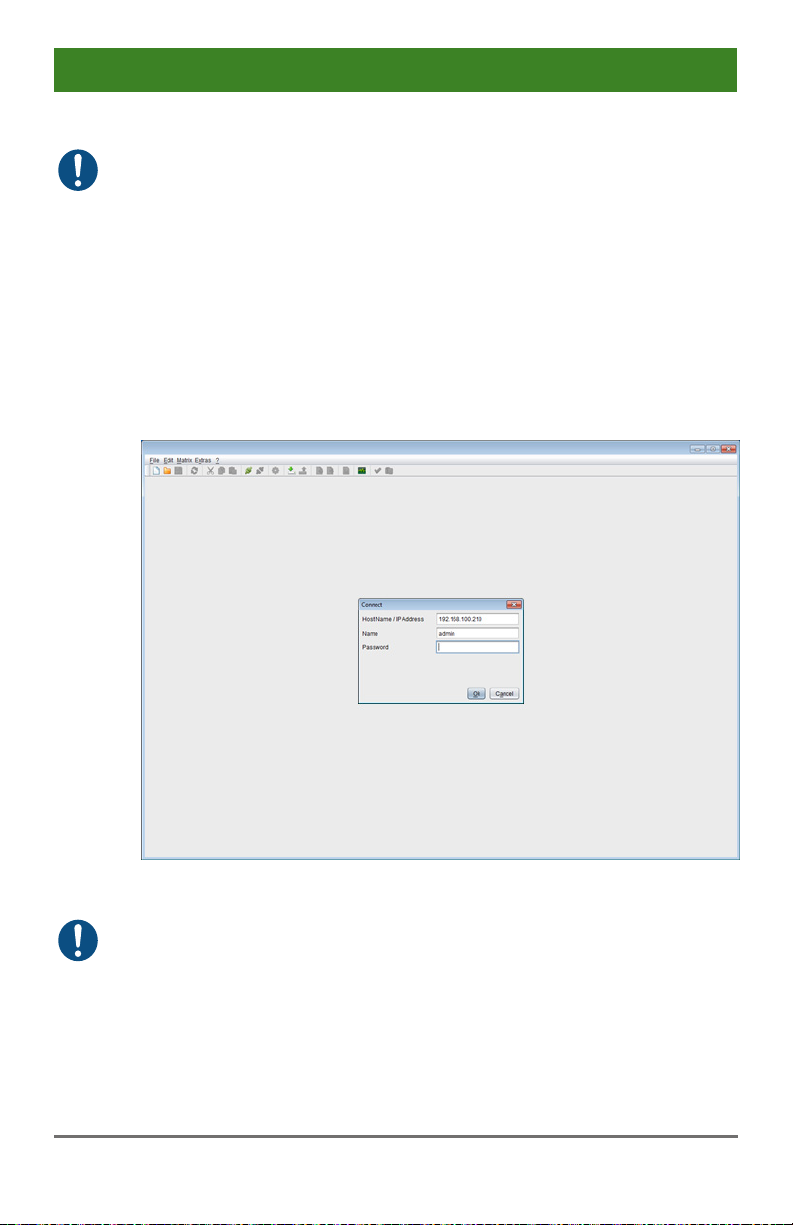

5.2.2 Control via Java Tool .......................................... 63

5.2.3 Control via Serial Interface.................................. 72

5.3 Assignment ....................................................................... 72

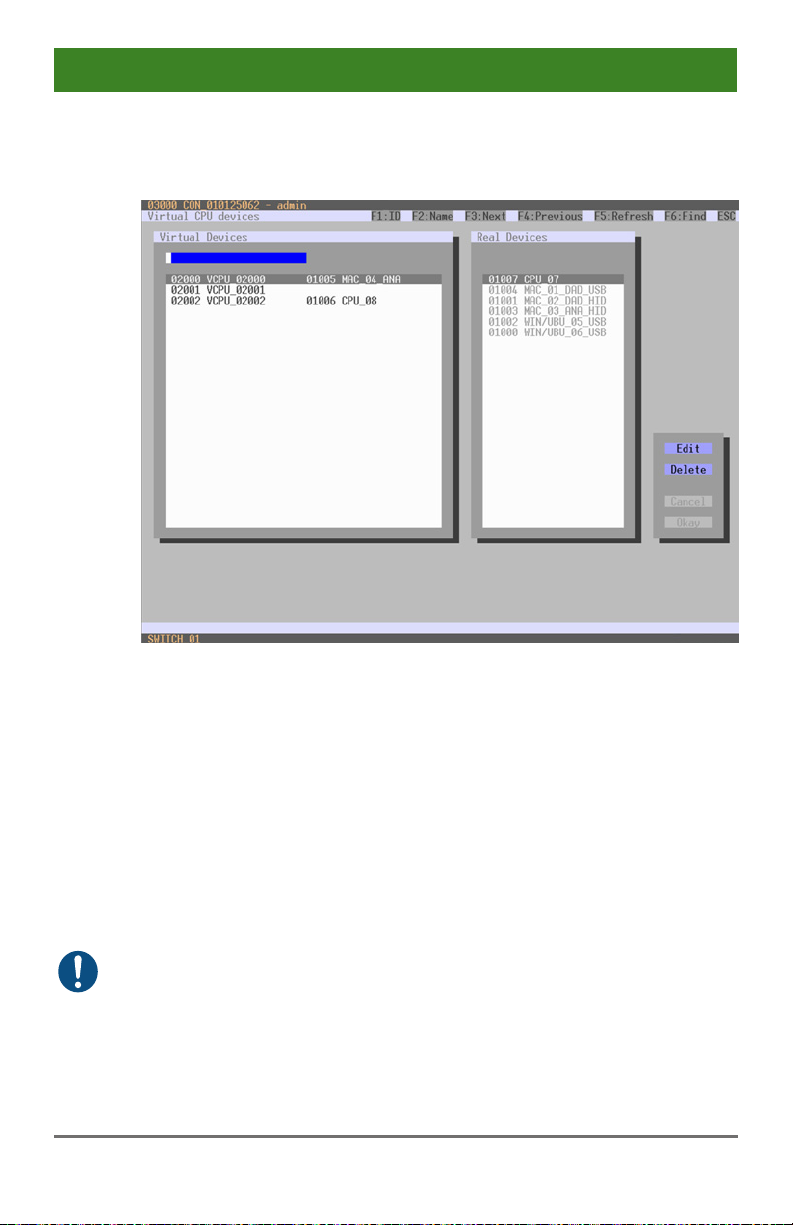

5.3.1 Virtual CPU ......................................................... 72

5.3.2 Virtual Console.................................................... 75

5.4 System Settings ................................................................ 78

5.4.1 System Data ....................................................... 78

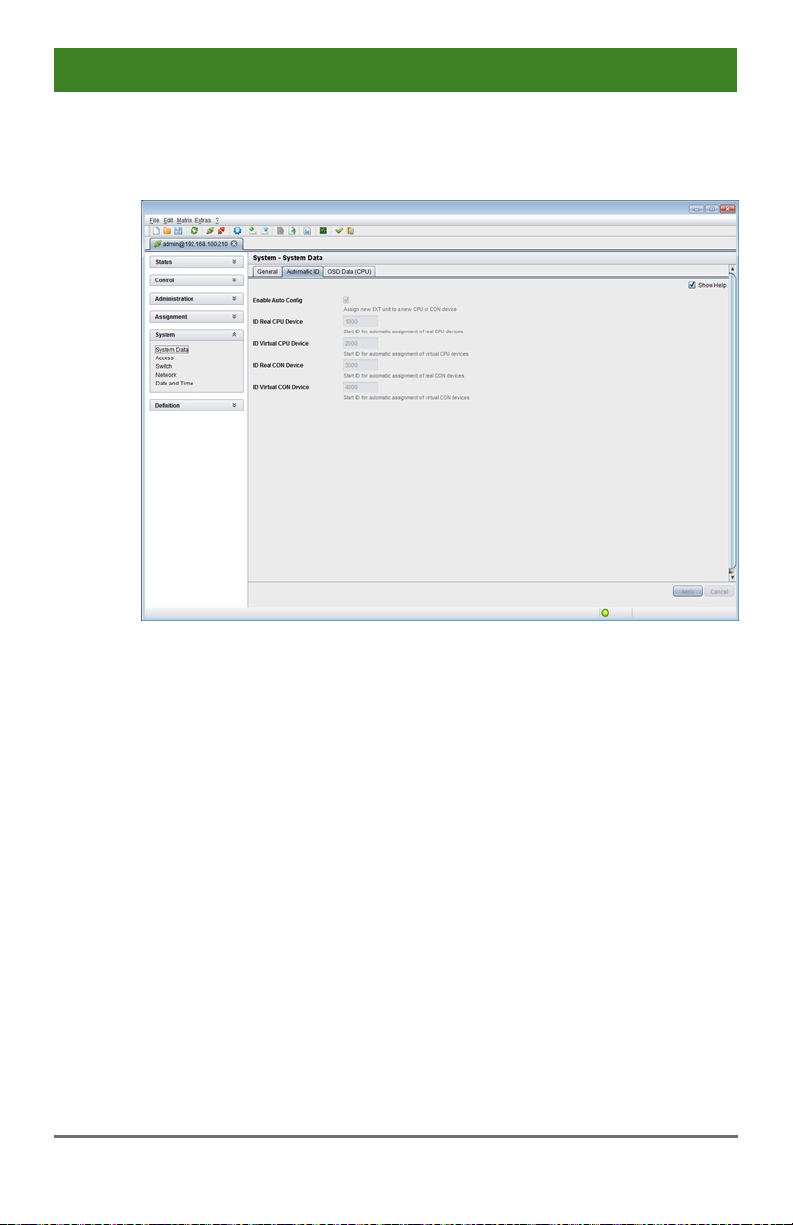

5.4.2 Automatic ID ....................................................... 82

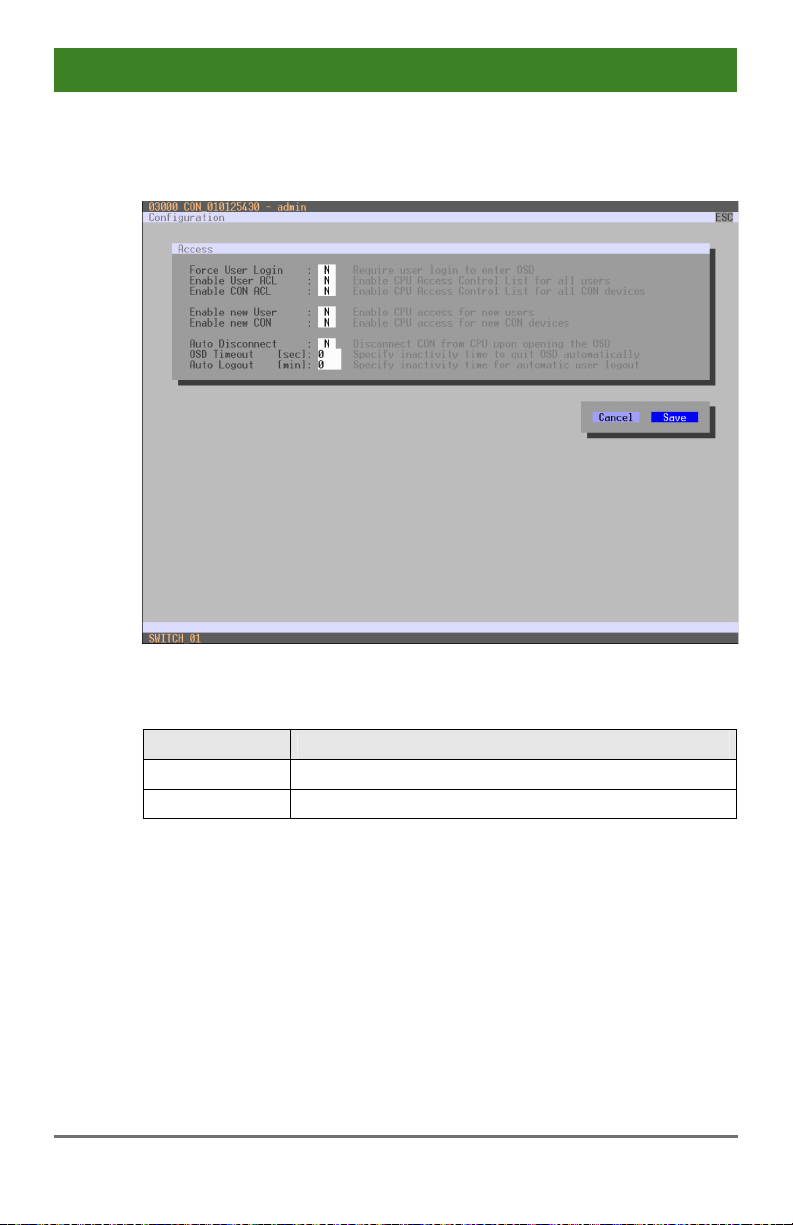

5.4.3 Access ................................................................ 85

5.4.4 Switch ................................................................. 89

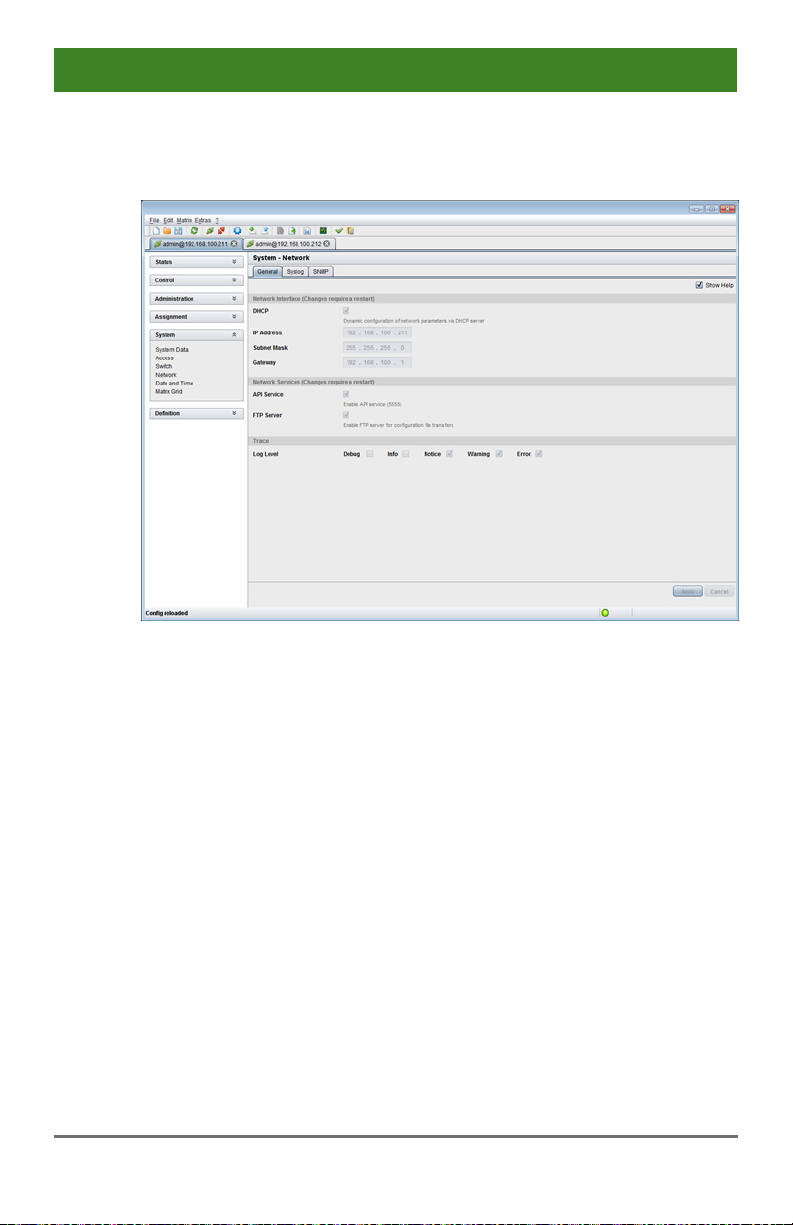

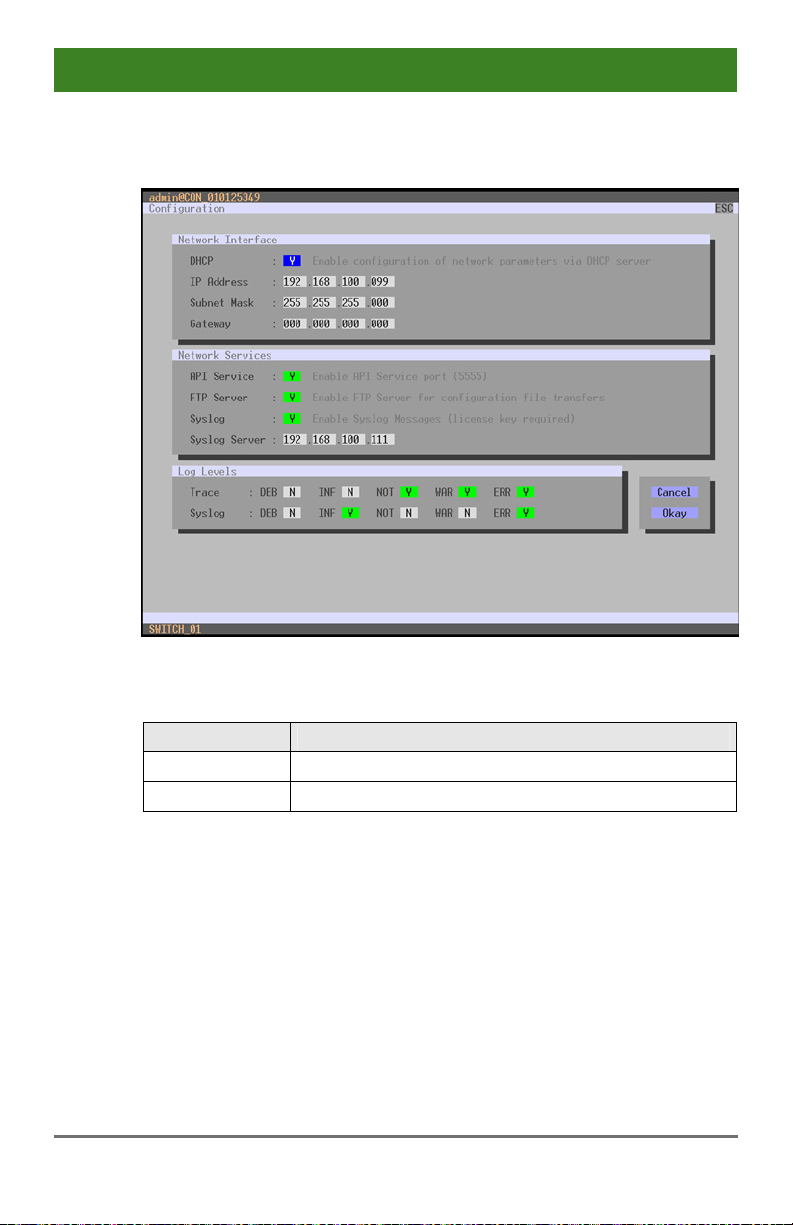

5.4.5 Network............................................................... 93

5.4.6 Date and Time .................................................... 97

5.5 User Settings .................................................................. 100

5.5.1 User .................................................................. 100

5.5.2 Favorite List Users ............................................ 103

5.5.3 User Macros...................................................... 106

5.6 Extender Settings............................................................ 110

5.6.1 Flex-Port Extender Units ................................... 112

5.7 USB-2.0-Extender........................................................... 113

4 2014-04-15

Contents

5.8 CPU Settings .................................................................. 116

5.9 Console Settings............................................................. 121

5.9.1 CON Devices .................................................... 121

5.9.2 Mouse and Keyboard ........................................ 126

5.9.3 Extender OSD................................................... 129

5.9.4 Favorite List Consoles ...................................... 132

5.9.5 Console Macros ................................................ 134

5.9.6 Parallel Operation ............................................. 138

5.9.7 Multi-Screen Control ......................................... 141

5.10 Saving and Loading of Configurations ............................ 145

5.10.1 Active Configuration .......................................... 145

5.10.2 Saving of Configurations (internal).................... 145

5.10.3 Loading of Configurations (internal).................. 148

5.10.4 Saving of Configurations (external)................... 150

5.10.5 Loading of Configurations (external)................. 151

5.11 Export and Import Options .............................................. 152

5.11.1 Export Options .................................................. 152

5.11.2 Import Options .................................................. 153

5.12 Matrix Cascading ............................................................ 154

5.13 Matrix Grid ...................................................................... 158

5.14 Firmware Update ............................................................ 163

5.14.1 Matrix Update.................................................... 163

5.14.2 Extender Update............................................... 165

5.15 License Management...................................................... 170

6 Operation .................................................................................. 171

6.1 Operation via 'Hot Keys'.................................................. 172

6.1.1 Direct Switching ................................................ 172

6.1.2 Scan Mode........................................................ 174

6.1.3 Function Keys <F1>–<F16>.............................. 174

6.1.4 Addressing of Main and Sub Matrices .............. 175

6.2 KVM-Switching................................................................ 176

6.3 Extended Switching ........................................................ 179

2014-04-15 5

Draco tera

7 Specifications........................................................................... 195

8 Maintenance ............................................................................. 202

9 Troubleshooting....................................................................... 203

6.4 CON Switch .................................................................... 185

6.5 Multi-Screen Control ....................................................... 187

6.6 USB 2.0 Switching .......................................................... 188

6.7 Presets............................................................................ 189

6.8 Serial Interface................................................................ 190

6.9 Power On and Power Down Functions ........................... 191

6.9.1 Restart .............................................................. 191

6.9.2 Factory Reset.................................................... 192

6.9.3 Power Down...................................................... 192

6.10 Summary of Keyboard Commands ................................. 193

7.1 Interfaces ........................................................................ 195

7.1.1 RJ45 (Network) ................................................. 195

7.1.2 RJ45 (Serial) ..................................................... 195

7.1.3 RJ45 (Interconnect) .......................................... 195

7.2 Interconnect Cable.......................................................... 196

7.2.1 Cat X ................................................................. 196

7.3 Connector Pinouts .......................................................... 197

7.3.1 I/O Port Cat X.................................................... 197

7.4 Power Supply.................................................................. 198

7.5 Environmental Conditions ............................................... 198

7.6 Size................................................................................. 199

7.7 Shipping Weight.............................................................. 200

7.8 MTBF .............................................................................. 201

9.1 External Failure............................................................... 203

9.2 Video Interference........................................................... 203

9.3 Malfunction of Fans......................................................... 203

9.4 Malfunction of Power Supply Units ................................. 204

9.5 Network Error.................................................................. 204

9.6 Failure at the Matrix ........................................................ 204

6 2014-04-15

Contents

9.7 Blank Screen................................................................... 205

10 Technical Support.................................................................... 206

10.1 Support Checklist............................................................ 206

10.2 Shipping Checklist .......................................................... 206

11 Certificates................................................................................ 207

11.1 CE Declaration Of Conformity......................................... 207

11.2 North American Regulatory Compliance......................... 208

11.3 Product Safety ................................................................ 208

11.4 WEEE ............................................................................. 209

11.5 RoHS/RoHS 2................................................................. 209

12 Glossary.................................................................................... 210

12.1 Matrix specific Glossary .................................................. 213

Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu diesem Handbuc h @ 5\mod_1278573163276_6. doc @ 41510 @ 1222 @ 1

2014-04-15 7

Draco tera

1 About This Manual

1.1 Scope

This manual describes how to install your Draco tera, how to operate it
and how to perform trouble shooting.

1.2 Validity

This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.

1.3 Cautions and Notes

The following symbols are used in this manual:

This symbol indicates an important operating instruction that should be
followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.

This symbol indicates important information to help you make the best use
of this product.

This symbol indicates best practice information to show recommended
and optimal ways to use this product in an efficient way.

Pos: 2 /806-IHSE/Zu diesem Handbuch/ATB_Schreibweise n @ 7\mod_13099322973 21_6.doc @ 52440 @ 2 @ 1

1.4 Spellings

The following spellings are used in the manual:

Spelling Description

<key> Description of a key on the keyboard
<key> + <key> Press keys simultaneously
<key>, <key> Press keys successively
2x <key>

Press key 2x in quick succession
(cf. mouse double click)

Menu item

Menu item > Menu item

Description of a menu item in the software
Select menu items successively

Bold print Description of terms that are used in the

device software

Pos: 3 /806-IHSE/Sicherheitshinweise/480_Si cherheitshinweise @ 7\ mod_1310643167940_6.d oc @ 54240 @ 1 @ 1

8 2014-04-15

Safety Instructions

2 Safety Instructions

To ensure reliable and safe long-term operation of your Draco tera please
note the following guidelines:

Installation

 Only use the device according to this User Manual. Failure to follow

these procedures could result in damage to the equipment or injury to
the user or installer.

 Only use in dry, indoor environments.
 The Draco tera and the power supply units can get warm. Do not

install components in an enclosed space without any airflow.

 Do not obscure ventilation holes.
 Only use power supplies originally supplied with the product or

manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged chassis.

 Connect all power supplies to grounded outlets. In each case, ensure

that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.

 Do not connect the link interface to any other equipment, particularly

network or telecommunications equipment.

 Only connect devices to the serial interface that are protected against

short circuit currents and incorrect voltages at the serial interface.

 To disconnect the Draco tera from the power supply, remove the

power cord cables of all power supply units or switch supplies off.

 Take any required ESD precautions.

In order to disconnect the device completely from the electric circuit, all
power cables have to be removed.

Repair

 Do not attempt to open or repair a power supply unit.
 Do not attempt to open or repair the Draco tera. There are no user

serviceable parts inside.

 Please contact your dealer or manufacturer if there is a fault.

Pos: 4 /806-IHSE/Beschreibung/UEB_Beschreibung @ 5\ mod_1278573379151_6. doc @ 41546 @ 1 @ 1

2014-04-15 9

Draco tera

3 Description

Pos: 5 /806-IHSE/Beschreibung/Verwendungszweck/ 480-xxC @ 8\mod_1345731 714258_6.doc @ 67732 @ 2 @ 1

3.1 Application

The Draco tera matrix is used to establish connections from consoles
(monitor, keyboard, mouse, and other peripheral devices) to various
sources (computer, CPU).

In its maximum configuration, up to 48 independent ports can be defined
and switched either as a console or a CPU.

The Draco tera matrix is designed to operate with extenders that are able
to transmit video, KVM and USB 2.0 signals. But it can also be used as a
video matrix.

The connection between the matrix and the peripheral devices, such as
KVM extenders or video sources, can be made by Cat X cables.

The matrix serves as a repeater and can be run at a maximum distance of
140 m from the consoles and 140 m from the sources.

Pos: 6 /806-IHSE/Beschreibung/Zugriffsmögli chkeiten/480-xx @ 7\mo d_1309933105946_6.doc @ 52477 @ 2 @ 1

3.2 Access Options

The following options are available to configure and operate the Draco
tera:

Access Option Symbol

OSD

Java tool

Serial interface

Pos: 7 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

10 2014-04-15

Description

Pos: 8 /806-IHSE/Beschreibung/System-Übersic ht /480-xx @ 7\mod_1309933 171196_6.doc @ 52495 @ 2 @ 1

4.3

3.3 System Overview

A Draco tera matrix system consists of a Draco tera matrix and, for KVM
applications, one or more CPU Units / CON Units. The Draco tera matrix
is connected to the CPU Units / CON Units by interconnect cables or
directly to the video devices where used as a video matrix.

CPU Units are connected directly to the sources (computer, CPU) by the
provided cables.

Monitor(s), keyboard and mouse are connected to the CON Units.
Communication between the Draco tera matrix and the CPU Units / CON

Units occurs over the respective interconnect cables.

1

2 3

4

3

5

6

System Overview (exemplary)

1 Source (computer, CPU)
2 CPU Units
3 Interconnect cable
4 Draco tera matrix
5 CON Units
6 Console (monitor, keyboard, mouse)

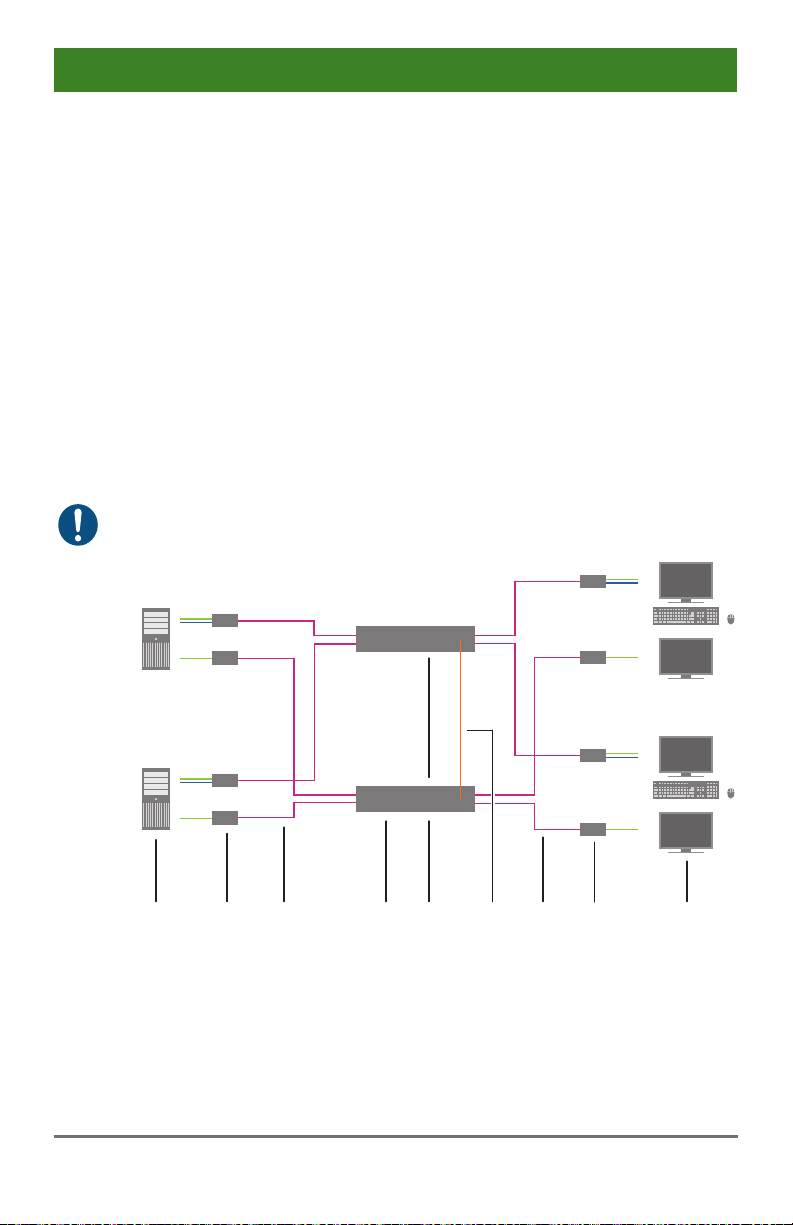

4.3, Page 50 for installation examples.

Pos: 9 /806-IHSE/Beschreibung/Gerätetypen/480- xxC @ 8\mod_134573190754 2_6.doc @ 67752 @ 2 @ 1

See Chapter

2014-04-15 11

Draco tera

3.4 Product Range

Part No. Description

Draco tera matrix with 80 ports, Cat X, redundant
power supply unit

Draco tera matrix with 80 ports, fiber, redundant
power supply unit

Draco tera matrix with 48 ports Cat X and 32 ports
fiber, redundant power supply unit

Draco tera matrix with 48 ports Cat X and 32 universal
ports fiber, redundant power supply unit

Draco tera matrix with 64 ports, Cat X, redundant
power supply unit

Draco tera matrix with 64 ports, fiber, redundant
power supply unit

Draco tera matrix with 48 ports Cat X and 16 ports
fiber, redundant power supply unit

Draco tera matrix with 48 ports, Cat X, redundant
power supply unit

Draco tera matrix with 48 ports, fiber, redundant
power supply unit

Draco tera matrix with 32 ports, Cat X, redundant
power supply unit

Draco tera matrix with 32 ports, fiber, redundant
power supply unit

Draco tera matrix with 16 ports, Cat X, redundant
power supply unit

Draco tera matrix with 16 ports, fiber, redundant
power supply unit

Draco tera matrix with 8 ports, Cat X, vario module

Draco tera matrix with 8 ports, Cat X, redundancy
option

Draco tera matrix with 8 ports, fiber, vario module

Draco tera matrix with 8 ports, fiber, redundancy
option

Pos: 10 /806-IHSE/Beschreibung/Zubehör/480- xxC @ 8\mod_1345732015416 _6.doc @ 67772 @ 2 @ 1

K480-80C

K480-80F

K480-48C32F

K480-48C32U

K480-64C

K480-64F

K480-48C16F

K480-48C

K480-48F

K480-32C

K480-32F

K480-16C

K480-16F

B480-8C

K480-8C

B480-8F

K480-8F

12 2014-04-15

Description

3.5 Options

Part No. Description

480-B1 Java-Tool, Extended Switching, Presets
480-B2 480-B1, API
480-B3 SNMP, Syslog
480-B4 Matrix Grid
480-B5 Multi-Screen Control
459-ADAP RJ45/RS232 adapter

Pos: 11 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1
Pos: 12 /806-IHSE/Beschreibung/Geräteansichte n/480_Geräteansic hten @ 7\mod_131064352501 8_6.doc @ 54278 @ 2 @ 1

2014-04-15 13

Draco tera

3.6 Device Views

The following views of the Draco tera matrix illustrate the various available
chassis types.

Pos: 13 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 80 Port @ 9\mod_1361804972 253_6.doc @ 71150 @ 3 @ 1

3.6.1 Draco tera 80 Port

12 356

12 356

12 356

Front View

1 I/O ports #1-16
2 I/O ports #49-64
3 I/O ports #17-32
4 I/O ports #65-80
5 I/O ports #33-48
6 Serial connection (RJ45)
7 Network connection (RJ45)

4

4

4

7

7

7

14 2014-04-15

Description

1

Pos: 14 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

23

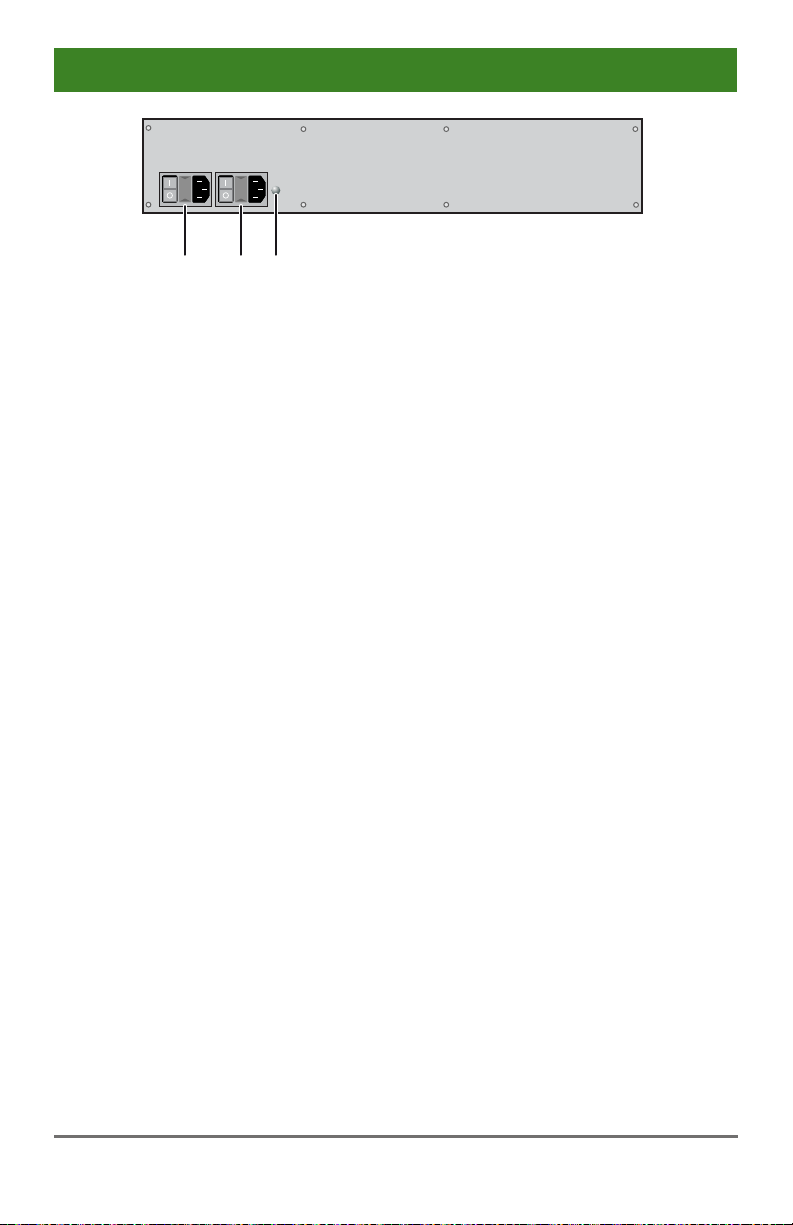

Rear View

1 Connect to power supply (standard)
2 Connect to power supply (redundancy)
3 Grounding

2014-04-15 15

Draco tera

Pos: 15 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 64 Port @ 9\mod_1361805160 557_6.doc @ 71170 @ 3 @ 1

3.6.2 Draco tera 64 Port

12 345

12 345

12 345

Front View

1 I/O ports #1-16
2 I/O ports #49-64
3 I/O ports #17-32
4 I/O ports #33-48
5 Serial connection (RJ45)
6 Network connection (RJ45)

6

6

6

16 2014-04-15

Description

1

Pos: 16 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

23

Rear View

1 Connect to power supply (standard)
2 Connect to power supply (redundancy)
3 Grounding

2014-04-15 17

Draco tera

Pos: 17 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 48 Port @ 8\mod_1345732287 371_6.doc @ 67793 @ 3 @ 1

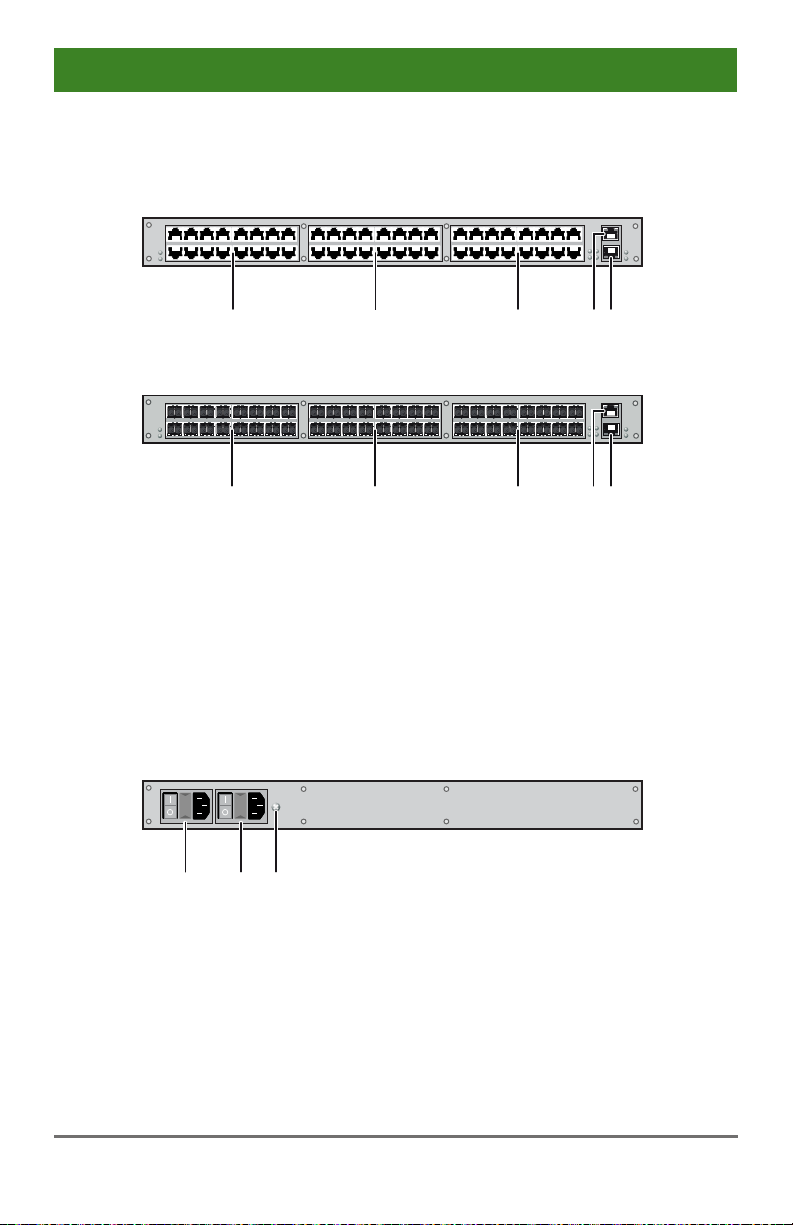

3.6.3 Draco tera 48 Port

1

1

23

23

Front View

1 I/O ports #1-16
2 I/O ports #17-32
3 I/O ports #33-48
4 Serial connection (RJ45)
5 Network connection (RJ45)

1

23

4

5

4

5

Rear View

1 Connect to power supply (standard)
2 Connect to power supply (redundancy)
3 Grounding

18 2014-04-15

Description

When mounting a Draco tera matrix with 16, 32 and 48 ports into a
19’’ rack, additional mounting support is recommended. It should be used
in addition to the provided mounting brackets.

Pos: 18 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

2014-04-15 19

Draco tera

Pos: 19 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 32 Port @ 8\mod_1345732576 769_6.doc @ 67813 @ 3 @ 1

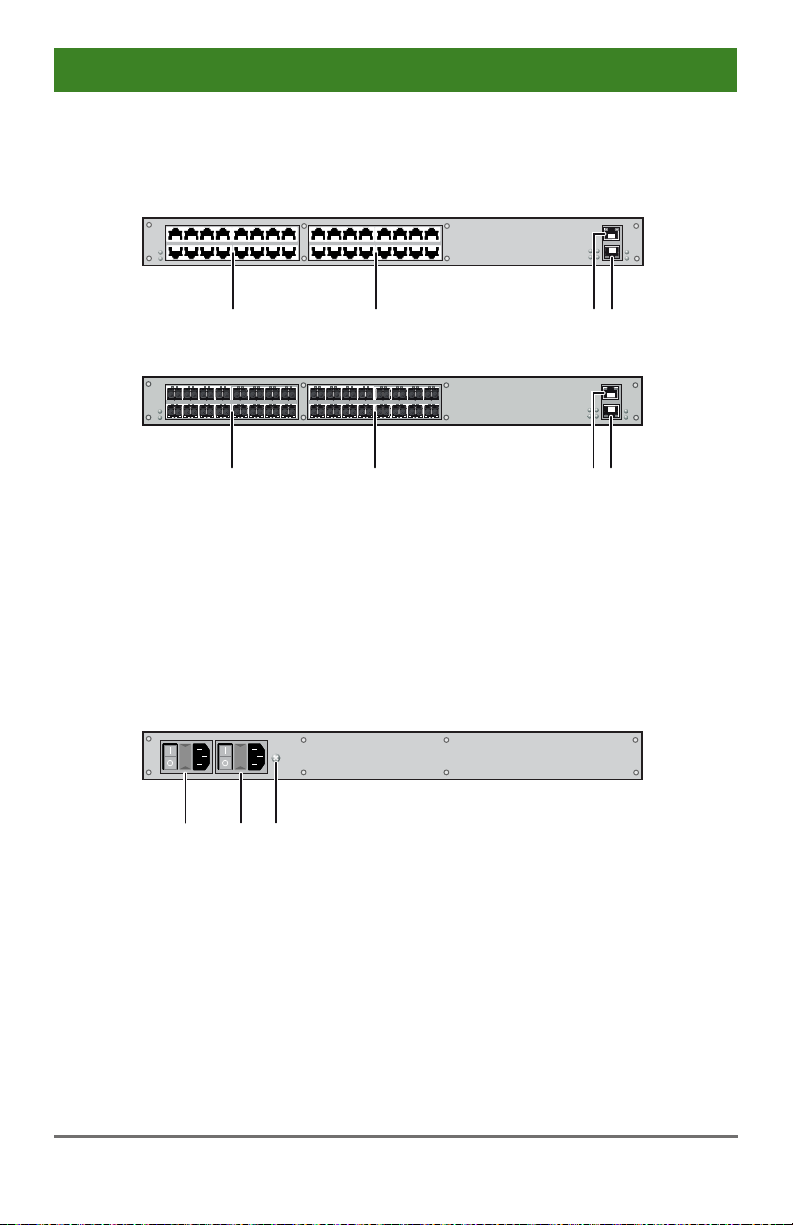

3.6.4 Draco tera 32 Port

Pos: 20 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

1

1

2 3

2

Front View

1 I/O ports #1-16
2 I/O ports #17-32
3 Serial connection (RJ45)
4 Network connection (RJ45)

1

23

Rear View

1 Connect to power supply (standard)
2 Connect to power supply (redundancy)
3 Grounding

4

4

3

20 2014-04-15

Description

Pos: 21 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 16 Port @ 8\mod_1345732664 643_6.doc @ 67833 @ 3 @ 1

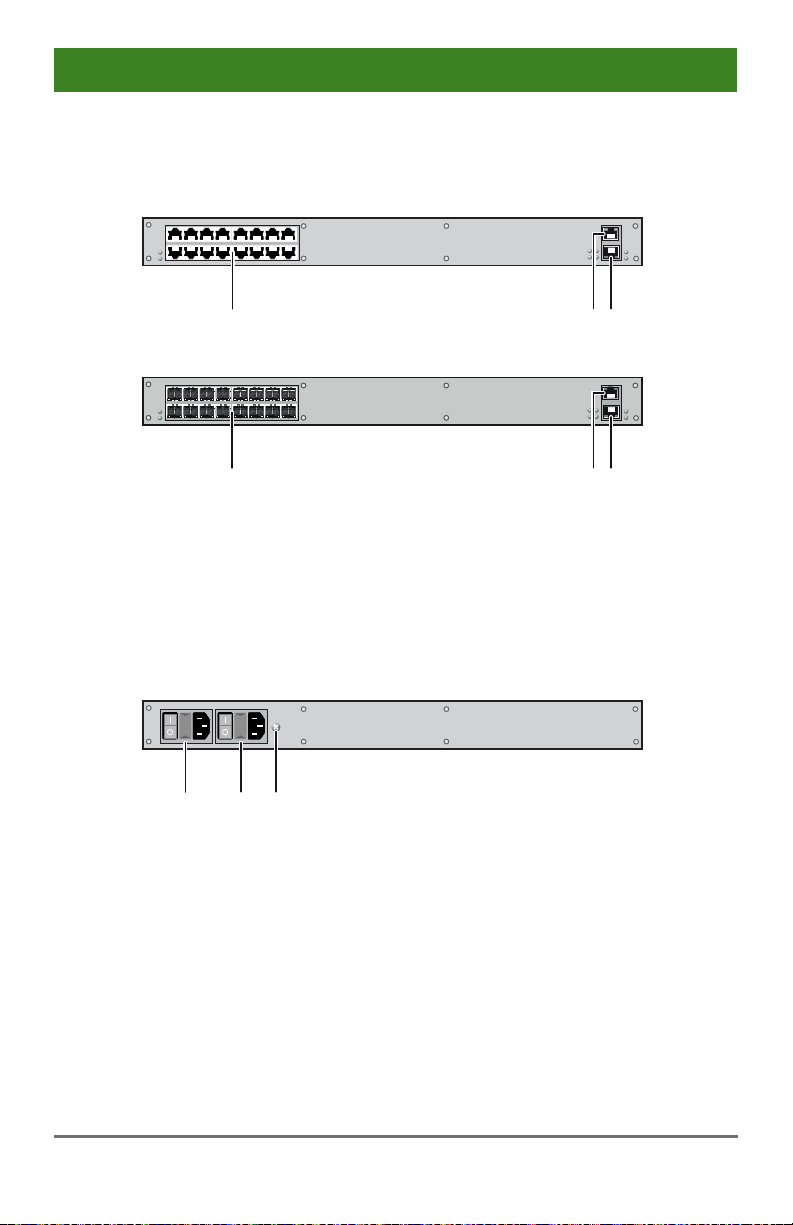

3.6.5 Draco tera 16 Port

1 23

Pos: 22 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

123

Front View

1 I/O ports #1-16
2 Serial connection (RJ45)
3 Network connection (RJ45)

1

23

Front View

1 Connect to power supply (standard)
2 Connect to power supply (redundancy)
3 Grounding

2014-04-15 21

Draco tera

Pos: 23 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 8 Port @ 9\mod_13606542967 74_6.doc @ 71111 @ 3 @ 1

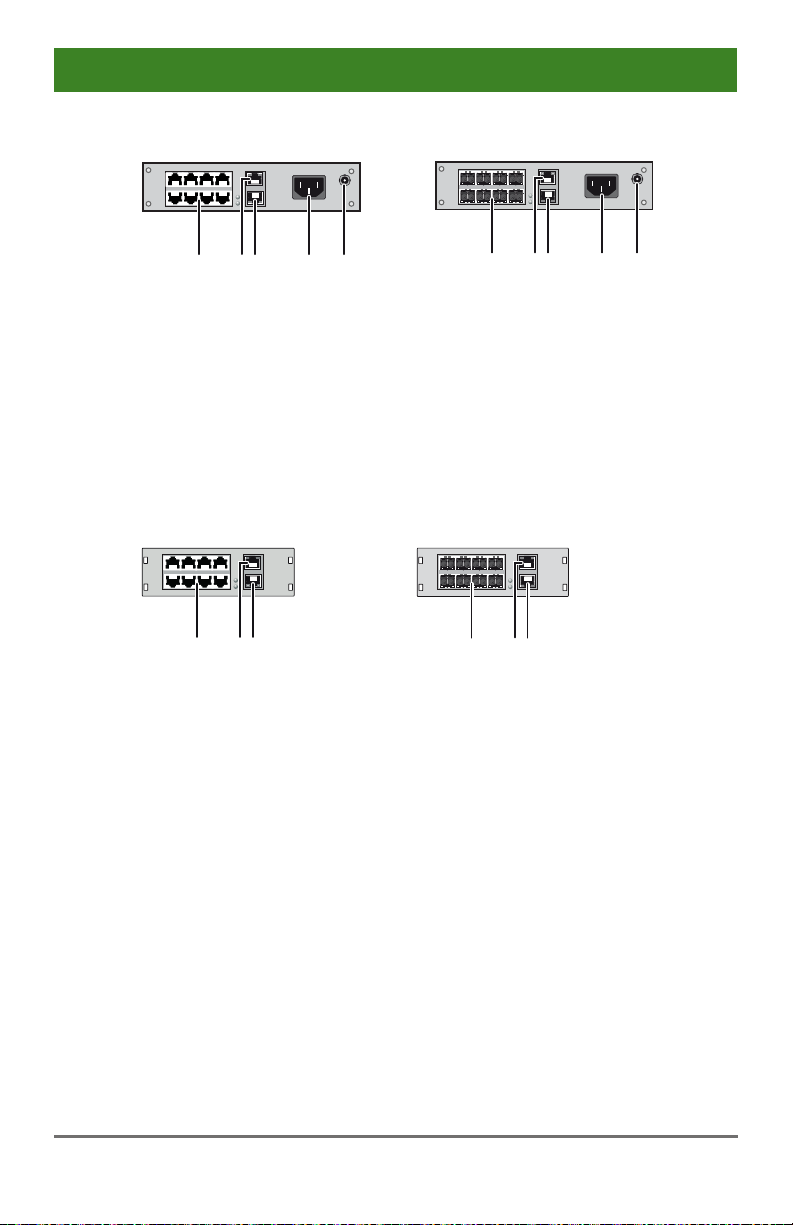

3.6.6 Draco tera 8 Port

1 23 54

Front View

1 I/O ports #1-8
2 Serial connection (RJ45)
3 Network connection (RJ45)
4 Connect to power supply
5 Connect to 5 V DC power supply (redundancy, optional)

Pos: 24 /806-IHSE/Beschreibung/Geräteansichte n/480-xxC/Draco ter a 8 Port Vario-Modul @ 9\mod_1 360654443120_6.doc @ 71129 @ 3 @ 1

3.6.7 Draco tera 8 Port Vario Module

Rear View

1 I/O ports #1-8
2 Serial connection (RJ45)
3 Network connection (RJ45)

Pos: 25 /806-IHSE/Beschreibung/Status/UEB_Di agnose_und_Status @ 7\ mod_1309935121461_6.d oc @ 52641 @ 2 @ 1

1 23

1 23

1 23 54

22 2014-04-15

Description

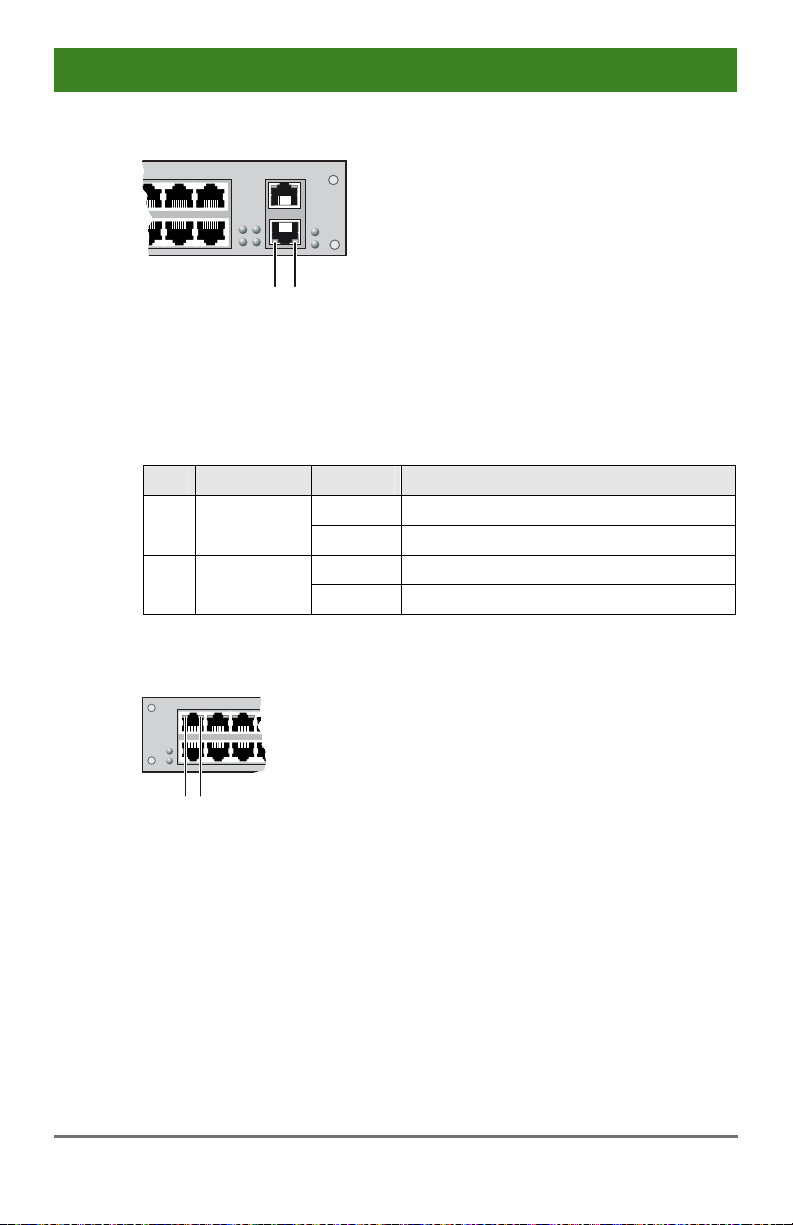

3.7 Diagnostics and Status

Pos: 26 /806-IHSE/Beschreibung/Diagnose LEDs/480- xxC @ 8\mod_13457328283 65_6.doc @ 67853 @ 3 @ 1

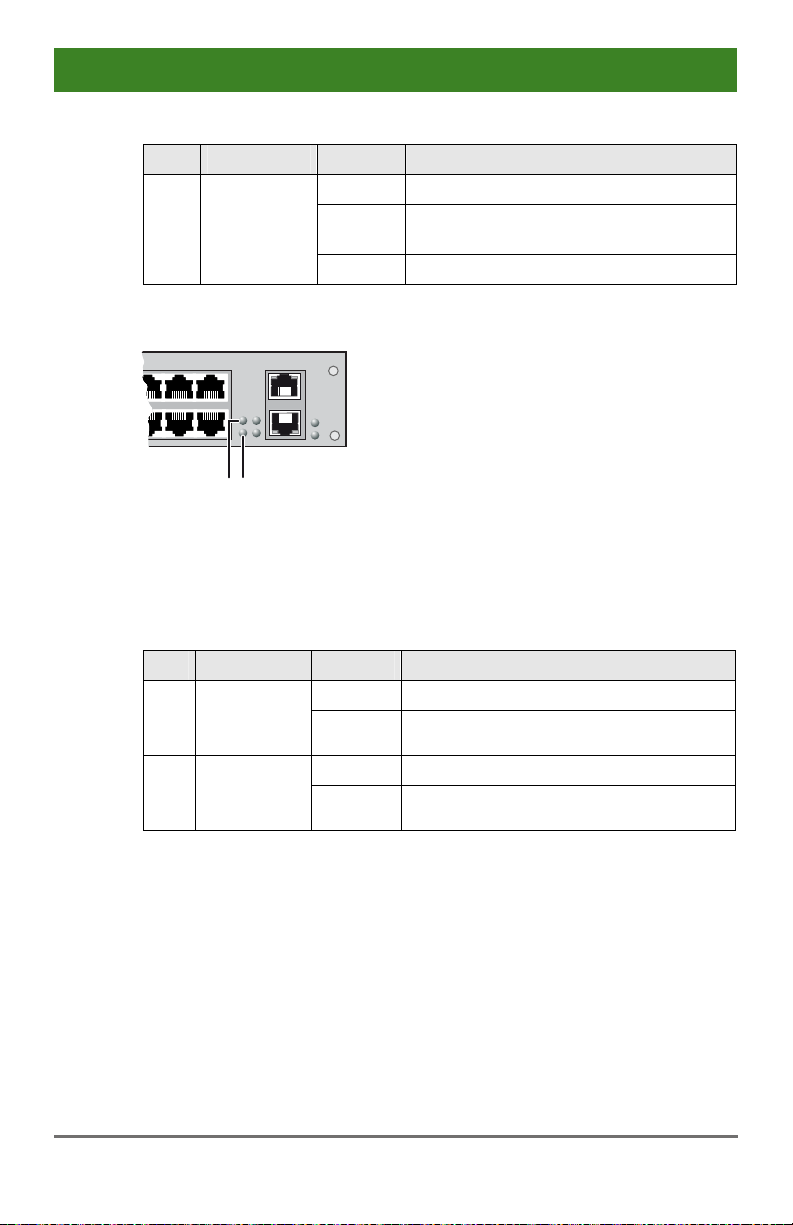

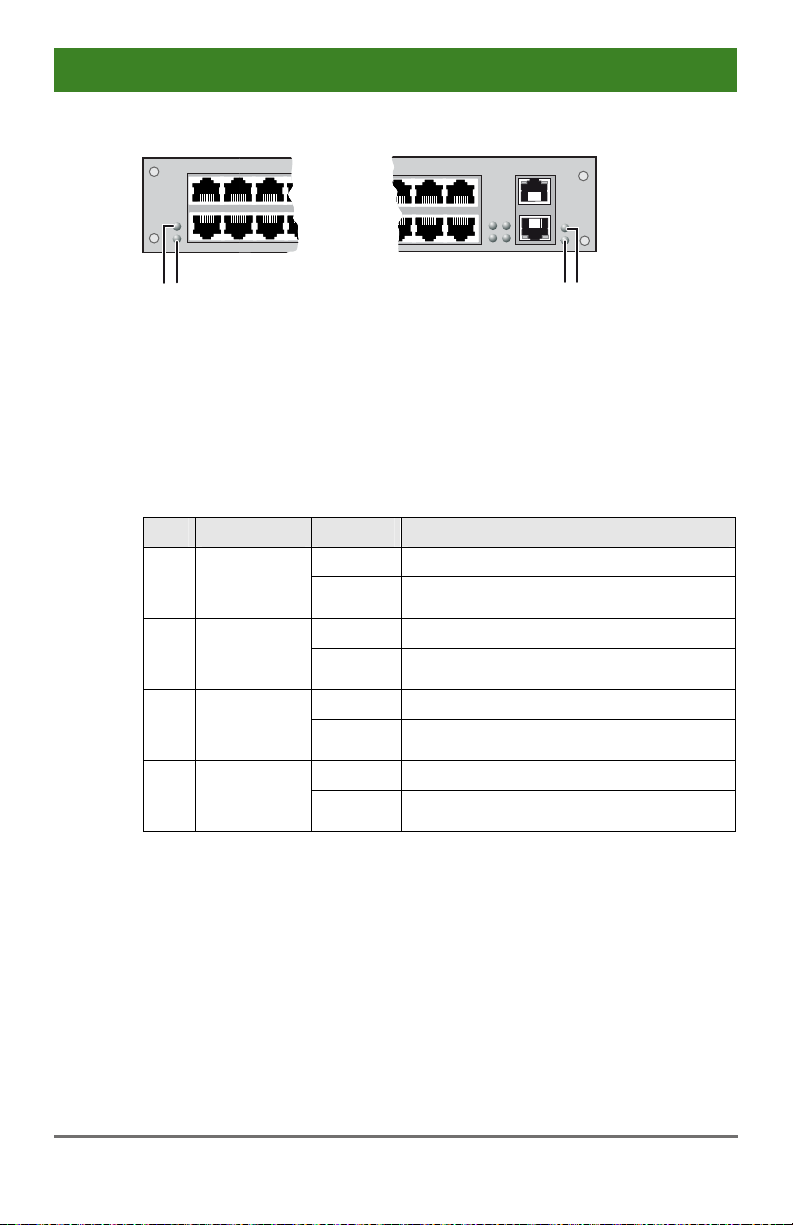

3.7.1 Status LEDs

Draco tera components are fitted with the following LEDs for overall status
indication:

CPU

1 2

1

2

Front View Front View Draco tera 8 port

1 Status LED 2
2 Status LED 1

1 Status LED 2
2 Status LED 1

Status LEDs for CPU:

Pos. LED Status Description

1

Status 2

White CPU board is in registration process
Red

Registration of the matrix has started

flashing
Off Operating condition

2

Status 1

White CPU board is in registration process
Blue

Registration of the matrix has started

flashing
Red

Registration in progress

flashing
Green

Operating condition

flashing
Green CPU board de-registered

Due to variations in LED type "white" might also appear as light purple or
light blue.

2014-04-15 23

Draco tera

LAN Port

1 2

Rear View

1 Status LED 1
2 Status LED 2

Status LEDs of the LAN port:

Pos. LED Status Description

Status 1

(orange)

Status 2

(green)

On Connection to network available 1
Off No connection to network
Flashing Data traffic active 2
Off Data traffic not active

I/O Ports

12

Front View

1 Link Status Port 1
2 Link Status Port 2

24 2014-04-15

Description

Status LEDs at the ports of the I/O boards:

Pos. LED Status Description

Link status

1 & 2

Power Supply Unit

Off Initialization
Green

Connection via interconnect cable ok,
data traffic active

Orange Extender not recognized

1 2

Front View

1 Power supply unit 1 status LED
2 Power supply unit 2 status LED

Status LEDs of the power supply units:

Pos. LED Status Description

Status
PSU 1

(green)

Status
PSU 2

(blue)

On Operating condition 1
Off Power supply unit off

On Operating condition 3
Off Power supply unit off

2014-04-15 25

Draco tera

Fans

Pos: 27 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

1 2

Front View

1 Left fan status LED 1
2 Left fan status LED 2
3 Right fan status LED 2
4 Right fan status LED 1

Status LEDs of the fan trays:

Pos. LED Status Description

Left fan
status 1

(red)

Left fan
status 2

(green)

Right fan
status 2

(green)

Right fan
status 1

(red)

On Error indication 1
Off Operating condition

On Operating condition 2
Off Fan off

On Operating condition 3
Off Fan off

On Error indication 4
Off Operating condition

34

26 2014-04-15

Description

Pos: 28 /806-IHSE/Beschreibung/Status/Port- Status/480-xxC @ 8\mod_13 45734837197_6.doc @ 67873 @ 3 @ 1

3.7.2 Port Status

The connections and the switching status between the various consoles
and CPUs are shown in this menu.

You have the following option to access the menu:

Java Tool

The current port configuration of the Draco tera is illustrated in this menu.
 Select Status > Matrix View in the task area when connected to the

matrix.

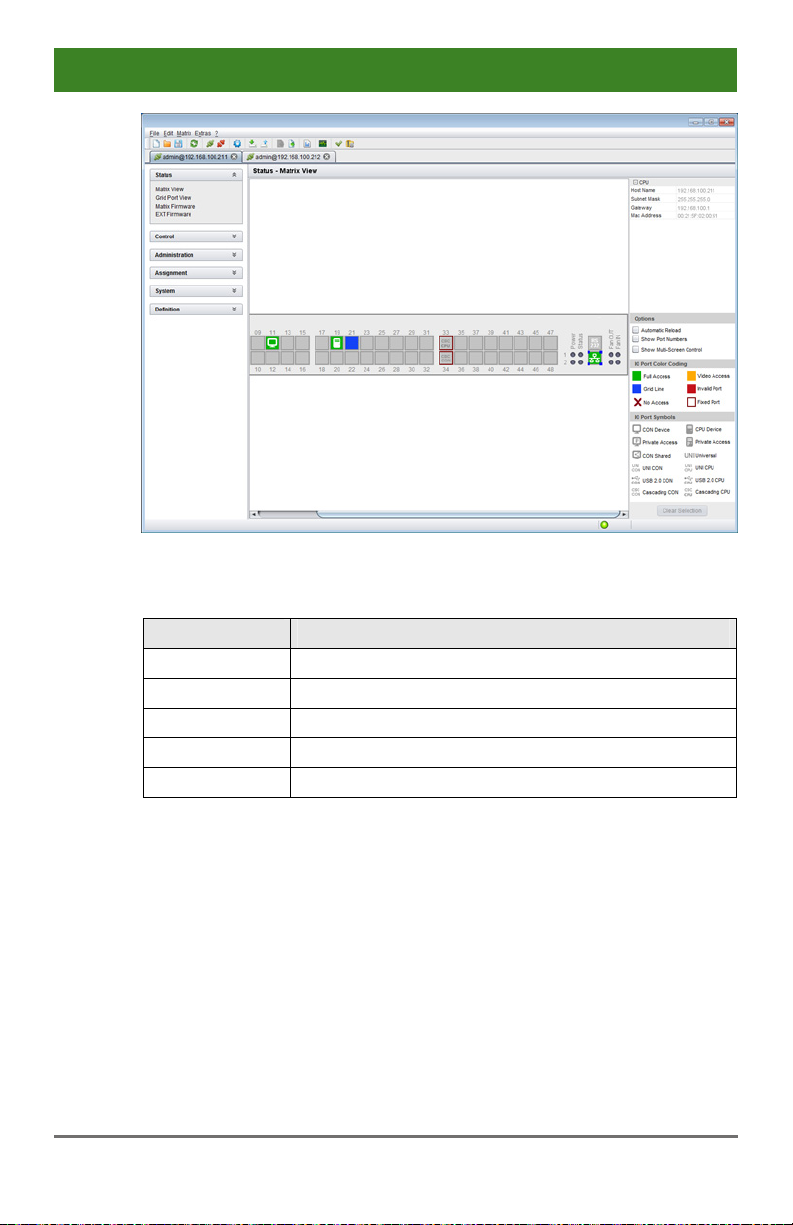

Menu Status – Matrix View (example #1)

2014-04-15 27

Draco tera

Menu Status – Matrix View (example #2)

The colors indicate the connection status:

Color Description

Grey Port not connected
Yellow Video connection
Green KVM connection
Red Faulty Port
Blue Port connected to another matrix via Grid Line

28 2014-04-15

Description

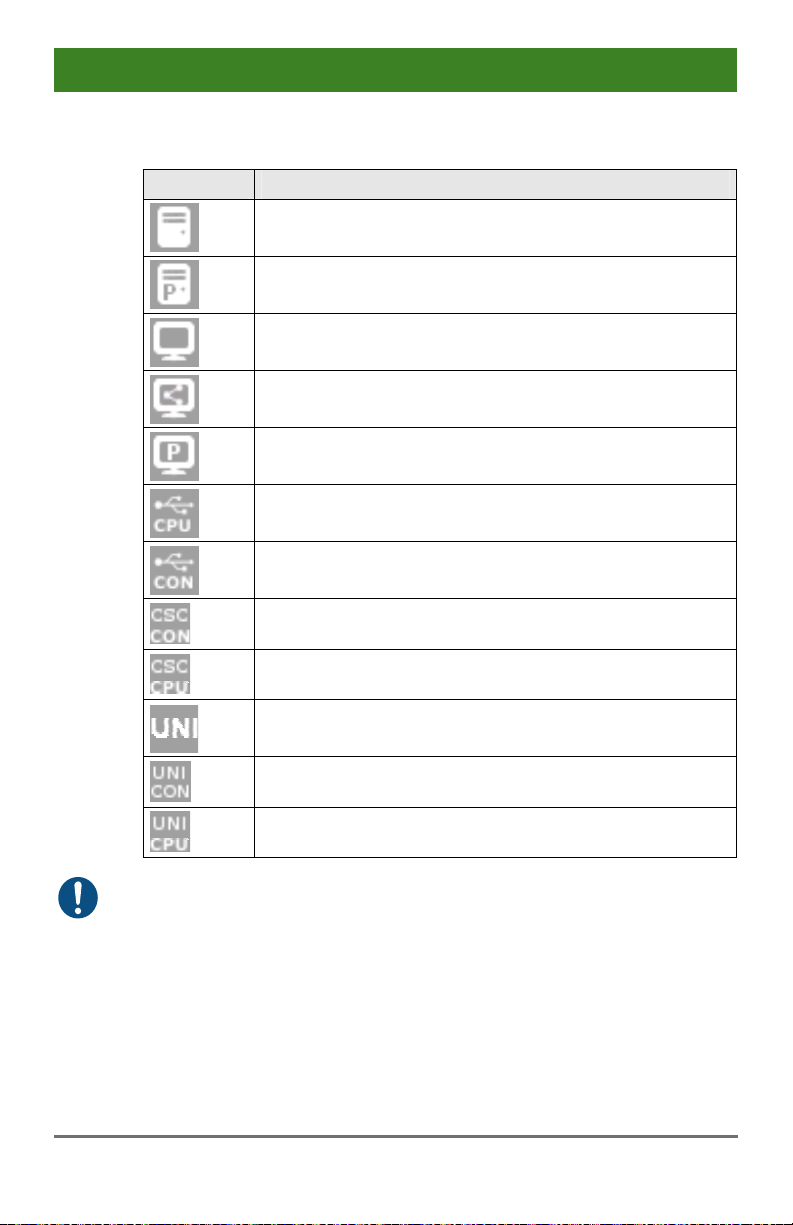

The symbol indicates the extender that is recognized and defined at a
certain port:

Symbol Description

Port connected to a CPU Unit

Port is connected to a CPU Unit that is switched to a CON

 Red framed ports are defined as "fixed" (e. g. for USB 2.0

connections).

 The port with four static blue squares is currently selected.
 If a port is selected, all other ports are transparent, except those

connected to the currently selected port. A selection can be cleared
by pressing the button Clear Selection.

 In Matrix View, a red cross on a port indicates that the console to be

connected does not have access rights to the respecting CPU at this
port.

Unit in Private Mode (see Chapter 3.7.4, Page 32).

Port connected to a CON Unit

Port connected to a CON Unit with Shared Access to a
CPU

Port is connected to a CON Unit that is connected to a
CPU Unit in Private Mode (see Chapter 3.7.4, Page 32).

Port connected to a USB 2.0 CPU Unit

Port connected to a USB 2.0 CON Unit

Port is configured as Cascade-CON port for cascading of
matrices.

Port is configured as Cascade-CPU port for cascading of
matrices.

Port is a UNI port of an I/O board that can be used for
USB 3.0 or SDI switching.

UNI port is configured as CON port in order to connect
USB 3.0 CON extenders, for example.

UNI port is configured as CPU port in order to connect
USB 3.0 CPU extenders, for example.

2014-04-15 29

Draco tera

 Press the left mouse button to show the extender information of the

currently selected port on the right hand side of the working area.

The following information is available:

Field Description

Extender Name

Extender Type

Port ID

Device Name
Connections Listing of assigned connections to marked port (Full

 Press the right mouse button to open the context menu with additional

functions for the currently selected port.

The following context functions are available:

Function Description

Open Extender

Open Device

Switch

In order to reload the Matrix View you have the following options:

 Press <F5> on a connected keyboard
 Execute Edit > Reload in the menu bar
 Press the Button Reload in the tool bar

Pos: 29 /806-IHSE/Beschreibung/Status/Port- Status Matrix-Grid/ 480-xx @ 10\mod_13890807 26637_6.doc @ 113070 @ 3 @ 1

Name of selected extender
Type of selected extender
Number of selected port
Name of connected console or CPU

Access or Video Access)

The menu for definition of the currently selected
extender will be opened

The menu for definition of the currently selected
console or CPU will be opened

The menu for execution of switching operations will
be opened

30 2014-04-15

Description

3.7.3 Port Status Matrix Grid

In this menu the connections and the switching status between the various
CON and CPU Devices are shown within the Matrix Grid.

The port view is divided into the different Grid matrices. As a result each
matrix is displayed in an optimized view of 24 ports per line in order to be
able to show also a larger number of ports.

You have the following option to access the menu:

Java Tool

The current port configuration of the Matrix Grid is illustrated in this menu.
 Select Status > Grid Port View in the task area when connected to

the matrix.

Menu Status – Grid Port View

Functions, colors and symbols used in the Grid Port View are identical to
those in the port status of the Matrix View see Chapter 3.7.2, Page 27.

Pos: 30 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

2014-04-15 31

Draco tera

Pos: 31 /806-IHSE/Beschreibung/Status/Extender -OSD/480-xx @ 7\mod_13 17829749536_6.doc @ 54621 @ 3 @ 1

3.7.4 Extender OSD

All extenders used with the Draco tera are provided with their own OSD to
display the connection status of the console.

Example View Extender OSD

The following information is shown in the OSD menu:

Field Description

CON

CPU

ACCESS

Name of console
Name of currently connected CPU
 Full Access: Console has a KVM connection

to the displayed CPU.

 Video Access: Console has a video only

connection to the displayed CPU.

 Private Mode: Console has a Private Mode

connection to the displayed CPU.

 not connected: Console is not connected to a

CPU.

SHARED

x device(s) shows the exact number of devices

that are connected to the current CPU of the
console (e.g. 3 devices).

If the field remains empty, no other devices are
connected to the current CPU.

32 2014-04-15

Description

If the options Mouse Connect or Keyboard Connect (see Chapter
Page 89) are used, the name of the conso
control will be displayed on those consoles that do not have current K/M
control. The console is displayed in yellow color under Access.

Pos: 32 /806-IHSE/Beschreibung/Status/Netzwer k-Status/480- xx @ 7\mod_1309935505711_6. doc @ 52680 @ 3 @ 1

3.7.5 Network Status

The current network configuration is shown in this menu.
You have the following options to access the menu:

The following information is shown in this menu:

Field Description
DHCP Information whether the network settings are

IP Address Information about the IP address as provided

Subnet Mask Information about the subnet mask as provided

Gateway Information about the gateway address as provided

MAC ID

5.4.4,

le with keyboard / mouse

applied dynamically. Display Y (Yes) or N (No)

manually or via DHCP

manually or via DHCP

manually or via DHCP
Information about the MAC address of the matrix

2014-04-15 33

Draco tera

OSD

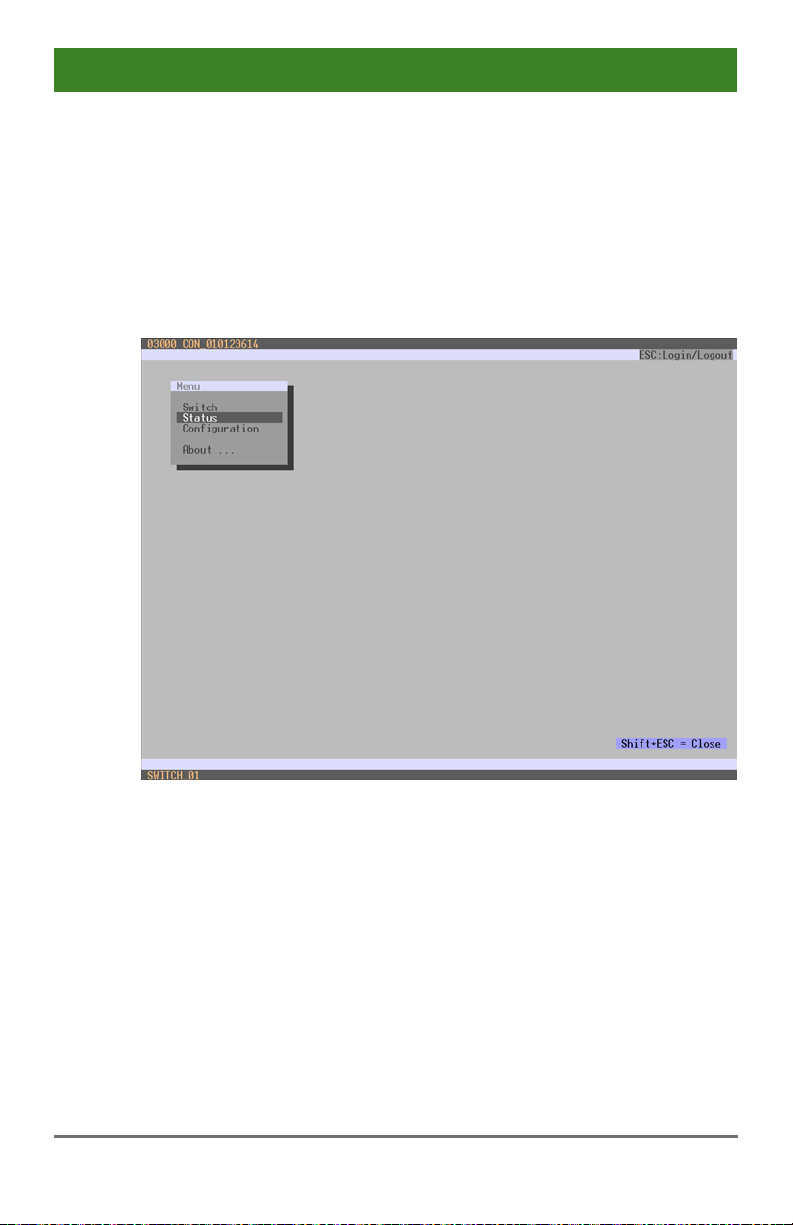

 Select Status > Network in the main menu.

Menu Status – Network

34 2014-04-15

Description

Java Tool

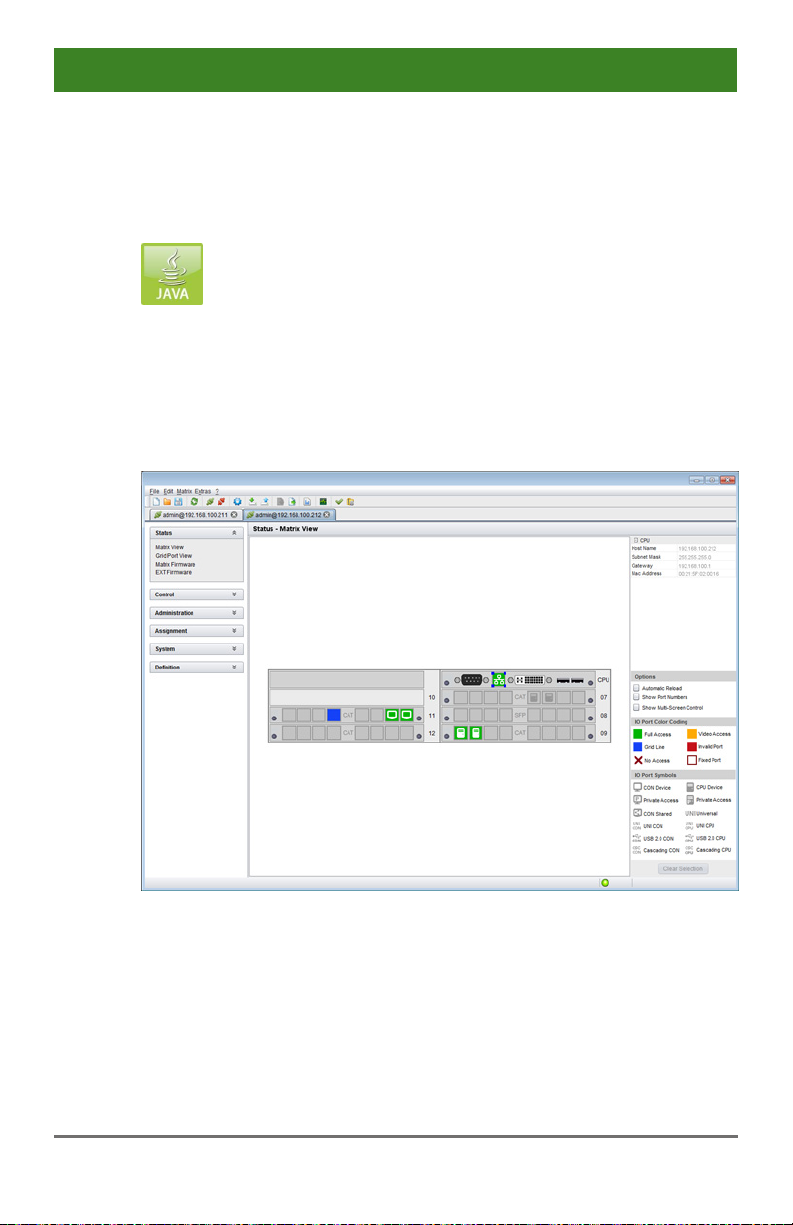

1. Select Status > Matrix View in the task area.

Menu Status – Matrix View

2. Use the left mouse button to click on the network port of the CPU
board.

The corresponding network status will be shown on the right hand
side of the working area.

Pos: 33 /806-IHSE/Beschreibung/Status/Firmwar e-Status/480- xx @ 7\mod_1309935560836_6. doc @ 52699 @ 33 @ 1

2014-04-15 35

Draco tera

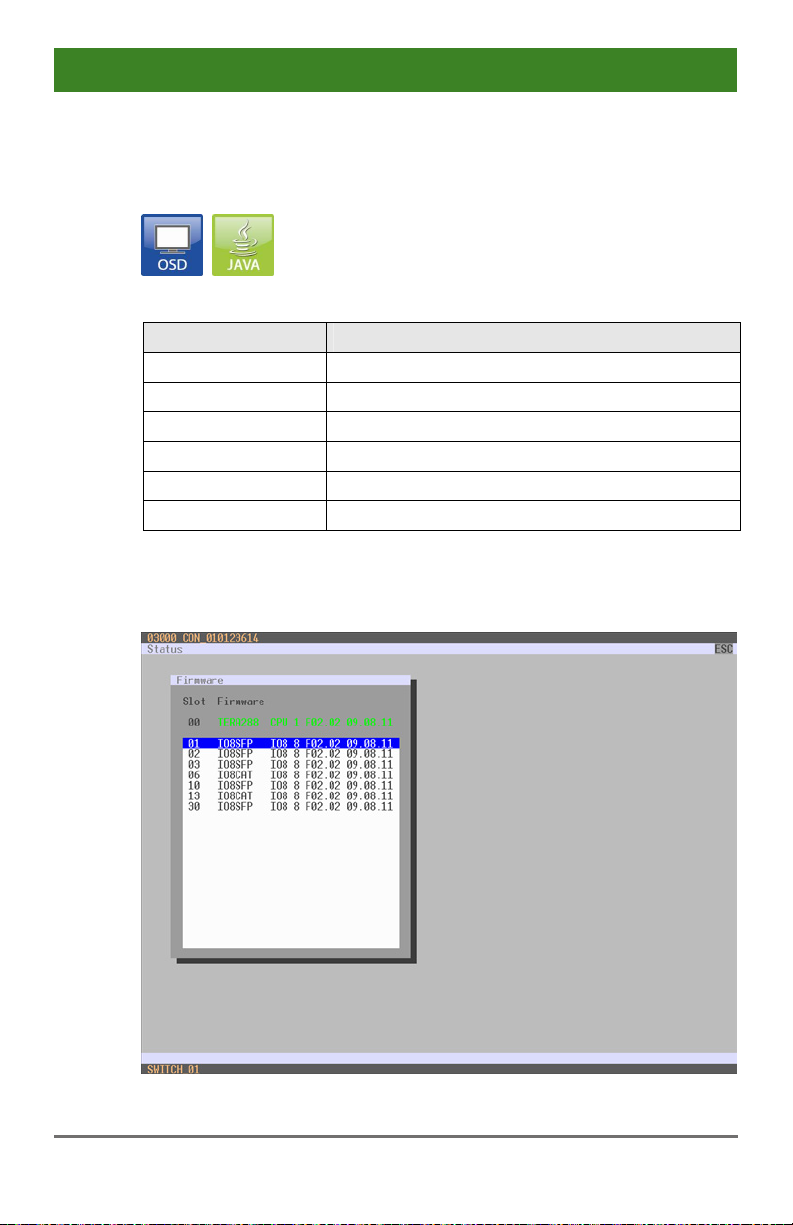

3.7.6 Firmware Status Matrix

The current firmware status of the installed boards is shown in this menu.
You have the following options to access the menu:

The following information is shown in this menu:

Field Description

Name

Type

Ports

Version

Date

Status

OSD

 Select Status > Firmware in the main menu.

Description of modules
Type number
Number of ports
Complete description of firmware version
Date of firmware version
Module status

Menu Status – Firmware

36 2014-04-15

Description

Java Tool

1. Select Status > Matrix Firmware in the task area.

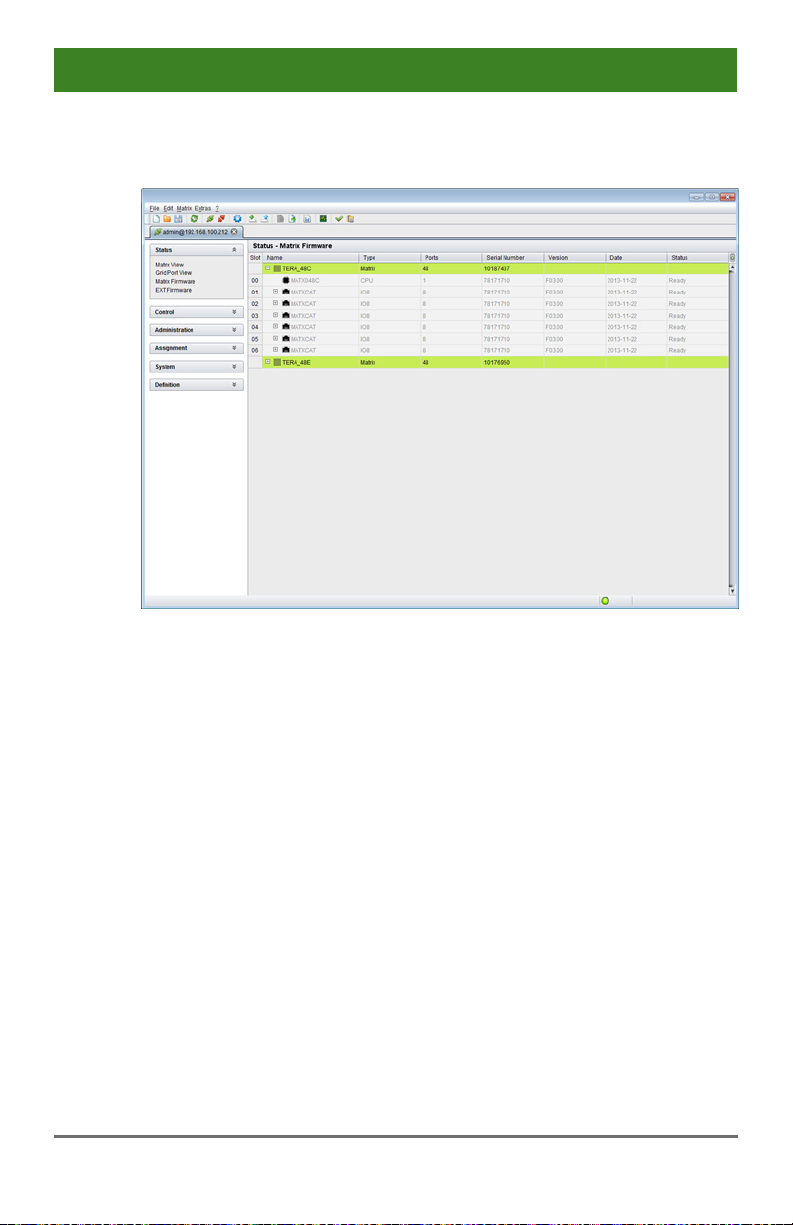

Menu Status – Matrix Firmware

2. In order to read out the firmware status and store it locally (file

extension .dtf), select Matrix > Save Firmware Status to File....

3. In order to read out the overall status of the matrix and store it locally
(file extension .zip), select Matrix > Save Status to File... or press
the respective button in the symbol bar.

The various modules can expanded and retracted in the Name column by
clicking with the left mouse button on the plus or minus symbols.

By clicking on the plus resp. minus symbol in the upper right corner of the
working area you can expand and retract all module information with one
click of the left mouse button.

2014-04-15 37

Draco tera

3.7.7 Firmware Status Extender

The current firmware status of connected extenders is shown in this menu.
You have the following option to access the menu:

The following information is shown in this menu:

Field Description

Name
Type
Ports
Cur. Version
Cur. Date

 Select Status > EXT Firmware in the task area.

Description of firmware
Description of extender module
Number of ports
Description of current firmware version
Date of current firmware version

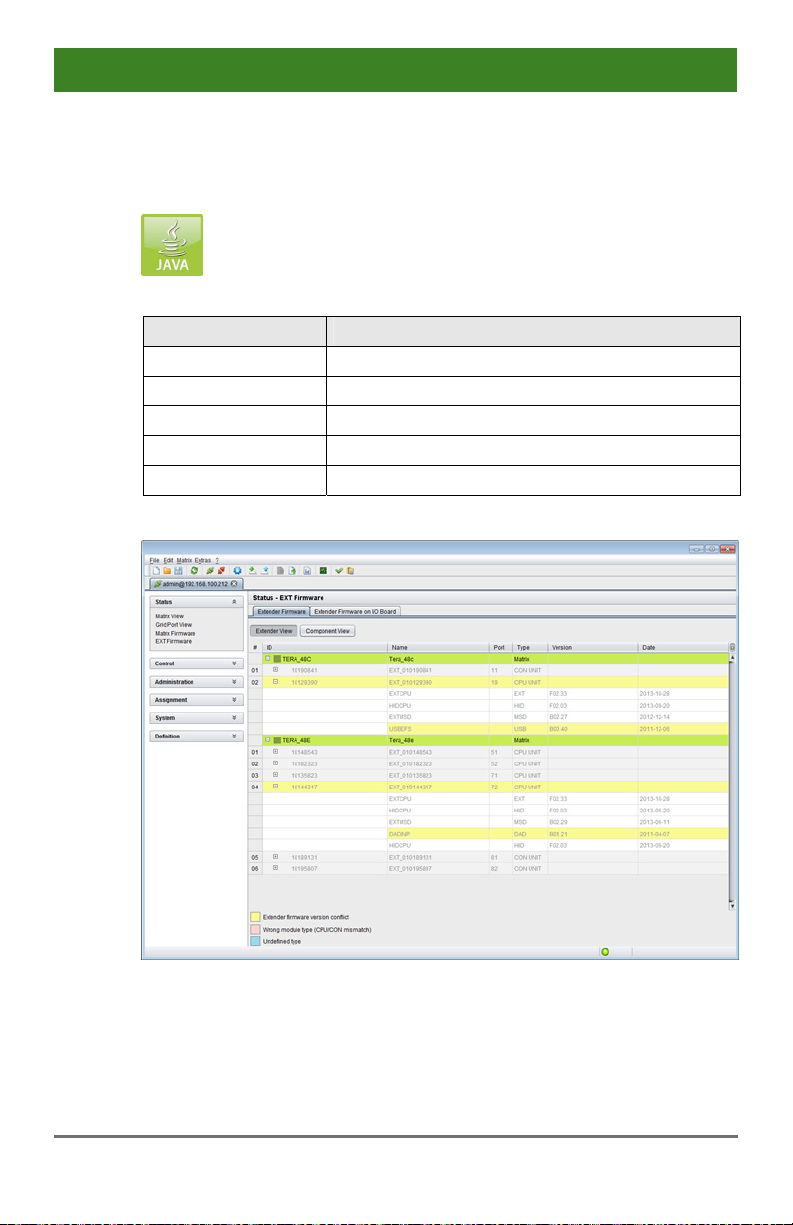

Menu Status – EXT Firmware

Pos: 34 /806-IHSE/Beschreibung/Funktion Trace/ 480-xx @ 7\mod_1309935652 618_6.doc @ 52718 @ 2 @ 1

38 2014-04-15

Description

3.8 Trace Function

All events, e.g. activities and switching operations of the Draco tera matrix,
are logged and displayed in this menu.

This function is used for diagnostic purposes.
You have the option to request various trace views in the menu:

The following information is shown in this menu:

Field Description

Pos: 35 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

Date

Time

Message

Trace possibilities

 Select Status > Trace IO Board in the main menu to check the

events on your current I/O board.

 Select Status > Trace Matrix to check the matrix events.

Date stamp
Time stamp
Detailed description of the event

2014-04-15 39

Draco tera

Pos: 36 /806-IHSE/Beschreibung/Syslog Monitori ng/480-xx @ 8\mod_13514 96895799_6.doc @ 69482 @ 2 @ 1

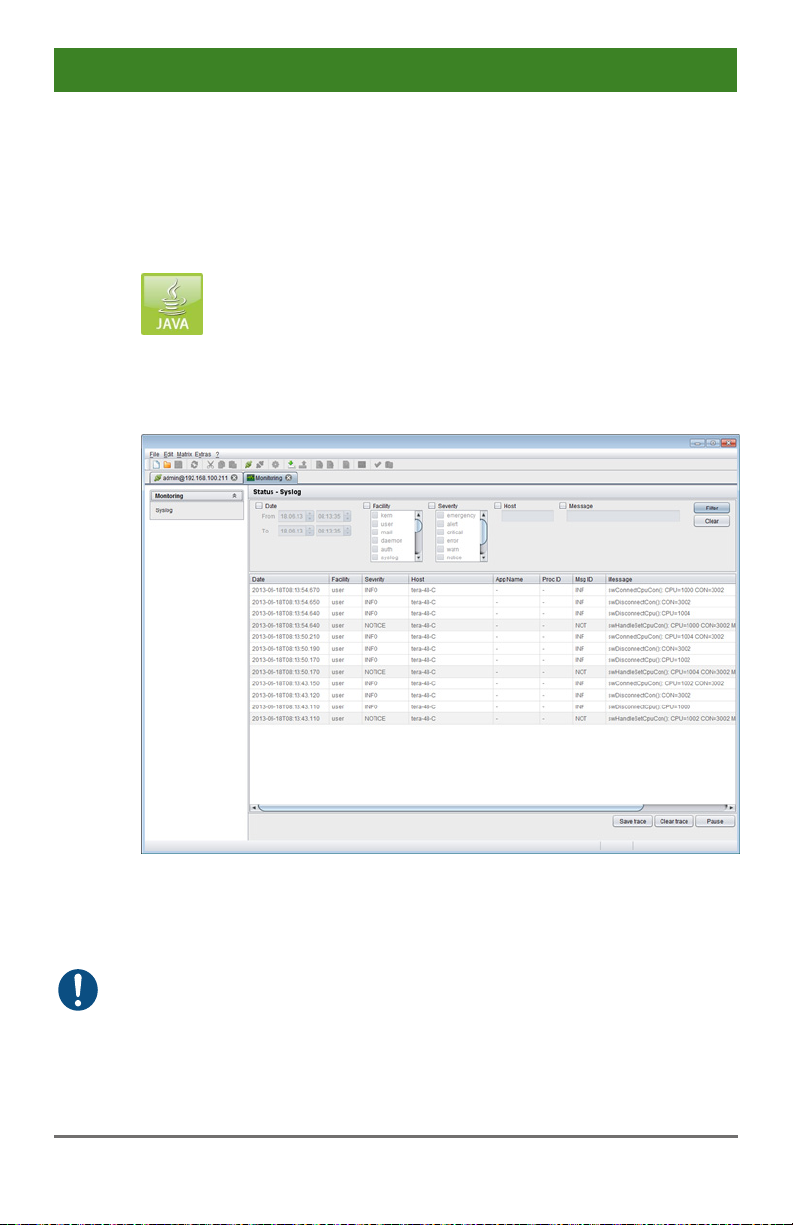

3.9 Syslog Monitoring

The complete logging of the Draco tera matrix activities, switching
operations and surveillance of the function of critical components like fans
or power supply units takes place in this menu.

You have the following option to access the menu:

In order to start Syslog Monitoring proceed as follows:
 Select the symbol Monitoring in the symbol bar.

Menu Monitoring – Syslog

Logging of system activities starts when the Monitoring menu is opened
and remains active until the tab is closed.

Syslog messages are transmitted via UDP. Therefore, port 514 within the
used network should not be blocked, e.g. by a firewall.

During logging the activities are written continuously into logging files and
stored locally. This process can be set with various options.

40 2014-04-15

Description

Options

 Select Extras > Options in the menu bar and open the tab Syslog.

The following options are available:

Option Description

Log File Directory

Log File Name

Log File Extension

Daily Logfiles

Maximum Log File
Size (KB)

Maximum Number
of Log Files

Autostart When starting the Java Tool, the Syslog function

Open Monitoring
Tab

When reaching the maximum log file size, a new log file will be created.
When reaching the maximum number of log files, the oldest one will be
overwritten with the new information.

Default directory to store the log files
Default name of the log file
Default extension for the log file
Log files are stored every 24 hours (daily)
Allowed maximum size of log file

Allowed maximum number of log files

will be started in the background
When starting the Java Tool, the Monitoring tab

will be opened

Filter Function

In order to filter relevant messages out of a number of logged activities of
the Draco tera, the Syslog Monitoring offers various filter options.

In order to set and activate a filter, proceed as follows:

1. Set the desired filter option(s) by activating the respective
checkbox(es).

2. Activate the filter settings by pressing the Filter button.

3. In order to deactivate an activated filter setting press the Clear button.

The following filter options are available:

Option Description

Date

Facility

Severity

Host

Message

Messages for a defined date range will be filtered
Messages for a defined facility will be filtered
Messages for a defined severity will be filtered
Messages for a defined host will be filtered
Messages with defined text parts will be filtered

2014-04-15 41

Draco tera

Filter options are not valid within the locally stored log files.

Recording Function

All messages shown in the Syslog are equipped with various recording
functions.

 In order to store messages shown in the Syslog (filtered or unfiltered),

press the Save trace button. The messages will be stored in a .txt
file.

 In order to remove messages shown in the Syslog, press the Clear

trace button.

 In order to stop recording messages, press the Pause button. In order

to continue press the button again.

Pos: 37 /806-IHSE/Beschreibung/SNMP/480-xx @ 8\mod_13 52794857131_6.doc @ 69602 @ 2 @ 1

3.10 SNMP

The SNMP function allows all function-critical and safety-critical elements
of the matrix to be monitored and queried. This function complies with the
RFC 1157 conformal standard.

When using SNMP monitoring, it is recommended that a dedicated
network is used to maintain continuous access.

You have the following options to configure the SNMP monitoring:

42 2014-04-15

Description

OSD

In order to activate the SNMP agent, proceed as follows:

1. Select Configuration > SNMP in the main menu.

Menu Configuration – SNMP

2. Set the Enable option to Y (Yes) under SNMP Agent. By activating
this option, the permission for an active query of the SNMP agent is
granted.

In order to configure a SNMP server, proceed as follows:

1. Select Configuration > SNMP in the main menu.

2. Set the Enable Traps option to Y (Yes) within SNMP Server. This
function allows an active transmission of trap messages from the
SNMP agent to the SNMP server.

3. Set the IP address of the SNMP server within Server Address.

4. Activate the requested traps by enabling them to Y (Yes).

2014-04-15 43

Draco tera

You can select the following traps:

Trap Description

Status Notification about matrix status
Temperature Notification about temperature within the matrix
Insert Board

Remove Board

Invalid Board Notification about a faulty I/O board
Insert Extender

Remove Extender

Switch Command

Fan Tray #1 Notification about the status of fan tray #1
Fan Tray #2 Notification about the status of fan tray #2
Power Supply #1 Notification about the status of power supply unit #1
Power Supply #2 Notification about the status of power supply unit #2
Power Supply #3 Notification about the status of power supply unit #3

For an activation of the SNMP agent function or the SNMP server
function, a restart of the matrix is necessary.

Notification about insertion of a new I/O board into a
slot

Notification about removal of an I/O board out of a
slot

Notification about a newly connected extender to
the matrix, notification about a switched on
extender, notification about a newly established link
between extender and matrix

Notification about a removed extender from the
matrix, notification about a switched off extender,
notification about an interrupted link between
extender and matrix

Notification about a performed switching operation
at the matrix

44 2014-04-15

Description

Java Tool

In order to activate the SNMP agent, proceed as follows:

1. Select System > Network in the task area.

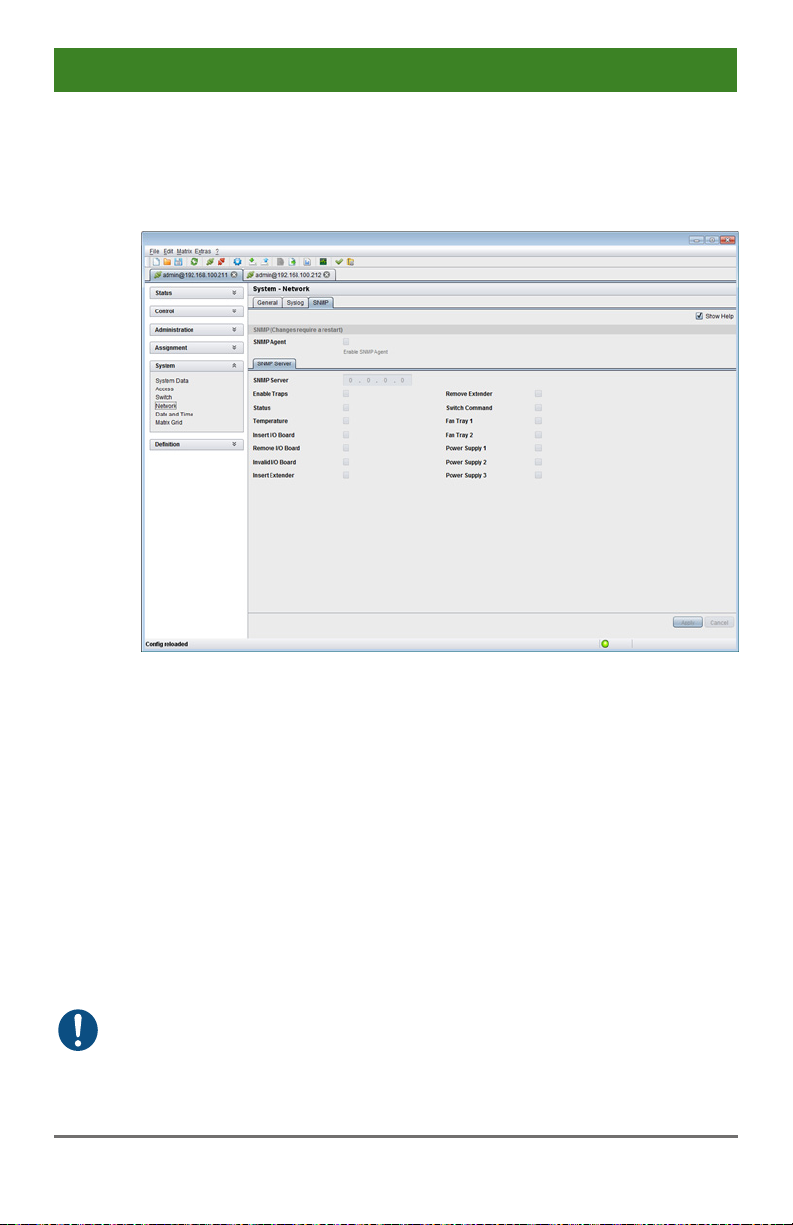

Menu System – Network

2. Activate the SNMP Agent option in the SNMP tab. By activating this
option, the permission for an active query of the SNMP agent is
granted.

In order to configure a SNMP-Server, proceed as follows:

1. Select Configuration > Network in the task area.

2. Activate the Enable Traps option within SNMP Server. This function
allows an active transmission of trap messages from the SNMP agent
to the SNMP server.

3. Set the IP address of the SNMP within SNMP Server.

4. Activate the requested traps.

To activate the SNMP agent function or the SNMP server function, a
restart of the matrix is required.

Pos: 38 /806-IHSE/Beschreibung/System Check/480_ xx @ 9\mod_1375105102198 _6.doc @ 78732 @ 2 @ 1

2014-04-15 45

Draco tera

3.11 System Check

System Check offers a diagnostic function for checking the matrix
configuration. The feature indicates suboptimal and faulty settings.

System Check is exclusively used for a confidence check and does not
make any active changes in the configuration.

You have the following option to access the menu:

The following configuration parts are checked:

 Matrix Firmware
 Extender Firmware
 Multi-Screen Control
 Ext Units
 CPU Devices
 CON Devices
 User
 System Configuration
 Matrix Grid

The following notification levels can be shown:

Level Description
OK (green)

System Check completed without any
abnormalities

WARNING (yellow)

System Check revealed abnormalities in the
configuration that point to incomplete parts of the
configuration, firmware differences, duplications
or unconnected extenders but without being
system critical

ERROR (red)

System Check revealed errors in the configuration
that can have both functional and system critical
influences on the system.

If the messages "WARNING" and "ERROR" are generated by the System
Check function, the respective problem will be described and a basic
guideline will be provided.

46 2014-04-15

Description

In order to start System Check, proceed as follows:
 Select the System Check symbol in the symbol bar.

Menu – System Check

Pos: 39 /806-IHSE/Installation/UEB_Installa tion @ 5\mod_1278574971589 _6.doc @ 41768 @ 1 @ 1

2014-04-15 47

Draco tera

4 Installation

Pos: 40 /806-IHSE/Installation/Lieferumfang pr üfen/480-xxC @ 8\mod_134 5735167559_6.doc @ 67893 @ 2 @ 1

4.1 Package Contents

Your package contains the following items:

 Draco tera matrix
 1x power cord per built-in power supply unit
 1x serial control cable
 1x RJ45/RS232 adapter
 Mounting accessories
 Quick Setup
 1x Cat X network cable (cross-wired)

If anything is missing, contact your dealer.

Pos: 41 /806-IHSE/Installation/System anschließ en/480-xxC @ 8\mod_134 5735496377_6.doc @ 67913 @ 2 @ 1

4.2 System Setup

First time users are recommended to setup the system in the same room
as a test setup. This will allow you to identify and solve any cabling
problems, and experiment with your system more conveniently.

Due to the construction of the matrix chassis it is recommended to use an
additional subfloor below the matrix for the use in a 19“ rack.

Setup of the matrix

1. Connect a CON Unit to an I/O port of the matrix for its configuration.

2. Connect keyboard, mouse and monitor to the CON Unit.

3. Connect the matrix and the CON Unit to the power supply.

4. Open OSD via keyboard command <'Hot Key'>, <o> and login with
administrator rights in the main menu under configuration (see

Chapter

5.2.1, Page 58).

5. Configure initially as requested.

After the configuration of the system it is recommended to save the
configuration by selecting Configuration > Save and restart the matrix by
selecting Restart Matrix.

48 2014-04-15

Installation

6. Optional: Establish a network connection between the matrix and the
Java Tool in order to set an extended configuration (see

Chapter 5.2.2, Page 63).

Setup of Extender

1. Connect the CON Units to the matrix by using the interconnect cables
(Cat X).

2. Connect the CON Units to the input devices that has to be used (for
example keyboard and mouse).

3. Connect the 5VDC power supply units to the CON Units.

4. Check the basic function of the CON Unit by opening the OSD via
keyboard command <'Hot Key'>, <o>.

5. Connect the source (computer, CPU) to the CPU Unit of the extender
using the provided connection cables.

6. Connect the CPU Unit to the matrix using the interconnect cables
(Cat X).

7. Connect the 5VDC power supply units to the CPU Units.

8. Start the system.

Pos: 42 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

2014-04-15 49

Draco tera

Pos: 43 /806-IHSE/Installation/Installatio nsbeispiele/UEB_I nstallationsbei spiele_480-xx @ 7\mod_13 11338893738_6.doc @ 54459 @ 2 @ 1

4.3 Example Applications

The Draco tera supports a wide and flexible range of system

Pos: 44 /806-IHSE/Installation/Installatio nsbeispiele/480- xxC_Installation sbeispiele @ 8\mod_1345 736002254_6.doc @ 67933 @ @ 1

Pos: 45 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

configurations:

A part of the Draco tera can be configured as a Single-Head work station,
a part as Dual-Head, as Quad-Head or even as a video matrix for
example. In addition there are configurations with KVM and USB 2.0
available.

In addition to OSD access by a keyboard connected to the CPU board or
and extender CON Unit, other methods of control are available, including:

 Java Tool
 Serial interface

A connection to common media controls is also possible.
The following section shows typical exemplary installations of the Draco

tera:

50 2014-04-15

Installation

Pos: 46 /806-IHSE/Installation/Installatio nsbeispiele/480- xxC_KVM-Matrix @ 8\mod_134 5736166554_6.doc @ 67953 @ 3 @ 1

4.3.1 KVM Matrix

In Single-Head mode, up to 48 ports can be used either as an input or as
an output port depending on components and equipment. Non-blocking
access is available for all users, i.e. user access is not limited by the
activities of another user.

1

2 3

4

3

5

6

Single-Head KVM Matrix

1 Source (computer, CPU)
2 CPU Unit
3 Interconnect cable
4 Draco tera matrix
5 CON Unit
6 Console (monitor, keyboard, mouse)

If you have a Single-Head console, you can also get access to a Dual­Head or Quad-Head console for example. However control is only
possible at monitor 1.

Any signal source can be switched to any number of monitors that will
show the video signal at the same time. Audio may also be switched if
required.

Pos: 47 /806-IHSE/Installation/Installatio nsbeispiele/480- xx/Parallelbetri eb (Stacking) @ 7\mod_13099 36438040_6.doc @ 52846 @ 3 @ 1

2014-04-15 51

Draco tera

4.3.2 Parallel Operation (Stacking)

If you have special configurations, especially at installations with several
monitors per work station or additional support of USB 2.0 transmission
paths, the number of connectable CPUs and consoles can be increased
by a parallel operation (stacking) of several Draco tera devices.

One Draco tera matrix is defined as the Master Matrix and its IP address
entered into the Master IP Address field (see Chapter

other matrices are defined as Sub Matrices. Sub matrices must be
connected to the master matrix via network connector (RJ45) on the CPU
board. The Enable LAN Echo option has to be activated at the master

matrix (see Chapter 5.4.1, Page 78).

If a switching command is performed using the OSD, the synchronized
matrices will also switch automatically.

Switching of stacked devices might be delayed by several seconds.

5.4.1, Page 78). All

1

Parallel Operation (Stacking)

2 3 4

5

6

7

3

8

52 2014-04-15

Installation

1 Dual-Head source (computer, CPU)
2 CPU Unit
3 Interconnect cable
4 Master matrix
5 Synchronized matrix
6 Network connection master matrix / synchronized matrix
7 CON Unit
8 Console (2x monitor, keyboard, mouse)

Pos: 48 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

Pos: 49 /806-IHSE/Installation/Installatio nsbeispiele/480- xx/Matrix-Grid @ 10\ mod_1389081890171_6. doc @ 113096 @ 3 @ 1

2014-04-15 53

Draco tera

4.3.3 Matrix Grid

You can use a matrix grid for applications where the required number of
ports is not sufficient or important connections need to be made to several
matrices to provide redundancy.

A matrix grid consists of one master matrix and at least one slave matrix.
In its maximum configuration, it can consist of up to 16 matrices.

In order to build a matrix grid, the grid matrices are interconnected by
“Grid Lines”. In this case, the slave matrices can be connected directly to
the master matrix or between themselves.

When arranging the grid lines, various grid setups can be realized, for
example: a ring setup, a hub & spoke setup or a fully connected setup of
matrices.

Grid lines can process signals bidirectional (Smart Connect). Per grid
line, one KVM connection can be transmitted.

Switching operations that extend beyond a single grid matrix are made by
the grid master. Local switching operations will still be made by each sub
matrix.

To configure the matrix grid, see Chapter

5.13, Page 158.

54 2014-04-15

Installation

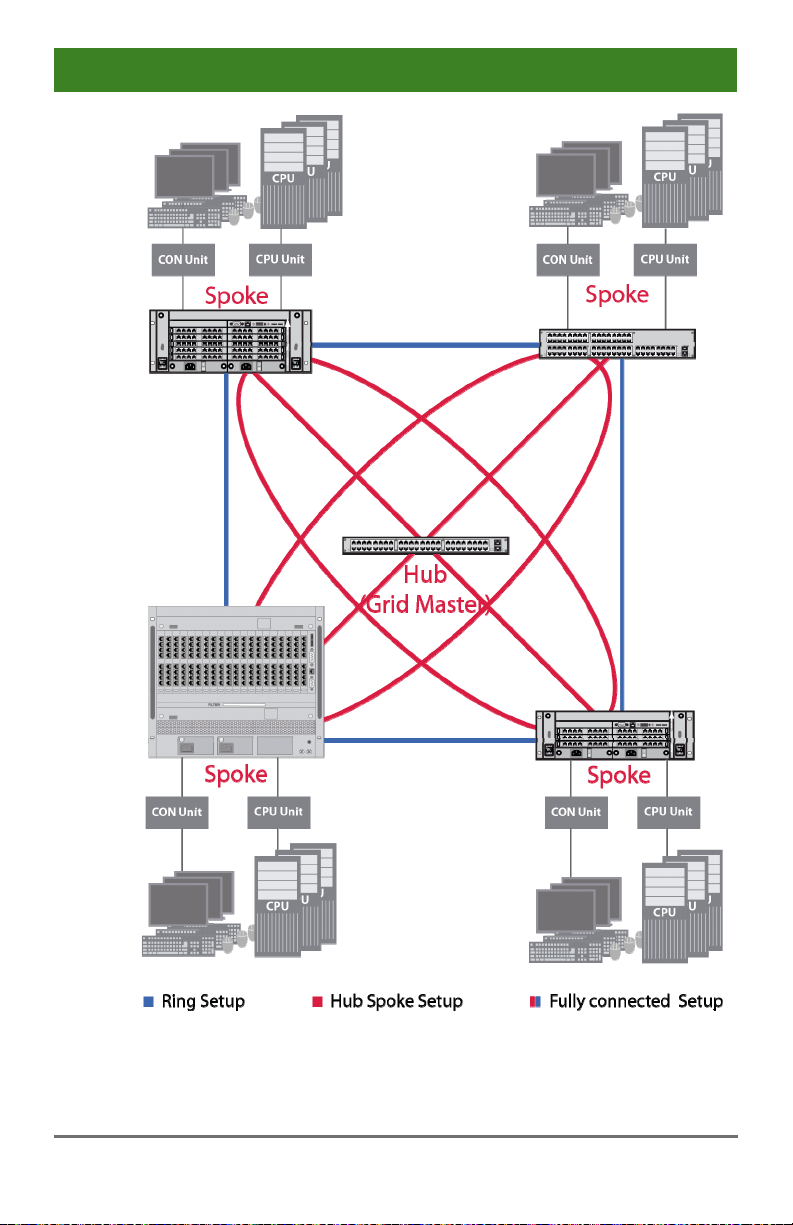

Matrix Grid

Pos: 50 /806-IHSE/Konfiguration/UEB_Konfigur ation @ 5\mod_1278575517 073_6.doc @ 41846 @ 1 @ 1

2014-04-15 55

Draco tera

5 Configuration

Pos: 51 /806-IHSE/Konfiguration/Kommando-Modus/ 480-xx @ 7\mod_130993 6855602_6.doc @ 52882 @ 2 @ 1

5.1 Command Mode

The Draco tera includes a Command Mode that allows several functions
to be controlled by keyboard commands during normal use.

To enter Command Mode use a 'Hot Key' sequence and to exit Command
Mode, press <Esc>. While in Command Mode, the LEDs Shift and Scroll
on the console keyboard will flash.

In Command Mode, normal keyboard and mouse operation will cease.
Only selected keyboard commands are available.

If there is no keyboard command executed within 10 s after activating
Command Mode, it will be deactivated automatically.

The following table lists the keyboard commands to enter and to exit
Command Mode and to change the 'Hot Key' sequence:

Function Keyboard Command
Enter Command Mode (default) 2x <Left Shift> (or 'Hot Key')
Exit Command Mode <Esc>
Change 'Hot Key' sequence

<Key> + <Key> Press keys simultaneously
<Key>, <Key> Press keys successively
2x <Key> Press key quickly, twice in a row
(similar to a mouse double-click)

<current 'Hot Key'>, <c>,
<new 'Hot Key' code>, <Enter>

Until 2011-30-09:
<Left Ctrl> + <Left Shift> + <c>,

<'Hot Key' Code>, <Enter>

56 2014-04-15

Configuration

The 'Hot Key' sequence to enter Command Mode can be changed. The
following table lists the 'Hot Key' Codes for the available key sequences:

'Hot Key' Code 'Hot Key'

0 Freely selectable (from 2012-01-12 on)
2 2x <Scroll>
3 2x <Left Shift>
4 2x <Left Ctrl>
5 2x <Left Alt>
6 2x <Right Shift>
7 2x <Right Ctrl>
8 2x <Right Alt>

In a combined KVM matrix / U-Switch configuration, choose different 'Hot
Keys' for the KVM matrix and the U-Switch.

Set freely selectable 'Hot Key' (exemplary)

In order to set a freely selectable 'Hot Key' (e.g. 2x <Space>), use the
following keyboard sequence:

<current 'Hot Key'>, <c>, <0>, <Space>, <Enter>

Set 'Hot Key' for direct OSD Access

Next to the 'Hot Key' for standard functions, this 'Hot Key' can be
exclusively used for opening the OSD directly.

In order to select a 'Hot Key' from the 'Hot Key' table for a direct opening
of the OSD, use the following keyboard sequence:

<current 'Hot Key'>, <f>, <'Hot Key' code>, <Enter>
In order to select a freely selectable 'Hot Key' (e.g. 2x <Space>) for

opening OSD directly, use the following keyboard sequence:
<current 'Hot Key'>, <f>, <0>, <Space>, <Enter>

Reset 'Hot Key'

In order to set a 'Hot Key' back to default settings of the extender, press
the key combination <Right Shift> + <Del> within 5 s after switching on the
CON Unit or plugging in a keyboard.

Pos: 52 /806-IHSE/Konfiguration/480_Ansteuer ung/480-xx/Ansteu erungsoptionen @ 7\mod_13 09936958868_6.doc @ 52902 @ 2 @ 1

2014-04-15 57

Draco tera

5.2 Control Options

The Draco tera contains an internal CPU that allows you to control all
functions from any console without the need for an external CPU or media
control.

You have the following options to access the Draco tera for configuration
and operation:

 via OSD
 via Java Tool
 via serial interface

Pos: 53 /806-IHSE/Konfiguration/480_Ansteuer ung/480-xx/Ansteu erung via OSD @ 7\mod_13099376 35540_6.doc @ 52920 @ 3 @ 1

5.2.1 Control via OSD

Via OSD (On-Screen-Display) you set the configuration of the Draco tera
operating system. The settings of the Configuration menu are described
below. All other menus are described in later chapters.

You have the following options to enter the OSD of the Draco tera:

 via keyboard connected to the CPU board
 via keyboard connected to a CON unit of an extender

Entering OSD

1. Start Command Mode with the 'Hot Key' (see Chapter 5.1, Page 56).

2. Press <o> to open OSD.
You will see a list of all available CPUs as a start menu.

3. Press <Esc> to enter the main menu.

If the Enable CPU Selection option is enabled in the Configuration
menu, the selection list for switching CPU Devices will be opened initially.
This list can be skipped by pressing <F7>.

58 2014-04-15

Configuration

Leaving OSD

 Press <Esc> in the main menu or simultaneously <Left Shift> +

<Esc> anywhere within the OSD.
The OSD will be closed without any further changes and the currently

active CPU connection will be displayed.

Menu Structure

Example View

The general layout of the OSD is structured into three areas:

 Upper status area (topmost two text lines)
 Working area
 Lower status area (lowest two text lines)

2014-04-15 59

Draco tera

Keyboard control

You can select the following keyboard commands:

Function Keyboard Command

Left cursor - only within an input field or a
switching screen

Right Cursor - only within an input field or a
switching screen

 In input fields: Line up (with wrap

 In menus: Line up (without wrap

 In input fields: Line down (with wrap

 In menus: Line down (without wrap

Previous page in menus with more than
one page

Next page in menus with more than one
page

Next input field <Tab>
Previous input field <Left Shift> + <Tab>
Next option in selection fields <+>
Previous option in selection fields <->
Switching in selection fields between two

conditions, e. g. between ON / OFF or Y
(Yes) / N (No)

 In menus with input fields: Save data
 In menus: Select menu item

 In menus with input fields: Cancel data

 In menus with selection fields: Go

<Cursor Left>

<Cursor Right>

<Cursor Up>

around)

around)

<Cursor Down>

around)

around)

<Page Up>

<Page Down>

<Space>

<Enter>

<Esc>

input without saving

back to the superior menu

60 2014-04-15

Configuration

Sorting Function

Lists and tables in the Java Tool offer a sorting function for fast and
smooth search.

The following sorting functions are available:

Function Keyboard Command

Sort ID numbers in descending order by
pressing the keyboard command once.

Sort ID numbers in ascending order by
pressing the keyboard command twice
(ID).

Sort ID names in descending order by
pressing the keyboard command once.

Sort ID names in ascending order by
pressing the keyboard command twice
(Name).

Go to the next result in the list of results of
the search field (Next).

Go to the previous result in the list of
results of the search field (Previous).

Refresh the currently shown list (Refresh).
Jump between the search field and the list

of results (Find).

<F1>

<F2>

<F3>

<F4>

<F5>
<F6>

2014-04-15 61

Draco tera

Password request

You have to login with administrator rights to be able to set configurations.

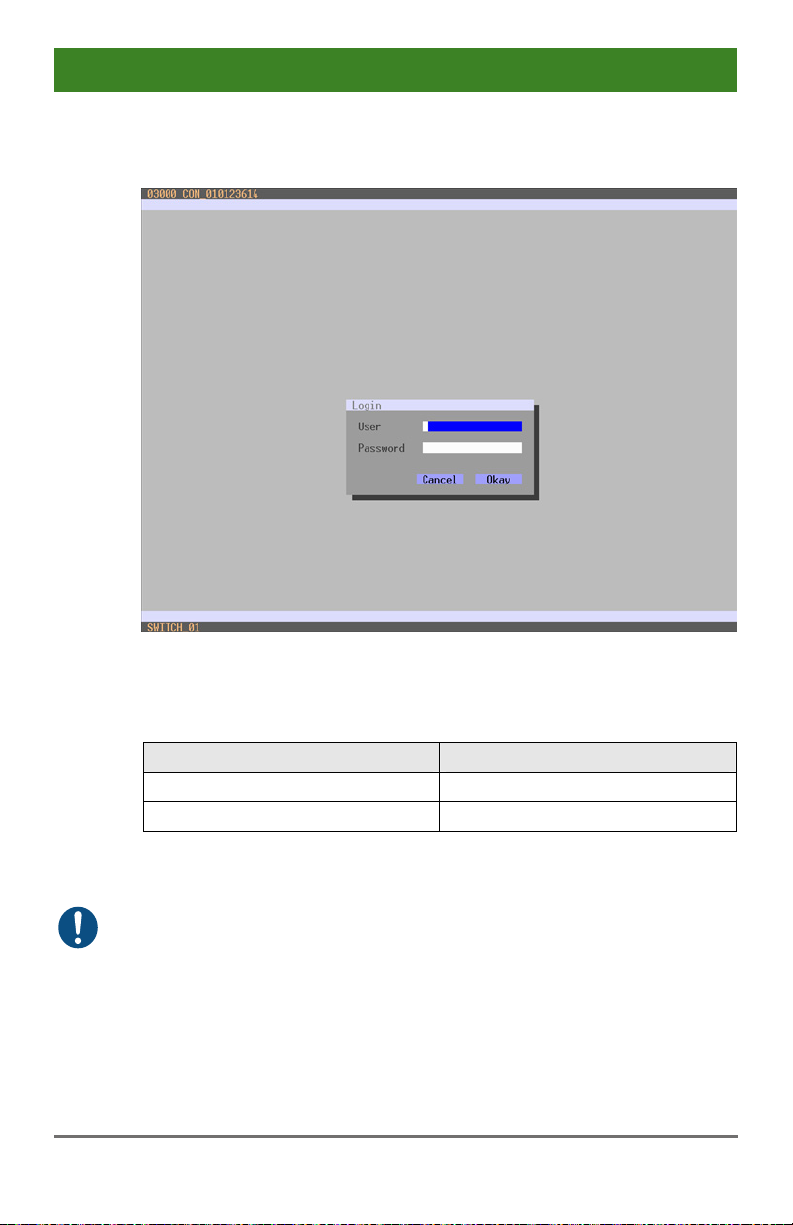

Menu Login

Access to the configuration menu requires administrator rights. User login
is mandatory.

Field Input

User

Password

admin
admin

By pressing <F10> in the main menu of the OSD, the login mask will be
opened. In order to log out a user, press <F10> again.

For security reasons, please change the administrator password as soon
as possible (see Chapter 5.4.1, Page 78).

Pos: 54 /806-IHSE/Konfiguration/480_Ansteuer ung/480-xx/Ansteu erung via Java-Tool @ 7\ mod_1309937697743_6.d oc @ 52938 @ 3 @ 1

62 2014-04-15

Configuration

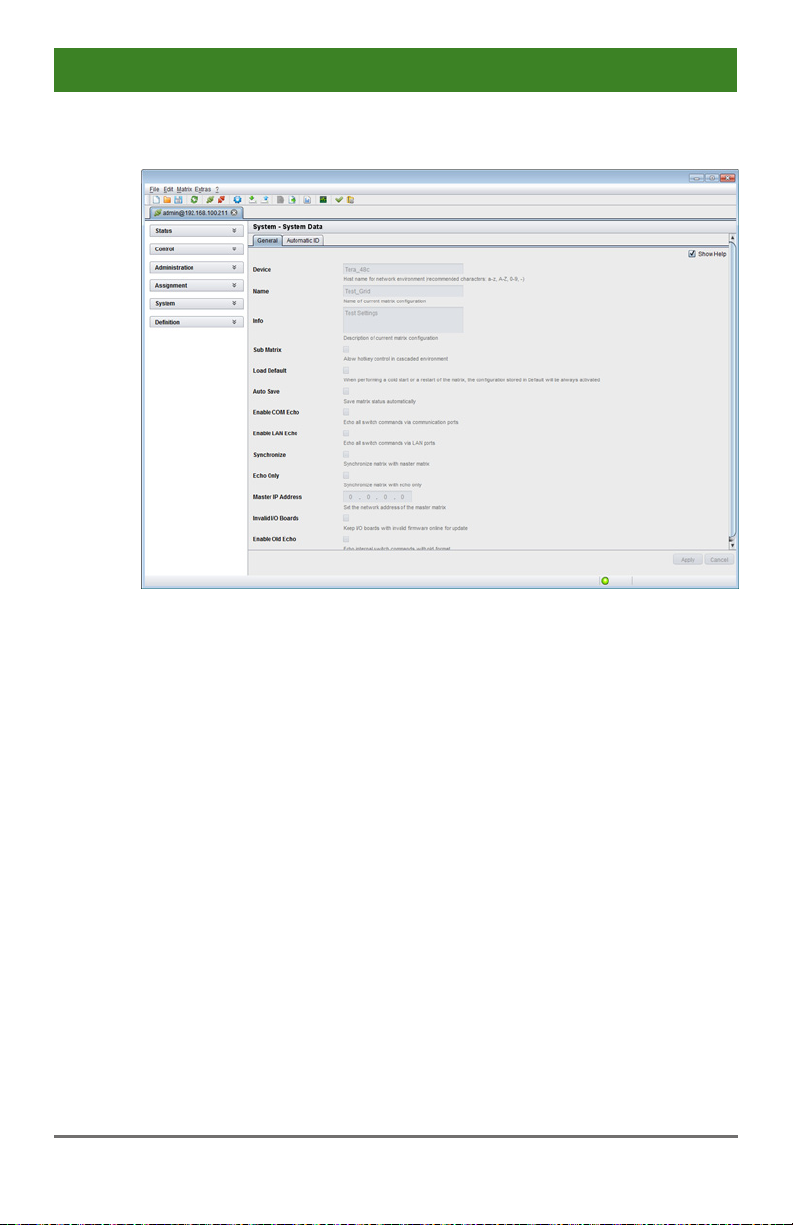

5.2.2 Control via Java Tool

Requirements

If you want to use the Java Tool, the following requirements have to be
fulfilled:

 Computer with an executable Java Tool and an installed Java

Runtime Environment (JRE, version 1.6 or higher)

 Java Tool software
 Available network connection between the Java Tool and the matrix

Contact your system administrator concerning JRE and network
connection.

Installation of the Java Tool

The Java Tool is available as a single executable program file that does
not require a separate installation.

 Copy the tool after receiving the file to a directory on your computer.

If you do not have a copy of the Java Tool, contact your dealer.

Computer Connection to the Matrix

For a direct connection between computer and matrix, a cross-wired
network cable is required.

For a connection between computer and matrix via switch or hub, a
parallel assembled network cable is required.

Do not use a network connection between Java Tool and the matrix that is
primarily used for transmitting audio data.

 Connect the network cable to the RJ45 ports of computer and CPU

board of the matrix.

Start of the Java Tool

 Open the Java Tool by a double click on the program icon or use the

<Enter> key of the keyboard.

2014-04-15 63

Draco tera

Connection to the Matrix

At least FTP rights are required.

1. Open the Java Tool.

2. Select Matrix > Connect in the menu bar.

3. Enter the IP address in the popup input field according to the network
configuration of the Draco tera (see Chapter

4. Enter the user name and password for the Draco tera (see Chapter

5.4.1, Page 78).

5. Confirm your inputs with the button OK or reject with Cancel.

5.2.3, Page 72).

Menu Connect

Up to twelve connections between the matrix and the Java Tool can be
established at the same time due to a limitation of available sockets.

64 2014-04-15

Configuration

Menu structure

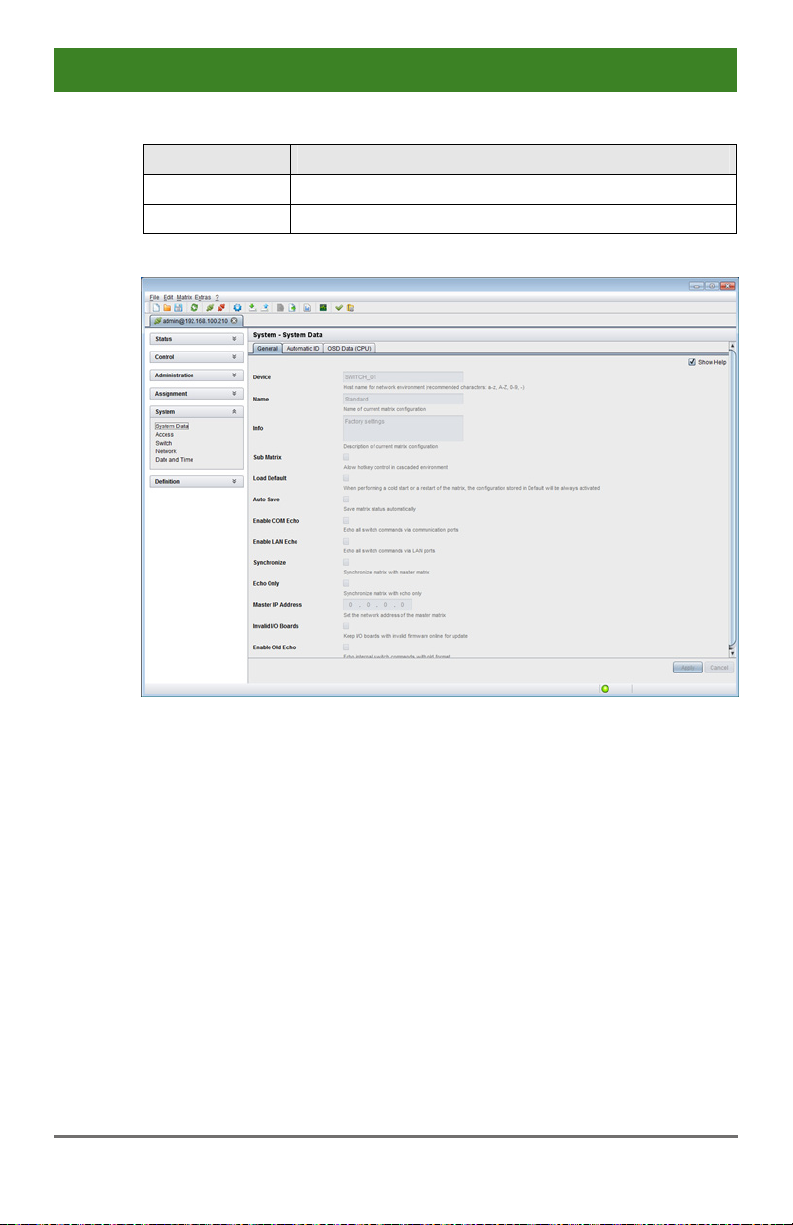

Example View (System – System Data)

The menu structure of the Java Tools is subdivided into various sections:

 Menu bar (top line)
 Toolbar (second line)
 Tab bar (third line)
 Task area (left menu section)
 Working area (right menu section)
 Status bar (bottom line section)

Operating Instructions

The operation of the Java Tool is intuitive and corresponds to the user
interface of common operating systems.

The Java Tool contains its own support function.
The integrated help texts in the working area of the Java Tool can be

activated or deactivated by the checkbox in the upper right corner.

2014-04-15 65

Draco tera

Mouse Control

You can select the following mouse commands:

Function Mouse Command

Menu selection, marking Left mouse button
Open function specific selection menus

Open context specific selection menus Right mouse button

Keyboard Control

You can select the following keyboard commands:

Function Keyboard Command

Cursor to the left <Cursor Left>
Cursor to the right <Cursor Right>
Line up <Cursor Up>
Line down <Cursor Down>
Previous page in input or status menus

with more than one page
Next page in input or status menus with

more than one page
Next field in input menus <Tab>
Previous field in input menus <Left Shift> + <Tab>

 Switching in selection fields between

 Open already marked fields with

 In menus: Data saving
 Menu item selection

 Leave tables
 Jump from tables into the next field

 Leave tables
 Jump from tables into the previous

Various functions within the menus in the menu bar can be executed with
the provided keyboard commands (e. g. press <Ctrl> + <S> to execute
Save) that are listed to the right of the respective menu item.

Double click left mouse
button

<Page Up>

<Page Down>

<Space>

two conditions (checkmark or not).

editing or selecting possibility.

<Enter>

<Ctrl> + <Tab>

<Ctrl> + <Left Shift> +
<Tab>

field

66 2014-04-15

Configuration

Reload Options

The information shown in the Java Tool can be reloaded in different ways.

 Via <F5> on the used keyboard
 Via Edit > Reload in the menu bar

 Via "Reload"-Symbol in the symbol bar

Context Function

The Java Tool offers several context functions that support user-friendly
and effective operation. The context functions are described in the
respective chapters.

 To execute a context function, use the right mouse button on the

corresponding field and select the desired function.

Sorting Function

Lists and tables in the Java Tool offer a sorting function for fast and
smooth search.

1. Ascending: Click left mouse button once on the header of the column
to be sorted.

The sort status is indicated by an arrow that points upwards.

2. Descending: Click left mouse button once on the header of the
column to be sorted.

The sort is displayed by an arrow that points downwards.

3. Cancel sort: Click left mouse button once or twice on the head of the
sorted column.

The arrow displayed disappears.

Filter Function

Lists and tables in the Java Tool offer a filter function that allows a fast
and smooth search.

1. To activate a filter, use the right mouse button to click on the header
of the column to be filtered and select Set Filter.

2. Write the word or part of a word that has to be filtered into the header.
The filter results are shown immediately.

3. In order to delete a filter, use the right mouse button to click on the
header of the column that has to be filtered and select Clear Filter.

2014-04-15 67

Draco tera

An active filter is indicated by an asterix in the header.
The filter function is based on the functional principle of common web

search engines.

Offline Configuration

Configuration and system settings via Java Tool can be changed in offline
mode without a direct connection between matrix and Java Tool.

In order to activate a matrix configuration, proceed as follows:

1. Select File > Upload in the menu bar.

2. Enter the IP address of the matrix (see Chapter 5.2.3, Page 72) and
the name and password of the user authorization and select the

storage location of the new configuration (default or config01-08) in
the Select Configuration menu.

3. Select Matrix > Connect in the menu bar and enter the IP address of
the matrix and the name and password for user authorization.

4. Select Administration > Activate Configuration in the task area
and select the storage location that has been selected above.

5. Use the Activate button to open the selected configuration within the
matrix.

The connection and the open tab will be closed and the matrix will be
restarted.

During the activation of a configuration, the matrix is temporarily
unavailable.

68 2014-04-15

Configuration

Online Configuration

Configurations and system settings can be also edited via Java tool in
online mode with an active connection between matrix and Java tool.

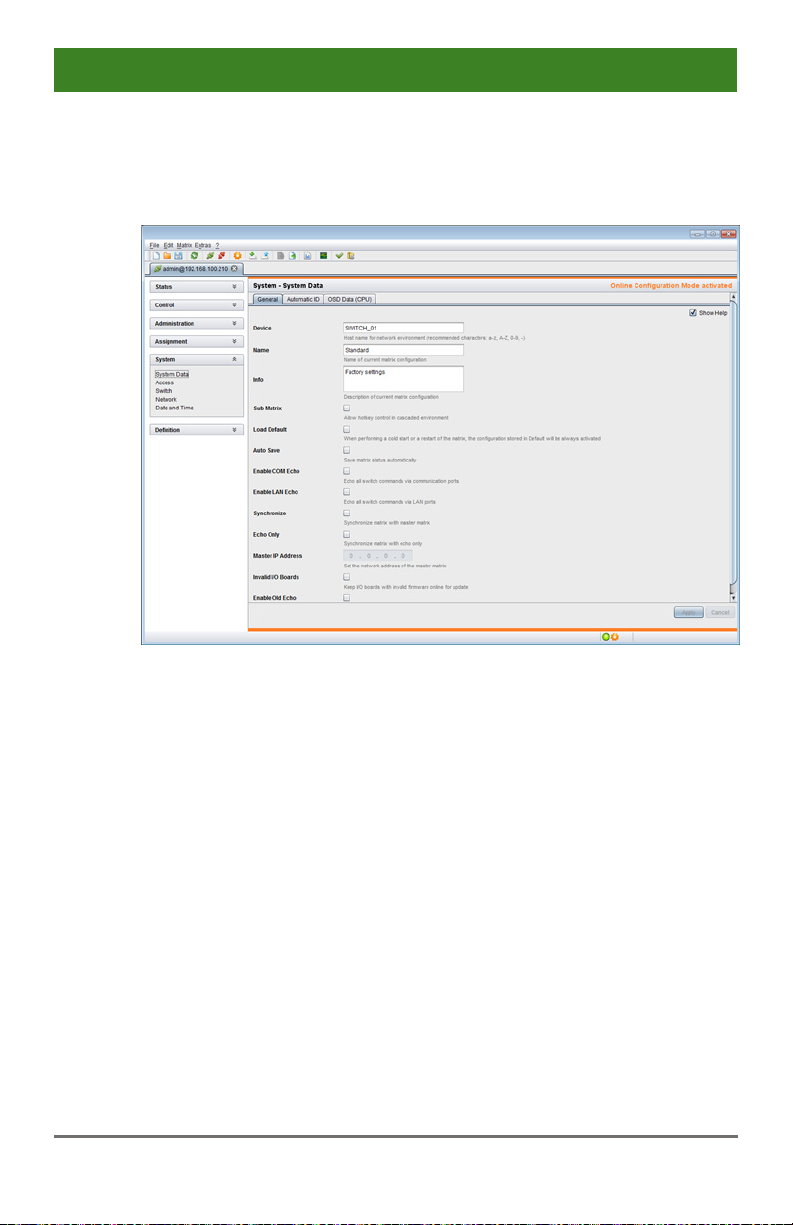

Menu System – System Data

In order to edit a configuration in online mode, proceed as follows:

1. Select the menu item Matrix > Activate Online Configuration
Mode. This setting will also be shown in the lower part of the working
area.

2. Make any edits at the configuration and system settings and confirm
them by pressing the Apply button. The changes will be applied
immediately.

3. In order to deactivate the online mode, select the menu item Matrix >
Deactivate Online Configuration Mode in the menu bar.

2014-04-15 69

Draco tera

Options menu

The Java Tool can be adapted and customised by editing various default
settings.

In order to activate or change the default settings, proceed as follows:
 Select Extras > Options in the menu bar. The Default Settings tab

will open.

The following default settings parameters can be changed:

Option Description
IP / Hostname Default IP address of the matrix required for

User

Configuration
Directory

Firmware
Directory

Status
Directory

Import / Export
Directory

Presets
Directory

In order to set various font sizes for the Java tool, proceed as follows:

1. Select Extras > Options in the menu bar.

2. Open the Font tab.

3. Select the desired font size (normal or large).

connection
Default user name required for connection
Default directory for configuration files

Default directory for update files

Default directory for the firmware status

Default directory for import and export files

Default directory for macro files

70 2014-04-15

Configuration

Report

The Java Tool is equipped with a report function that shows the current
switching status and all relevant parts of the matrix configuration in a PDF
file.

In order to create a report, proceed as follows:

1. Select File > Report... in the menu bar. A selection assistant will be
opened.

2. Select contents that should be included in the report (Matrix View,
EXT Units, CPU Devices, CON Devices and Users) and confirm
with the button Next >.

3. Select the preferred location for storage of the report and confirm with
the Finish button.

The report will be created as a PDF file.

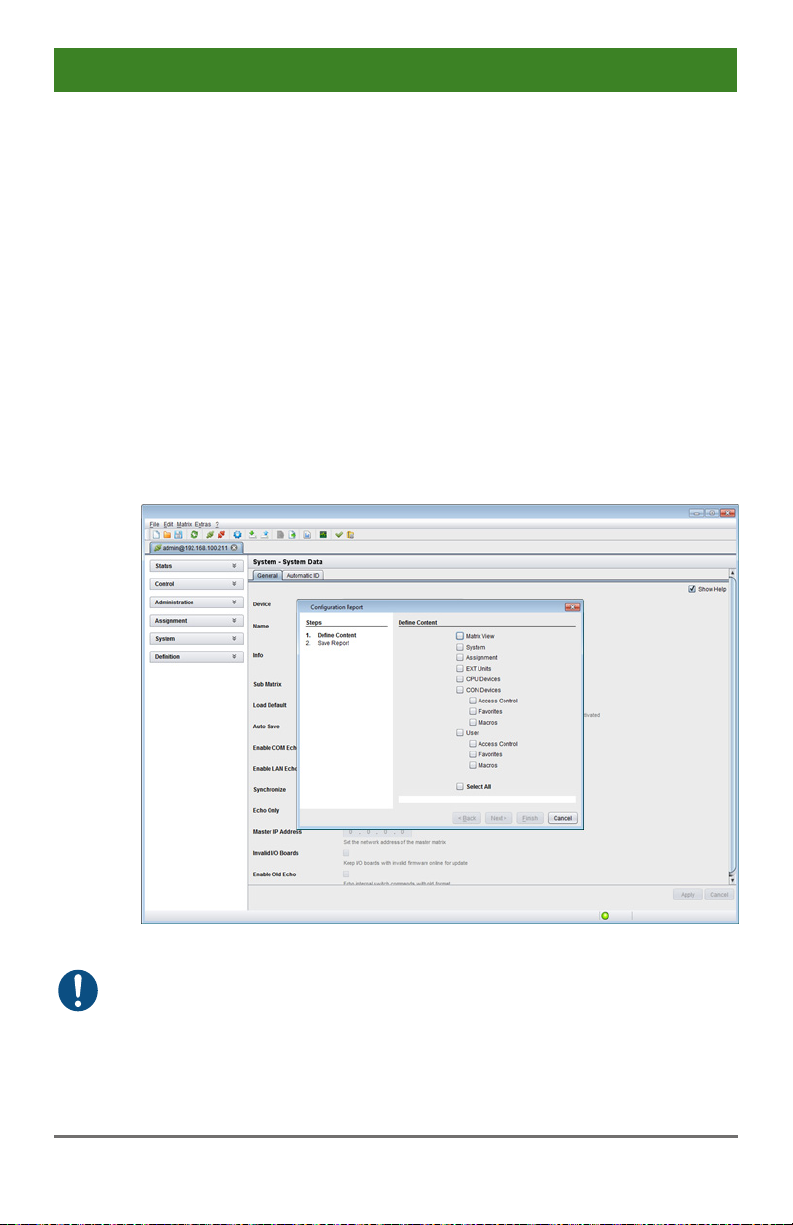

Menu File > Report

The report function can be used in both online or offline mode of the Java
Tool.

Pos: 55 /806-IHSE/Konfiguration/480_Ansteuer ung/480-xx/Ansteu erung via serieller Sc hnittstelle @ 7\mod_13099 37747180_6.doc @ 529 56 @ 3 @ 1

2014-04-15 71

Draco tera

5.2.3 Control via Serial Interface

The Draco tera operating system offers various functions for an operation
via serial interface. There are telegrams for Switching single or all
connections available, both unidirectional and bidirectional. In addition,
there are telegrams for an overall definition of the total switching status
and for saving and loading such switching states.

The Draco tera optionally provides an echo of all affected switching
operations via serial interface or network interface. This aids continuous
tracking of a matrix configuration and enables your own applications to be
updated.

As an additional application you can parallely switch matrix clones as
synchronized matrices (Stacking) via serial network interface.

Pos: 56 /806-IHSE/Konfiguration/480_Zuordnung/ 480-xx/Zuordnung @ 7\ mod_1309937797383_6. doc @ 52976 @ 2 @ 1

5.3 Assignment

The Draco tera offers the option of a console specific or a CPU specific
assignment.

 Assign virtual CPUs to real CPUs.
 Assign real consoles to virtual consoles.

Pos: 57 /806-IHSE/Konfiguration/480_Zuordnung/ 480-xx/Virtue lle CPU @ 7\mod_130993789130 5_6.doc @ 53012 @ 3 @ 1

5.3.1 Virtual CPU

You can assign virtual to real CPUs in this menu.
With this function the effort of switching several consoles to the same CPU

can be reduced. If several consoles are connected to a virtual CPU that is
assigned to a real CPU, you only have to change the real CPU once and
all consoles will receive the video signal of the new CPU.

You have the following options to access the menu:

72 2014-04-15

Configuration

OSD
 Select Assignments > Virtual CPU Devices in the main menu.

Menu Assignments – Virtual CPU Devices

For an assignment, proceed as follows:

1. Select the virtual CPU in the Virtual Devices list that has to be
assigned to a real CPU.

2. Press the Edit button.

3. Select the CPU in the Real Devices list that has to be assigned to the
selected virtual CPU.

4. Press the Okay button to confirm the assignment.

The assignment will be made.

Only one virtual CPU can be assigned to a real CPU.

2014-04-15 73

Draco tera

Java Tool
 Select Assignment > Virtual CPU Devices in the task area.

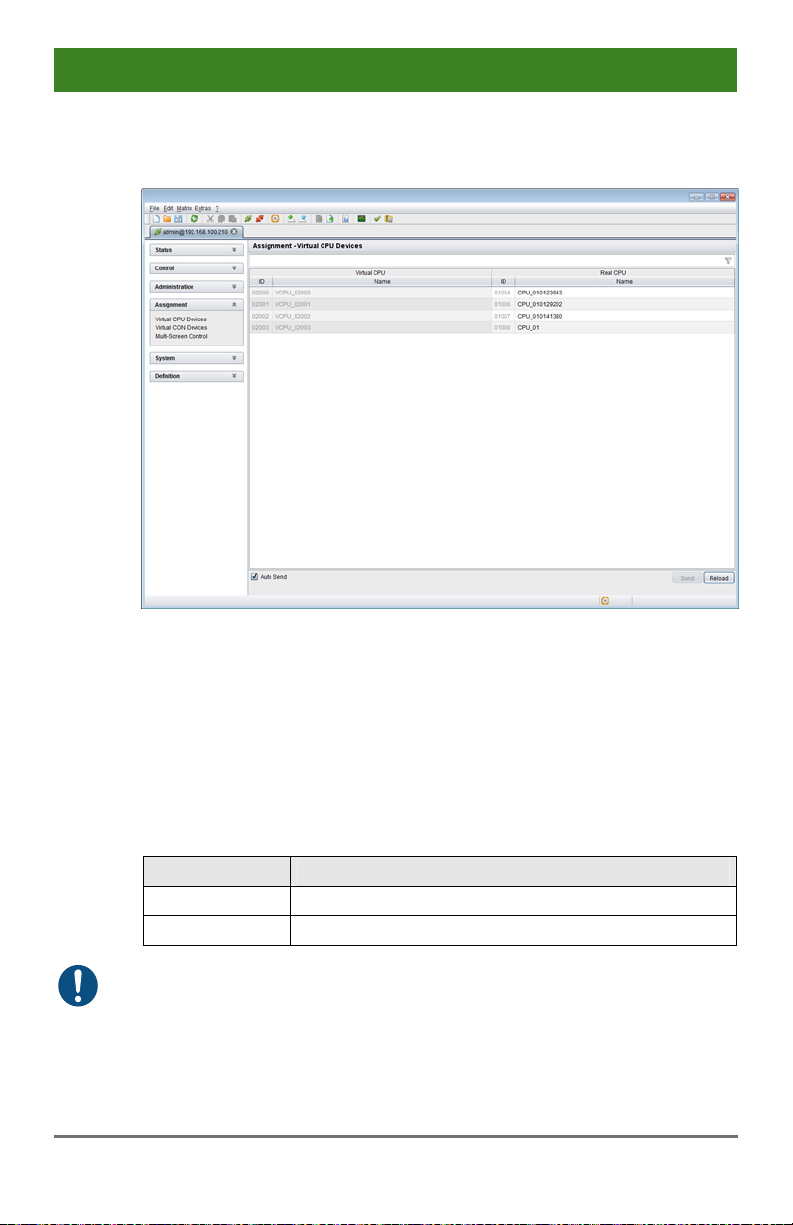

Menu Assignment – Virtual CPU Devices

For an assignment, proceed as follows:

1. Select a virtual CPU in the Virtual CPU list.

2. Double click in the Real CPU column to display a list of all available
real CPUs.

3. Select a real CPU.

You can select the following buttons:

Button Function

Send

Reload

Send assignments to the matrix
Reload changes

When the Auto Send function in the left lower corner of the work area is
ticked, switching operations will be completed immediately without user
confirmation by means of the Send button.

74 2014-04-15

Configuration

The selection boxes in the Real CPU column contain a filter function for
an easy selection of single consoles from a larger pool of consoles (see

Chapter

5.2.2, Page 63).

The Java tool offers the option to switch directly from the Assignment
menu to the Definition menu to check specific settings for the respective
console or CPU.

 Use the right mouse button to select the respective console or CPU

and select Open CON Device or Open CPU Device.

Pos: 58 /806-IHSE/Konfiguration/480_Zuordnung/ 480-xx/Virtue lle Konsole @ 7\mod_13099378 42805_6.doc @ 52994 @ 3 @ 1

5.3.2 Virtual Console

You can assign real consoles to virtual consoles in this menu.
This function reflects changes in permission made to virtual consoles onto

real consoles.
Virtual consoles can be switched in the same way as real consoles. Real

consoles that are assigned to a virtual console that is connected to a CPU
will receive the video signal. The last-assigned console will also have
control of the keyboard and mouse.

You have the following options to access the menu:

2014-04-15 75

Draco tera

OSD
 Select Assignments > Virtual CON Devices in the main menu.

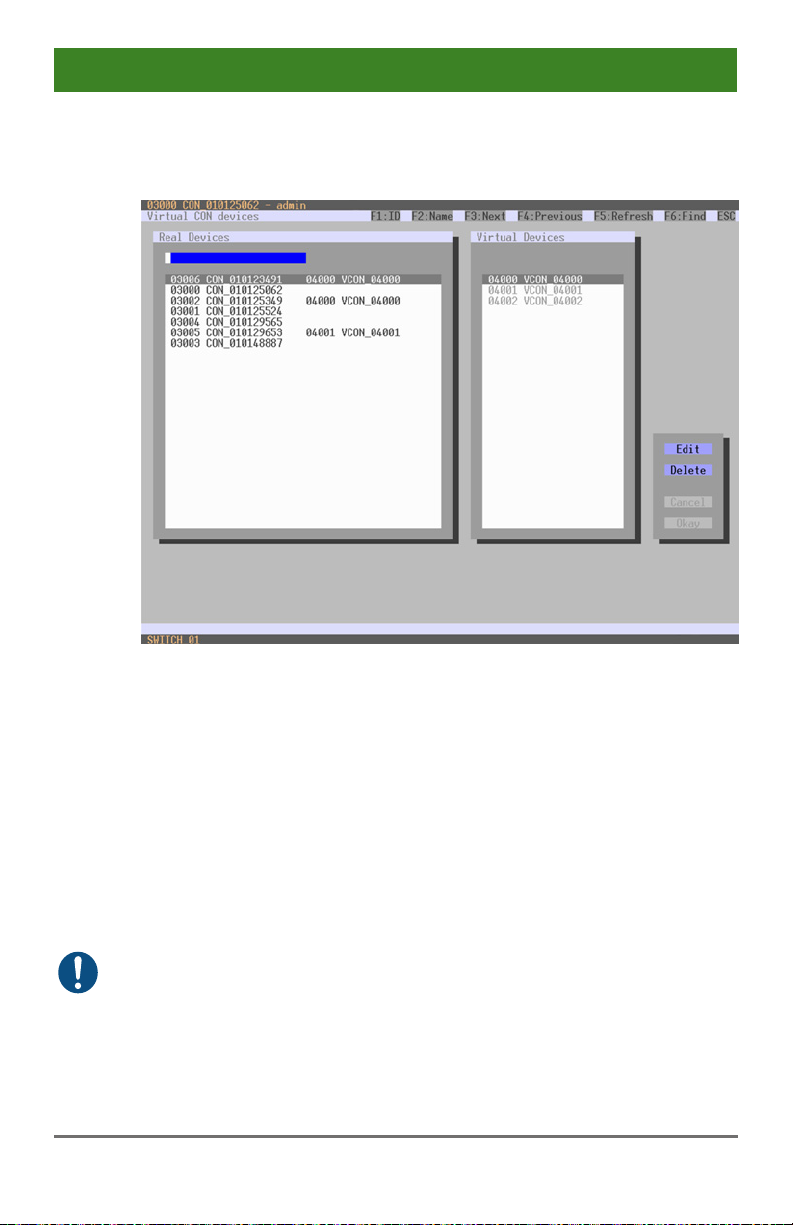

Menu Assignments – Virtual CON Devices

For an assignment, proceed as follows:

1. Select the real console in the Real Devices list that has to be
assigned to a virtual CPU.

2. Press the Edit button.

3. Select the virtual console in the Virtual Devices list that has to be
assigned to the selected real console.

4. Press the Okay button to confirm the assignment.

The assignment will be made.

A virtual console can be assigned to more than one real consoles.

76 2014-04-15

Configuration

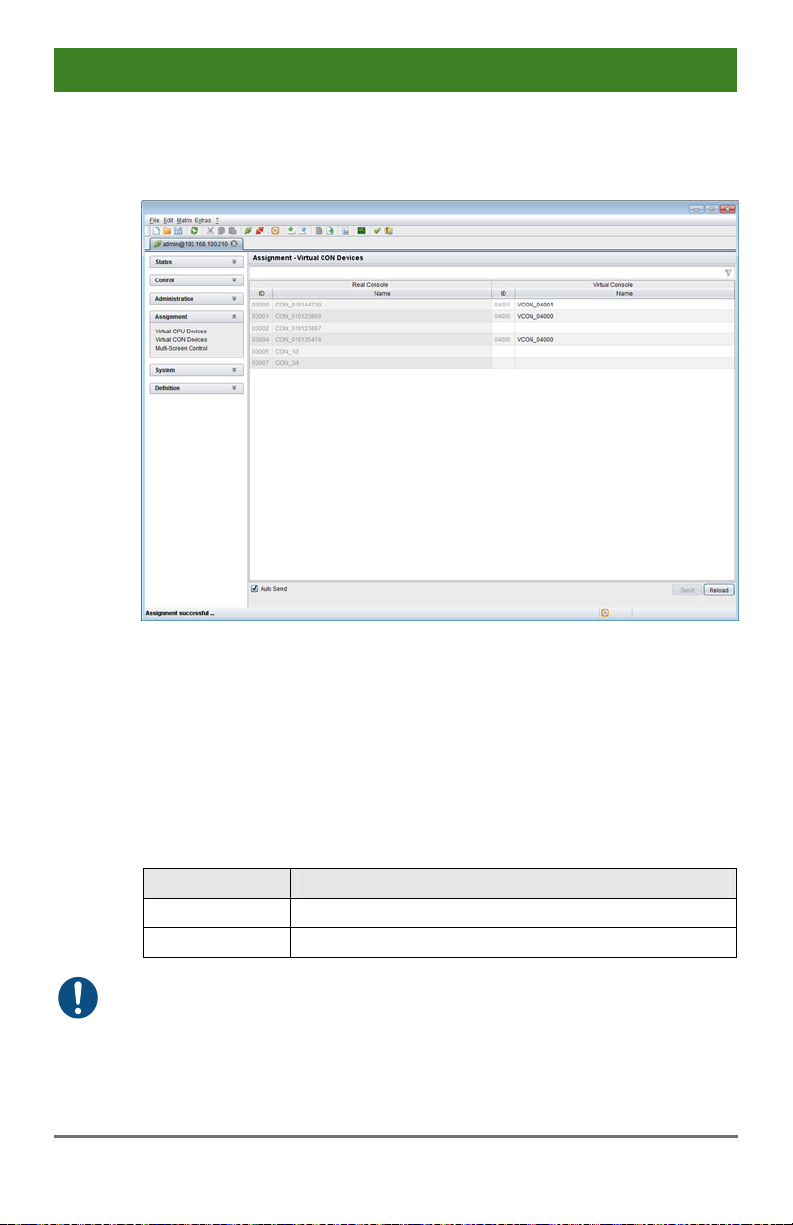

Java Tool
 Select Assignment > Virtual CON Devices in the task area.

Menu Assignment – Virtual CON Devices

In order to place an assignment, proceed as follows:

1. Select the required real console in the Real Console table.

2. Double click in the Virtual Console column to display a list of all
available virtual consoles.

3. Select the required virtual console.

You can select the following buttons:

Button Function

Send

Cancel

Send assignments to the matrix
Reject changes

When the Auto Send function in the left lower corner of the work area is
ticked, switching operations will be completed immediately without user
confirmation by means of the Send button.

2014-04-15 77

Draco tera

The selection boxes in the Virtual Console column contain a filter
function for an easy selection of a single CPU from a larger pool of CPUs

(see Chapter

Pos: 59 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Syst emeinstellungen @ 7\ mod_1309937961274_6. doc @ 53032 @ 2 @ 1

5.2.2, Page 63).

5.4 System Settings

You have the option to configure the following system settings at the
Draco tera.

The configuration of the system settings can only be done by users with
administrator rights.

Pos: 60 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Syst em Data @ 7\mod_130993800549 3_6.doc @ 53050 @ 3 @ 1

5.4.1 System Data

The system configuration is set in this menu.
You have the following options to access the menu:

You can select the following settings:

Field Selection Description

Device

Name

Info

Sub Matrix

Text

Text

Text

activated

deactivated Function not active (default)

Enter the device name of the matrix
(default: SWITCH_01)

Enter the name of the configuration that is
used to save the current settings
(default: Standard)

Additional text field to describe the
configuration (default: Factory settings)

If the matrix is defined as a sub matrix in
the OSD, the user will lose control. Control
can be recovered by using the keyboard
command <Shift>, <Shift>, <s>, <o>. The
OSD for the matrix that has been defined
as sub matrix will be reopened.

78 2014-04-15

Configuration

Field Selection Description

Load Default

Auto Save

Enable
COM Echo

Enable LAN
Echo

Synchronize

Echo Only

Master IP
Address

activated

deactivated

activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
Numerical

value

Starting the matrix after a restart or a
switch-on with the default configuration.

Starting the matrix after a restart or a
switch-on with the last saved configuration
(default).

Save the current configuration of the matrix
in the flash memory periodically.

Note: During the save operation, the matrix
will not be operational. Saving takes place
every 600 seconds, as long as changes of
the configuration or switching operations
have been executed in the meantime.

Send all switching commands performed in
the matrix as an echo via serial interface.

Note: This function should be enabled
when using a media control via serial
interface.

Send all switching commands performed in
the matrix as an echo via LAN connection.

Note: This function should be enabled
when using a media control via LAN
connection or when using stacking with two
ore more matrices.

Synchronize the slave matrix to the switch
status of the master matrix.

Synchronize the matrix according to the
echo of a second matrix.

Note: This is a bidirectional synchronization
where both matrices have to be configured
as Synchronize with the Master IP of the
respective other matrix.

Set the network address of the master
matrix (default value: 000.000.000.000)

2014-04-15 79

Draco tera

Field Selection Description

Ivalid IO­Boards

Hor. Mouse
Speed 1/x

Ver. Mouse
Speed 1/x

Double Click
Time

Keyboard
layout

OSD

 Select Configuration > System in the main menu.

activated

deactivated

1-9

1-9

100-800

Region

Keep I/O boards with incorrect or invalid
firmware online in the matrix.

Shut down I/O boards with incorrect or
invalid firmware automatically (default).

Adjustment of the horizontal mouse speed,
1 = slow, 9 = fast (default value: 4)

Adjustment of the vertical mouse speed,
1 = slow, 9 = fast (default value: 5)

Adjustment of the time slot for a double
click (default value: 200 ms)

Set the OSD keyboard layout according to
the keyboard used (default: German (DE))

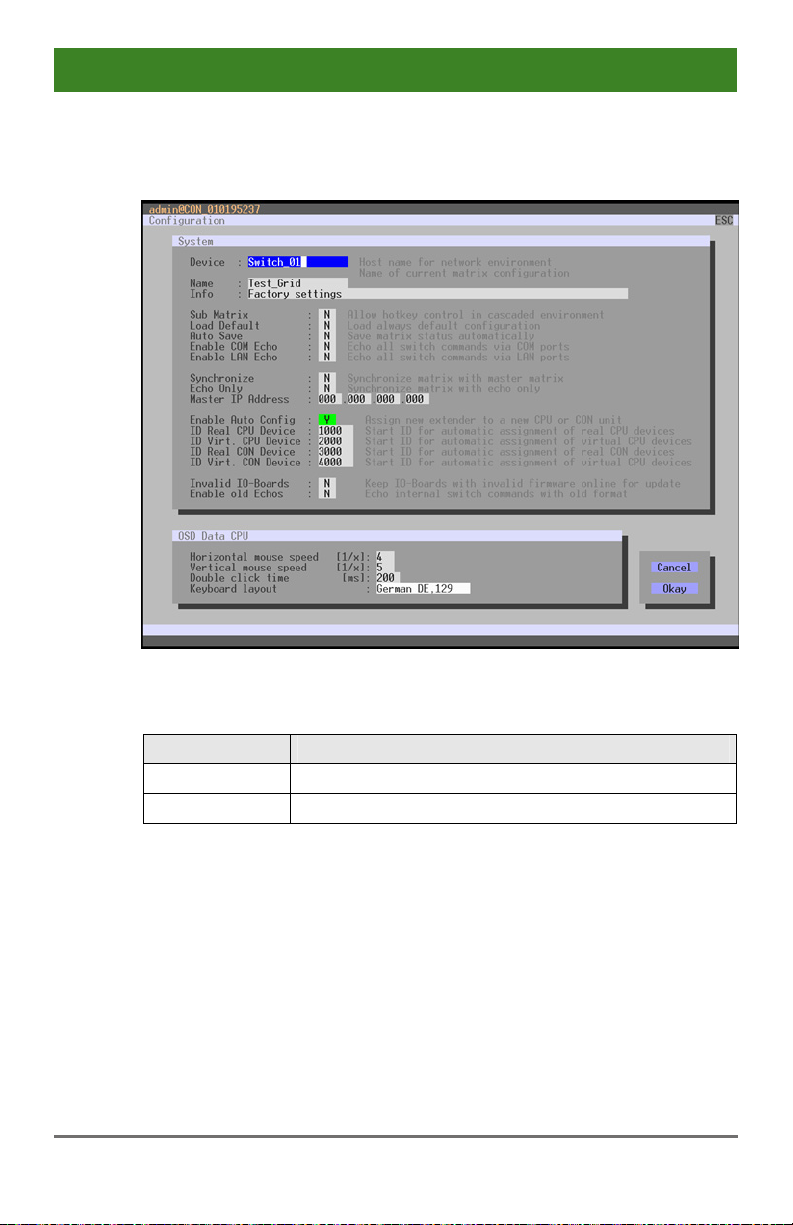

Menu Configuration – System

80 2014-04-15

Configuration

You can select the following buttons:

Button Function

Cancel

Save

Java Tool

Reject changes
Save changes

Menu System – System Data

Pos: 61 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

2014-04-15 81

Draco tera

Pos: 62 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Auto matic ID @ 7\mod_13099380 41118_6.doc @ 53068 @ 3 @ 1

5.4.2 Automatic ID

Settings for automatic creation of CPU and CON Devices when a new
extender unit is connected are made in this menu.

You have the following options to access the menu:

You can select the following settings:

Field Selection Description

Enable Auto
Config

ID Real CPU
Device

ID Virtual CPU
Device

ID Real CON
Device

ID Virtual CON
Device

activated

Automatic creation of a new CPU or
CON Device if new extender units are

connected (default)
deactivated Function not active
Numerical

value
Numerical

value
Numerical

value
Numerical

value

Initial value of the automatic ID for real

CPUs (default value: 1000)

Initial value of the automatic ID for virtual

CPUs (default value: 2000)

Initial value of the automatic ID for real

CONs (default value: 3000)

Initial value of the automatic ID for virtual

CONs (default value: 4000)

82 2014-04-15

Configuration

OSD
 Select Configuration > System in the main menu.

Menu Configuration – System

You can select the following buttons:

Button Function

Cancel

Save

Reject changes
Save changes

2014-04-15 83

Draco tera

Java Tool
 Select the tab Automatic ID in System > System Data.

Menu System – Automatic ID

Pos: 63 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

84 2014-04-15

Configuration

Pos: 64 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Zugan g @ 7\mod_1309938080446_6. doc @ 53086 @ 3 @ 1

5.4.3 Access

The access configuration is set in this menu.
You have the following options to access the menu:

You can select the following settings:

Field Selection Description

Force User
Login

Enable User
ACL

Enable
Console ACL

Enable new
User

Enable new
CON

activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)

The user has to login with a user name

and a password once to enter OSD.

Thereafter the user remains logged in

until he explicitly logs out or an auto

logout is effected.

Note: When using the Force User

Login function, console favorites and

console macros still remain active.

CPU access is restricted according to

the permissions in the ACL (Access

Control List).

 User login is required.

 Switching by keyboard 'Hot Keys'

requires a prior login.

CPU access is restricted according to

the permissions in the respective

Console ACL (Access Control List). No

login required

Newly created users automatically

receive access to all CPUs

Newly created CON Devices

automatically receive access to all CPUs

2014-04-15 85

Draco tera

Field Selection Description

Auto
Disconnect

OSD Timeout 0-999

Auto Logout 0-999

activated

deactivated Function not active (default)

seconds

minutes

Upon opening the OSD, the console will

be automatically disconnected from the

current CPU.

Period of inactivity after which OSD will

be closed automatically.

 Select 0 seconds for no timeout

(default: 0 seconds)

Period of inactivity of a logged-in user at

a console after which he will be

automatically logged out.

There may be a disconnect because of

the logout, depending on the defined

rights in each CON and user ACL.

 Select 0 minutes for an automatic

user logout when leaving OSD.

– Using the setting -1 allows the

user to be logged in
permanently, until a manual
logout is executed.

 The timer is not active as long as

the OSD is open.

(default: 0 minutes)

86 2014-04-15

Configuration

OSD
 Select Configuration > Access in the main menu.

Menu Configuration – Access

You can select the following buttons:

Button Function

Cancel

Save

Reject changes
Save changes

2014-04-15 87

Draco tera

Java Tool
 Select System > Access in the task area.

Menu System – Access

Pos: 65 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Swi tch @ 7\mod_1309938125852 _6.doc @ 53104 @ 3 @ 1

88 2014-04-15

Configuration

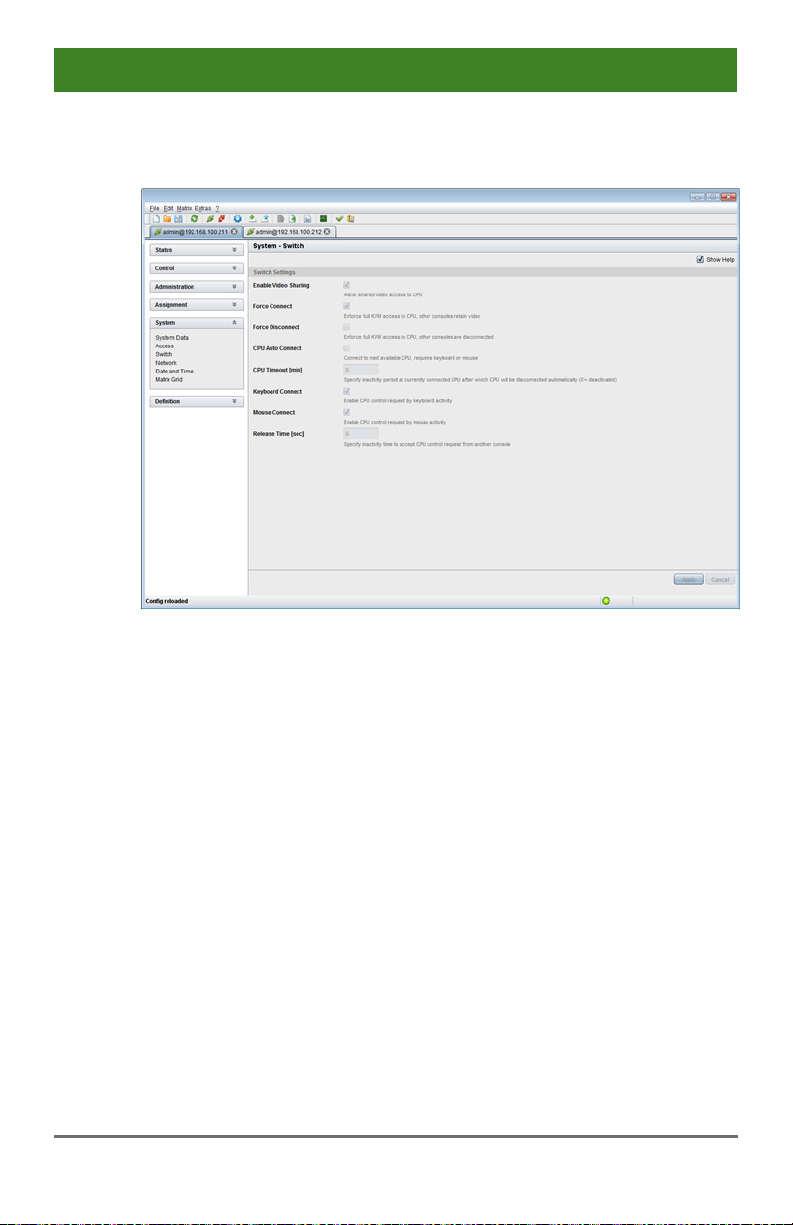

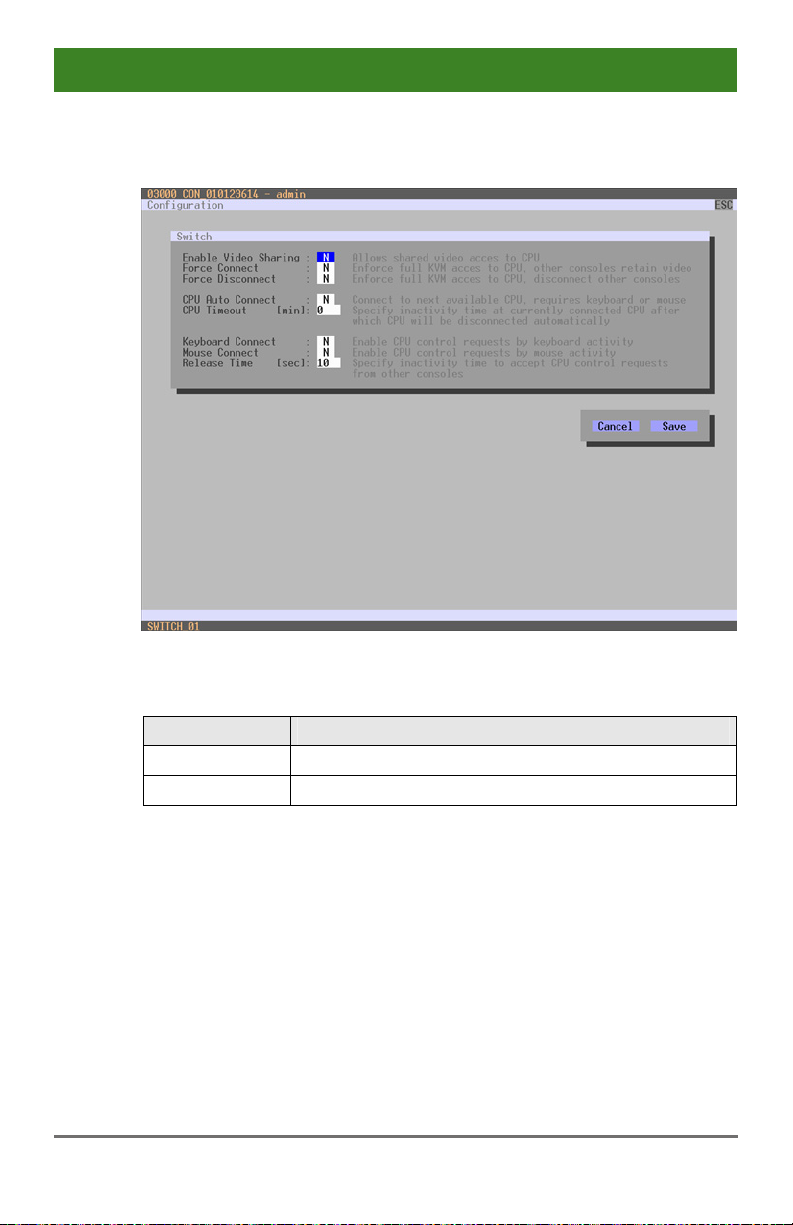

5.4.4 Switch

The configuration of the switching parameters is set in this menu.
You have the following options to access the menu:

You can select the following settings:

Field Selection Description

Video Sharing

Force Connect

Force
Disconnect

activated

deactivated Function not active (default)
activated

deactivated Function not active (default)
activated

deactivated Function not active (default)

The user can switch to any CPU as an

observer, including ones that are already

assigned to another user (observer

without keyboard/mouse access).

 Note: Switching with the key

<Space>, not <Enter>.

 The operator will not be informed if

further users connect as an
observer to the CPU that is
connected to his console.

The user can connect to every single

CPU as an operator, including ones that

are related to another user.

 Note: The previous user is set to

video only status.

 To share K/M control, Force

Connect has to be activated.

Extension of Force Connect: If the user

connects as an operator to a CPU

already related to another user, the

previous user will be disconnected.

Note: To share K/M control Force

Disconnect has to be deactivated.

2014-04-15 89

Draco tera

Field Selection Description

CPU Auto
Connect

CPU Timeout 0 – 999

Keyboard
Connect

Mouse
Connect

Release Time 0-999

If the Keyboard Connect and/or Mouse Connect options are activated,
the Release Time condition will have to be met until a new user will gain
control.

activated

deactivated Function not active (default)

minutes

activated

deactivated Function not active (default)
activated

deactivated Function not active (default)

seconds

If a console is not connected to a CPU,

you can establish an automatic

connection to the next available CPU by

hitting any key or mouse button.

Period of inactivity after which a console

will be automatically disconnected from

its current CPU (default value:

0 minutes)

Activate request of K/M control by

keyboard event (key will be lost)

Activate request of K/M control by mouse

event

Period of inactivity of a connected

console after which K/M control can be

requested by other consoles connected

to the CPU.

 Note: Set "0" for an immediate

transfer in real-time.

 Only one console can have

keyboard and mouse control at the
same time. The other consoles that
are connected to the same CPU
have a video only status (default
value: 10 seconds)

90 2014-04-15

Configuration

OSD
 Select Configuration > Switch in the main menu.

Menu Configuration – Switch

You can select the following buttons:

Button Function

Cancel

Save

Reject changes
Save changes

2014-04-15 91

Draco tera

Java Tool
 Select System > Switch in the task area.

Menu System – Switch

Pos: 66 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

92 2014-04-15

Configuration

Pos: 67 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Netz werk (Network) @ 7\mod_1 309938178305_6.doc @ 53122 @ 3 @ 1

5.4.5 Network

The network configuration is set in this menu.
You have the following options to access the menu:

You can select the following settings:

Field Selection Description

DHCP

IP address

Subnet Mask

Gateway

API Service

FTP Server

Syslog

Syslog Server

activated

deactivated Function not active (default)
Byte

Byte

Byte

activated

deactivated Function not active
activated

deactivated Function not active
activated Syslog server for status request is active
deactivated Function not active (default)
Byte

The network settings are automatically

supplied by a DNS server

Note:

If DHCP is activated and there is no

physical network connection available,

the boot times might increase.

Input of the IP address, if DHCP is not

active (default: 192.168.100.99)

Input of the subnet mask in the form

"255.255.255.0", if DHCP is not active

(default: 255.255.255.0)

Input of the subnet mask in the form

"192.168.1.1", if DHCP is not active

LAN interface at the Draco tera activated

for access via Java tool (API service port

5555)

FTP server for transmission of

configuration files activated.

Input of the IP address of the Syslog

servers in the form “192.168.1.1”

2014-04-15 93

Draco tera

Field Selection Description

Trace

Syslog

Activate the modified network parameters by restarting the matrix.

Consult your system administrator before modifying the network
parameters. Otherwise unexpected results and failures can occur in
combination with the network.

DEB

INF

NOT

WAR

ERR

DEB

INF

NOT

WAR

ERR

Activate debug messages in Trace

(default: NO)

Note:

The debug messages are exclusively for

matrix diagnostics. They only should be

activated after consultation with the

manufacturer. Otherwise an increased

traffic of data might limit the performance

of the CPU board.

Activate information messages in Trace

(default: NO)

Activate notification messages in Trace

(default: YES)

Activate warning messages in Trace

(default: YES)

Activate error messages in Trace

(default: YES)

Activate debug messages in Syslog

(default: NO)

Note:

The debug messages are exclusively for

matrix diagnostics. They only should be

activated after consultation with the

manufacturer. Otherwise an increased

traffic of data might limit the performance

of the CPU board.

Activate information messages in Syslog

(default: NO)

Activate notification messages in Syslog

(default: YES)

Activate warning messages in Syslog

(default: YES)

Activate error messages in Syslog

(default: YES)

94 2014-04-15

Configuration

OSD
 Select Configuration > Network in the main menu.

Menu Configuration – Network

You can select the following buttons:

Button Function

Cancel

Save

Reject changes
Save changes

2014-04-15 95

Draco tera

Java Tool
 Select System > Network in the task area.

Menu System – Network

Pos: 68 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

96 2014-04-15

Configuration

Pos: 69 /806-IHSE/Konfiguration/Systemeinst ellung/480-xx/Datu m und Uhrzeit @ 7\mod_130993 8224352_6.doc @ 53140 @ 3 @ 1

5.4.6 Date and Time

Date and Time are set in this menu, based on Simple Network Time
Protocol (SNTP).

You have the following options to access the menu:

You can select the following settings:

Field Selection Description

SNTP Client

activated

deactivated Function not active (default)

SNTP Server

Time Zone

Month

Date

Year

Day

Hours

Minutes

Seconds

Byte

Region Set your specific time zone
1–12 Enter month
1–31 Enter date
1–99 Enter year
1–7 Enter day of the week
0–23 Enter hour
0–59 Enter minute
0–59 Enter second

Date format according to the English notation.

Enable network time server

synchronization

Input of the SNTP server IP address

(default: 000.000.000.000)

2014-04-15 97

Draco tera

OSD

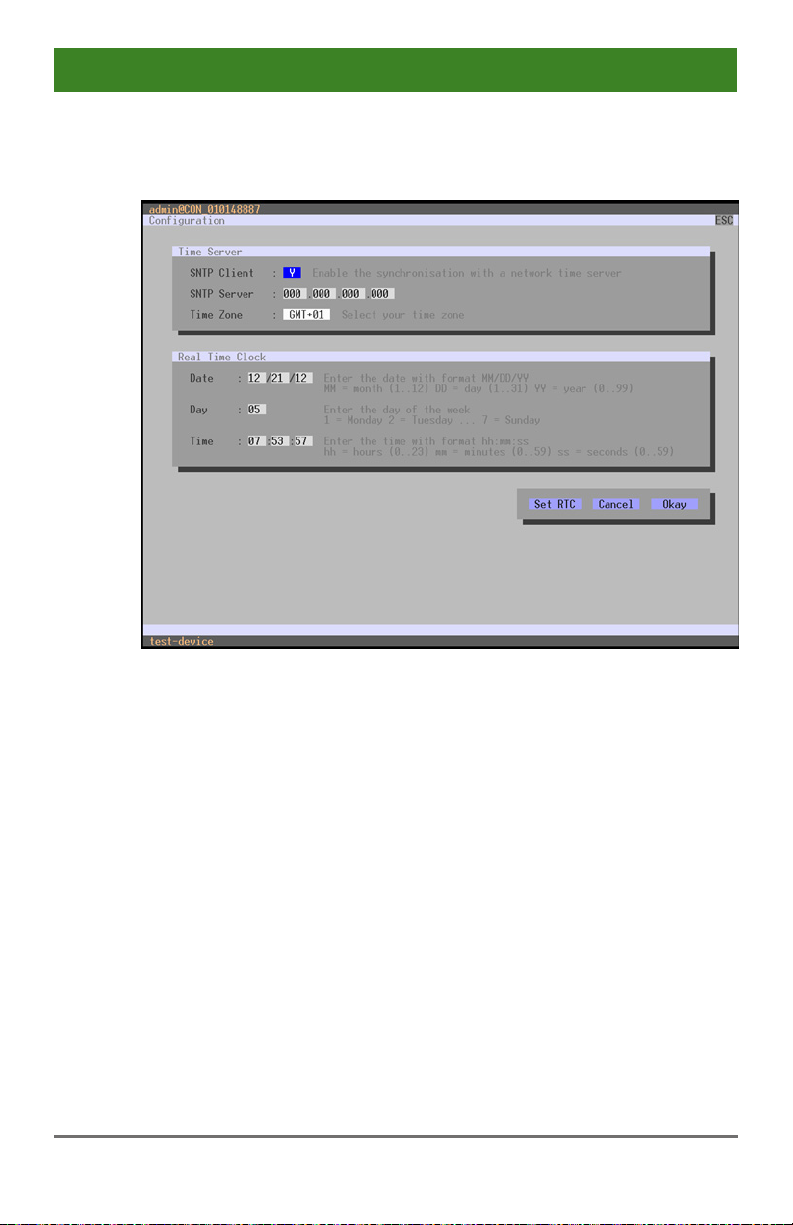

 Select Configuration > Date+Time in the main menu.

Menu Configuration – Date + Time

In order to configure a time server, proceed as follows:

1. Set the SNTP Client option to Y (Yes).

2. Enter the IP address of your SNTP server in the SNTP Server field.

3. Select your time zone in the Time Zone field.

4. Press the Okay button to confirm your settings.

5. Restart the matrix. The system time will be now provided by the
SNTP server.

In order to set the real time clock without using SNTP, proceed as follows:

1. Set the current date in the Date field.

2. Set the current Day in the Day field.

3. Set the current time in the Time field.

4. Press the RTC button to confirm your settings.

98 2014-04-15

Configuration

Java Tool

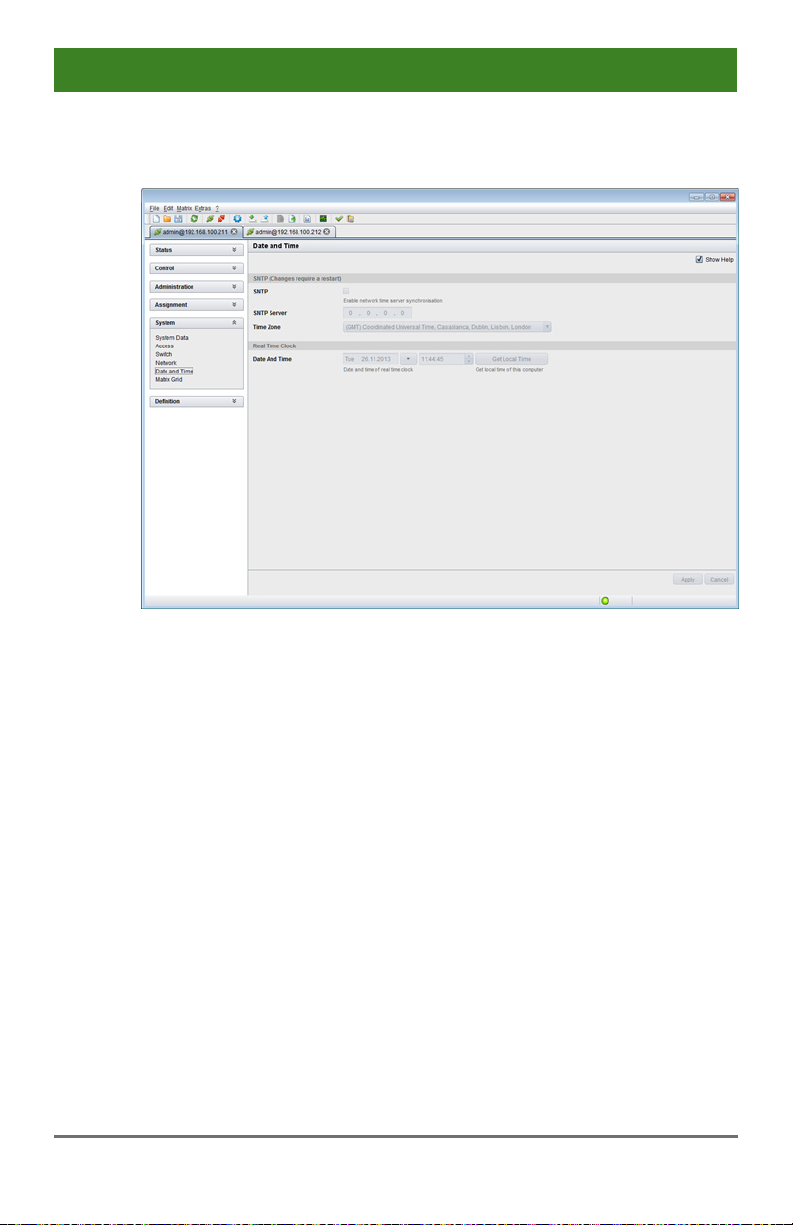

 Select System > Date and Time in the main menu.

Menu Configuration – Date and Time

In order to configure a time server, proceed as follows:

1. Enable SNTP option.

2. Enter the IP address of your SNTP server in the SNTP Server field.

3. Select your time zone in the Time Zone field.

4. Press the Apply button to confirm your settings.

5. Restart the matrix. The system time will be now provided by the
SNTP server.

In order to set the real time clock without using SNTP, proceed as follows:

1. Set the current date in the Date and Time field.

2. Set the current time in the Day and Time field.

3. Press the Apply button to set the system time.

4. Option: If you want to receive the time from your currently used
computer, press the Get Local Time button.

Pos: 70 /806-IHSE/zz_Layout/Seitenumbruch @ 8\ mod_1348581820516_0.doc @ 69462 @ @ 1

2014-04-15 99

Draco tera

Pos: 71 /806-IHSE/Konfiguration/480_Benutzer einstellungen/480- xx/Benutzereins tellungen @ 7\mod_1309938 277711_6.doc @ 53160 @ 2 @ 1

5.5 User Settings

You have the option to configure the following user settings:

Pos: 72 /806-IHSE/Konfiguration/480_Benutzer einstellungen/480- xx/User @ 7\mod_130993 8316977_6.doc @ 53178 @ 3 @ 1

5.5.1 User

New users and their user settings and permissions are set in this menu.
You have the following options to access the menu:

You can select the following settings:

Field Selection Description

Name

Password

Repeat

Text User name (case sensitive)
Text User password (case sensitive)
Text Repeat user password (case sensitive)

Password

FTP

activated

deactivated Function not active (default).

Power User

activated  User has user rights

deactivated Function not active.

Super User

activated

deactivated Function not active.

Administrator

activated

deactivated Function not active.

Access permission via FTP. This setting
is necessary for file access from the
Java tool or any web browser.

 Permission to switch consoles to

CPUs in Extended Switching
according to the CON or User ACL

Permission to switch any console to any
CPU in Extended Switching.

 Permission for system configuration

and all switching operations

 User has administrator rights
 This setting is required for an online

connection with the Java tool

100 2014-04-15
