IHSE 473 User Manual

User Manual

Edition: 2011-02-23

DSXi

KVM Extender

Model:

K473-SSH
K473-DSH
K473-SST
K473-DST

IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Germany

[e-mail]
www.ihse.de

Tel. [phone]
Fax [phone]

DSXi KVM Extender

Copyright

© 2011. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.

Information in this document is subject to change without notice.

Trademarks

All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.

Disclaimer

While every precaution has been taken during prepar ation of this manual,
the manufacturer assumes no liability for errors or omissions. Neither does
the manufacturer assume any liability for damages resulting from the use
of the information contained herein.

The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.

2 2011-02-23

Contents

Contents

1 About This Manual....................................................................... 5

1.1 Scope.................................................................................. 5

1.2 Validity ................................................................................ 5

1.3 Cautions and Notes ............................................................ 5

2 Safety Instructions....................................................................... 6

3 Description ................................................................................... 7

3.1 Application ..........................................................................7

3.2 System Overview................................................................ 8

3.3 Product Range.................................................................... 9

3.4 Rack Mount Kits..................................................................9

3.5 Accessories......................................................................... 9

3.6 Device Views ....................................................................10

3.6.1 Model K473-SSH (Single-Head) ......................... 10

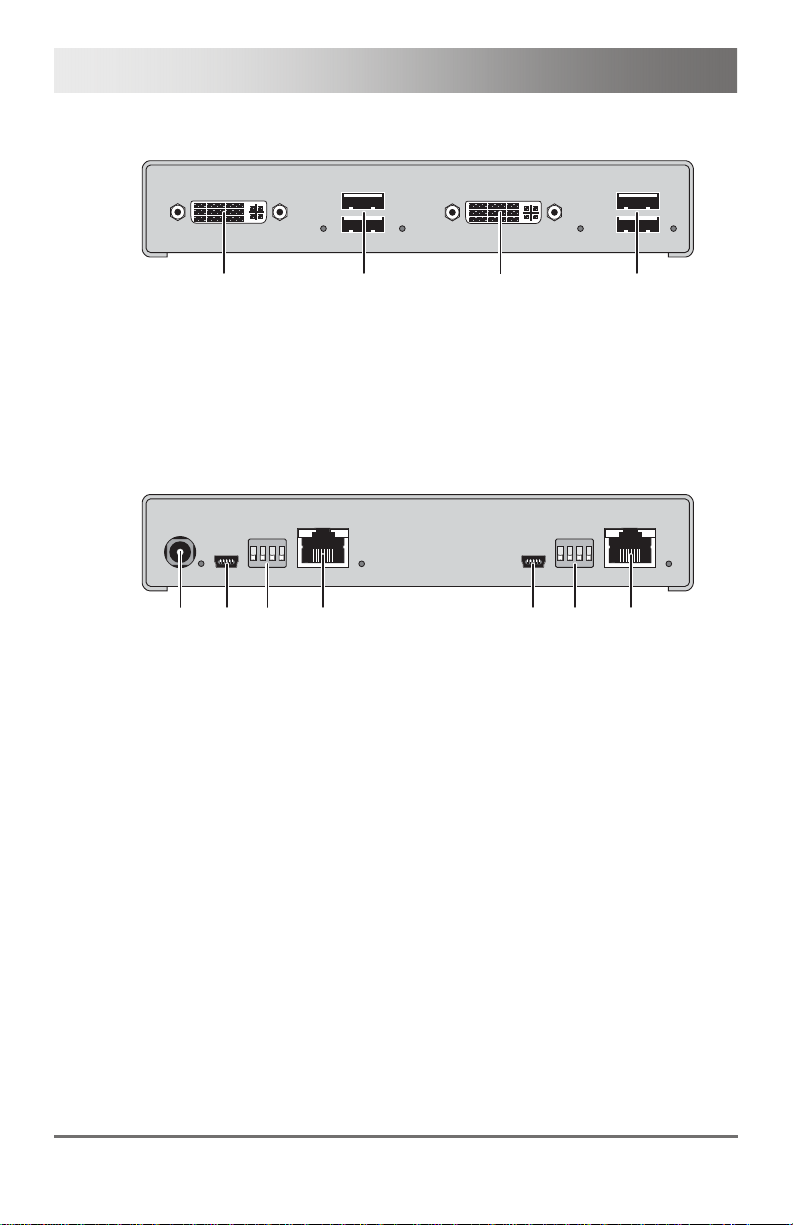

3.6.2 Model K473-DSH (Dual-Head) ............................ 11

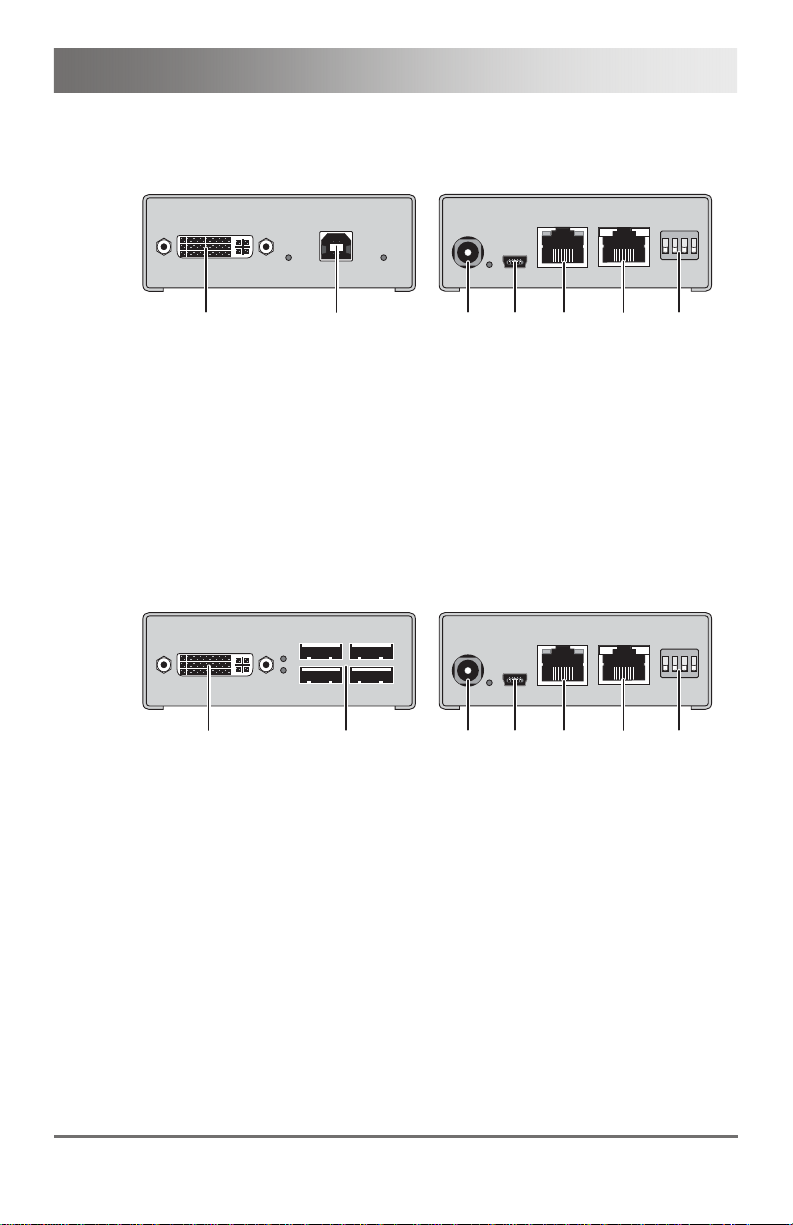

3.6.3 Model K473-SST (Single-Head).......................... 13

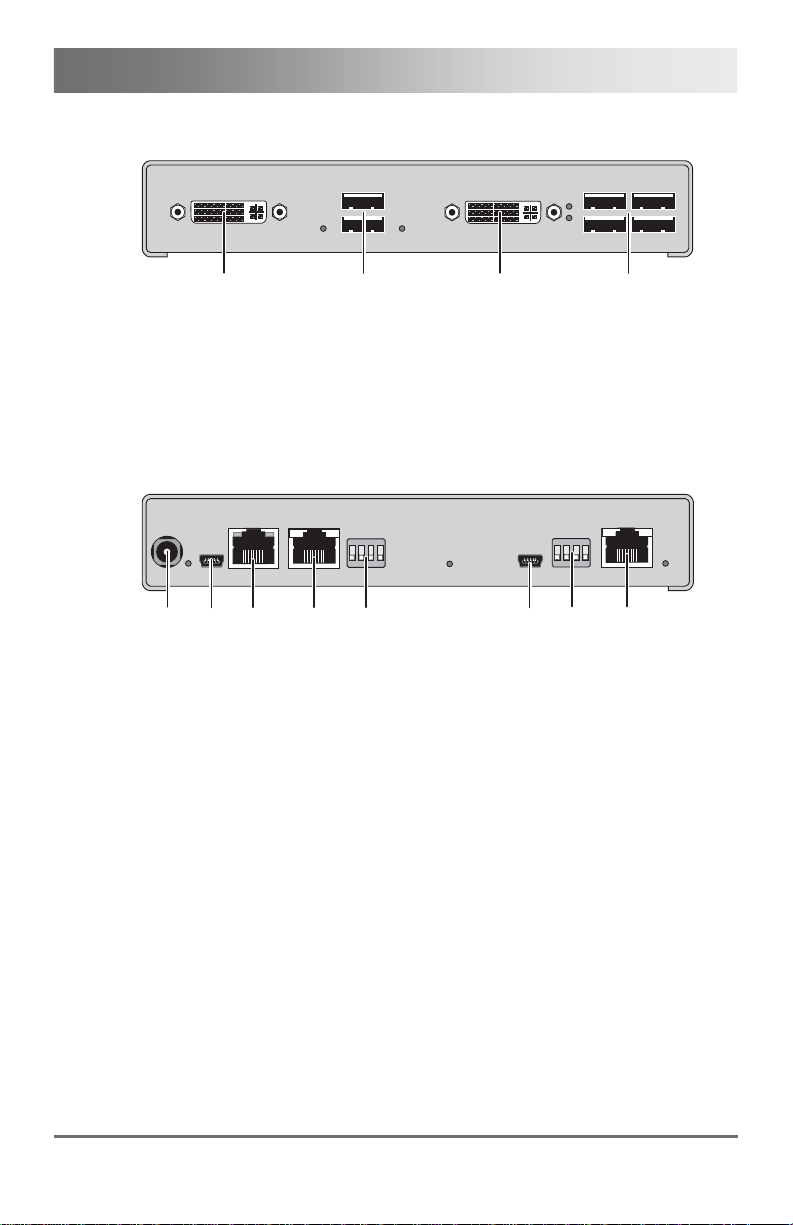

3.6.4 Model K473-DST (Dual-Head)............................ 14

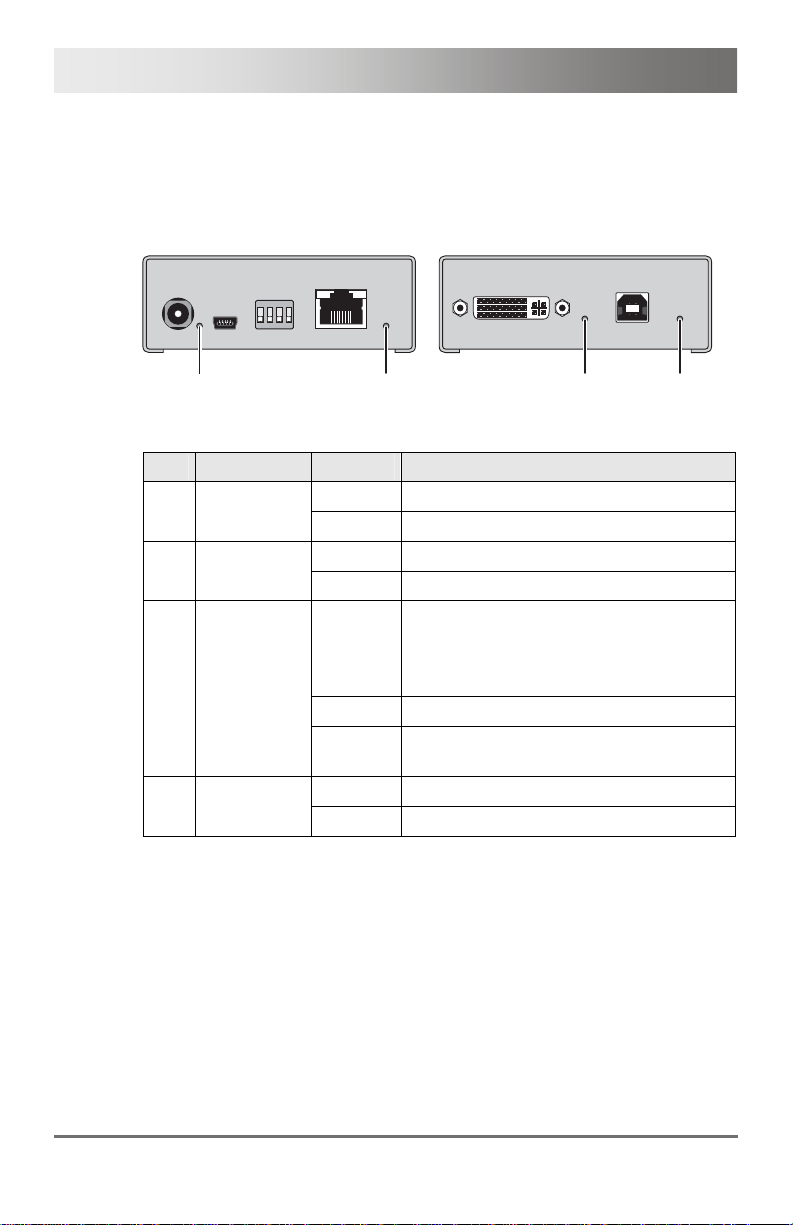

3.7 Diagnostics .......................................................................16

4 Installation .................................................................................. 18

4.1 Package Contents............................................................. 18

4.2 System Setup.................................................................... 19

4.3 Example Applications........................................................ 20

5 Configuration.............................................................................. 22

5.1 Transmission Parameters................................................. 22

5.1.1 Adjustment of Video Resolution.......................... 22

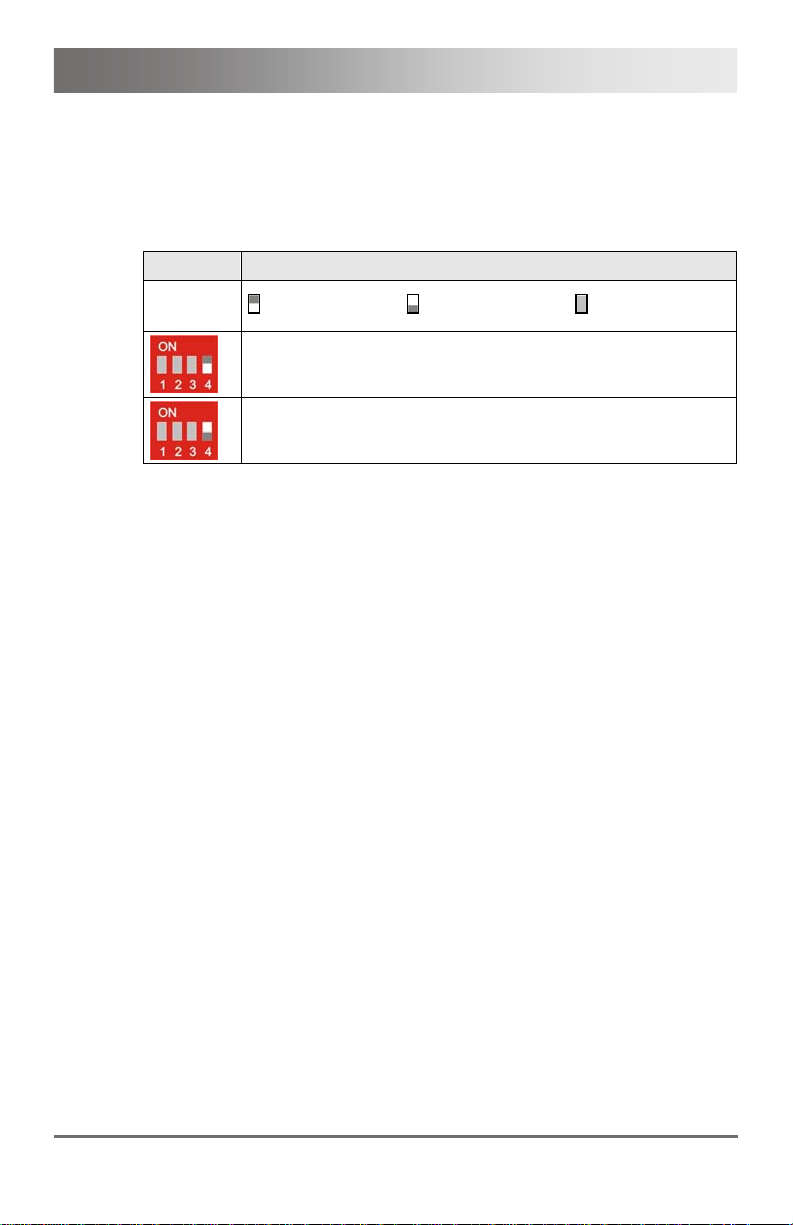

5.1.2 Adjustment of Cable Length................................ 23

5.2 DDC Settings.................................................................... 24

5.3 Selection of Operation Mode............................................. 25

5.4 Command Mode ...............................................................26

6 Operation .................................................................................... 27

6.1 Readjustment of Transmission Parameters (Auto-Adjust) 27

6.2 Download of DDC Information ..........................................27

2011-02-23 3

DSXi KVM Extender

6.2.1 Download DDC via Keyboard Command............ 28

6.2.2 Download DDC via DVI Cable ............................ 28

7 Specifications............................................................................. 29

7.1 Interfaces.......................................................................... 29

7.1.1 DVI-D Single Link................................................ 29

7.1.2 USB-HID.............................................................29

7.1.3 USB 2.0 (transparent).........................................30

7.1.4 RJ45 (Interconnect) ............................................ 30

7.2 Interconnect Cable............................................................ 31

7.2.1 Cat X...................................................................31

7.3 Supported Peripherals ......................................................32

7.3.1 USB-HID Devices ............................................... 32

7.3.2 USB 2.0 Devices................................................. 32

7.3.3 Interconnect Cable (Cat X).................................. 32

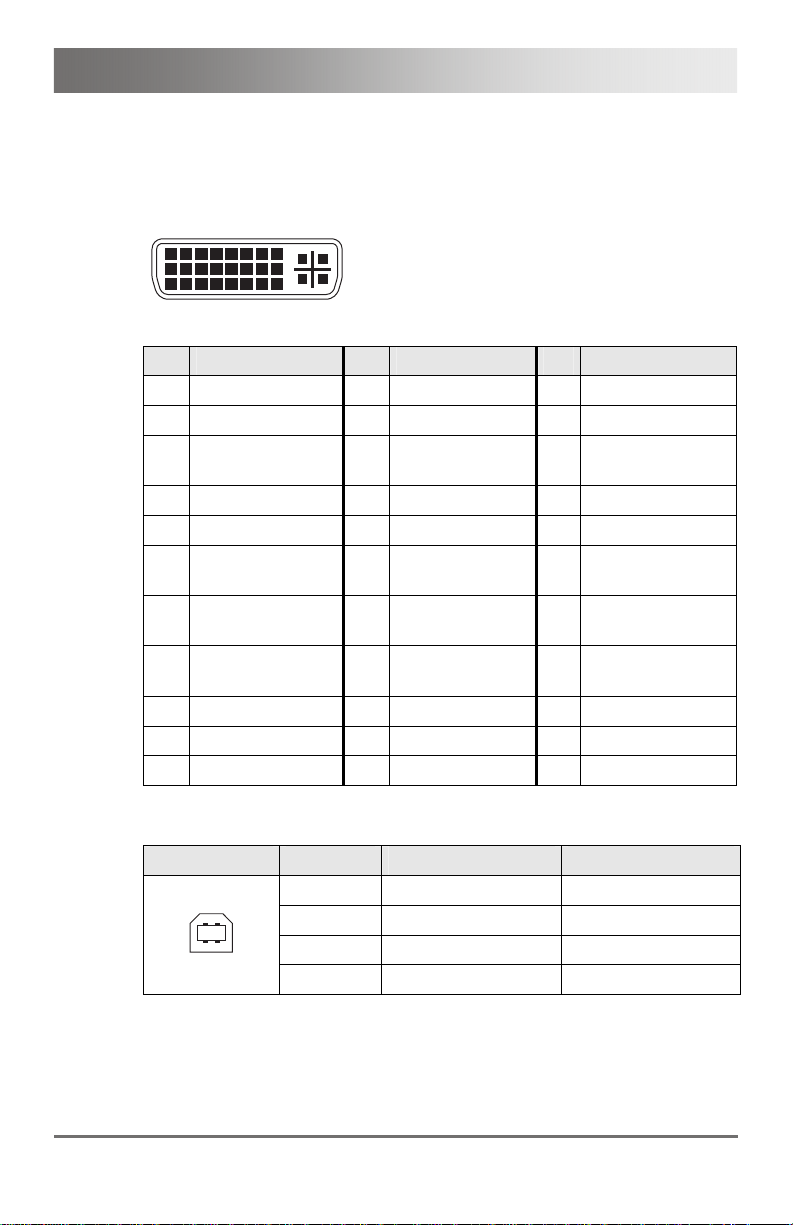

7.4 Connector Pinouts ............................................................ 33

7.5 Power Supply....................................................................35

7.6 Environmental Conditions................................................. 35

7.7 Size................................................................................... 35

7.8 Shipping Weight................................................................ 36

8 Troubleshooting......................................................................... 37

8.1 Blank Screen..................................................................... 37

8.2 Video Jitter........................................................................ 38

8.3 USB-HID Failure ............................................................... 38

8.4 USB 2.0 Failure................................................................. 39

9 Technical Support...................................................................... 40

9.1 Support Checklist.............................................................. 40

9.2 Shipping Checklist ............................................................ 40

10 Regulatory and Standards Compliance ................................... 41

10.1 CE Declaration Of Conformity...........................................41

10.2 North American Regulatory Compliance........................... 42

10.3 WEEE ............................................................................... 42

10.4 RoHS ................................................................................ 42

Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu diesem Handbuc h @ 5\mod_1278573163276_6.doc @ 41510 @ 1222

11 Glossary...................................................................................... 43

4 2011-02-23

About This Manual

1 About This Manual

1.1 Scope

This manual describes how to install your KVM Extender, how to operate it
and how to perform trouble shooting.

1.2 Validity

This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.

1.3 Cautions and Notes

The following symbols are used in this manual:
This symbol indicates an important operating instruction that should be

followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.

This symbol indicates important information to help you make the best use
of this product.

Pos: 2 /806-IHSE/Sicherheitshinweise/ATB_Sic herheitshinweise @ 5\mod_1278573321245_6.doc @ 41528 @ 1

2011-02-23 5

DSXi KVM Extender

2 Safety Instructions

To ensure reliable and safe long-term operation of your KVM Extender
please note the following guidelines:

Installation

 Only use in dry, indoor environments.
 The KVM Extender and the power supply units can get warm. Do not

situate them in an enclosed space without any airflow.

 Do not place the power supply directly on top of the device.
 Do not obscure ventilation holes.
 Only use power supplies originally supplied with the product or

manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged case.

 Connect all power supplies to grounded outlets. In each case, ensure

that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.

 Do not connect the link interface to any other equipment, particularly

network or telecommunications equipment.

 Take any required ESD precautions.

Repair

 Do not attempt to open or repair a power supply unit.
 Do not attempt to open or repair the KVM Extender. There are no

user serviceable parts inside.

 Please contact your dealer or manufacturer if there is a fault.

Pos: 3 /806-IHSE/Beschreibung/UEB_Beschreibung @ 5\ mod_1278573379151_6.doc @ 41546 @ 1

6 2011-02-23

Description

3 Description

Pos: 4 /806-IHSE/Beschreibung/Verwendungszweck/ VAR_KVM_Cat X @ 5\mod_1278573416151_6.doc @ 41564 @ 2

3.1 Application

The KVM Extender is used to increase the distance between a source
(computer, CPU) and its console (keyboard, mouse, and other peripheral
devices).

The KVM Extender is designed for use with Cat X (Twisted Pair)
interconnect cables.

The KVM Extender is unsuitable for connection between buildings where a
fiber optic based product should be used instead.

Pos: 5 /806-IHSE/Beschreibung/System-Übersic ht /VAR_KVM_Single-/Dual-Head_USB 2.0 @ 5\mod_127857355 2245_6.doc @ 41582 @ 2

2011-02-23 7

DSXi KVM Extender

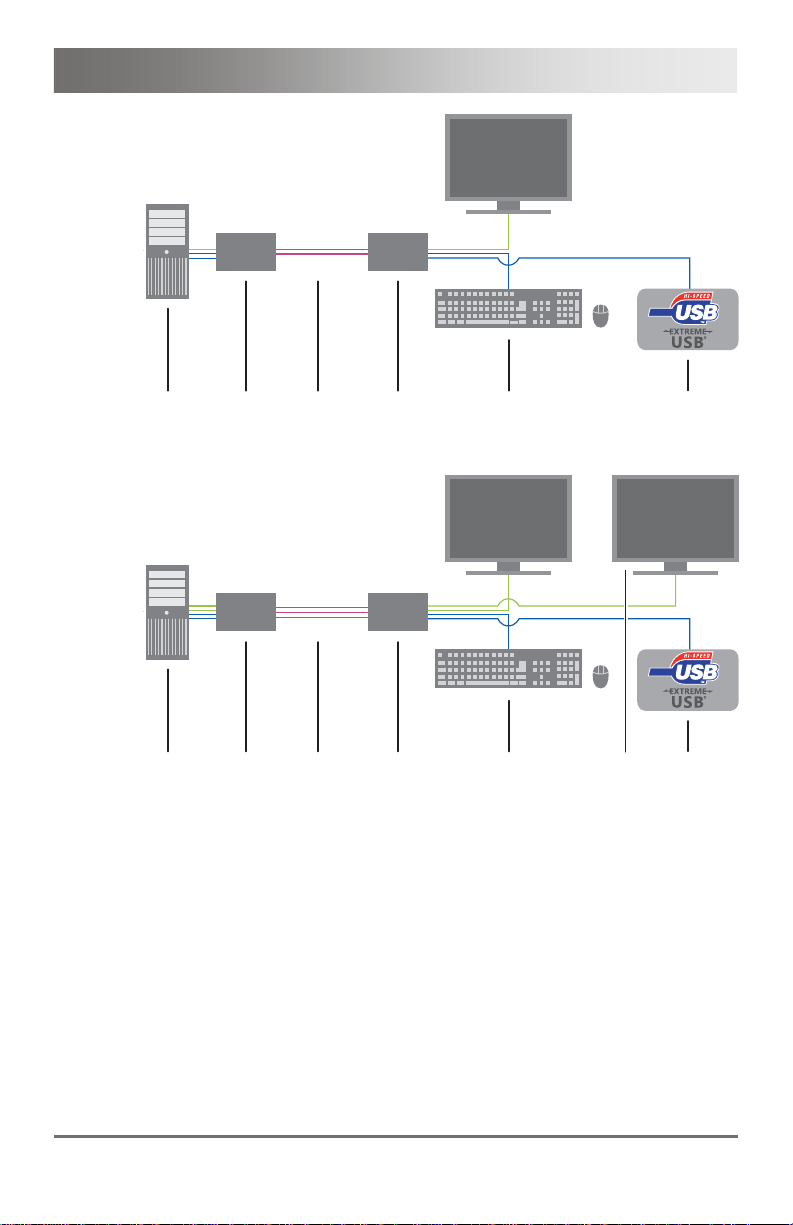

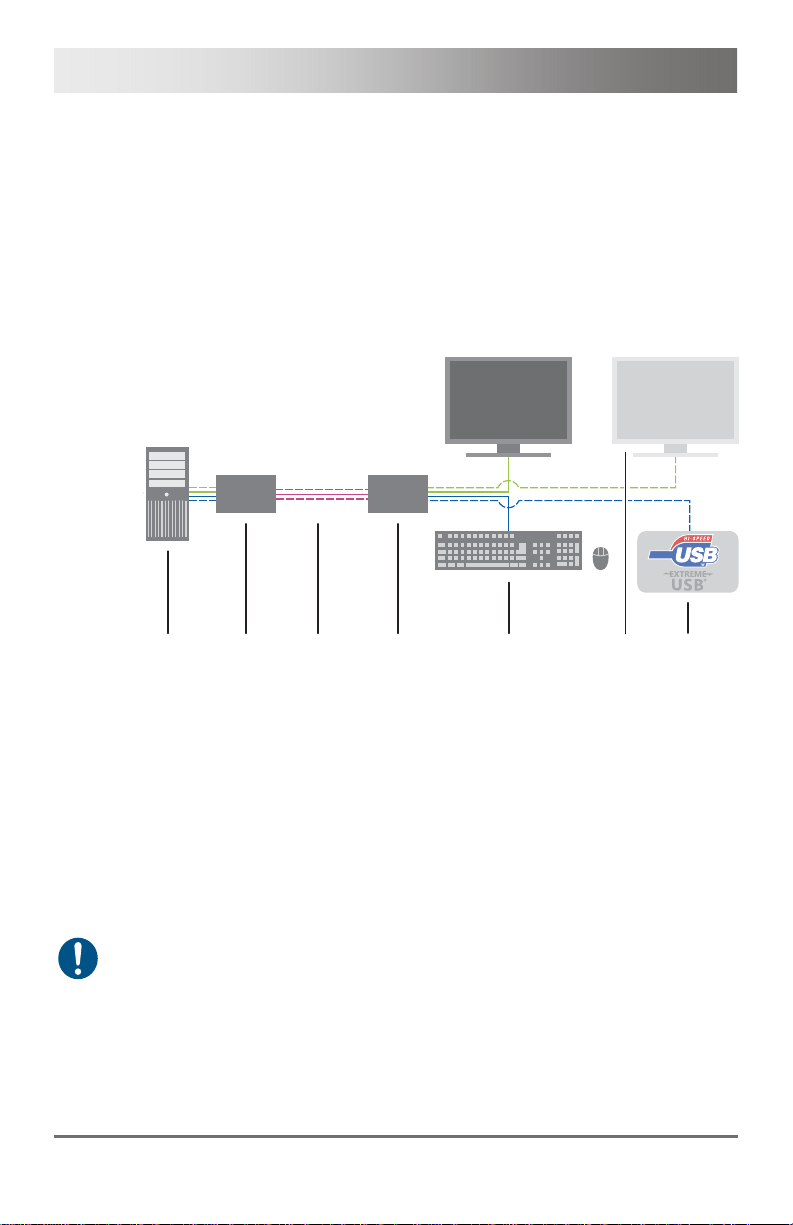

3.2 System Overview

The KVM Extender consists of a CPU Unit and a console unit (CON Unit).
The CPU Unit is connected directly to the source (computer, CPU) using

the supplied cables.
The CON Unit is connected to the console (monitor, keyboard and

mouse).
The CPU Unit and the CON Unit communicate with each other through the

interconnect cables.

1

2

3

4

5

6

7

System overview

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with USB 2.0 devices)

See Chapter 4.3, Page 20 for installation examples.

Pos: 6 /806-IHSE/Beschreibung/Gerätetypen/473- xx @ 5\mod_1278573628448_6.doc @ 41600 @ 2

8 2011-02-23

Description

3.3 Product Range

Model Description

K473-SSH

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse)

K473-DSH

Dual-Head KVM Extender for 2x DVI Single Link (up
to 1920x1200), 4x USB-HID (keyboard / mouse)

K473-SST

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB 2.0 (transparent)

K473-DST

Dual-Head KVM Extender for 2x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse),
4x USB 2.0 (transparent)

Pos: 7 /806-IHSE/Beschreibung/Einbauoptionen/ 473-xx @ 5\mod_1278573668448_6.doc @ 41618 @ 2

3.4 Rack Mount Kits

Model Description

473-5G

19"/1U rack mount kit to mount up to 5 Single-Head devices
or up to 2 Dual-Head CON Units

473-DG

19"/1U rack mount kit to mount up to 5 Dual-Head
CPU Units

473-1K

Mounting plate to mount by screws
(Single-Head units and Dual-Head CPU Units)

473-2K

Mounting plate to mount by snap on
(Single-Head units und Dual-Head CPU Units)

473-1G

Mounting plate to mount by screws
(Dual-Head CON Units)

473-2G

Mounting plate to mount by snap on
(Dual-Head CON Units)

Pos: 8 /806-IHSE/Beschreibung/Zubehör/473-xx @ 5\ mod_1278573699433_6.doc @ 41636 @ 2

3.5 Accessories

Model Description

260-5U International power supply unit 100...240VAC / 5VDC / 4 A
445-2X DVI-D splitter cable
473-S30 Cat 5e simplex cable; Leoni Kerpen; length 30 m
473-S40 Cat 5e simplex cable; Leoni Kerpen; length 40 m
473-S50 Cat 5e simplex cable; Leoni Kerpen; length 50 m

Pos: 9 /806-IHSE/Beschreibung/Geräteansichten/ UEB_Geräteansichten @ 5\mod_1278573737808_6.doc @ 41654 @ 2

2011-02-23 9

DSXi KVM Extender

3.6 Device Views

Pos: 10 /806-IHSE/Beschreibung/Geräteansichte n/473-xx/Typ K473-SSH (Single-Head) @ 5\mod_12785738 03667_6.doc @ 41672 @ 3

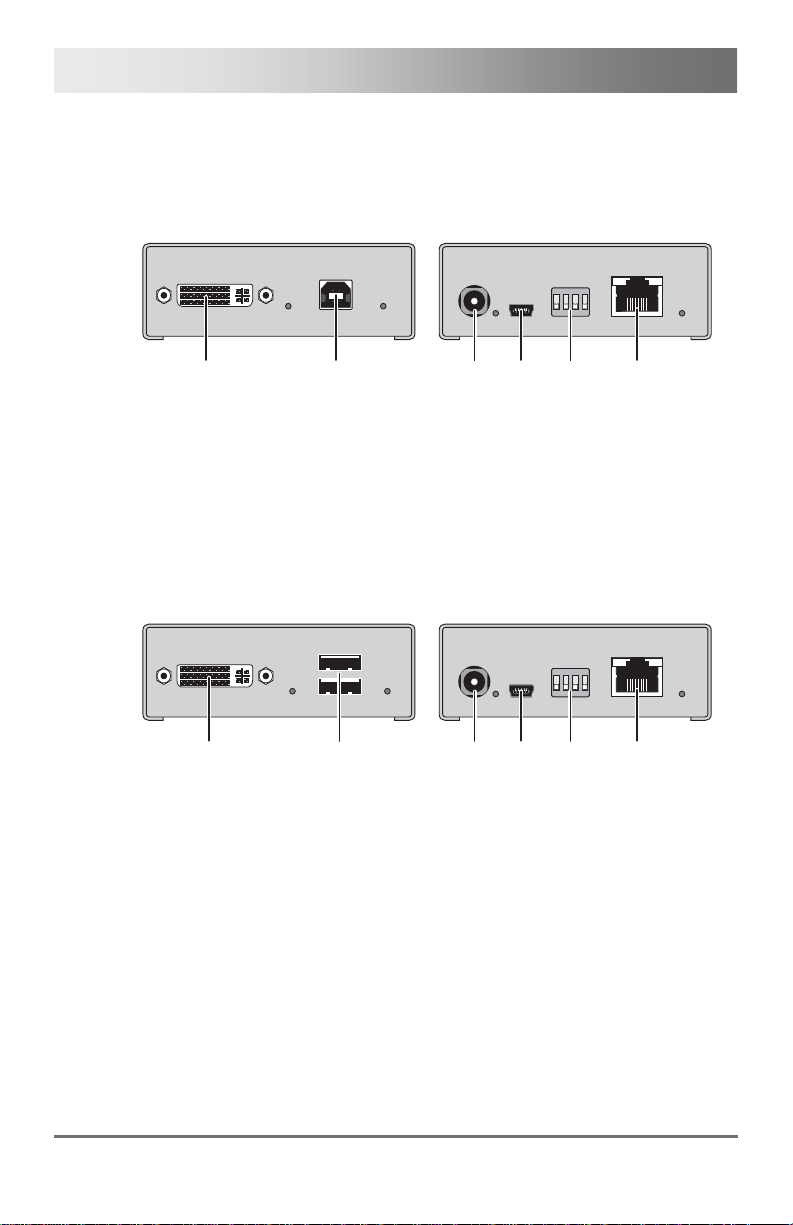

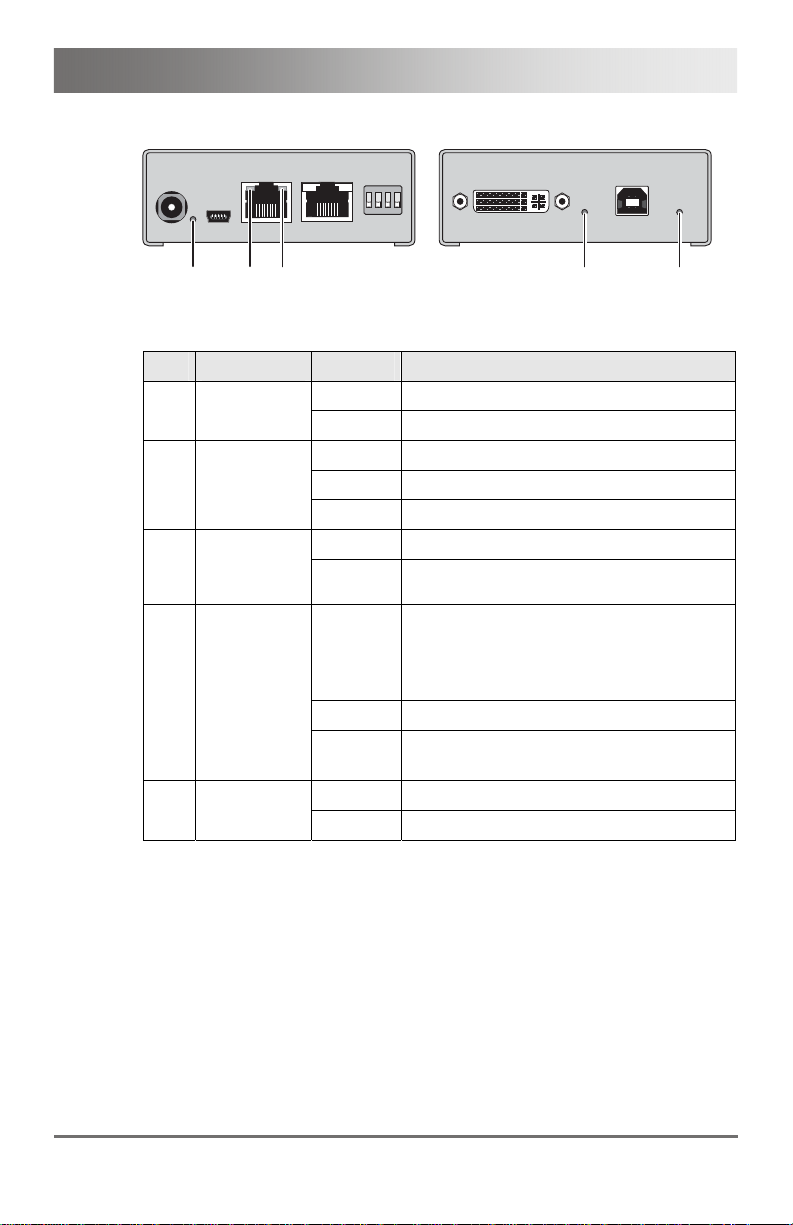

3.6.1 Model K473-SSH (Single-Head)

CPU Unit

12

Front View Rear View

1 To CPU: DVI-D
2 To CPU: USB-HID

CON Unit

1

1 Connect to 5VDC power supply
2 Service port
3 Configuration DIP switches
4 Connect to interconnect cable

3

2

4

3

12

2

1

4

Front View Rear View

1 Connect to DVI monitor
2 Connect to USB-HID devices

1 Connect to 5VDC power supply
2 Service port
3 Configuration DIP switches
4 Connect to interconnect cable

Pos: 11 /806-IHSE/Beschreibung/Geräteansichte n/473-xx/Typ K473-DSH (Dual-Head) @ 5\mod_127857382733 9_6.doc @ 41690 @ 3

10 2011-02-23

Description

3.6.2 Model K473-DSH (Dual-Head)

CPU Unit

3

1

Front View Rear View

1 To CPU: DVI-D 1
2 To CPU: USB-HID 1
3 To CPU: DVI-D 2
4 To CPU: USB-HID 2

4

2

1

1 Connect to 5VDC power supply
2 Service port 1
3 Configuration DIP switches 1
4 Connect to interconnect cable 1
5 Service port 2
6 Configuration DIP switches 2
7 Connect to interconnect cable 2

65

3

2

7

4

2011-02-23 11

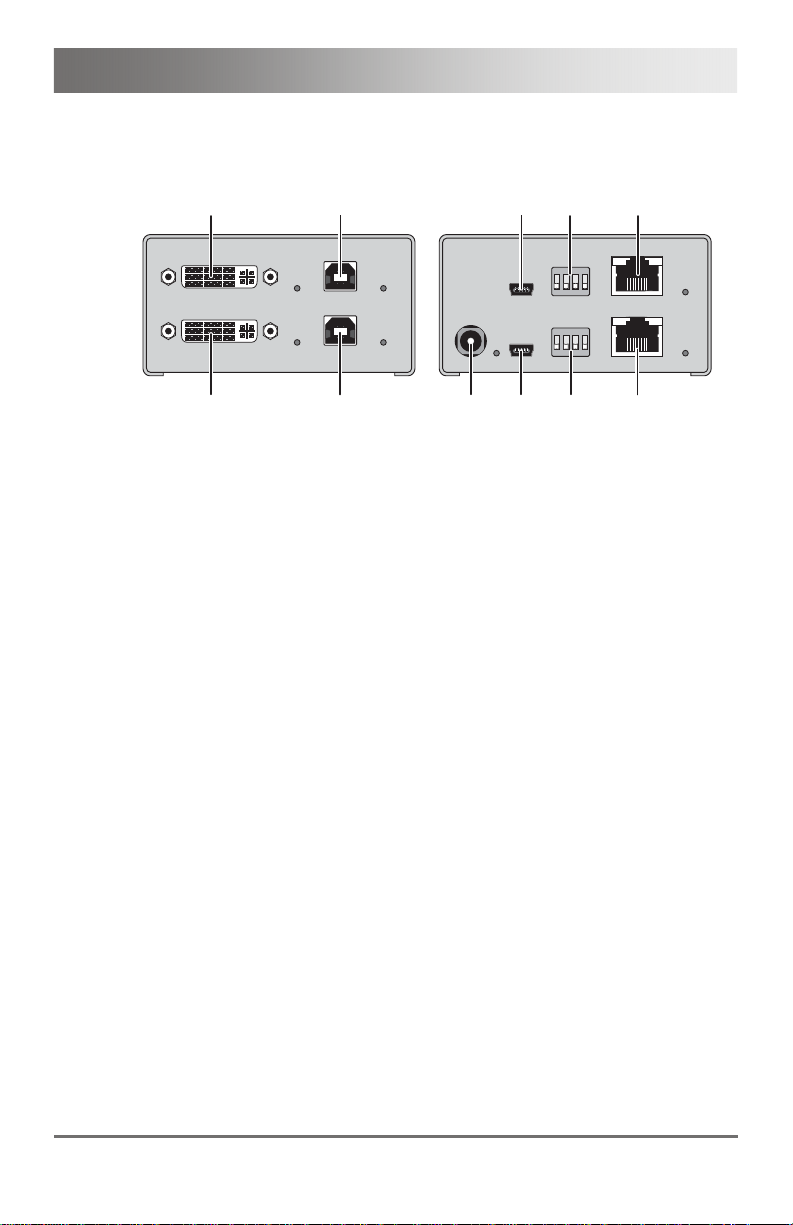

DSXi KVM Extender

CON Unit

Front View

1 Connect to DVI monitor 1
2 Connect to USB-HID devices 1
3 Connect to DVI monitor 2
4 Connect to USB-HID devices 2

Rear View

1 Connect to 5VDC power supply
2 Service port 2
3 Configuration DIP switches 2
4 Connect to interconnect cable 2
5 Service port 1
6 Configuration DIP switches 1
7 Connect to interconnect cable 1

Pos: 12 /806-IHSE/Beschreibung/Geräteansichte n/473-xx/Typ K473-SST (Single-Head) @ 5\mod_12785744 66386_6.doc @ 41710 @ 3

1 2

12

3

3

4

56

4

7

12 2011-02-23

Description

3.6.3 Model K473-SST (Single-Head)

CPU Unit

Front View Rear View

1 To CPU: DVI-D
2 To CPU: USB 2.0

CON Unit

Front View Rear View

1 Connect to DVI monitor
2 Connect to USB 2.0 devices

Pos: 13 /806-IHSE/Beschreibung/Geräteansichte n/473-xx/Typ K473-DST (Dual-Head) @ 5\mod_127857457996 4_6.doc @ 41728 @ 3

12

1 Connect to 5VDC power supply
2 Service port
3 Connect to interconnect cable U
4 Connect to interconnect cable 1
5 Configuration DIP switches

1 2

1 Connect to 5VDC power supply
2 Service port
3 Connect to interconnect cable U
4 Connect to interconnect cable 1
5 Configuration DIP switches

1

1

3

2

3

2

5

4

4

5

2011-02-23 13

DSXi KVM Extender

3.6.4 Model K473-DST (Dual-Head)

CPU Unit

3

4

6

5

8

7

1

Front View Rear View

1 To CPU: DVI-D 1
2 To CPU: USB-HID
3 To CPU: DVI-D 2
4 To CPU: USB 2.0

2

1 2

1 Connect to 5VDC power supply
2 Service port 1
3 Configuration DIP switches 1
4 Connect to interconnect cable 1
5 Service port 2
6 Connect to interconnect cable U
7 Connect to interconnect cable 2
8 Configuration DIP switches 2

3

4

14 2011-02-23

Description

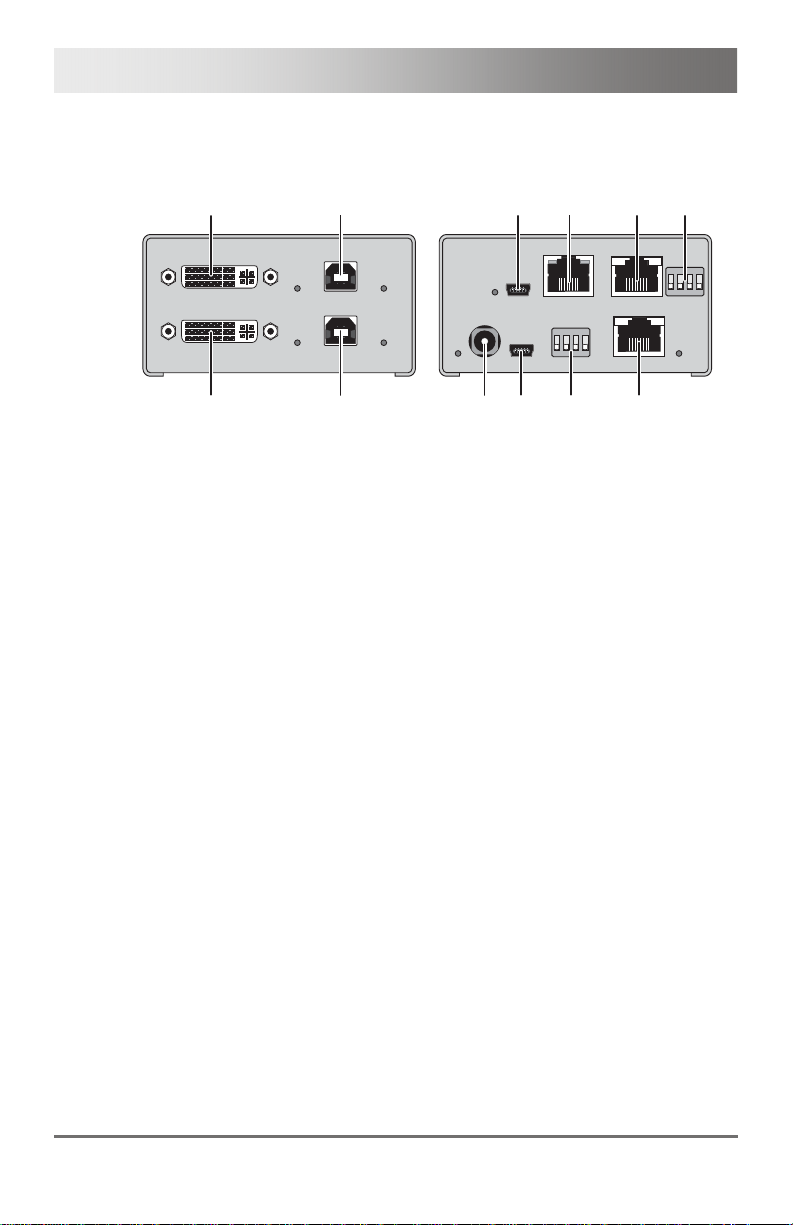

CON Unit

Pos: 14 /806-IHSE/Beschreibung/Diagnose-LEDs/ 473- xx @ 5\mod_1278574921511_6.doc @ 41750 @ 2

1 2

Front View

1 Connect to DVI monitor 1
2 Connect to USB-HID devices 1
3 Connect to DVI monitor 2
4 Connect to USB 2.0 devices

3

2

1

4

Rear View

1 Connect to 5VDC power supply
2 Service port 2
3 Connect to interconnect cable U
4 Connect to interconnect cable 2
5 Configuration DIP switches 2
6 Service port 1
7 Configuration DIP switches 1
8 Connect to interconnect cable 1

3

6

4

85

7

2011-02-23 15

DSXi KVM Extender

3.7 Diagnostics

The KVM Extender is fitted with the following LEDs for status indication at
CPU Unit and CON Unit:

Devices with USB-HID (CPU Unit and CON Unit)

1

Rear View Front View

Pos. LED Status Diagnostics

Power

(red)

Link Status

(green)

Video OK

3

(green)

USB Status

(green)

off Device not ready 1
on Device ready
off No connection via interconnect cable 2
on Connection available
off

on DVI signal from video source available
flashing

off No USB connection 4
on USB connection available

2

 CPU Unit: No DVI signal from video

source (computer, CPU) detected

 CON Unit: No DVI signal from

CPU Unit or no monitor detected

Monitor DDC is being transmitted from
the console monitor

3

4

16 2011-02-23

Description

Devices with USB 2.0 (CPU Unit and CON Unit)

Pos: 15 /806-IHSE/Installation/UEB_Installa tion @ 5\mod_1278574971589_6.doc @ 41768 @ 1

1

3

2

Rear View Front View

Pos. LED Status Diagnostics

2

4

Power

(red)

Link Status
USB

(green)

Link Status
Video

(green)

Video OK

(green)

off Device not ready 1
on Device ready
off No connection via interconnect cable
on Connection available
flashing No USB host found
off No connection via interconnect cable 3
on Connection via interconnect cable

off

 CPU Unit: No DVI signal from video

source (computer, CPU) detected

 CON Unit: No DVI signal from

CPU Unit or no monitor detected
on DVI signal from video source available
flashing

Monitor DDC is being transmitted from
the console monitor

USB Status

(green)

off No USB connection 5
on USB connection available

45

2011-02-23 17

DSXi KVM Extender

4 Installation

Pos: 16 /806-IHSE/Installation/Lieferumfang pr üf en/473-xx @ 5\mod_1278575025589_6.doc @ 41786 @ 2

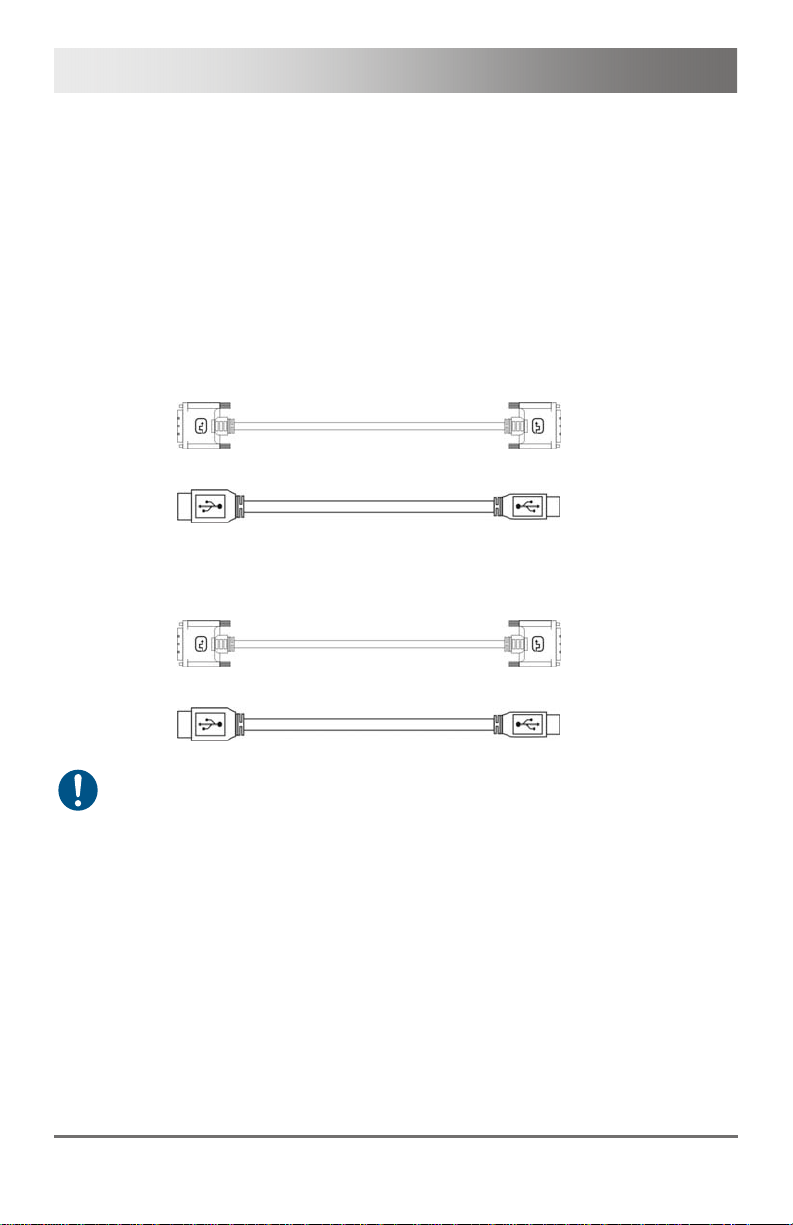

4.1 Package Contents

You should receive the following items in your extender package:

 KVM Extender pair (CPU Unit and CON Unit)
 2x 5VDC international power supply unit
 2x country specific power cord
 Quick Setup
 DVI video cable (1,8 m, DVI-D male-to-male)

 USB cable (1,8 m, USB type A to type B)

Additional content for Dual-Head devices:

 DVI video cable (1,8 m, DVI-D male-to-male)

 USB cable (1,8 m, USB type A to type B)

If anything is missing, contact your dealer.

Pos: 17 /806-IHSE/Installation/System anschließ en/VAR_KVM @ 5\mod_1278575413589_6.doc @ 41810 @ 2

18 2011-02-23

Installation

4.2 System Setup

First time users are recommended to setup the system with the CPU Unit
and the CON Unit in the same room as a test setup. This will allow you to
identify and solve any cabling problems, and experiment with your system
more conveniently.

 Please verify that interconnect cables, interfaces, and handling of the

Pos: 18 /806-IHSE/Installation/Installatio nsb eispiele/UEB_Installationsbeispiele @ 5\ mod_1278581564870_6.doc @ 42759 @ 2

devices comply with the requirements (see Chapter 7, Page 29).

1. Switch off all devices.

CON Unit Installation

2. Connect your monitor(s), keyboard and mouse to the CON Unit.

3. Connect the CON Unit with the interconnect cable(s).

4. Connect the 5VDC power supply to the CON Unit.

CPU Unit Installation

5. Connect the source (computer, CPU) with the supplied cables to the
CPU Unit. Please ensure the cables are not strained.

6. Connect the CPU Unit to the interconnect cable(s).

7. Connect the 5VDC power supply to the CPU Unit.

8. Power up the system.

To power up the system, the following sequence is recommended:
Monitor – CON Unit – CPU Unit – source.

2011-02-23 19

DSXi KVM Extender

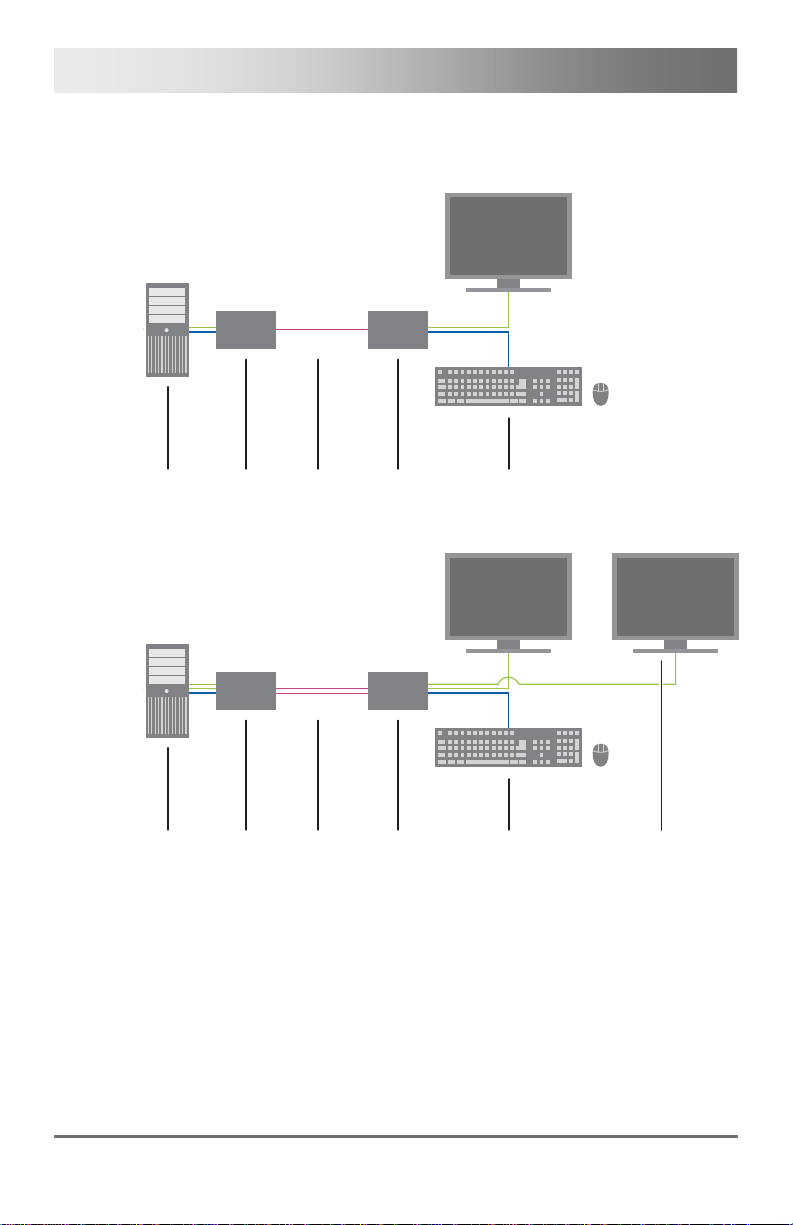

4.3 Example Applications

Pos: 19 /806-IHSE/Installation/Installatio nsb eispiele/VAR_KVM_Single-/Dual-Head_USB 2.0 @ 5\ mod_1278575500636_6.doc @ 41828 @

This section illustrates typical installations of KVM Extenders:

1

KVM Extender (Single-Head)

2

3

4

5

1

2

3

4

5

6

KVM Extender (Dual-Head)

20 2011-02-23

Installation

Pos: 20 /806-IHSE/Konfiguration/UEB_Konfigur ation @ 5\mod_1278575517073_6.doc @ 41846 @ 1

1

2

3

4

5

KVM Extender (Single-Head with USB 2.0)

1

2

3

4

5

KVM Extender (Dual-Head with USB 2.0)

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with USB 2.0 devices)

7

6

7

2011-02-23 21

DSXi KVM Extender

5 Configuration

Pos: 21 /806-IHSE/Konfiguration/Übertragungs par ameter/73-xx @ 5\mod_1278575636042_6.doc @ 41864 @ 233

5.1 Transmission Parameters

By default, the device will automatically adapt to optimize video quality.
This configuration is suitable for almost all conditions and should only be
modified if video quality is not satisfactory.

In case of video interference, an automatic readjustment can be initiated
by entering a keyboard command (see Chapter 6.1, Page 27). Please
note that this feature is n

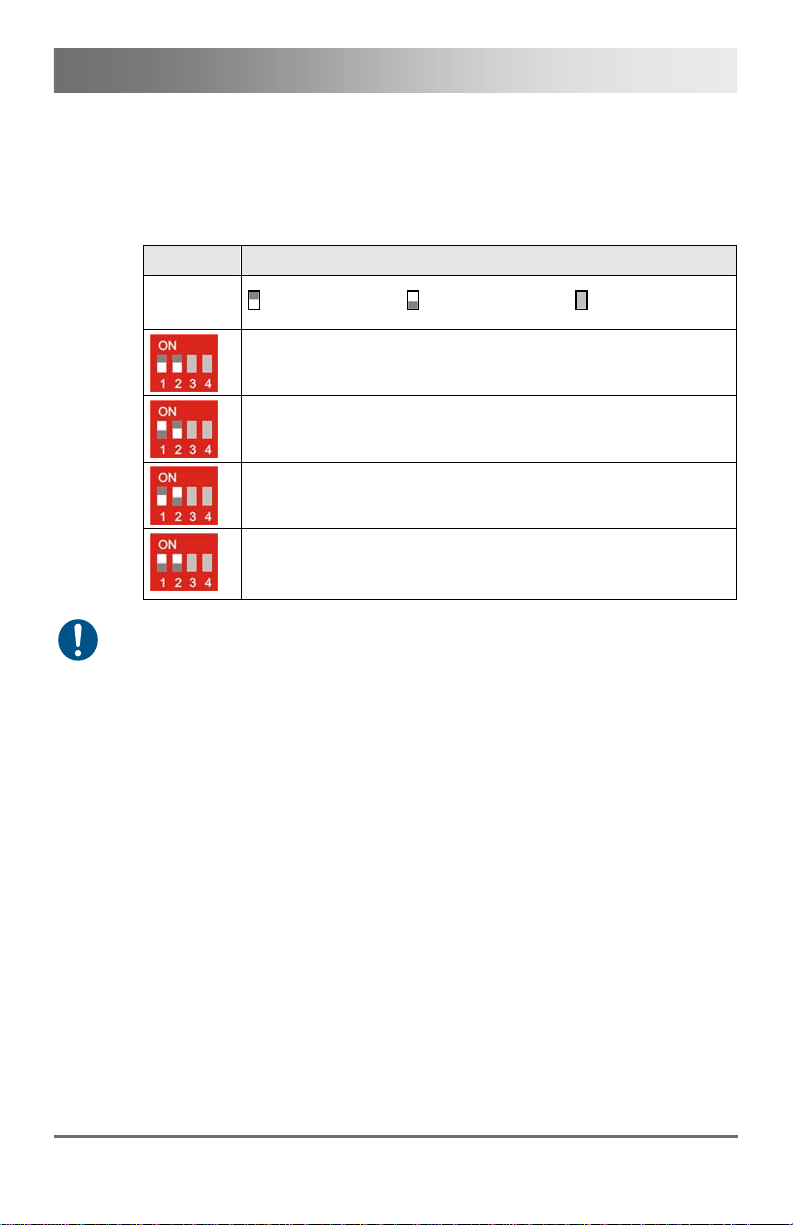

5.1.1 Adjustment of Video Resolution

The CPU Unit can be adjusted for the video resolution used with the
following DIP switch settings:

CPU Unit

DIP Function
Switch

Position

Switch down Switch up Not used

Automatic adjustment (default)

ot available on model K473-SST.

Resolution up to 1280x1024

Resolution greater than 1280x1024

Configuration for maximum distance transmission,
independent of monitor resolution

22 2011-02-23

Configuration

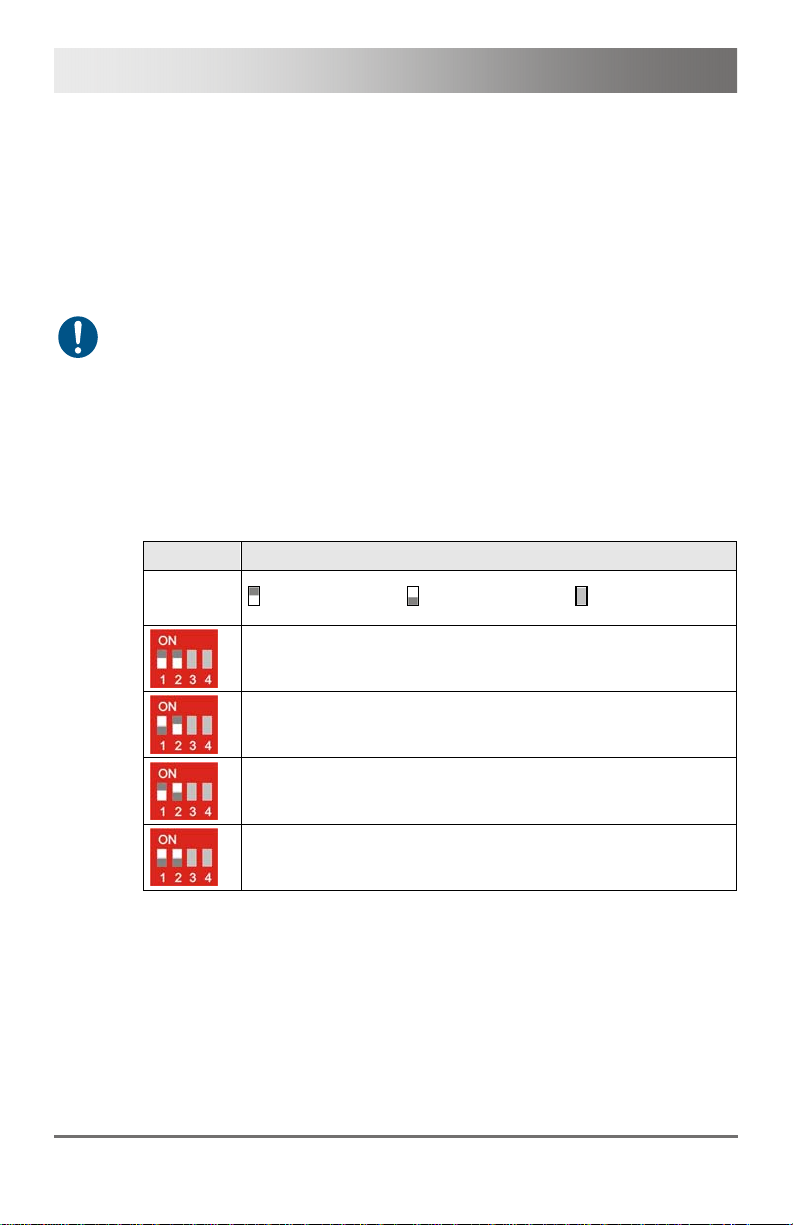

5.1.2 Adjustment of Cable Length

The CON Unit can be adapted for the current interconnect cable length
with the following DIP switch settings:

CON Unit

DIP Function

Pos: 22 /806-IHSE/Konfiguration/DDC-Einstellungen/47 3-xx @ 5\mod_1278577797886_6.doc @ 41988 @ 2

Switch
Position

Cable lengths refer to Cat X solid-core cable type AWG24.
Using flexible stranded cables (patch cables) of type AWG26/8 is possible,

however the maximum possible extension distance is halved.
 Change your DIP switch settings.

Switch down Switch up Not used

Automatic adjustment (default)

Cable length exceeds 10 m

Cable length exceeds 20 m

Maximum cable length: Use this setting if you are exceeding
the maximum recommended cable length or if the video
quality is not acceptable with automatic adjustment.

2011-02-23 23

DSXi KVM Extender

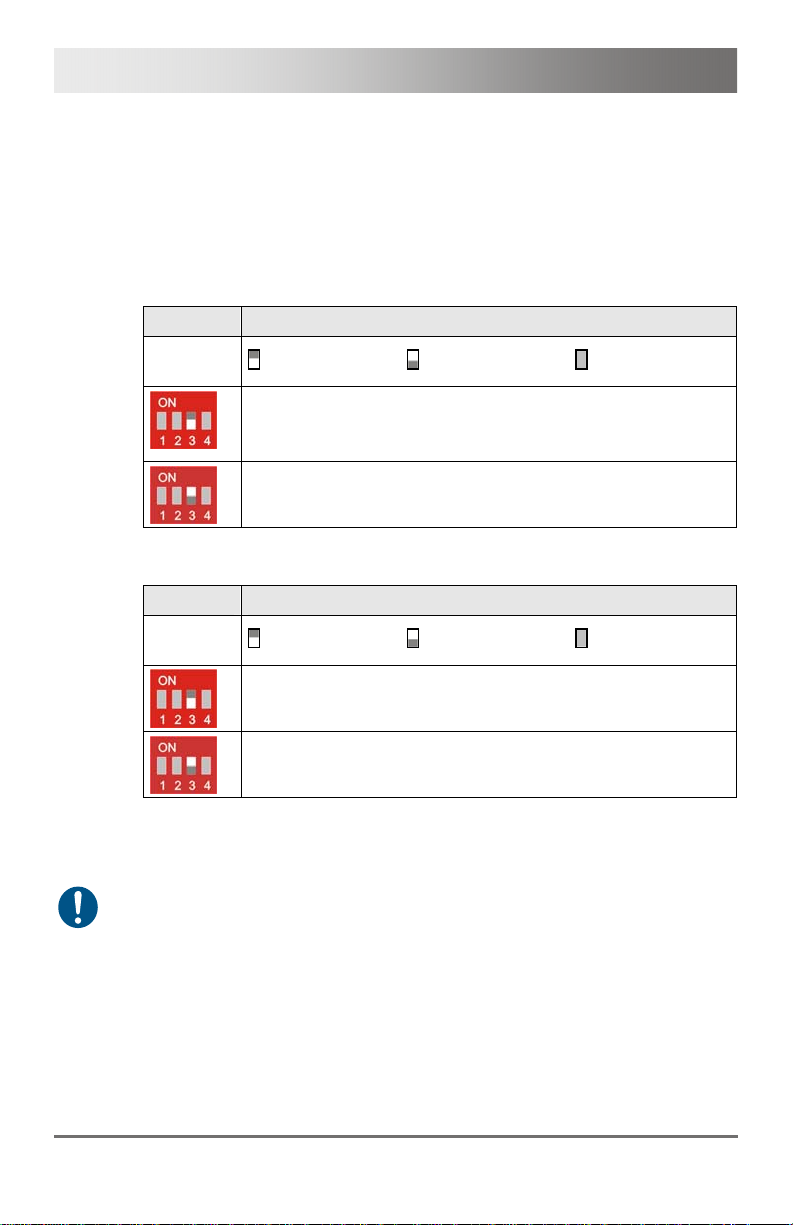

5.2 DDC Settings

By default, the device sends the factory preset DDC information to the
CPU. This information is sufficient in most cases.

CPU Unit and CON Unit offer the following DIP switch settings to control
the administration of the DDC information:

CPU Unit

DIP Function
Switch

Position

CON Unit

DIP Function
Switch

Position

Switch down Switch up Not used

Send stored DDC information to CPU (default: factory preset
DDC information).

Allow reading of DDC information from the attached monitor.
Reset and only ever send the factory default

DDC information

Switch down Switch up Not used

Prevent reading of DDC information from the attached
monitor

Allow reading of DDC information from the attached monitor

Reading of DDC information is performed during operation (see
Chapter 6.2, Page 27).

If DIP switch 3 on the CPU Unit is in upper position the CPU will only ever
be sent the factory preset DDC information.

Pos: 23 /806-IHSE/Konfiguration/Betriebsart wählen/473-xx @ 5\mod_1278577842120_6.doc @ 42006 @ 2

24 2011-02-23

Configuration

5.3 Selection of Operation Mode

At CPU Unit and CON Unit you can select the operation mode with the
following DIP switch settings:

CPU Unit and CON Unit

DIP Function
Switch

Position

During standard operation, DIP switch 4 must stay in the down position.

Pos: 24 /806-IHSE/Konfiguration/Kommando-Modus/ VA R_KVM_USB-HID @ 5\mod_1278577943980_6.doc @ 42024 @ 2

Switch down Switch up No used

Standard operation (default)

Test mode
Devices before 2010: Update mode activated

2011-02-23 25

DSXi KVM Extender

5.4 Command Mode

During normal use, the console keyboard functions in the usual manner.
However, for all KVM Extenders with USB-HID support, you can set the
keyboard into a Command Mode by using a specific 'Hot Key' sequence.
While in Command Mode, several functions are performed via keyboard
commands. To exit Command Mode, press <Esc>.

While in Command Mode, the LEDs Shift and Scroll on the console
keyboard will flash.

In Command Mode normal keyboard and mouse operation will cease.
Only selected keyboard commands are available.

The following table lists the keyboard commands to enter and to exit
Command Mode and to change the 'Hot Key' sequence:

Function Keyboard Command

Enter Command Mode
(default)

Exit Command Mode <Esc>
Change 'Hot Key' sequence

<Key> + <Key> Press keys simultaneously
<Key>, <Key> Press keys successively
2x <Key> Press key quickly, twice in a row

(similar to a mouse double-click)
The 'Hot Key' sequence to enter Command Mode can be changed. The

following table lists the 'Hot Key' Codes for the available key sequences:

2x <Left Shift> ('Hot Key')

<Left Ctrl> + <Left Shift> + <c>,
<'Hot Key' Code>, <Enter>

'Hot Key' Code 'Hot Key'

1 <Left Ctrl> + <Left Shift> + <i>
2 2x <Scroll>
3 2x <Left Shift>
4 2x <Left Ctrl>
5 2x <Left Alt>
6 2x <Right Shift>
7 2x <Right Ctrl>
8 2x <Right Alt>

Pos: 25 /806-IHSE/Betrieb/UEB_Betrieb @ 5\mod_1278 5776 14980_6.doc @ 41970 @ 1

26 2011-02-23

Operation

6 Operation

Pos: 26 /806-IHSE/Betrieb/Übertragungsparameter neu bestimmen (Auto-Adjust)/473-xx @ 5\mod_127857804 1089_6.doc @ 42060 @ 2

6.1 Readjustment of Transmission Parameters (Auto-Adjust)

On KVM Extenders with USB-HID support (not for model K473-SST), the
user can initiate an automatic readjustment of transmission parameters.
The KVM Extender will automatically optimize video quality.

1. Enter Command Mode (default: 2x <Left Shift>; see Chapter 5.4,

Page 26).

2.

Press the <a> key to start Auto-Adjust.
The screen will blank for a short time.
The KVM Extender will exit Command Mode.
Transmission parameters have been readjusted. Video qualit y should

be optimal.

Pos: 27 /806-IHSE/Betrieb/Laden von DDC-Informationen/473- xx @ 5\mod_1278578094526_6.doc @ 42078 @ 233

6.2 Download of DDC Information

By default, the factory preset DDC information is sent to the source
(computer, CPU). In some cases the factory preset DDC information may
not be appropriate, so the option exits to read the actual DDC information
from the attached monitor. The DIP switches have to be set correctly (see
Chapter 5.2, Page 24).

There are two ways to read DDC information from the attached monitor:
 Via keyboard command during operation (see Chapter 6.2.1,

Page 28).



Reconnecting the monitor cable at the CON Unit (see Chapter 6.2.2,
Page 28).

2011-02-23 27

DSXi KVM Extender

6.2.1 Download DDC via Keyboard Command

Use the following command sequence to read DDC information from the
attached monitor (except for model K473-SST).

1. Enter Command Mode (default: 2x <Left Shift>; see Chapter 5.4,

Page 26).

2.

Press the keys <2>, <Enter> to read the DDC information from the
console monitor.

The screen will blank for a short time.
The KVM Extender will exit Command Mode.
The CPU will now be able to read the actual monitor DDC information

and so allow the required video resolution to be selected.

3. Enter Command Mode (default: 2x <Left Shift>).

4. Press the keys <1>, <Enter>.

The KVM Extender will exit Command Mode.
The DDC information has been updated once. Further updates are

only possible by repeating all the steps listed above or by re-attaching
the monitor cable (see Chapter 6.2.2, Page 28).

6.2.2 Download DDC via DVI Cable

1. Move DIP switch 3 on the CON Unit to the upper position.

2. Please make sure that the monitor is on (both monitors in case of

Dual-Head devices).

3. Disconnect the monitor cable from the CON Unit and connect the

monitor cable again (In the case of Dual-Head devices, disconnect
and connect monitor cables successively).

The DDC information will be read from the console monitor,
transmitted to the CPU Unit and stored there internally.

To show successful reprogramming the LED Video OK flashes at
both CON Unit and CPU Unit for about one second.

The CPU will now be able to read the actual monitor DDC information
and so allow the required video resolution to be selected.

4. Move DIP switch 3 on the CON Unit to the down position.

Accidental download of DDC information can thus be avoided.

Pos: 28 /806-IHSE/Technische Daten/UEB_Technisc he Daten @ 5\mod_1278578165261_6.doc @ 42096 @ 1

28 2011-02-23

Specifications

7 Specifications

Pos: 29 /806-IHSE/Technische Daten/Schnittste llen/UEB_Schnittstellen @ 5\mod_1278578201870_6. doc @ 42114 @ 2

7.1 Interfaces

Pos: 30 /806-IHSE/Technische Daten/Schnittste llen/DVI-D-Single-Link @ 5\mod_1278578254058_6. doc @ 42132 @ 3

7.1.1 DVI-D Single Link

The video interface supports the DVI-D protocol. All signals that comply to
DVI-D Single Link norm can be transmitted. This includes e.g. monitor
resolutions such as 1920x1200@60Hz, Full HD (1080p) or 2K HD (up to
2048x1152). Data rate is limited to 165 MPixel/s.

Pos: 31 /806-IHSE/Technische Daten/Schnittste llen/DVI-x-Single-Link_HI_Interlaced @ 5\mod_1 278 928206636_6.doc @ 42780 @

Pos: 32 /806-IHSE/Technische Daten/Schnittste llen/USB-HID @ 5\mod_1278578292214_6.doc @ 42150 @ 3

7.1.2 USB-HID

Transmission of interlaced video signals, such as 1920x1080i, cannot be
guaranteed.

Our devices with an USB-HID interface support a maximum of two devices
compliant with the USB-HID protocol. Each USB-HID port provides a
maximum current of 100 mA.

Keyboard

Compatible with most USB keyboards. Certain keyboards with additional
functions may require custom firmware to operate. Keyboards with an
integral USB Hub (Mac keyboards e.g.) are also supported.

Mouse

Compatible with most 2-button, 3-button and scroll mice.

Other USB-HID devices

The proprietary USB emulation also supports certain other USB-HID
devices, such as specific touch screens, graphic tablets, barcode
scanners or special keyboards. Support cannot be guaranteed, however,
for every USB-HID device.

Only two USB-HID devices are supported concurrently, such as keyboard
and mouse or keyboard and touch screen. A hub is allowed, but it does
not increase the number of HID devices allowed.

To support other USB 'non-HID' devices, such as scanners, web cams or
memory devices, choose our devices with transparent USB support.

2011-02-23 29

DSXi KVM Extender

Pos: 33 /806-IHSE/Technische Daten/Schnittste llen/USB 2.0 (transparent) @ 5\mod_1278578316386_6.doc @ 42168 @ 3

7.1.3 USB 2.0 (transparent)

KVM Extender models with transparent USB 2.0 support allow the
connection of all types of USB 2.0 devices (without restriction). USB 2.0
data transfer is supported with USB high speed (max. 480 Mbit/s).

Each USB 2.0 port provides a maximum current of 500 mA (high power).

Pos: 34 /806-IHSE/Technische Daten/Schnittste llen/RJ45 (Gerätekommunikation) @ 5\mod_1278578339308 _6.doc @ 42186 @ 3

7.1.4 RJ45 (Interconnect)

The communication of the Cat X devices requires a 1000BASE-T
connection.

Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with
RJ45 connectors at both ends. All four cable wire pairs are used.

Pos: 35 /806-IHSE/Technische Daten/Verbindungs kabe l/UEB_Verbindungskabel @ 5\mod_1279191107845_6.d oc @ 43870 @ 2

30 2011-02-23

Specifications

7.2 Interconnect Cable

Pos: 36 /806-IHSE/Technische Daten/Verbindungs kabe l/Verbindungskabel (Cat X) @ 5\mod_1278578406026_6. doc @ 42205 @ 3

7.2.1 Cat X

A point-to-point connection is required. Operation with several patch fields
is possible. Routing over an active network component, such as an
Ethernet Hub, Router or Switch, is not allowed.

 Avoid routing Cat X cables along power cables.
 If the site has 3-phase AC power, try to ensure that CPU Unit and

CON Unit are on the same phase.

To maintain regulatory EMC compliance, correctly installed shielded Cat X
cable must be used throughout the interconnection link.

To maintain regulatory EMC compliance, all Cat X cables need to carry
ferrites on both cable ends close to the device.

Type of Interconnect Cable

The KVM Extender requires interconnect cabling specified for Gigabit
Ethernet (1000BASE-T). The use of solid-core (AWG24), shielded, Cat 5e
(or better) is recommended.

Cat X Solid-Core Cable
AWG24

S/UTP (Cat 5e) cable according to EIA/TIA­568-B. Four pairs of wires AWG24.
Connection according to EIA/TIA-568-B
(1000BASE-T).

Cat X Patch Cable
AWG26/8

S/UTP (Cat 5e) cable according to EIA/TIA­568-B. Four pairs of wires AWG26/8.
Connection according to EIA/TIA-568-B
(1000BASE-T).

The use of flexible cables (patch cables) type AWG26/8 is possible,
however the maximum possible extension distance is halved.

Pos: 37 /806-IHSE/Technische Daten/Verbindungs kabe l/Verbindungskabel (Cat X)_Kabellänge 473- xx @ 5\mod_1278928498808_6.doc @ 42798 @

Maximum Acceptable Cable Length

Cat X Solid-Core Cable
AWG24

Cat X Patch Cable
AWG26/8

40 m (120 ft) at 1920x1200 and 1600x1200
50 m (150 ft) at 1280x1024 and less

20 m (60 ft) at 1920x1200 and 1600x1200
30 m (90 ft) at 1280x1024 and less

See Chapter 7.3.3, Page 32 for a list of specifically tested cables with an
optimum range.

Pos: 38 /806-IHSE/Technische Daten/Getestete Peri pherie/UEB_Getestete Peripherie @ 5\mod_127857847876 1_6.doc @ 42242 @ 2

2011-02-23 31

DSXi KVM Extender

7.3 Supported Peripherals

Pos: 39 /806-IHSE/Technische Daten/Getestete Peri pherie/USB-HID-Geräte @ 5\mod_1278578523558_6.doc @ 42260 @ 3

7.3.1 USB-HID Devices

The KVM Extender will support most USB-HID devices, including the vast
majority of keyboards and mice currently on the market. Many other kinds
of HID device such as bar-code scanners and touch screens may also be
compatible

It is not possible to guarantee support for all available USB-HID devices.
In certain cases, custom firmware may be required.

USB-HID (and other) devices that are not supported as standard will
normally operate with our devices featuring transparent USB support.

Please note that concurrent operation of more than two USB-HID devices
is not possible even if you use a USB hub.

Pos: 40 /806-IHSE/Technische Daten/Getestete Peri pherie/USB-2.0-Geräte @ 5\mod_1278578553933_6.d oc @ 42278 @ 3

7.3.2 USB 2.0 Devices

Pos: 41 /806-IHSE/Technische Daten/Getestete Peri pherie/Verbindungskabel (Cat X) @ 5\mod_1278578615355_ 6.doc @ 42296 @ 3

7.3.3 Interconnect Cable (Cat X)

KVM Extender models featuring a transparent USB 2.0 connection use
Extreme USB Technology from Icron Technologies.

This technology supports all types of USB 2.0 devices, however the
manufacturer cannot guarantee compatibility with every device on the
market. Please contact your dealer if any issues are found.

KVM Extenders should be used with cables as described in Chapter 7.2.1,
Page 31.

Internal tests showed that certain cables or cable types allow longer cable
lengths.

Enhanced performance is specified using the following cables:

Resolution (at 60 Hz) Cable Type Cable Length

1920x1200 and
1600x1200

1920x1200 and
1600x1200

Leoni Kerpen Megaline
AWG24

Leoni Kerpen Megaline
AWG23

>50 m (>150 ft)

>60 m
(>180 ft)

The specified cables should be available through your dealer. Other
cables on the market may support operation at extended distances but

Pos: 42 /806-IHSE/Technische Daten/Pinbelegungen/ UEB_Pinbelegungen @ 5\mod_1278578683636_6.doc @ 42315 @ 2

such operation cannot be guaranteed.

32 2011-02-23

Specifications

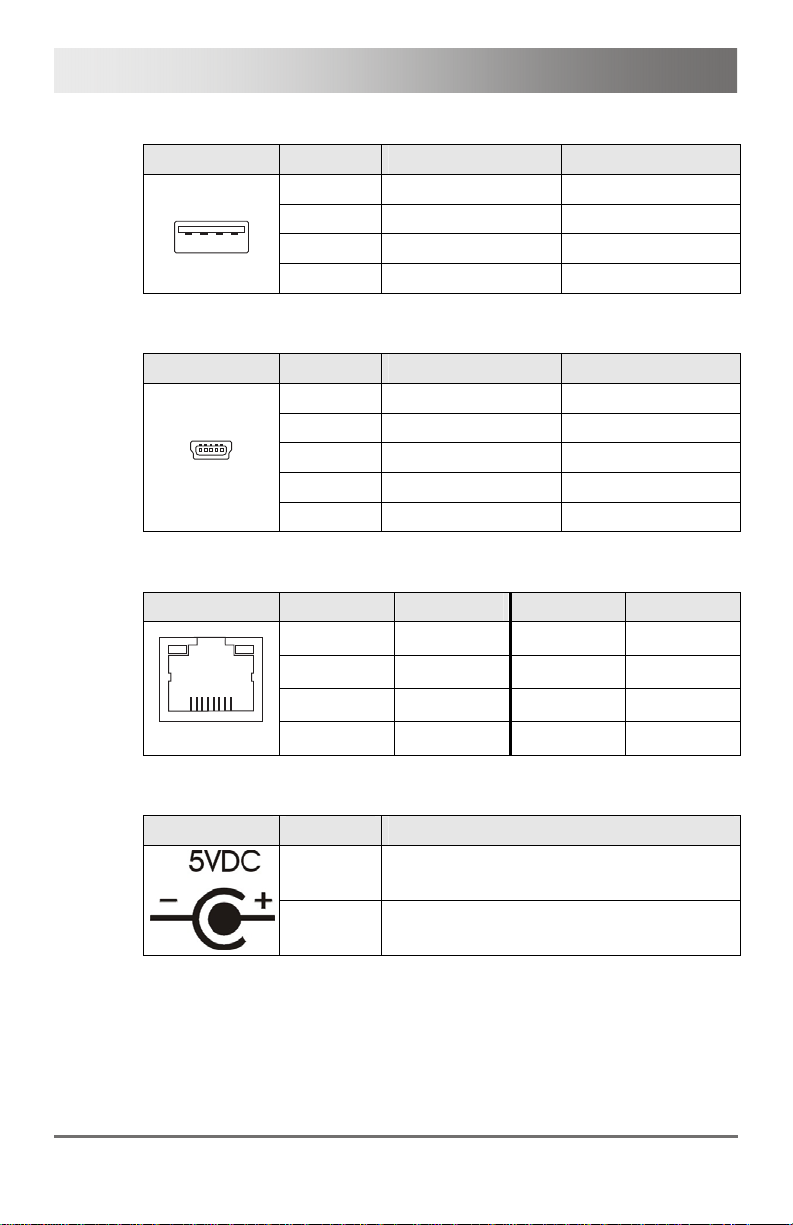

7.4 Connector Pinouts

Pos: 43 /806-IHSE/Technische Daten/Pinbelegungen/ Buchse DVI-D Single-Link @ 5\mod_1278578723073_6.doc @ 42333 @

Connector DVI-D Single-Link

1.............................8 C1 C2

C5

Pos: 44 /806-IHSE/Technische Daten/Pinbelegungen/ Buchse USB Typ B @ 5\mod_1278578750464_6.doc @ 42351 @

Connector USB Type B

Pos: 45 /806-IHSE/Technische Daten/Pinbelegungen/ Buchse USB Typ A @ 5\mod_1278578771214_6.doc @ 42369 @

17...........................24

C3 C4

Pin Signal Pin Signal Pin Signal

1 T.M.D.S data 2– 9 T.M.D.S data 1– 17 T.M.D.S data 0–
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+

T.M.D.S data 2

3

GND

T.M.D.S data 1

11

GND

T.M.D.S data 0

19

GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14

7

DDC Output

15 GND 23 T.M.D.S clock +

+5VDC high
impedance

T.M.D.S clock

22

GND

(SDA)

8 Internal use 16

Hot Plug

24 T.M.D.S clock –

recognition

C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use

Picture Pin Signal Color

132

1 VCC (+5VDC) Red
2 Data – White

4

3 Data + Green
4 GND Black

2011-02-23 33

DSXi KVM Extender

Connector USB Type A

Picture Pin Signal Color

3

1

2 4

Pos: 46 /806-IHSE/Technische Daten/Pinbelegungen/ Buchse Mini-USB Typ B @ 5\mod_1278578794167_6.doc @ 42387 @

Pos: 47 /806-IHSE/Technische Daten/Pinbelegungen/ RJ45 @ 5\mod_1278578820011_6.doc @ 42405 @

Pos: 48 /806-IHSE/Technische Daten/Pinbelegungen/ Stromversorgung @ 5\mod_1278578849183_6.doc @ 42423 @

Connector Mini USB Type B

Picture Pin Signal Color

1

....5

RJ45

Picture Pin Signal Pin Signal

8..........1

Power Supply

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 GND Black

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –
5 GND Black

1 D1+ 5 D3–
2 D1– 6 D2–
3 D2+ 7 D4+
4 D3+ 8 D4-

Picture Pin Signal

Inside VCC (+5VDC)

Outside GND

Pos: 49 /806-IHSE/Technische Daten/Stromversorgung/ 473-xx @ 5\mod_1278578937151_6.doc @ 42460 @ 2

34 2011-02-23

Specifications

7.5 Power Supply

Single-Head Devices

Voltage

5VDC

Power Requirement  K473-SSH (CPU Unit and CON Unit):

5VDC / 800 mA

 K473-SST (CPU Unit):

5VDC / 800 mA

 K473-SST (CON Unit):

5VDC / 2.500 mA

Dual-Head Devices

Voltage

5VDC

Power Requirement  K473-DSH (CPU Unit and CON Unit):

5VDC / 1.600 mA

 K473-DST (CPU Unit):

5VDC / 1.600 mA

 K473-DST (CON Unit):

5VDC / 3.300 mA

Pos: 50 /806-IHSE/Technische Daten/Einsatzbeding ungen/ATB_Einsatzbedingungen @ 5\mod_1278578980 026 _6.doc @ 42480 @ 2

7.6 Environmental Conditions

Pos: 51 /806-IHSE/Technische Daten/Abmessungen/47 3-xx @ 5\mod_1278579027355_6.doc @ 42499 @ 2

Operating Temperature
Storage Temperature
Relative Humidity

41 to 113°F (5 to 45°C)
–13 to 140°F (–25 to 60°C)
Max. 80% non-condensing

7.7 Size

Single-Head Devices

CPU Unit / CON Unit
Shipping Box

80 x 110 x 29 mm (3.1" x 4.3" x 1.1")
210 x 140 x 165 mm (8.3" x 5.5" x 6.5")

Dual-Head Devices

Pos: 52 /806-IHSE/Technische Daten/Transportgewic ht /473-xx @ 5\mod_1278579075980_6.doc @ 42518 @ 2

CPU Unit
CON Unit
Shipping Box

80 x 110 x 42 mm (3.1" x 4.3" x 1.7")
161 x 110 x 29 mm (6.3" x 4.3" x 1.1")
460 x 250 x 120 mm (18.1" x 9.8" x 4.7")

2011-02-23 35

DSXi KVM Extender

7.8 Shipping Weight

Single-Head Devices

Dual-Head Devices

Pos: 53 /806-IHSE/Hilfe im Problemfall/UEB_Hilfe i m Problemfall @ 5\mod_1278579113839_6.doc @ 42536 @ 1

CPU Unit / CON Unit
Shipping Box

CPU Unit / CON Unit
Shipping Box

0,2 kg (0.4 lb)
1,7 kg (3.8 lb)

0,3 kg (0.7 lb)
2,2 kg (4.9 lb)

36 2011-02-23

Troubleshooting

8 Troubleshooting

Pos: 54 /806-IHSE/Hilfe im Problemfall/Bildausf all/473-xx @ 5\mod_1278579209183_6.doc @ 42555 @ 2

8.1 Blank Screen

Diagnosis

LED Power off

LED Link
Status off

CPU Unit: LED
Video OK off

CON Unit: LED
Video OK off

Pos: 55 /806-IHSE/Hilfe im Problemfall/Bildstör ung/ 473-xx @ 5\mod_1278579260964_6.doc @ 42574 @ 2

Possible Reason Measure
Power supply

 Check power supply units and

the connection to the mains.

Connection between
CON Unit and CPU Unit

No video signal detected
by source (computer,
CPU)

 Check interconnect cable and

connections.

 Check DVI-D cable to CPU.
 Download DDC information from

console monitor (see Chapter

6.2, Page 27).
Reb

No monitor detected

 Check connection, length and

quality of the DVI-D cable to
monitor, tighten cable
thumbscrews.

No video signal detected
from CPU Unit

 Check connection, length and

quality of interconnect cable
between the units.

 Download DDC information from

console monitors (see Chapter

6.2, Page 27).
Reb

Suboptimal transmission
parameters

 Execute Auto-Adjust (see

Chapter 6.1, Page 27).
If necessary, manually adjust



parameters for monitor
resolution (see Chapter 5.1.1,
Page 22) and cable length (see
Chapter 5.1.2, Page 23).

oot CPU if necessary.

oot CPU if necessary.

2011-02-23 37

DSXi KVM Extender

8.2 Video Jitter

Diagnosis

Incorrect video
display

Possible Reason Measure
Cable connection

interrupted

Suboptimal transmission
parameters

Pos: 56 /806-IHSE/Hilfe im Problemfall/Störung am USB- HID- Anschluss/473-xx @ 5\mod_1278579309355_6.doc @ 42593 @ 2

8.3 USB-HID Failure

Diagnosis

Keyboard LEDs
Shift and Scroll
are flashing

CPU Unit:
LED USB
Status off

CON Unit:
LED USB
Status off

USB device
without function

Pos: 57 /806-IHSE/Hilfe im Problemfall/Störung am USB- 2. 0-Anschluss/473-xx @ 5\mod_1278579392698_6.doc @ 42630 @ 2

Possible Reason Measure
Keyboard in Command

Mode

No USB connection to
CPU

Problems with USB
connection

No USB-HID device  Connect USB-HID device.
USB-HID device is not

supported

 Check connection, length and

quality of DVI-D cable to CPU
and to monitor, tighten cable
thumbscrews.

 Check connection, length and

quality of interconnect cables
between the units.

 Execute Auto-Adjust (see

Chapter 6.1, Page 27).



If necessary, manually adjust
parameters for monitor resolution
(see Chapter 5.1.1, Page 22) and
cabl

e length (see Chapter 5.1.2,

Page 23).

 Press <Esc> to leave Command

Mode.

 Check connection of USB cable

to CPU, select another USB port
if necessary.

 Remove USB and power cable

and restart CPU. Connect power
cable first.

 Check connection of USB cable

to USB-HID device.

 Remove DVI and power cable

and restart CON Unit. Connect
power cable first.

 Contact dealer if necessary.

38 2011-02-23

Troubleshooting

8.4 USB 2.0 Failure

Diagnosis
LED Link

Status USB off

LED Link
Status USB is

flashing

CPU Unit: LED
USB Status off

CON Unit: LED
USB Status off

USB device
without function

Pos: 58 /806-IHSE/Technische Unterstützung/ATB_ Technische Unterstützung @ 5\mod_1278579487089_6.doc @ 42650 @ 122

Possible Reason Measure
Connection U between

CON Unit and CPU Unit
USB controller

(CON Unit)
Source (computer, CPU)

 Check interconnect cable U and

connections.

 Check LED USB Status at

CON Unit.

 Check status (standby, sleep

mode).

USB controller
(CON Unit)

No USB connection to
CPU

 Check LED USB Status at

CON Unit.

 Check connection of USB cable

to CPU, select another USB port
if necessary.

 Remove USB and power cable

and restart CPU Unit. Connect
power cable first.

Problem with USB
connection

 Check connection of USB cable

to USB-HID device.

 Remove DVI and power cables

and restart CON Unit. Connect
power cable first.

Device not detected by
CPU

 Check installation including

required drivers.

 Reconnect USB device.
 Contact dealer if necessary.

2011-02-23 39

DSXi KVM Extender

9 Technical Support

Prior to contacting support please ensure you have read this manual, and
then installed and set-up your KVM Extender as recommended.

9.1 Support Checklist

To efficiently handle your request it is necessary to complete our checklist
for support and problem cases (Download). Keep the following information
available before you call:

 Company, name, phone number and email
 Type and serial number of the device (see bottom of device)
 Date and number of sales receipt, name of dealer if necessary
 Issue date of the existing manual
 Nature, circumstances and duration of the problem
 Involved components (such as graphic source/CPU, OS, graphic

card, monitor, USB-HID/USB 2.0 devices, interconnect cable)
including manufacturer and model number

 Results from any testing you have done

9.2 Shipping Checklist

1. To return your device, contact your dealer to obtai n a RMA number
(Return-Material-Authorization).

2. Package your devices carefully, preferably using the original box.
Add all pieces which you received originally.

3. Note your RMA number visibly on your shipment.

Devices that are sent in without a RMA number cannot be accepted. The
shipment will be sent back without being opened, postage unpaid.

Pos: 59 /806-IHSE/Zertifikate/UEB_Zertifi kate @ 5\mod_1278579534933_6.doc @ 42668 @ 1

40 2011-02-23
