IHSE 461 User Manual

DVXI/ET-XX KVM-EXTENDER

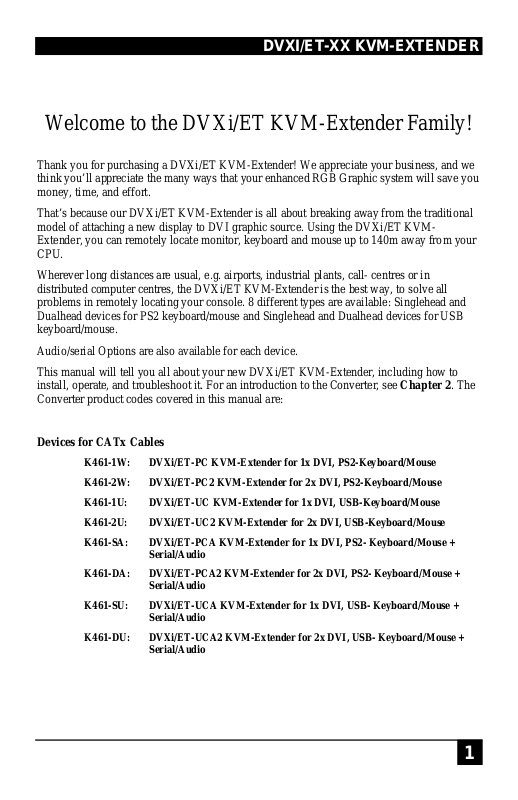

Welcome to the DVXi/ET KVM-Extender Family!

Thank you for purchasing a DVXi/ET KVM-Extender! We appreciate your business, and we
think you’ll appreciate the many ways that your enhanced RGB Graphic system will save you
money, time, and effort.

That’s because our DVXi/ET KVM-Extender is all about breaking away from the traditional
model of attaching a new display to DVI graphic source. Using the DVXi/ET KVM­Extender, you can remotely locate monitor, keyboard and mouse up to 140m away from your
CPU.

Wherever long distances are usual, e.g. airports, industrial plants, call- centres or in
distributed computer centres, the DVXi/ET KVM-Extender is the best way, to solve all
problems in remotely locating your console. 8 different types are available: Singlehead and
Dualhead devices for PS2 keyboard/mouse and Singlehead and Dualhead devices for USB
keyboard/mouse.

Audio/serial Options are also available for each device.
This manual will tell you all about your new DVXi/ET KVM-Extender, including how to

install, operate, and troubleshoot it. For an introduction to the Converter, see Chapter 2. The
Converter product codes covered in this manual are:

Devices for CATx Cables

K461-1W: DVXi/ET-PC KVM-Extender for 1x DVI, PS2-Keyboard/Mouse
K461-2W: DVXi/ET-PC2 KVM-Extender for 2x DVI, PS2-Keyboard/Mouse
K461-1U: DVXi/ET-UC KVM-Extender for 1x DVI, USB-Keyboard/Mouse
K461-2U: DVXi/ET-UC2 KVM-Extender for 2x DVI, USB-Keyboard/Mouse
K461-SA: DVXi/ET-PCA KVM-Extender for 1x DVI, PS2- Keyboard/Mouse +

K461-DA: DVXi/ET-PCA2 KVM-Extender for 2x DVI, PS2- Keyboard/Mouse +

K461-SU: DVXi/ET-UCA KVM-Extender for 1x DVI, USB- Keyboard/Mouse +

K461-DU: DVXi/ET-UCA2 KVM-Extender for 2x DVI, USB- Keyboard/Mouse +

Serial/Audio

Serial/Audio

Serial/Audio

Serial/Audio

1

DVXI/ET-XX KVM-EXTENDER

Devices for Multimode fibres

K462-1W: DVXi/EM-PC KVM-Extender for 1x DVI, PS2-Keyboard/Mouse
K462-2W: DVXi/EM-PC2 KVM-Extender for 2x DVI, PS2-Keyboard/Mouse
K462-1U: DVXi/EM-UC KVM-Extender for 1x DVI, USB-Keyboard/Mouse
K462-2U: DVXi/EM-UC2 KVM-Extender for 2x DVI, USB-Keyboard/Mouse
K462-SA: DVXi/EM-PCA KVM-Extender for 1x DVI, PS2- Keyboard/Mouse +

K462-DA: DVXi/EM-PCA2 KVM-Extender for 2x DVI, PS2- Keyboard/Mouse +

K462-SU: DVXi/EM-UCA KVM-Extender for 1x DVI, USB- Keyboard/Mouse +

K462-DU: DVXi/EM-UCA2 KVM-Extender for 2x DVI, USB- Keyboard/Mouse +

Devices for Singlemode fibres

K463-1W: DVXi/ES-PC KVM-Extender for 1x DVI, PS2-Keyboard/Mouse
K463-2W: DVXi/ES-PC2 KVM-Extender for 2x DVI, PS2-Keyboard/Mouse
K463-1U: DVXi/ES-UC KVM-Extender for 1x DVI, USB-Keyboard/Mouse
K463-2U: DVXi/ES-UC2 KVM-Extender for 2x DVI, USB-Keyboard/Mouse
K463-SA: DVXi/ES-PCA KVM-Extender for 1x DVI, PS2- Keyboard/Mouse +

K463-DA: DVXi/ES-PCA2 KVM-Extender for 2x DVI, PS2- Keyboard/Mouse +

K463-SU: DVXi/ES-UCA KVM-Extender for 1x DVI, USB- Keyboard/Mouse +

K463-DU: DVXi/ES-UCA2 KVM-Extender for 2x DVI, USB- Keyboard/Mouse +

Serial/Audio

Serial/Audio

Serial/Audio

Serial/Audio

Serial/Audio

Serial/Audio

Serial/Audio

Serial/Audio

2

DVXI/ET-XX KVM-EXTENDER

Copyrights and Trademarks

©2008. All rights reserved. This information may not be reproduced in any manner without
the prior written consent of the manufacturer.

Information in this document is subject to change without notice and the manufacturer shall
not be liable for any direct, indirect, special, incidental or consequential damages in
connection with the use of this material.

All trademark and trade names mentioned in this document are acknowledged to be the
property of their respective owners.

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer
assumes no responsibility for errors or omissions. Neither does the manufacturer assume any
liability for damages resulting from the use of the information contained herein. The
manufacturer reserves the right to change the specifications, functions, or circuitry of the
product without notice.

The manufacturer cannot accept liability for damage due to misuse of the product or due to
any other circumstances outside the manufacturer’s control (whether environmental or
installation related). The manufacturer shall not be responsible for any loss, damage, or injury
arising directly, indirectly, or consequently from the use of this product.

Cautions and Notes

The following symbols are used in this guide:

CAUTION: This indicates an important operating instruction
that should be followed to avoid any potential damage to

hardware or property, loss of data, or personal injury.

NOTE. This indicates important information to help you make the best use of
this product.

3

DVXI/ET-XX KVM-EXTENDER

.

4

DECLARATION OF CONFORMITY

EC DECLARATION OF CONFORMITY

The products listed below in the form as delivered are in conformity with the provisions
of the following European Directives:

2004/108/EG Council Directive on the approximation of the laws of the Member States

relating to electromagnetic compatibility

CE-marking 2009

Product list:

K461-1W, K461-2W, K461-1U, K461-2U, K461-SA, K461-DA, K461-SU, K461-DA
K462-1W, K462-2W, K462-1U, K462-2U, K462-SA, K462-DA, K462-SU, K462-DA
K463-1W, K463-2W, K463-1U, K463-2U, K463-SA, K463-DA, K463-SU, K463-DA

Conformity to the Directives is assured through the application of the following
standards:

EN 55022: 09/2006 Class A
IEC 61000-4-2: 02/2001
IEC 61000-4-3: 05/2006
IEC 61000-4-4: 12/2004
IEC 61000-4-5: 11/2006

This declaration certifies the conformity to the specified directives but contains no
assurance of properties. The safety documentation noted in this manual shall be
considered in detail. The length of the attached CPU- or Console Cables must not exceed
3m. The use of suggested interconnect cables is mandatory.

Oberteuringen, June 23rd, 2009
The management

manufacturer: IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Germany

WARNING: This equipment has been found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

5

DVXI/ET-XX KVM-EXTENDER

Safety Precautions and Installation Guidelines

To ensure reliable and safe long-term operation, please note the following installation
guidelines:

• Do not use CATx-devices to link between buildings – please use fibre devices.

• Only use in dry, indoor environments.

• If the building has 3-phase AC power, try to ensure that equipment connected to the

Local and Remote units is on the same phase.

• Try not to route a CATx link cable alongside power cables.

• The Remote unit, Local unit and any power supplies can get warm. Do not locate them

in an enclosed space without any airflow.

• Do not place a power supplies directly on top of a unit.

• Do not obstruct a unit’s ventilation existing holes.

To safeguard against personal injury and avoid possible
damage to equipment or property, please observe the
following:

• Only use power supplies originally supplied with the

product or manufacturer-approved replacements. Do not
attempt to dismantle or repair any power supply. Do not
use a power supply if it appears to be defective or has a
damaged case.

6

• Connect all power supplies to grounded outlets. In each

case, ensure that the ground connection is maintained
from the outlet socket through to the power supply’s AC
power input.

• Do not attempt to modify or repair this product, or make

a connection from the interconnection link interface to
any other products, especially telecommunications or
network equipment.

INHALTSVERZEICHNIS

Contents

1. Quick Setup 8

2. Overview 9

2.1 Introduction 9

2.2 Glossary 9

2.3 Example of a DVXi/ET KVM-Extender System 10

2.4 Features 11

2.5 Product Range 12

2.6 Compatibility 14

2.7 How to Use This Guide 15

3. Installation 16

3.1 Package Contents 16

3.2 Interconnection Cable Requirements 18

3.3 System Setup 20

3.4 Diagnostic LEDs 31

4. Service Setup 32

4.1 Setup at the Local Unit 33

4.2 Setup at the Remote Unit 35

5. Troubleshooting 36

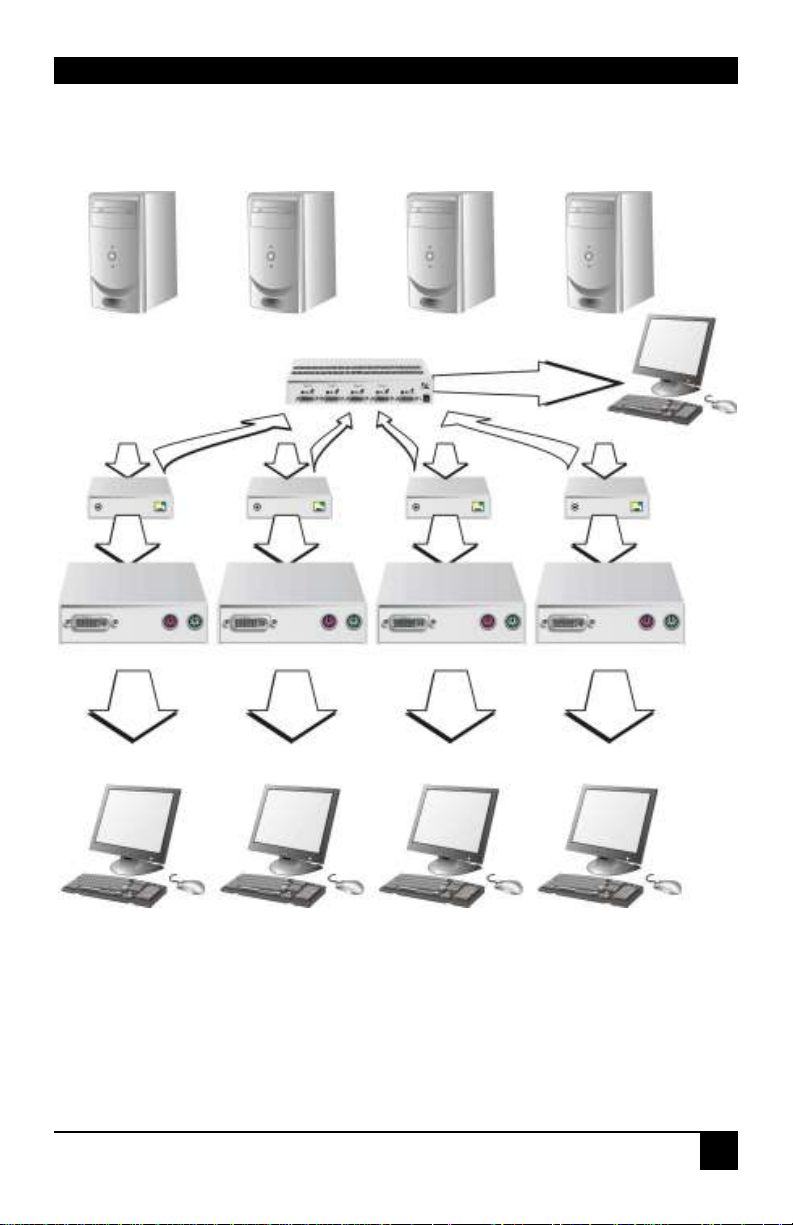

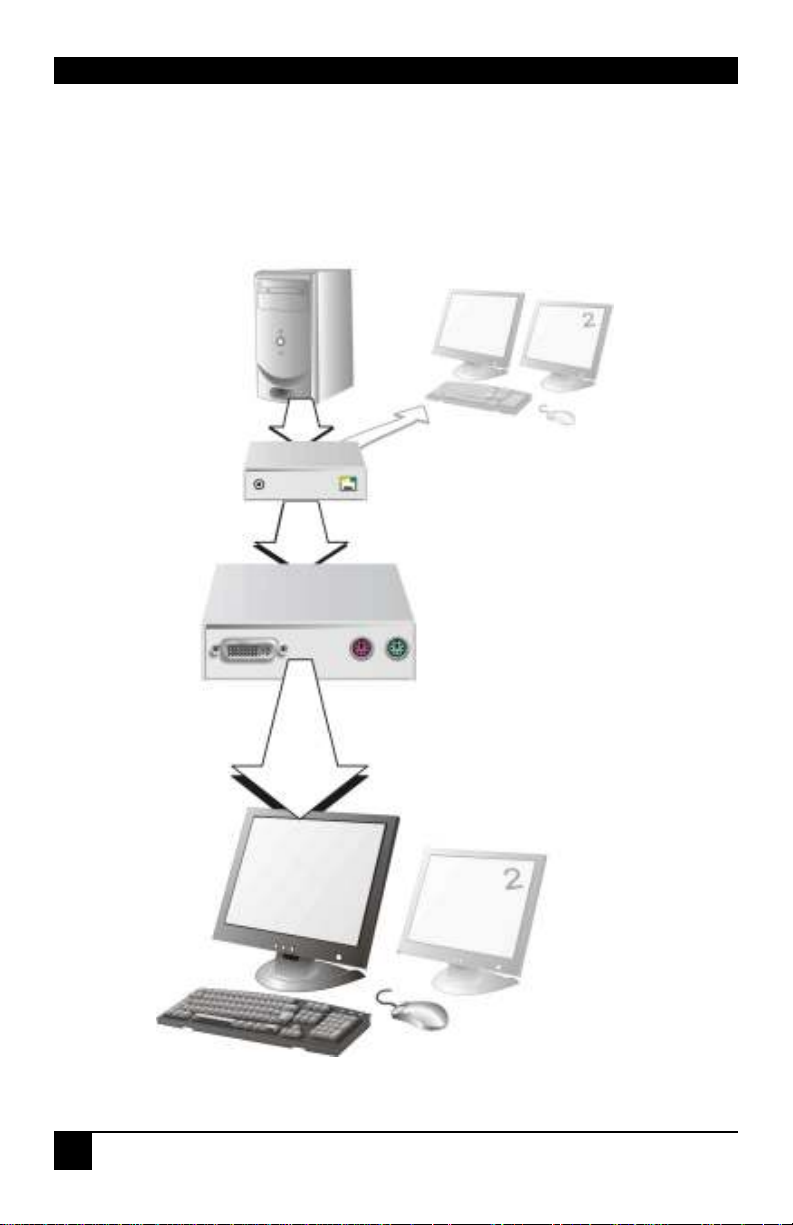

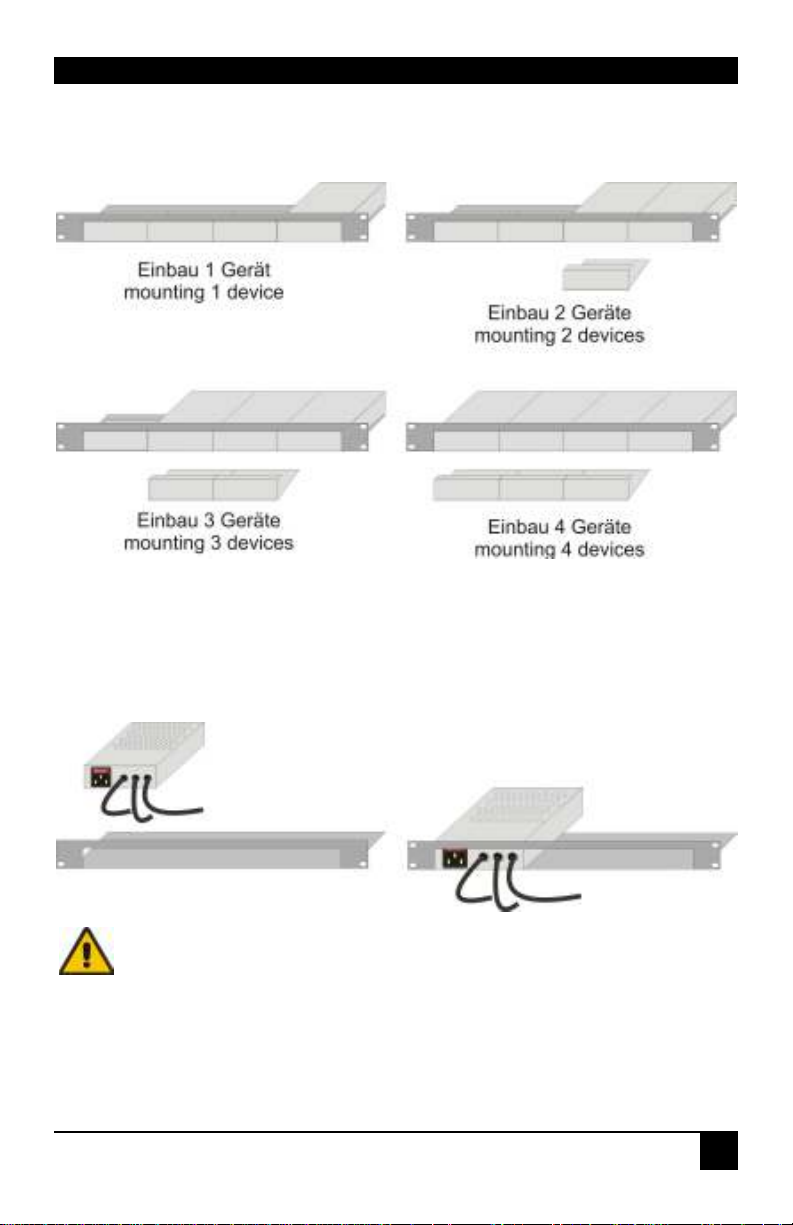

Appendix A: Example Applications 40

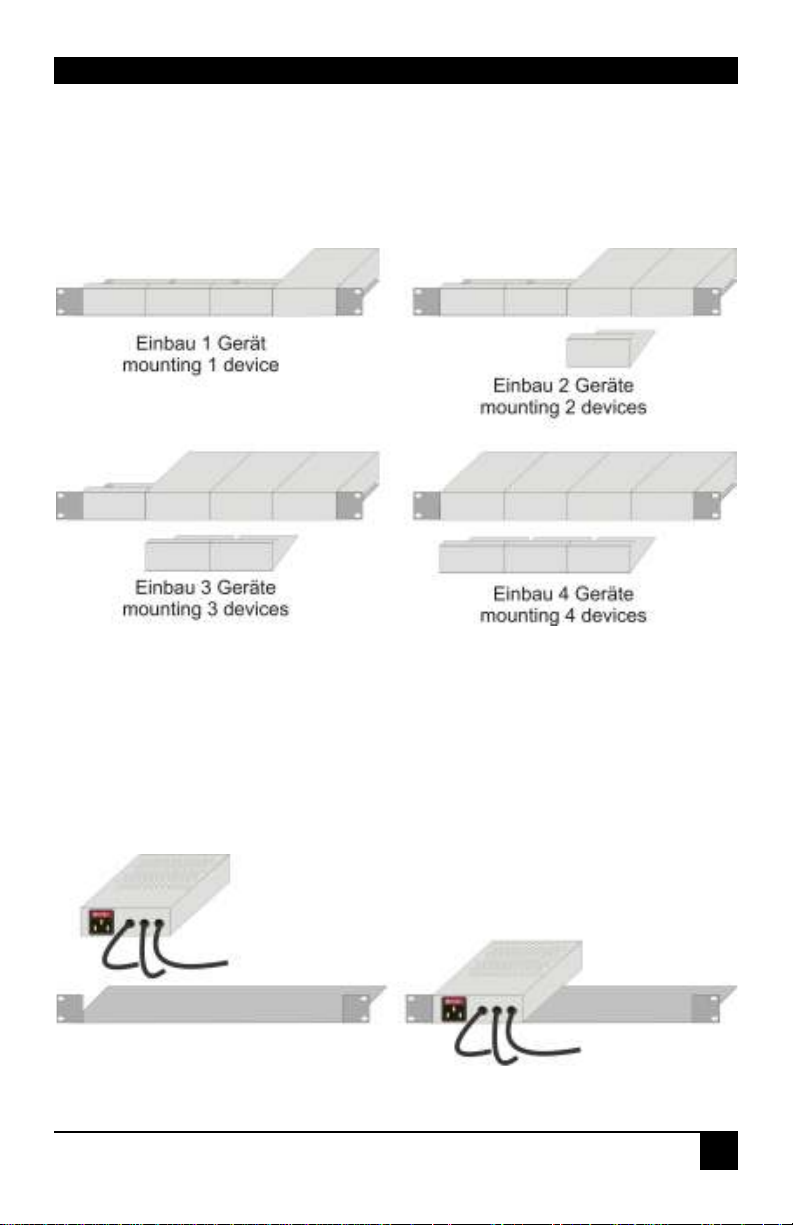

Appendix B: Rack Mount Options 42
Appendix C: Devices w/ serial/AUDIO Option 46
Appendix D: Calling Technical Support 48
Appendix E: List of supported USB devices 49
Appendix F: Specifications 50
Appendix G: Connectors 53

7

DVXI/ET-XX KVM-EXTENDER

Install system

Done

illuminated?

1. Quick Setup

This section briefly describes how to install your DVXi/ET KVM extender system. Unless
you are an experienced user, we recommend that you follow the full procedures described in
the rest of this manual.

1. Connect Remote unit to KVM.

2. Connect Local unit to CPU or switch.

3. Connect Local and Remote units with matching interconnection cable
(CATx or Fiber).

4. Power up the system.

Power LED

illuminated?

YES

Link LED

illuminated?

YES

Video OK

LED

YES

NO

Check p.s.u.’s and connection
to power outlet

NO

Check the CATx/Fiber cable,
and CATx/Fiber connectors

NO

Check settings of graphic card
or boot CPU

8

OVERVIEW

2. Overview

2.1 Introduction

A KVM Extender is used, to extend the distance between a CPU and his Keyboard / Monitor
/ Mouse considerably. In addition they are irrecoverable in installations in electromagnetic
hazardous environments (EMI). Normal Keyboard-/ Monitor-/ Mouse extender cables (and
Extender using traditional cables) cannot go so far and EMI interferences may reduce the
maximum distance and/or reliability. Using a DVXi/ET Extender system, these limitations
are past. Remain your CPU in a secure rack cabinet or data centre while accessing from a
140m (CATx) up to 10.000m (Singlemode) remotely located place.

A basic KVM extension system comprises a Local unit and a Remote unit. The Local unit
connects directly to the CPU (or a KVM switch system) using the supplied cable(s). The user
console (keyboard, mouse and monitor) attaches to the Remote unit. The Remote and Local
units communicate video and data information along the interconnecting cable. Local units
offer dual access, allowing the connection of a second user console close to the computer.

2.2 Glossary

The following terms are used in this guide:

CATx
Fiber
Singlemode
Multimode

KVM
Console
Dual Access
Singlehead

Dualhead

DVI

PSU
HID

Any Category 5, 5e, 6 or higher cable, solid wires type AWG24.
Singlemode or Multimode fiber cable.
9µ Singlemode-fiber cable
62,5µ Multimode- or

50µ Multimode-fiber cable
Keyboard, Video and Mouse.
Keyboard, Mouse and Monitor
A system allowing connection of Local and Remote user consoles.

An extender system that supports one monitor + Keyboard/Mouse

An extender system that supports two monitors + Keyboard/Mouse

Digital Video standard, installed by Digital Display Working Group
(www.ddwg.org) R, G, B, CLOCK in a data stream with up to
3x 1,6 Gbit/sec. Signals are TMDS Level.

The desktop power supply connected to the Local/Remote unit.
Human Interface Devices are units, which are used for human access

to the CPU. They are a USB-device class of its own (e.g. Memory
Devices etc.). Besides of keyboard and mouse also touchscreen, light
pen, fingerprint sensor, graphic tablets etc. are HID devices.

9

DVXI/ET-XX KVM-EXTENDER

CPU with DVI

-

D

DVXi/ET KVM

-

Optional

2. Monitor

Optional

2. Monitor

2.3 Example of a DVXi/ET KVM-Extender System

Graphic card

Local Console

Remote Console

DVXi/ET – KVM Extender system (example)

Extender system

10

OVERVIEW

2.4 Features

All members of the DVXi/ET - DVI KVM Extender Series offer the following features:

• Support for DVI-D Graphic cards (all devices)

• Support for PS2-Keyboard and PS2-Mouse (K46x-1W, K46x-SA, K46x-2W and K46x-

DA)

• Support for USB-Keyboard and USB-Mouse (K46x-1U, K46x-SU, K46x-2U and K46x-

DU)

• Support for two monitors per system (K46x-2W, K46x-2U, K46x-DA and K46x-DU)

Devices with USB- connectors support ONLY Keyboard and Mouse. It’s
possible, that other HID devices (Human Interface Device) like touch­screens, graphics tablets, barcode readers or similar are supported – but

there is no guarantee for this! The DVI-D CATx KVM-Extender is NOT
suitable for use with other USB devices like Scanner, WEB- Cams, data
sticks etc.

The device never supports more than two devices – Keyboard and Mouse
or Keyboard and Touchscreen, etc. but not e.g. Keyboard, Mouse and
Touchscreen simultaneously. A Hub is allowed but does not raise the
number of supported devices

• Maximum resolution: DVI-D: 1920x1200@60Hz over all allowed distances

all lower resolutions with refresh rates of at least 75Hz

• Supporting 16 Bit/24 Bit auto switching or fixed 24 Bit color depth (user selectable)

• Optional: On Single head devices, transparent serial port enables any serial device to be

extended (up to 19.2K Baud). The serial port may be used to extend one device
(requiring handshaking lines) or up to three simple serial devices (no handshaking).
Dualhead Units support Tx/Rx only (XON/XOFF)

• Optional support of a bidirectional audio interface.

• Status indicator LEDs on each device.

• Small footprint chassis.

• Rack mount options available.

• CPU cables + Adapters included.

11

DVXI/ET-XX KVM-EXTENDER

2.5 Product Range

DVXi/ET – Extender (CATx Cables)

K461-1W DVXi/ET-PC KVM-Extender 1x DVI, PS2-Keyboard,

PS2-Mouse (Singlehead)

K461-2W DVXi/ET-PC2 KVM-Extender 2x DVI, PS2-Keyboard,

PS2-Mouse s (Dualhead)

K461-1U DVXi/ET-UC KVM-Extender 1x DVI, USB-Keyboard,

USB-Mouse (Singlehead)

K461-2U DVXi/ET-UC2 KVM-Extender 2x DVI, USB-Keyboard,

USB-Mouse (Dualhead)

K461-SA DVXi/ET-PCA KVM-Extender 1x DVI, PS2-Keyboard,

PS2-Mouse (Single Head) + Audio/serial

K461-DA DVXi/ET-PC2A KVM-Extender 2x DVI, PS2-Keyboard,

PS2-Mouse (Dual Head) + Audio/serial

K461-SU DVXi/ET-UCA KVM-Extender 1x DVI, USB-Keyboard,

USB-Mouse (Single Head) + Audio/serial

K461-DU DVXi/ET-UC2A KVM-Extender 2x DVI, USB-Keyboard,

USB-Mouse (Dual Head) + Audio/serial

DVXi/ET – Extender Multimode Cables

K462-1W DVXi/EM-PC KVM-Extender 1x DVI, PS2-Keyboard,

PS2-Mouse (Singlehead)

K462-2W DVXi/EM-PC2 KVM-Extender 2x DVI, PS2-Keyboard,

PS2-Mouse s (Dualhead)

K462-1U DVXi/EM-UC KVM-Extender 1x DVI, USB-Keyboard,

USB-Mouse (Singlehead)

K462-2U DVXi/EM-UC2 KVM-Extender 2x DVI, USB-Keyboard,

USB-Mouse (Dualhead)

K462-SA DVXi/EM-PCA KVM-Extender 1x DVI, PS2-Keyboard,

PS2-Mouse (Single Head) + Audio/serial

K462-DA DVXi/EM-PC2A KVM-Extender 2x DVI, PS2-Keyboard,

PS2-Mouse (Dual Head) + Audio/serial

K462-SU DVXi/EM-UCA KVM-Extender 1x DVI, USB-Keyboard,

USB-Mouse (Single Head) + Audio/serial

K462-DU DVXi/EM-UC2A KVM-Extender 2x DVI, USB-Keyboard,

USB-Mouse (Dual Head) + Audio/serial

12

OVERVIEW

DVXi/ET – Extender (Singlemode Cables)

K463-1W DVXi/ES-PC KVM-Extender 1x DVI, PS2-Keyboard,

PS2-Mouse (Singlehead)

K463-2W DVXi/ES-PC2 KVM-Extender 2x DVI, PS2-Keyboard,

PS2-Mouse s (Dualhead)

K463-1U DVXi/ES-UC KVM-Extender 1x DVI, USB-Keyboard,

USB-Mouse (Singlehead)

K463-2U DVXi/ES-UC2 KVM-Extender 2x DVI, USB-Keyboard,

USB-Mouse (Dualhead)

K463-SA DVXi/ES-PCA KVM-Extender 1x DVI, PS2-Keyboard,

PS2-Mouse (Single Head) + Audio/serial

K463-DA DVXi/ES-PC2A KVM-Extender 2x DVI, PS2-Keyboard,

PS2-Mouse (Dual Head) + Audio/serial

K463-SU DVXi/ES-UCA KVM-Extender 1x DVI, USB-Keyboard,

USB-Mouse (Single Head) + Audio/serial

K463-DU DVXi/ES-UC2A KVM-Extender 2x DVI, USB-Keyboard,

USB-Mouse (Dual Head) + Audio/serial

Upgrade Kits

455-4G 19”/1HE Rackmount- Kit to mount up to 4 Singlehead

devices

455-8G 19”/1HE Rackmount- Kit to mount up to 4 Dualhead

devices

455-PS 19“ mountable power supply for up to three DVXI devices.

455-1K Mounting plate to mount by screws

455-2K Mounting plate to mount by snap on

Acessories

K469-DV DVI-D to VGA converter, to attach the local output to a

traditional VGA-KVM-Switch

K470-CW CWDM MUX/DEMUX to send up to 4 DVXi data links

across a single pair of Singlemode fibers

K471-CT CATx Repeater to double the total allowed distance to

280m (Also available for Multi-/Singlemode)

K471-CM CATx/Multimode Cross Repeater to convert from CATx to

Multimode or back

K471-CS CATx/Multimode Cross Repeater CATx to Singlemode …

13

DVXI/ET-XX KVM-EXTENDER

2.6 Compatibility

Interface Compatibility

• Digital Video (DVI-D): Digital Video standard, installed by Digital Display Working

Group (www.ddwg.org) R, G, B, CLOCK in a data stream with up to
3x1,6 Gbit/sec. Signals are TMDS Level.

• PS/2 Keyboard: Compatible with all standard keyboards. Certain keyboards with

enhanced features may also be supported with custom firmware.

• PS/2 Mouse: Compatible with all standard 2-button, 3-button and wheel mice.

• USB Keyboard: Compatible with all standard keyboards. Certain keyboards with

enhanced features may also be supported with custom firmware. Keyboards with built-in
hub are also supported – but there are never more than two HID devices supported.

• USB Mouse: Compatible with all standard 2-button, 3-button and wheel mice.

Devices with USB- connectors support ONLY Keyboard and Mouse. It’s
possible, that other HID devices (Human Interface Device) like touch­screens, graphics tablets, barcode readers or similar are supported – but

there is no guarantee for this! The DVI-D CATx KVM-Extender is NOT
suitable for use with other USB devices like Scanner, WEB- Cams, data
sticks etc.

The device never supports more than two devices – Keyboard and Mouse
or Keyboard and Touchscreen, etc. but not e.g. Keyboard, Mouse and
Touchscreen simultaneously. A Hub is allowed but does not raise the
number of supported devices

14

OVERVIEW

2.7 How to Use This Guide

This guide describes the installation and configuration of the DVXi/ET – Extender Series.
Although the connection and operation of the system is relatively straightforward, you should
consider the following before getting started:

Connection & Compatibility

If you have purchased an Extender Kit, this will contain all the cables required to connect the
Local unit to your PC or KVM switch. Please see also: Package Contents (page 16)

Devices with PS2 connectors are NOT compatible to devices with USB connectors.
For information about connection and installation, see Installation, page 16.

DDC Information

Normally it is not necessary to make any adjustments to the DVXi- Extender. However, in
some circumstances, it may be necessary to redefine the source of DDC Information for the
CPU. By default, the DVXi/ET KVM-Extender uses its own internal DDC table. If this
setting does not satisfy your requirements, the DDC table can either be switched to the locally
attached screen or could be downloaded from remotely located screen and stored in the
internal DDC table.

To modify the DDC-Setup, see Service Setup (page 32).

Selecting the moment of switching to the next frame

The transmission of screen data in not synchronous to the screen change of the graphic card.
Normally, the transmission is terminated during displaying a frame on the screen. If the
device switches to the new frame during the displaying period of the old frame (somewhere
on the screen), it’s possible, that you can see horizontal screen breaks in the moment of
switching (default). On the other hand the device must idle, until the actual frame is displayed
completely (until VSYNC) -> the number of frames per second transmitted sinks.

To modify the switching behaviour, see Service Setup (page 32).

Selection of Color reduction for transfer acceleration

You can select, whether always 24 Bit colors (=full color depth) are transmitted or whether
the compression algorithm automatically switches between 16 and 24 Bit colors to accelerate
the data transfer (default). Normally the difference between 24 Bit and 16 Bit is not
recognizable but under some special circumstances e.g. in photo processing installations there
might be disturbing color abberations. However, the automatic color switching enhances the
count of frames, transmitted per second, fixed 24 Bit color depth gives smooth color grades
under all circumstances. Please select to you choice the better mode.

To modify the color depth, see Service Setup (page 32).

15

DVXI/ET-XX KVM-EXTENDER

3. Installation

For first-time users, we recommend that you carry out a test placement, confined to a single
room, before commencing full installation. This will allow you to identify and solve any
cabling problems, and experiment with the KVM extender system more conveniently.

3.1 Package Contents

You should receive the following items in your extender package (all types):

• DVXi/ET KVM-Extender- pair (Local Unit + Remote Unit)

• 2x 5V DC universal power supply for the DVXi/ET - Extender

• 2x German type power cord

• User manual (Quick Setup)

K461-1W, K461-SA, K461-2W and K461-DA (additionally):

• KVM CPU cable set (1.8m) with one side: PS/2 (6-pin mini-DIN male) keyboard and

mouse connector and DVI-D video (DVI-D dual link male) connector – other side: DVI­D video (DVI-D dual link male) connector

• PS2-Keyboard-/ Mouse adapter to connect K/M to the Local Unit (keyboard can be

plugged in directly, without using an adapter)

16

INSTALLATION

K461-1W, K461-SU, K461-2W and K461-DU (additionally):

• DVI-D (1,8m) video cable (DVI-D dual link male-to-male)

• USB (1,8m) cable (USB type A to type B)

K461-2W, K461-DA, K461-2U and K461-DU (additionally):

• DVI-D (1,8m) video cable (DVI-D dual link male-to-male)

K461-SA and K461-SU (additionally):

• Serial link cable (1.8m) with one side DSUB9pin male connector – other side

DSUB9pin female connector – 1:1

• 2x audio cable (1.8m, 3.5mm stereo plugs)

K461-DA and K461-DU (additionally):

• 1x Serial link/ audio ZIP-type cable (1.8m) with one side DSUB9pin female connector +

2x 3.5mm stereo plugs – other side miniDIN8pin male connector

If anything is missing, please contact Technical Support (see Appendix F – Calling
Technical Support).

17

DVXI/ET-XX KVM-EXTENDER

3.2 Interconnection Cable Requirements

To connect the Local and Remote units you will need:

• DVI, PS2-Keyboard, and PS2-Mouse: Connect the supplied KVM CPU cable set to

your CPU (KVM - Switch, etc.). Please ensure that the connection is tension-free!
Devices K461-1W, K461-2W, K461-SA and K461-DA

• DVI, USB-Keyboard, USB-Mouse: Connect the supplied DVI-D cable (DVI-D to

DVI-D) and the USB-cable (USB-A to USB-B) to your CPU. Please ensure that the
connection is tension-free! Devices K461-1U, K461-2U, K461-SU and K461-DU

• DVI: Connect the supplied DVI CPU cable set to your CPU (KVM - Switch, etc.).

Please ensure that the connection is tension-free! Devices K461-2W, K461-2U, K461­DA and K461-DU

• serial/audio: Connect the supplied serial/audio cable set to your CPU (8pin miniDIN

male to serial DB9-male/female and 2c 3.5mm audio).

• Serial: Connect the supplied serial cable to your CPU.

• Audio: Connect the supplied audio cable to your CPU.

• CATx Cable: Recommended cable: S/UTP (Cat5) according EIA/TIA 56A, TSB 36 or

Digital STP 17-03170. Four pairs AWG 24. connection according EIA/TIA 568A
(10BaseT). Use of cables from a higher category (Cat5e, Cat6, Cat7) is possible.

The use of unshielded CATx Cable is possible, because of the higher electromagnetic
noise/sensitivity the device class may not be reached.

18

The use of flexible Cables (Patch cable) Type AWG26/8 is possible.
Because of the higher loss of the stranded cables, the maximum distance is
reduced to app. half the value of solid cables.

A point to point connection is required. Having one or more patch panels in
the line is possible and allowed. Not allowed is a connection from the CATx
link interface (RJ45) to any other products, especially telecommunications

or network equipment.

INSTALLATION

• Fiber Cable: Two strands of fiber are required for singlehead devices, four strands for

Dualhead devices.

Please note, that the allowed distance will depend on device type AND on
used fiber type.

• Recommended cables:

K462-xx: Multimode type 50/125µ allowed distance app. 400m (1,300ft)
K462-xx: Multimode type 62.5/125µ allowed distance app. 200m (650ft)
K463-xx: Singlemode type 9/125µ allowed distance app. 10km (32,750ft)

A point to point connection is required. Having one or more patch panels
in the line is possible and allowed. Not allowed is a connection from the
Fiber link interface (LC) to any other products, especially

telecommunications or network equipment.

Our experiences show, that Singlemode devices regularly work well on
Multimode Fibers where vice versa it will never do. In addition we found,

that Singlemode devices on Multimode fibers may extend the allowed
distance on Multimode fibers to twice the regular length. Anyway this
cannot be guaranteed and must be evaluated by the end-user at his own
expense.

• Power Supply: Connect the supplied 5V/DC power supplies to the Plug terminal on the

rear of both local and remote units.

19

DVXI/ET-XX KVM-EXTENDER

3.3 System Setup

To install your DVXi/ET – Extender system:

1. Switch off all devices.

2. Connect your keyboard, monitor(s) and mouse to the Remote unit (depending on device

type). Please ensure, to not swap Mouse- and Keyboard connector. The (PS2-) Keyboard
connector is purple and the (PS2-) Mouse connector is green.

3. Using the supplied CPU KVM cable(s), connect the keyboard, monitor(s) and mouse

connectors on the computer (or KVM switch). Please ensure, to not swap Mouse- and
Keyboard connector. The (PS2-) Keyboard connector is purple and the (PS2-) Mouse
connector is green.

4. Connect the interconnect cable to the INTERCONNECT socket(s)

5. Connect the 5V power supply to power the unit.

Only use the power supply originally supplied with this
equipment or a manufacturer-approved replacement.

6. For a dual access system, connect the monitor for the Local console to the appropriate

port on the Local unit. The port may also be used to feed into a KVM switch.

To the local (PS2-) Keyboard-/ Mouse port you can attach a Keyboard directly or
Mouse/ Keyboard together, using the delivered adapter.

To attach a local (USB-) Keyboard/Mouse, please use additional USB port(s) at your
CPU or use a USB Hub in-between CPU and local unit’s USB connector.

7. Power up the system.

20

Connect to CPU:

DVI, keyboard, mouse

Local DVI-Monitor

port Connect to Local

console monitor

DVXi/ET KVM-Extender Type K461-1W Local Unit

Remote DVI-Monitor

port– connect to
Remote console

monitor

Remote keyboard

port

INSTALLATION

Local keyboard/ mouse port

Solely Keyboard may be

plugged in directly,

keyboard/mouse through

equipped adapter

Remote mouse port

DVXi/ET KVM-Extender Type K461-1W Remote Unit

Connect to CPU:
DVI graphic card

Local DVI-Monitor

port Connect to Local

console monitor

Connect to CPU:

USB

DVXi/ET KVM-Extender Type K461-1U Local Unit

21

DVXI/ET-XX KVM-EXTENDER

Remote DVI-Monitor port– connect

to Remote console monitor

Remote keyboard/mouse

port

DVXi/ET KVM-Extender Type K461-1U Remote Unit

Connect to 5V Power

supply

DVXi/ET KVM-Extender Type K461-1W and K461-1U Local/ Remote Unit

INTERCONNECT – carries video and
data signals – connect to Local/
remote unit with CATx cable

Connect to 5V Power

supply

DVXi/ET KVM-Extender Type

K462-1W/-1U and K463-1W/-1U Local/ Remote Unit

22

INTERCONNECT – carries video and
data signals – connect to Local/
remote unit with Fiber cable

console monitor

To CPU: DVI

Audio In

INSTALLATION

To CPU: Serial

Local DVI-Monitor

port Connect to Local

console monitor

Local keyboard/mouse port; Solely Keyboard may be plugged

in directly, keyboard/mouse through equipped adapter

DVXi/ET KVM-Extender Type K461-SA Local Unit

Remote DVI-Monitor

port– connect to Remote

Audio Out

Remote keyboard

port

Serial Out

Remote mouse port

DVXi/ET KVM-Extender Type K461-SA Remote Unit

23

DVXI/ET-XX KVM-EXTENDER

To CPU: DVI

Audio In

To CPU: Serial

Local DVI-Monitor

port Connect to Local

console monitor

DVXi/ET KVM-Extender Type K461-SU Local Unit

Remote DVI-Monitor port–

connect to Remote console

monitor

Audio Out

Serial Out

Remote keyboard/mouse

DVXi/ET KVM-Extender Typ K461-SU Remote Unit

To CPU:

USB

port

24

INSTALLATION

Fiber-Plug type: LC

Connect to 5V Power

supply

INTERCONNECT – carries

video and data signals –
connect to Local/ remote

unit with CATx cable

DVXi/ET KVM-Extender Type K461-SA and K461-SU Local/ Remote Unit

Connect to 5V Power

supply

INTERCONNECT – carries video and

data signals – connect to Local/

remote unit with Fiber cable

DVXi/ET KVM-Extender Type

K462-SA/-SU and K463-SA/-SU Local/ Remote Unit

25

DVXI/ET-XX KVM-EXTENDER

Connect to CPU:

2nd DVI-Graphic card

Connect to CPU:

1st DVI-Graphic card,

keyboard, mouse

DVXi/ET KVM-Extender Type K461-2W Local Unit

2nd remote DVI-Monitor
port Connect to Remote
console 2nd monitor

2nd local DVI-Monitor port Connect to

Local console 2nd monitor

Local DVI-Monitor

port Connect to Local

console monitor

Local keyboard/ mouse port

Solely Keyboard may be

keyboard/mouse through

plugged in directly,

equipped adapter

1st remote DVI­Monitor port– connect
to Remote console 1st

monitor

Remote keyboard

port

DVXi/ET KVM-Extender Type K461-2W Remote Unit

26

Remote mouse port

console 2

monitor

Connect to CPU:

2nd DVI-Graphic card

2nd local DVI-Monitor

port Connect to Local

nd

Connect to CPU:

1st DVI-Graphic card

local 1st DVI-Monitor

port Connect to Local

console 1st monitor

DVXi/ET KVM-Extender Type K461-2U Local Unit

2nd remote DVI-Monitor
port Connect to Remote
console 2nd monitor

INSTALLATION

Connect to CPU:

USB

1st remote DVI­Monitor port– connect
to Remote console 1

monitor

st

Remote keyboard/ mouse

DVXi/ET KVM-Extender Type K461-2U Remote Unit

27

port

DVXI/ET-XX KVM-EXTENDER

monitor

console 2

monitor

Connect to CPU:

2nd DVI-Graphic card

2nd local DVI-Monitor

port Connect to Local

nd

Connect to CPU:

serial/ audio ports

Connect to CPU: 1st

DVI-Graphic card

Local 1st DVI-Monitor

port Connect to Local

Local keyboard/ mouse port; Solely

Keyboard may be plugged in directly,

keyboard/mouse through equipped

adapter

DVXi/ET KVM-Extender Type K461-DA Local Unit

2nd remote DVI-

Monitor port Connect

to Remote console

Audio Out

Serial Out

1st remote DVI­Monitor port– connect
to Remote console 1st

DVXi/ET KVM-Extender Type K461-DA Remote Unit

Remote keyboard

port

28

Remote mouse port

monitor

console 2

monitor

Connect to CPU:

2nd DVI-Graphic card

2nd local DVI-Monitor

port Connect to Local

nd

Connect to CPU: 1st

DVI-Graphic card

Local 1st DVI-Monitor

port Connect to Local

console 1st monitor

DVXi/ET KVM-Extender Type K461-DU Local Unit

Connect to CPU:

DVI-cable set (2nd

DVI-Graphic card,

Audio Out

audio, serial)

Serial Out

INSTALLATION

Connect to CPU:

serial/ audio ports

Connect to CPU:

USB

1st remote DVI­Monitor port– connect
to Remote console 1st

Remote keyboard/ mouse

port

DVXi/ET KVM-Extender Type K461-DU Remote Unit

29

DVXI/ET-XX KVM-EXTENDER

Connect to 5V Power

supply

DVXi/ET KVM-Extender Type K461-2W, K461-2U K461-DA and K461-DU
Local/ Remote Unit

INTERCONNECT – carries 2nd video –
connect to Local/Remote unit with
CATx cable

INTERCONNECT – carries 1st video
and data signals – connect to Local/
Remote unit with CATx cable

INTERCONNECT – carries 2nd video –

connect to Local/Remote unit with Fiber cable

Fiber-Plug type: LC

Connect to 5V Power

supply

INTERCONNECT – carries 1st video
and data signals – connect to Local/

Remote unit with Fiber cable

Fiber-Plug type: LC

DVXi/ET KVM-Extender Type K462-2W/-2U, K463-2W/2U K462-DA/-DU

and K463-DA/-DU Local/ Remote Unit

30

INSTALLATION

3.4 Diagnostic LEDs

Each DVXi/ET KVM-Extender is fitted with four indicator LEDs: Power, Video OK, Data
Error, Link Status: The Power LEDs are next to the Power socket.

The location of the LEDs is shown below:

Diagnostic LED

Power

Diagnostic LED

Video OK

Diagnostic LED

Data Error

Diagnostic LED

Link Status

Diagnostic - LEDs at DVXi/ET - Extender

LED Appearance Diagnostics

Power LED
(Red LED)

Video Okay
(Green LED)

Link Status
(Green LED)

Data Error
(Green LED)

Off
On

Off
On

blinking
On

Off
blinking / On

Device not ready
Device ready

No or invalid video signal detected
Device ready

No INTERCONNECT connection
Device ready

Device ready
Errors through data transmission over
INTERCONNCT Cable (Cable too long, too high
attenuation or too much EMI interferences )

31

DVXI/ET-XX KVM-EXTENDER

4. Service Setup

For most applications, you shouldn't need not to make any adjustments to set up your
DVXi/ET KVM -Extender. Under some special circumstances it could be necessary to setup
configuration specials.

For some applications, you may need to open the Local Unit and/or the Remote Unit.
Unscrew the Philips-type screws at both sides at the bottom of the device. Unscrew the UNC
type screws at both sides of the monitor connectors. Carefully displace the lower and upper
shells of the case.

Fastening
screw on the
bottom of the
device

The diagnostic LED ‘Video OK’ is located at the local unit between the both DVI connectors

The diagnostic LED ‘Video OK’ is located near to the CATx- /fiber connectors

Fastening
screw on the
bottom of the
device

Diagnostic LED

Video OK

32

Diagnostic LED

Link Status

(CATx)

Diagnostic LED

Link Status

(Fiber)

SERVICE SETUP

4.1 Setup at the Local Unit

After unscrewing and opening the upper shell, please place the device in this orientation: with
the CATx/fiber connectors to the right and the electrical connectors to the left.

The main PCB then will look like this:

Use the diagram to locate jumpers.

DDC

You can select, whether the DDC is taken from internal DDC table or from local monitor or
the DDC information could be downloaded from remote monitor and stored into internal
table.

DDC JP1 JP2

1 Loading the DDC Information from the

Remote Monitor into the internal DDC
Table (see also below) (default)

2 From internal Table

3 From local Monitor

4 Reset DDC Table to factory values

33

DVXI/ET-XX KVM-EXTENDER

Loading the DDC Information from the Remote Monitor into the
internal DDC Table

To load the DDC Information from the Remote Monitor into the internal DDC Table,
please proceed the following steps:

• Power up the CPU, the Local Unit, the Remote (cables to the CPU connected) and the

Monitor

• Pull the Monitor Cable(s) from the Remote Unit (Dualhead devices: BOTH Monitors!)

• Switch ON the Monitor(s) (if switched OFF, Dualhead devices: BOTH Monitors!)

• Plug the Video-Cable of the Remote Monitor(s) into the remote unit (Remote and Local

Unit powered! - Dualhead devices: BOTH Monitors!)

• The DDC Information of the Remote Monitor(s) is read automatically, transferred to the

Local Unit and stored into the DDC-EPROM

• After a successful programming of the DDC EPROM, the ‚Video-OK’ LED at the

Local Unit is blinking rapidly for approx. 1 second

• Done

Selection of Color depth

You can select, whether 16/24Bit AUTOSELECT colors (=64K/16M colors) are transmitted
(default) or 24Bit colors (=16M colors). AUTOSELECT means, that as far as the screen
content allows high data compression, 24Bits are transmitted. When the video data do not
allow to reduce data enough, the colors are automatically reduced to 16Bit. This is auto
selected in each line of the screen picture at any time. This mode makes the best compromise
between speed and color depth.

Please select 24Bit, if you want to have under all circumstances highest colours (but perhaps
with reduced frame rates).

Color depth JP3

16Bit/24Bit AUTOSELECT, color depth depending on
actual screen content (default)

24Bit

34

SERVICE SETUP

4.2 Setup at the Remote Unit

After unscrewing and opening the upper shell, please place the device in this orientation: with
the CATx connectors to the right and the electrical connectors to the left.

The main PCB then will look like this:

Use the diagram to locate jumpers.

JP1, JP2, JP3

Selecting the moment of switching to the next frame

The transmission of screen data in not synchronous to the screen change of the graphic card.
Normally, the transmission is terminated during displaying a frame on the screen. If the
device switches to the new frame during the displaying period of the old frame (somewhere
on the screen), it’s possible, that you can see horizontal screen breaks in the moment of
switching. On the other hand the device must idle, until the actual frame is displayed
completely (until VSYNC) -> the number of frames per second transmitted sinks.

Moment to switch JP3 behaviour

Switching during HSYNC
(default)

Switching during VSYNC

Higher framerate but (possibly) horizontal breaks
detectable

Lower framerate no horizontal breaks detectable but
(possibly) stepping pictures

35

DVXI/ET-XX KVM-EXTENDER

5. Troubleshooting

Monitor

There isn’t a picture.

Check the power supply connection at the local and remote unit. Is the Power (Red
LED) at the Local unit illuminated (see page 31)? If not, the internal power-supply
may be damaged or there may be an internal error.

Check that the INTERCONNECT cable is connected at the Local Unit and the
Remote Unit. Is the Link Status LED illuminated (see page 31)? If not, there may be
a problem with the Interconnection cable:

Are there Errors through data transmission over INTERCONNECT Cable (Cable

too long, too high attenuation or too much EMI interference )? Is the Data Error
LED illuminated or blinking (see page 31)? If yes, check cable length and
environment.

Video Okay LED is dark: CPU does not provide a video signal – Check settings of
the graphic card. Try out, connecting a monitor to the local output, to see, whether
there is a signal or not.

‘Stepping’ pictures on displaying movies

On high resolutions, the amount of data transmitted each second expires the
capability of the data link. Therefore the data have to be reduced before
transmitting. This is done in a first step by a so called RLE (=Run Length
Encoding) algorithm. If this (loss less) compression does not reach the required
amount, frames are dropped: The frame actually transmitted is transmitted
completely even if the graphic card generates a new frame. This new frame is
discarded. Because of this behaviour, the count of frames per second (fps) may be
reduced to a value, where ‘stepping’ pictures are seen.

How to solve the problem: Please use a lower resolution, which is slightly higher
than the resolution of the recorded movie. Please see, that most (actual) movies do
have only a low resolution of approx. 640x480 (NTSC) or 640x512 (PAL) or even
320x256 (VHS). If the monitor provides a higher resolution, it may provide the
scaling of the pictures. The picture quality is the same, if the monitor or the CPU
does the scaling.

How to solve the problem: Set the color depth to 16/24Bit AUTOSELECT. On
moving pictures, the human eye is not able, to see differences between so many
colors. A reduction to 16Bit reduces the amount of data without (visible) effects.

36

TROUBLESHOOTING

PS2-Keyboard

The PC boots fine with no error messages but the keyboard does not work at all

Wrong cable plugged in, keyboard and mouse cables reversed.
Try a different model of keyboard. If the new keyboard works then original one

may be incompatible
Check that the Interconnection cable is connected at the Local Unit and the Remote

Unit. Is the Link Status LED illuminated (see page 31)?
The other console is active. Claim control by any keyboard action or by pressing

left and right mouse buttons simultaneously.

PS2-Mouse

A mouse cursor appears on the screen, but the mouse does not work

Wrong cable plugged in, keyboard and mouse cables reversed.
Try a different model of mouse
You have connected the Local unit while the CPU was running. Therefore you have

connected first the keyboard cable and then the mouse cable. Disconnect the
keyboard cable and connect it again. Please reboot you CPU if the mouse is still not
running.

The other console is active. Claim control by any keyboard action or by pressing
left and right mouse buttons simultaneously.

The system does not detect a PS/2 mouse, or the application cannot find the mouse.

Wrong cable plugged in, keyboard and mouse cables reversed.
Ensure that the Local Unit is connected to the PC keyboard port to provide power.
You have plugged keyboard and mouse cable to the CPU ports while the CPU was

powered. There you first have plugged the Keyboard cable, then the Mouse cable.
Please unplug and re-plug the keyboard cable. If the mouse still does not work,
please reboot the CPU: The K/M sub electronics are powered by the CPU keyboard
port. If you first plug in the keyboard cable, the circuit tries to find a mouse port. If
it fails, it disables the mouse functionality.

37

DVXI/ET-XX KVM-EXTENDER

USB-Keyboard/USB-Mouse

Your USB-keyboard/USB-mouse does not work

Although we tried to design the devices as transparent as possible, we can’t ensure
that all devices are running. Please ask Technical Support for a list of tested
devices.

Your mouse is ‘stepping’ on your screen

On high resolutions, the amount of data transmitted each second expires the
capability of the data link. Therefore the data have to be reduced before
transmitting. This is done in a first step by a so called RLE (=Run Length
Encoding) algorithm. If this (loss less) compression does not reach the required
amount, frames are dropped: Because of this, ‘stepping’ mouse movements are
seen.

How to solve the problem: Please use a lower resolution or use a desktop
background which is better suitable for compression: Avoid photos for background
or horizontally graduated colors – better use monochrome backgrounds. They allow
higher compression -> higher frame rates.

Your mouse is moving like ‘hanging on a rubber band’

This problem derives from different single problems, which accumulate to a delay
between the true mouse movement and displaying the movement of the mouse
pointer on the screen. Depending to our measurements, a delay of approx. 100­150msec are recognized as disturbing.

The total delay comes from (time values are approx. values):

• 5 to 15msec for mouse movement and data transmission to CPU

38

• 50 to 70msec data processing time in the CPU until the changed data

reach the graphic card output connector

• 15 to 45mcec getting the graphic data into the local unit of the

extender system and transmitting to the remote unit (60 to 20fps)

• 10 to 100msec data processing time in the display until the data are

displayed on the screen (where 15msec normally are only reacht by
CRT tubes)

In total there are delay times between 85 and up to 230msec possible, where most
of this delay is NOT caused by the extender system (Extender based delay is 5 to
15msec data transfer to the CPU and 15 to 45msec frame transfer to the remote unit
– in total 20 to 60mesec. Depending to our experiences, even a step from 100msec
delay to 140msec (i.e. by inserting an extender system to a CPU-monitor link) may
cause visible effects.

Please note, that even a monitor directly connected to a CPU has a delay of 70 to
175msec. So (under special conditions) even the bare CPU/monitor link shows this
‘rubber band behaviour’. If you now insert an extender system, the problem may
occur and is (in false) dedicated to the extender system, where it only gives a small
part to the total problem

How to solve the problem: Use a display with a low delay time (NOTE: This is
NOT the reaction time indicated by the manufacturer. This reaction time is only the
time the display needs, to switch a black pixel to get white or vice versa, but not
how long it takes from receiving the data on the connector until they are displayed
on the screen.) Please use a lower resolution or use a desktop background which is
better suitable for compression: Avoid photos for background or horizontally
graduated colors – better use monochrome backgrounds. They allow higher
compression -> higher frame rates. If – and only if the link has frame dropping, a
reduction from 30fps to 60fps saves 17msec and from 20fps to 60fps saves 34msec.

USB-HID device

Your USB-HID device does not work

Although our interface supports HID devices, we can’t ensure that every connected
device is running. In case of a malfunction please contact our technical support.

Other USB-devices

Your USB- device does not work

You have connected a non-HID device. There are supported HID devices only. All

other devices are dismissed

TROUBLESHOOTING

39

DVXI/ET-XX KVM-EXTENDER

Appendix A: Example Applications

This section illustrates some specific applications using the DVXi/ET - Extenders:

• DVXi/ET KVM-Extender with optional, secondary screen.

DVXi/ET KVM-Extender with optional, secondary screen

40

APPENDIX A: EXAMPLE APPLICATIONS

• 4 CPU’s – local outputs managed through a KVM- Switch and a single console. Remote

Consoles up to 140m away.

DVXi/ET KVM-Extender – local Consoles through a KVM- Switch

41

DVXI/ET-XX KVM-EXTENDER

Appendix B: Rack Mount Options

DVXi KVM- Extender units can be mounted in a 19” rack using the mounting kit: DVXi­Rackmount Kit. Two different versions are available – one each for Singlehead and for
Dualhead devices.

Mounting Instruction Rackmount-Kit 455-4G

Using the Rackmount-Kit 455-4G, up to 4 devices of the device size 103x143x29mm
(Singlehead Devices) can be mounted into a 19“-Server Rack. The Rackmount Kit requires
1U Rackspace. Blindplates (in the list of parts delivered) allow to cover unused device
positions.

Rackmount-Kit 455-4G – List of parts delivered:

base plate

8 pieces spacer – M2,5x2

3 pieces blind plate

8 pieces M2,5x5 Philips type
countersunk screws

Mounting instruction:

• Align the holes on the base plate with the vacant screw holes on the base of the device.

• Fasten the base of the unit to the plate of the mounting kit

Only use the supplied, short screws, to prevent damages on
the PCB’s

• Close the remaining gaps with blanking plates.

42

APPENDIX B: RACK MOUNT OPTIONS

The Rackmount-Kit 455-4G allows, to mount a different count of devices (1…4 pieces):

In the mostleft position you can mount a rack mountable p.s.u. type 455-PS instead of a
regular device. This p.s.u. is capable to power up to three devices.

Please note:’

- Use the back moved mounting holes to fix the p.s.u.

- After mounting the p.s.u., the circuit break switch is not
longer easily accessable – it is covered by the cover strip.

43

DVXI/ET-XX KVM-EXTENDER

Mounting Instruction Rackmount-Kit 455-8G

Using the Rackmount-Kit 455-8G, up to 4 devices of the device size 103x143x42mm
(Dualhead Devices) can be mounted into a 19“-Server Rack. The Rackmount Kit requires 1U
Rackspace. Blindplates (in the list of parts delivered) allow to cover unused device positions.

Rackmount-Kit 455-8G – List of parts delivered:

base plate

8 pieces spacer – M2,5x2

3 pieces blind plate

8 pieces M2,5x5 Philips type
countersunk screws

Mounting instruction:

• Align the holes on the base plate with the vacant screw holes on the base of the device.

• Fasten the base of the unit to the plate of the mounting kit

Only use the supplied, short screws, to prevent damages on
the PCB’s

• Close the remaining gaps with blanking plates.

44

APPENDIX B: RACK MOUNT OPTIONS

The Rackmount-Kit 455-8G allows, to mount a different count of devices (1…4 pieces):

In the most left position you can mount a rack mountable p.s.u. type 455-PS instead of a
regular device. This p.s.u. is capable to power up to three devices.

45

DVXI/ET-XX KVM-EXTENDER

Appendix C: Devices w/ serial/AUDIO Option

The Audio/Serial Option consists of daughter boards which allow bi-directional stereo audio
and a full-duplex serial data link to be sent across the regular interconnection cable in
addition to keyboard, mouse and DVI video. • To set up your video, keyboard, mouse follow
the instructions in the user guide. • To set up the extender’s audio and serial link, please
follow all of the instructions detailed in this addendum. If you have any questions, contact
Technical Support.

Technical Data

Serial link:

Serial speed: Any up to a maximum of 19,200 Baud
Serial Data Format: Format Independent
Flow Control (Single head): Hardware Handshake: RxD, TxD, RTS, CTS, DTR,

DSR are sent across link

Flow Control (Dual head): XON/XOFF Software Handshake: only RxD and

TxD are sent across link

AUDIO link:

Description: Bi-directional stereo audio link
Transmission Method: Digitised virtually CD quality audio (16-bit,

38.4KHz)
Signal Levels: Line-Level (5 Volts Pk-Pk maximum)
Input Impedance: 47K
Local Unit Connectors: 2 x 3.5mm stereo jack socket (Line In & Line Out)
Remote Unit Connectors: 2 x 3.5mm stereo jack socket (Line/Mic In & Line

Out)

Microphone Support: A microphone may be connected to the Remote Unit.

A Pull-up resistor provides bias for condenser micro­phone. Optional microphone amplification to +17dB

Serial Interface - Set Up and Operation

No setting up or user adjustments are required. Please note that on the dual access model, the
serial link is always active Please bear in mind that the Remote Unit’s serial port is wired as
DTE (i.e. the same as that on a PC). To connect a serial printer (or other DTE rather than
DCE device) to the Remote Unit, you will need a Null-Modem (crossover) cable between the
Remote Unit and the printer. A Touch screen may be plugged directly into the Remote Unit.

Please note, that

interconnection (Tx/Rx/GND) only. All connected devices must
support Software Handshake (XON(XOFF)

Dualhead KVM Extender support a 3-wire-

46

APPENDIX C: DEVICES W/ SERIAL/AUDIO OPTION

Serial Interface – Handling Multiple Serial Devices – Singlehead
devices only!!!

The extender’s serial interface transmits/receives six signals (3 signals in each direction).
Normally four of these signals are used for hardware handshaking (in addition to TX & RX).
However, because each handshaking line can support signals up to 19,200 Baud it is possible
to configure the serial interface to handle up to three simple 2-wire (Tx/Rx only) serial links.
To do this you will need to construct a custom breakout cable. Please contact technical
support for further information. Select XON/XOFF software flow control on the printer and
PC.

Audio Interface - Set Up and Operation

The audio interface is line-level and is designed to take the output from a sound card (or other
line-level) source and be connected to a set of powered speakers at the other end of the link.
Stereo audio may be transmitted either way across the link (simultaneously). No set up is
required unless a microphone is connected to the remote unit. Connect up the extender as
follows:

• Take the line-level output from your sound card (green connector) and connect to

‘Line In’ on the extender.

• A set of powered speakers may be connected directly to ‘Line Out’ at the opposite

end of the link.

Audio Interface – Using a Microphone

A microphone may be plugged into the ‘Line In’ connector on the Remote Unit. There are
two ways of setting up a microphone:

• The Local Unit’s ‘Line Out’ connection should normally be wired to the

microphone input (Red) on your sound card. The sound card should then be set up
to provide additional amplification (+20dB). This is the preferred connection
method.

• Alternatively, the Remote Unit itself can provide microphone amplification. To set

this, open up the Remote Unit and locate the jumper labelled ‘MIC’ on the
daughterboard. Connect this jumper across the pins. The Local Unit’s ‘Line Out’

connection should then be wired to ‘Line In’ (Blue) on your sound card.
If your microphone is already amplified, follow the second method but DO NOT install the
amplification jumper in the Remote Unit.

47

DVXI/ET-XX KVM-EXTENDER

Appendix D: Calling Technical Support

If you determine that your DVXI/ET - DVI KVM Extender is malfunctioning, do not attempt
to alter or repair it. It contains no user-serviceable parts. Contact Technical Support at.

Before you do, make a record of the history of the problem. We will be able to provide more
efficient and accurate assistance if you have a complete description, including:

• The firmware-revision level printed on the bottom of the Extender (very important,

especially for keyboard and mouse problems); The DVXI/ET - DVI KVM extender’s
firmware revision level:

Version Number Format:
Board: xxLO/RE Myyy Pzzz Auuu Gvvvvvv
Transceiver: C/M/S xx Pyy Mzz
Keyboard/Mouse: P/U xx Vyyy

• The nature and duration of the problem.

• When the problem occurs.

• The components involved in the problem—that is, what type of computers, what type of

keyboard, brand of mouse, make and model of monitor, type and make of cable, etc.

• Any particular application that, when used, appears to create the problem or make it

worse.

• The results of any testing you’ve already done.
To solve some problems, it might be necessary to upgrade the Extender’s firmware. If this

turns out to be the case for your difficulty, our Technical Support technicians will arrange for
you to receive the new firmware and will tell you how to install it.

Shipping and Packaging

If you need to transport or ship your DVXI/ET - DVI KVM Extender:

• Package it carefully. We recommend that you use the original container.

• If you are shipping it for repair, please include the Unit’s external power supplies. If you

are returning it, please include everything you received with it. Before you ship the
Extender back to your dealer for repair or return, contact him to get a Return
Authorization (RA) number.

48

APPENDIX E: LIST OF SUPPORTED USB DEVICES

Appendix E: List of supported USB devices

Although the USB connection’s implementation allows all keyboards and Mice, we can not
guarantee that all available keyboards/mice are running.

The implementation is constructed for “HID” devices. HID is a device class enabling inputs
in a PC. Among others touch screen, graphic tablet, fingerprint sensor are HID devices.

Some devices install additional devices, e.g. to set parameters. Such devices are NOT
supported by our extenders. Please remark additionally that installing more than two devices
is not possible even if you use a USB hub.

The following devices are tested and have been found correct:

Keyboards

1

Mice

2

49

DVXI/ET-XX KVM-EXTENDER

Appendix F: Specifications

Stromversorgung

Voltage
Power required

Interface

(Depending on type of device)

Video source/Monitor
Keyboard
Mouse

RJ45

Audio Interface

Description
Transmission Method
Signal Levels
Input Impedance
Local Unit Connectors
Remote Unit Connectors
Microphone Support

90-240VAC-0.5A-47-63Hz/5VDC-2000 mA
Local Unit: max. 5V/750mA

Remote Unit: max. 5V/750mA

DVI-D up to 1920x1200@60Hz
PS2 or USB (depending on model)
PS2 or USB (depending on model) 2-/3-button and

wheel mouse
1000 MBit high speed transmission. Wiring according

to EIA/TIA 568B Gigabit Ethernet.

Bi-directional stereo audio link
Digitized virtually CD quality audio (16-bit, 38.4KHz)
Line-Level (5 Volts Pk-Pk maximum)
47KOhm
2 x 3.5mm stereo jack socket (Line In & Line Out)
2 x 3.5mm stereo jack socket (Line/Mic In & Line Out)
A microphone may be connected to the Remote Unit.

Pullup resistor provides bias for condenser microphone.
Option to set microphone amplification to +17dB.

50

Serial Interface

APPENDIX F: SPECIFICATIONS

Serial Speed
Serial Data Format
Flow Control

Singlehead Devices

Dualhead Devices

Up to a maximum of 19,200 Baud
Format Independent

RTS, CTS, DTR, DSR are sent across link
NO flow control (XON/XOFF)

Maximum Length of Interconnection Cable (CATx)

CATx Installation cable AWG24
CATx Patchcable AWG26/8

140m (400ft)
70m (200ft)

Type of Interconnection Cable (CATx)

CATx Installation cable AWG24

CATx Patchcable AWG26/7

S/UTP (Cat5) cable acc. EIA/TIA 56A, TSB 36 or
Digital STP 17-03170. Four pairs AWG 24. Wiring
acc. EIA/TIA 568A (1000BaseT).

S/UTP (Cat5) cable acc. EIA/TIA 56A, TSB 36 or
Digital STP 17-03170. Four pairs AWG 26/7. Wiring
acc. EIA/TIA 568A (1000BaseT).

Maximum Length of Interconnection Cable (Fiber - LC Connectors)

Singlemode 9 µm
Multimode 50µm
Multimode 62.5µm

10.000m (32.750ft)
400m (1.300ft)
200m (650ft)

51

DVXI/ET-XX KVM-EXTENDER

Size and Shipping Weight

DVXi/ET Singlehead

Shipping box

DVXi/ET Dual head and
Single head with serial/Audio

Shipping box

Environmental

Operating Temperature
Storage Temperature
Relative Humidity

103 x 143 x 29mm (4”x5.6”x1.1”) (2 devices)
Weight: 0,6kg (1.3lb) each

210x140x165mm (8.3”x5.5”x6.5”)
Weight: 1,6 kg (3.5lb)

103 x 143 x 42mm (4”x5.6”x1.7”) (2 Geräte)
Weight Local/Remote Unit: 0,6kg (1.3lb)

460x250x120mm (18.1”x9,8”x4,7”)
Weight: 1,6 kg (3.5lb)

41 to 113°F (5 to 45 °C)

-13 to 140°F (-25 to 60 °C)
max. 80% non-condensing

52

APPENDIX G: CONNECTORS

T.M.D.S data 2

T.M.D.S data 1

T.M.D.S data 0

T.M.D.S data 2+

T.M.D.S data 1+

T.M.D.S data

T.M.D.S data 2 GND

T.M.D.S data 1 GND

T.M.D.S data 0 GND

n.c.

n.c.

n.c.

n.c.

n.c.

n.c.

DDC Input (SCL)

+5V high impedance

T.M.D.S clock GND

DDC Output(SDA)

GND

T.M.D.S clock +

Internal use.

Hot Plug rec

T.M.D.S clock

Internal use.

Internal use.

n.c.

GND

Internal use.

1 8 C1 C2

17 24 C3 C4

C5

Appendix G: Connectors

DVXi/ET KVM-Extender Connector Pin outs

DVI-I female connector (Input/ Output connector for ALL devices besides of PS2
Single head local unit and PS2 Dual head local unit 1st Monitor )

Pin Signal Pin Signal Pin Signal

1
2
3
4
5
6
7
8

C1
C2

12
13

C5

- 9
10

11

14

15

16

20
21

23

C4

- 17
18

19

22

ognition 24

C3

-

0+

-

53

DVXI/ET-XX KVM-EXTENDER

T.M.D.S data 2

T.M.D.S data 1

T.M.D.S data 0

T.M.D.S data 2+

T.M.D.S data 1+

T.M.D.S data 0+

T.M.D.S data 2 GND

T.M.D.S data 1 GND

T.M.D.S data 0 GND

PS2

PS2

PS2

(not required)

PS2

PS”

PS2

(always required)

DDC Input (SCL)

+5V In for DDC

T.M.D.S clock GND

DDC Output(SDA)

GND

T.M.D.S clock +

Analogue VSYNC

Hot

T.M.D.S clock

n.c.

n.c.

n.c.

GND

n.c.

1 8 C1 C2

17 24 C3 C4

C5

DVI-I female connector (Input connector for ALL PS2 Single head devices and Input
connector PS2 Dual head devices 1st Monitor)

Pin Signal Pin Signal Pin Signal

1
2
3
4

5

6
7
8

C1
C2

-KBD CLK 12

-KBD DATA 13

C5

- 9
10

11

14

15

16

-MOUSE CLK 20

-MOUSE-DATA 21

23

Plug recognition 24

C4

- 17
18

19

22

C3

-

-MOUSE VCC-IN +5V

-KBD VCC-IN +5V

-

54

APPENDIX G: CONNECTORS

Keyboard

Mouse

KBD

MOUSE

2

KBD

MOUSE

VCC (+5V)

VCC (+5V)

KBD

MOUSE

Combined Keyboard/Mouse connector (output connector Local Unit)

Pin

1 KBD-DATA
2 MOUSE-DATA
3 KBD/MOUSE-GND
4 VCC (+5V)
5 KBD-CLK
6 MOUSE-CLK

Keyboard/Mouse connector (output connector Remote Unit)

Pin

1
2
3
4
5
6

Pin

-DATA 1

-GND 3
4

-CLK

-DATA

-GND

5
6

-CLK

55

DVXI/ET-XX KVM-EXTENDER

Keyboard/Mouse Connector, USB Type B

(connector at Local Unit)

Pin Signal

1 VCC (+5V) Red
2 Data - White
3 Data + Green
4 GND Black

Keyboard/Mouse Connector, USB Type A

(connector at Remote Unit)

56

Pin Signal

1 VCC (+5V) Red
2 Data - White
3 Data + Green
4 GND Black

APPENDIX G: CONNECTORS

Audio/seriell Anschlußbuchse Audio/RS232 an Dual head Local Unit

Pin

1 AUDIO GND
2 RS232 GND
3 AUDIO OUT RIGHT CHANEL
4 AUDIO OUT LEFT CHANEL
5 RS232 RxD
6 AUDIO IN RIGHT CHANEL
7 AUDIO IN LEFT CHANEL
8 RS232 TxD

Spannungsversorgung

Pin Signal

innen +5V
außen GND

57

DVXI/ET-XX KVM-EXTENDER

CATx- Interface
Pin out according to EIA/TIA 568A (1000BaseT).

1 8

Pin Pin

1 D1+ 5 D3­2 D1- 6 D2­3 D2+ 7 D4+
4 D3+ 8 D4-

58

APPENDIX G: CONNECTORS

Connector (device)

Keyboa

Mouse

KBD

KBD

MOUSE

1 MOUSE

KBD

KBD

MOUSE

VCC (+5V)

VCC (+5V)

VCC (+5V)

KBD

KBD

MOUSE

5 MOUSE

Keyboard/Mouse Adapter to connect Keyboard/Mouse to Local Unit

Pin

1
2
3
4
5
6

-DATA 1

-DATA 2

-GND 3
4

-CLK

-CLK

Pin

RS232 (Single head Devices only)

9 pin DSUB female (Local Unit) 9 pin DSUB male (Remote Unit)

Pin Signal

1 Not connected
2 RxD

3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 Not connected

rd Pin

-DATA 2

-GND 3
4

5
6

-CLK

-DATA

-GND

6

-CLK

59

NOTES
