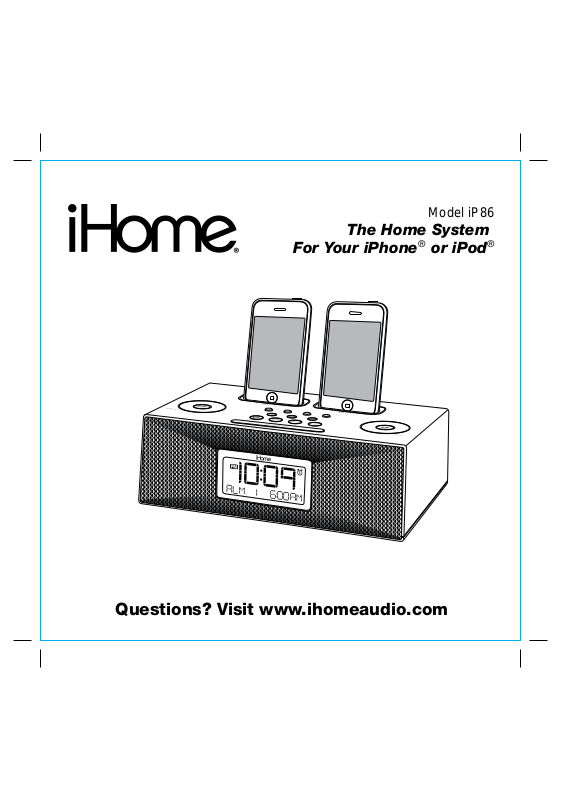

iHome IP86 User Manual
The Home System
For Your iPhone
Model iP86
®
or iPod
®
Questions? Visit www.ihomeaudio.com
Table of Contents
Quick Start........................................................................................................................................................................1
Controls and Indicators / iP86 Display..........................................................................................................................2
Setting Up the iP86...........................................................................................................................................................3
Using the iP86...................................................................................................................................................................4
Replacing iP86 Backup Batteries / Battery Warning.....................................................................................................5
A Consumer Guide to Product Safety ...........................................................................................................................6
Troubleshooting...............................................................................................................................................................7
Solucionando problemas................................................................................................................................................9
Warranty Information.....................................................................................................................................................11
A Consumer Guide to Product Safety
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable
protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can
try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
• Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s warranty
and void your FCC authorization to operate it.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should
be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner
or similar materials can damage the surface of the unit.
quick start
RESET
RESET
TEST
TEST
1: power
Attach AC adaptor cable to
DC jack on back of the iP86
and plug the other end into a
wall socket.
NOTE: If you do not have an insert for
your iPhone/iPod, please visit
www.ihomeaudio.com or call iHome toll
free at 877-446-6301 to purchase one.
4: time zone
2: antenna
Snap AM antenna into provided
stand, then plug antenna cable
into socket on back of iP86.
Move antenna 12” away.
Extend FM antenna.
Use this insert
For this iPhone / iPod
5: iPhone/
iPod
3: inserts
Select the dock insert for your
iPhone or iPod® model from the
table below and place insert in
dock 1/dock 2. Never dock an
iPhone/ iPod without an insert
in place.
iPhone 3G
insert 15
iPhone 3G/3GS
iPod touch 2G
insert 16
iPod touch 2G
6: radio
nano 5G
insert 18
nano 5G
• Move the DST switch on back
of unit to +1 or -1 (adds or
subtracts an hour)
• Press & hold the Time Zone
button on back until the
display flashes
• Turn the Set Wheel to select
your time zone
• Press the Time Zone
button again.
Gently dock an iPhone or iPod
into dock 1/dock 2 with
proper insert (iPhone/iPod
must not be in a skin or case).
The iPhone/iPod will charge
while docked. Press the
Button for the matching dock
to play your iPhone/iPod.
1
Press the Radio button and
press again to select AM/FM
band. Turn the Set Wheel to
tune in a station. See page 4 for
programming presets.
Controls and Indicators
Top Panel
Preset Buttons 1-8
Alarm 1 Button
Volume Wheel
Dock 1 Play/Pause Button
Alarm Reset / Power Button
Radio/line-in Button
Rear Panel
AC Adaptor Jack
Dock 1
Snooze/Dimmer Button
Clock Adjust Button
DST switch
Alarm 2 Button
Time Sync Button
Time Zone Button
Dock 2
Alarm 3 Button
Set Wheel
Dock 2 Play/Pause
Button
EQ Button
Sleep Button
Line-in Jack
FM Antenna
PM Indicator
AM Indicator
NOTE: AM/PM indicators will not appear
when clock is set to 24 hour display mode
AM Loop Antenna socket
iP86 Display
Time Display
Alarm Indicators
Battery Low Indicator
Radio / Alarm Time / iPod Display
2
