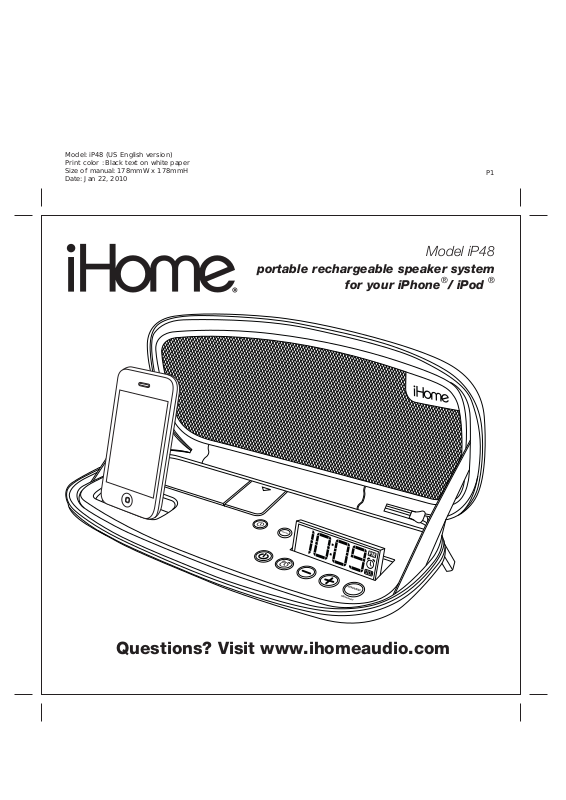

iHome IP48 User Manual

Model iP48

portable rechargeable speaker system

for your iPhone

/ iPod

Questions? Visit www.ihomeaudio.com

Table of Contents

iP48 Quick Start

Controls and Indicators

Getting Started with your iP48

Using the iP48

A Consumer Guide to Product Safety

Trouble Shooting

Warranty Information

and are registered trademarks of SRS Labs, Inc.

TruBass and WOW technologies are incorporated under license from SRS Labs, Inc.

3-4

5-6

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

FCC Information

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the radio or TV.

• Use outlets on different electrical circuits for the equipment and the radio or TV.

• Consult your dealer or an experienced radio/television technician if the problem still exists.

Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s warranty and void your FCC authorization to operate it.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

iP48 Quick Start

1:Unzip unit

Unzip the iP48 to open the unit. Press the Display Button to release the pop-up display from travel mode (flat) to upright position.

Use this insert

For this

iPhone/iPod

www.ihomeaudio.com or call iHome toll free at 800-288-2792 to purchase one

NOTE: If you do not have an insert for your iPod, please visit

iPhone 3G

insert 15

iPhone 3G/3GS

3:inserts

2:AC adaptor

RESET

TEST

Connect the AC adaptor to the DC jack on the left side of the iP48 and plug the other end into a working wall socket to charge and play iPod/iPhone and to charge internal battery.

iPod touch 2G

insert 16

iPod touch 2G

iPod nano 5G

insert 18

iPod nano 5G

4:iPod/iPhone

Select the dock insert for your iPod/iPhone model from the table above and place insert in dock.

Never dock an iPod/iPhone without an insert in place.

Gently place iPod/iPhone on the connector plug in dock. Press Power Button to ON. Unit and iPod/iPhone will turn on. Adjust volume by pressing the

+ or – Button.
