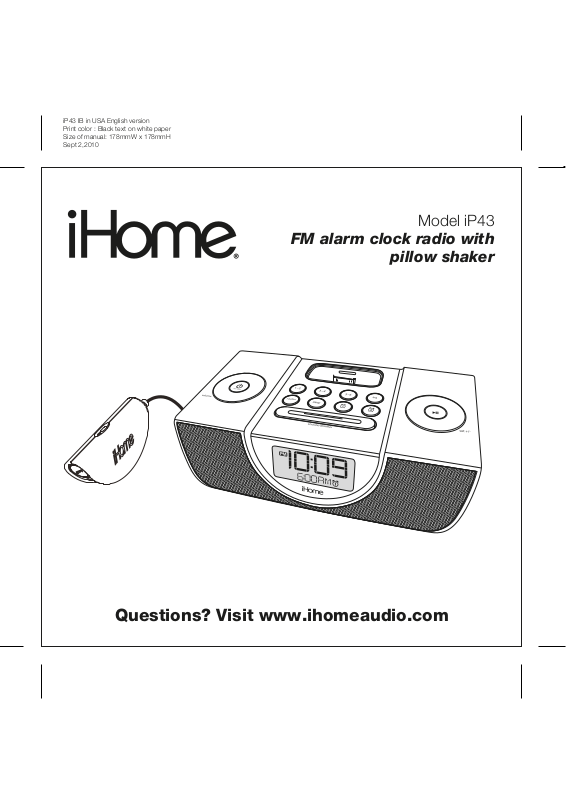

iHome IP43 User Manual
Model iP43
FM alarm clock radio with
pillow shaker
Questions? Visit www.ihomeaudio.com
Table of Contents
Quick Start .........................................................................................................................................................................1
Controls and Indicators ................................................................................................................................................ 2-3
iP43 Display .......................................................................................................................................................................3
Installing/Replacing iP43 Backup Batteries / Battery Warning ..........................................................................................4
Setting Up the iP43 ............................................................................................................................................................5
Using the iP43 Alarms.................................................................................................................................................6-7
Listening to iPhone/iPod or FM Radio..........................................................................................................................7-8
Sleep mode, Dimmer and more......................................................................................................................................8
A Consumer Guide to Product Safety ............................................................................................................................... 9
Troubleshooting ......................................................................................................................................................... 10-11
Warranty Information .......................................................................................................................................................12
A Consumer Guide to Product Safety
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable
protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can
try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
• Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s warranty
and void your FCC authorization to operate it.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should
be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner
or similar materials can damage the surface of the unit.
iP43 Quick start
RESET
RESET
TEST
TEST
1: power
Attach AC adaptor cable to
DC jack on back of the iP43 and
plug the other end into a
working outlet.
Use this insert
For this iPhone / iPod
iPhone 3G/3GS
4: iPhone/
iPod
2: inserts
Select the dock insert for your iPhone
or iPod® model from the table below
and place insert in dock.
iPhone 3G
insert 15
iPhone 4
insert 19
iPhone 4
5: radio
3: time sync
• Dock your iPhone
• Press the Time set/sync button
on back of the unit.
• “SYNC” will flash on the display,
indicating sync attempt
• “SYNC OK” will appear and you
will hear 2 beeps when sync is
complete.
• If sync fails, attempt again or set
time manually (see page 3).
iPod touch 2G
insert 16
iPod touch 2G
NOTE: If you do not have an
insert for your iPhone/iPod,
please visit
www.ihomeaudio.com or call
iHome toll free at 1-800-288-2792
to purchase one.
nano 5G
insert 18
nano 5G
Gently dock an iPhone or iPod into
the dock with proper insert
(iPhone/iPod must not be in a skin
or case). The iPhone/iPod will
charge while docked. Press the
Button to play your iPhone/iPod.
• Press the Radio button to select
FM radio mode.
• Turn the Set Wheel to select a
station.
• See page 4 for programming
presets.
1
Top Panel
Controls and Indicators
Preset Buttons 1-6
Volume Wheel
Alarm Reset / Power Button
Radio Button
Rear Panel
Sleep Button
Dock
Snooze/Dimmer Button
Time Set/ Sync Button
DST switch
EQ Button
Set Wheel
Play/Pause Button
Alarm 2 Button
Alarm 1 Button
Time Zone Button
FM antenna
AC Adaptor Jack
DC 7.5V 2A
DST
-1 +1
time set/ sync
2
time zone
shaker
Pillow Shaker Jack
Controls and Indicators
Pillow Shaker
Snooze Button
PM Indicator
AM Indicator
Wake to Icon
Sleep Mode Icon
On/OFF Switch
wake to
iP43 Display
Time Display
Line-in Plug
NOTE: AM/PM indicators will not appear
when clock is set to 24 hour display mode
Battery Low Indicator
Alarm Indicators
Alarm Time Display FM Radio Indicator
3
