PCIE-Q350 PICMG 1.3 CPU Card

Page i

PCIE-Q350 PICMG 1.3 CPU Card

Revision

Date Version Changes

2007-08-30 1.00 Initial release

Page ii

PCIE-Q350 PICMG 1.3 CPU Card

Manual Conventions

WARNING!

Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text. The text is the warning message. A warning message is shown below:

WARNING:

This is an example of a warning message. Failure to adhere to warning messages may result in permanent damage to the PCIE-Q350 or personal injury to the user. Please take warning messages seriously.

CAUTION!

Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the PCIE-Q350. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message. A caution message is shown below:

Page iii

PCIE-Q350 PICMG 1.3 CPU Card

CAUTION:

This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the PCIE-Q350. Please take caution messages seriously.

NOTE:

These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes. Notes are easy to recognize. The word “note” is written as “NOTE,” both capitalized and bold and is followed by text. The text is the cautionary message. A note message is shown below:

NOTE:

This is an example of a note message. Notes should always be read. Notes contain critical information about the PCIE-Q350. Please take note messages seriously.

Page iv

PCIE-Q350 PICMG 1.3 CPU Card

The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

Copyright

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective owners.

Page v

PCIE-Q350 PICMG 1.3 CPU Card

Packing List

NOTE:

If any of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PCIE-Q350 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to

The items listed below should all be included in the PCIE-Q350 package.

 1 x PCIE-Q350 single board computer  1 x PS/2 Keyboard and mouse Y-cable  1 x Keyboard and mouse cable with Mini DIN  2 x SATA power cables  4 x SATA cables  1 x Dual RS-232 cable  1 x USB cable  1 x Mini jumper pack  1 x Utility CD  1 x QIG (quick installation guide)

Images of the above items are shown in Chapter 3.

sales@iei.com.tw.

Page vi

PCIE-Q350 PICMG 1.3 CPU Card

1 INTRODUCTION..................................................................................................... 1

1.1 OVERVIEW ................................................................................................................. 2

1.1.1 PCIE-Q350 Expansion Options......................................................................... 3

1.1.2 PCIE-Q350 Features......................................................................................... 3

1.2 PCIE-Q350 OVERVIEW ............................................................................................. 3

1.2.1 PCIE-Q350 Overview Photo.............................................................................. 3

1.2.2 PCIE-Q350 Peripheral Connectors and Jumpers............................................. 4

1.2.3 Technical Specifications..................................................................................... 5

2 DETAILED SPECIFICATIONS............................................................................. 9

2.1 DIMENSIONS ............................................................................................................ 10

2.1.1 Board Dimensions............................................................................................ 10

2.1.2 External Interface Panel Dimensions.............................................................. 10

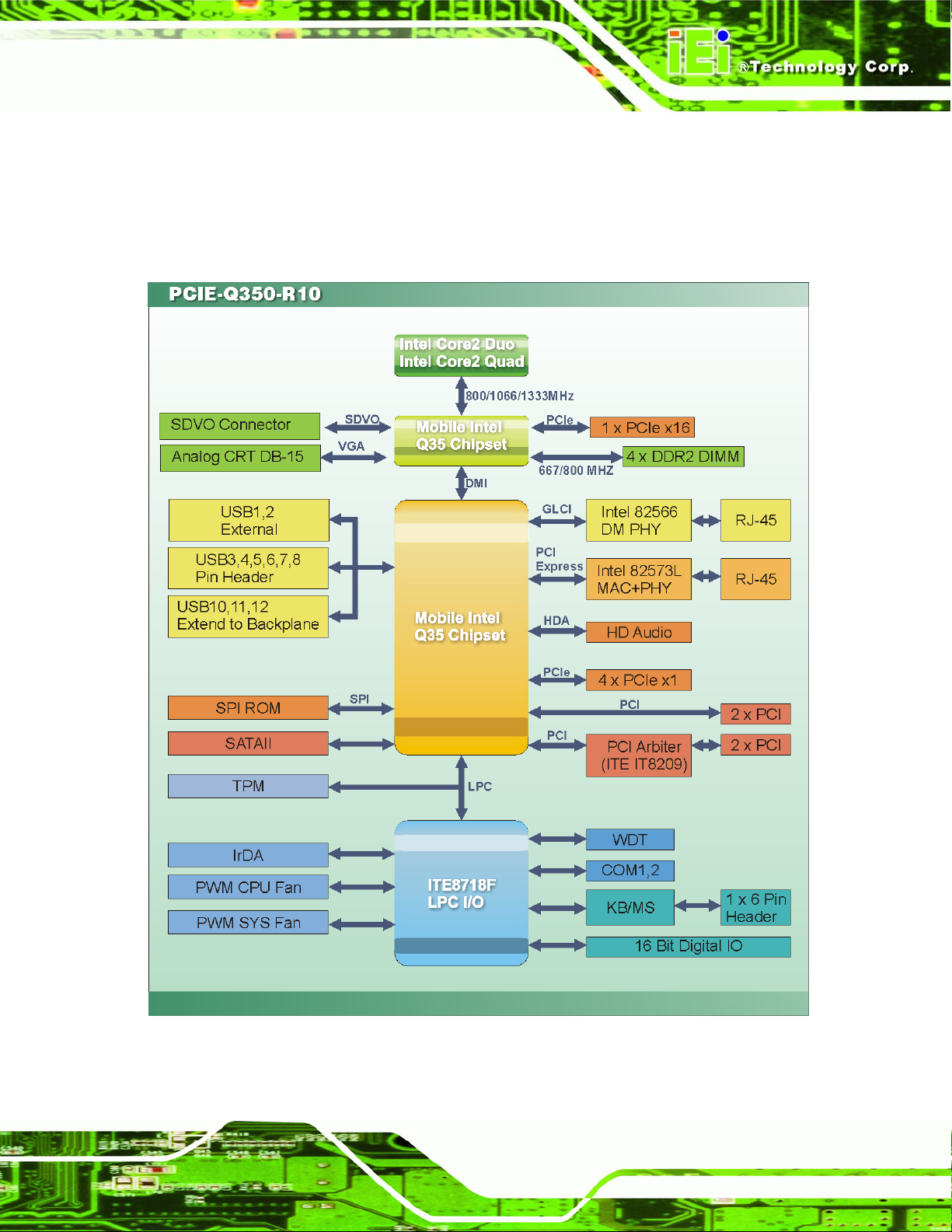

2.2 DATA FLOW...............................................................................................................11

2.3 COMPATIBLE PROCESSORS ....................................................................................... 12

2.3.1 Supported Processors Overview...................................................................... 12

2.3.2 Supported Intel® Core™2 Quad (Yorkfield) Processors ................................ 12

2.3.3 Supported Intel® Core™2 Duo (Wolfdale) Processors................................... 13

2.3.4 Supported Intel® Core™2 Duo (Conroe-2M) Processors.............................. 13

2.3.5 Supported Intel® Celeron (Conroe L) Processors........................................... 14

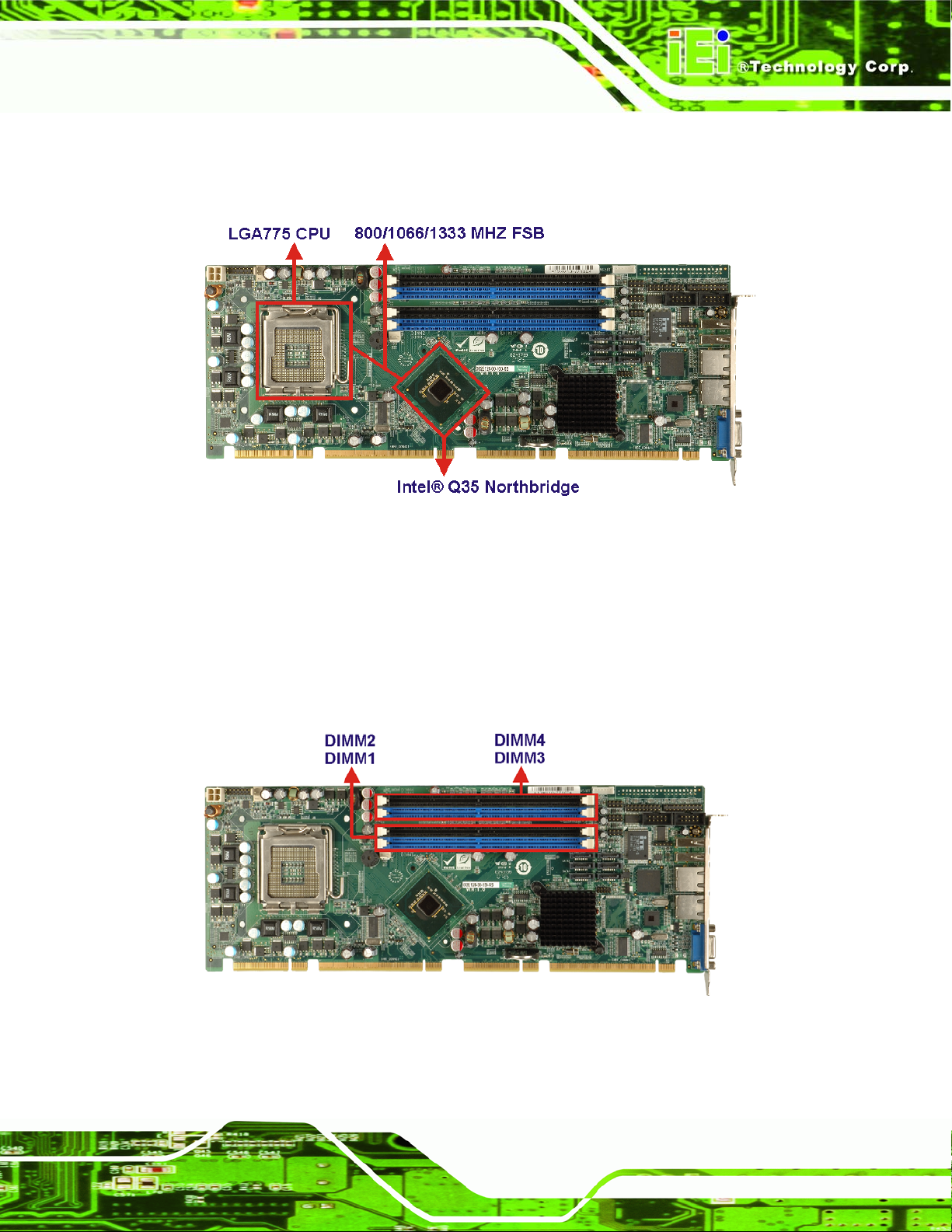

2.4 INTEL® Q35 NORTHBRIDGE CHIPSET...................................................................... 14

2.4.1 Intel® Q35 Northbridge Chipset ..................................................................... 14

2.4.2 Intel® Q35 Front Side Bus (FSB) Support...................................................... 14

2.4.3 Intel® Q35 Memory Controller....................................................................... 15

2.4.4 Intel® Q35 PCIe x16 Interface........................................................................ 16

2.4.5 Intel® Q35 Graphics and Display Features.................................................... 17

2.4.6 Intel® Q35 SDVO and Analog Display Features ............................................ 17

2.4.6.1 Intel® Q35 SDVO Capabilities ................................................................ 17

2.4.6.2 Intel® Q35 Analog Display Capabilities.................................................. 18

2.4.7 Intel® Q35 Direct Media Interface (DMI) ...................................................... 19

2.5 INTEL

ICH9DO SOUTHBRIDGE CHIPSET................................................................ 20

Page vii

PCIE-Q350 PICMG 1.3 CPU Card

2.5.1 Intel® ICH9DO Overview................................................................................ 20

2.5.2 Intel® ICH9DO Features ................................................................................. 21

2.5.3 Intel® ICH9DO High Definition Audio Implementation................................. 21

2.5.4 Intel® ICH9DO Ethernet Controller................................................................ 23

2.5.4.1 Intel® 82566DM Gigabit LAN Connect Device...................................... 24

2.5.5 Intel® ICH9DO Low Pin Count (LPC) Interface............................................. 25

2.5.6 Intel® ICH9DO PCI Interface.......................................................................... 25

2.5.7 Intel® ICH9DO PCIe x1 Bus............................................................................ 26

2.5.8 Intel® ICH9DO Real Time Clock..................................................................... 26

2.5.9 Intel® ICH9DO SATA Controller..................................................................... 26

2.5.10 Intel® ICH9DO Serial Peripheral Interface (SPI) BIOS............................... 27

2.5.11 Intel® ICH9DO USB Controller..................................................................... 27

2.5.11.1 Intel® ICH9DO USB Controller Overview............................................. 27

2.5.11.2 PCIE-Q350 USB Implementation........................................................... 28

2.5.11.3 Backplane USB Implementation............................................................. 28

2.6 PCIE-Q350 PCIE BUS COMPONENTS ...................................................................... 29

2.6.1 PCIe Bus Overview.......................................................................................... 29

2.6.2 PCIe x16 Expansion......................................................................................... 29

2.6.3 PCIe x1 Expansion........................................................................................... 30

2.6.4 Intel® 82573L PCIe GbE Controller............................................................... 30

2.7 PCI BUS COMPONENTS............................................................................................ 32

2.7.1 PCI Bus Overview............................................................................................ 32

2.7.2 ITE IT8209 PCI Arbiter................................................................................... 32

2.7.3 PCI Interface Edge connector ......................................................................... 33

2.8 LPC BUS COMPONENTS........................................................................................... 34

2.8.1 LPC Bus Overview........................................................................................... 34

2.8.2 TPM Module .................................................................................................... 34

2.8.3 Super I/O chipset.............................................................................................. 35

2.8.3.1 Super I/O LPC Interface ........................................................................... 36

2.8.3.2 Super I/O 16C550 UARTs ........................................................................ 36

2.8.3.3 Super I/O Enhanced Hardware Monitor................................................... 36

Page viii

2.8.3.4 Super I/O Fan Speed Controller................................................................ 36

2.8.3.5 Super I/O Keyboard and Mouse Controller.............................................. 36

2.8.3.6 Super I/O GPIO Ports ............................................................................... 37

2.8.3.7 Super I/O Infrared..................................................................................... 37

PCIE-Q350 PICMG 1.3 CPU Card

2.8.4 Super I/O Watchdog Timer............................................................................... 37

2.9 ETHERNET LAN CONTROLLERS .............................................................................. 37

2.10 ENVIRONMENTAL AND POWER SPECIFICATIONS ..................................................... 39

2.10.1 System Monitoring......................................................................................... 39

2.10.2 Operating Temperature and Temperature Control......................................... 39

2.10.3 Power Consumption....................................................................................... 40

2.11 EXPANSION OPTIONS.............................................................................................. 40

2.11.1 Expansion Options Overview......................................................................... 40

2.11.2 IEI Expansion PICMG 1.3 Backplanes.......................................................... 40

2.11.3 IEI Chassis ..................................................................................................... 41

3 UNPACKING .......................................................................................................... 45

3.1 ANTI-STATIC PRECAUTIONS...................................................................................... 46

3.2 UNPACKING.............................................................................................................. 46

3.2.1 Unpacking Precautions.................................................................................... 46

3.3 UNPACKING CHECKLIST........................................................................................... 47

3.3.1 Package Contents............................................................................................. 47

3.4 OPTIONAL ITEMS...................................................................................................... 48

4 CONNECTOR PINOUTS...................................................................................... 51

4.1 PERIPHERAL INTERFACE CONNECTORS .................................................................... 52

4.1.1 PCIE-Q350 Layout .......................................................................................... 52

4.1.2 Peripheral Interface Connectors ..................................................................... 52

4.1.3 External Interface Panel Connectors............................................................... 53

4.2 INTERNAL PERIPHERAL CONNECTORS...................................................................... 54

4.2.1 ATX Power Connector ..................................................................................... 54

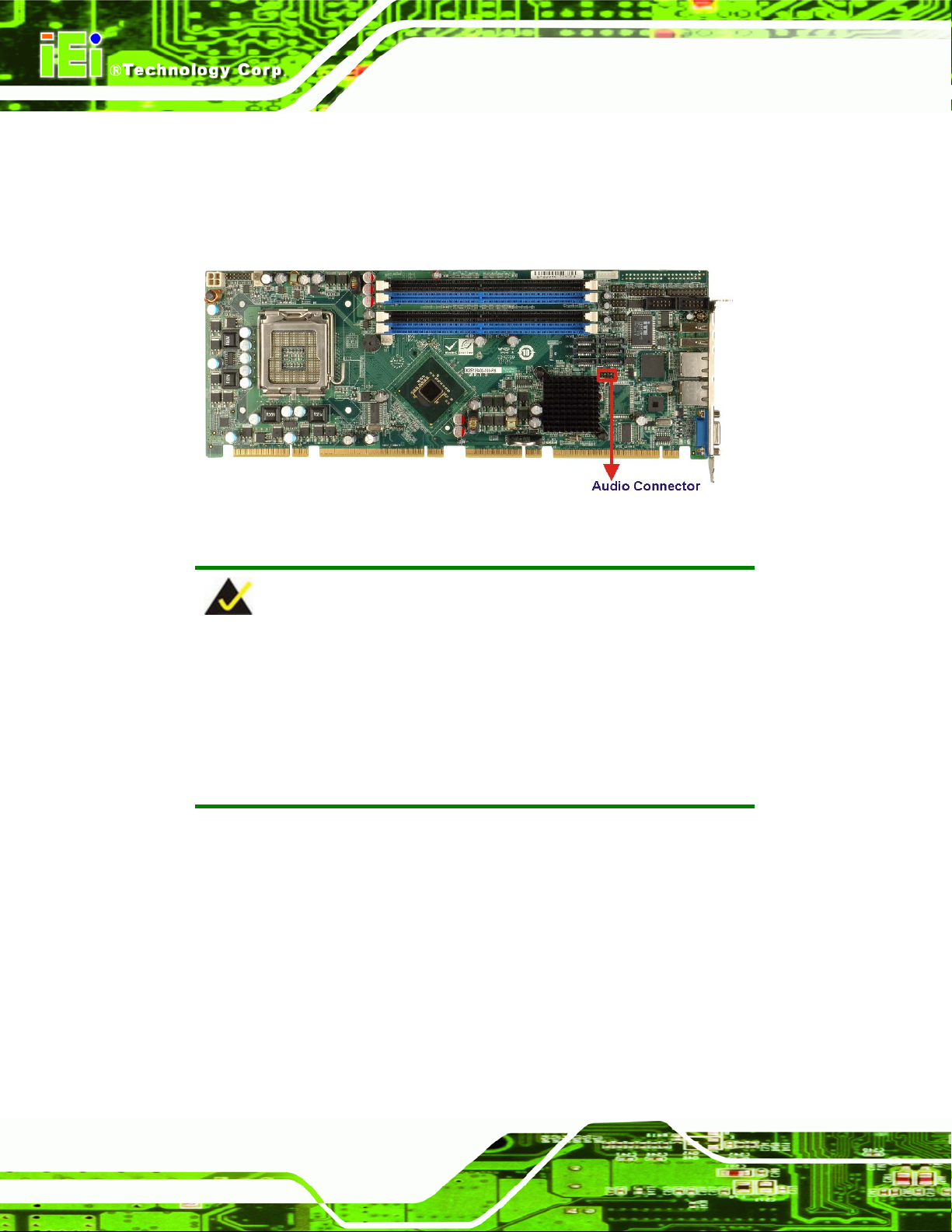

4.2.2 Audio Connector .............................................................................................. 56

4.2.3 Digital Input/Output (DIO) Connector............................................................ 57

4.2.4 Fan Connector, CPU (12V, 4-pin).................................................................... 59

4.2.5 Fan Connector, System (+12V)........................................................................ 61

4.2.6 Front Panel Connector (14-pin)...................................................................... 62

4.2.7 Infrared Interface Connector (5-pin)............................................................... 64

4.2.8 Keyboard/Mouse Connector............................................................................ 65

4.2.9 SATA Drive Connectors ................................................................................... 67

4.2.10 Serial Port Connector (COM1, COM 2)........................................................ 69

Page ix

PCIE-Q350 PICMG 1.3 CPU Card

4.2.11 Trusted Platform Module (TPM) Connector.................................................. 70

4.2.12 SDVO Control Connector.............................................................................. 72

4.2.13 USB Connectors (Internal)............................................................................ 74

4.3 EXTERNAL PERIPHERAL INTERFACE CONNECTOR PANEL......................................... 75

4.3.1 LAN Connectors............................................................................................... 75

4.3.2 USB Connector ................................................................................................ 76

4.3.3 VGA Connector................................................................................................ 77

5 INSTALLATION .................................................................................................... 79

5.1 ANTI-STATIC PRECAUTIONS...................................................................................... 80

5.2 INSTALLATION CONSIDERATIONS ............................................................................. 81

5.2.1 Installation Notices.......................................................................................... 81

5.2.2 Installation Checklist....................................................................................... 82

5.3 UNPACKING.............................................................................................................. 83

5.3.1 Unpacking Precautions.................................................................................... 83

5.4 CPU, CPU COOLING KIT AND DIMM INSTALLATION ............................................. 83

5.4.1 Socket LGA775 CPU Installation.................................................................... 84

5.4.2 Socket LGA775 CF-520 Cooling Kit Installation............................................ 87

5.4.3 DIMM Installation........................................................................................... 89

5.4.3.1 DIMM Purchasing Guidelines.................................................................. 90

5.4.3.2 DIMM Installation Order.......................................................................... 90

5.4.3.3 DIMM Installation Guidelines.................................................................. 91

5.5 JUMPER SETTINGS.................................................................................................... 92

5.5.1 Clear CMOS Jumper........................................................................................ 93

5.6 CHASSIS INSTALLATION ........................................................................................... 95

5.6.1 Airflow.............................................................................................................. 95

5.6.2 Backplane Installation..................................................................................... 95

5.6.3 CPU Card Installation..................................................................................... 96

5.7 INTERNAL PERIPHERAL DEVICE CONNECTIONS........................................................ 96

5.7.1 Peripheral Device Cables................................................................................ 96

5.7.2 Audio Kit Installation....................................................................................... 97

5.7.3 Dual RS-232 Cable Connection....................................................................... 98

5.7.4 SATA Drive Connection ................................................................................... 99

5.7.5 USB Cable (Dual Port).................................................................................. 100

5.8 INSTALLING DEVICES ON A PICMG 1.3 BACKPLANE............................................. 102

Page x

PCIE-Q350 PICMG 1.3 CPU Card

5.8.1 PCIe x16 Graphics Card Installation............................................................ 102

5.8.2 SDVO Device Installation.............................................................................. 103

5.9 EXTERNAL PERIPHERAL INTERFACE CONNECTION ................................................. 103

5.9.1 LAN Connection (Single Connector)............................................................. 103

5.9.2 PS/2 Y-Cable Connection............................................................................... 104

5.9.3 USB Device Connection (Single Connector)................................................. 105

5.9.4 VGA Monitor Connection .............................................................................. 106

6 BIOS SCREENS.................................................................................................... 109

6.1 INTRODUCTION .......................................................................................................110

6.1.1 Starting Setup..................................................................................................110

6.1.2 Using Setup.....................................................................................................110

6.1.3 Getting Help....................................................................................................111

6.1.4 Unable to Reboot After Configuration Changes.............................................111

6.1.5 BIOS Menu Bar...............................................................................................111

6.2 MAIN ......................................................................................................................112

6.3 ADVANCED..............................................................................................................113

6.3.1 CPU Configuration.........................................................................................114

6.3.2 IDE Configuration..........................................................................................115

6.3.2.1 IDE Master, IDE Slave............................................................................117

6.3.3 Super IO Configuration.................................................................................. 123

6.3.4 Hardware Health Configuration.................................................................... 125

6.3.5 ACPI Configuration....................................................................................... 130

6.3.5.1 AHCI Configuration................................................................................ 131

6.3.5.2 AHCI Port n............................................................................................ 132

6.3.6 Remote Access Configuration........................................................................ 134

6.3.7 T rusted Computing......................................................................................... 137

6.3.8 USB Configuration......................................................................................... 138

6.3.8.1 USB Mass Storage Device Configuration............................................... 140

6.4 PCI/PNP ................................................................................................................ 143

6.5 BOOT ..................................................................................................................... 146

6.5.1 Boot Settings Configuration........................................................................... 147

6.5.2 Boot Device Priority...................................................................................... 150

6.5.3 Hard Disk Drives........................................................................................... 151

6.6 SECURITY............................................................................................................... 153

Page xi

PCIE-Q350 PICMG 1.3 CPU Card

6.7 CHIPSET ................................................................................................................. 154

6.7.1 NorthBridge Chipset Configuration .............................................................. 155

6.7.2 SouthBridge Configuration............................................................................ 158

6.8 EXIT....................................................................................................................... 160

7 SOFTWARE DRIVERS....................................................................................... 163

7.1 AVAILABLE SOFTWARE DRIVERS............................................................................ 164

7.2 DRIVER CD AUTO-RUN.......................................................................................... 164

7.3 INTEL® CHIPSET DRIVER....................................................................................... 166

7.4 INTEL® GRAPHICS MEDIA ACCELERATOR DRIVER................................................ 170

7.5 INTEL® 82566 GIGABIT LAN CONNECT DEVICE DRIVER..................................... 175

7.6 INTEL® 82573 PCI EXPRESS GIGABIT ETHERNET CONTROLLER DRIVER ............. 182

7.7 REALTEK HD AUDIO DRIVER (ALC883) INSTALLATION ....................................... 191

7.7.1 BIOS Setup..................................................................................................... 191

7.7.2 Driver Installation ......................................................................................... 191

7.8 INTEL

MATRIX STORAGE MANAGER DRIVER INSTALLATION ............................... 197

7.9 INTEL® ACTIVE MANAGEMENT TECHNOLOGY DRIVER INSTALLATION ................. 203

A BIOS OPTIONS.................................................................................................... 207

B DIO INTERFACE...................................................................................................211

B.1 DIO INTERFACE INTRODUCTION .......................................................................... 212

B.2 DIO CONNECTOR PINOUTS................................................................................. 212

B.3 ASSEMBLY LANGUAGE SAMPLES......................................................................... 213

B.3.1 Enable the DIO Input Function................................................................ 213

B.3.2 Enable the DIO Output Function............................................................. 213

C WATCHDOG TIMER............................................................................................ 215

D ADDRESS MAPPING......................................................................................... 219

D.1 ADDRESS MAP..................................................................................................... 220

D.2 1ST MB MEMORY ADDRESS MAP ....................................................................... 220

D.3 IRQ MAPPING TABLE........................................................................................... 221

D.4 DMA CHANNEL ASSIGNMENTS............................................................................ 221

E INTEL® MATRIX STORAGE MANAGER...................................................... 223

E.1 INTRODUCTION...................................................................................................... 224

Page xii

PCIE-Q350 PICMG 1.3 CPU Card

E.1.1 Precautions.................................................................................................... 224

E.2 FEA TURES AND BENEFITS ...................................................................................... 225

E.3 ACCESSING THE INTEL

MATRIX STORAGE MANAGER.......................................... 225

E.4 RAID CONFIGURATION ......................................................................................... 226

E.4.1 Creating a RAID Volume............................................................................... 226

E.4.2 Deleting a RAID Volume................................................................................ 231

E.4.3 Resetting a Disk to Non-RAID....................................................................... 233

E.4.4 Exiting the Matrix Storage Manager............................................................. 235

F HAZARDOUS MATERIALS DISCLOSURE................................................... 237

F.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CER TIFIED AS

ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY..................................... 238

G COMPATIBILITY................................................................................................ 241

G.1 COMPATIBLE OPERATING SYSTEMS ....................................................................... 242

G.2 COMPATIBLE PROCESSORS..................................................................................... 242

G.3 COMPATIBLE MEMORY MODULES.......................................................................... 243

G.4 COMPATIBLE CD ROM DRIVES ............................................................................ 244

INDEX ............................................................................................................................ 245

Page xiii

PCIE-Q350 PICMG 1.3 CPU Card

List of Figures

Figure 1-1: PCIE-Q350 PICMG 1.3 CPU Card..............................................................................2

Figure 1-2: PCIE-Q350 Overview [Front View]............................................................................4

Figure 2-1: PCIE-Q350 Dimensions (mm) .................................................................................10

Figure 2-2: External Interface Panel Dimensions (mm)...........................................................10

Figure 2-3: Data Flow Block Diagram........................................................................................11

Figure 2-4: Front Side Bus (FSB)...............................................................................................15

Figure 2-5: DDR2 DIMM Sockets................................................................................................15

Figure 2-6: SDVO Connector......................................................................................................18

Figure 2-7: VGA Connector ........................................................................................................19

Figure 2-8: DMI Chip-to-Chip Connection.................................................................................20

Figure 2-9: Audio Connector......................................................................................................22

Figure 2-10: Intel® 82566DM Gigabit LAN Connect Device ....................................................24

Figure 2-11: SATA Drive Connectors........................................................................................27

Figure 2-12: Onboard USB Implementation..............................................................................28

Figure 2-13: USB Edge connector.............................................................................................29

Figure 2-14: PCIe x16 Edge connector......................................................................................30

Figure 2-15: PCIe x1 Edge connector (Four Lanes).................................................................30

Figure 2-16: Intel® 82573L PCIe GbE Controller......................................................................31

Figure 2-17: PCI Arbiter ..............................................................................................................33

Figure 2-18: PCI Edge connector Connection..........................................................................33

Figure 2-19: TPM Connector.......................................................................................................34

Figure 2-20: ITE IT8718F Super I/O............................................................................................35

Figure 2-21: LAN Connections...................................................................................................38

Figure 4-1: Connector and Jumper Locations..........................................................................52

Figure 4-2: ATX Power Connector Location.............................................................................55

Figure 4-3: Audio Connector Location (9-pin)..........................................................................57

Figure 4-4: DIO Connector Connector Locations.....................................................................58

Figure 4-5: +12V Fan Connector Location................................................................................60

Page xiv

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-6: +12V Fan Connector Location................................................................................61

Figure 4-7: Front Panel Connector Pinout Locations (14-pin)................................................63

Figure 4-8: Infrared Connector Pinout Locations ....................................................................64

Figure 4-9: Keyboard/Mouse Connector Location...................................................................66

Figure 4-10: SATA Drive Connector Locations........................................................................68

Figure 4-11: Serial Connector Pinout Locations......................................................................69

Figure 4-12: TPM Connector Pinout Locations........................................................................71

Figure 4-13:SDVO Connector Pinout Locations.......................................................................73

Figure 4-14: USB Connector Pinout Locations........................................................................74

Figure 4-15: PCIE-Q350 External Peripheral Interface Connector..........................................75

Figure 4-16: RJ-45 Ethernet Connector.....................................................................................76

Figure 4-17: VGA Connector ......................................................................................................77

Figure 5-1: Intel® LGA775 Socket..............................................................................................85

Figure 5-2: Remove the CPU Socket Protective Shield...........................................................85

Figure 5-3: Open the CPU Socket Load Plate...........................................................................86

Figure 5-4: Insert the Socket LGA775 CPU...............................................................................87

Figure 5-5: IEI CF-520 Cooling Kit .............................................................................................88

Figure 5-6: Securing the Heat sink to the PCB Board .............................................................89

Figure 5-7: DDR2 Channels........................................................................................................90

Figure 5-8: Installing a DIMM......................................................................................................92

Figure 5-9: Clear CMOS Jumper ................................................................................................94

Figure 5-10: PCIE-Q350 Backplane Installation........................................................................96

Figure 5-11: Audio Kit Connection ............................................................................................98

Figure 5-12: Dual RS-232 Cable Installation.............................................................................99

Figure 5-13: SATA Drive Cable Connection........................................................................... 100

Figure 5-14: SATA Power Drive Connection.......................................................................... 100

Figure 5-15: Dual USB Cable Connection.............................................................................. 101

Figure 5-16: PCIe x16 Installation........................................................................................... 102

Figure 5-17: LAN Connection.................................................................................................. 104

Figure 5-18: PS/2 Keyboard/Mouse Connector..................................................................... 105

Figure 5-19: USB Device Connection..................................................................................... 106

Figure 5-20: VGA Connector ................................................................................................... 107

Page xv

Figure 7-1: Introduction Screen.............................................................................................. 165

Figure 7-2: Available Drivers................................................................................................... 165

Figure 7-3: Intel® Chipset Driver Directory............................................................................ 166

Figure 7-4: Intel® Chipset Driver Setup Icon......................................................................... 167

Figure 7-5: Intel® Package Manager....................................................................................... 168

Figure 7-6: Intel® Setup Welcome Screen............................................................................. 168

Figure 7-7: Intel® Chipset Driver License Agreement.......................................................... 169

Figure 7-8: Readme File........................................................................................................... 169

Figure 7-9: Intel® Chipset Driver Complete Installation Screen.......................................... 170

Figure 7-10: Select the Operating System............................................................................. 171

Figure 7-11: Intel® Driver Directory........................................................................................ 171

Figure 7-12: Intel® VGA Driver Setup Icon ............................................................................ 172

Figure 7-13: GMA Driver Readme File.................................................................................... 173

PCIE-Q350 PICMG 1.3 CPU Card

Figure 7-14: GMA Driver File Extraction ................................................................................ 173

Figure 7-15: GMA Driver Installation Welcome Screen ........................................................ 174

Figure 7-16: GMA Driver License Agreement........................................................................ 174

Figure 7-17: GMA Driver Installing Notice ............................................................................. 175

Figure 7-18: GMA Driver Installation Complete..................................................................... 175

Figure 7-19: Intel® 82566 Driver Directory Icon .................................................................... 176

Figure 7-20: Intel® 82566 Operating System......................................................................... 177

Figure 7-21: Select Operating System Type.......................................................................... 178

Figure 7-22: Driver Directory................................................................................................... 178

Figure 7-23: Intel® 82566 Device Driver Startup Icon........................................................... 179

Figure 7-24: Intel® 82566 Welcome Screen........................................................................... 180

Figure 7-25: Intel® 82566 Driver License Agreement........................................................... 180

Figure 7-26: Intel® 82566 Driver Setup Options.................................................................... 181

Figure 7-27: Intel® 82566 Driver Installation Ready Window............................................... 181

Figure 7-28: Intel® 82566 Driver Installation Progress......................................................... 182

Figure 7-29: Intel® 82573 Driver Directory Icon .................................................................... 183

Figure 7-30: Intel® 82573 Operating System......................................................................... 184

Figure 7-31: Select Operating System Type.......................................................................... 185

Figure 7-32: Driver Directory................................................................................................... 185

Page xvi

PCIE-Q350 PICMG 1.3 CPU Card

Figure 7-33: Intel® 82573 Driver Startup Icon ....................................................................... 186

Figure 7-34: Intel® 82573 License Agreement....................................................................... 187

Figure 7-35: Intel® 82573 File Location Select...................................................................... 187

Figure 7-36: Intel® 82573 Installation Files Extraction......................................................... 188

Figure 7-37: Intel® PRO Network Connections window....................................................... 188

Figure 7-38: Intel® PRO Network Connections Welcome.................................................... 189

Figure 7-39: License Agreement............................................................................................. 189

Figure 7-40: Setup Type........................................................................................................... 190

Figure 7-41: Intel® 82573 Driver Installation Progress......................................................... 190

Figure 7-42: Select the Audio CODEC.................................................................................... 192

Figure 7-43: Select the OS....................................................................................................... 193

Figure 7-44: Select the OS Version......................................................................................... 193

Figure 7-45: Locate the Setup Program Icon......................................................................... 194

Figure 7-46: The InstallShield Wizard Starts ......................................................................... 194

Figure 7-47: Preparing Setup Screen..................................................................................... 195

Figure 7-48: InstallShield Wizard Welcome Screen.............................................................. 195

Figure 7-49: Audio Driver Software Configuration................................................................ 196

Figure 7-50: Installation Wizard Updates the System........................................................... 196

Figure 7-51: Restart the Computer......................................................................................... 197

Figure 7-52: SATA RAID Driver Installation Program........................................................... 198

Figure 7-53: SATA RAID Setup Program Icon....................................................................... 199

Figure 7-54: InstallShield Wizard Setup Screen.................................................................... 199

Figure 7-55: Matrix Storage Manager Setup Screen............................................................. 200

Figure 7-56: Matrix Storage Manager Welcome Screen....................................................... 200

Figure 7-57: Matrix Storage Manager Warning Screen......................................................... 201

Figure 7-58: Matrix Storage Manager License Agreement................................................... 201

Figure 7-59: Matrix Storage Manager Readme File............................................................... 202

Figure 7-60: Matrix Storage Manager Setup Complete......................................................... 202

Figure 7-61: IAMT Driver Directory......................................................................................... 203

Figure 7-62: IAMT Driver Installation Icon ............................................................................. 204

Figure 7-63: IAMT Welcome Screen ....................................................................................... 204

Figure 7-64: IAMT License Agreement................................................................................... 205

Page xvii

Figure 7-65: IAMT Readme File............................................................................................... 205

Figure 7-66: IAMT Setup Operations...................................................................................... 206

Figure 7-67: Completed Installation ....................................................................................... 206

PCIE-Q350 PICMG 1.3 CPU Card

Page xviii

PCIE-Q350 PICMG 1.3 CPU Card

List of Tables

Table 1-1: Technical Specifications.............................................................................................7

Table 2-1: Supported Intel® Core™2 Duo (Conroe) Processors............................................14

Table 2-2: Supported Intel® Core™2 Duo (Conroe) Processors............................................14

Table 2-3: Power Consumption..................................................................................................40

Table 2-4: Compatible IEI PICMG 1.3 Backplanes....................................................................41

Table 2-5: Compatible IEI Chassis.............................................................................................43

Table 3-1: Package List Contents..............................................................................................48

Table 3-2: Package List Contents..............................................................................................50

Table 4-1: Peripheral Interface Connectors..............................................................................53

Table 4-2: Rear Panel Connectors.............................................................................................54

Table 4-3: AT Power Connector Pinouts...................................................................................55

Table 4-4: Audio Connector Pinouts.........................................................................................57

Table 4-5: DIO Connector Connector Pinouts..........................................................................59

Table 4-6: +12V Fan Connector Pinouts....................................................................................60

Table 4-7: +12V Fan Connector Pinouts....................................................................................62

Table 4-8: Front Panel Connector Pinouts (14-pin) .................................................................63

Table 4-9: Infrared Connector Pinouts......................................................................................65

Table 4-10: Keyboard/Mouse Connector Pinouts ....................................................................67

Table 4-11: SATA Drive Connector Pinouts..............................................................................68

Table 4-12: Serial Connector Pinouts........................................................................................70

Table 4-13: TPM Connector Pinouts..........................................................................................72

Table 4-14: SDVO Connector Pinouts .......................................................................................73

Table 4-15: USB Port Connector Pinouts..................................................................................75

Table 4-16: LAN Pinouts.............................................................................................................76

Table 4-17: RJ-45 Ethernet Connector LEDs............................................................................76

Table 4-18: USB Port Pinouts.....................................................................................................77

Table 4-19: VGA Connector Pinouts..........................................................................................78

Table 5-1: Jumpers......................................................................................................................93

Page xix

Table 5-2: Clear CMOS Jumper Settings...................................................................................94

Table 5-3: IEI Provided Cables...................................................................................................97

Table 6-1: BIOS Navigation Keys............................................................................................ 111

PCIE-Q350 PICMG 1.3 CPU Card

Page xx

PCIE-Q350 PICMG 1.3 CPU Card

BIOS Menus

Menu 1: Main............................................................................................................................. 112

Menu 2: Advanced.................................................................................................................... 114

Menu 3: CPU Configuration..................................................................................................... 115

Menu 4: IDE Configuration ...................................................................................................... 116

Menu 5: IDE Master and IDE Slave Configuration................................................................. 118

Menu 6: Super IO Configuration ............................................................................................. 123

Menu 7: Hardware Health Configuration................................................................................ 125

Menu 8: Advanced ACPI Configuration ................................................................................. 130

Menu 9: AHCI Configuration.................................................................................................... 131

Menu 10: AHCI Port n Configuration Menu............................................................................ 133

Menu 11: Remote Access Configuration [Advanced]........................................................... 134

Menu 12: Trusted Computing.................................................................................................. 137

Menu 13: USB Configuration................................................................................................... 138

Menu 14: USB Mass Storage Device Configuration.............................................................. 141

Menu 15: PCI/PnP Configuration ............................................................................................ 144

Menu 16: Boot........................................................................................................................... 147

Menu 17: Boot Settings Configuration................................................................................... 148

Menu 18: Boot Device Priority Settings................................................................................. 151

Menu 19: Hard Disk Drives...................................................................................................... 152

Menu 20: Security..................................................................................................................... 153

Menu 21: Chipset...................................................................................................................... 155

Menu 22:NorthBridge Chipset Configuration........................................................................ 156

Menu 23:SouthBridge Chipset Configuration ....................................................................... 158

Menu 24:Exit.............................................................................................................................. 160

Page xxi

PCIE-Q350 PICMG 1.3 CPU Card

Glossary

AC ’97 Audio Codec 97 ACPI Advanced Configuration and

Power Interface APM Advanced Power Management ARMD ATAPI Removable Media Device ASKIR Shift Keyed Infrared ATA Advanced Technology

Attachments BIOS Basic Input/Output System CFII Compact Flash Type 2 CMOS Complementary Metal Oxide

Semiconductor CPU Central Processing Unit Codec Compressor/Decompressor COM Serial Port DAC Digital to Analog Converter DDR Double Data Rate

HDD Hard Disk Drive IDE Integrated Data Electronics I/O Input/Output ICH4 I/O Controller Hub 4 L1 Cache Level 1 Cache L2 Cache Level 2 Cache LCD Liquid Crystal Display LPT Parallel Port Connector LVDS Low Voltage Differential Signaling MAC Media Access Controller OS Operating System PCI Peripheral Connect Interface PIO Programmed Input Output PnP Plug and Play POST Power On Self Test RAM Random Access Memory

SATA Serial ATA DIMM Dual Inline Memory Module DIO Digital Input/Output DMA Direct Memory Access EIDE Enhanced IDE EIST Enhanced Int el® SpeedStep

Technology FDD Floppy Disk Drive FDC Floppy Disk Connector FFIO Flexible File Input/Output FIFO First In/First Out FSB Front Side Bus IrDA Infrared Data Association

Page xxii

S.M.A.R.T Self Monitoring Analysis and

Reporting Technology SPD Serial Presence Detect S/PDI Sony/Philips Digital Interface SDRAM Synchronous Dynamic Random

Access Memory SIR Serial Infrared UART Universal Asynchronous

Receiver-transmitter USB Universal Serial Bus VGA Video Graphics Adapter

PCIE-Q350 PICMG 1.3 CPU Card

1 Introduction

Chapter

Page 1

1.1 Overview

Figure 1-1: PCIE-Q350 PICMG 1.3 CPU Card

PCIE-Q350 PICMG 1.3 CPU Card

The PCIE-Q350 PICMG 1.3 form factor CPU card ( Core™2 Quad, Intel® Core™2 Duo or Intel® Celeron CPU processor platform. Both 45nm core (Wolfdale, Yorkfield) and 65nm core (Conroe) processors are supported. (For a full list of supported processors please refer to Section

Up to four 2.0 GB 667 MHz or 800 MHz un-buffered DDR2 SDRAM DIMM are supported by the Mobile Intel® Q35 graphics memory controller hub (GMCH). The Intel® Q35 GMCH also has a single PCI Express x16 (PCIe x16) expansion lane for a PCIe x16 graphics card on the backplane.

The integrated Intel® ICH9DO I/O controller hub (ICH) supports six SATA II drives with data transfer speeds of 3.0 Gbps with SATA RAID configuration support. Twelve USB 2.0 channels, four expansion PCIe x1 channels and four expansion PCI channels provide flexible expansion options. Support for a (optional) trusted platform module (TPM) provides additional system security during system boot-up. High Definition Audio (HDA) support ensures an HDA audio kit can be easily implemented on the PCIE-Q350.

Figure 1-1) is an LGA775 Intel®

2.3)

Page 2

PCIE-Q350 PICMG 1.3 CPU Card

1.1.1 PCIE-Q350 Expansion Options

The PCIE-Q350 PICMG 1.3 form CPU card has the following backplane expansion options:

 1 x PCIe x16 graphics card  4 x PCIe x1 expansion cards  4 x PCI expansion cards

1.1.2 PCIE-Q350 Features

Some of the PCIE-Q350 features are listed below.

 Supports the following Intel® LGA775 processors:

o Intel® Core™2 Duo (45nm and 65nm) o Intel® Core™2 Quad (45nm and 65nm) o Intel® Celeron (65nm)

 Supports four 240-pin 2GB 667MHz or 800 MHz DDR2 DIMMs  Six SATA II drives with transfer rates of 3.0 Gbps supported  Twelve USB 2.0 devices supported (eight onboard and four on the backplane)  Dual GbE Ethernet connectors  PICMG 1.3 form factor  RoHS compliant  Supports ATX power supplies

1.2 PCIE-Q350 Overview

1.2.1 PCIE-Q350 Overview Photo

The PCIE-Q350 has a wide variety of peripheral interface connectors. Figure 1-2 is a labeled photo of the peripheral interface connectors on the PCIE-Q350.

Page 3

PCIE-Q350 PICMG 1.3 CPU Card

Figure 1-2: PCIE-Q350 Overview [Front View]

1.2.2 PCIE-Q350 Peripheral Connectors and Jumpers

The PCIE-Q350 has the following connectors on-board:

 1 x ATX power connector  1 x Audio connector  1 x Digital input/output (DIO) connector  2 x Fan connectors  1 x Front panel connector  1 x Infrared interface connector  1 x Keyboard/mouse connector  6 x Serial ATA II (SATA II) drive connectors  2 x Serial port connectors  1 x TPM connector  1 x SDVO control connector

Page 4

 3 x USB 2.0 connectors

The PCIE-Q350 has the following external peripheral interface connectors on the board rear panel.

PCIE-Q350 PICMG 1.3 CPU Card

 2 x RJ-45 Ethernet connectors  2 x USB 2.0 connectors  1 x VGA connector

The PCIE-Q350 has the following on-board jumpers:

 Clear CMOS

1.2.3 Technical Specifications

PCIE-Q350 technical specifications are listed in Table 1-1. See Chapter 2 for details.

Specification PCIE-Q350

Form Factor

System CPU

Front Side Bus (FSB)

System Chipset

Memory

Super I/O

Display

PICMG 1.3

LGA775 Intel® Core™2 Quad LGA775 Intel® Core™2 Duo LGA775 Intel® Celeron

800 MHz, 1066 MHz or 1333 MHz

Northbridge: Intel® Q35 Express Chipset Southbridge: Intel® ICH9DO

Four 240-pin DDR2 DIMM sockets support four single-channel or dual-channel 2.0 GB 667 MHz or 800 MHz DDR2 DIMMs

ITE IT8718F Rev. G

Analog VGA display through external DB-15 connector

AMI BIOS label

BIOS

SPI EEPROM

8.0 MB

Page 5

PCIE-Q350 PICMG 1.3 CPU Card

10-pin header 7.1 channel HD audio kit with RealTek ALC883

Audio

codec and dual audio streams supported

One Intel® 82566DM (PHY) and Intel® ICH9DO (MAC)

LAN

One PCIe x1 Intel® 82573L (MAC and PHY)

COM

USB2.0

SATA

SATA RAID Levels

Keyboard/mouse

Digital I/O

Watchdog Timer

Two RS-232 serial ports through onboard pin-headers

Twelve USB 2.0 devices supported:

 Six by onboard pin-headers  Two by external connectors  Four through the backplane

Six 3.0Gb/s SATA II drives supported

RAID 0, RAID 1, RAID 5 and RAID 10

By pin-header through the ITE IT8718F super I/O

One16-bit digital input/output connector; 8-bit input/8-bit output through the ITE IT8718F super I/O

Software programmable 1-255 sec. through the ITE IT8718F super I/O

One IrDA connector through the ITE IT8718F super I/O.

Page 6

Infrared

Power Supply

TPM

Fan Connector

Buzzer

Supports:

 Serial Infrared (SIR)  Amplitude Shift Keyed IR (ASKIR)

Onboard: 4-pin 12V ATX power connector Backplane: 24-pin ATX power on PICMG 1.3 backplane

Supports TPM v1.2 with 20-pin onboard pin-header

Three pin system fan pin-header Four pin CPU fan pin-header

Yes

PCIE-Q350 PICMG 1.3 CPU Card

3.3V@3A, 5V@5.1A, +12V@4.23A and 5VSB@0.28A

Power Consumption

Temperature

Humidity (operating)

Dimensions (LxW)

Weight (GW)

Table 1-1: Technical Specifications

(2.66 GHz E6700 Intel® Core™2 Duo CPU with a 1066MHz FSB and four 2.0 GB, 667 MHz DDR2 DIMM running 2Dmark® 2001 SE 330)

0ºC – 60ºC (32ºF - 140ºF)

5%~95% non-condensing

338.58mm x 126.39mm

1.1Kg

Page 7

PCIE-Q350 PICMG 1.3 CPU Card

THIS PAGE IS INTENTIONALLY LEFT BLANK

Page 8

PCIE-Q350 PICMG 1.3 CPU Card

Chapter

2 Detailed Specifications

Page 9

2.1 Dimensions

2.1.1 Board Dimensions

The dimensions of the board are listed below:

 Length: 338.58mm  Width: 126.39mm

PCIE-Q350 PICMG 1.3 CPU Card

Figure 2-1: PCIE-Q350 Dimensions (mm)

2.1.2 External Interface Panel Dimensions

External peripheral interface connector panel dimensions are shown in Figure 2-2.

Figure 2-2: External Interface Panel Dimensions (mm)

Page 10

PCIE-Q350 PICMG 1.3 CPU Card

2.2 Data Flow

Figure 2-3 shows the data flow between the two on-board chipsets and other components

installed on the motherboard and described in the following sections of this chapter.

Figure 2-3: Data Flow Block Diagram

Page 11

PCIE-Q350 PICMG 1.3 CPU Card

2.3 Compatible Processors

2.3.1 Supported Processors Overview

The PCIE-Q350 supports the following Intel® LGA775 processors

 Intel® Core™2 Quad (Yorkfield)  Intel® Core™2 Duo (Wolfdale)  Intel® Core™2 Duo (Conroe-2M)  Intel® Celeron (Conroe L)

2.3.2 Supported Intel® Core™2 Quad (Yorkfield) Processors

The Yorkfield core Intel® Core™2 Quad CPU is a 45nm LGA775 processor.

NOTE:

As of the date of writing this manual (August, 2007), Intel® has not released Intel® Core™2 Quad (Yorkfield) processor numbers that are supported by the Intel® Northbridge. As soon as processor numbers are released, the manual will be updated.

For further details about supported Intel® Core™2 Quad (Yorkfield) processors, please contact Intel® directly.

Page 12

PCIE-Q350 PICMG 1.3 CPU Card

2.3.3 Supported Intel® Core™2 Duo (Wolfdale) Processors

The Wolfdale core Intel® Core™2 Duo CPU is a 45nm LGA775 processor.

NOTE:

As of the date of writing this manual (August, 2007), Intel® has not released Wolfdale core Intel® Core™2 Duo processor numbers that are supported by the Intel® Q35 Northbridge. As soon as processor numbers are released, the manual will be updated.

For further details about supported Intel® Core™2 Duo (Yorkfield) processors, please contact Intel® directly.

2.3.4 Supported Intel® Core™2 Duo (Conroe-2M) Processors

Table 2-1 lists the Conroe-2M core Intel® Core™2 Duo processors supported on the

PCIE-Q350. All the processors in following features:

 Enhanced Halt State (C1E)  Enhance Intel® Speedstep® Technology  Execute Disable Bit  Intel® EM64T  Intel® Thermal Monitor 2  Intel® Virtualization Technology (Only on E6400)  Intel® Dual Core Technology

Table 2-1 are 65nm LGA775 processors with the

Page 13

PCIE-Q350 PICMG 1.3 CPU Card

Processor # CPU Speed FSB Speed Cache Size

E6400 2.13 GHz 1066 MHz 2 MB

E4300 1.80 GHz 800 MHz 2 MB

Table 2-1: Supported Intel® Core™2 Duo (Conroe) Processors

2.3.5 Supported Intel® Celeron (Conroe L) Processors

Table 2-1 lists the Conroe L core Intel® Celeron processors supported on the PCIE-Q350.

All the processors in

 Execute Disable Bit

Table 2-1 are 65nm LGA775 processors with the following features:

Processor # CPU Speed FSB Speed Cache Size

440 1.86 GHz 533 MHz 1 MB

Table 2-2: Supported Intel® Core™2 Duo (Conroe) Processors

2.4 Intel® Q35 Northbridge Chipset

2.4.1 Intel® Q35 Northbridge Chipset

The Intel® Q35 Northbridge chipset is an advanced Graphics and Memory Controller Hub (GMCH) that supports a range of Intel® processors including 45nm Wolfdale dual core and Yorkfield quad core and 65nm Conroe core processors. The Intel® Q35 Northbridge supports 1333 MHz, 1066 MHz, or 800 MHz FSB and up to 8.0 GB of 667 MHz or 800 MHz DDR2 SDRAM. The Intel® Q35 Northbridge is interfaced to an Intel® ICH9DO Southbridge chipset through a Direct Media Interface (DMI) communications link.

2.4.2 Intel® Q35 Front Side Bus (FSB) Support

The Intel® Q35 Northbridge supports processors with the following FSB speeds:

 800 MHz  1066 MHz

Page 14

PCIE-Q350 PICMG 1.3 CPU Card

 1333 MHz

The LGA775 socket, Intel® Q35 Northbridge and the FSB are shown in

Figure 2-4.

Figure 2-4: Front Side Bus (FSB)

2.4.3 Intel® Q35 Memory Controller

The memory controller on the Intel® Q35 Northbridge can support up to 8.0 GB of DDR2 SDRAM. Four DDR2 SDRAM DIMM sockets on the PCIE-Q350 are interfaced to the Intel® Q35 Northbridge memory controller. The DDR2 sockets are shown in

Figure 2-5.

Figure 2-5: DDR2 DIMM Sockets

Page 15

CAUTION:

If more than one DDR2 DIMM is being installed in the system, please purchase two DIMM that have the same capacity and operating frequency.

Each DIMM socket can support DIMMs with the following specifications:

 DDR2 only  Un-buffered only  667 MHz or 800 MHz  2.0 GB maximum capacity per DIMM (8.0 GB supported with four DIMM)

PCIE-Q350 PICMG 1.3 CPU Card

 Memory bandwidth:

o 6.4 GBps in single-channel or dual-channel asymmetric mode o 12.8 GBps in dual-channel interleaved mode assuming DDR2 800MHz

2.4.4 Intel® Q35 PCIe x16 Interface

The Intel® Q35 PCIe bus is compliant with the PCI Express 1.1a Specifications has the following PCIe lanes:

 One PCIe x16 graphics interface  PCIe frequency of 1.25 GHz (2.5 Gbps in each direction)

For further details on the PCIe interfaces, please refer to Section

2.6.2 on page 29.

Page 16

PCIE-Q350 PICMG 1.3 CPU Card

2.4.5 Intel® Q35 Graphics and Display Features

NOTE:

The Intel® Q35 Graphics and Display Features can be configured in the Northbridge BIOS configuration screen. Please refer to Section

6.7.1 on page 155.

The Intel® Q35 GMCH integrated graphics device (IGD) has 3D, 2D and video capabilities. The Unified Memory Architecture (UMA) uses up to 256 MB of Dynamic Video Memory Technology (DVMT) for graphics memory. External graphics accelerators on the PCIe graphics (PEG) port are supported but cannot work simultaneously with the IGD.

2.4.6 Intel® Q35 SDVO and Analog Display Features

The Intel® Q35 GMCH provides access to:

 A progressive scan analog monitor  An SDVO monitor

2.4.6.1 Intel® Q35 SDVO Capabilities

A Serial Digital Video Output (SDVO) communications bus is multiplexed to eight of the sixteen PCIe ports on the Intel® Q35. The SDVO interface provides 1.0 MHz point-to-point connectivity between the Intel® Q35 and an SDVO device. The PCIE-Q350 supports a single SDVO device on a compatible IEI backplane. The SDVO device is installed in the PCIe x16 expansion slot and the SDVO function enabled by connecting a 3-pin SDVO control connector on the PCIE-Q350 to a corresponding control connector on the IEI backplane. The SDVO control connector on the PCIE-Q350 is shown in

Figure 2-6.

Page 17

PCIE-Q350 PICMG 1.3 CPU Card

Figure 2-6: SDVO Connector

Some of the capabilities of the Intel® Q35 SDVO port are listed below:

 Multiplexed with the PCIe x16 graphics port signals  Drives pixel clocks up to 270 MHz  Supports a single-channel SDVO device.  Digital display channels can drive a variety of SDVO devices including

o TMDS o TV-Out

 Only works with the IGD  3x3 Built In full panel scalar  180 degree Hardware screen rotation  270 MHz dot clock on each 12-bit interface  Supports flat panels up to 2048 x 1536 @ 60 Hz or digital CRT/HDTV at 1920

x1080 @ 85 Hz

 Supports Hot-Plug and Display  Supports TMDS transmitters or TV-out encoders  ADD2/Media Expansion card that use the PCIe graphics x16 connector

2.4.6.2 Intel® Q35 Analog Display Capabilities

A single external female DB-15 (VGA) connector interfaces an analog display to an analog

Page 18

CRT port on the Intel® Q35 GMCH. The VGA connector is shown in

Figure 2-7.

PCIE-Q350 PICMG 1.3 CPU Card

Figure 2-7: VGA Connector

Some of the capabilities of the Intel® Q35 analog CRT port are listed below:

 400 MHz Integrated 24-bit RAMDAC  Up to 2048x1536 @ 75 Hz refresh  Hardware Color Cursor Support  DDC2B Compliant Interface

2.4.7 Intel® Q35 Direct Media Interface (DMI)

The Direct Media Interface (DMI) is the communication bus between the Intel® Q35 GMCH and the ICH9DO I/O controller hub (ICH). The DMI is a high-speed interface that integrates advanced priority-based servicing and allows for concurrent traffic and true isochronous transfer capabilities. The DMI is shown in

Figure 2-8.

Page 19

Figure 2-8: DMI Chip-to-Chip Connection

Some of the features of the DMI include:

PCIE-Q350 PICMG 1.3 CPU Card

 2.0 GBps point-to-point DMI to ICH9DO (1.0 GBps in each direction)  100 MHz reference clock (shared with PCI Express* Graphics Attach)  32-bit downstream addressing  APIC and MSI interrupt messaging support  Message Signaled Interrupt (MSI) messages  SMI, SCI and SERR error indication

2.5 Intel® ICH9DO Southbridge Chipset

2.5.1 Intel® ICH9DO Overview

Intel® ICH9DO Southbridge is an advanced I/O controller hub (ICH) connected to the Intel® Q35 Northbridge through a DMI connection. The Intel® ICH9DO has six PCIe x1 ports, supports up to twelve USB 2.0 devices, six 3.0 Gbps SATA II drives with Intel® Matrix Storage Technology (ACHI, RAID 0, RAID 1, RAID 5 or RAID 10), and comes with an integrated GbE controller that is interfaced to an external RJ-45 connector. A High-Definition audio (HDA) controller can be connected to an HDA codec on an optional

Page 20

audio kit. Four PCI Masters provide PCI expansion capabilities on a compatible PICMG

1.3 backplane.

PCIE-Q350 PICMG 1.3 CPU Card

2.5.2 Intel® ICH9DO Features

The ICH9DO Southbridge chipset on the PCIE-Q350 has the features listed below.

 Complies with PCI Express Base Specification, Revision 11  Complies with PCI Local Bus Specification, Revision 2.3 and supports 33MHz

PCI operations

 Supports ACPI Power Management Logic  Contains:

o Enhanced DMA controller o Interrupt controller o Timer functions

 Integrated SATA host controller with DMA operations on six ports with data

transfer rates up to 1.5 Gbps

 Supports twelve USB 2.0 devices with six UHCI controllers and two EHCI

controller

 Complies with System Management Bus (SMBus) Specification, Version 2.0  Supports Intel  Supports Intel  Contains Low Pin Count (LPC) interface  Supports Firmware Hub (FWH) interface  Serial Peripheral Interface (SPI) for Serial and Shared Flash  Intel® Quiet System technology

High Definition Audio

Matrix storage technology

2.5.3 Intel® ICH9DO High Definition Audio Implementation

NOTE:

The IEI® AC-KIT-883HD HDA audio kit is optional. If an IEI® AC-KIT-883HD HDA audio kit is required please contact the vendor or reseller the PCIE-Q350 was purchased from or contact and IEI® sales representative directly by sending an email to

sales@iei.com.tw.

Page 21

A RealTek ALC883 7.1+2 channel High Definition Audio (HDA) codec on an optional IEI® AC-KIT-883HD HDA audio kit is connected to a 10-pin onboard audio connector that is interfaced through the Intel® High Definition Audio serial link to the HDA controller

PCIE-Q350 PICMG 1.3 CPU Card

integrated on the Intel® ICH9DO. The audio connector is shown in

Figure 2-9: Audio Connector

NOTE:

If an HDA audio kit is going to be installed on the backplane, the HDA

Figure 2-9.

controller must be enabled in the BIOS settings. To enable the HDA controller please refer to Section

SouthBridge Configuration menu) on page

The ALC883 codec provides 10 DAC channels that simultaneously support 7.1 sound playback, plus two channels of independent stereo sound output (multiple streaming) through the front panel stereo output. Flexible mixing, mute, and fine gain control functions provide a complete integrated audio solution for home entertainment PCs. For more information please refer to the IEI® AC-KIT-883HD HDA audio kit user manual (AC-KIT-883HD_UMN_v1.0).

6.7.2 (the

158.

Page 22

PCIE-Q350 PICMG 1.3 CPU Card

2.5.4 Intel® ICH9DO Ethernet Controller

NOTE:

Gigabit Ethernet (1000 Mbps) is only supported in S0.

The Intel® ICH9DO Southbridge integrated GbE controller is interfaced to an Intel® 82566DM Gigabit LAN connect device through the Gigabit LAN Connect Interface (GLCI). The GLCI is shared with the PCIe x1 port 6. The Intel® 82566DM connects the Intel® ICH9DO Southbridge integrated GbE controller to an external RJ-45 Ethernet LAN connector to provide GbE access.

NOTE:

To enable the Intel® ICH9DO GbE Wake-on LAN function, the Wake-on LAN function must be enabled in the BIOS. Please refer to

Section

SouthBridge Configuration menu) on page

Some of the features of the Intel® ICH9DO GbE controller are listed below.

 Supports multi speeds including 10 Mbps, 100 Mbps and 1000 Mbps  Can operate in full-duplex mode at all supported speeds  Can operate at half-duplex at 10 MBps and 100 MBps  Adheres to the IEEE 802.3x Flow Control Specification.  Configurable LED operation for customization of LED display.  64-bit address master support for system using more than 4 GB of physical

0 (the

158.

memory.

 Configurable receive and transmit data FIFO, programmable in 1 KB

increments.

 Intelligent interrupt generation to enhance driver performance.

Page 23

 Compliance with Advanced Configuration and Power Interface  Compliance with PCI Power Management standards.  ACPI register set and power down functionality supporting D0 & D3 states.  Full wake-up support (APM and ACPI).  Magic Packet wake-up enable with unique MAC address.  Fragmented UDP checksum off load for package reassembly.  Jumbo frames supported.

PCIE-Q350 PICMG 1.3 CPU Card

2.5.4.1 Intel® 82566DM Gigabit LAN Connect Device

One of the external RJ-45 Ethernet LAN connectors is interfaced to an Intel® 82566DM Gigabit LAN connect device. The Intel® 82566DM is a compact, single-port integrated physical layer (PHY) device interfaced directly to the Intel® ICH9DO Ethernet controller through the GLCI. The Intel® ICH9DO Ethernet controller has its own Media Access Controller (MAC). The Intel® 82566DM Gigabit LAN connect device is shown in

2-10.

Figure 2-10: Intel® 82566DM Gigabit LAN Connect Device

Figure

Page 24

Some of the features of the Intel® 82556DM are listed below:

 10 Mbps, 100 Mbps, or 1000 Mbps  Supports Intel® Active Management TechnologyS  Supports Intel® Virtualization Technology through the Intel® Virtual Gigabit

PCIE-Q350 PICMG 1.3 CPU Card

Network Connection.

 Can support legacy ASF2.0.  Shared SPI flash with system BIOS  Integrated linear voltage regulator  TCP/UDP checksum and segmentation offload  Receive side scaling  Dual TX and RX queues  802.1p and 802.1q

2.5.5 Intel® ICH9DO Low Pin Count (LPC) Interface

The ICH9DO LPC interface complies with the LPC 1.1 specifications. The LPC bus from the ICH9DO is connected to the following components:

 BIOS chipset  Super I/O chipset  Trusted Platform Module (TPM) connector

2.5.6 Intel® ICH9DO PCI Interface

The PCI interface on the ICH9DO is compliant with the PCI Revision 2.3 implementation. Some of the features of the PCI interface are listed below.

 PCI Revision 2.3 compliant  33MHz  5V tolerant PCI signals (except PME#)  Integrated PCI arbiter supports up to four PCI bus masters

The PCI bus masters are interfaced to the following onboard components:

 Two backplane PCI channels  One IT8209 PCI bridge

The bus masters interfaced to the two backplane PCI channels and the two PCI channels that come from the PCI bridge are all interfaced to the PCI edge connector on the bottom of the PCIE-Q350 as specified by the PICMG 1.3 form factor.

Page 25

2.5.7 Intel® ICH9DO PCIe x1 Bus

The Intel® ICH9DO Southbridge chipset has six PCIe x1 lanes. The four PCIe lanes are interfaced through a PCIe edge connector at the bottom of the CPU card through a compatible half-size backplane to either four PCIe x1 expansion cards or one PCIe x4 expansion card on.

One of the remaining PCIe x1 lanes is connected to an Intel® 82566DM GbE controller and the other PCIe x1 lane is connected to an Intel® 82573L GbE controller.

PCIE-Q350 PICMG 1.3 CPU Card

For more detailed information, please refer to Section

2.6.3.

2.5.8 Intel® ICH9DO Real Time Clock

256 bytes of battery backed RAM is provided by the Motorola MC146818B real time clock (RTC) integrated into the ICH9DO. The RTC operates on a 3V battery and 32.768KHz crystal. The RTC keeps track of the time and stores system data even when the system is turned off.

2.5.9 Intel® ICH9DO SATA Controller

NOTE:

That SATA drive mode is set in the BIOS. Please refer to the Section

6.3.2 on IDE Configuration on page 115 and Section 6.3.5.1 on AHCI Configuration on page

131.

Page 26

The ICH9DO SATA supports three modes of operation:

 Native IDE enabled operating system: Two controllers enable all six ports

on the bus. Controller 1 supports Port 0, Port 1, Port 2 and Port 3. Controller 2 supports Ports 4 and Port 5.

 Legacy operating system is used: One controller is enabled and only

supports Port 0, Port 1, Port 2 and Port 3.

PCIE-Q350 PICMG 1.3 CPU Card

 AHCI or RAID mode: One controller supports all six ports including, Port 0,

Port 1, Port 2, Port 3, Port 4 and Port 5.

In the AHCI or RAID mode, 3.0 Gbps data transfer speeds are supported. The SATA drive connectors are shown in

Figure 2-11.

Figure 2-11: SATA Drive Connectors

2.5.10 Intel® ICH9DO Serial Peripheral Interface (SPI) BIOS

The 4-pin SPI is connected to an SPI BIOS chip. A licensed copy of AMI BIOS is preinstalled on the SPI BIOS chip. A master-slave protocol is used for communication on the SPI bus. The slave is connected to the Intel® ICH9DO Southbridge and is implemented as a tri-state bus.

2.5.11 Intel® ICH9DO USB Controller

2.5.11.1 Intel® ICH9DO USB Controller Overview

The ICH9DO comprises six full/low speed USB controllers that support the standard Universal Host Controller Interface (UHCI) Revision 1.1. Each controller supports two USB devices ensuring up to twelve USB 1.1 devices can be connected to the PCI E-Q35 0.

The ICH9DO also comprises two high-speed Enhanced Host Controller Interface (EHCI) controllers. Each EHCI controller supports six USB 2.0 devices ensuring twelve USB 2.0

Page 27

devices can be connected to the PCIE-Q350. EHCI controllers facilitate data transfer speeds of 480 Mbps

Port routing logic on the ICH9DO determines whether a UHCI or an EHCI controller controls a USB port.

PCIE-Q350 PICMG 1.3 CPU Card

2.5.11.2 PCIE-Q350 USB Implementation

Only eight of the Intel® ICH9DO USB ports are implemented on the PCIE-Q350. Two USB ports (USB Port 1 and USB Port 2) are connected to two external connectors and six USB ports (USB Port 3 to USB Port 8) are connected to three 8-pin onboard pin-headers. See

Figure 2-12.

Page 28

Figure 2-12: Onboard USB Implementation

2.5.11.3 Backplane USB Implementation

The remaining four Intel® ICH9DO USB ports (USB Port 9 to USB Port 8) are interfaced to the backplane through the USB edge connector on the bottom of the CPU card. See Figure 2-13. These four remaining USB ports are implemented through connectors on the backplane.

PCIE-Q350 PICMG 1.3 CPU Card

Figure 2-13: USB Edge connector

2.6 PCIE-Q350 PCIe Bus Components

2.6.1 PCIe Bus Overview

The PCIE-Q350 has one PCIe x16 channel from the Intel® Q35 Northbridge and six PCIe x1 lanes from the Intel® ICH9DO Southbridge. The PCIe bus lanes are interfaced to the following devices.

 One PCIe x16 lane is connected to one PCIe x16 graphics card on a

compatible backplane

 Four PCIe x1 lanes are connected to four PCIe x1 expansion cards on a

compatible backplane

 One PCIe x1 lanes are connected to two Intel® PCIe GbE connectors  One PCIe x1 is shared with the Intel® ICH9DO Gigabit LAN Connect

Interface (GLCI), which is connected to a Intel® 82566DM Gigabit platform LAN connect device

2.6.2 PCIe x16 Expansion

The Intel® Q35 Northbridge chipset has one PCIe x16 port reserved for a PCIe x16 graphics card. The PCIe x16 lane is interfaced to a PCIe x16 slot on a compatible backplane through two separate edge connectors on the bottom of the CPU card. The PCIe x16 graphics card is then installed on the PCIe x16 slot on the backplane. The PCIe x16 edge connector is shown in

Figure 2-14.

Page 29

Figure 2-14: PCIe x16 Edge connector

2.6.3 PCIe x1 Expansion

PCIE-Q350 PICMG 1.3 CPU Card

Four of the six PCIe x1 expansion channels on the PCIE-Q350 are interfaced t o four PCIe x1 connectors on a backplane through an edge connector on the bottom of the CPU card. The PCIe x1 edge connector is shown in

Figure 2-15: PCIe x1 Edge connector (Four Lanes)

Figure 2-15.

2.6.4 Intel® 82573L PCIe GbE Controller

An RJ-45 Ethernet LAN connector is interfaced directly to an Intel® 82573L PCIe GbE controller. The Intel® 82573L PCIe GbE controller is a compact, single-port integrated

Page 30

PCIE-Q350 PICMG 1.3 CPU Card

physical layer (PHY) device with its own Memory Access Controller (MAC) and interfaced to the Intel® ICH9DO Southbridge through a PCIe x1 lane. The Intel® 82573L GbE controllers is shown in

Figure 2-16 below.

Figure 2-16: Intel® 82573L PCIe GbE Controller

Some of the features of the Intel® 82573L are listed below:

 2 Gbps peak bandwidth per direction  PCI Express Rev 1.0a specification  High bandwidth density per pin  Wide,pipelined internal data path architecture  Optimized transmit (Tx) and receive (Rx) queues  32 KB configurable Rx and Tx first-in/first-out (FIFO)  IEEE 802.3x*-compliant flow-c ontrol support with software controllable pause

times and threshold values

 Programmable host memory Rx buffers (256 B-16 KB)  Descriptor ring management hardware for Tx and Rx  Mechanism for reducing interrupts from Tx/Rx operations  Integrated PHY for 10/100/1000 Mbps (full- and half-duplex)  IEEE 802.3ab* auto-negotiation support  IEEE 802.3ab PHY compliance and compatibility  Tx/Rx IP,TCP,and UDP checksum offloading  Tx TCP segmentation  IEEE 802.1q* Virtual Local Area Network (VLAN) support with VLAN tag

Page 31

insertion, stripping, and packet filtering for up to 4096 VLAN tags

 Boot ROM Preboot eXecution Environment (PXE) Flash interface support  SDG 3.0,WfM 3.0 and PC2001 compliant  Wake on LAN support

2.7 PCI Bus Components

2.7.1 PCI Bus Overview

The PCI bus is connected to the components listed below:

 ITE IT8211 ATA controlle r chipset  IT8209R PCI arbiter  PCI edge connector

The PCI bus complies with PCI Local Bus Specification, Revision 2.3 and supports 33MHz

PCIE-Q350 PICMG 1.3 CPU Card

PCI operations.

2.7.2 ITE IT8209 PCI Arbiter

One of the Intel® ICH9DO Southbridge PCI lanes is connected to an ITE IT8209 PCI arbiter. One set of SYSGNT# and SYSREQ# on the ITE IT8209 supports three PCI Masters thereby enabling the PCIE-Q350 to support an additional two PCI Masters. The ITE IT8209 PCI arbiter is shown in

Figure 2-17 below.

Page 32

PCIE-Q350 PICMG 1.3 CPU Card

Figure 2-17: PCI Arbiter

One of the PCI masters on the ITE IT8209 PCI arbiter is connected to the Intel® ICH9DO Southbridge. The remaining two are connected to the PCI edge connector to facilitate PCI expansion on the backplane. Some of the features of the ITE IT8209 PCI arbiter are listed below:

 Extended PCI Arbiter  Input PCI Clock  Clock Buffer

2.7.3 PCI Interface Edge connector

The PCI interface edge connector is connected to two PCI Masters on the ICH9DO Southbridge and to two PCI masters on the ITE IT8209 PCI arbiter. The PCI bus edge connector on the PCIE-Q350 is interfaced to the PCI bus on the backplane thereby connecting the PCI backplane expansion boards to the Intel® ICH9DO Southbridge. The PCI bus edge connector is shown in

Figure 2-18: PCI Edge connector Connection

Figure 2-18.

The PCI is interfaced to four standard PCI expansion cards a compatible PICMG 1.3 backplane.

Page 33

2.8 LPC Bus Components

2.8.1 LPC Bus Overview

The LPC bus is connected to components listed below:

 TPM module connector  Super I/O chipset

2.8.2 TPM Module

A TPM connector on the PCIE-Q350 is interfaced to the Intel® ICH9DO Southbridge

PCIE-Q350 PICMG 1.3 CPU Card

through the LPC bus. The TPM connector is shown in

Figure 2-19: TPM Connector

The Intel® ICH9DO Southbridge supports TPM version 1.1 and TPM version 1.2 devices for enhanced security. Three TPM are available from IEI. The three IEI TPM are listed

Figure 2-19 below.

Page 34

below:

 Infineon TPM module  Sinosun TPM module  Winbond TPM module

For more information about these modules please refer to Chapter 3 or contact the PCIE-Q350 reseller or vendor. Alternatively, please contact IEI at

sales@iei.com.tw.

PCIE-Q350 PICMG 1.3 CPU Card

2.8.3 Super I/O chipset

The ITE IT8718F Super I/O chipset is connected to the Intel® ICH9DO Southbridge through the LPC bus. ITE IT8718F Super I/O chipset is shown in

Figure 2-20 below.

Figure 2-20: ITE IT8718F Super I/O

The ITE IT8718F is an LPC interface-based Super I/O device that comes with an integrated Environment Controller. Some of the features of the iTE IT8718F chipset are listed below:

 PC98/99/2001, ACPI and LANDesk Compliant  Enhanced Hardware Monitor  Fan Speed Controller  Multi curve for one fan control  Multi sensor for one fan control  Single +5V Power Supply  Two 16C550 UARTs for serial port control  Keyboard Controller  48 General Purpose I/O Pins  Watchdog Timer  Serial IRQ Support  SmartGuardian Controller  ITE automatic power-failure resume and power button debounce

Page 35

Some of the Super I/O features are described in more detail below:

PCIE-Q350 PICMG 1.3 CPU Card

2.8.3.1 Super I/O LPC Interface

The LPC interface on the Super I/O complies with the Low Pin Count Specification Rev.

1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI PME# interfaces.

2.8.3.2 Super I/O 16C550 UARTs

The onboard Super I/O has two integrated 16C550 UARTs that can support the following:

 Two standard serial ports (COM1 and COM2)  IrDa 1.0 and ASKIR protocols

2.8.3.3 Super I/O Enhanced Hardware Monitor

The Super I/O Enhanced Hardware Monitor monitors three thermal inputs, VBAT internally, and eight voltage monitor inputs. These hardware parameters are reported in the BIOS and can be read from the BIOS Hardware Health Configuration menu.

2.8.3.4 Super I/O Fan Speed Controller

The Super I/O fan speed controller enables the system to monitor the speed of the fan. One of the pins on the fan connector is reserved for fan speed detection and interfaced to the fan speed controller on the Super I/O. The fan speed is then reported in the BIOS.

2.8.3.5 Super I/O Keyboard and Mouse Controller

The Super I/O keyboard and mouse controller is compatible with the following specifications.

 8042 compatible  Asynchronous access to two data registers and one status register  Compatible with 8042 software

Page 36

 PS/2 mouse supported  Port 92 supported

PCIE-Q350 PICMG 1.3 CPU Card

 Interrupt and polling modes supported  Fast Gate A20 and Hardware Keyboard Reset  8-bit timer/counter

The keyboard and mouse controller controller is interfaced to a keyboard and mouse connected to the backplane through the board-to-board connectors.

2.8.3.6 Super I/O GPIO Ports

The Super I/O has 48 programmable GPIO ports of which 16 are implemented on the PCIE-Q350. The GPIO connector has 16 programmable bits, 8-bit input and 8-bit output.

2.8.3.7 Super I/O Infrared

The Super I/O has dedicated infrared (IrDA) pins that are interfaced to an IrDA connector. The IrDA connector is compatible with the following standards:

 ASKIR  SIR

2.8.4 Super I/O Watchdog Timer

The super I/O wathdog timer has a maximum time resolution of 1 minute or 1 second with a maximum or either 65,535 minutes or 65,535 seconds.

2.9 Ethernet LAN Controllers

The PCIE-Q350 CPU card has two GbE controllers. The PCIE-Q350 LAN connections are shown in

Figure 2-21.

Page 37

Figure 2-21: LAN Connections

PCIE-Q350 PICMG 1.3 CPU Card

The first GbE controller, is an Intel® 82537L PCIe GbE controller and is the interface between the Intel® ICH9DO Southbridge controller and the LAN1 RJ-45 Ethernet connector.

The second GbE controller is integrated on the Intel® ICH9DO Southbridge and i nterfaced to the LAN2 RJ-45 Ethernet LAN connector through an Intel® 82566DM Gigabit Platform LAN Connect device. The Intel® 82566DM is connected directly to the GbE controller on the Intel® ICH9DO Southbridge through the GLCI, which is shared with the PCIe x1 port

Both of these Ethernet controllers have been described in detail in earlier sections. For further details please refer to the relevant sections:

 Intel® ICH9DO Ethernet controller (Section 2.5.4)  Intel® 82566DM Gigabit Platform LAN Connect device (Section 2.5.4.1)  Intel® 82537L PCIe GbE controller (Section 2.6.4)

Page 38

PCIE-Q350 PICMG 1.3 CPU Card

2.10 Environmental and Power Specifications

2.10.1 System Monitoring

Three thermal inputs on the PCIE-Q350 Super I/O Enhanced Hardware Monitor monitor the following temperatures:

 CPU Temperature  System Temperatu re

Five voltage inputs on the PCIE-Q350 Super I/O Enhanced Hardware Monitor monitors the following voltages:

 CPU Core  +1.80V  +3.30V  +12.0V  5VSB  VBAT

The PCIE-Q350 Super I/O Enhanced Hardware Monitor also monitors the following fan speeds:

 Fan Speed1 (CPU Fan)  Fan Speed2 (System Fan)

The values for the above environmental parameters are all recorded in the BIOS Hardware Health Configuration menu.

2.10.2 Operating Temperature and Temperature Control

The maximum and minimum operating temperatures for the PCIE-Q350 are listed below.

 Minimum Operating Temperature: 0ºC (32°F)  Maximum Operating Temperature: 60°C (140°F)

Page 39

A cooling fan and heat sink must be installed on the CPU. Thermal paste must be smeared on the lower side of the heat sink before it is mounted on the CPU. Heat sinks are also mounted on the Northbridge and Southbridge chipsets to ensure the operating temperature of these chips remain low.

2.10.3 Power Consumption

Table 2-3 shows the power consumption parameters for the PCIE-Q350 running 3D

Mark® 2001 SE330 with a 2.66 GHz E6700 Intel® Core™2 Duo processor with a 1066 MHz FSB and four 2.0GB 667MHz DDR2 DIMMs.

Voltage Current

+3.3V 3.0A

+5.0V 5.1A

PCIE-Q350 PICMG 1.3 CPU Card

+12V 4.23A

5Vsb 0.28A

Table 2-3: Power Consumption

2.11 Expansion Options

2.11.1 Expansion Options Overview

A number of compatible IEI Technology Corp. PICMG 1.3 backplanes and chassis can be used to develop and expanded system. These backplanes and chassi s are listed below.

2.11.2 IEI Expansion PICMG 1.3 Backplanes

The backplanes listed in Table 2-4 are compatible with the PCIE-Q350 and can be used to develop highly integrated industrial applications. All of the backplanes listed below have 24-pin ATX connector and a 4-pin ATX connector. For more information about these

Page 40

backplanes please consult the IEI catalog or contact your vendor, reseller or the IEI sales team at

sales@iei.com.tw.

PCIE-Q350 PICMG 1.3 CPU Card

Expansion Slots

Model Total Slots System

PCIe

System Type

PCI

x16 x4 x1

PE-4S2 4 One 1 - - 2 Single PE-4S3 4 One 1 - 2 - Single PE-5S2 5 One 1 - 3 - Single PE-6S-R20 6 One 1 - - 3 Single PE-6S3 6 One 1 - 3 1 Single PE-6SD 5 One 1 - 3 - Single PE-6SD2 5 One 1 - 2 1 Single PE-7S 7 One 1 - 2 3 Single PE-7S2 7 One 1 - 4 1 Single PE-8S 8 One 1 - 3 3 Single PE-9S 9 One 1 - 4 3 Single PE-10S-R20 10 One 1 - 4 4 Single PE-10S2 10 One 1 - 4 4 Single PXE-13S 13 One 1 - 3 8 Single PXE-19S 19 One 1 - 1 16 Single

Table 2-4: Compatible IEI PICMG 1.3 Backplanes

2.11.3 IEI Chassis

IEI chassis available for PCIE-Q350 system development are listed in Table 2-5.

For more information about these chassis please consult the IEI catalog or contact your vendor, reseller or the IEI sales team at

Model Slot SBC Mounting Max Slots Backplanes

PAC-42GF-R20 Full-size Wall 4 PE-4S

PACO-504F Full-size Wall 4 PE-4S

sales@iei.com.tw.

PE-4S2 PE-4S3

Page 41

PCIE-Q350 PICMG 1.3 CPU Card

Model Slot SBC Mounting Max Slots Backplanes

PAC-106G-R20 Full-size Wall 6 PE-5S

PE-5S2 PE-6S2 PE-6S3

PAC-107G-R20 Full-size Wall 6 PE-5S

PE-5S2 PE-6S2 PE-6S3

RACK-500G-R20 Full-size (4U) Rack 5 PE-5S

PE-5S2

RACK-305G-R20 Full-size (4U) Rack 14 PE-6S-R20

PE-10S-R20 PE-10S2 PXE-13S PXE-19S

RACK-360G-R20 Full-size (4U) Rack 14 PE-6S-R20

PE-10S-R20 PE-10S2 PXE-13S

RACK-814G-R20 Full-size (4U) Rack 14 PE-6S-R20

PE-10S-R20 PE-10S2 PXE-13S

RACK-3000G-R20 Full-size (4U) Rack 14 PE-6S-R20

PE-10S-R20 PE-10S2 PXE-13S PXE-19S

PAC-1700G-R20 Full-size Wall 7 PE-6S-R20

Page 42

PE-7S PE-7S2

PAC-125G-R20 Full-size Wall 10 PE-6S-R20

PE-8S

PCIE-Q350 PICMG 1.3 CPU Card

Model Slot SBC Mounting Max Slots Backplanes

PAC-1000G-R20 Full-size Wall 6 PE-6S2

PACO-506F Full-size Wall 6 PE-6S2

RACK-221G Full-size (2U) Rack 6 PE-6SD

RACK-2100G Full-size (2U) Rack 6 PE-6SD

Table 2-5: Compatible IEI Chassis

PE-6S3

PE-6SD2

Page 43

PCIE-Q350 PICMG 1.3 CPU Card

THIS PAGE IS INTENTIONALLY LEFT BLANK

Page 44

PCIE-Q350 PICMG 1.3 CPU Card

Chapter

3 Unpacking

Page 45

3.1 Anti-static Precautions

WARNING:

Failure to take ESD precautions during the installation of the PCIE-Q350 may result in permanent damage to the PCIE-Q350 and severe injury to the user.

Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PCIE-Q350. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PCIE-Q350, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

PCIE-Q350 PICMG 1.3 CPU Card

 Wear an anti-static wristband: - Wearing a simple anti-static wristband can

help to prevent ESD from damaging the board.

 Self-grounding:- Before handling the board touch any grounded conducting

material. During the time the board is handled, frequently touch any conducting materials that are connected to the ground.

 Use an anti-static pad: When configuring the PCIE-Q350, place it on an

antic-static pad. This reduces the possibility of ESD damaging the PCIE-Q350.

 Only handle the edges of the PCB:-: When handling the PCB, hold the PCB

by the edges.

3.2 Unpacking

3.2.1 Unpacking Precautions

When the PCIE-Q350 is unpacked, please do the following:

 Follow the anti-static precautions outlined in Section 3.1.

Page 46

 Make sure the packing box is facing upwards so the PCIE-Q350 does not fall

out of the box.

 Make sure all the components shown in Section 3.3 are present.

PCIE-Q350 PICMG 1.3 CPU Card

3.3 Unpacking Checklist

NOTE:

If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PCIE-Q350 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to

sales@iei.com.tw.

3.3.1 Package Contents

The PCIE-Q350 is shipped with the following components:

Quantity Item and Part Number Image

1 PCIE-Q350 CPU Card

1 Dual RS-232 cable

(P/N: 19800-000051-RS)

1 KB/MS cable with Mini DIN

1 KB/MS PS/2 Y-cable

(P/N: 32000-000138-RS)

Page 47

4 SATA cables

(P/N: 32000-062800-RS)

2 SATA power cables

PCIE-Q350 PICMG 1.3 CPU Card

(P/N: 32100-088600-RS)

1 Mini jumper Pack

1 Quick Installation Guide

1 Utility CD

1 USB cable

(P/N:CB-USB02-RS)

Table 3-1: Package List Contents

3.4 Optional Items

Page 48

PCIE-Q350 PICMG 1.3 CPU Card

Audio kit (P/N: AC-KIT-833HD-R10)

5-pin Wafer-to-PS/2 (P/N: 320000-000075-RS)

4-port USB cable (P/N: CB-USB04-RS)

CPU cooling kit (P/N: CF-520-RS)

CPU cooling kit (P/N: CF-775A-RS)

Infineon TPM module (P/N: TPM-IN01-R10)

Sinosun TPM module (P/N: TPM-SI01-R10)

Page 49

PCIE-Q350 PICMG 1.3 CPU Card

Winbond TPM module (P/N: TPM-WI01-R10)

Table 3-2: Package List Contents

Page 50

PCIE-Q350 PICMG 1.3 CPU Card

Chapter

4 Connector Pinouts

Page 51

4.1 Peripheral Interface Connectors

Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the

PCIE-Q350 PICMG 1.3 CPU Card

peripheral interface connectors seen in Section

4.1.2.

4.1.1 PCIE-Q350 Layout

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

Figure 4-1: Connector and Jumper Locations

4.1.2 Peripheral Interface Connectors

Table 4-1 shows a list of the peripheral interface connectors on the PCIE-Q350. Detailed

descriptions of these connectors can be found below.

Connector Type Label

ATX power connector 4-pin ATX connector CPU12V1

Audio connector 10-pin header AUDIO1

Cooling fan connector, CPU 4-pin wafer CPU_FAN1

Cooling fan connector, System 3-pin wafer CPU_SYS1

Page 52

PCIE-Q350 PICMG 1.3 CPU Card

Digital input/output connector 10-pin header DIO1

Keyboard and mouse connector 6-pin wafer KB/MS1

Front panel connector 10-pin header F_PANEL1

Infrared (IrDA) connector 5-pin header IR1

SDVO connector 3-pin header SDVO1

Serial ATA drive connector 7-pin SATA SATA1

Serial ATA drive connector 7-pin SATA SATA2

Serial ATA drive connector 7-pin SATA SATA3

Serial ATA drive connector 7-pin SATA SATA4

Serial ATA drive connector 7-pin SATA SATA5

Serial ATA drive connector 7-pin SATA SATA6

Serial port connector (COM1) 10-pin box header COM1

Serial port connector (COM2) 10-pin box header COM2

TPM connector 20-pin header TPM1

USB connectors 8-pin header USB1

USB connectors 8-pin header USB2

USB connectors 8-pin header USB3

Table 4-1: Peripheral Interface Connectors

4.1.3 External Interface Panel Connectors

Table 4-2 lists the rear panel connectors on the PCIE-Q350. Detailed descriptions of these connectors can be found in Section

4.3 on page 75.

Page 53

Connector Type Label

Ethernet connector RJ-45 LAN1

Ethernet connector RJ-45 LAN2

USB connector USB port USB_1

USB connector USB port USB_2

VGA connector Female DB-15 VGA1

Table 4-2: Rear Panel Connectors

4.2 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

PCIE-Q350 PICMG 1.3 CPU Card

when the motherboard is outside of the chassis. T his se ction h as complet e d esc ription s of all the internal, peripheral connectors on the PCIE-Q350.

4.2.1 ATX Power Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

The 4-pin ATX power connector is connected to an ATX power supply and powers the CPU.

CPU12V1

4-pin ATX power connector (1x4)

Figure 4-2

See

Table 4-3

See

Page 54

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-2: ATX Power Connector Location

PIN NO. DESCRIPTION

1 GND

2 GND 3 +12V

4 +12V

Table 4-3: AT Power Connector Pinouts

Page 55

4.2.2 Audio Connector

PCIE-Q350 PICMG 1.3 CPU Card

CN Label:

CN Type:

CN Location:

CN Pinouts:

AUDIO1

9-pin header (2x5)

Figure 4-3

See

Table 4-4

See

NOTE:

The 9-pin audio connector is interfaced on the one side to the high-definition audio (HDA)

sales@iei.com.tw.

controller on the Intel® ICH9DO Southbridge and to an external HDA codec.

NOTE:

If an HDA audio kit is going to be installed on the backplane, the HDA controller must be enabled in the BIOS settings. To enable the HDA controller please refer to Section

SouthBridge Configuration menu) on page

6.7.2 (the

158.

Page 56

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-3: Audio Connector Location (9-pin)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 SYNC 2 BITCLK 3 SDOUT 4 PCBEEP

5 SDIN 6 RST# 7 VCC 8 GND

9 +12V 10 N/C

Table 4-4: Audio Connector Pinouts

4.2.3 Digital Input/Output (DIO) Connector

CN Label:

CN Type:

DIO1

18-pin header (2x9)

Page 57

See

CN Location:

CN Pinouts:

Figure 4-4

Table 4-5

See

PCIE-Q350 PICMG 1.3 CPU Card

The digital input/output connector is managed through a Super I/O chip. The DIO connector pins are user programmable. To see details on how to program the DIO chip, please refer to Appendix

Page 58

Figure 4-4: DIO Connector Connector Locations

PCIE-Q350 PICMG 1.3 CPU Card

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Input 0 2 Output 0 3 Input 1 4 Output 1

5 Input 2 6 Output 2 7 Input 3 8 Output 3

9 Input 4 10 Output 4 11 Input 5 12 Output 5

13 Input 6 14 Output 6 15 Input 7 16 Output 7

17 GND 18 +5V

Table 4-5: DIO Connector Connector Pinouts

4.2.4 Fan Connector, CPU (12V, 4-pin)

CN Label:

CN Type:

CN Location:

CN Pinouts:

CPU_FAN1

3-pin header

Figure 4-5

See

Table 4-6

See

The CPU cooling fan connector provides a 12V, 500mA current to a CPU cooling fan. The connector has a "rotation" pin to get rotation signals from fans and notify the system so the system BIOS can recognize the fan speed. Please note that only specified fans can issue the rotation signals.

Page 59

PCIE-Q350 PICMG 1.3 CPU Card

Page 60

Figure 4-5: +12V Fan Connector Location

PIN NO. DESCRIPTION

1 GND 2 +12VCC 3 Rotation Signal 4 Control

Table 4-6: +12V Fan Connector Pinouts

PCIE-Q350 PICMG 1.3 CPU Card

4.2.5 Fan Connector, System (+12V)

CN Label:

CN Type:

CN Location:

CN Pinouts:

The system cooling fan connector provides a 12V, 500mA current to a system cooling fan.. The connector has a "rotation" pin to get rotation signals from fans and notify the system so the system BIOS can recognize the fan speed. Please note that only specified fans can issue the rotation signals.

SYS_FAN1

3-pin header

Figure 4-6

See

Table 4-7

See

Figure 4-6: +12V Fan Connector Location

Page 61

PIN NO. DESCRIPTION

1 GND 2 +12V 3 Rotation Signal

Table 4-7: +12V Fan Connector Pinouts

4.2.6 Front Panel Connector (14-pin)

PCIE-Q350 PICMG 1.3 CPU Card

CN Label:

CN Type:

CN Location:

CN Pinouts:

F_PANEL1

12-pin header (2x6)

Figure 4-7

See

Table 4-8

See

The front panel connector connects to external switches and indicators to monitor and controls the motherboard. These indicators and switches include:

 Power LED  Speaker  Power button  Reset  HDD LED

Page 62

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-7: Front Panel Connector Pinout Locations (14-pin)

FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION

Power LED

Button

1 LED+ 2 SPEAKER+ 3 N/C 4 N/C 5 LED- 6 N/C 7 PWRBTSW+ 9 PWRBTSW- 10 N/C 11 IDE LED+ 12 RESET+ HDD LED 13 IDE LED-

Speaker

8 SPEAKER - Power

Reset

14 RESET-

Table 4-8: Front Panel Connector Pinouts (14-pin)

Page 63

4.2.7 Infrared Interface Connector (5-pin)

PCIE-Q350 PICMG 1.3 CPU Card

CN Label:

CN Type:

CN Location:

CN Pinouts:

IR1

5-pin header (1x5)

Figure 4-8

See

Table 4-9

See

The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift Key Infrared (ASKIR) interfaces.

Page 64

Figure 4-8: Infrared Connector Pinout Locations

PCIE-Q350 PICMG 1.3 CPU Card

PIN NO. DESCRIPTION

1 VCC

2 NC 3 IR-RX

4 GND 5 IR-TX

Table 4-9: Infrared Connector Pinouts

4.2.8 Keyboard/Mouse Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

CN22

6-pin header (1x6)

Figure 4-9

See

Table 4-10

See

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.

Page 65

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-9: Keyboard/Mouse Connector Location

Page 66

PCIE-Q350 PICMG 1.3 CPU Card

PIN NO. DESCRIPTION

1 +5V KB DATA

2 MS DATA 3 MS CLK

4 KB DATA 5 KB CLK

6 GROUND

Table 4-10: Keyboard/Mouse Connector Pinouts

4.2.9 SATA Drive Connectors

CN Label:

CN Type:

CN Location:

CN Pinouts:

SATA1, SATA2, SATA3, SATA4, SATA5. and SATA6

7-pin SATA drive connectors

Figure 4-10

See

Table 4-11

See

The six SATA drive connectors are each connected to second generation SATA drives. Second generation SATA drives transfer data at speeds as high as 300 Mbps. The SATA drives can be configured in a RAID configuration.

Page 67

PCIE-Q350 PICMG 1.3 CPU Card

Page 68

Figure 4-10: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND 2 TX+ 3 TX4 GND 5 RX6 RX+ 7 GND

Table 4-11: SATA Drive Connector Pinouts

PCIE-Q350 PICMG 1.3 CPU Card

4.2.10 Serial Port Connector (COM1, COM 2)

CN Label:

CN Type:

CN Location:

CN Pinouts:

The 10-pin serial port connector provides a second RS-232 serial communications channel. The COM 2 serial port connector can be connected to external RS-232 serial port devices.

COM1 and COM2

10-pin header (2x5)

Figure 4-11

See

Table 4-12

See

Figure 4-11: Serial Connector Pinout Locations

Page 69

PCIE-Q350 PICMG 1.3 CPU Card

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Data Carrier Direct (DCD) 2 Data Set Ready (DSR) 3 Receive Data (RXD) 4 Request To Send (RTS) 5 Transmit Data (TXD) 6 Clear To Send (CTS) 7 Data Terminal Ready (DTR) 8 Ring Indicator (RI) 9 Ground (GND) 10 N/C

Table 4-12: Serial Connector Pinouts

4.2.11 Trusted Platform Module (TPM) Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

The Trusted Platform Module (TPM) connector secures the system on bootup. An optional TPM (see packing list in Chapter 3) can be connected to the TPM connector.

TPM1

40-pin header (2x20)

Figure 4-13

See

Table 4-14

See

Page 70

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-12: TPM Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 LCLK 2 GND2 3 LFRAME# 4 KEY

5 LRESET# 6 +5V 7 LAD3 8 LAD2

9 +3V 10 LAD1 11 LAD0 12 GND3

13 SCL 14 SDA 15 SB3V 16 SERIRQ

Page 71

17 GND1 18 GLKRUN#

19 LPCPD# 20 LDRQ#

Table 4-13: TPM Connector Pinouts

4.2.12 SDVO Control Connector

PCIE-Q350 PICMG 1.3 CPU Card

CN Label:

CN Type:

CN Location:

CN Pinouts:

If an SDVO graphics card is installed on the PCIe x16 expansion slot on the backplane, the 1x3 pin Serial Digital Video Output (SDVO) control connector must be connected to a corresponding SDVO control connector on a compatible IEI backplane.

SDVO1

3-pin header (1x3)

Figure 4-13

See

Table 4-14

See

Page 72

PCIE-Q350 PICMG 1.3 CPU Card

Figure 4-13:SDVO Connector Pinout Locations

PIN NO. DESCRIPTION

1 EXP_EN 2 SDVO_CLOCK 3 SDVO_DATA

Table 4-14: SDVO Connector Pinouts

Page 73

4.2.13 USB Connectors (Internal)

PCIE-Q350 PICMG 1.3 CPU Card

CN Label:

CN Type:

CN Location:

CN Pinouts:

The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0 ports. Each USB connector can support two USB devices.. Additional external USB ports are found on the rear panel. The USB ports are used for I/O bus expansion.

USB1, USB2 and USB3

8-pin header (2x4)

Figure 4-14

See

Table 4-15

See

Page 74

Figure 4-14: USB Connector Pinout Locations

PCIE-Q350 PICMG 1.3 CPU Card

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC 2 GND 3 DATAN- 4 DATAM+ 5 DATAN+ 6 DATAM7 GND 8 VCC

Table 4-15: USB Port Connector Pinouts

4.3 External Peripheral Interface Connector Panel

Figure 4-15 shows the PCIE-Q350 external peripheral interface connector (EPIC) panel.

The PCIE-Q350 EPIC panel consists of the following:

 1 x DVI connector  1 x PS/2 connector  2 x RJ-45 LAN connectors

Figure 4-15: PCIE-Q350 External Peripheral Interface Connector

4.3.1 LAN Connectors

CN Label:

CN Type:

CN Location:

LAN1 and LAN2

RJ-45

Figure 4-15

See

Table 4-16

CN Pinouts:

The PCIE-Q350 is equipped with two built-in RJ-45 Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the

See

Page 75

PCIE-Q350 PICMG 1.3 CPU Card

connector indicating the status of LAN. The pin assignments are listed in the following table:

PIN DESCRIPTION PIN DESCRIPTION

1 TXA+ 5 TXC-

2 TXA- 6 TXB3 TXB+ 7 TXD+

4 TXC+ 8 TXD-

Table 4-16: LAN Pinouts

Figure 4-16: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yello w. The green LED indicates activity on the port and the yellow LED indicates the port is linked. See

Table 4-17.

STATUS

ORANGE 10/100 LAN YELLOW Linked

GREEN GbE LAN

DESCRIPTION STATUS DESCRIPTION

Table 4-17: RJ-45 Ethernet Connector LEDs

4.3.2 USB Connector

CN Label:

USB_1 and USB_2

Page 76

CN T ype:

CN Location:

USB port

Figure 4-15

See

PCIE-Q350 PICMG 1.3 CPU Card

See

CN Pinouts:

The PCIE-Q350 has four external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices.

PIN NO. DESCRIPTION

1 GND 2 USB_P 4 USB_N 4 USB_5V

Table 4-18: USB Port Pinouts

Table 4-18

4.3.3 VGA Connector

CN Label:

CN Type:

CN Location:

CN Pinouts:

The PCIE-Q350 has a single 15-pin female connector for connectivity to standard display devices.

VGA1

15-pin Female

Figure 4-15

See

Figure 4-17 and Table 4-19

See

Figure 4-17: VGA Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RED 2 GREEN 3 BLUE 4 NC

Page 77

PCIE-Q350 PICMG 1.3 CPU Card

PIN DESCRIPTION PIN DESCRIPTION

5 GND 6 GND

7 GND 8 GND 9 VCC / NC 10 GND

11 NC 12 DDC DAT 13 HSYNC 14 VSYNC

15 DDCCLK

Table 4-19: VGA Connector Pinouts
